Recall: One-Way ANOVA

Recall: One-Way ANOVA. Calculate and check residuals, e ij = O i - E i plot residuals vs treatments normal probability plot Perform ANOVA and determine if there is a difference in the means Identify which means are different using Tukey’s procedure: Model: y ij = μ + α i + ε ij.

badru
Télécharger la présentation

Recall: One-Way ANOVA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Recall: One-Way ANOVA • Calculate and check residuals, eij = Oi - Ei • plot residuals vs treatments • normal probability plot • Perform ANOVA and determine if there is a difference in the means • Identify which means are different using Tukey’s procedure: • Model: yij = μ + αi + εij

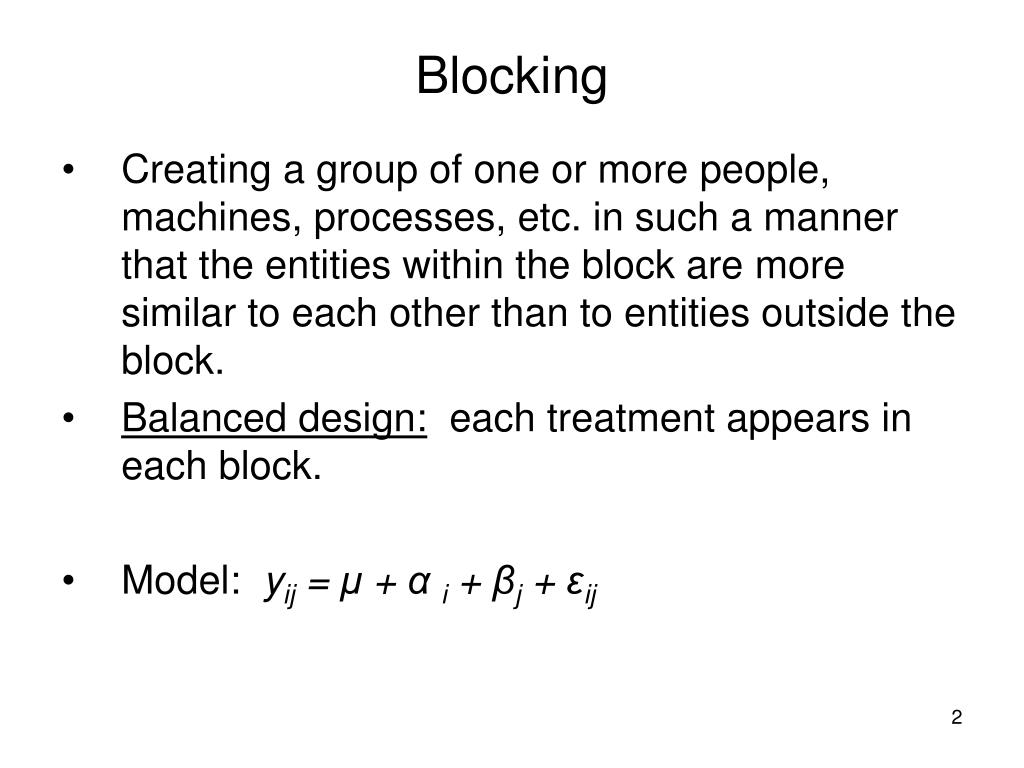

  2. Blocking • Creating a group of one or more people, machines, processes, etc. in such a manner that the entities within the block are more similar to each other than to entities outside the block. • Balanced design: each treatment appears in each block. • Model: yij = μ + αi + βj + εij

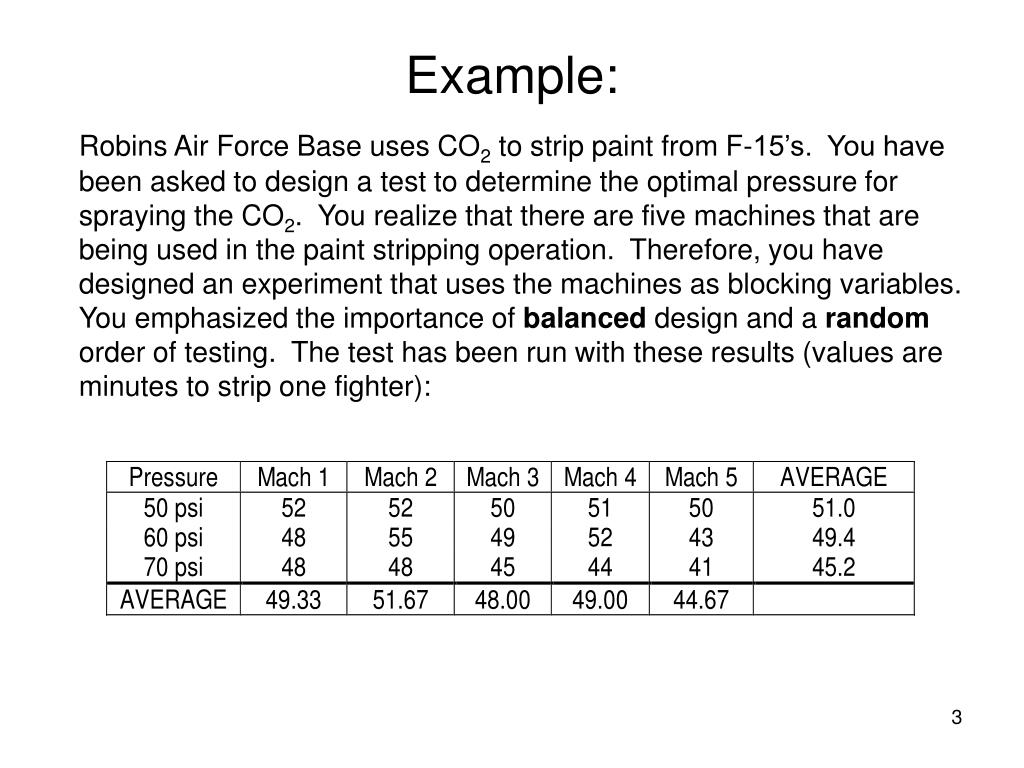

  3. Example: Robins Air Force Base uses CO2 to strip paint from F-15’s. You have been asked to design a test to determine the optimal pressure for spraying the CO2. You realize that there are five machines that are being used in the paint stripping operation. Therefore, you have designed an experiment that uses the machines as blocking variables. You emphasized the importance of balanced design and a random order of testing. The test has been run with these results (values are minutes to strip one fighter):

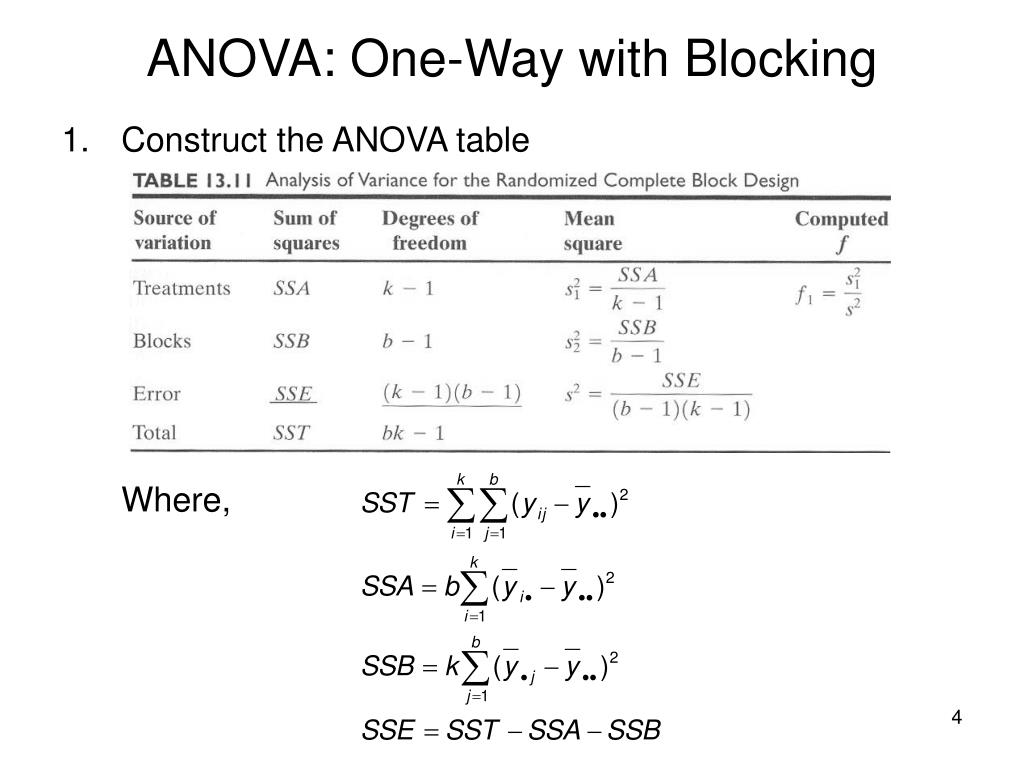

  4. ANOVA: One-Way with Blocking • Construct the ANOVA table Where,

  5. Blocking Example Your turn: fill in the blanks in the following ANOVA table (from Excel): • Make decision and draw conclusions:

  6. Two-Way ANOVA • Blocking is used to keep extraneous factors from masking the effects of the treatments you are interested in studying. • A two-way ANOVA is used when you are interested in determining the effect of two treatments. • Model: yijk = μ + αi + βj + (α β)ijk + εij

  7. Two-Way ANOVA w/ Replication • Your fame as an experimental design expert grows. You have been called in as a consultant to help the Pratt and Whitney plant in Columbus determine the best method of applying the reflective stripe that is used to guide the Automated Guided Vehicles (AGVs) along their path. There are two ways of applying the stripe (paint and coated adhesive tape) and three types of flooring (linoleum and two types of concrete) in the facilities using the AGVs. You have set up two identical “test tracks” on each type of flooring and applied the stripe using the two methods under study. You run 3 replications in random order and count the number of tracking errors per 1000 ft of track. The results are as follows:

  8. Two-Way ANOVA Example • Analysis is the same as with blocking, except we are now concerned with interaction effects

  9. Two-Way ANOVA

  10. Your Turn • Fill in the blanks … • What does this mean?

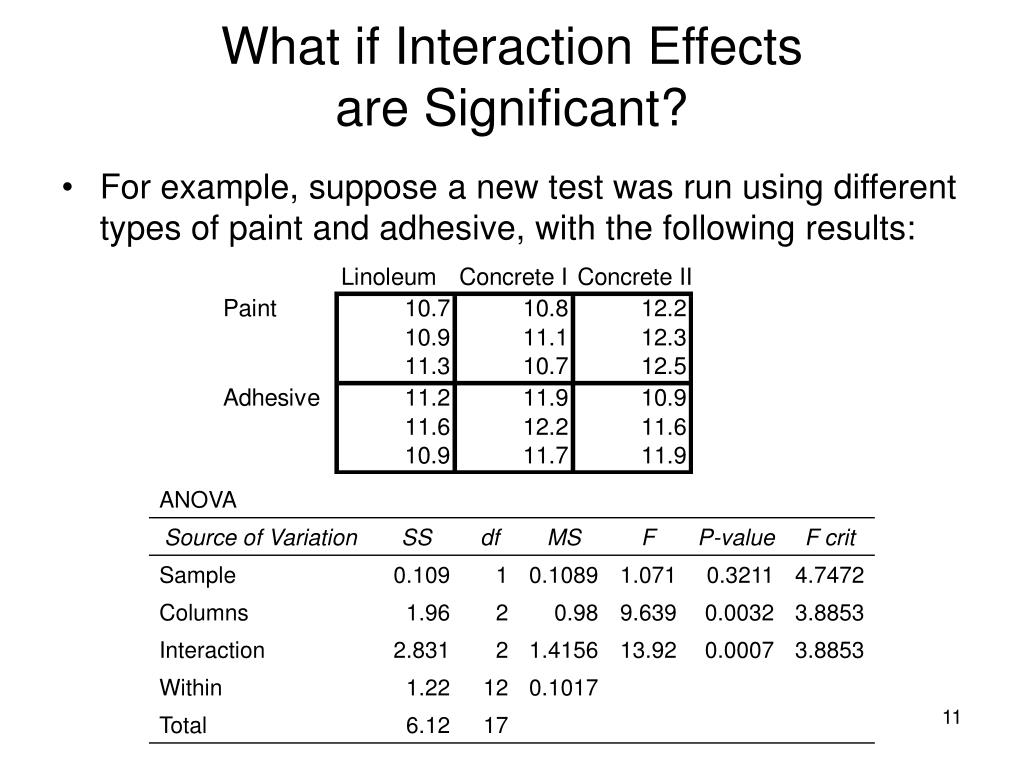

  11. What if Interaction Effects are Significant? • For example, suppose a new test was run using different types of paint and adhesive, with the following results:

  12. Understanding Interaction Effects • Graphical methods: • graph means vs factors • identify where the effect will change the result for one factor based on the value of the other.
