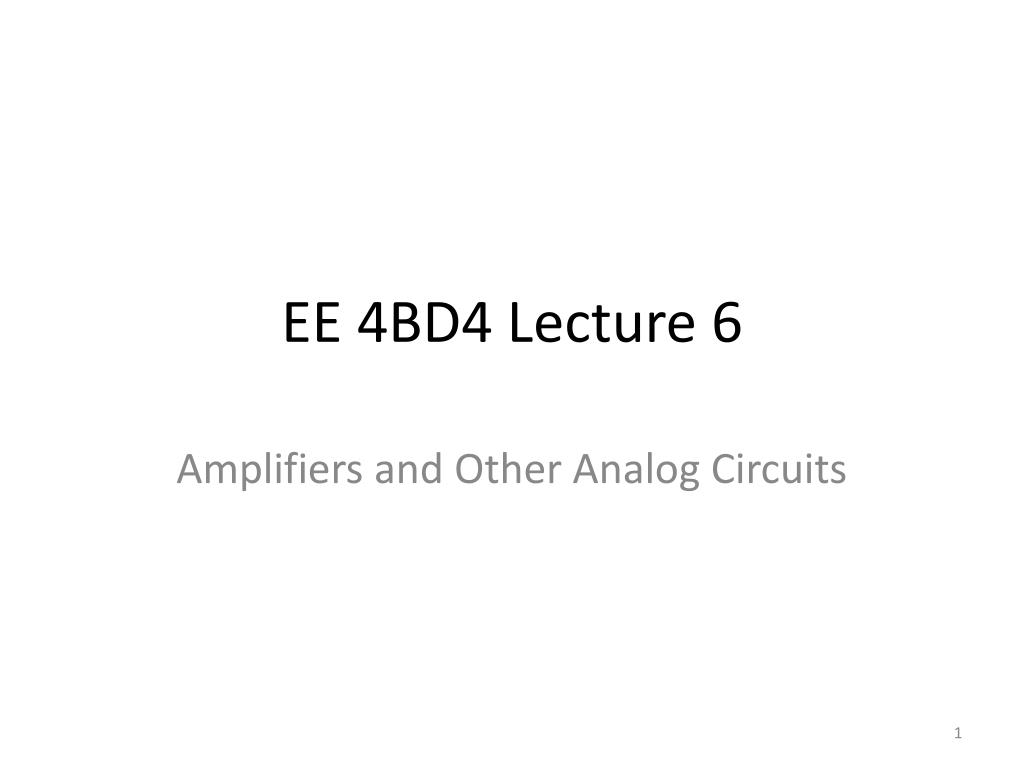

  1. EE 4BD4 Lecture 6 Amplifiers and Other Analog Circuits

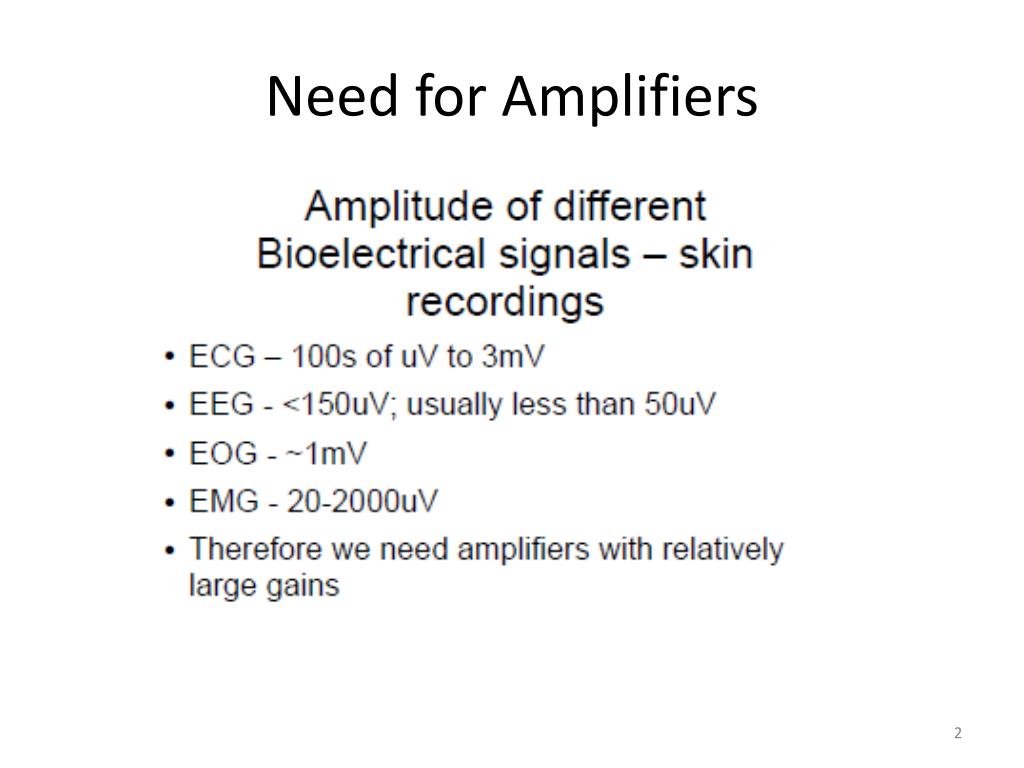

  2. Need for Amplifiers

  3. Operational Amplifiers(Important Specifications) • Input Impedance • Gainbandwidth Product (GBWP) • Unit Gain Frequency Response • Slew Rate • Noise (Referred to Input) • Power Consumption • Offset Voltage • Power Supply Range

  4. Rules for Circuit Design • In the linear operating range voltages at each input terminal are equal • Input impedance at each terminal = ∞

  5. Typical Circuits • Inverting Amplifier • Voltage Follower • Non Inverting Amplifier • Summing Amplifier • Active Filters • Differential Amplifier • Comparator

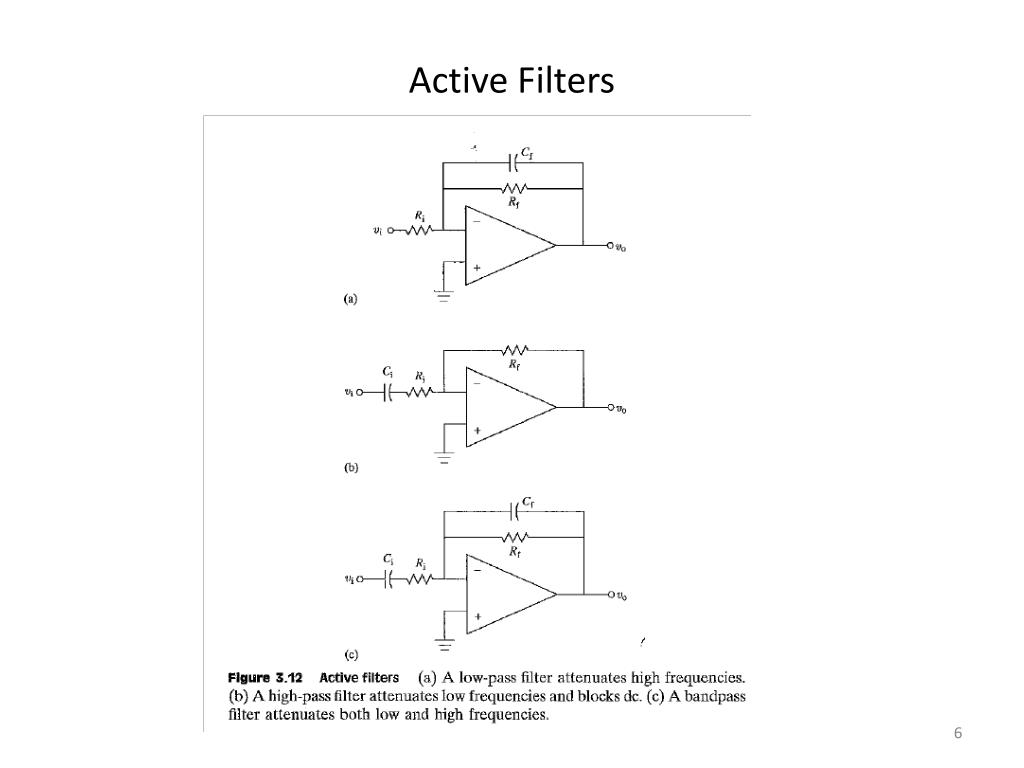

  6. Active Filters

  7. Comparator with Hysteresis

  8. Monolithic Instrumentation Amplifier
