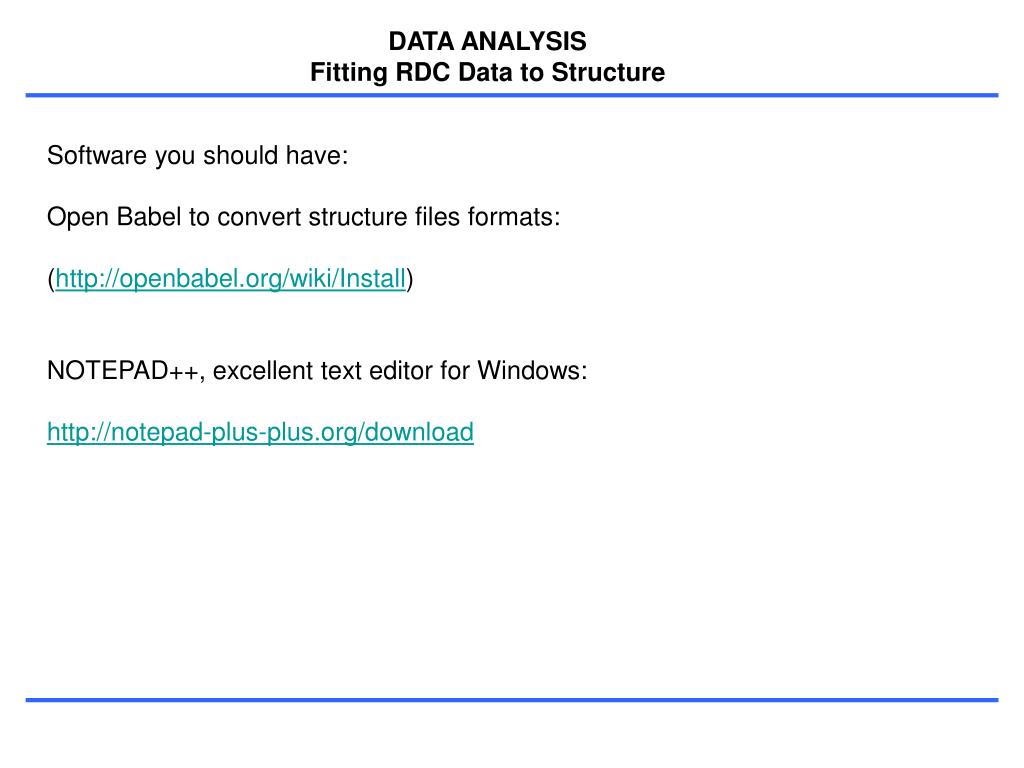

  1. DATA ANALYSIS Fitting RDC Data to Structure Software you should have: Open Babel to convert structure files formats: (http://openbabel.org/wiki/Install) NOTEPAD++, excellent text editor for Windows: http://notepad-plus-plus.org/download

  2. DATA ANALYSIS Fitting RDC Data to Structure Software for performing SVD fitting of structure to RDCs data: MSpin by Armando Navarro-Vazquez, Commercialized by Mestrelab Research, Santiago de Compostela, SPAIN. http://mestrelab.com/software/mspin/ PALES by Markus Zweckstetter, Max Plank Institute for Biophysical Chemistry, Göttingen, GERMANY. http://www.mpibpc.mpg.de/groups/zweckstetter/_links/software_pales.htm

  3. DATA ANALYSIS Fitting RDC Data to Structure In order to fit the data to a set of judicious structures (all the configurational space of your molecule) you need to know more than five independent (non-parallel internuclear vector) RDCs. At least three of them have to be out of the plane. You need a minimun of five RDCs to calculate the alignment tensor (A), but need more than five to perform the fitting using Singular Value Decomposition analysis either with the programs MSpin or PALES. Each fitting will give you a quality factor Q (Cornilescu Q factor - J. Am. Chem. Soc. 1998, 120, 6836-6837). The lower the Q factor the better the fitting. Fitting structures in MSpin is very straightforward. You can use the tutorial from Mestre website. MSpin reads any type of PDB files and also the XYZ format.

  4. On the other side, PALES follows a unique PDB file format. PALES file format The structure file: For Small Molecules, PALES reads a structure file that is an adaptation of the original PDB file format used for proteins. Instead of having N number of residues (e.g. aminoacids), the file represents a single residue (N=1).

  5. PRACTICAL EXAMPLES

  6. LUDARTIN - gastric cytoprotective effect - inhibits the aromatase enzyme - first isolated in 1972 from Artemisia carruthii by Geissman and Griffin as a mixture with it 11,13-dihydroderivative - the stereochemistry displayed in 1 based on the chemical shift and coupling constants of H-6 and on the chemical shift of H-15 • Giordano, O. S.; Guerreiro, E.; Pestchanker, M. J.; Guzman, J.; Pastor, D.; Guardia, T. J. Nat. Prod. 1990, 53, 803-9. • Blanco, J. G.; Gil, R. R.; Alvarez, C. I.; Patrito, L. C.; Genti-Raimondi, S.; Flury, A. FEBS Lett. 1997, 409, 396-400. • - Geissman, T. A.; Griffin, T. S. Phytochemistry 1972, 11, 833-5.

  7. Determination of the Stereochemistry of Ludartin (1) Using Chemical Transformations Sosa, V. E.; Oberti, J. C.; Gil, R. R.; Ruveda, E. A.; Goedken, V. L.; Gutierrez, A. B.; Herz, W. Phytochemistry1989, 28, 1925-9.

  8. H-3 H-3 and CH3-15 27o above and below the plane of the five-membered ring CH3-15 RMS fit and overlay of the 3D structures of ludartin (1) and 3,4-b-epoxy-ludartin (2) using only the heavy atoms belonging to the 5-member and the 7-member rings, and the lactone ring. RMS error: 0.039 Å

  9. PALES Presentation

  10. This is the methylacetamide PDB file created by HyperChem PALES can not read this file. It does not recognize HETATM HETATM 1 C 1 -1.413 -1.626 0.000 HETATM 2 C 2 -1.342 -0.119 0.000 HETATM 3 N 3 -2.536 0.577 -0.000 HETATM 4 C 4 -2.573 2.004 0.000 HETATM 5 O 5 -0.252 0.487 -0.000 HETATM 6 H 6 -0.373 -2.033 -0.000 HETATM 7 H 7 -1.947 -1.993 0.910 HETATM 8 H 8 -1.947 -1.993 -0.910 HETATM 9 H 9 -3.390 0.079 0.000 HETATM 10 H 10 -3.637 2.354 -0.000 HETATM 11 H 11 -2.048 2.408 0.908 HETATM 12 H 12 -2.048 2.408 -0.908 CONECT 1 2 6 7 8 CONECT 2 1 3 5 CONECT 3 2 4 9 CONECT 4 3 10 11 12 CONECT 5 2 CONECT 6 1 CONECT 7 1 CONECT 8 1 CONECT 9 3 CONECT 10 4 CONECT 11 4 CONECT 12 4 END

  11. Save the structure generate by HyperChem in hin format Convert the hin format to a PDB file using Open Babel

  12. PDB file created by Open Babel from hin file COMPND C:\Users\rgil\SMASH 2010 RDCs Workshop\Methyl Acetamide\methylacetamide.hin AUTHOR GENERATED BY OPEN BABEL 2.2.3 HETATM 1 C LIG 1 -1.413 -1.626 0.000 1.00 0.00 C HETATM 2 C LIG 1 -1.342 -0.119 0.000 1.00 0.00 C HETATM 3 N LIG 1 -2.536 0.577 -0.000 1.00 0.00 N HETATM 4 C LIG 1 -2.573 2.004 0.000 1.00 0.00 C HETATM 5 O LIG 1 -0.252 0.487 -0.000 1.00 0.00 O HETATM 6 H LIG 1 -0.373 -2.033 -0.000 1.00 0.00 H HETATM 7 H LIG 1 -1.947 -1.993 0.910 1.00 0.00 H HETATM 8 H LIG 1 -1.947 -1.993 -0.910 1.00 0.00 H HETATM 9 H LIG 1 -3.390 0.079 0.000 1.00 0.00 H HETATM 10 H LIG 1 -3.637 2.354 -0.000 1.00 0.00 H HETATM 11 H LIG 1 -2.048 2.408 0.908 1.00 0.00 H HETATM 12 H LIG 1 -2.048 2.408 -0.908 1.00 0.00 H CONECT 1 2 6 7 8 CONECT 2 1 3 5 5 CONECT 3 2 4 9 CONECT 4 3 10 11 12 CONECT 5 2 2 CONECT 6 1 CONECT 7 1 CONECT 8 1 CONECT 9 3 CONECT 10 4 CONECT 11 4 CONECT 12 4 MASTER 0 0 0 0 0 0 0 0 12 0 12 0 END The Information inside the blue boxes is not used by PALES. ERASE IT

  13. Edit the file with a good text editor accordingly. I recommend NOTEPAD++ HETATM 1 C LIG 1 -1.413 -1.626 0.000 1.00 0.00 HETATM 2 C LIG 1 -1.342 -0.119 0.000 1.00 0.00 HETATM 3 N LIG 1 -2.536 0.577 -0.000 1.00 0.00 HETATM 4 C LIG 1 -2.573 2.004 0.000 1.00 0.00 HETATM 5 O LIG 1 -0.252 0.487 -0.000 1.00 0.00 HETATM 6 H LIG 1 -0.373 -2.033 -0.000 1.00 0.00 HETATM 7 H LIG 1 -1.947 -1.993 0.910 1.00 0.00 HETATM 8 H LIG 1 -1.947 -1.993 -0.910 1.00 0.00 HETATM 9 H LIG 1 -3.390 0.079 0.000 1.00 0.00 HETATM 10 H LIG 1 -3.637 2.354 -0.000 1.00 0.00 HETATM 11 H LIG 1 -2.048 2.408 0.908 1.00 0.00 HETATM 12 H LIG 1 -2.048 2.408 -0.908 1.00 0.00 END PALES is written in C and generally it is very forgiving in terms of format, i.e. it does not care whether you use spaces, tabs, ... However, editors from windows such as NOTEPAD or WORDPAD may intruduce characters that can make the file unreadeable by PALES. This not always the case but it may happen. The only requirement is that the naming convention in the PDB file and the RDC table are identical. In addition, PALES only takes into account lines in the PDB file starting with "ATOM". For the MAC and LINUX versions of the GUI will also include an automatic reformatting step for the PDB file. Then at least in the GUI these problems should not show up.

  14. Edit the file with a good text editor accordingly HETATM 1 C LIG 1 -1.413 -1.626 0.000 1.00 0.00 HETATM 2 C LIG 1 -1.342 -0.119 0.000 1.00 0.00 HETATM 3 N LIG 1 -2.536 0.577 -0.000 1.00 0.00 HETATM 4 C LIG 1 -2.573 2.004 0.000 1.00 0.00 HETATM 5 O LIG 1 -0.252 0.487 -0.000 1.00 0.00 HETATM 6 H LIG 1 -0.373 -2.033 -0.000 1.00 0.00 HETATM 7 H LIG 1 -1.947 -1.993 0.910 1.00 0.00 HETATM 8 H LIG 1 -1.947 -1.993 -0.910 1.00 0.00 HETATM 9 H LIG 1 -3.390 0.079 0.000 1.00 0.00 HETATM 10 H LIG 1 -3.637 2.354 -0.000 1.00 0.00 HETATM 11 H LIG 1 -2.048 2.408 0.908 1.00 0.00 HETATM 12 H LIG 1 -2.048 2.408 -0.908 1.00 0.00 END • Editing: • Replace all HETATM with ATOM • Insert the word TER before END • Add the proper number next to each atom label (C, N, O, H, etc) • See edited file in next slide

  15. Edit the file with a good text editor accordingly ATOM 1 C1 LIG 1 -1.413 -1.626 0.000 1.00 0.00 ATOM 2 C2 LIG 1 -1.342 -0.119 0.000 1.00 0.00 ATOM 3 N3 LIG 1 -2.536 0.577 -0.000 1.00 0.00 ATOM 4 C4 LIG 1 -2.573 2.004 0.000 1.00 0.00 ATOM 5 O5 LIG 1 -0.252 0.487 -0.000 1.00 0.00 ATOM 6 H6 LIG 1 -0.373 -2.033 -0.000 1.00 0.00 ATOM 7 H7 LIG 1 -1.947 -1.993 0.910 1.00 0.00 ATOM 8 H8 LIG 1 -1.947 -1.993 -0.910 1.00 0.00 ATOM 9 H9 LIG 1 -3.390 0.079 0.000 1.00 0.00 ATOM 10 H10 LIG 1 -3.637 2.354 -0.000 1.00 0.00 ATOM 11 H11 LIG 1 -2.048 2.408 0.908 1.00 0.00 ATOM 12 H12 LIG 1 -2.048 2.408 -0.908 1.00 0.00 TER END NOTE: The changes are printed in red Codes uses by the PALES RDC input file See next slide ATOMNAME RESNAME RESID ATOMNAME is the atom number in the structure file RESNAME is a fake name to simulate a residue (e.g. Lys, Ala, etc, in a peptide), LIG in this case, but you can use any name as long as you use de same name in RDCs input table. RESID is the number of the residue in peptide sequence, for a small molecule is just 1.

  16. The RDCs table file in PALES VARS RESID_I RESNAME_I ATOMNAME_I RESID_J RESNAME_J ATOMNAME_J D DD W FORMAT %5d %6s %6s %5d %6s %6s %9.3f %9.3f %.2f 1 LIG C1 1 LIG H6 -6.800 1.000 1.00 1 LIG C1 1 LIG H5 0.800 1.000 1.00 1 LIG C1 1 LIG H8 -25.230 1.000 1.00 1 LIG N3 1 LIG H9 -15.6 1.000 1.00 1 LIG C4 1 LIG H8 -75.5 1.000 1.00 1 LIG C4 1 LIG H10 7.510 1.000 1.00 1 LIG C4 1 LIG H11 -4.530 1.000 1.00 1 LIG C4 1 LIG H12 123.0 1.000 1.00 Experimental Error (Hz) RDCs (Hz)

  17. Fitting data to structure using command line PALES in Windows: To perform an SVD fitting in PALES you have to execute the following command: pales –bestFit –pdb –name.pdb –inD rdc_file.tab –outD output.SVD.file name.pdb is the name of the PDB file rdc_file.tab is the name of the RDC data file The output is very well explained in the PALES documentation or in the Nature Protocols paper (See below). Right now we are only interested on the Q factor. The lower the Q factor the better the SVD fitting. See also: Nature Protocols 2008 3(4) 679-690

  18. PERSPECTIVES

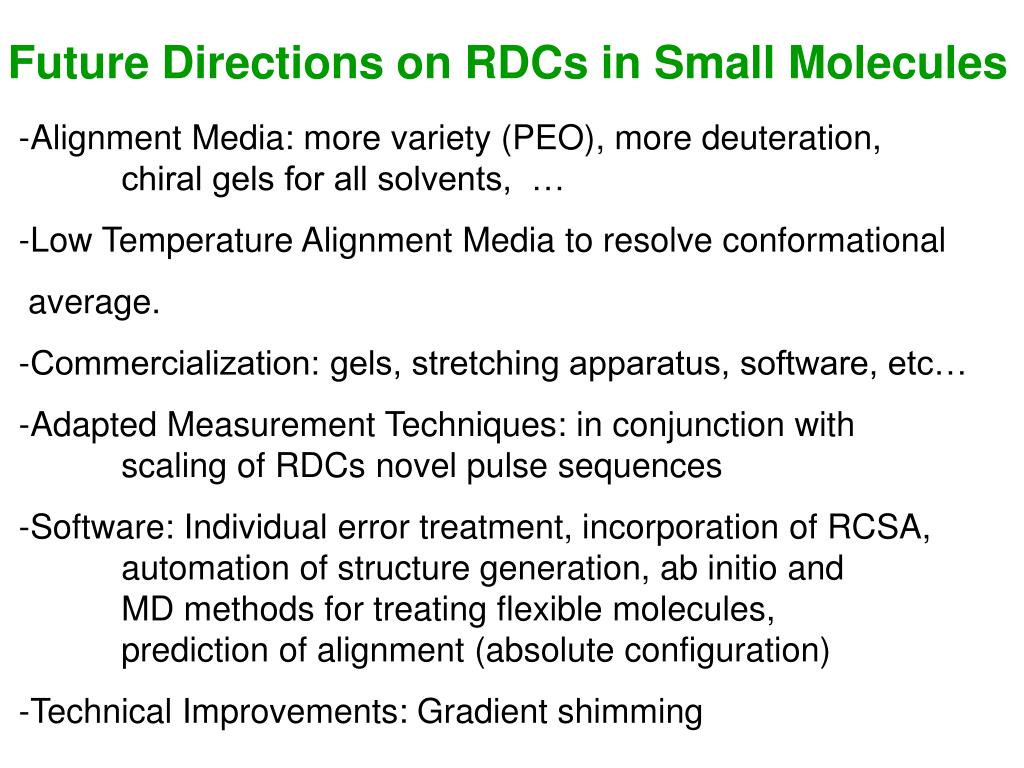

  19. Future Directions on RDCs in Small Molecules • Alignment Media: more variety (PEO), more deuteration, chiral gels for all solvents, … • Low Temperature Alignment Media to resolve conformational • average. • Commercialization: gels, stretching apparatus, software, etc… • Adapted Measurement Techniques: in conjunction with scaling of RDCs novel pulse sequences • Software: Individual error treatment, incorporation of RCSA, automation of structure generation, ab initio and MD methods for treating flexible molecules, prediction of alignment (absolute configuration) • Technical Improvements: Gradient shimming

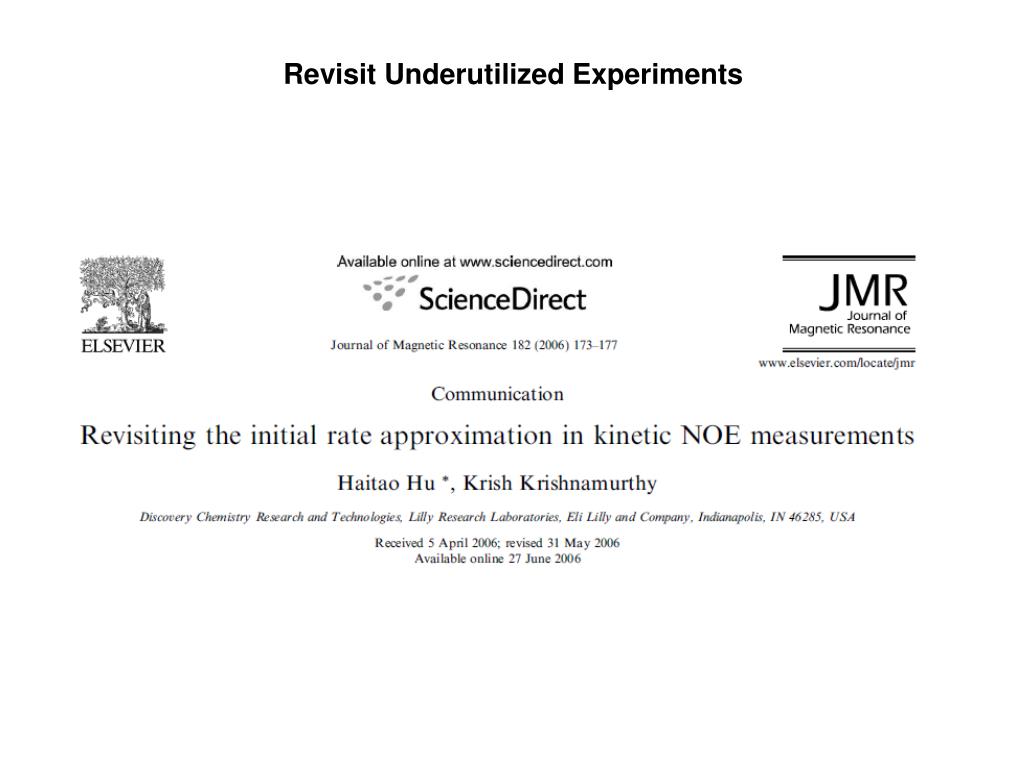

  20. Revisit Underutilized Experiments

  21. Selective 1D NOESY NOE buildup curves of H10 while selectively exciting H4 axial of cortisol (1) in DMSO-d6: (a) the ‘‘raw’’ NOE buildup curve; (b) the NOE buildup curve obtained with PANIC (peak amplitude normalization for improved cross-relaxation)

  22. Series of 1D NOESY Spectra of Ludartin H-3 is selectively excited H-15 H-2a H-2b 600 ms 100 ms Steps of 100 ms NOE  1/r6
