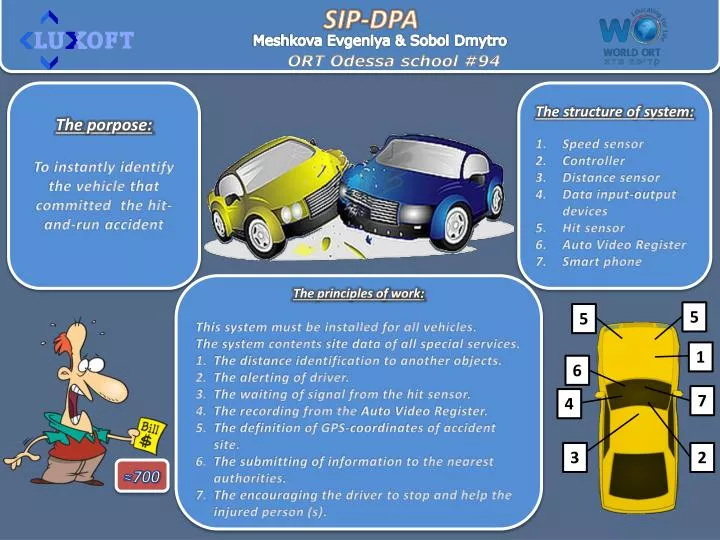

  1. SIP-DPA Meshkova Evgeniya & Sobol Dmytro ORT Odessa school #94 The porpose: To instantlyidentifythe vehiclethatcommitted the hit-and-runaccident The structure of system: Speed sensor Controller Distance sensor Data input-output devices Hit sensor Auto Video Register Smart phone • The principles of work: • This system must beinstalledfor allvehicles. • The system contentssite data ofall special services. • The distance identificationtoanotherobjects. • The alerting of driver. • The waitingof signalfromthe hit sensor. • The recording from the Auto Video Register. • The definition of GPS-coordinates of accident site. • The submitting of information to the nearestauthorities. • The encouraging the driver to stop and help the injured person (s). 5 5 1 6 7 4 3 2 ≈700

  2. Step 1: To identifydistancestoanother objects While vehicle movesahead (the speed sensorhasnon-null data of speed) the distancesensoridentifiesdistanceto another objects.

  3. Step2: To alert driver Ifdistance to anotherobjects was reduced fast – that verbal and visual alerts will appear: “Alert!! The accident is possible!” • Alert!! • The accident is possible!

  4. Step 3: To waitthe hit-sensor signal • Ifsteps 1 and 2werefulfilled andthehit-sensor hasfixeda hitthen gotothe nextstep.

  5. Step 4: To record fromthe Auto Video Register. In case accident (the steps 1-2-3were fulfilled) controller preparesdatafrom the Auto Video Register for the sending to the nearestauthorities.

  6. Step 5: To define of GPS-coordinates of accident site The definition of GPS-coordinates of accident site by smart phonetransmit to the controller. Controller

  7. Step 6: To submitinformation to the nearest authorities The data (the vehicle’ registration number, the recording video fromAuto Video Register, the GPS-coordinates of accident site) submits to the nearest authorities . Controller

  8. Step 7: To encourage the driver to stop and help the injured person (s) The alert messages will output: “Alert – Accident! Please, help the injured person (s)”. • Alert – Accident! Please, help the injured person (s)
