  1. Introduction for Lanbon Intelligent Home Automation System

  2. System Introduction This is not only Video intercom system for buildings/houses, but it's an intelligent equipment.We will get to know it by following: 1 TCP/IPnetwork systeme thernet structure 2 Rich functions are integrated e.g A/V intercom,secuirty&defence 3 Powerful function for home automation control 4 Can extend the functions based on customer‘s requirement.

  3. TCP/IP network • It's different compared with traditional Video door phone system,our system connect with ethernet, a simple internet cable is all to have a completely video door phone intercome system for residential area,villa area,school,apartment buildings,hotel,office building ect. The installation&maintenance is simple and convenient as you can image.There is no need to rebuild the wire provided that an intranet is already exsit,nowadays the intranet is almost everywhere in the world.You just need to connect network cable to our facilities, this will save a lot of cost for customers at labor/material Router LAN Switch

  4. More easier for villa Two cables from your home exchanger to connect with video indoor phone and outdoor station respectively with power supply,this is all you need to do for a completely video intercom system.You've got the powerful functions!! Please pay attention to the following pages!

  5. Muti-function The muti-function could be realized by the core part of the VDP- CPU(ARM+DSP) and linux operation system.Therefore, the VDP is just intelligent like a computer. • Video Intercom • Security alarm • Remote surveillance, local surveillance • VOIP、E-Album、mes- sage and image record • Remote control home ap- pliance via VDP/IE/Mobile

  6. Extending function show on picture The video surviellance camera The window magnetism/ The magnetism alarm Smart ammeter All kinds of security alarm Smart water meter The smart gas meter Indoor Unit Smoke detector Information Service The curtain control The smart switch control Home control The smart socket control

  7. Video Indoor phone/A/V intercom High-rise building Parking lot One outdoor station can support up to 9999pcs or more Video indoor phone. Video indoor phones could support up to 4pcs outdoor station in the same building. The managment center can communicate with every exit if there is a Video indoor phone or outdoor station. Could be A/V intercom or audio only. The cost will be much lower for audio only. School&office building Villa Digital Intelligent Equipment One outdoor station can support up to 9999pcs or more Video indoor phone. Video indoor phones could support up to 4pcs outdoor station in the same building. In the same villa, could be one outdoor station to one Video indoor phone or several outdoor station to several indoor phone at your choices.

  8. Video door phone/Intercom It's not only a video door phone, it's with powerful functions High definition image and voice Audio&Video recording for visitor Missing call transfer When you are not home,your friends could leave the audio and video message via outdoor station to your Video Indoor Phone,you can check the message through Video Indoor phone and to know who was on the door when you were out. When you are not home,your friends come to visit but you don't want to miss the visit,our system can transfer the calls through outdoor station to your mobile phone through VOIP,so you can communicate with your friends easily 720X480 resolution D1 effect Antisidetone&antiecho A B C

  9. Security&defence alarm The system integrated professional security &defence alarm function, the details as follow: wire/wireless Alarm video recored VOIP alarm Alarm Linkage control 8 defence zones with wire VOIP + ALARM 8 defence zones without wire Once there is an alarm,Video Indoor phone could link the other communicate equipment.e.g:turn on the light,inverse lock the door ect. Once there is an alarm,Video Indoor Phone will call the preset number through VOIP for attention. Emergency/postphone/24 hours standy by at your choices.muti-defence mode for choose too. Once there is an alarm, the video indoor phone will A/V record the on-site situation automatically. C A B D

  10. Romote surveillance/local surveillance DVR function More powerful is IP camera function,you can monitor your home or any place you want through our Video Indoor phone as long as the Internet is connected. You can also record the situation anytime you want.GSM network is also supported, it means you can monitor through your mobile phone. Internet Up to 3 cameras are allowed to connect with Video Indoor Phone, you can set these 3 cameras at any place you want for your convenient monitoring. You've got more options! you can use built-in camera, external cameras are also allowed. CCD/CMOS-OK,1 camera,2 or 3-OK.

  11. Surveillance IP Camera IP Camera3 IP Camera2 IP Camera1 With our own IP cameras,Video Indoor phones could also check the image of IP camera.

  12. Other rich functions: E-album function, put in your family pictures into the SD card, Video Indoor phone will play it when it is free. VOIP function under SIP protocol, save a lot Tel. cost for users. M1 M2 M4 M3 You can leave the message to your family members when you want to go out, once the family member back home, they can check message timely because of the apparent indication from the video indoor phone. Movie play, you can watch movie through Video indoor phone if you record the movie to the SD card.

  13. Home automation Following is the introduction of home automation through our Video Door Phone Match other home autoatmion products in our company, You can control almost all the home appliances. Image!convenient and enjoyable life is there waiting for you!The following pages are for details.

  14. Light/Socket control You can control every single light You can control the light group Muti-scene mode are available visiting hours bed time

  15. Combined scene-mode One button control could be easily realized through the scene mode. e.g: • Dining room light on,study room light off, dining roon curtain open,A/C on 25°C Dinner Time Visiting Hours • Ceiling lamp on,spot light on, bedroom light off,living room curtain open,backgr- oud music play • All the appliances under controlled are turn off. Total Off

  16. Programed control OFF You can set to control any appliance at any postponed time.e.g: Turn off the A/C 3 hours later. ON Every day You can set to turn on the road lamp at 7:00pm for everyday. ON 18：00~7：00 You can set what to do in a certain time when the defence zone is triggered.e.g: Turn on the light when you open the door of living room at night, turn off the light when you open the door of living room in the morning. OFF 7：00~18：00

  17. Enhance the value Application Apparently from the above,the system will easily bring you a intelligent &enjoyable home.If you prepare to install it to a residential area, it will enhance the value of the residential area at greatest extent.If you prepare to install it to your home, you will easily get convenience,enjoyment.

  18. Installation for Video Indoor phone Following is the installation and Specs L24XW16.5XD2 Wall hanging install 1.5M from the ground

  19. Installation for Video Indoor Phone Adjustable angle Put on the table

  20. Installation for outdoor station of villa Wall hanging install 1.5M from the ground at general. L12XW8.7XD2.6 (cm)

  21. Installation for outdoor station of villa L12.5XW8XD3.4(cm) Wall-mounted install1.5M from the ground at general.

  22. Installation for ourdoor station of high-rise building Wall-mounted install 1.5M from the ground at general. L38XW15XD6(cm)

  23. Installation for ourdoor station of high-rise building Wall-mounted install 1.5M from the ground at general. L12XW8.7XD2.6(cm)

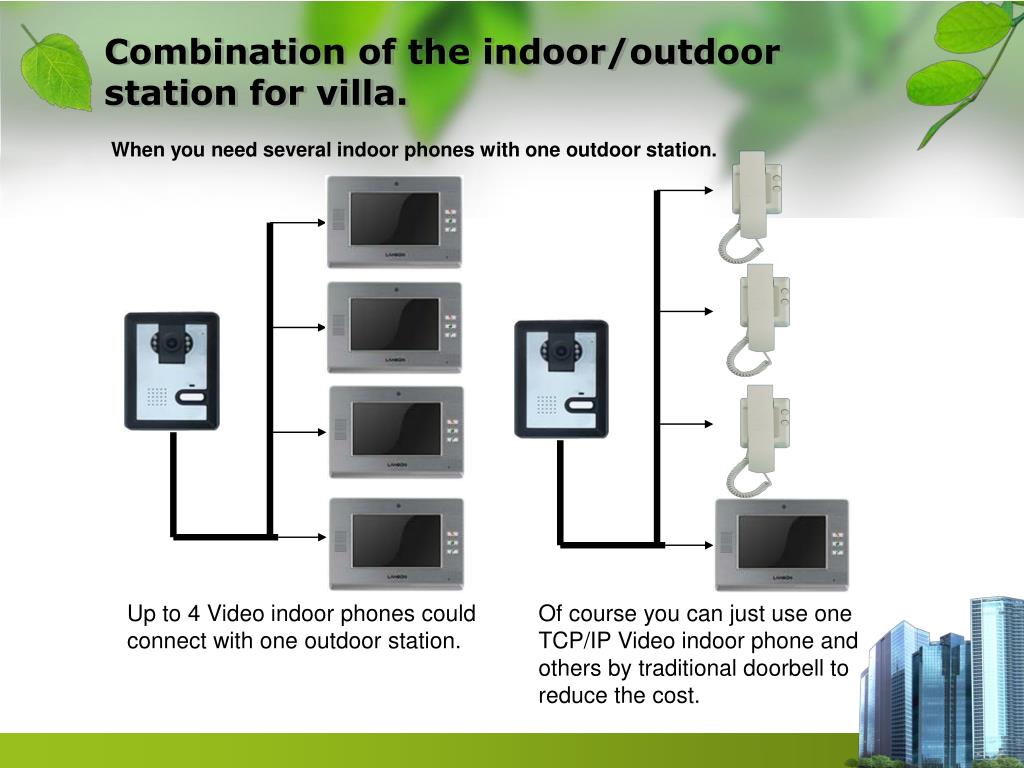

  24. Combination of the indoor/outdoor station for villa. When you need several indoor phones with one outdoor station. Up to 4 Video indoor phones could connect with one outdoor station. Of course you can just use one TCP/IP Video indoor phone and others by traditional doorbell to reduce the cost.

  25. About us Automatically product lines,ISO9001：2000 Certificated, steady quality performance

  26. Contact us Shenzhen Lanbon Hi-Tech Co. Ltd Please look at following website for more detailed information,samples,orders. http://lanbon.en.alibaba.com http://lanbona.en.made-in-china.com TEL：075529407818 FAX：075529407882 P.C：518131 RoomB301 XinMao office building MinFeng Rd Minzhi Str. Bao'an District, Shenzhen China

  27. Thank You! www.lanbon.cn
