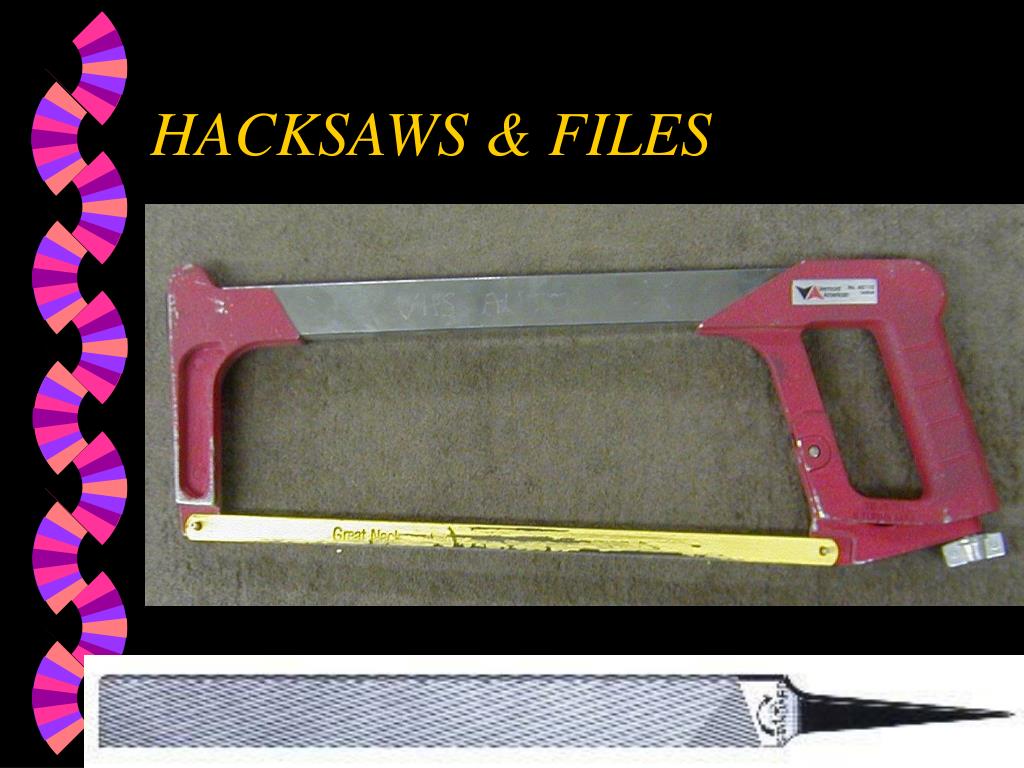

  1. HACKSAWS & FILES

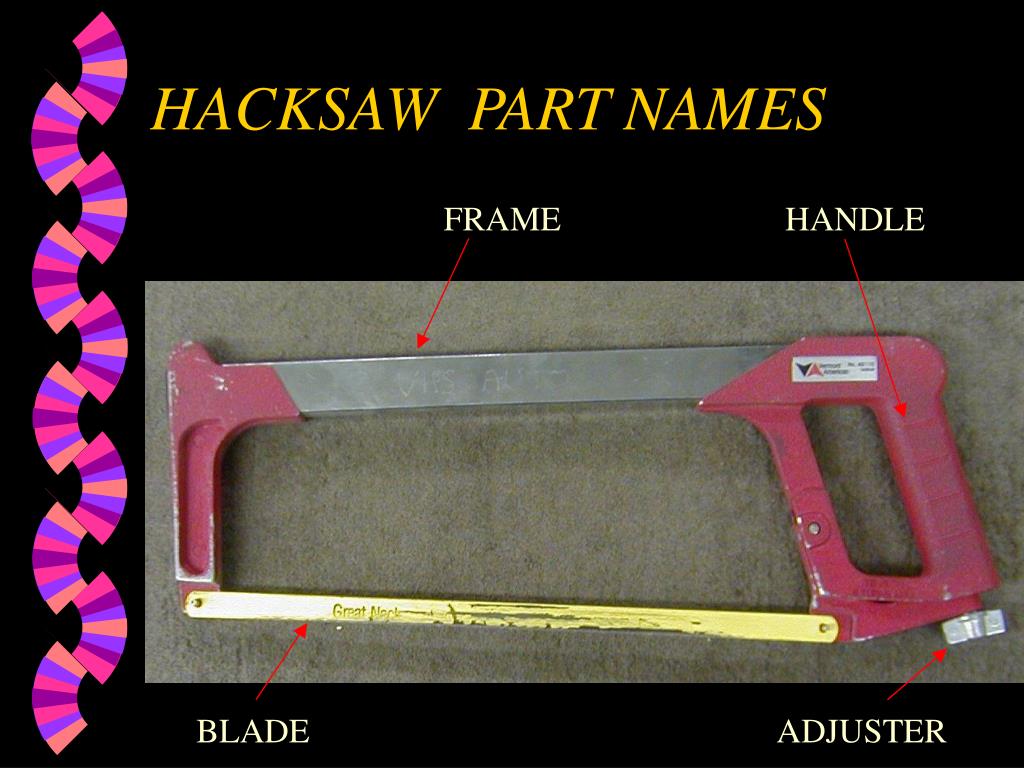

  2. HACKSAW PART NAMES FRAME HANDLE BLADE ADJUSTER

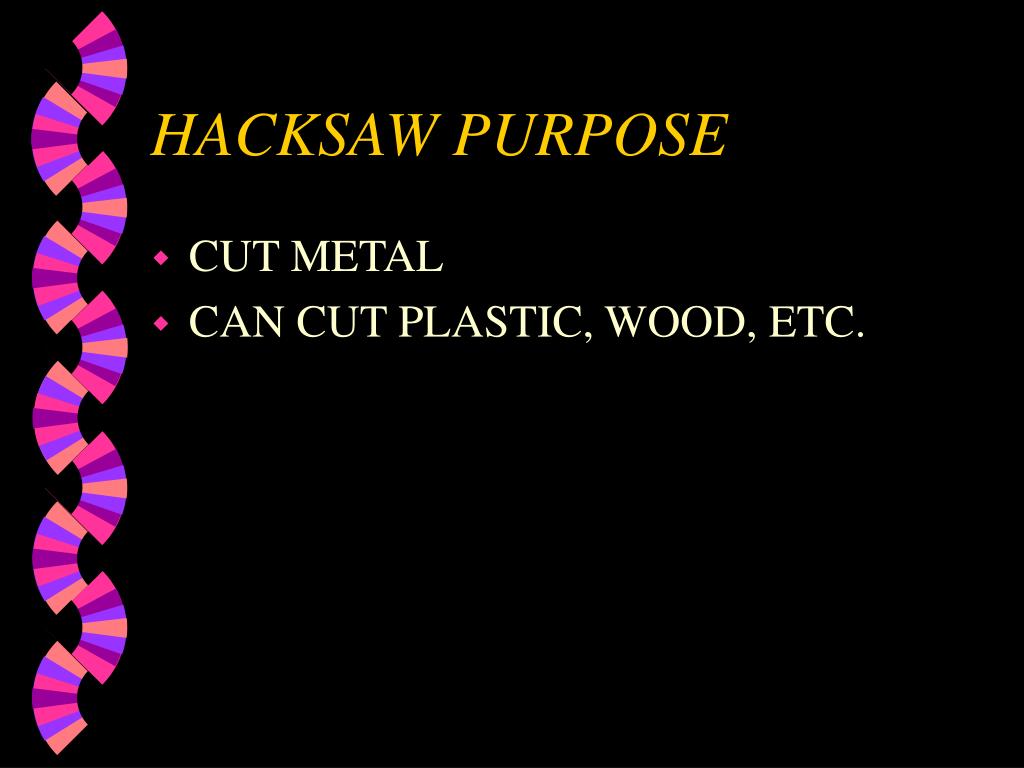

  3. HACKSAW PURPOSE • CUT METAL • CAN CUT PLASTIC, WOOD, ETC.

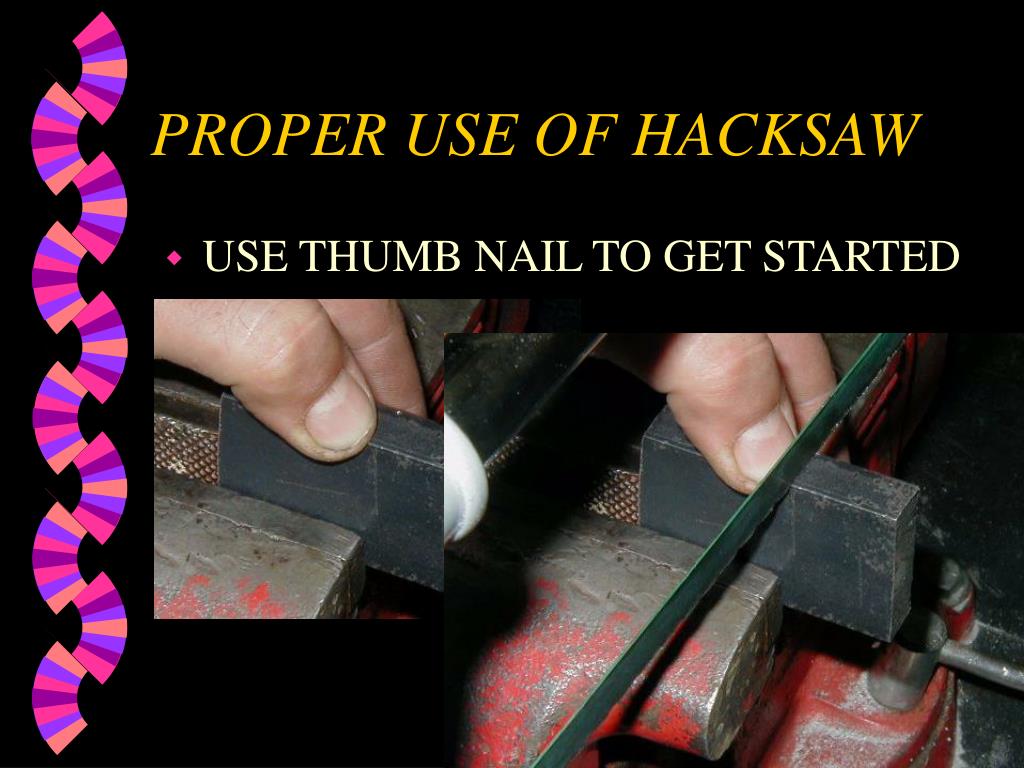

  4. PROPER USE OF HACKSAW • USE THUMB NAIL TO GET STARTED

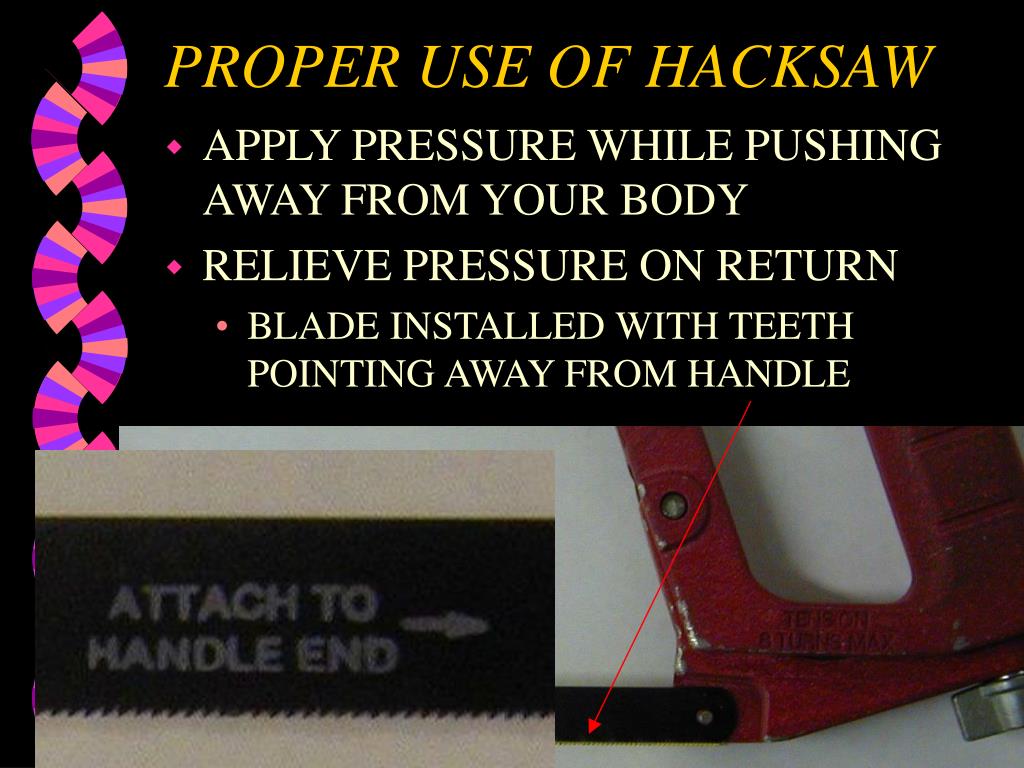

  5. PROPER USE OF HACKSAW • APPLY PRESSURE WHILE PUSHING AWAY FROM YOUR BODY • RELIEVE PRESSURE ON RETURN • BLADE INSTALLED WITH TEETH POINTING AWAY FROM HANDLE

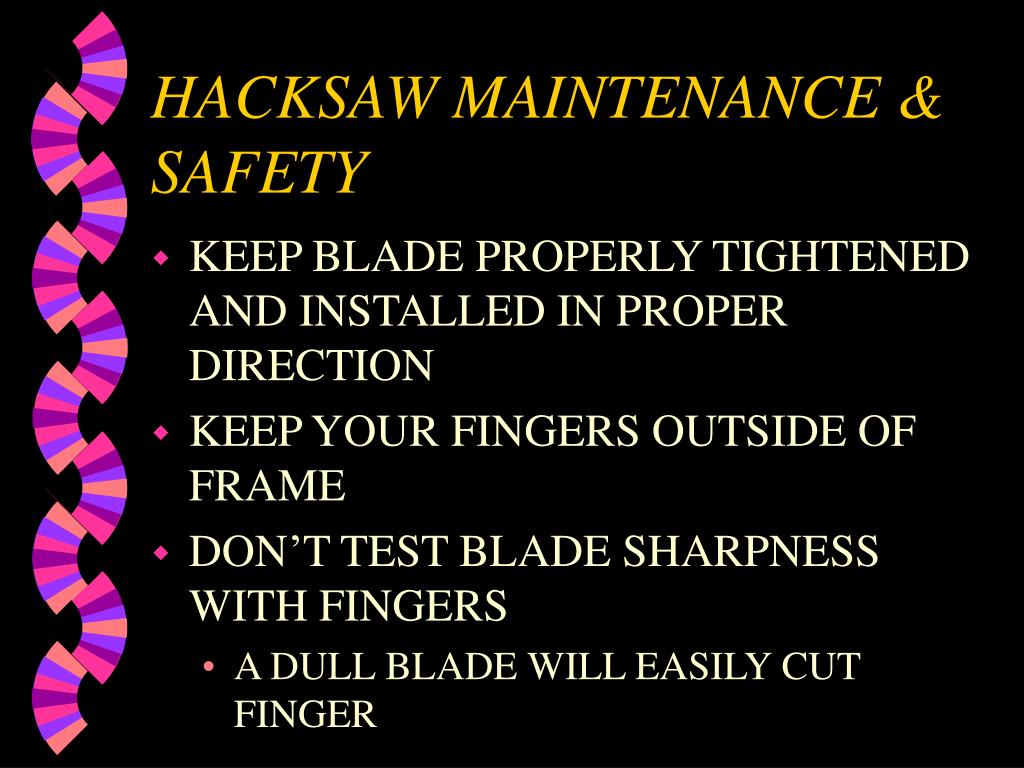

  6. HACKSAW MAINTENANCE & SAFETY • KEEP BLADE PROPERLY TIGHTENED AND INSTALLED IN PROPER DIRECTION • KEEP YOUR FINGERS OUTSIDE OF FRAME • DON’T TEST BLADE SHARPNESS WITH FINGERS • A DULL BLADE WILL EASILY CUT FINGER

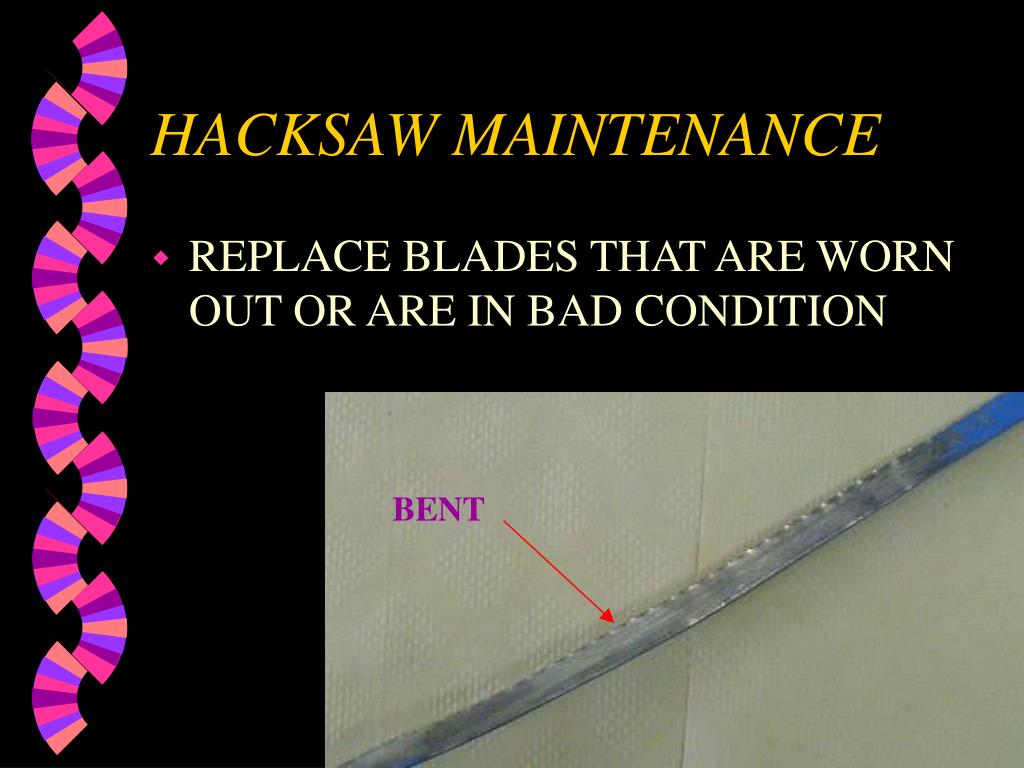

  7. BENT HACKSAW MAINTENANCE • REPLACE BLADES THAT ARE WORN OUT OR ARE IN BAD CONDITION

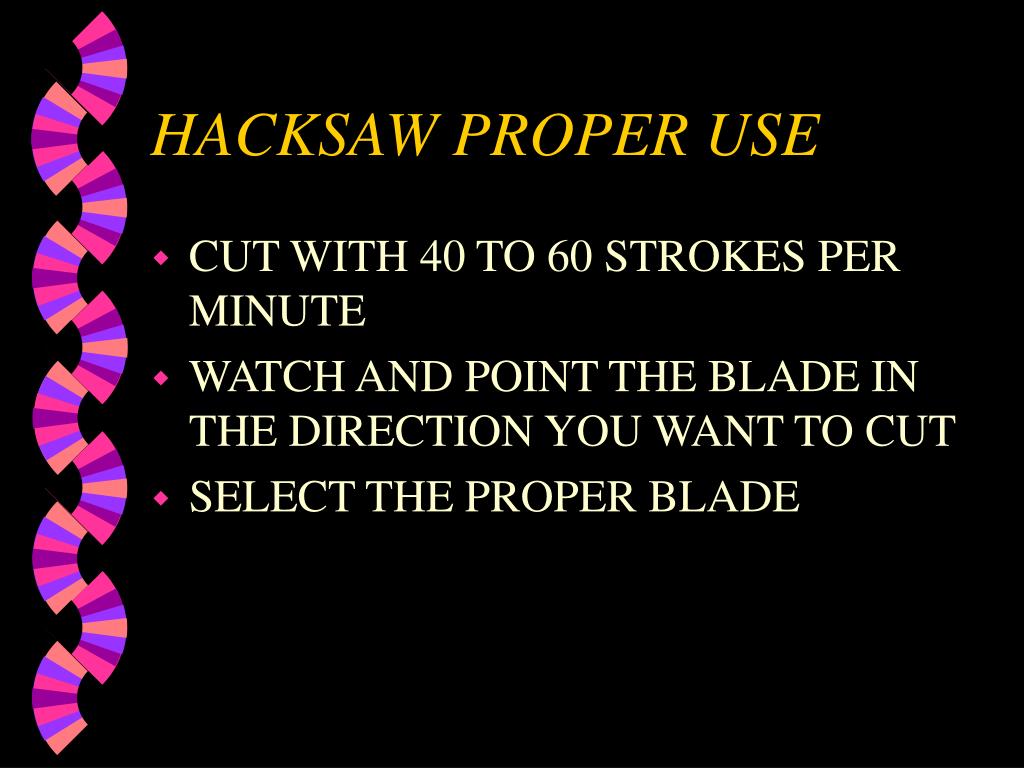

  8. HACKSAW PROPER USE • CUT WITH 40 TO 60 STROKES PER MINUTE • WATCH AND POINT THE BLADE IN THE DIRECTION YOU WANT TO CUT • SELECT THE PROPER BLADE

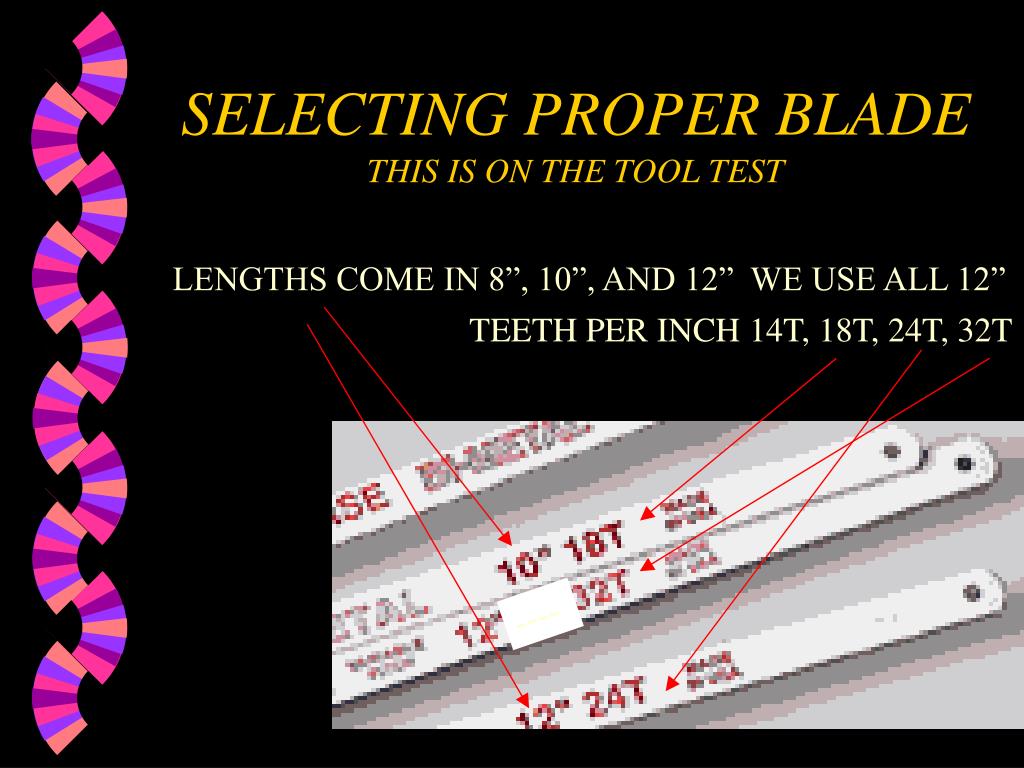

  9. ---- SELECTING PROPER BLADETHIS IS ON THE TOOL TEST LENGTHS COME IN 8”, 10”, AND 12” WE USE ALL 12” TEETH PER INCH 14T, 18T, 24T, 32T

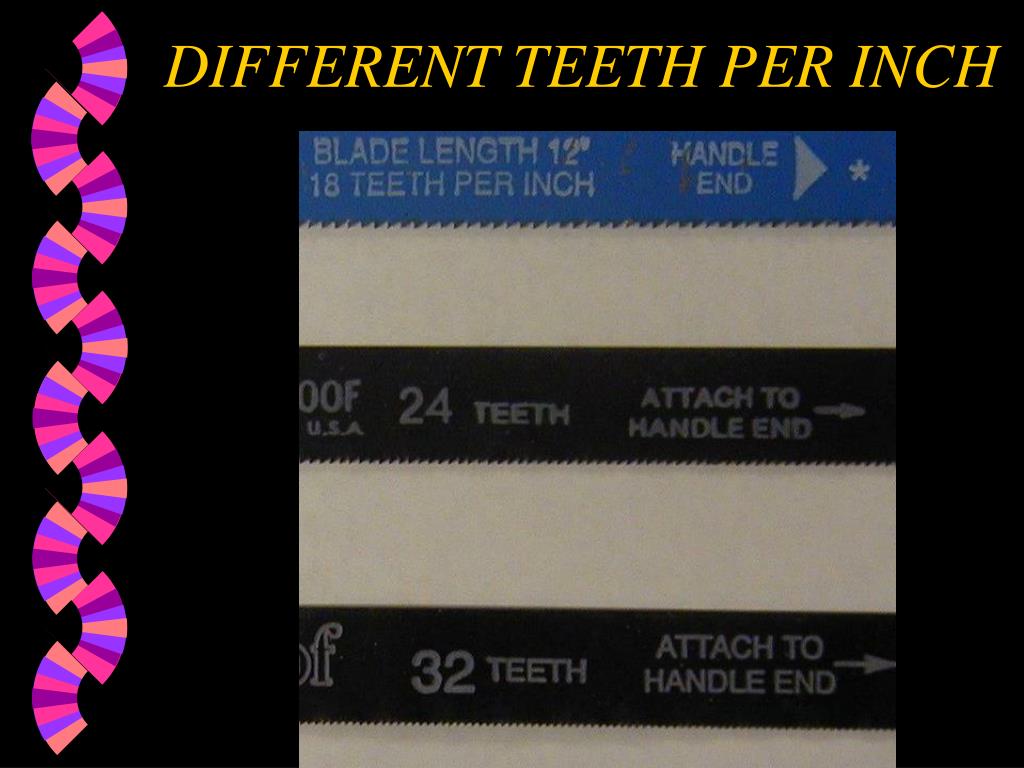

  10. DIFFERENT TEETH PER INCH

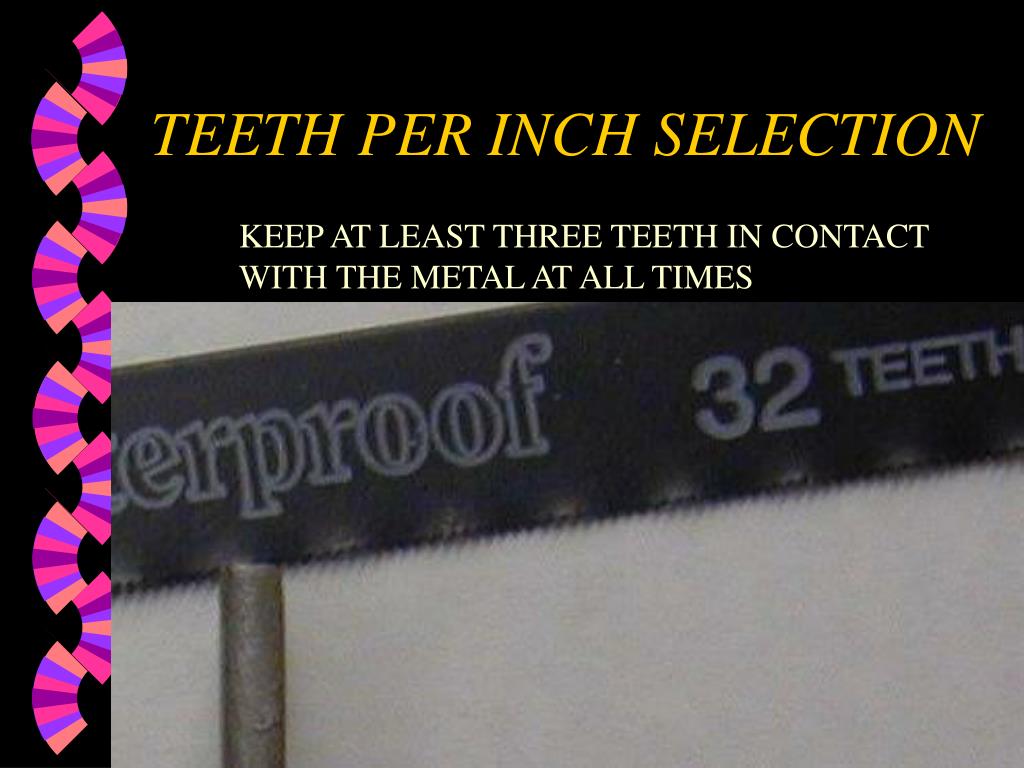

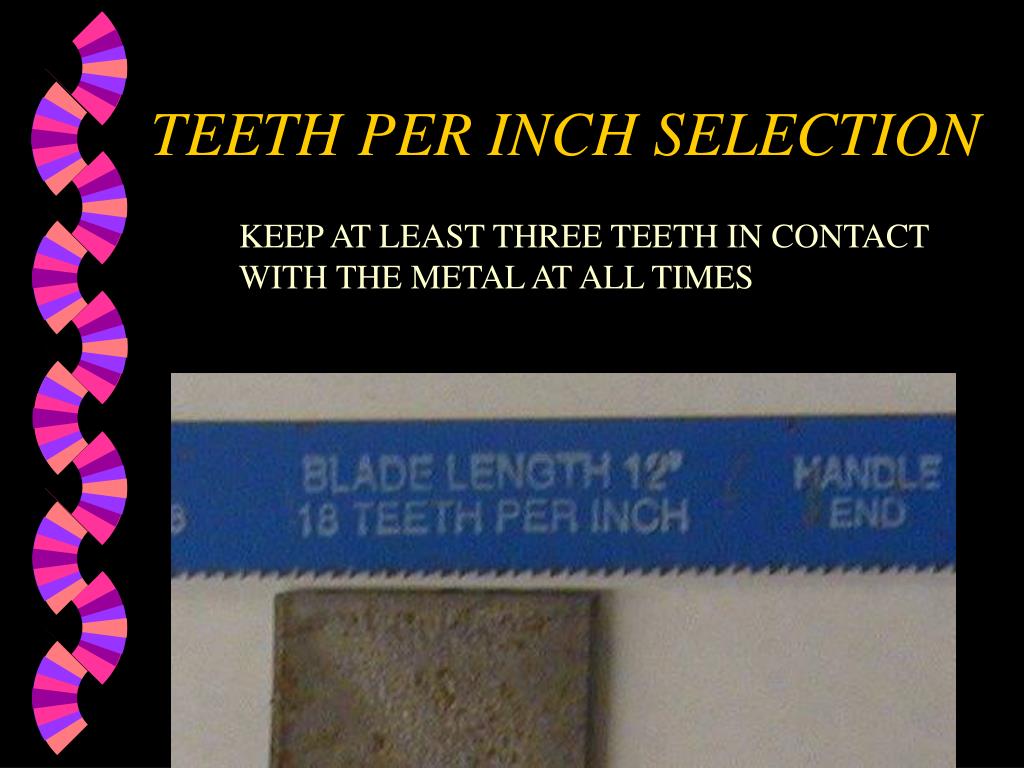

  11. TEETH PER INCH SELECTION KEEP AT LEAST THREE TEETH IN CONTACT WITH THE METAL AT ALL TIMES

  12. TEETH PER INCH SELECTION KEEP AT LEAST THREE TEETH IN CONTACT WITH THE METAL AT ALL TIMES

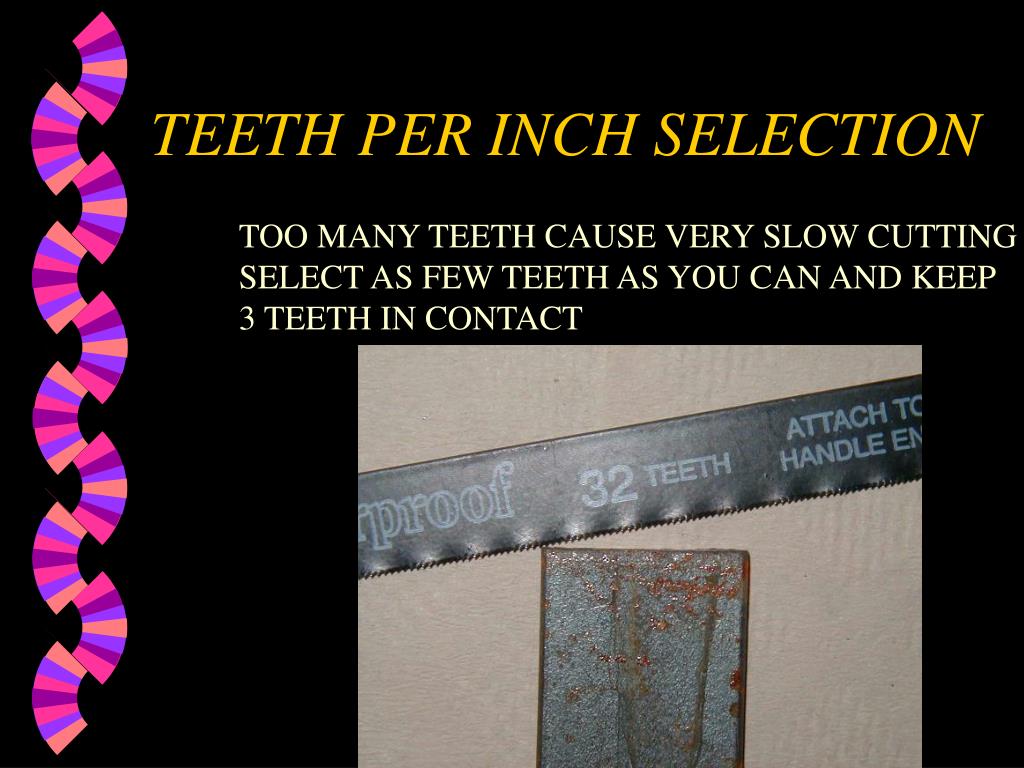

  13. TEETH PER INCH SELECTION TOO MANY TEETH CAUSE VERY SLOW CUTTING SELECT AS FEW TEETH AS YOU CAN AND KEEP 3 TEETH IN CONTACT

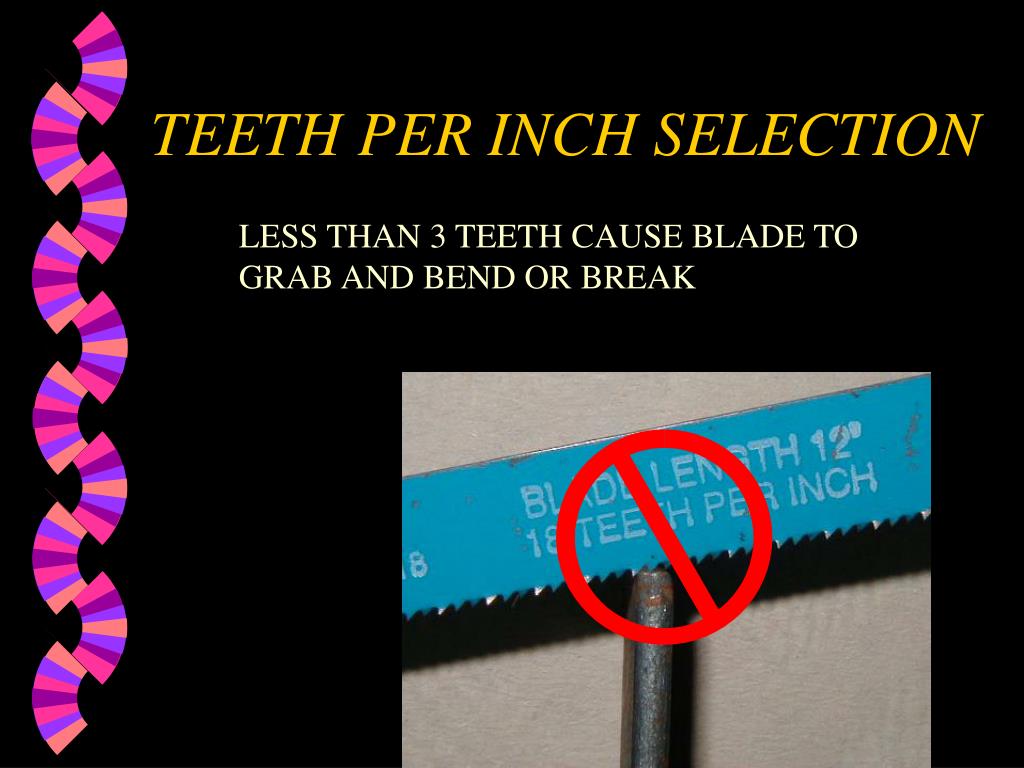

  14. TEETH PER INCH SELECTION LESS THAN 3 TEETH CAUSE BLADE TO GRAB AND BEND OR BREAK

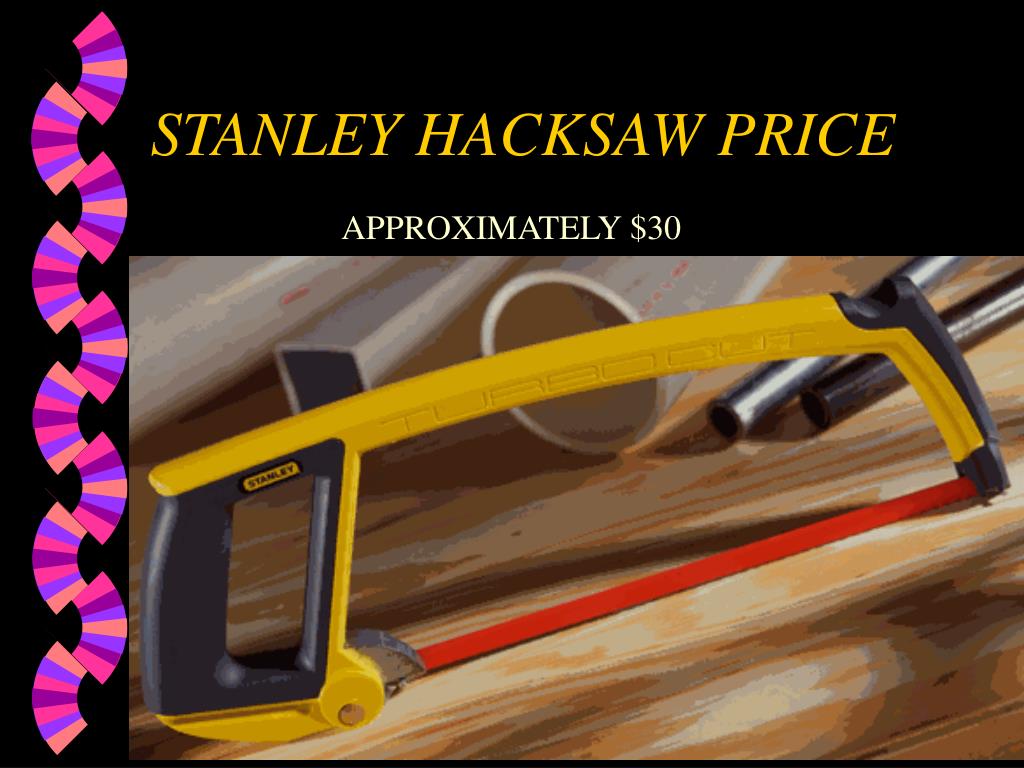

  15. STANLEY HACKSAW PRICE APPROXIMATELY $30

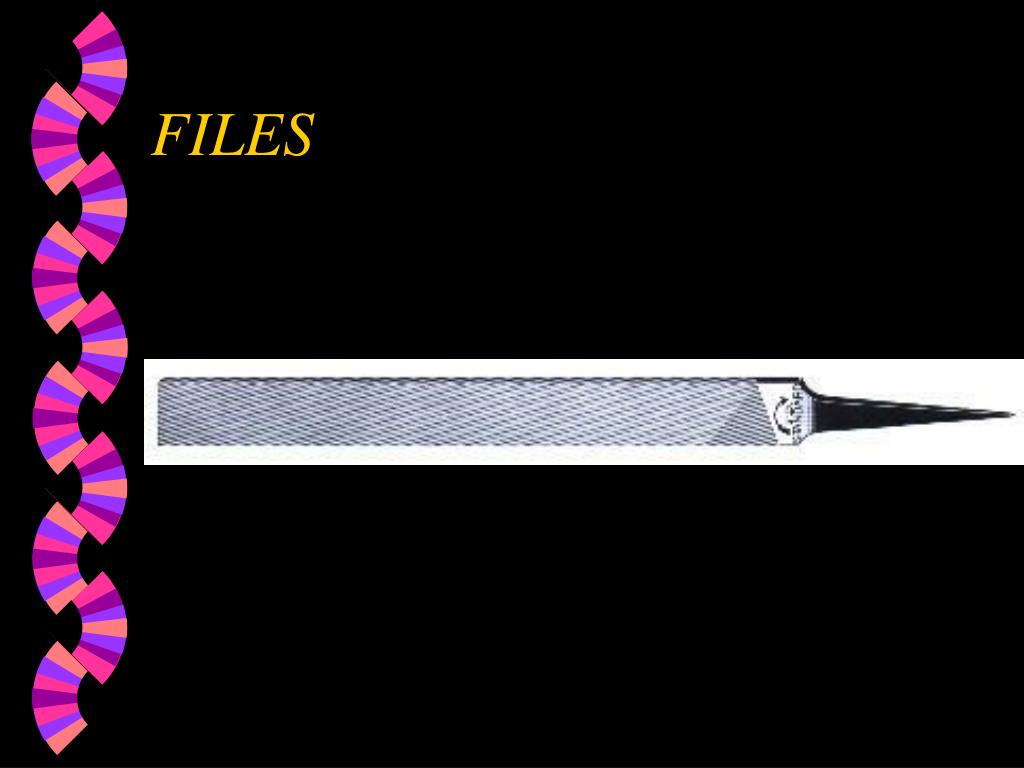

  16. FILES

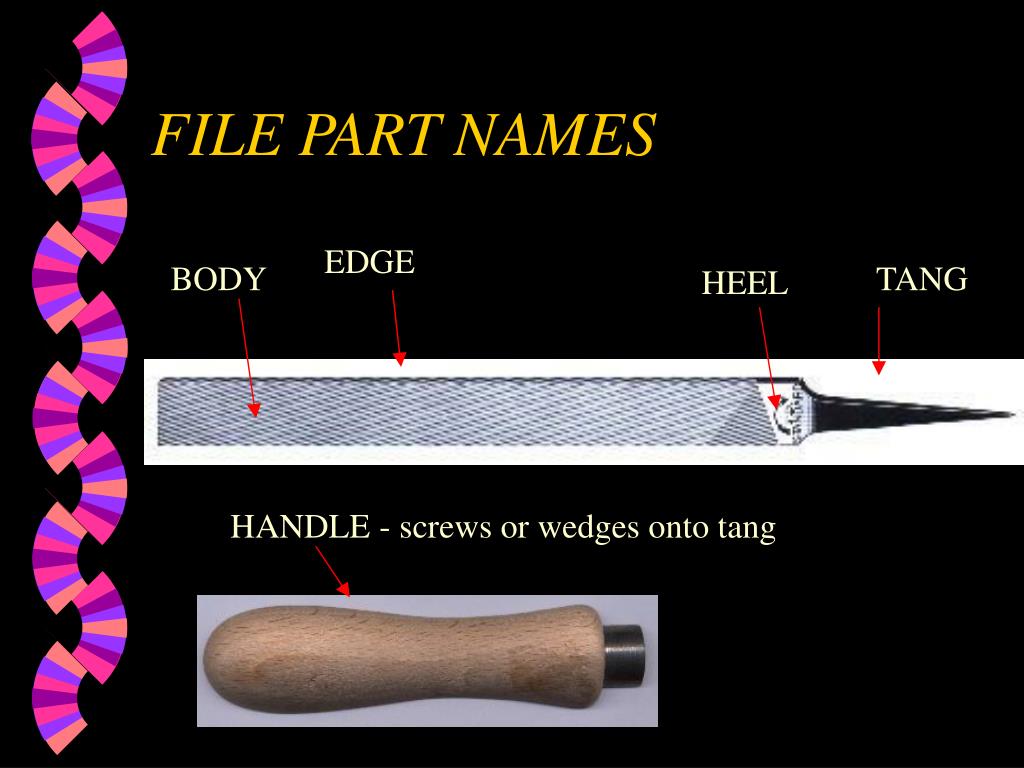

  17. FILE PART NAMES EDGE BODY TANG HEEL HANDLE - screws or wedges onto tang

  18. FILE PURPOSE • USED TO CUT OR SHAPE MATERIAL • USED TO SMOOTH MATERIAL

  19. FILE USE AND SAFETY (ON TOOL TEST) • ALWAYS USE WITH A HANDLE INSTALLED ON THE TANG

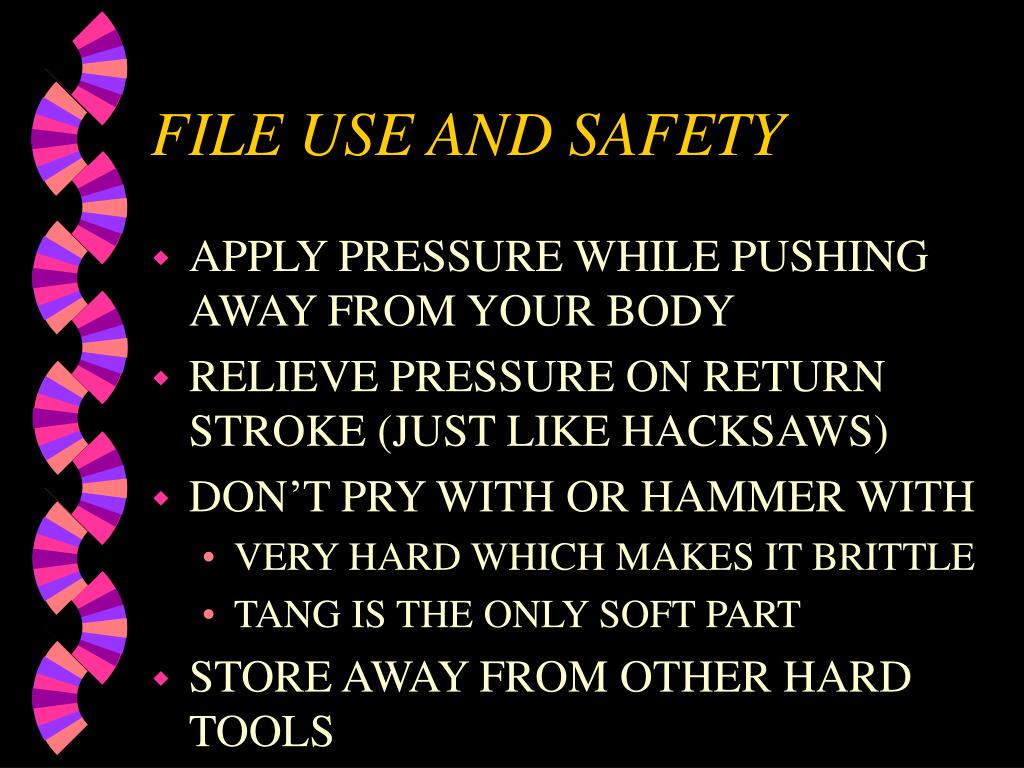

  20. FILE USE AND SAFETY • APPLY PRESSURE WHILE PUSHING AWAY FROM YOUR BODY • RELIEVE PRESSURE ON RETURN STROKE (JUST LIKE HACKSAWS) • DON’T PRY WITH OR HAMMER WITH • VERY HARD WHICH MAKES IT BRITTLE • TANG IS THE ONLY SOFT PART • STORE AWAY FROM OTHER HARD TOOLS

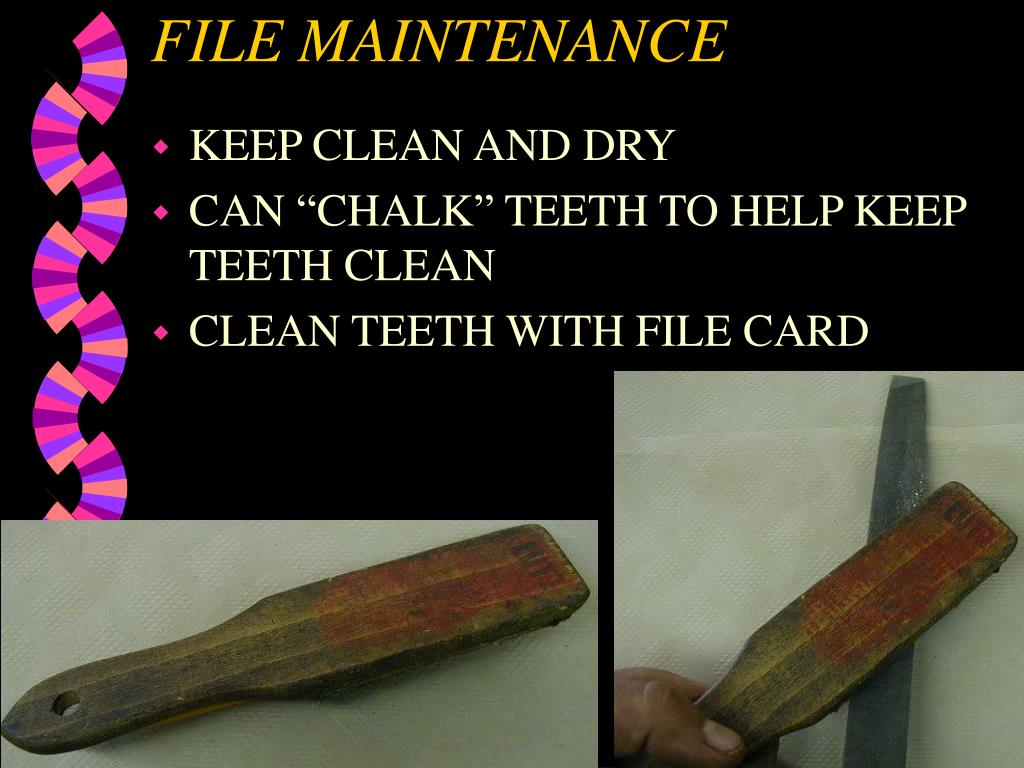

  21. FILE MAINTENANCE • KEEP CLEAN AND DRY • CAN “CHALK” TEETH TO HELP KEEP TEETH CLEAN • CLEAN TEETH WITH FILE CARD

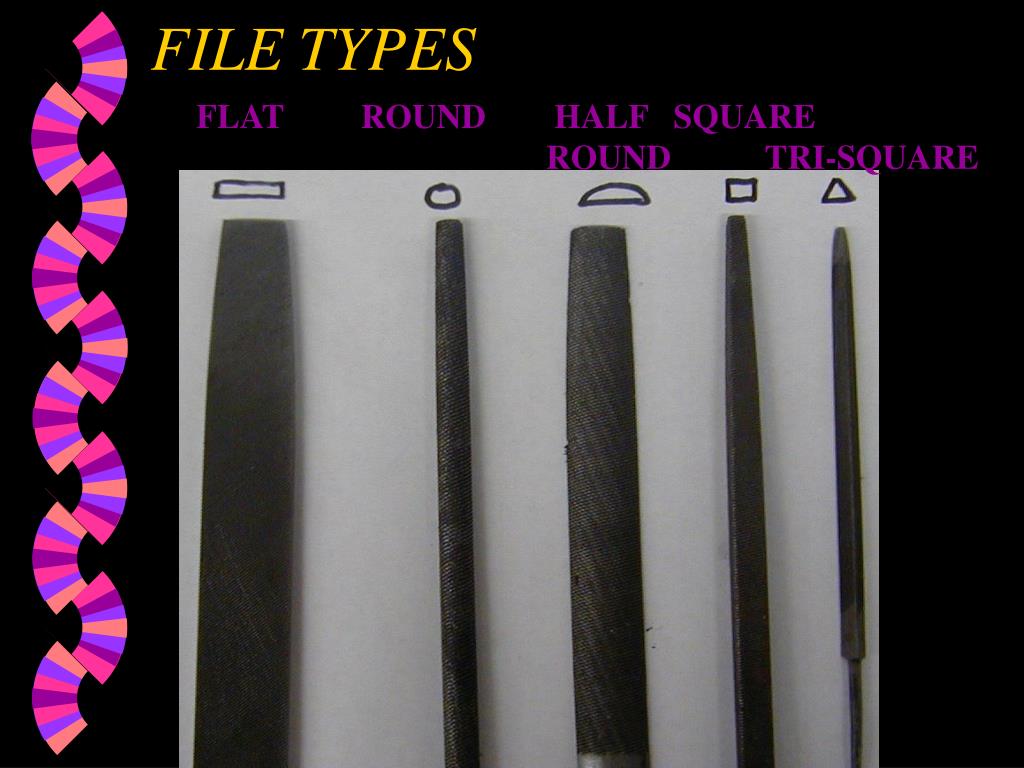

  22. FILE TYPES FLAT ROUND HALF SQUARE ROUND TRI-SQUARE

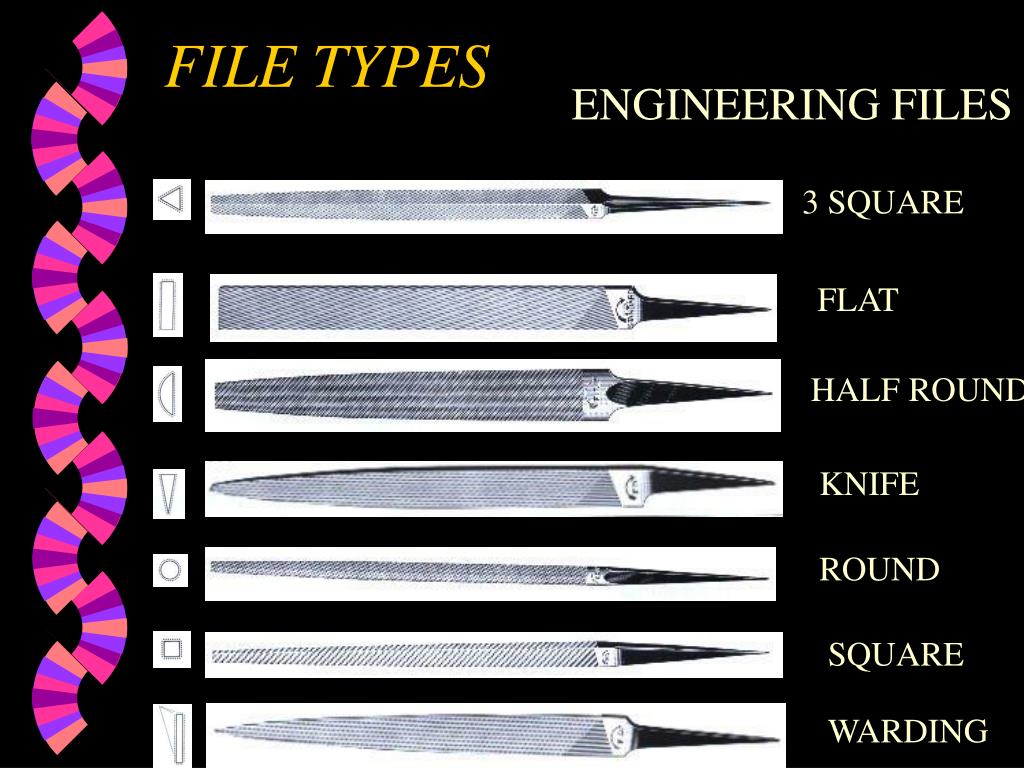

  23. FILE TYPES ENGINEERING FILES 3 SQUARE FLAT HALF ROUND KNIFE ROUND SQUARE WARDING

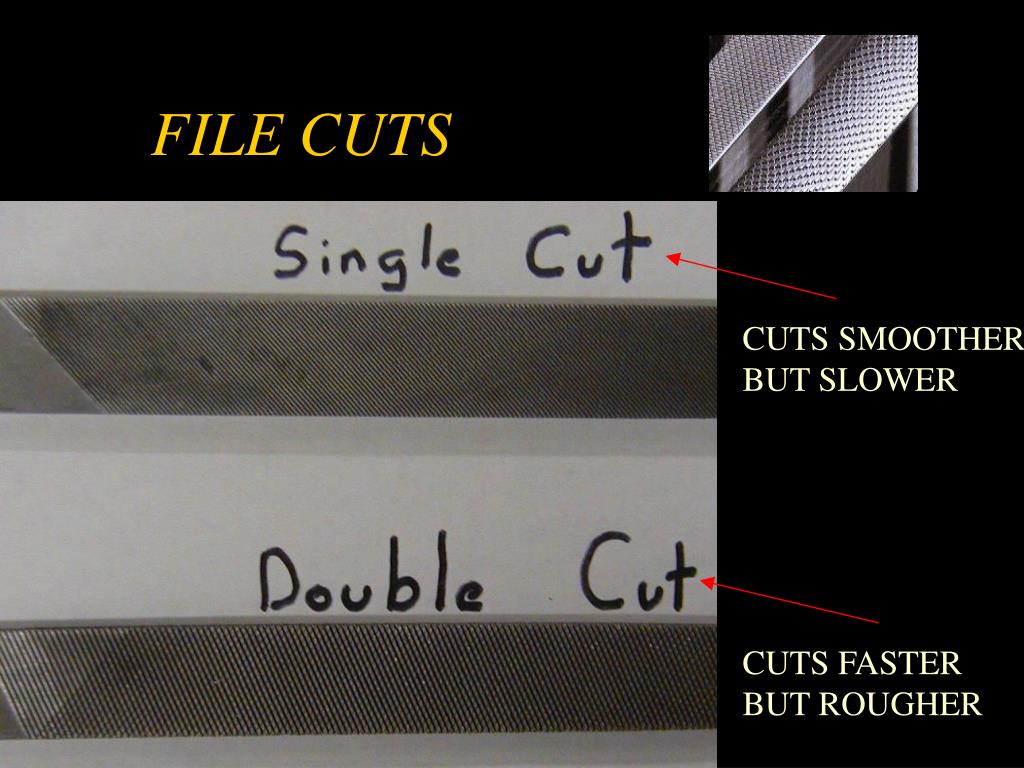

  24. FILE CUTS CUTS SMOOTHER BUT SLOWER CUTS FASTER BUT ROUGHER

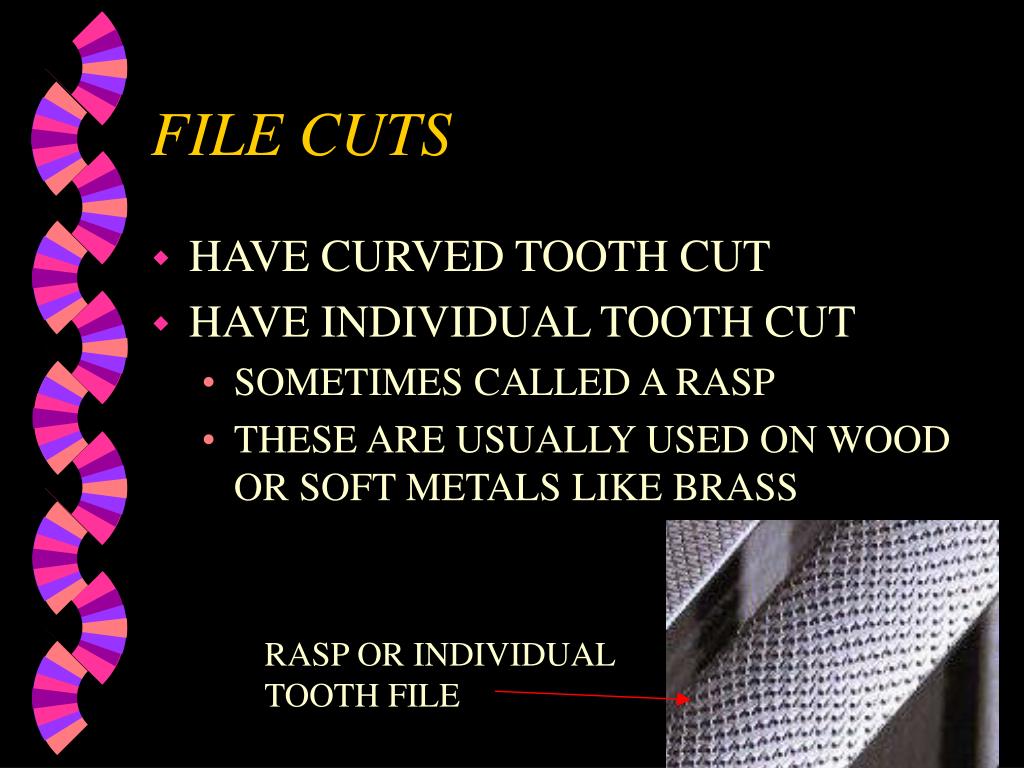

  25. FILE CUTS • HAVE CURVED TOOTH CUT • HAVE INDIVIDUAL TOOTH CUT • SOMETIMES CALLED A RASP • THESE ARE USUALLY USED ON WOOD OR SOFT METALS LIKE BRASS RASP OR INDIVIDUAL TOOTH FILE

  26. FILE VARIATIONS NEEDLE FILE SET RIFFLER RASP SET THREAD RESTORER FILE

  27. HACKSAWS AND FILES QUESTIONS?
