  1. CONTROL FOR HEAT EXCHANGE M. B. JENNINGS CHE 185 FEB 2006

  2. OUTLINE • EXCHANGER DESIGN CONCEPTS • GENERAL CONTROL CONFIGURATION • SPECIFIC TYPES OF PROCESSES • HEAT RECOVERY • REACTORS • DISTILLATION COLUMNS

  3. SINGLE HEAT EXCHANGERS • SHELL & TUBE EXCHANGERS • USED FOR SINGLE PHASE OR TWO PHASE FLOWS • From: http://www.me.wustl.edu/ME/labs/thermal/me372b5.htm

  4. EXCHANGER FLOW PATTERNS • COCURRENT OR COUNTERCURRENT

  5. MULTIPASS EXHANGERS • 1 SHELL- 2 TUBE PASS EXCHANGER • COMBINED COUNTERCURRENT AND COCURRENT FLOW

  6. CORRECTION FACTORS FOR MULTIPASS EXCHANGERS

  7. HEAT EXCHANGE LIMITS • FOR PURE COUNTERCURRENT FLOWS • TEMPERATURE CROSSES ARE NOT POSSIBLE WITH MULTIPASS EXCHANGERS

  8. BASIC CONTROL SCHEMESFOR SINGLE EXCHANGERS -1 FLUID TEMPERING EXCHANGER WITH FEEDBACK CONTROL

  9. BASIC CONTROL SCHEMESFOR SINGLE EXCHANGERS - 2 FLUID TEMPERING EXCHANGER WITH FEEDBACK AND FEEDFORWARD CONTROL

  10. GENERAL BLOCK FLOW DIAGRAM FOR CONTROL LOOP

  11. SPECIFIC BLOCK FLOW DIAGRAM

  12. HEAT RECOVERY SYSTEMS • HEAT RECOVERY FOR A SIMPLE SYSTEM

  13. HEAT RECOVERY WITH FEEDBACK & FEEDFORWARD OPTIONS

  14. REACTOR TEMPERATURE CONTROL WITH JACKET - 1 • FEEDBACK CONTROL BASED ON PRODUCT TEMPERATURE

  15. REACTOR TEMPERATURE CONTROL WITH JACKET - 2 • FEEDFORWARD CONTROL BASED ON JACKET COOLANT INLET TEMPERATURE

  16. REACTOR TEMPERATURE CONTROL - EXTERNAL EXCHANGER

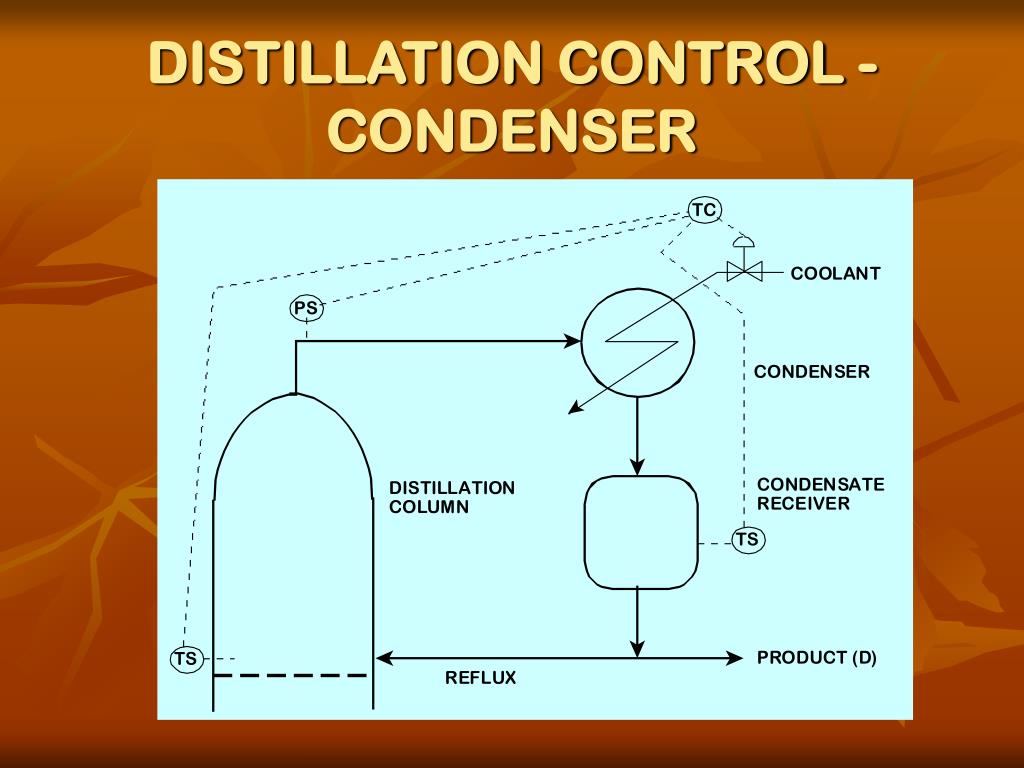

  17. DISTILLATION CONTROL - CONDENSER

  18. DISTILLATION CONTROL - REBOILER

  19. CONCLUSIONS • A FEW TYPES OF CONTROL CONFIGURATIONS CAN BE APPLIED TO A WIDE RANGE OF HEAT EXCHANGE PROCESSES • SPECIFIC TYPES OF UNIT OPERATIONS MAY BE ABLE TO USE MORE COMPLEX HEAT EXCHANGE CONTROL
