  1. XSLT and XHTML Demos for XML.Gov Ken Sall Consulting September 18, 2002 Ken Sall, Principal

  2. Goals • To illustrate how using XHTML and XSLT on XML.Gov can facilitate different views of data (or documents). • To briefly compare/contrast several approaches to XSLT use: • server-side and client-side • browser-specific and cross-browser. • Part of XML.Gov vision: to use XML on site. • "The Medium is the Message" Demo Home Page: http://kensall.com/gov

  3. Non-Goals • Flash and Wow factor. • Demonstrate a wide variety of XSLT capabilities. • Code review. Instead, we'll focus on inputs/outputs and sorting/displaying capabilities, relatively simple ways to increase value of XML.Gov as more and more documents are posted and data is captured.

  4. HTML to Valid XHTML 1.0 • Convert HTML to XHTML using HTML Tidy. • Use W3C HTML Validation Service to identify errors (e.g., tag overlap, missing quotes, deprecated elements and attributes not in XHTML 1.0, etc.). • Fix errors. May take some time but once fixed, maintenance is easy. • Brand with W3C "Valid XHTML 1.0" logo. • Simply click logo after editing to re-validate. Valid XHTML Demo

  5. Sorting Government XML Efforts • Begin with HTML version. • Convert to structured XHTML (e.g., using HTML Tidy). • Use XSLT to extract inner table and sort. • By organization • By name of effort • Added Benefit: Clean up inconsistencies in pathnames (absolute vs. relative) which can be detected and adjusted using XSLT. Efforts Sort Demo

  6. Government XML Efforts: XHTML

  7. XHTML "mined" to extract tabular data. Links generated from XML using XSLT. Sorting Government XML Efforts

  8. XML WG Participants Sort • Defined DTD describing Working Group participant. Strictly strawman. • Only Name and Organization are required. Other optional elements include: Title, URL, ExtraURL, SpecialInterests, and ContactInfo. • Sort by Name and Organization. • Server-side and client-side transformations. WG Participants Sort Demo

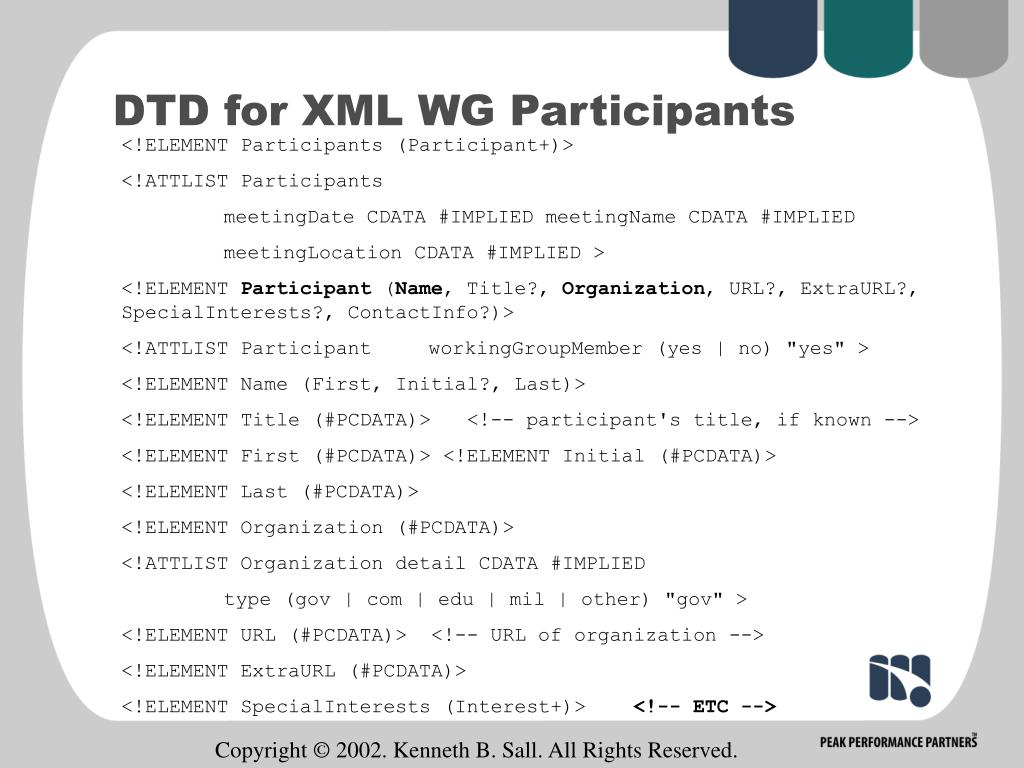

  9. DTD for XML WG Participants <!ELEMENT Participants (Participant+)> <!ATTLIST Participants meetingDate CDATA #IMPLIED meetingName CDATA #IMPLIED meetingLocation CDATA #IMPLIED > <!ELEMENT Participant (Name, Title?, Organization, URL?, ExtraURL?, SpecialInterests?, ContactInfo?)> <!ATTLIST Participant workingGroupMember (yes | no) "yes" > <!ELEMENT Name (First, Initial?, Last)> <!ELEMENT Title (#PCDATA)> <!-- participant's title, if known --> <!ELEMENT First (#PCDATA)> <!ELEMENT Initial (#PCDATA)> <!ELEMENT Last (#PCDATA)> <!ELEMENT Organization (#PCDATA)> <!ATTLIST Organization detail CDATA #IMPLIED type (gov | com | edu | mil | other) "gov" > <!ELEMENT URL (#PCDATA)> <!-- URL of organization --> <!ELEMENT ExtraURL (#PCDATA)> <!ELEMENT SpecialInterests (Interest+)> <!-- ETC -->

  10. Different sorts may extract different numbers of columns, as well as different ordering. XML WG Participants Sort

  11. UPDATED Server-side vs. Client-side • Server-side: XSLT transformations executed on the Web server, either in realtime or at pre-defined time. Browser is sent (X)HTML. • Pro: Works in all browsers since XSLT is server-side. • Con: If done in realtime, heavy server load for popular sites. • Client-side: Browser is sent XML which references an XSLT stylesheet. The XSLT transformation is executed by the browser in realtime. • Pro: Lightens server load. • Potential Pro: Multiple sorts (in-place DOM manipulation) without additional server requests. • Con: Built-in XSLT processor required. Only works in IE 5.5+ and NS 6+. DOM manipulation requires latest browsers.

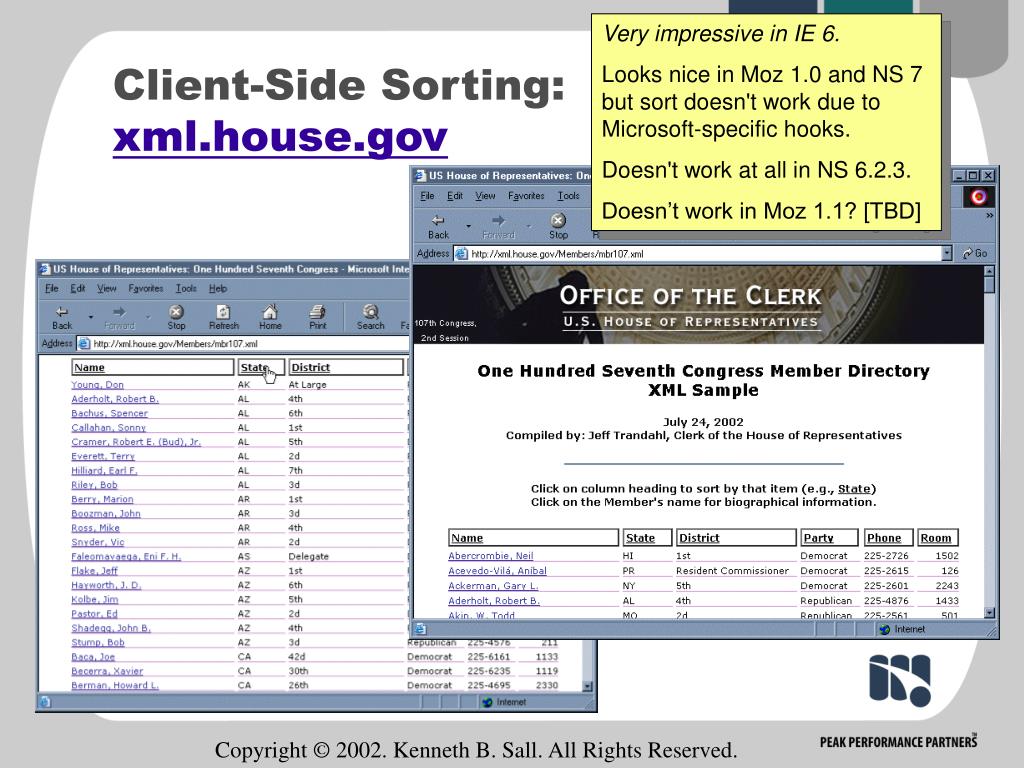

  12. Very impressive in IE 6. Looks nice in Moz 1.0 and NS 7 but sort doesn't work due to Microsoft-specific hooks. Doesn't work at all in NS 6.2.3. Doesn’t work in Moz 1.1? [TBD] Client-Side Sorting: xml.house.gov

  13. Client-Side: Browser Detection Accessibility: If browser detection is added, different pages can be served as needed. IE users can experience the in-place sort; NS users can view an alternative.

  14. Client-Side Sorting: IE Only

  15. Client-Side Sorting: JavaScript By Manos Batsis

  16. UPDATED By Manos Batsis Client-Side: Cross-Browser XML API • API that models Microsoft's XMLDocument and XSLDocument so that in-place sorting will work with Netscape 6 & 7 and Mozilla 1.x, as well as in IE. • DOMDocument implementation; emulates IE extensions (i.e., "xml" property, transformNode(), transformNodeToObject(), etc.) in NS/Moz. • Implemented entirely in JavaScript; requires detailed knowledge of IE and NS browser internals. • Developers simply use the JavaScript API. • Under development (XMLHTTP); snapshot demo.

  17. ADDED Cross-Browser XML API By Manos Batsis

  18. Multi-Page Sorting of Brainstorming Ideas • Start with Owen Ambur's HTML table as input. • Convert to XHTML. • Create a simple XML vocabulary (with DTD) to better describe the tabular data. • Convert the XHTML to custom XML using XSLT. • Use one XSLT stylesheet per sort criterion to sort XML data in several ways, displaying the results as HTML. [Next step: re-use] Brainstorming Sort Demo

  19. Brainstorming: Original HTML

  20. Brainstorming: XML Data Rep.

  21. Brainstorming: In XML Spy

  22. Sorting of Brainstorming Ideas

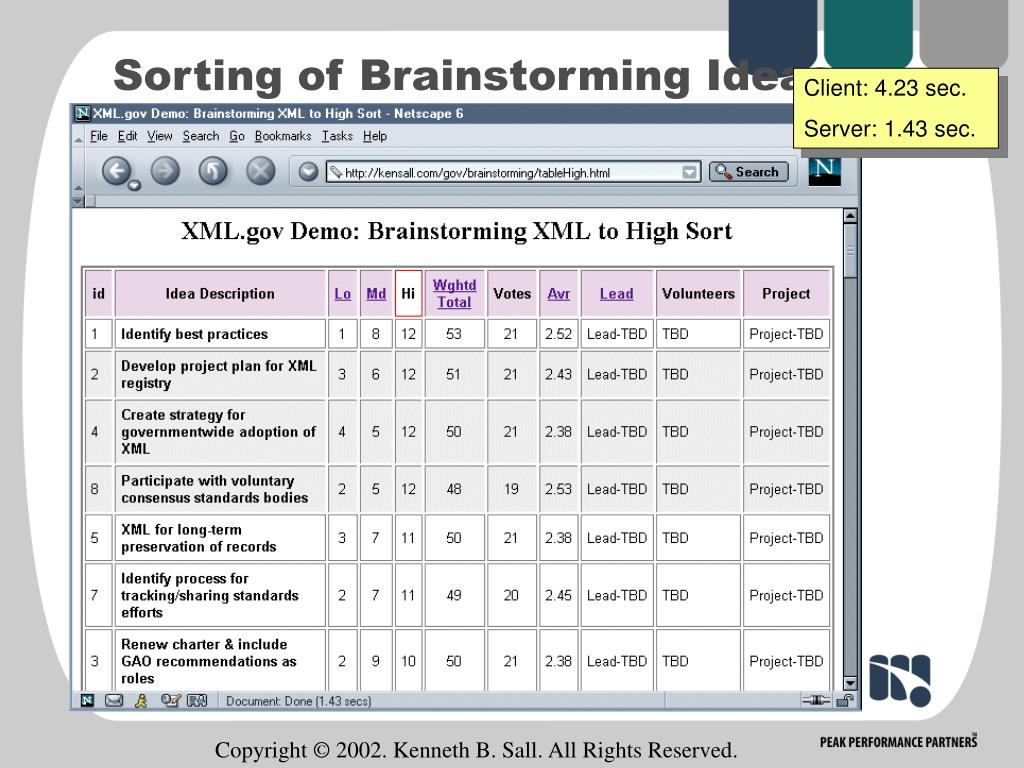

  23. Sorting of Brainstorming Ideas Client: 4.23 sec. Server: 1.43 sec.

  24. Recommendations for XML.Gov • Convert key pages to XHTML to facilitate future transformations (data extraction). Brand with W3C Valid XHTML 1.0 logo. Re-validate after editing. • Consider using HTML editors that support XHTML, Tidy, and validation (e.g., Macromedia HomeSite, XML Spy, etc.). • If data is specialized and/or reusable, write a DTD or XML Schema to describe data, mainly to clarify what information is required, optional, constrained to a certain data type, etc.

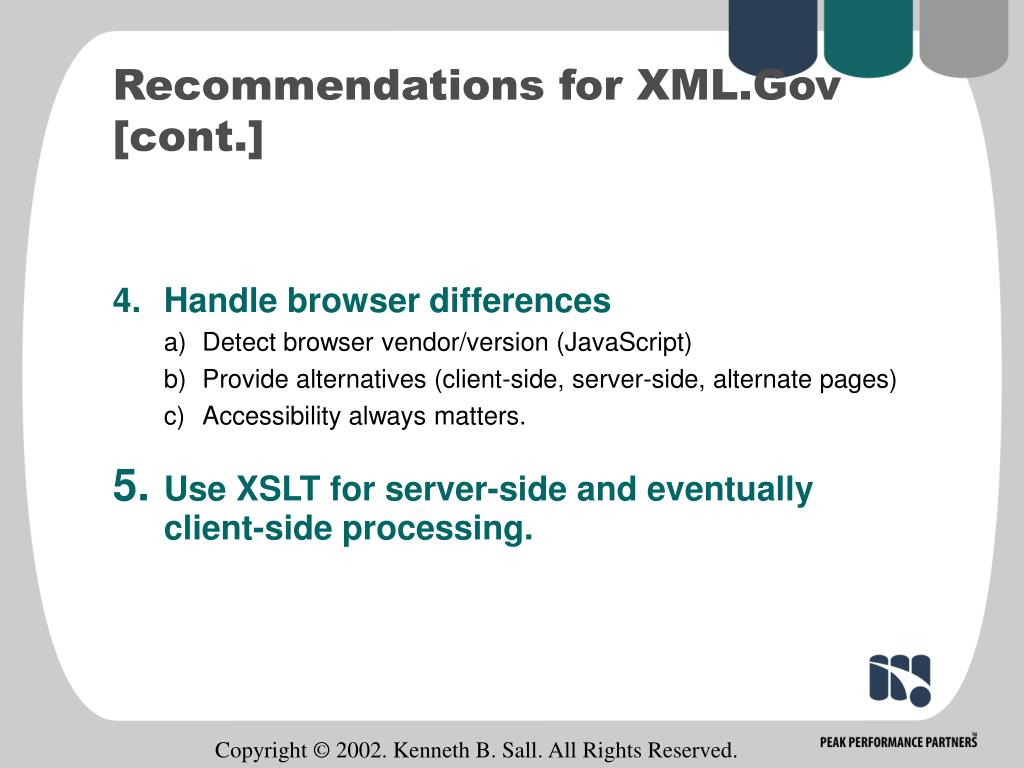

  25. Recommendations for XML.Gov [cont.] • Handle browser differences • Detect browser vendor/version (JavaScript) • Provide alternatives (client-side, server-side, alternate pages) • Accessibility always matters. • Use XSLT for server-side and eventually client-side processing.

  26. Ken Sall Consulting eee One World… One Web… Many Solutions. 301-725-2859 www.KenSall.com
