  1. Scratch Robots Catapult

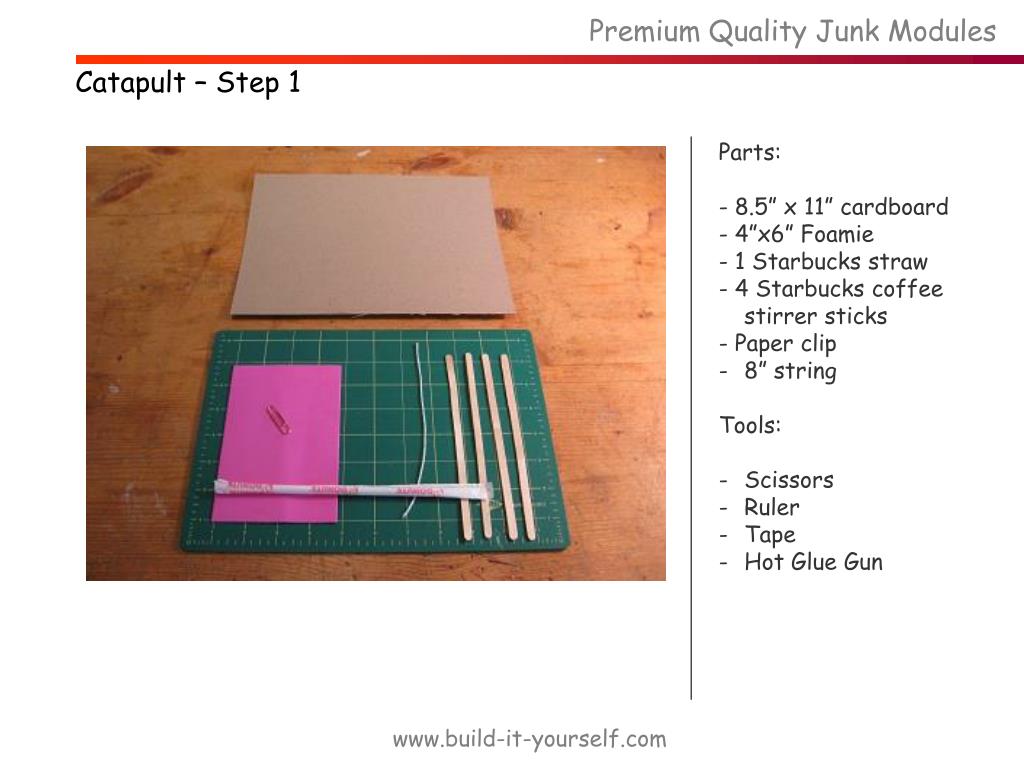

  2. Premium Quality Junk Modules Catapult – Step 1 • Parts: • - 8.5” x 11” cardboard • - 4”x6” Foamie • - 1 Starbucks straw • - 4 Starbucks coffee stirrer sticks • - Paper clip • 8” string • Tools: • Scissors • Ruler • Tape • Hot Glue Gun www.build-it-yourself.com

  3. Premium Quality Junk Modules Catapult – Step 2 Base: Cut the cardboard base and strengthen it by hot gluing coffee stirrer sticks. Each line on the green mat is 1” square. Therefore the base is 3” x 5”. www.build-it-yourself.com

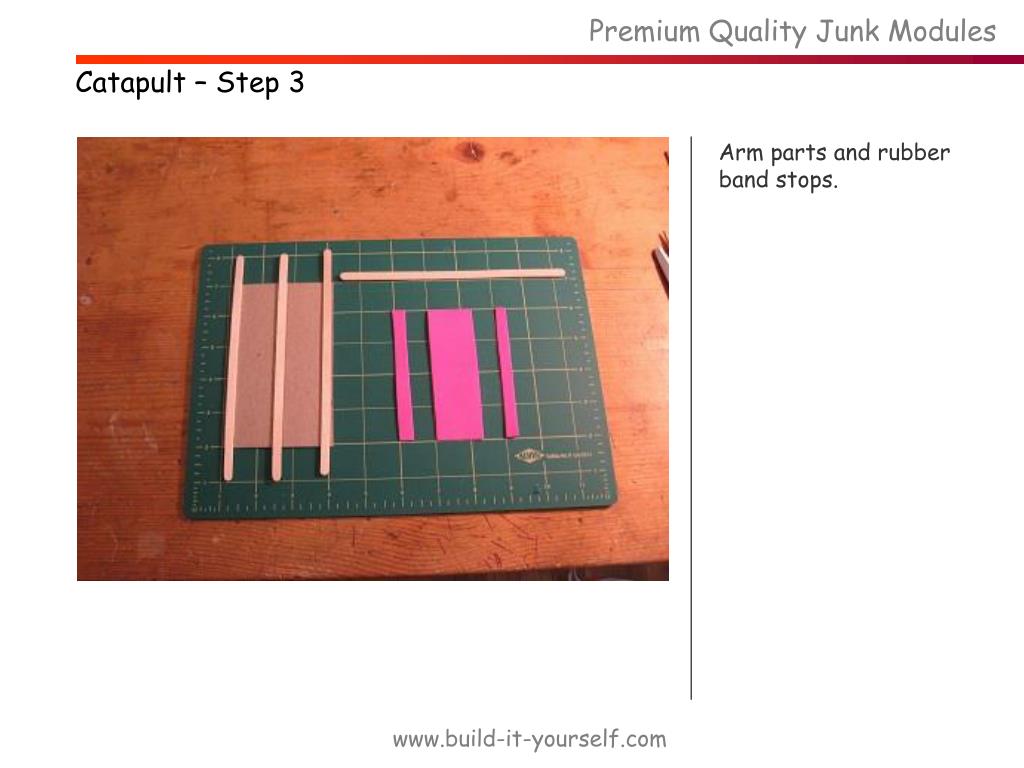

  4. Premium Quality Junk Modules Catapult – Step 3 Arm parts and rubber band stops. www.build-it-yourself.com

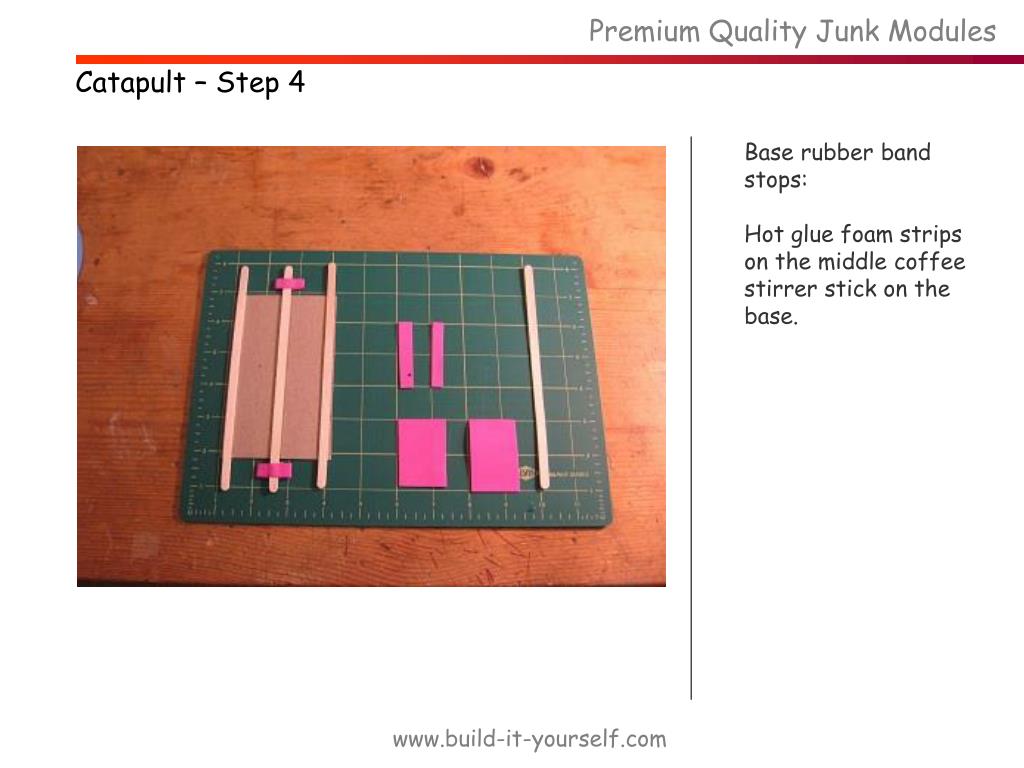

  5. Premium Quality Junk Modules Catapult – Step 4 Base rubber band stops: Hot glue foam strips on the middle coffee stirrer stick on the base. www.build-it-yourself.com

  6. Premium Quality Junk Modules Catapult – Step 5 • Arm-1: • Cut the rubber band strips and hinge parts. • Hot glue half of hinge on arm stick. www.build-it-yourself.com

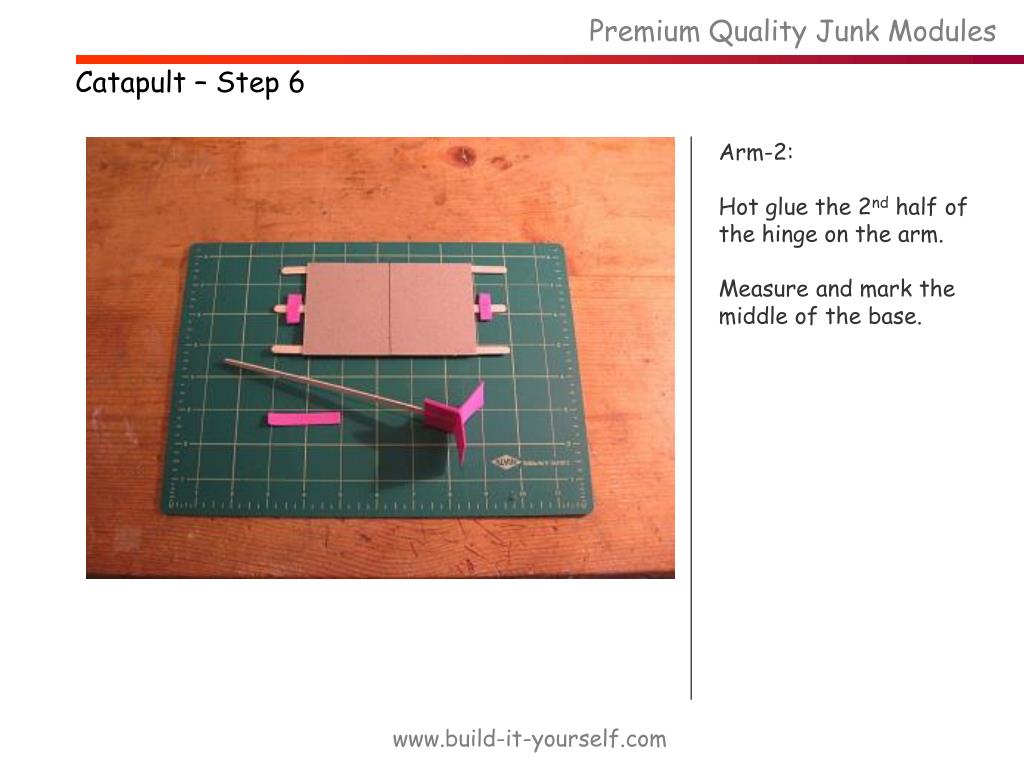

  7. Premium Quality Junk Modules Catapult – Step 6 Arm-2: Hot glue the 2nd half of the hinge on the arm. Measure and mark the middle of the base. www.build-it-yourself.com

  8. Premium Quality Junk Modules Catapult – Step 7 Arm-3: Hot glue arm hinges on the base. www.build-it-yourself.com

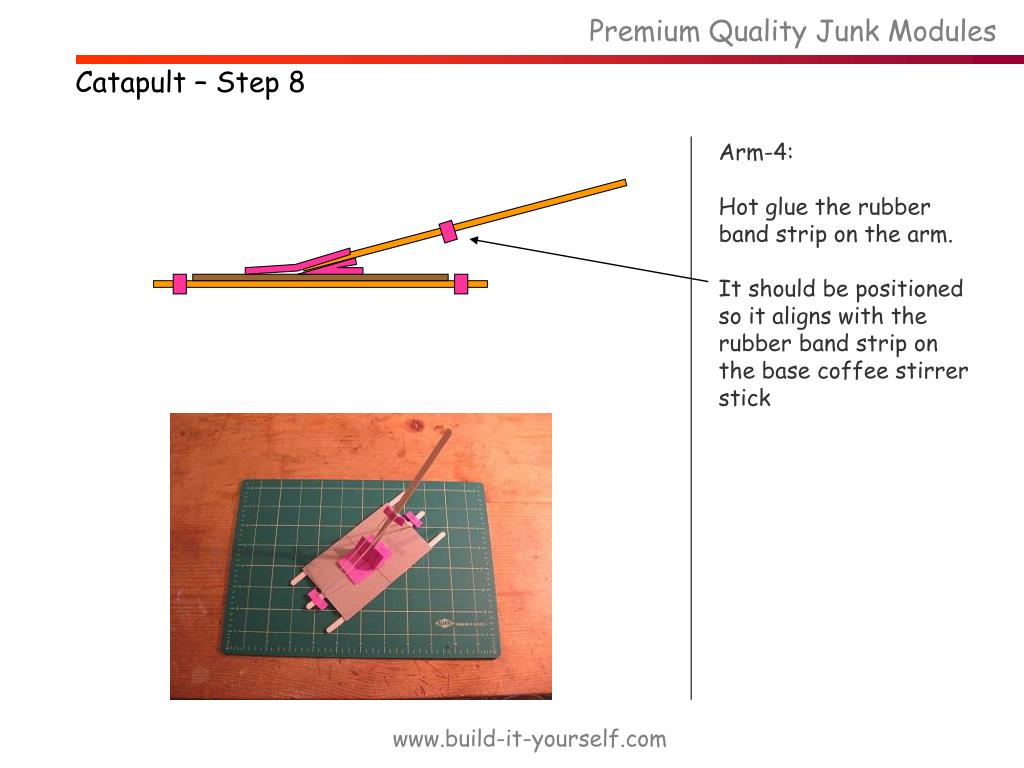

  9. Premium Quality Junk Modules Catapult – Step 8 Arm-4: Hot glue the rubber band strip on the arm. It should be positioned so it aligns with the rubber band strip on the base coffee stirrer stick www.build-it-yourself.com

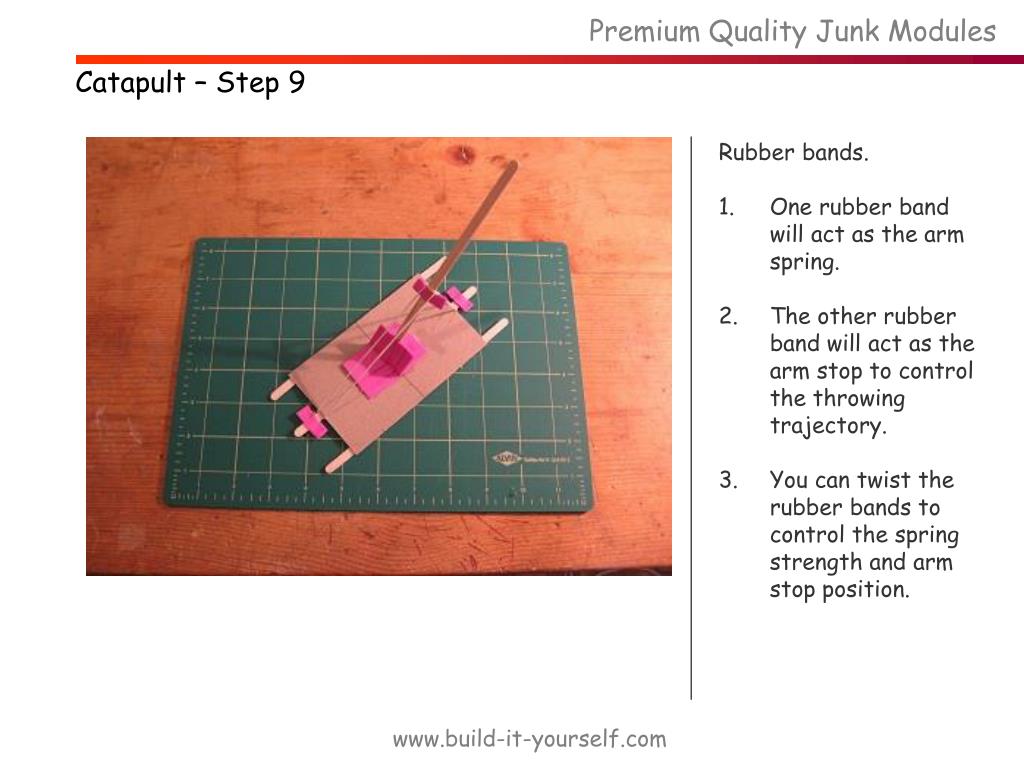

  10. Premium Quality Junk Modules Catapult – Step 9 • Rubber bands. • One rubber band will act as the arm spring. • The other rubber band will act as the arm stop to control the throwing trajectory. • You can twist the rubber bands to control the spring strength and arm stop position. www.build-it-yourself.com

  11. Premium Quality Junk Modules Catapult – Step 10 Hand-1: Collect these parts to start the catapult hand (or bucket). www.build-it-yourself.com

  12. Premium Quality Junk Modules Catapult – Step 11 1) 2) • Hand-2: • Cut a slit in the top of the hand • Overlap the slit sides to make a pocket. Hot glue. • Hot glue the foam piece so it wraps around the straw. • Slip the straw hand over the coffee stirrer stick arm. Tape it to the arm. • Experiment with arm/hand length. 3) www.build-it-yourself.com

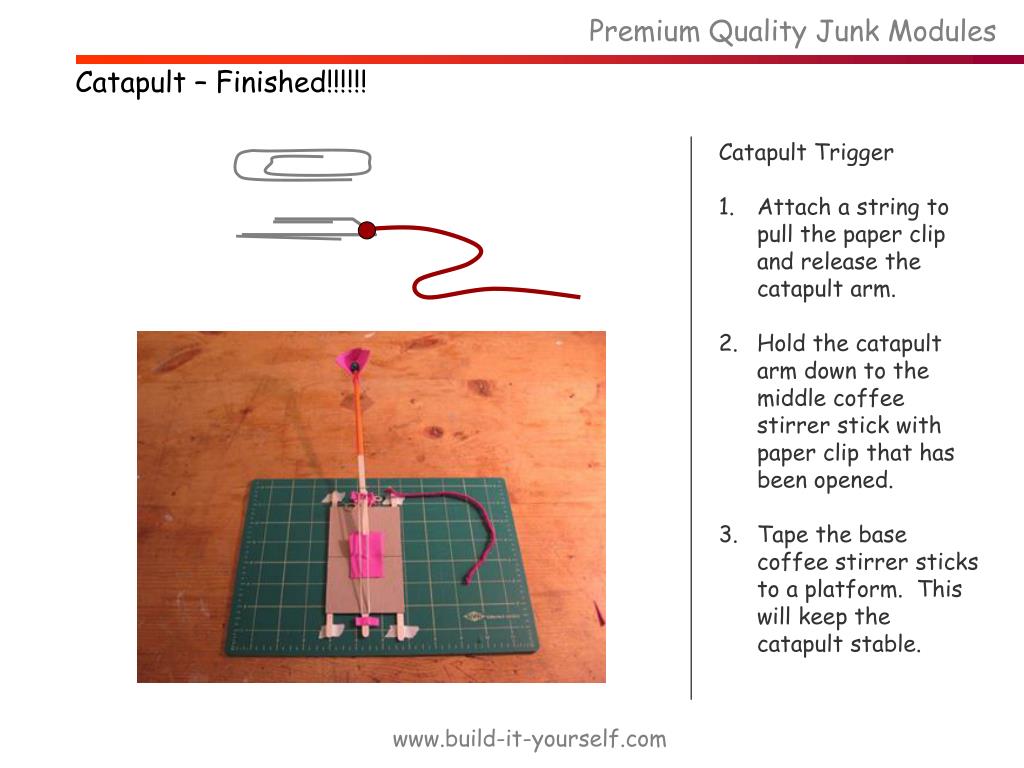

  13. Premium Quality Junk Modules Catapult – Finished!!!!!! • Catapult Trigger • Attach a string to pull the paper clip and release the catapult arm. • Hold the catapult arm down to the middle coffee stirrer stick with paper clip that has been opened. • Tape the base coffee stirrer sticks to a platform. This will keep the catapult stable. www.build-it-yourself.com
