JARES AS. Telecommunication and consulting. TeleControl . Alarm/progr. SMS. TeleControl TCi. Alarm/progr. GSM-Modem. SIM. Alarm/Programming. Input Alarm 1..8. Output Programming 1..4. Alarm/Programming. Position. GPS. Info/Alarm/progr. Info/Alarm/progr. Service Centre.
E N D

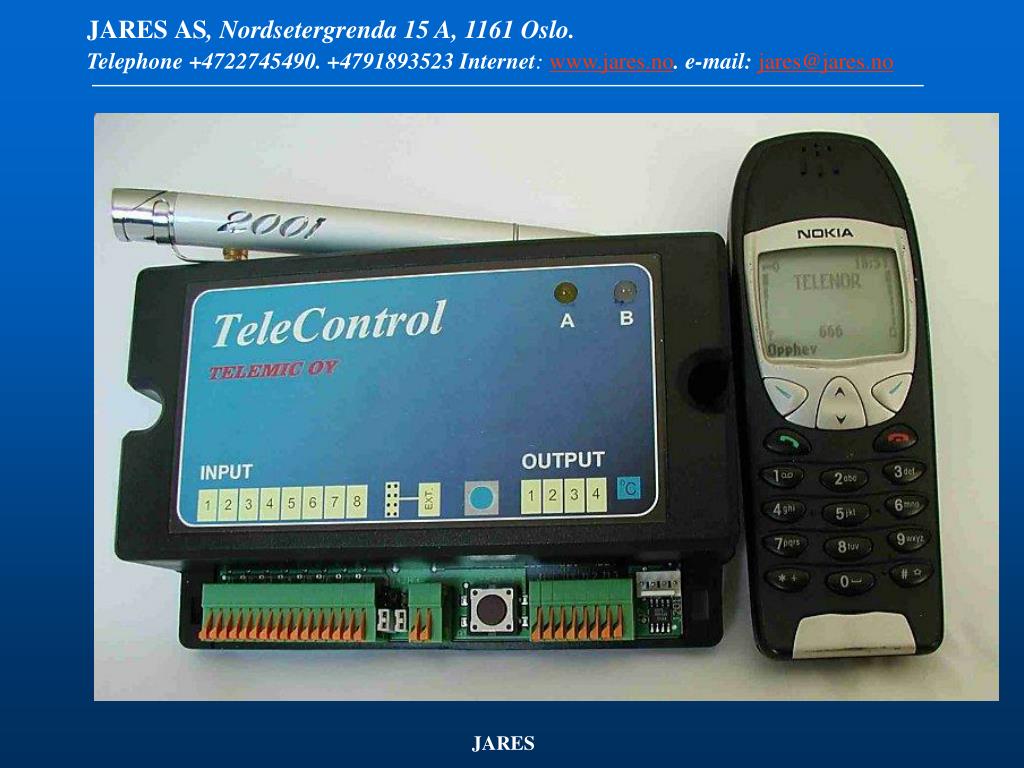

JARES AS Telecommunication and consulting JARES

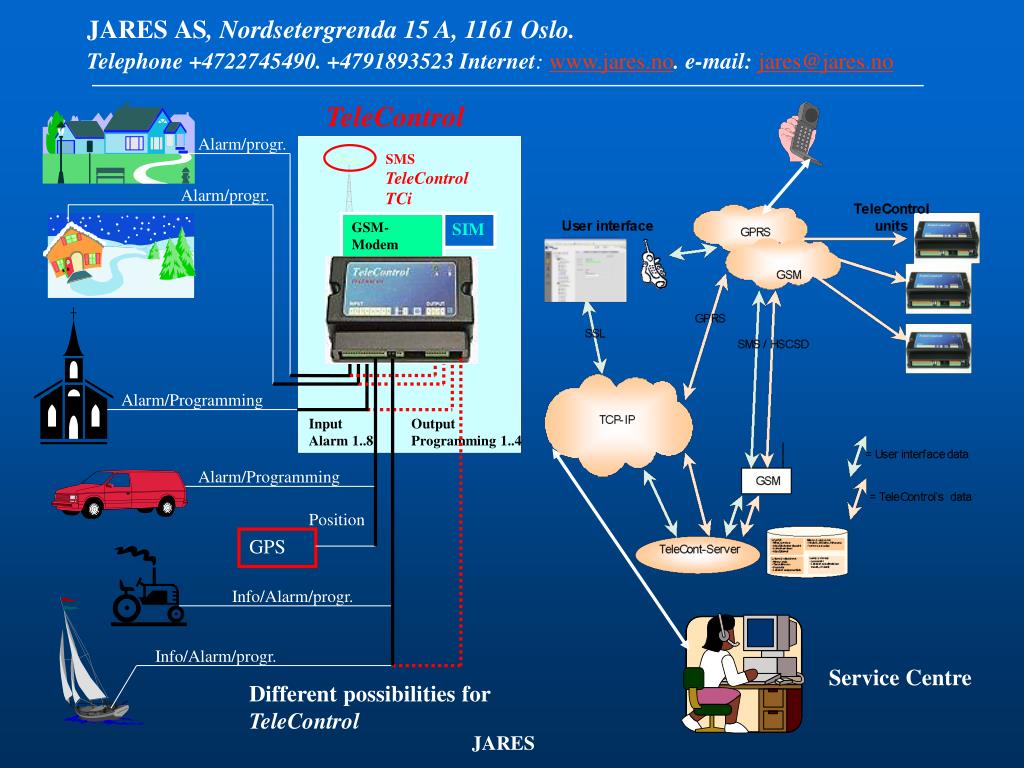

TeleControl Alarm/progr. SMS TeleControl TCi Alarm/progr. GSM-Modem SIM Alarm/Programming Input Alarm 1..8 Output Programming 1..4 Alarm/Programming Position GPS Info/Alarm/progr. Info/Alarm/progr. Service Centre Different possibilities for TeleControl JARES

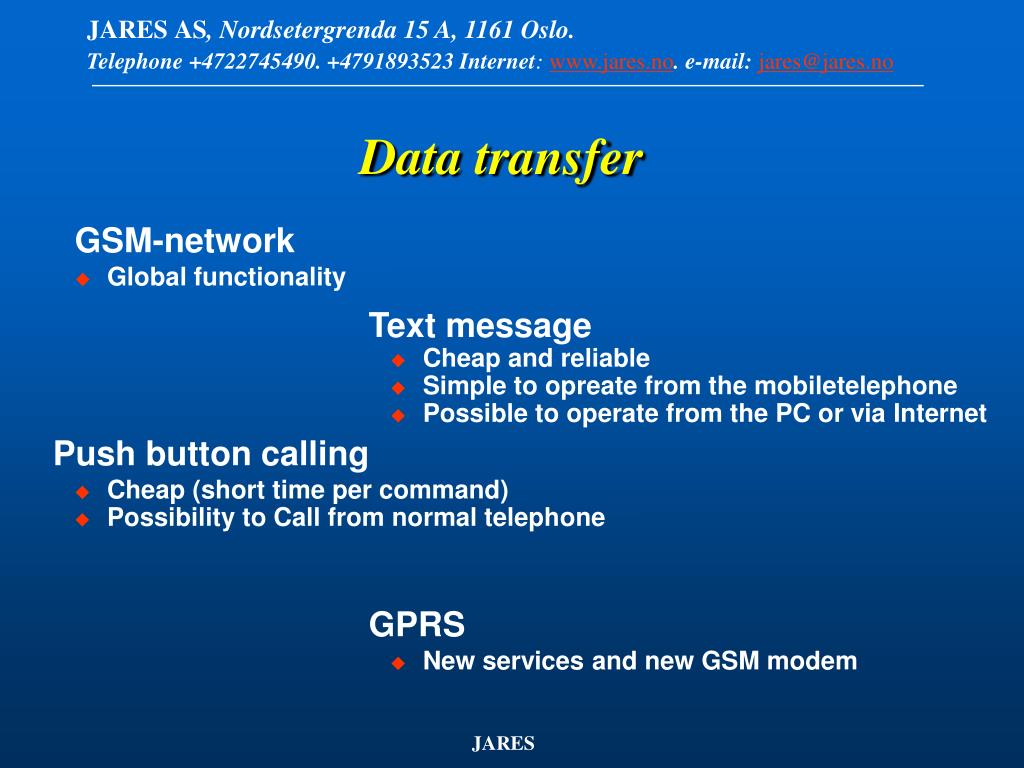

GSM-network Global functionality Data transfer • Text message • Cheap and reliable • Simple to opreate from the mobiletelephone • Possible to operate from the PC or via Internet • Push button calling • Cheap (short time per command) • Possibility to Call from normal telephone • GPRS • New services and new GSM modem JARES
TeleControlin practice House, cottage, caravan and boats • Heating and lighting • Housebreaking alarm • Smoke and gas alarm • Temperature control • Door and gate open • Audio. Listen and speech JARES

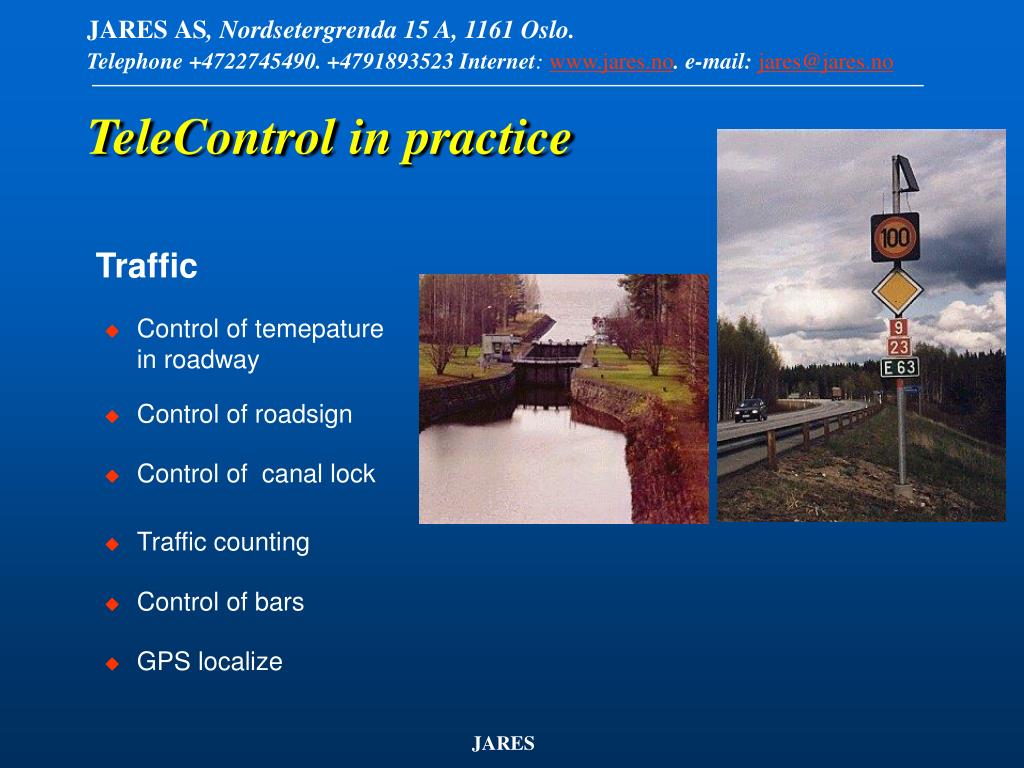

TeleControlin practice Traffic • Control of temepature in roadway • Control of roadsign • Control of canal lock • Traffic counting • Control of bars • GPS localize JARES

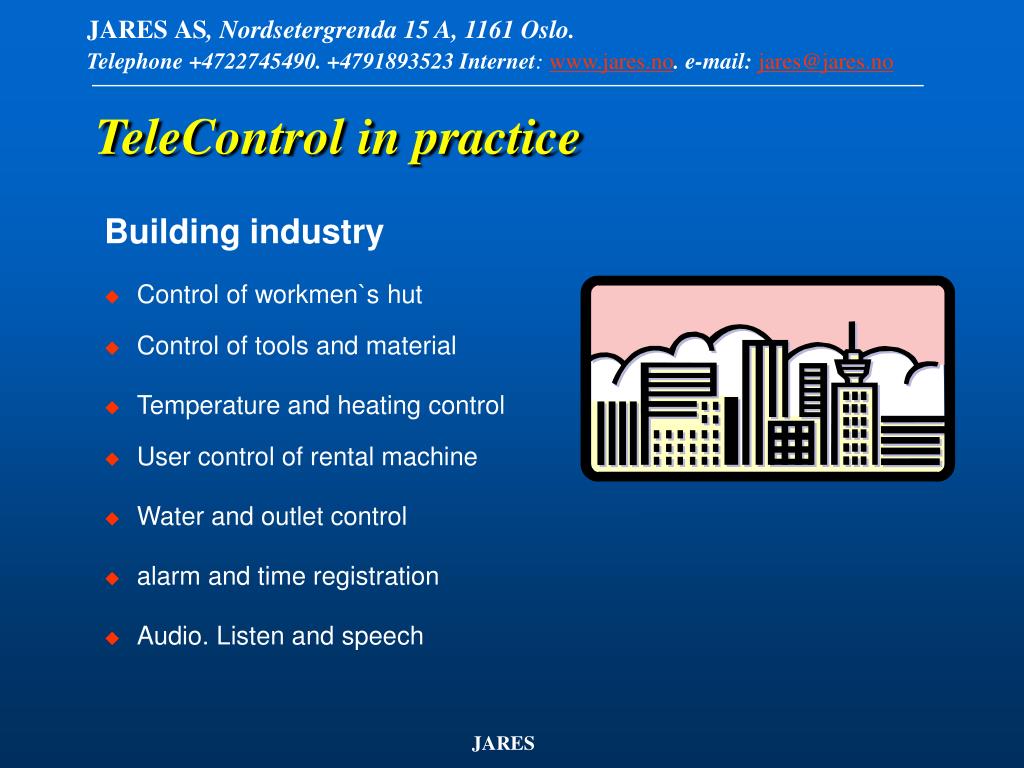

TeleControlin practice Building industry • Control of workmen`s hut • Control of tools and material • Temperature and heating control • User control of rental machine • Water and outlet control • alarm and time registration • Audio. Listen and speech JARES

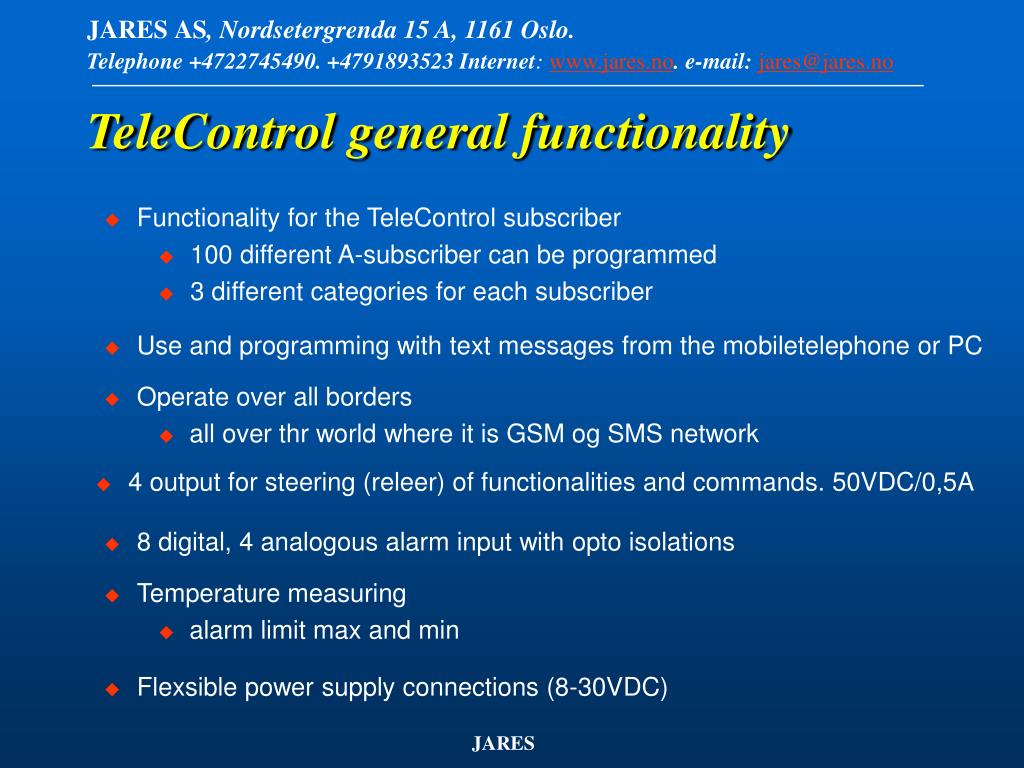

TeleControl general functionality • Functionality for the TeleControl subscriber • 100 different A-subscriber can be programmed • 3 different categories for each subscriber • Use and programming with text messages from the mobiletelephone or PC • Operate over all borders • all over thr world where it is GSM og SMS network • 4 output for steering (releer) of functionalities and commands. 50VDC/0,5A • 8 digital, 4 analogous alarm input with opto isolations • Temperature measuring • alarm limit max and min • Flexsible power supply connections (8-30VDC) JARES
Antenna Power supply SIM GPS Data RS232 Audio TCi • Built-in GSM modem • Dual-Band (900/1800 MHz) • Data transfer 8-30V DC Internal and external temperature measuring Input digital 8 alarms Output (steering)(4) 1 Inputs (4 analoge) AD-4 4 JARES

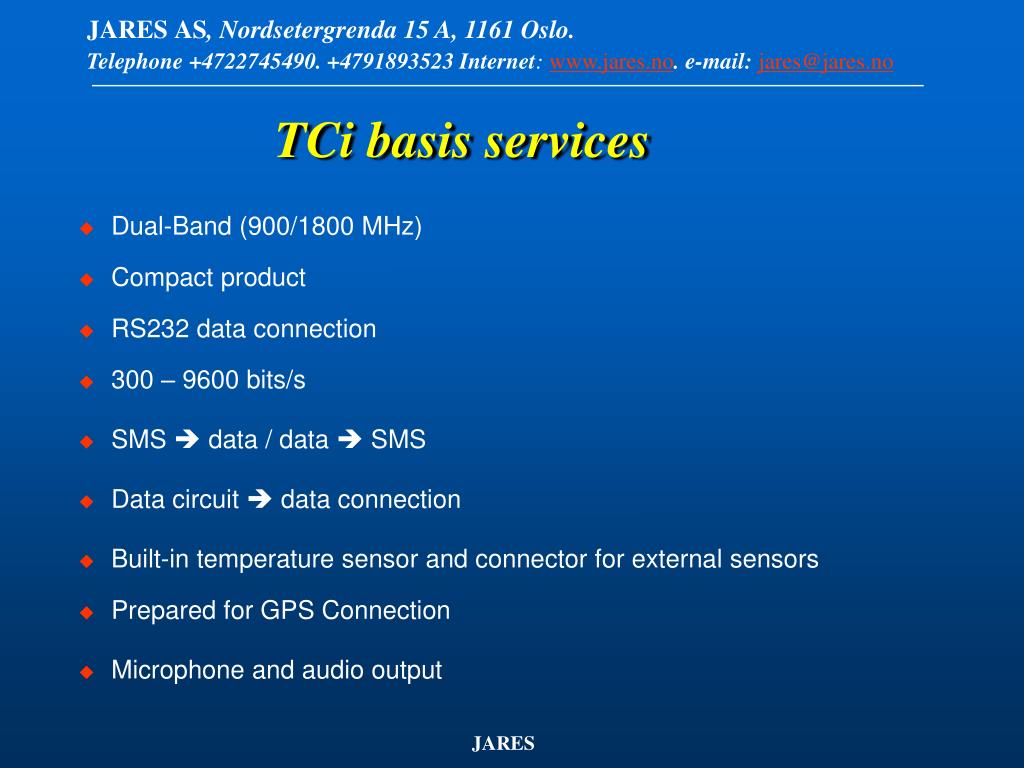

TCi basis services • Dual-Band (900/1800 MHz) • Compact product • RS232 data connection • 300 – 9600 bits/s • SMS data / data SMS • Data circuit data connection • Built-in temperature sensor and connector for external sensors • Prepared for GPS Connection • Microphone and audio output JARES

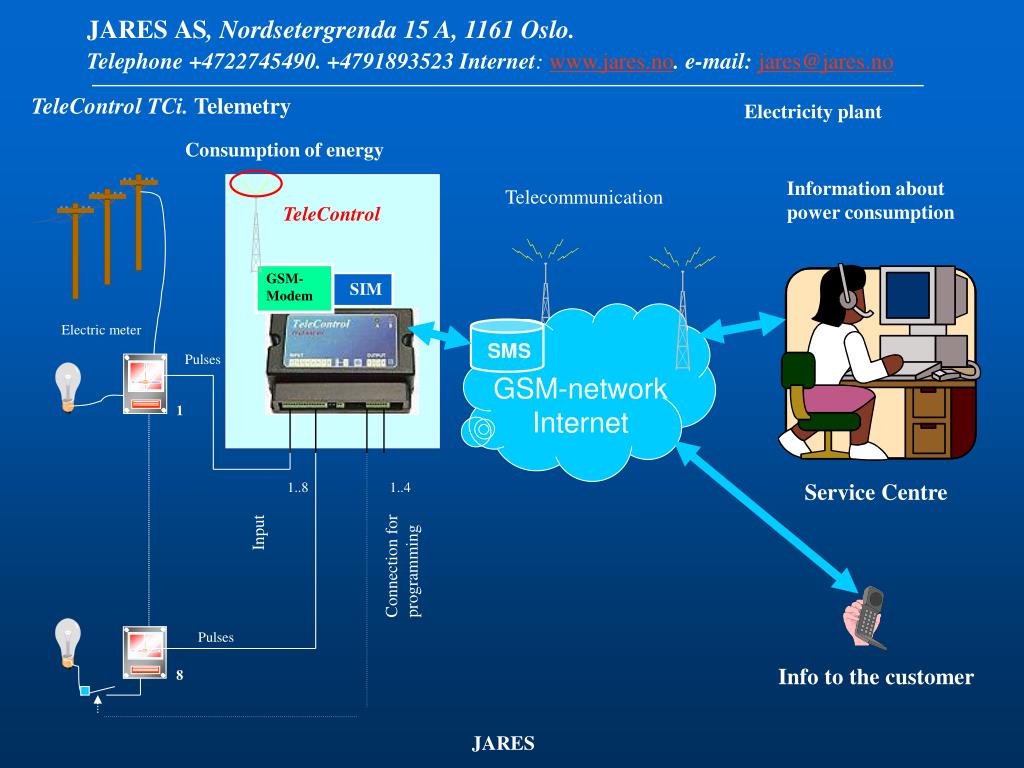

SMS TeleControl TCi. Telemetry Electricity plant Consumption of energy Information about power consumption Telecommunication TeleControl GSM-Modem SIM GSM-network Internet Electric meter Pulses 1 Service Centre 1..8 1..4 Input Connection for programming Pulses Info to the customer 8 JARES
