  1. Decoupled Lifeguards: Enabling Path Optimizations for Dynamic Correctness Checking Tools Olatunji Ruwase* Shimin Chen+ Phillip B. Gibbons+ Todd C. Mowry* *School of Computer Science Carnegie Mellon University +Intel Labs Pittsburgh

  2. Bug detection using Lifeguards program Lifeguard • Detect errors by monitoring execution of unmodified binary • Exploit instruction-grained runtime information • Block exploits before software patch • [Savage et al. ‘97, Newsome & Song ’05, Nethercote et al. ‘07] • Significant program slowdown • 10 - 100X using Dynamic Binary Instrumentation(DBI) • Valgrind, PIN, DynamoRIO - 2 -

  3. Why instruction grained Lifeguards are slow program TaintCheck lifeguard mov %eax A add %eax B mov C %eax cmp %ecx, %eax taint(eax) = taint(A) taint(eax) |= taint(B) taint(C) = taint (eax) - 3 -

  4. Why instruction grained Lifeguards are slow program TaintCheck lifeguard taint(eax) = taint(A) mov %eax A taint(eax) |= taint(B) add %eax B taint(C) = taint (eax) mov C %eax cmp %ecx, %eax mov %ecx %eax shr %ecx $16 mov %ecx level1_index(,%ecx,4) and %eax 0xffff shr %eax $2 mov %eax (%eax,%ecx,1) mov reg_taint(%edx) %al Handler for memory-to-register copy instruction - 4 -

  5. Why instruction grained Lifeguards are slow mov %ecx %eax shr %ecx $16 mov %ecx level1_index(,%ecx,4) and %eax 0xffff shr %eax $2 mov %eax (%eax,%ecx,1) movreg_taint(%edx) %al Swith execution context mov %eax A Switch execution context mov %ecx %eax shr %ecx $16 mov %ecx level1_index(,%ecx,4) and %eax 0xffff shr %eax $2 mov %eax (%eax,%ecx,1) or reg_taint(%edx) %al Switch execution context add %eax B mov %ecx %eax shr %ecx $16 mov %ecx level1_index(,%ecx,4) and %eax 0xffff shr %eax $2 mov %eax (%eax,%ecx,1) mov %al reg_taint(%edx) Switch execution context mov C %eax cmp %ecx, %eax program TaintCheck lifeguard mov %ecx %eax shr %ecx $16 mov %ecx level1_index(,%ecx,4) and %eax 0xffff shr %eax $2 mov %eax (%eax,%ecx,1) movreg_taint(%edx) %al Switch execution context mov %eax A Switch execution context taint(eax) |= taint(B) add %eax B taint(C) = taint (eax) mov C %eax cmp %ecx, %eax - 5 -

  6. Optimizing Lifeguard code on program paths is hard mov %ecx %eax shr %ecx $16 mov %ecx level1_index(,%ecx,4) and %eax 0xffff shr %eax $2 mov %eax (%eax,%ecx,1) movreg_taint(%edx) %al Swith execution context mov %eax A Switch execution context mov %ecx %eax shr %ecx $16 mov %ecx level1_index(,%ecx,4) and %eax 0xffff shr %eax $2 mov %eax (%eax,%ecx,1) or reg_taint(%edx) %al Switch execution context add %eax B mov %ecx %eax shr %ecx $16 mov %ecx level1_index(,%ecx,4) and %eax 0xffff shr %eax $2 mov %eax (%eax,%ecx,1) mov %al reg_taint(%edx) Switch execution context mov C %eax cmp %ecx, %eax Key obstacle is tight coupling of program & Lifeguard code Instrumented program path - 6 -

  7. Decoupling Lifeguard execution Unoptimized path handler Instrumented program path - 7 -

  8. Lifeguard specific optimizations on program path Compose instruction handlers Program path Unoptimized path handler - 8 -

  9. Lifeguard specific optimizations on program path x86 instruction count of TaintCheck handler for mcf path Compose instruction handlers Program path Optimized path handler Unoptimized path handler - 9 -

  10. Outline Dynamic path optimization of Decoupled Lifeguards Decoupling Lifeguards: Challenges and Solutions Using lifeguard domain knowledge for path optimizations Evaluation Conclusions - 10 -

  11. Decoupling Lifeguards: Challenges and Solutions Issue 1: When to run Lifeguard code Optimized path handler Program path At end of path where data is available - 11 -

  12. Decoupling Lifeguards: Challenges and Solutions Issue 2: How to pass data to Lifeguard Marshall data Buffer Optimized path handler Program path - 12 -

  13. Decoupling Lifeguards: Challenges and Solutions Challenge 1: How to handle side exits 1 1 2 2 3 3 Optimized path handler 4 4 Path handler for side exits Program path - 13 -

  14. Decoupling Lifeguards: Challenges and Solutions Challenge 2: How to contain errors in the path See paper for details of solution based on: Page protection to prevent data corruption Completing checks at function & system calls and indirect jumps Program path Optimized path handler - 14 -

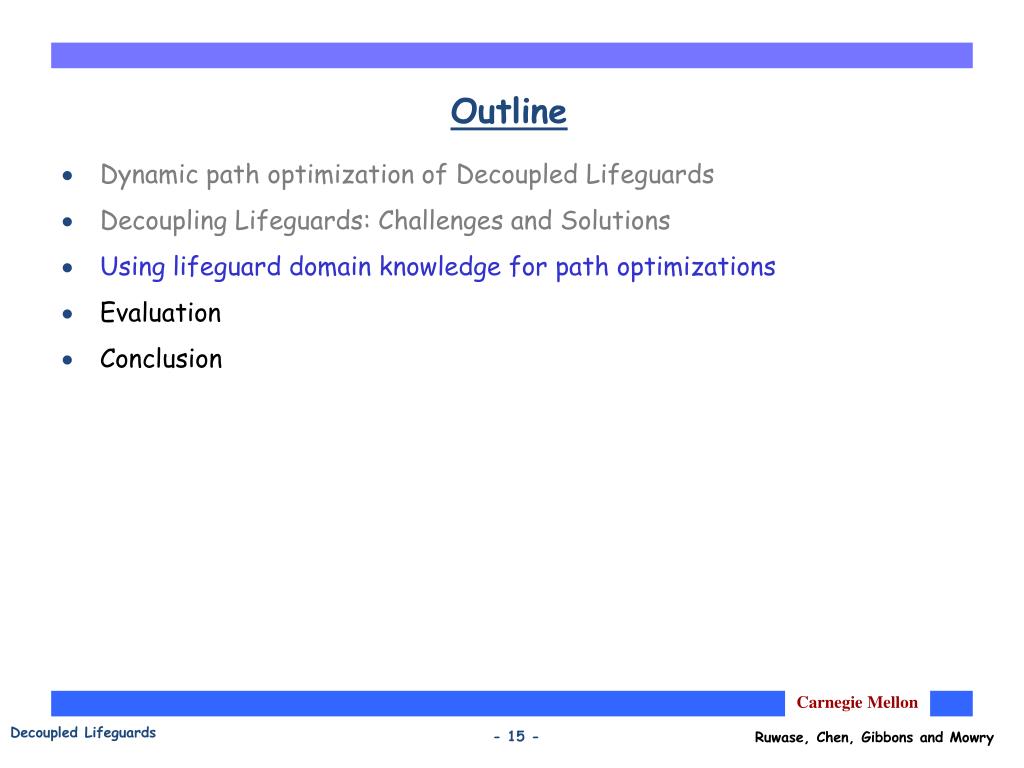

  15. Outline Dynamic path optimization of Decoupled Lifeguards Decoupling Lifeguards: Challenges and Solutions Using lifeguard domain knowledge for path optimizations Evaluation Conclusion - 15 -

  16. Lifeguard optimization opportunities Alias analysis to reduce metadata accesses Dead metadata update detection to eliminate instruction handlers taint(esi) = taint(esi) | taint( ) taint(edx) = taint(edi) taint(edi) = taint(esi) taint(edi) = taint(edi) | taint( ) taint(ecx) = taint( ) taint(edi) = taint(edx) | taint(ecx) taint(ebx) = taint( ) … A B C mov %ecx %eax shr %ecx $16 mov %ecx level1_index(,%ecx,4) and %eax 0xffff shr %eax $2 mov %eax (%eax,%ecx,1) mov reg_taint(%edx) %al D TaintCheck handler for mcf path 6 instructions to access metadata of program memory address - 16 -

  17. Alias analysis for metadata accesses add %esi -0x24[%ebp] mov %edx %edi mov %edi %esi sub %edi -0x24[%ebp] … mov %ecx -0x24[%ebp] lea %edi [%edx,%ecx,1] mov %ebx 0x1c[%ebp] … program taint(esi) = taint(esi) | taint(A) taint(edx) = taint(edi) taint(edi) = taint(esi) taint(edi) = taint(edi) | taint(B) taint(ecx) = taint(C) taint(edi) = taint(edx) | taint(ecx) taint(ebx) = taint(D) … mcf path TaintCheck handler for mcf path - 17 -

  18. Alias analysis for metadata accesses add %esi -0x24[%ebp] mov %edx %edi mov %edi %esi sub %edi -0x24[%ebp] … mov %ecx -0x24[%ebp] lea %edi [%edx,%ecx,1] mov %ebx 0x1c[%ebp] … program taint(esi) = taint(esi) | taint(A) taint(edx) = taint(edi) taint(edi) = taint(esi) taint(edi) = taint(edi) | taint(A) taint(ecx) = taint(A) taint(edi) = taint(edx) | taint(ecx) taint(ebx) = taint(A+64) … mcf path TaintCheck handler for mcf path Enables metadata access CSE optimization described in paper - 18 -

  19. Eliminating dead instruction handlers taint(esi) = taint(esi) | taint(A) taint(edx) = taint(edi) taint(edi) = taint(esi) taint(edi) = taint(edi) | taint(A) taint(ecx) = taint(A) = taint(edx) | taint(ecx) taint(ebx) = taint(A+64) … Dead taint(edi) updates See paper for details of other optimizations: e.g eliminating loop redundancies taint(edi) TaintCheck handler for mcf path - 19 -

  20. Evaluation • Lifeguards • AddrCheck: unallocated memory access • Eraser: concurrency errors • MemCheck: AddrCheck + uninitialized read errors • TaintCheck: security errors • Lifeguard instrumentation platforms • DBI (Valgrind ) & Hardware accelerated (LBA) • Decoupled lifeguard code on program paths of up to 8 branches - 20 -

  21. Lifeguard overhead reduction in Valgrind AddrCheck MemCheck Standard path optimizations(SPO) SPO + dead handler elimination(DHE) - 21 -

  22. Lifeguard overhead reduction in Valgrind AddrCheck 24% reduction 6% reduction MemCheck • Limitations to improvements • Instrumentation overhead • No metadata access CSE Standard path optimizations(SPO) SPO + dead handler elimination(DHE) - 22 -

  23. Results with hardware assisted instrumentation (LBA) SPO SPO + DHE SPO + DHE + Metadata access CSE AddrCheck 50% reduction Eraser 53% reduction MemCheck TaintCheck 38% reduction 42% reduction - 23 -

  24. Conclusions • Decoupling: enables optimization of lifeguard code on program paths • Correctness checking at a path granularity • Multi-versioned checking code to handle side exits • Page protection for containing errors • Lifeguard domain knowledge: enable redundancy elimination beyond standard optimizations • Better alias analysis • Lifeguard-specific dead code & common subexpression elimination • Lifeguard overhead reductions • Up to 24% on Valgrind • Up to 53% on LBA - 24 -
