  1. Chapter 36 Serway & Jewett 6th Ed.

  2. Mirrors and Lenses Fig Q36-26, p.1167

  3. Fig 36-15a2, p.1135

  4. Fig 36-44b, p.1161

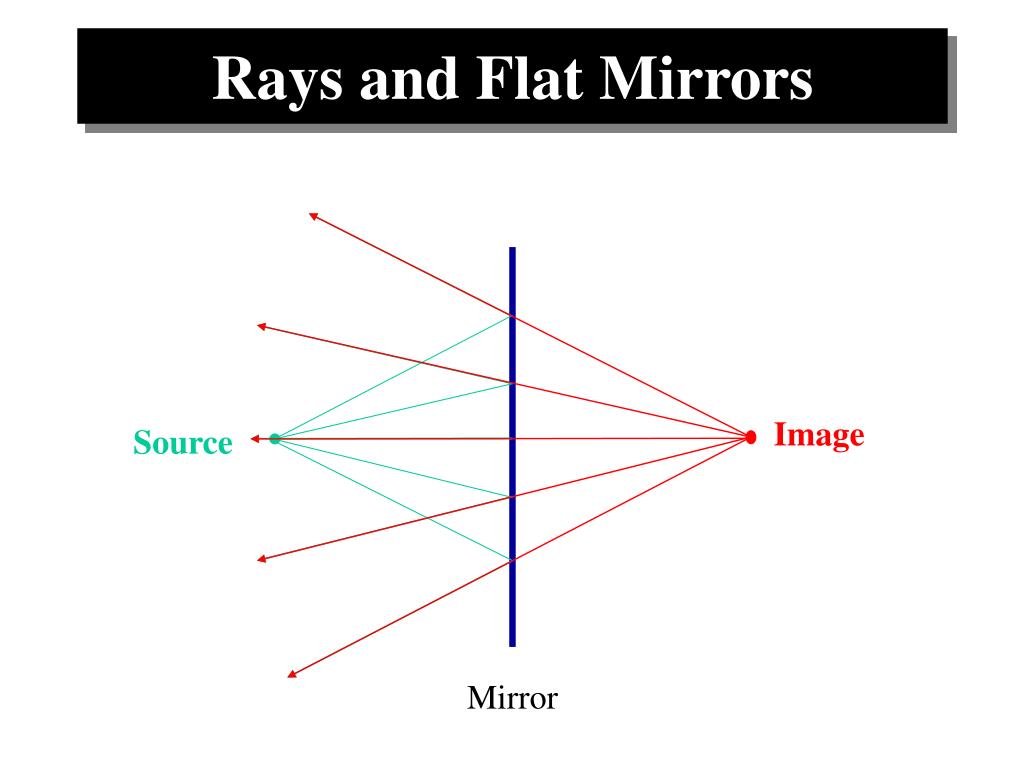

  5. Image Rays and Flat Mirrors Source Mirror

  6. Fig 36-1, p.1127

  7. Refraction Flat surface Curved surface

  8. i lt lo t h P st Refraction by Spherical Surfaces A n1 n2 R  V S C so n2 > n1

  9. parallel rays F st parallel rays F so st=  Paraxial Rays so = 

  10. Fig 36-27, p.1145

  11. Fig 36-25a, p.1144

  12. Fig 36-25b, p.1144

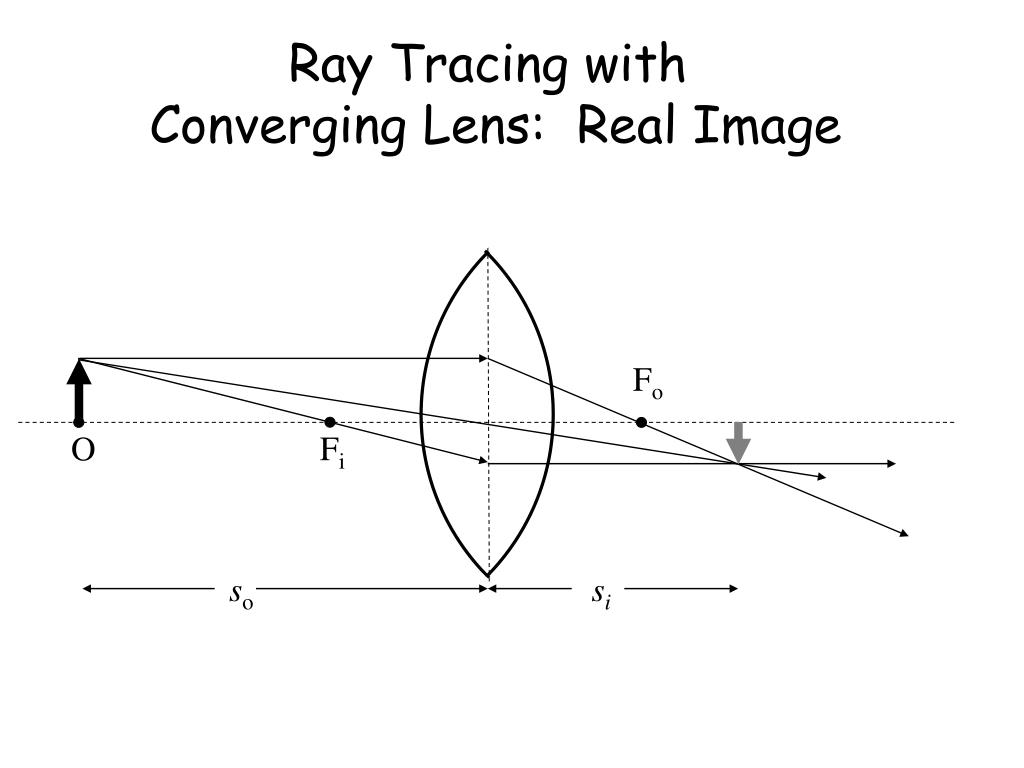

  13. so si Ray Tracing with Converging Lens: Real Image Fo Fi O

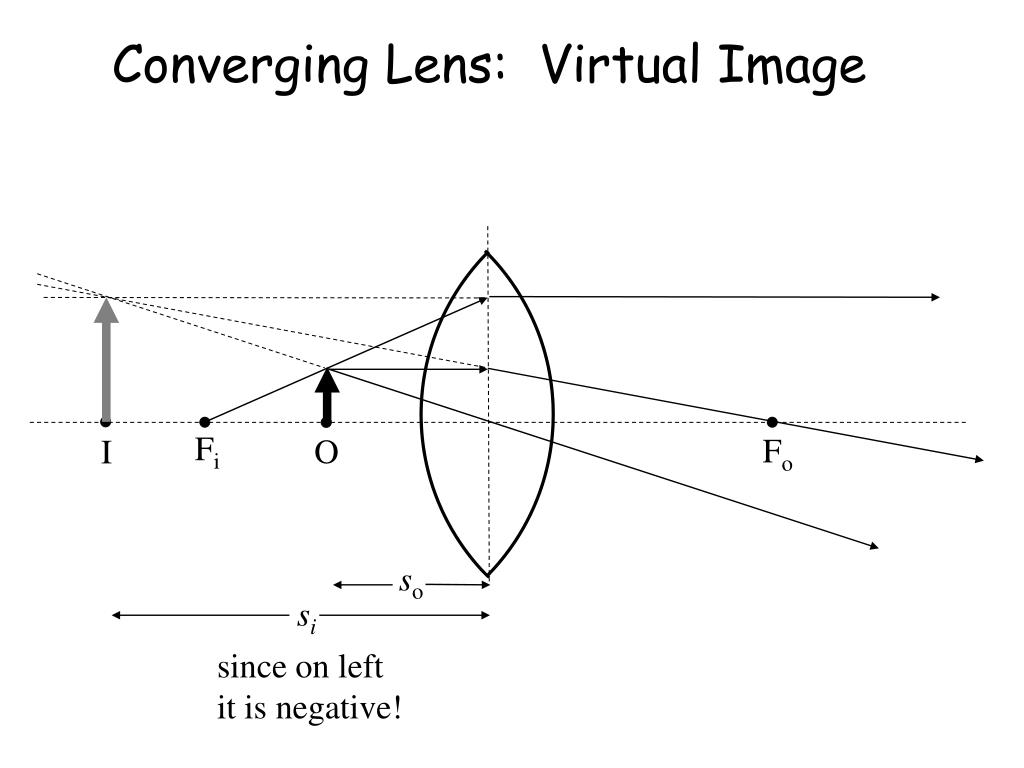

  14. I so si since on left it is negative! Converging Lens: Virtual Image Fi C2 Fo O

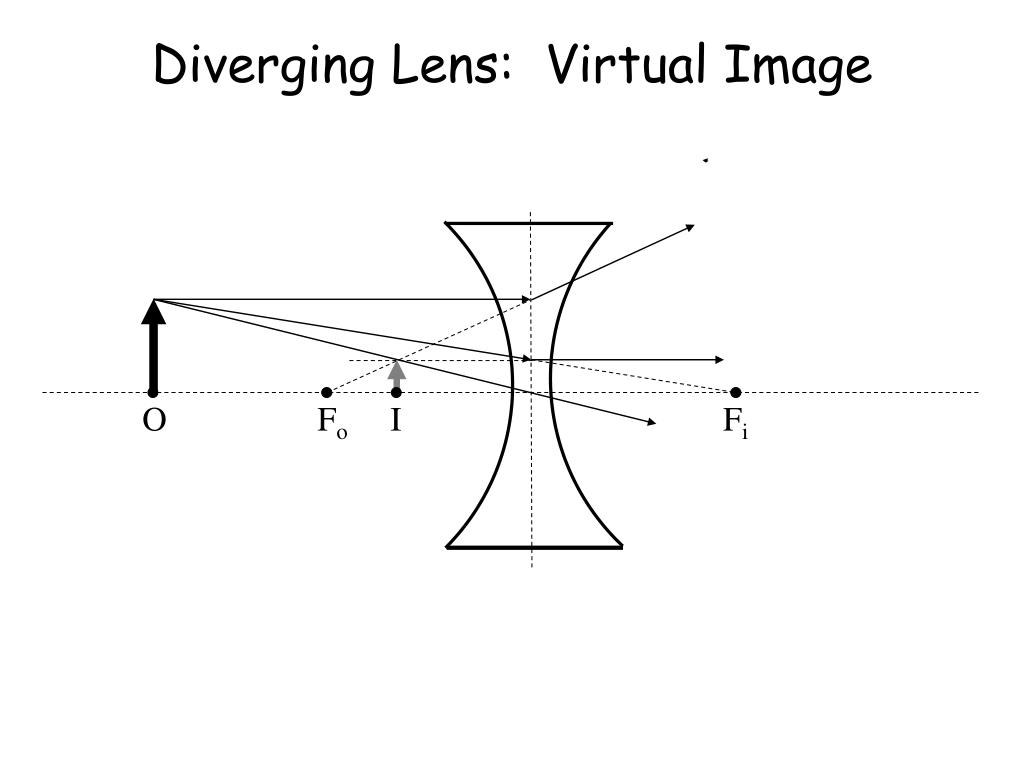

  15. I Diverging Lens: Virtual Image O Fo Fi

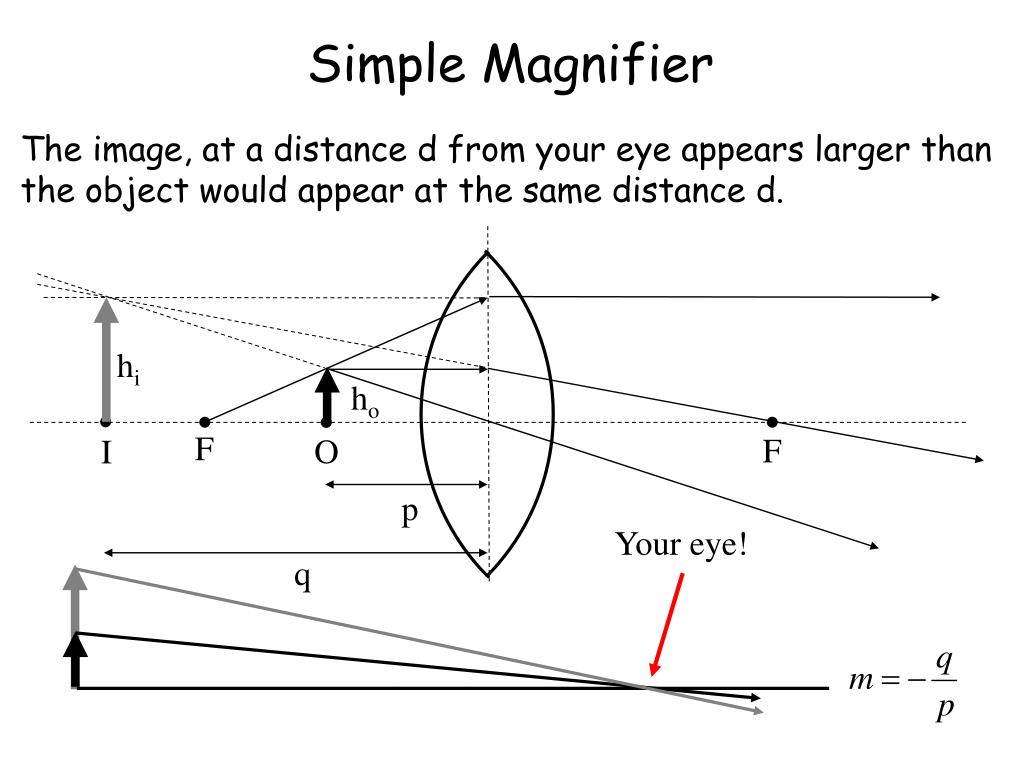

  16. I Simple Magnifier The image, at a distance d from your eye appears larger than the object would appear at the same distance d. hi ho F C2 F O p Your eye! q

  17. Oct 25, 2005

  18. n() f() Spherical and Chromatic Aberration Chromatic Spherical point of least confusion

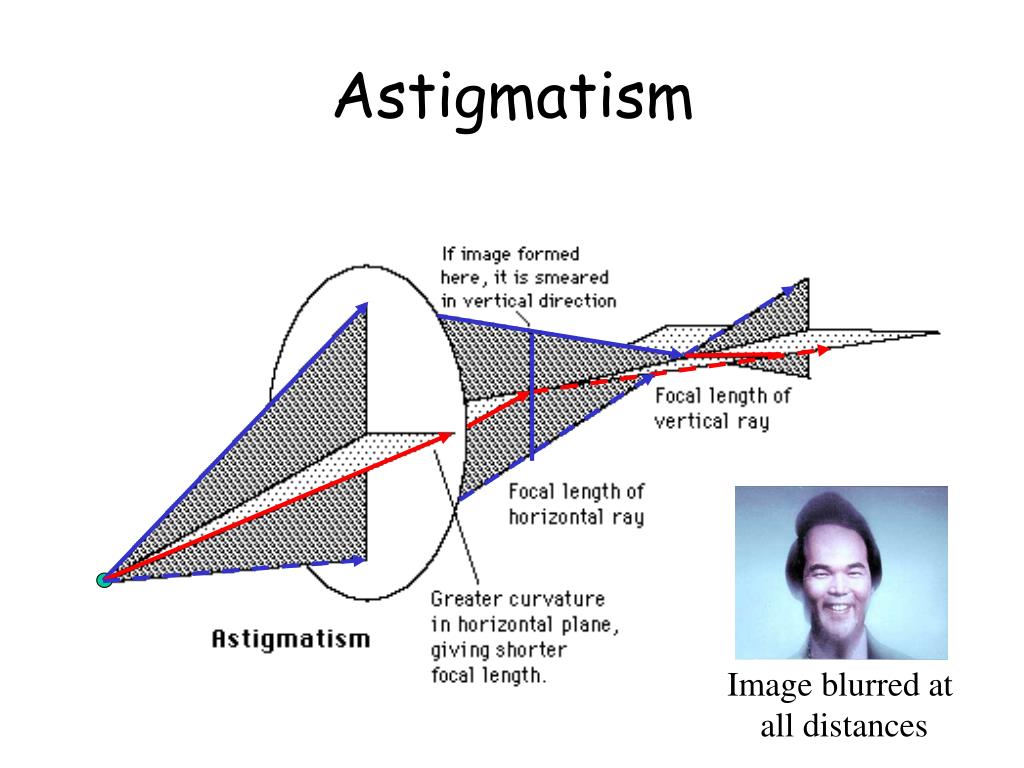

  19. Image blurred at all distances Astigmatism

  20. Fig 36-9, p.1131

  21. Fig 36-12b, p.1133

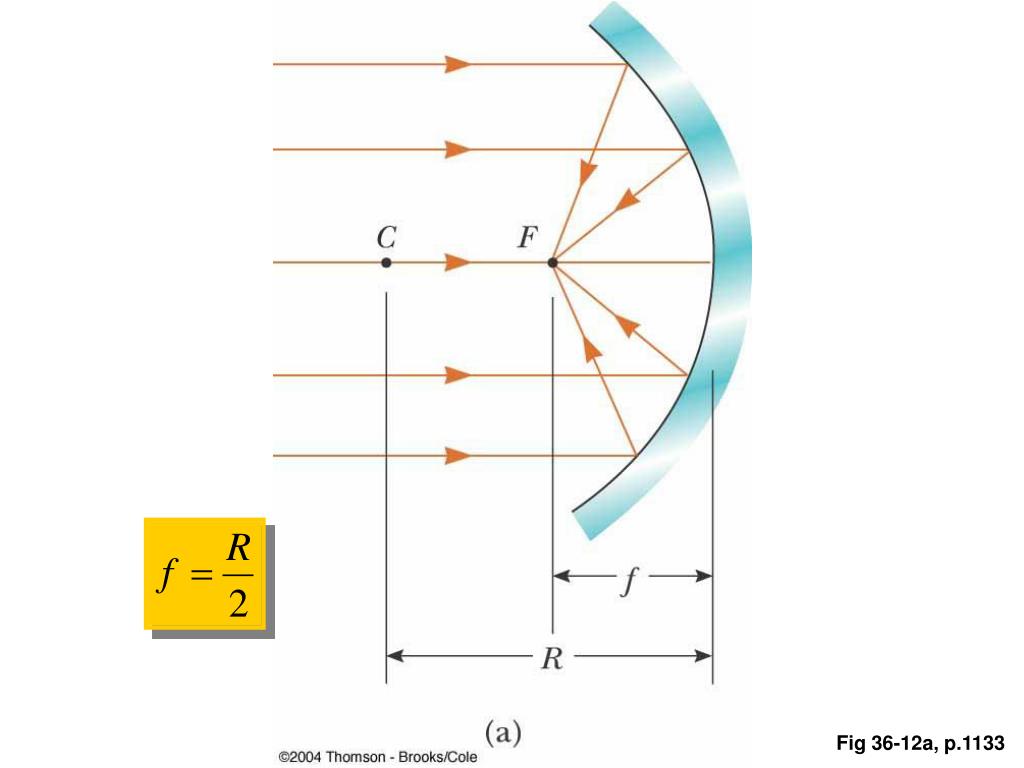

  22. Fig 36-12a, p.1133

  23. Fig 36-15a1, p.1135

  24. Fig 36-15b1, p.1135

  25. Fig 36-15c1, p.1135

  26. Thin Lens Combination Fig 36-32b, p.1151

  27. Telescope Parallel Light In Parallel Light Out

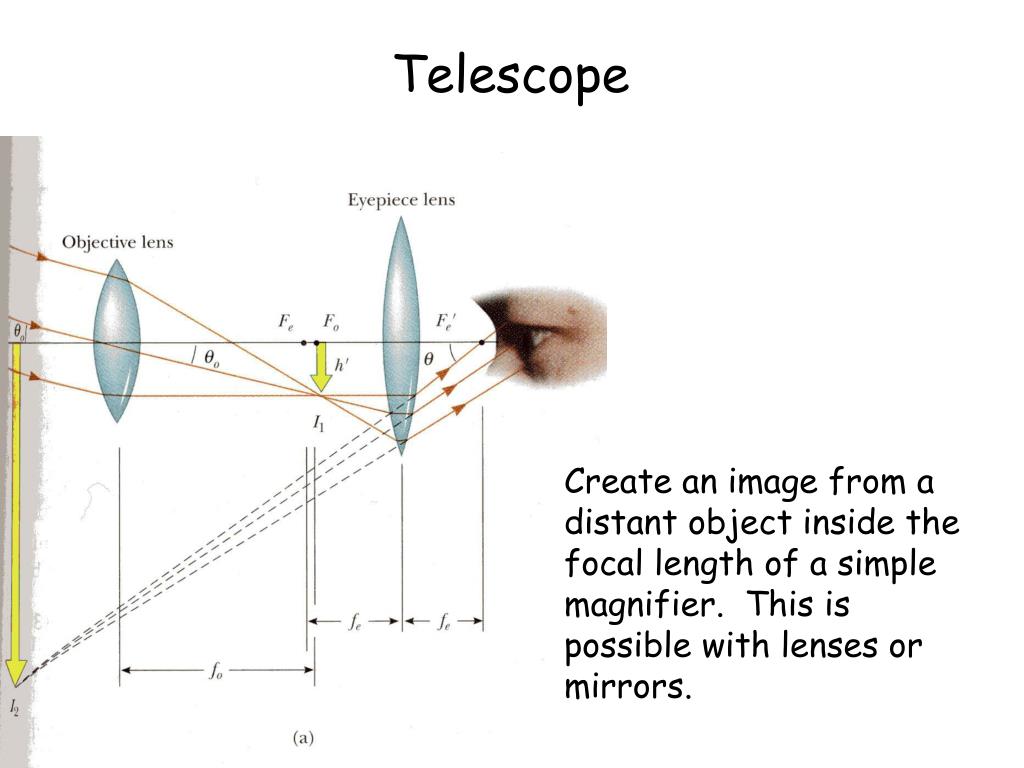

  28. Telescope Create an image from a distant object inside the focal length of a simple magnifier. This is possible with lenses or mirrors.

  29. Sections To Study: • Mirrors • Magnification • Lens Combinations • Lens Aberrations • Simple Magnifier • The Telescope Optional Sections To Study:
