Processing Seismic Ambient Noise

(Stage 1 and 2). Processing Seismic Ambient Noise. By: Brenda Luna IV. Process based on: Processing seismic ambient noise data to obtain reliable broad- band surface wave dispersion measurements (2007) G. D. Bensen et. al and Marco Calo , post-doc at UC Berkeley.

bena
Télécharger la présentation

Processing Seismic Ambient Noise

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

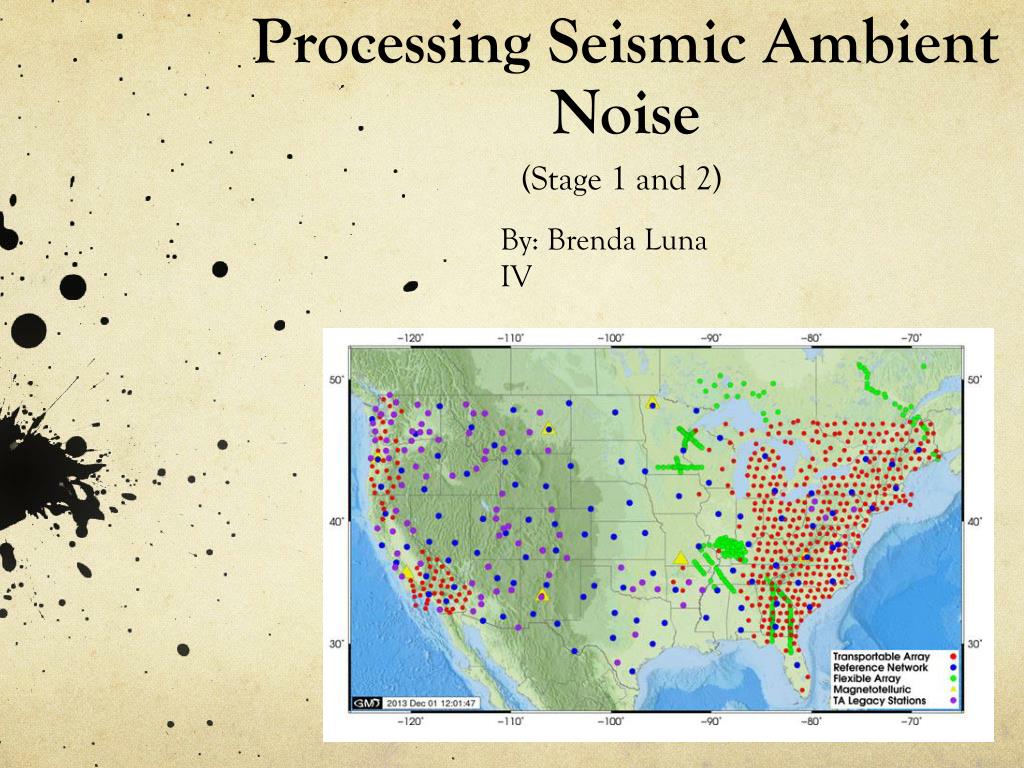

  1. (Stage 1 and 2) Processing Seismic Ambient Noise By:Brenda Luna IV

  2. Process based on: Processing seismic ambient noise data to obtain reliable broad-band surface wave dispersion measurements (2007) G. D. Bensen et. al and Marco Calo, post-doc at UC Berkeley Download data from IRIS: a) For each station download a months worth of data. - Change instrument réponseparamètres: zz,pp, constant for transfère function. - Create a new folder with month you are working with. - Comment this part out when after going through the code for the first time. 2) Cross correlate data. - "Corr_stage_1moise_2013.m" - What you need, (in the month folder): + Have "Corr_stage_1moise_2013.m" + Modify what Julian Days you are looking at in "ListJourJulien.asc" - Make sure you write change the month name. - Will save as ".freb_0.001_frehaut_0.1_z_b" c) To see what you are doing; - Be in folder with "FicCorrSign.freb_0.001" and "JAN" (folder with month, this is must optional) 3)Stacking; - "StackCorr_stage_v4" - You don't have to be in folder with cross correlations. Be one folder above. - You need to have your list of stations 4)To visualize stack: "VissuCorrStack” -Need "CorrStack_bM_031.mat" (Cross-stacked stuff).

  3. Step 1: Single Station Preparation: Original Mean removed Trend removed Transfer Data for the month of January from station 060Z [West Palm Beach, Florida]

  4. The more stacking that is done the better signal to noise ratio.
