Lecture 11 : Part I: Zones Part II: TTAs

1. Lecture 11 :Part I: ZonesPart II: TTAs CS5270, P.S. Thiagarajan

2. Zones • A more compact representation. • Of equivalence classes of valuations. • Can be efficiently represented as Difference Bounded Matrices (edge weighted directed graphs). • DBMs admit a canonical representation. • DBMs can be manipulated efficiently.

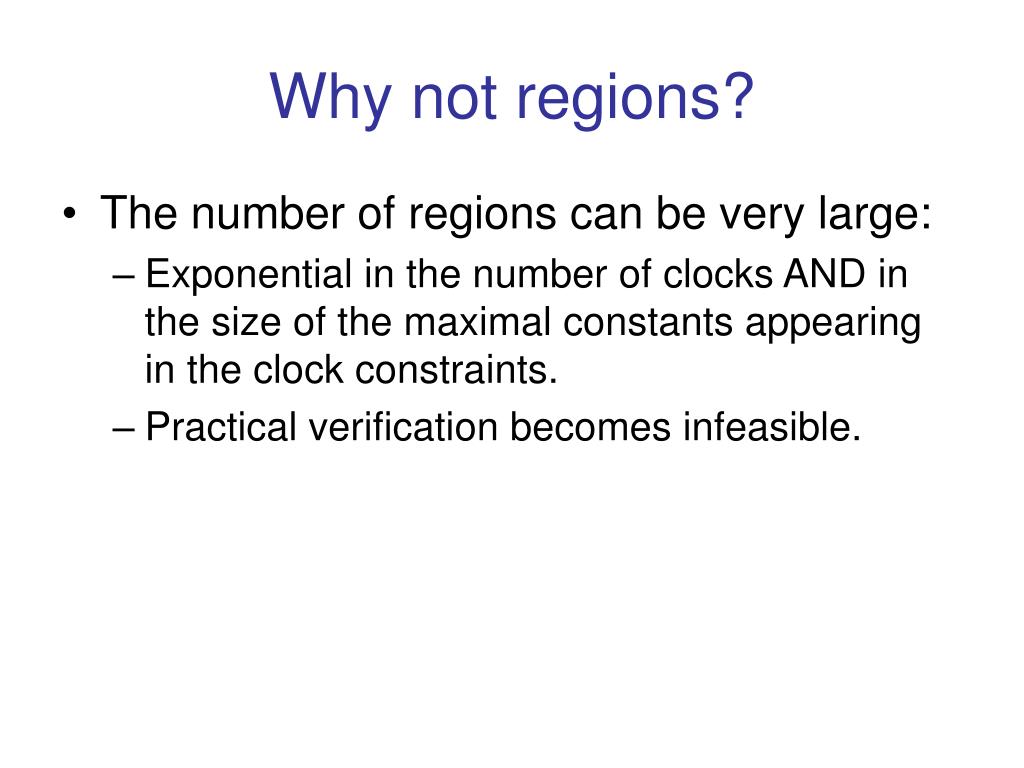

3. Why not regions? • The number of regions can be very large: • Exponential in the number of clocks AND in the size of the maximal constants appearing in the clock constraints. • Practical verification becomes infeasible.

4. An Example y x

5. 0-dimensional regions: 12 y x

6. 1-dimensional regions: 23 y x

7. 2-dimensional regions: 12 y x

8. Total number of regions: 47 y x

9. One Zone: (2 ≤ x ≤ 5)  (2 ≤ y ≤ 4) y x

10. Zones • A zone is a clock constraint of a particular form. • Z::= x  c | x – y  c | 1  2 •   {<, ≤, >,  } • c is a natural number. • Every region is a zone (exercise!).

11. Zone Automaton • Every TTA has an associated Zone automaton ZTTA. • This can be constructed effectively. • But this does not do too much for us. • Savings occur when we construct the Zone automaton on the fly to check reachability properties.

12. The Basic Algorithm. Symbolic Reachability Analysis Algorithm: PASSED = ; WAIT = {(s0, D0)} While WAIT  do take (s, D) from WAIT If s = sf then return ‘YES” if D is not a subset of D’ for every (s, D’) in PASSED then add (s, D) to PASSED. For all (s1, D1) so that (s, D) ----> (s1, D1), add (s1, D1) to WAIT. end for. end if end while

13. The Zone transition relation • (s, D) ----> (s, D  I(s) ) • D = {V +  | V  D} • D is a zone. • From D we can compute D. • (s, D) ---> (s’, D’) if there is a transition (s, g, X, s’) in TTS such that: • D’ = RX(D  g)  I(s’) • RX(D) = {RX(V) | V  D} • RX(V) (y) = 0 if y  X, V(y) otherwise. • RX(D) is a zone. • D’ is non-empty. • D’ is a zone and can be computed from D.

14. Termination • To ensure termination: • Remove constraints of the form x < m , x ≤ m, x – y < m and x – y ≤ m if m > Cx. • Replace x > m and x  m with x > Cx if m > Cx. • Replace y – x > m and y – x  m with y –x > Cx and y – x  Cx when m > Cx.

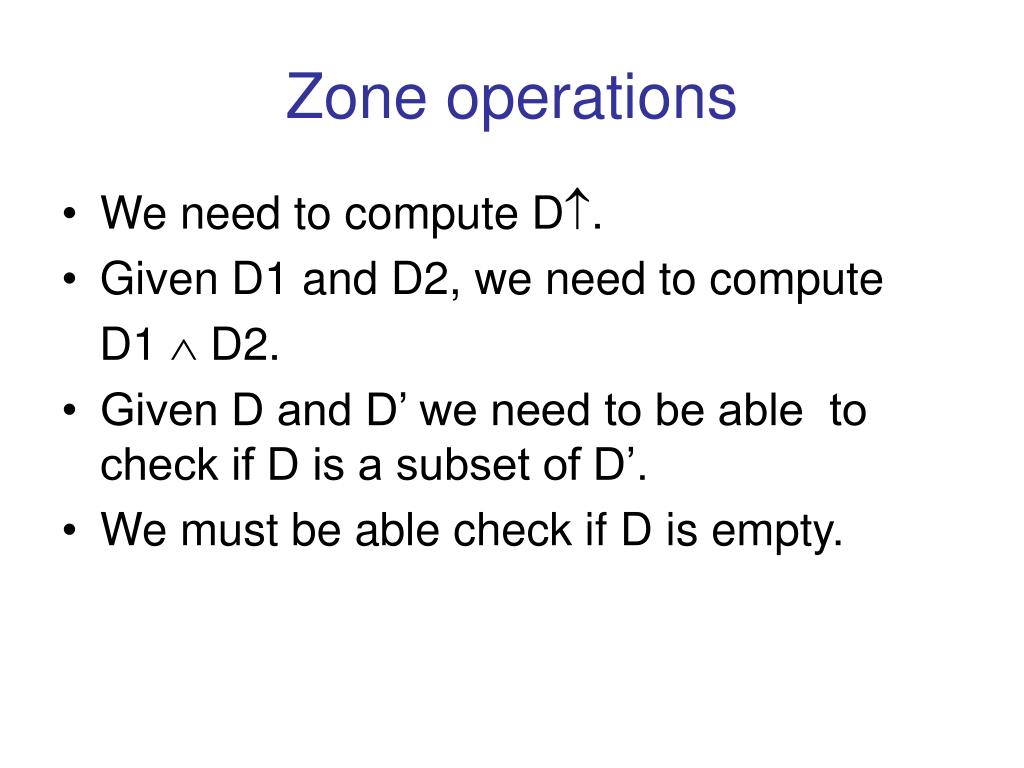

15. Zone operations • We need to compute D. • Given D1 and D2, we need to compute D1  D2. • Given D and D’ we need to be able to check if D is a subset of D’. • We must be able check if D is empty.

16. Zone representation. • A zone can be represented as a DBM: • Difference Bounded Matrix. • Invent a new clock variable x0 (which will always be 0). • All basic constraints will be of the form xi – xj < m or xi – xj≤ m where m is an integer (positive or negative).

17. Zone Representation • x2 < 3 becomes x2 – x0 < 3. • X5 7 becomes x0 – x5≤ -7. • X2 – x5 > 8 becomes x5 –x2 < -8.

18. The Matrix Representation. x_0 x_1 x_2 . . . x_j x_n x_0 x_1 x_2 . .x_i . x_n xi – xj≤ 2 (2, 1)

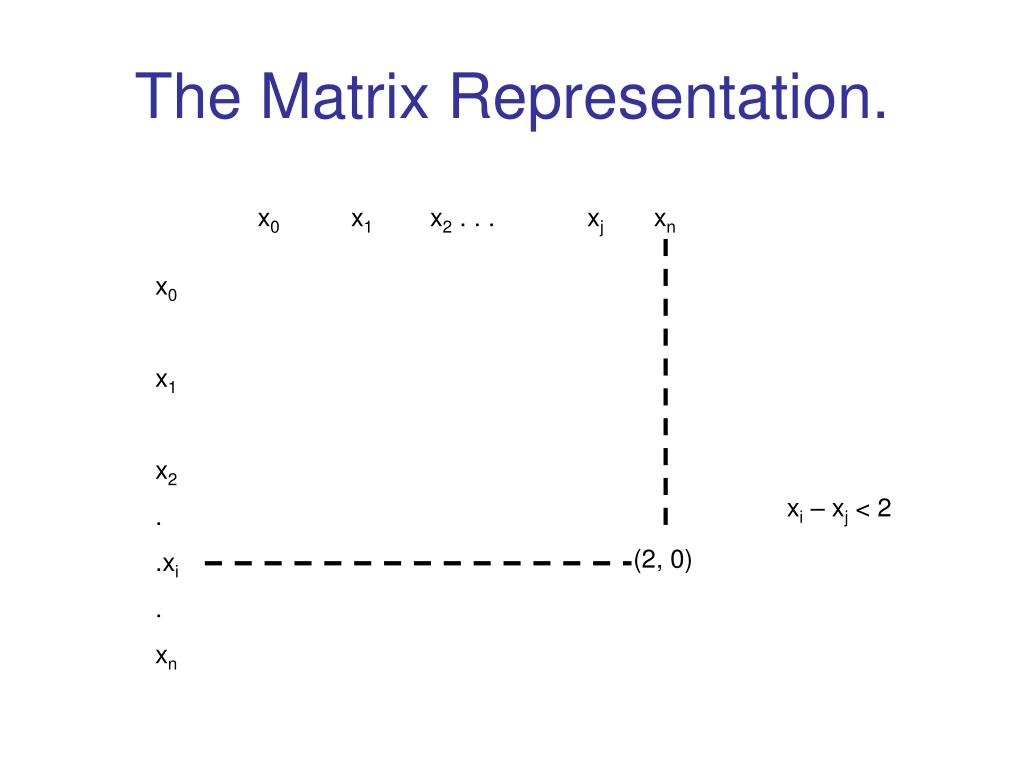

19. The Matrix Representation. x0 x1 x2 . . . xj xn x0 x1 x2 . .xi . xn xi – xj< 2 (2, 0)

20. The Matrix Representation. x0 x1 x2 . . . x3 (0, 3) x0 x1 x2 . .x3 . ∞ (0, -4) (0, 10) (0, 2) (0, 5) (0, 2)

21. The Graph Representation (k, 1) (k, 0) x y x y y – x ≤ k y – x < k

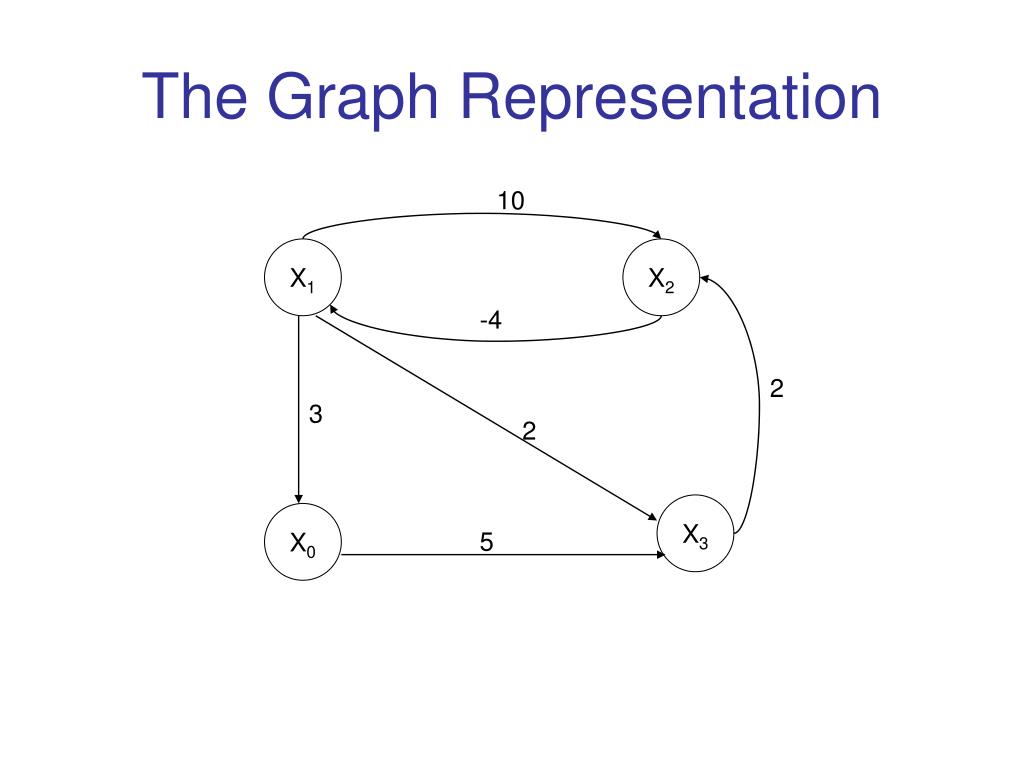

22. The Graph Representation 10 X1 X2 -4 2 3 2 X3 X0 5

23. Closed Representations • Two different zones (DBMs) can represent the same set of valuations. • (y – x ≤ 3, x = 2, y = 4) (y –x = 2, x =2, y = 4) • A zone is closed if no constraint can be strengthened without reducing the set of associated valuations. • Two closed zones are equivalent iff they are identical. • So it is good to get closed zones.

24. Closed Zones. • Take the graph of the zone. • Remove all redundant edges. • The edge from x to y with weight k is redundant if there is a path from x to y whose weight is less than or equal to k. • Using a shortest path algorithm, the closed zone version can be computed in O(n3) time.

25. Closed Zones • If D is closed then D is a subset of D’ iff for every constraint x – y ≤ m’ in D’ there is a constraint x – y ≤ m in D with m ≤ m’. • If D is closed then D is non-empty iff there are no negative weight cycles in the graph. • The other operations can also be performed on the graphs efficiently.

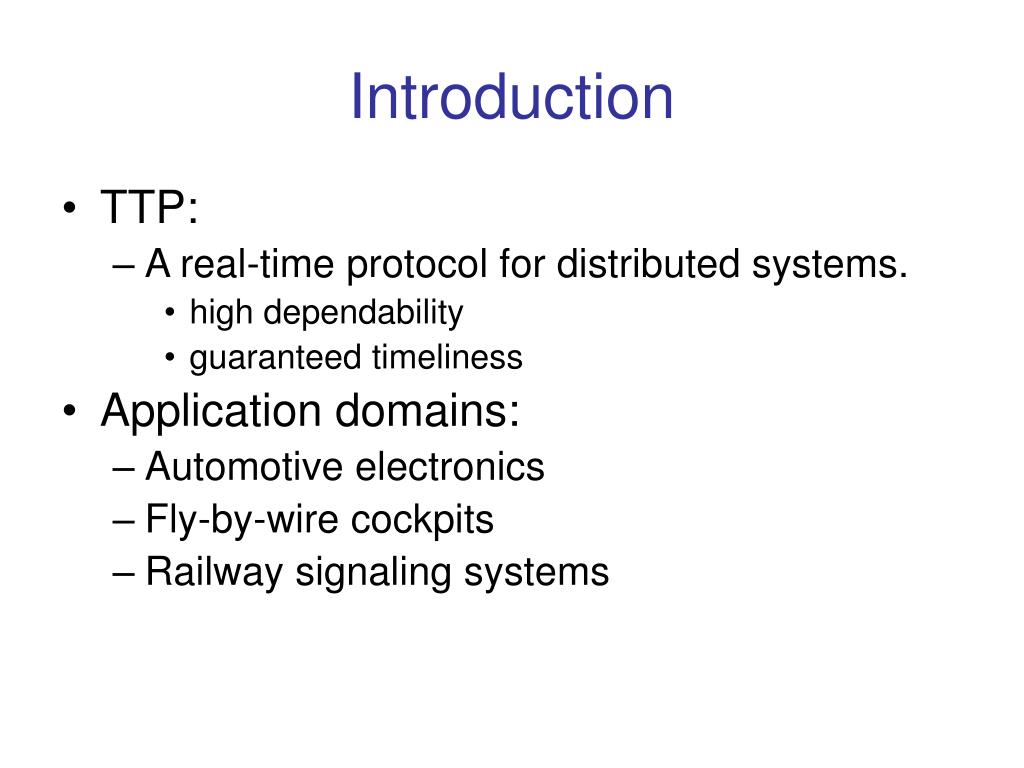

26. Introduction • TTP: • A real-time protocol for distributed systems. • high dependability • guaranteed timeliness • Application domains: • Automotive electronics • Fly-by-wire cockpits • Railway signaling systems

27. Acknowledgements • The following slides have been assembled from many web sources. In particular: • H.Kopetz and G.Grünsteidl; Digest of Papers, FTCS-23. (IEEE CS 23rd Intl. Symp. on Fault-Tolerant Computing), Aug. 1993, pp.524 -533; Presented by Shruti Gorappa

28. Features of the TTP • Fault-tolerance • Small overhead • Integrates numerous services • Predictable message transmission • Message acknowledgement in group communication • Clock synchronization • Membership • Rapid mode change • Redundancy management • Temporary blackout handling

29. Assumptions • Fail-silence • Communication channels only have omission failures. • Nodes either deliver correct results or no results • Internal failures are detected and node turned off

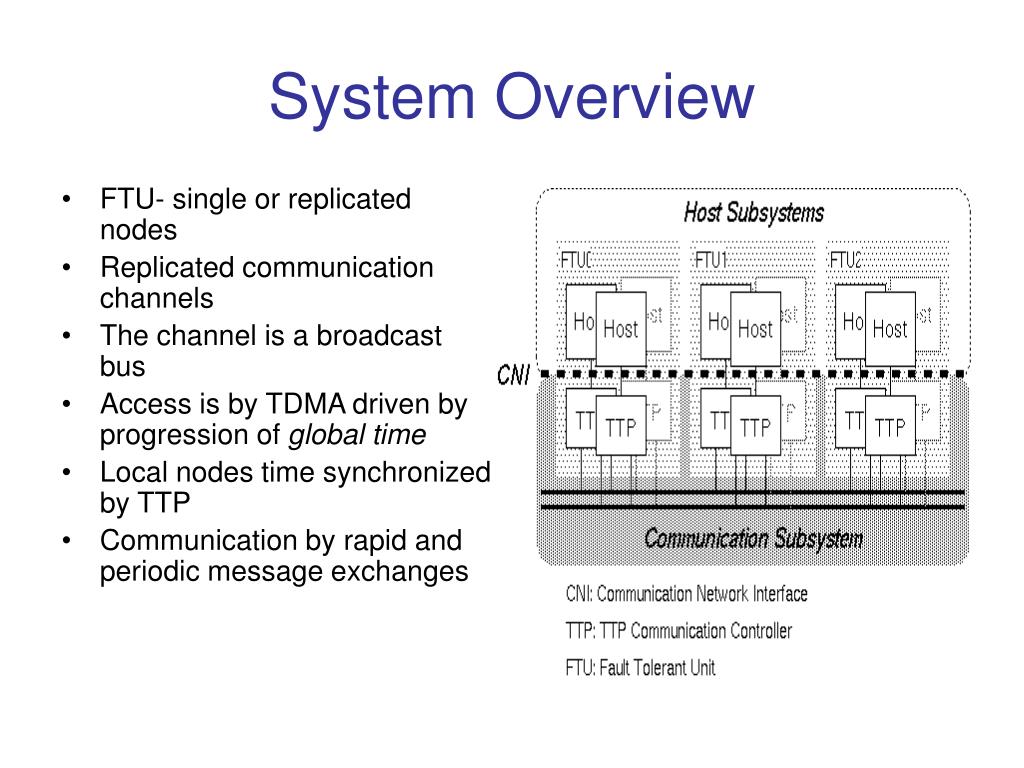

30. System Overview • FTU- single or replicated nodes • Replicated communication channels • The channel is a broadcast bus • Access is by TDMA driven by progression of global time • Local nodes time synchronized by TTP • Communication by rapid and periodic message exchanges

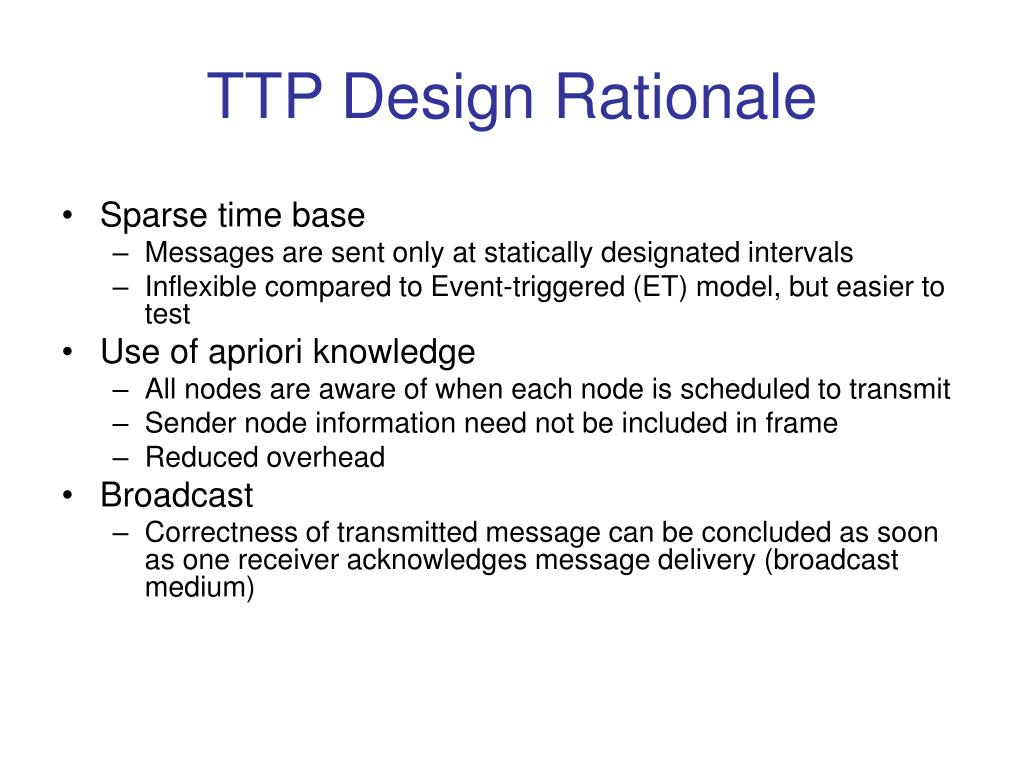

31. TTP Design Rationale • Sparse time base • Messages are sent only at statically designated intervals • Inflexible compared to Event-triggered (ET) model, but easier to test • Use of apriori knowledge • All nodes are aware of when each node is scheduled to transmit • Sender node information need not be included in frame • Reduced overhead • Broadcast • Correctness of transmitted message can be concluded as soon as one receiver acknowledges message delivery (broadcast medium)

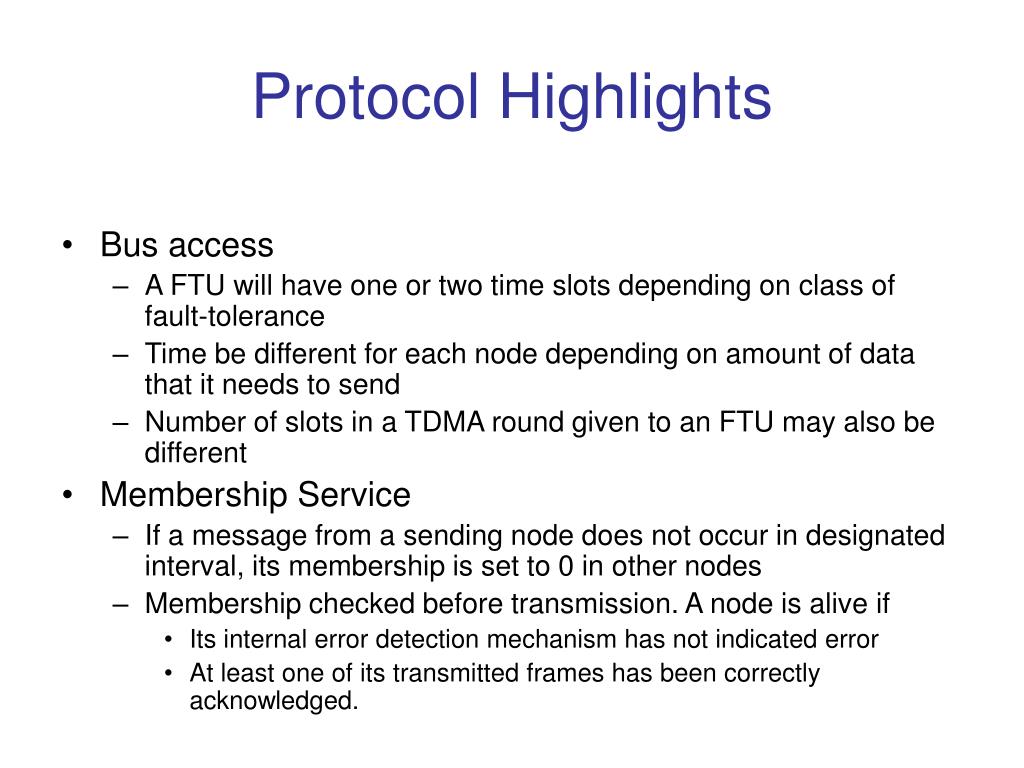

32. Protocol Highlights • Bus access • A FTU will have one or two time slots depending on class of fault-tolerance • Time be different for each node depending on amount of data that it needs to send • Number of slots in a TDMA round given to an FTU may also be different • Membership Service • If a message from a sending node does not occur in designated interval, its membership is set to 0 in other nodes • Membership checked before transmission. A node is alive if • Its internal error detection mechanism has not indicated error • At least one of its transmitted frames has been correctly acknowledged.

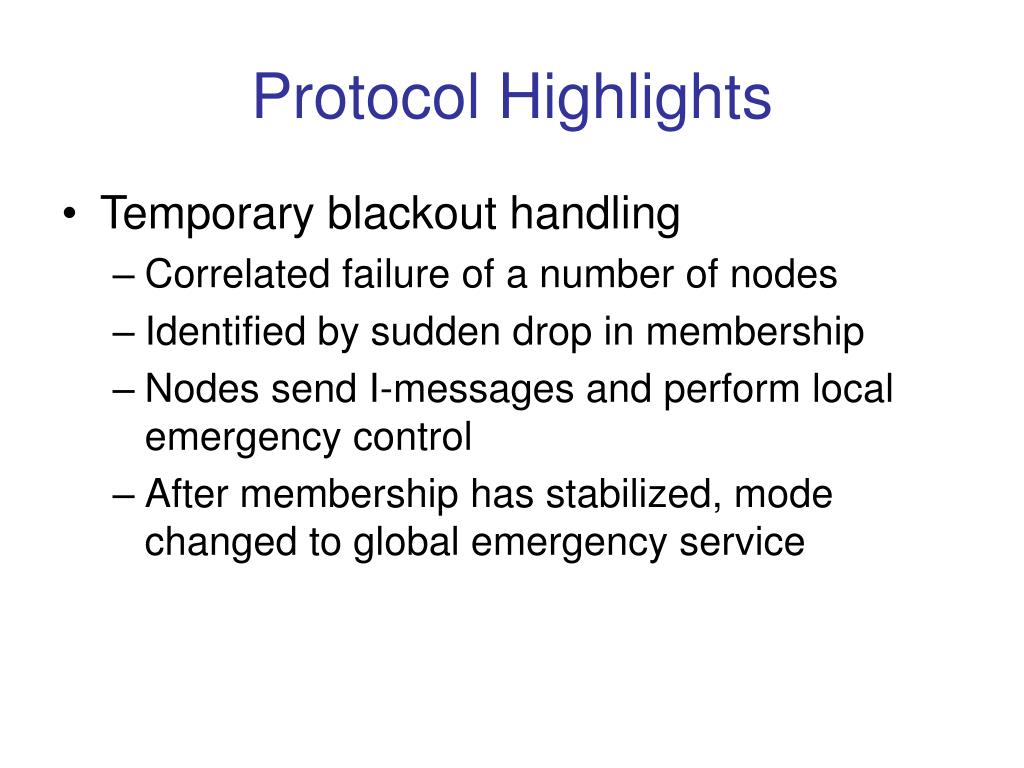

33. Protocol Highlights • Temporary blackout handling • Correlated failure of a number of nodes • Identified by sudden drop in membership • Nodes send I-messages and perform local emergency control • After membership has stabilized, mode changed to global emergency service

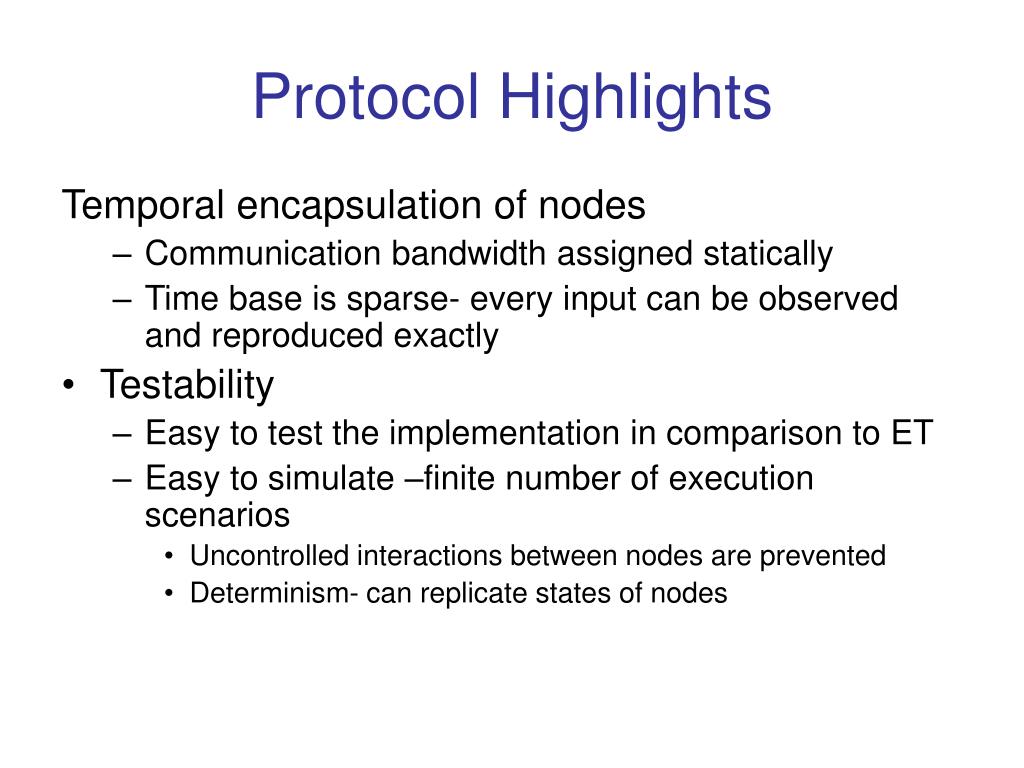

34. Protocol Highlights Temporal encapsulation of nodes • Communication bandwidth assigned statically • Time base is sparse- every input can be observed and reproduced exactly • Testability • Easy to test the implementation in comparison to ET • Easy to simulate –finite number of execution scenarios • Uncontrolled interactions between nodes are prevented • Determinism- can replicate states of nodes

35. Strengths • Can provide fault-tolerant real-time performance • Practical (MARS platform), efficient, and scalable • Can be implemented using available hardware, signalling mechanisms • Low overhead • High data rates, used in both twisted fiber and optical channels • Reusability, composability, and testability

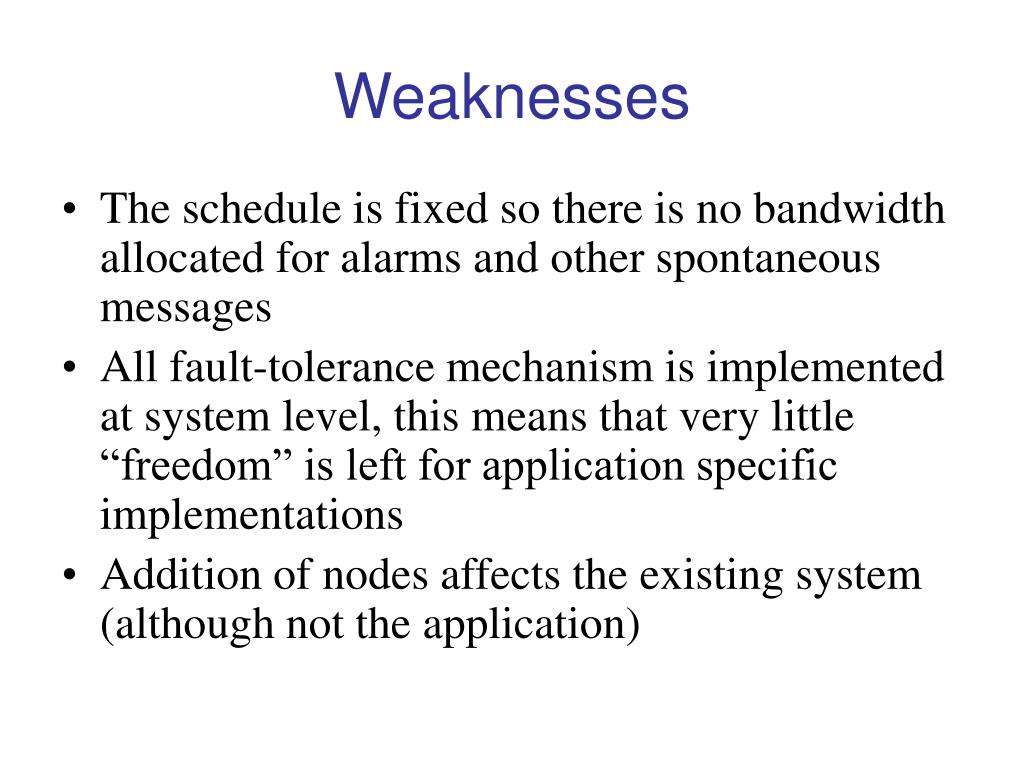

36. Weaknesses • The schedule is fixed so there is no bandwidth allocated for alarms and other spontaneous messages • All fault-tolerance mechanism is implemented at system level, this means that very little “freedom” is left for application specific implementations • Addition of nodes affects the existing system (although not the application)

37. References • Kopetz, H., and Grunsteidl, G., "TTP - A time-triggered protocol for fault-tolerant real-time systems",  Digest of Papers., FTCS-23. (IEEE CS 23rd Int' Symp. on Fault-Tolerant Computing), Aug. 1993, pp.524 -533 • The Real-time Systems Research Group, Institut für Technische Informatik, Vienna University of Technologyhttp://www.vmars.tuwien.ac.at/projects/ttp/ttpmain.html • REAL-TIME COMMUNICATION- Evaluation of protocols for automotive systems, MICHAEL WAERN, http://www.md.kth.se/RTC/MSc-theses/RT-Com-Evaluation-Waern.pdf • CAN bus, http://www.can-cia.org/can/protocol/ • Time-triggered Technology, http://www.tttech.com/

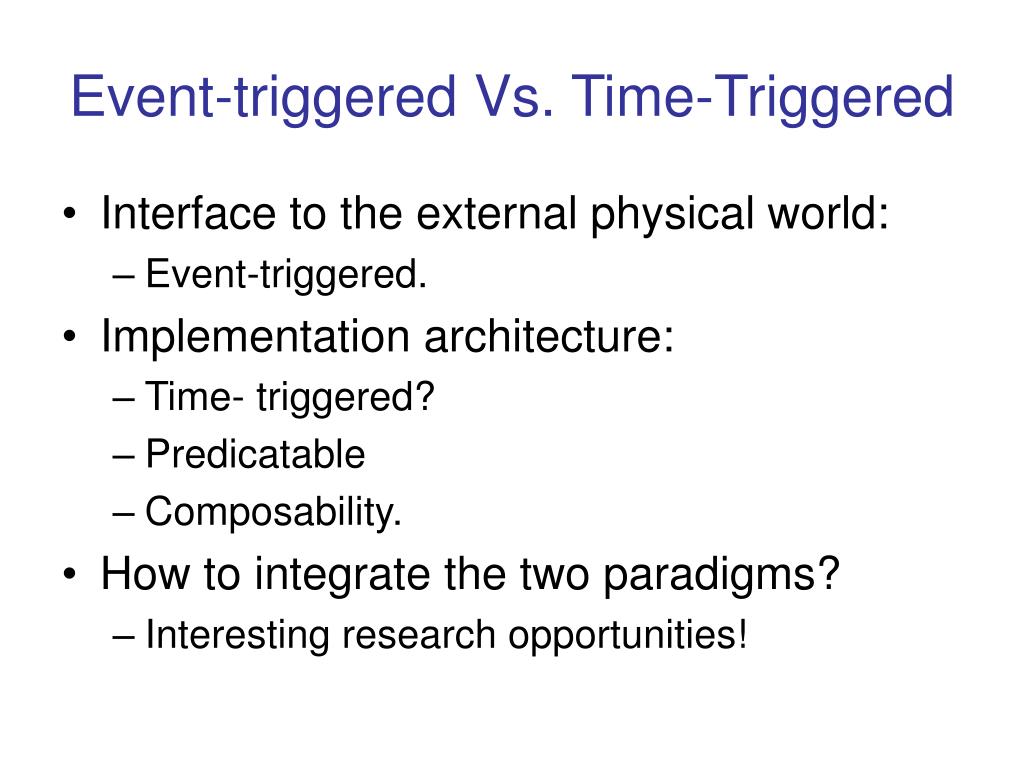

38. Event-triggered Vs. Time-Triggered • Interface to the external physical world: • Event-triggered. • Implementation architecture: • Time- triggered? • Predicatable • Composability. • How to integrate the two paradigms? • Interesting research opportunities!

39. The Automotive Electronics Case • Current scene: • Current systems contain upto 70 ECUs (Electronic Control Units). • Each ECY is developed and acts independently; very little integration. • Communication: • Event-triggered • Slow; 500 Kbits/sec

40. The Automotive Electronics Case • Next Generation: • Integrated architecture. • Distributed, safety-critical, real time. • Why? • Costs: • reduce the number of ECUs. • Reliability • Safety • Multiple use of sensors.

41. Conclusion • Time-Triggered architectures and protocols are likely to become important. • Also related to synchronous programming languages: • Lustre, Signal, Esterel • There are also other timed models: • Timed Petri nets, …
