Presentation Transcript

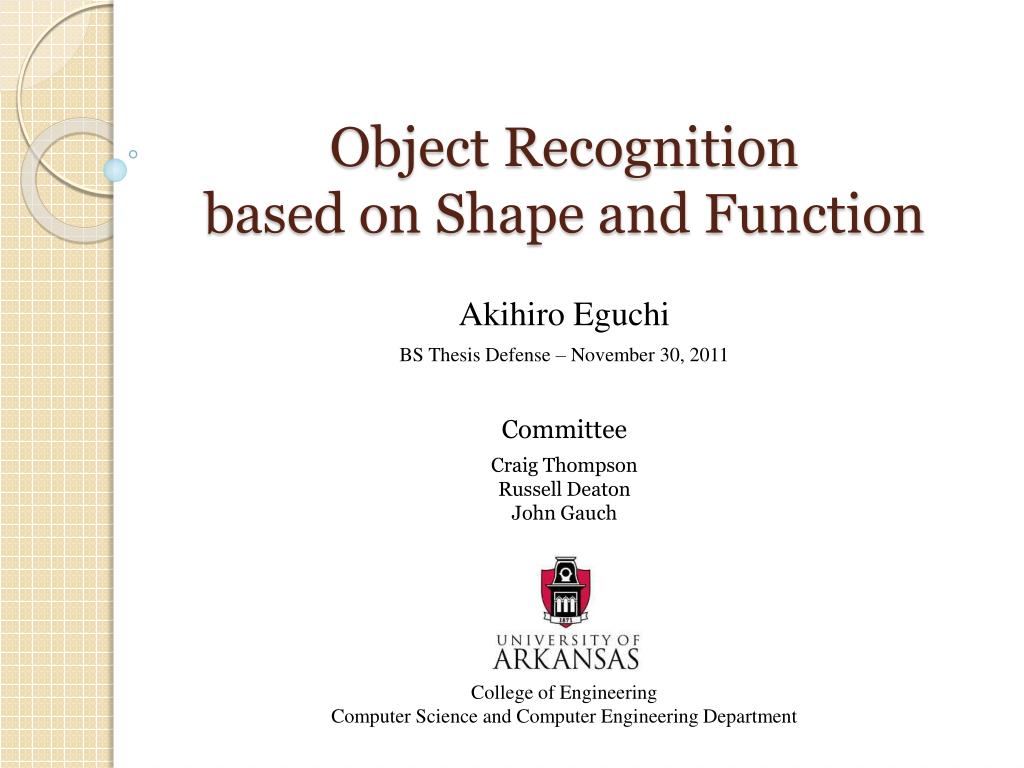

  1. Object Recognitionbased on Shape and Function Akihiro Eguchi BS Thesis Defense – November 30, 2011 Committee Craig Thompson Russell Deaton John Gauch College of Engineering Computer Science and Computer Engineering Department

  2. Outline • Personal Background • Introduction • Background • Approach and Architecture • Methodology, Results, and Analysis • Conclusion

  3. 2. Introduction 3. Background 4. Approach and Architecture 5. Methodology, Results, and Analysis 6. Conclusion 1.Personal background

  4. Akihiro Eguchi • Majors at the University of Arkansas • College of Engineering • Honors B.S., Computer Science • Advisor: Dr. Craig Thompson • Fulbright College of Fine Arts and Science • Honors B.A., Psychology • Thesis: “Cultural bias during word learning” • Advisor: Dr. Douglas Behrend • Minor in B.S., Mathematics

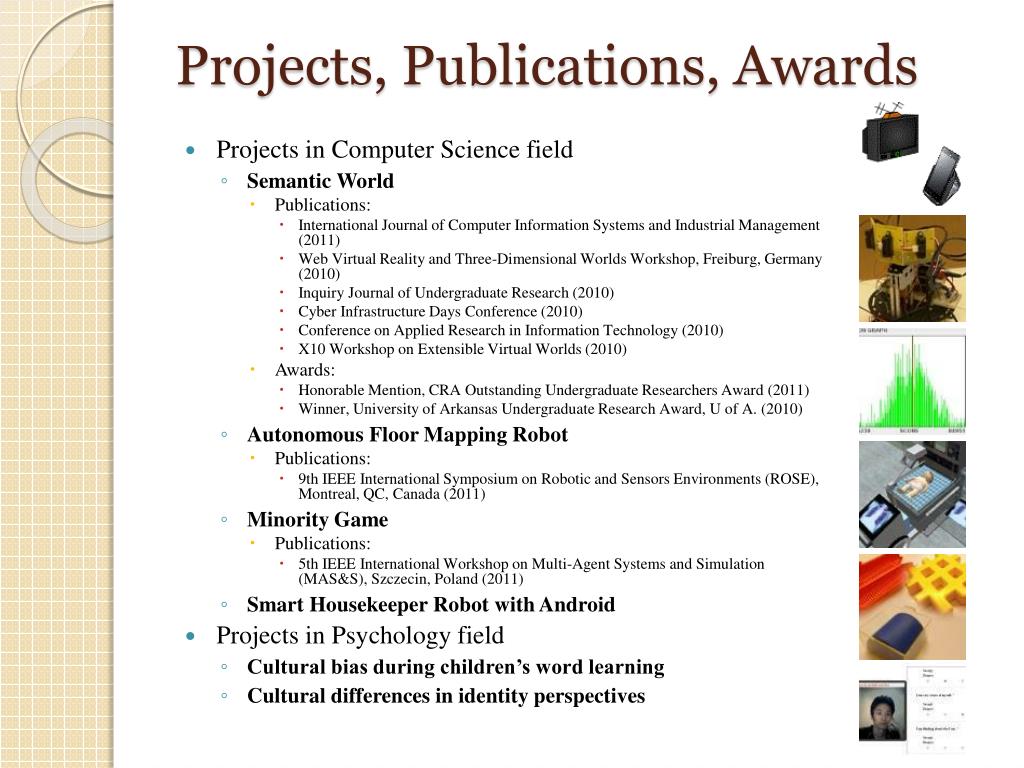

  5. Projects, Publications, Awards • Projects in Computer Science field • Semantic World • Publications: • International Journal of Computer Information Systems and Industrial Management (2011) • Web Virtual Reality and Three-Dimensional Worlds Workshop, Freiburg, Germany (2010) • Inquiry Journal of Undergraduate Research (2010) • Cyber Infrastructure Days Conference (2010) • Conference on Applied Research in Information Technology (2010) • X10 Workshop on Extensible Virtual Worlds (2010) • Awards: • Honorable Mention, CRA Outstanding Undergraduate Researchers Award (2011) • Winner, University of Arkansas Undergraduate Research Award, U of A. (2010) • Autonomous Floor Mapping Robot • Publications: • 9th IEEE International Symposium on Robotic and Sensors Environments (ROSE), Montreal, QC, Canada (2011) • Minority Game • Publications: • 5th IEEE International Workshop on Multi-Agent Systems and Simulation (MAS&S), Szczecin, Poland (2011) • Smart Housekeeper Robot with Android • Projects in Psychology field • Cultural bias during children’s word learning • Cultural differences in identity perspectives

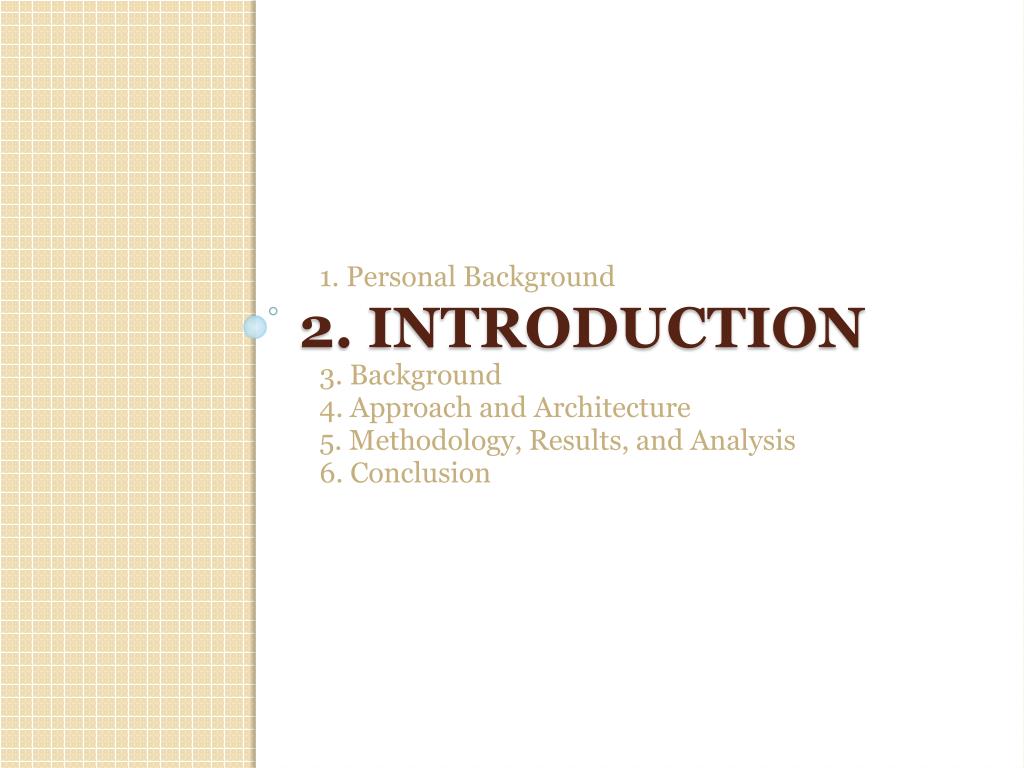

  6. 1. Personal Background 3. Background 4. Approach and Architecture 5. Methodology, Results, and Analysis 6. Conclusion 2. Introduction

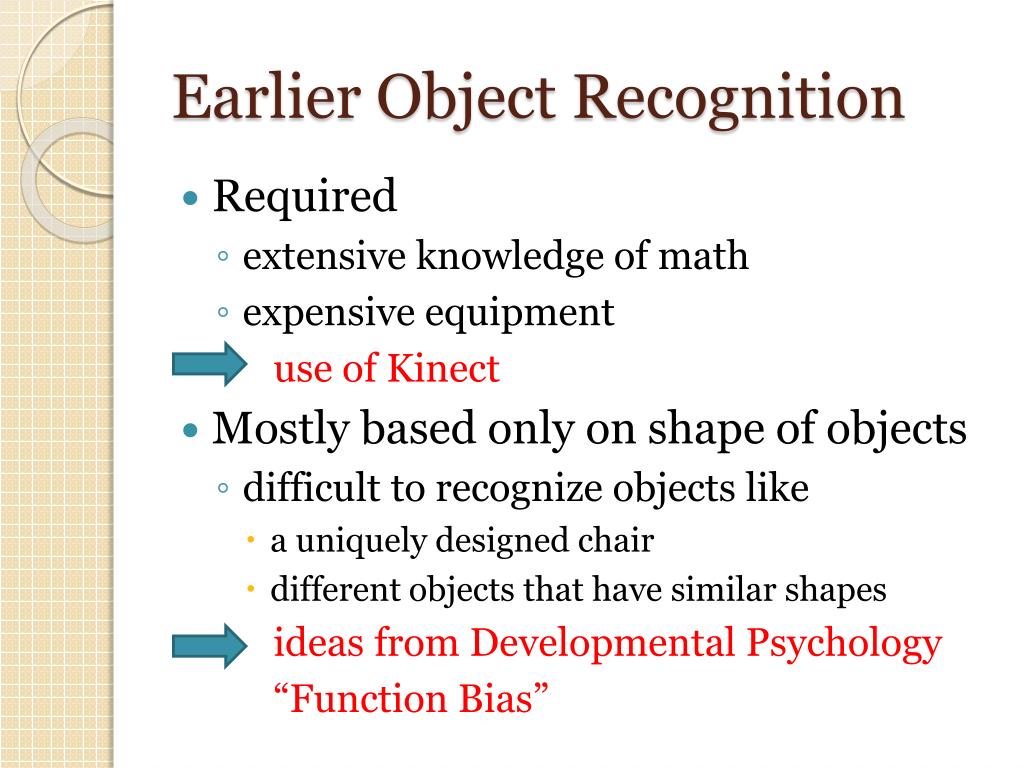

  7. Earlier Object Recognition • Required • extensive knowledge of math • expensive equipment use of Kinect • Mostly based only on shape of objects • difficult to recognize objects like • a uniquely designed chair • different objects that have similar shapes ideas from Developmental Psychology “Function Bias”

  8. Objective • To combine Kinect sensor with machine learning techniques • To develop a new object recognition model based on shape bias and function bias

  9. 1. Personal Background • 2. Introduction 4. Approach and Architecture 5. Methodology, Results, and Analysis 6. Conclusion 3. Background

  10. Key Concept 1Machine Learning • Give computers a way to learn without explicitly being programmed • autonomous vehicles, checker playing, and signal processing, etc. • Predict the function f(x) = y • Examples include • rote learning • decision tree based (ID3) • neural networks • k-nearest neighbor clustering

  11. Key Concept 2Microsoft Kinect for the Xbox • A controller for the Microsoft gaming console Xbox 360 costs only $150 • dynamic depth image retrieval • human body recognition • skeletal joint tracking • multi-array microphone • Kinect SDK was officially released in June 2011

  12. Related WorkDevelopmental Psychology • Human children use two main biases when learning to name objects: • Shape bias (B. Landau et al., 1988) • generalize name of the object if the shape is similar • Function bias (D. G. K. Nelson et al., 2000) • generalize name of the object if the function of the use seem to be the same • B. Landau, L. Smith, and S. Jones, “The Importance of Shape in Early Lexical Learning,” Cognitive Development, vol. 3, no. 3, 1988, pp. 299-321. • D. G. K. Nelson, R. Russell, N. Duke, and K. Jones, “Two-Year-Olds Will Name Artifacts by Their Functions,” Child Development, vol. 71, no. 5, 2000, pp. 1271-1288.

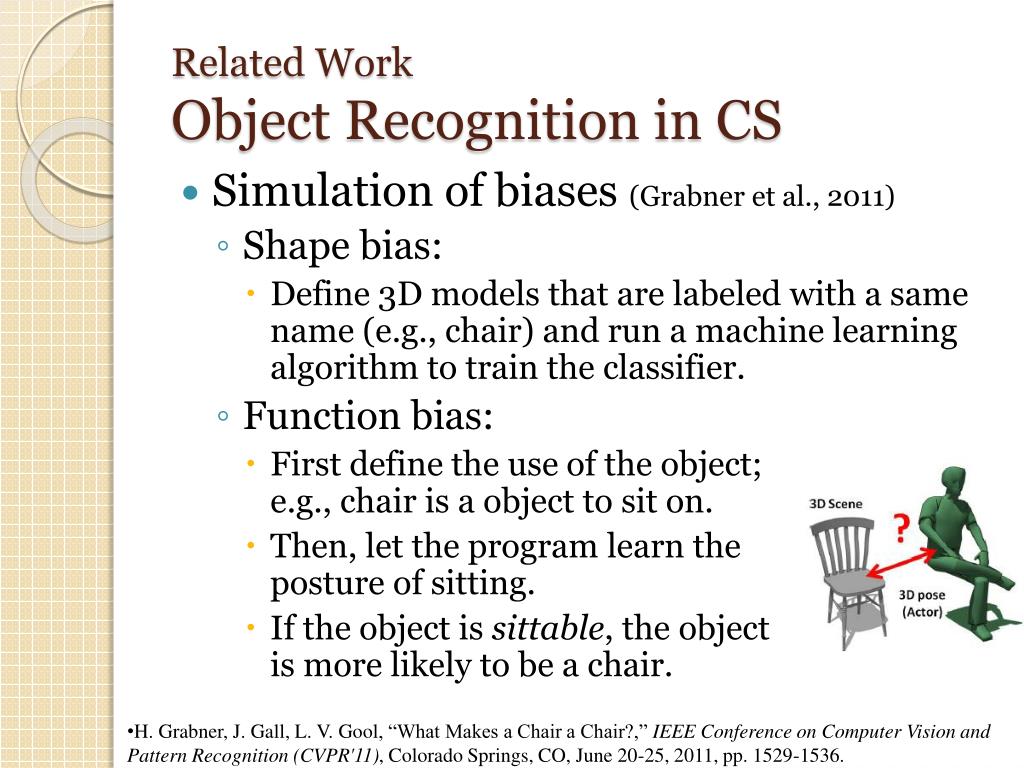

  13. Related WorkObject Recognition in CS • Simulation of biases (Grabner et al., 2011) • Shape bias: • Define 3D models that are labeled with a same name (e.g., chair) and run a machine learning algorithm to train the classifier. • Function bias: • First define the use of the object; e.g., chair is a object to sit on. • Then, let the program learn the posture of sitting. • If the object is sittable, the objectis more likely to be a chair. • H. Grabner, J. Gall, L. V. Gool, “What Makes a Chair a Chair?,” IEEE Conference on Computer Vision and Pattern Recognition (CVPR'11), Colorado Springs, CO, June 20-25, 2011, pp. 1529-1536.

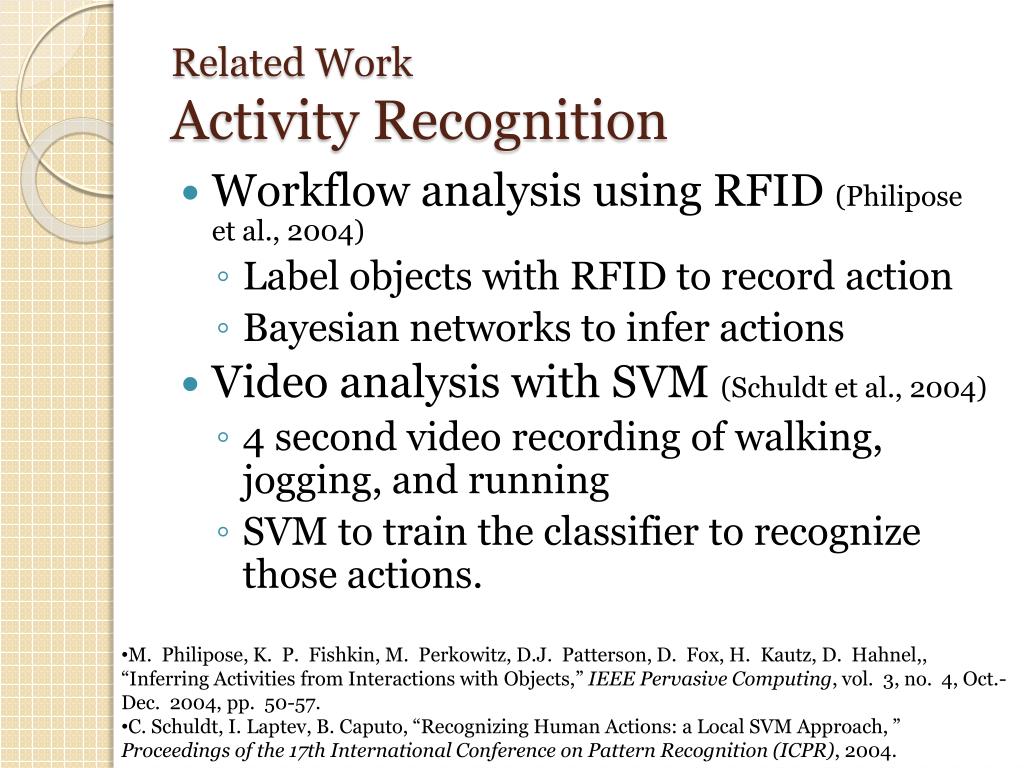

  14. Related WorkActivity Recognition • Workflow analysis using RFID (Philipose et al., 2004) • Label objects with RFID to record action • Bayesian networks to infer actions • Video analysis with SVM (Schuldt et al., 2004) • 4 second video recording of walking, jogging, and running • SVM to train the classifier to recognize those actions. • M. Philipose, K. P. Fishkin, M. Perkowitz, D.J. Patterson, D. Fox, H. Kautz, D. Hahnel,, “Inferring Activities from Interactions with Objects,” IEEE Pervasive Computing, vol. 3, no. 4, Oct.-Dec. 2004, pp. 50-57. • C. Schuldt, I. Laptev, B. Caputo, “Recognizing Human Actions: a Local SVM Approach, ” Proceedings of the 17th International Conference on Pattern Recognition (ICPR), 2004.

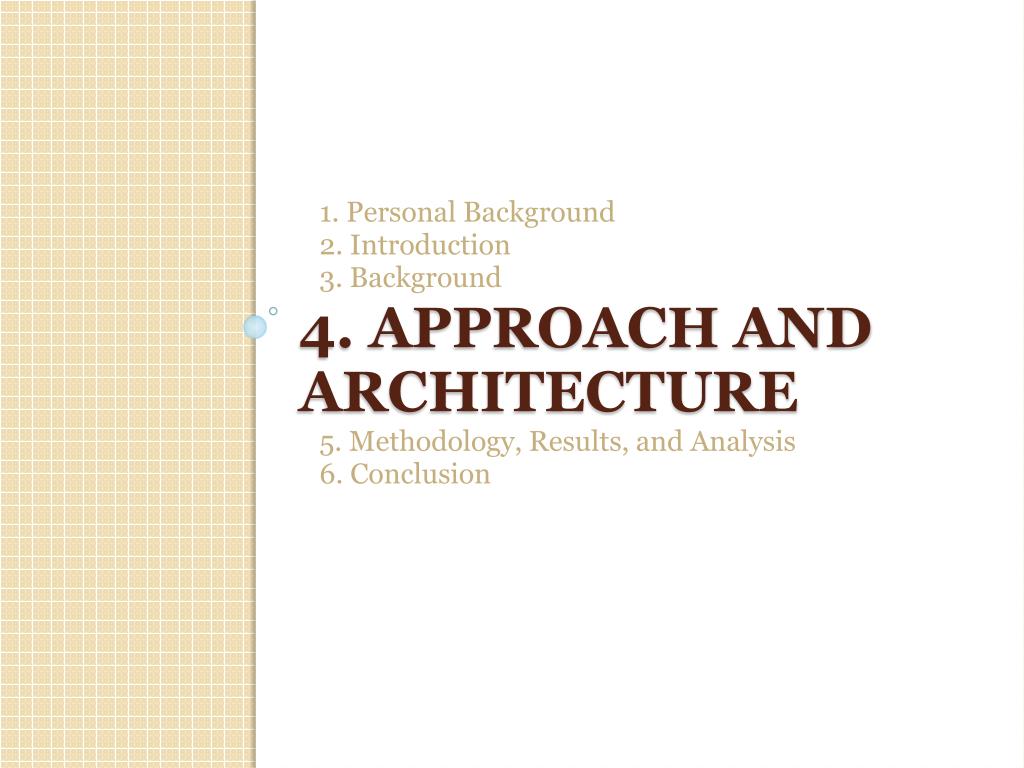

  15. 1. Personal Background • 2. Introduction 3. Background 5. Methodology, Results, and Analysis 6. Conclusion 4. Approach and Architecture

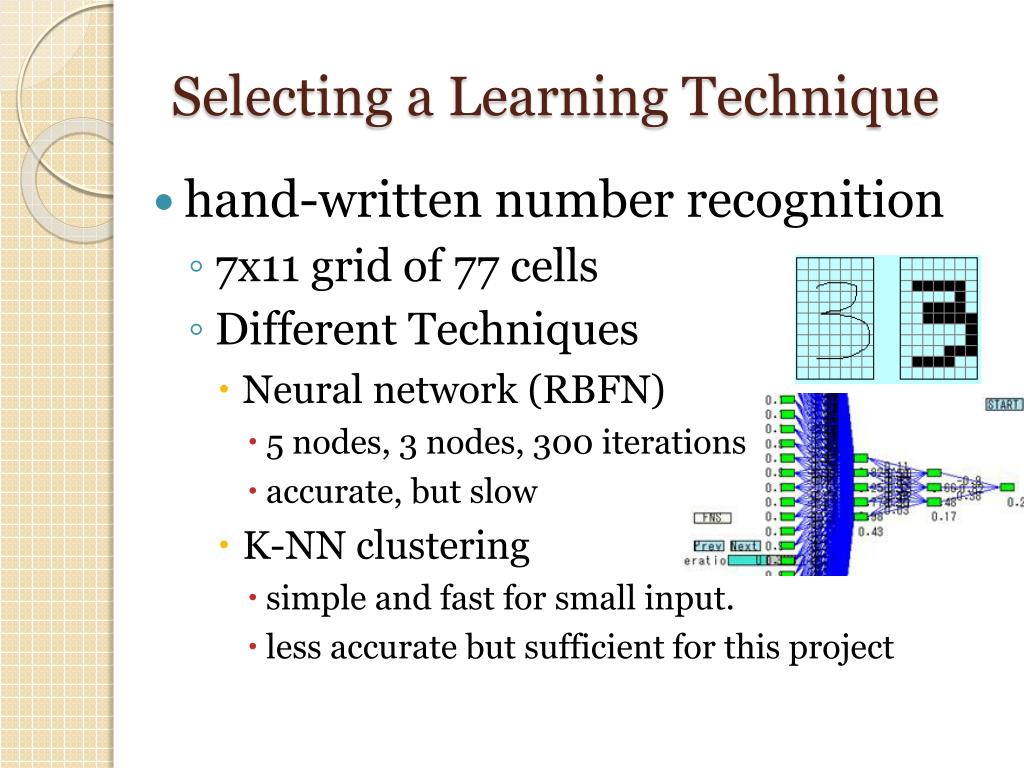

  16. Selecting a Learning Technique • hand-written number recognition • 7x11 grid of 77 cells • Different Techniques • Neural network (RBFN) • 5 nodes, 3 nodes, 300 iterations • accurate, but slow • K-NN clustering • simple and fast for small input. • less accurate but sufficient for this project

  17. Learning to Use the Kinect SDK • Noise reduction • 3D reconfiguration with OpenGL

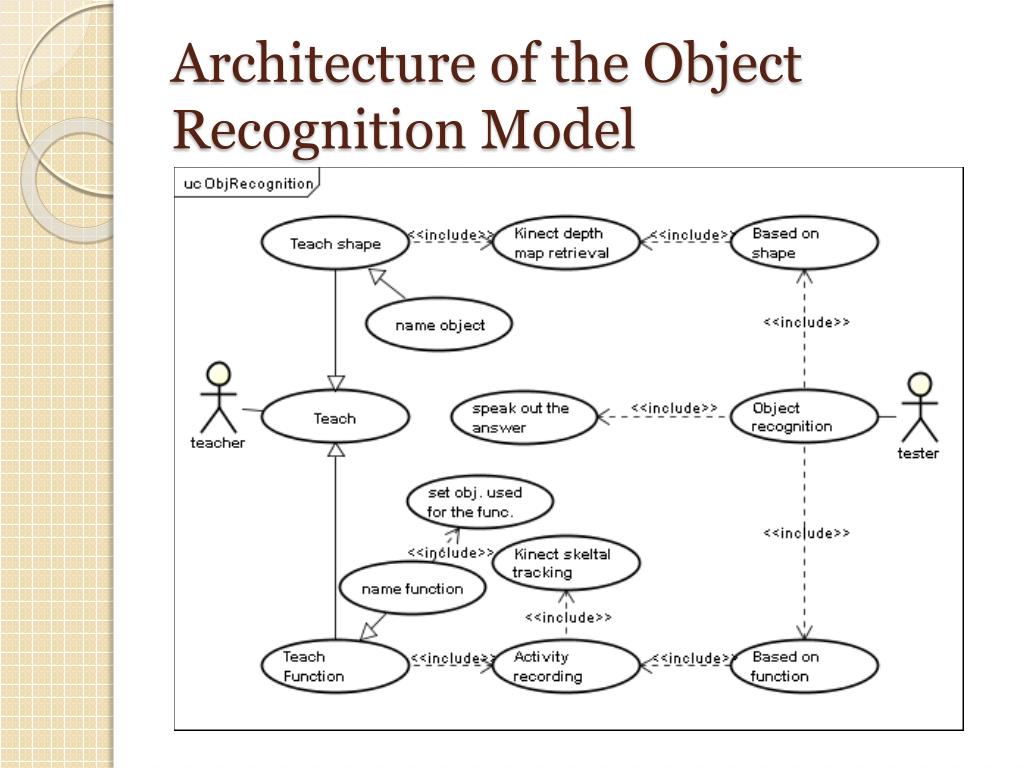

  18. Architecture of the Object Recognition Model

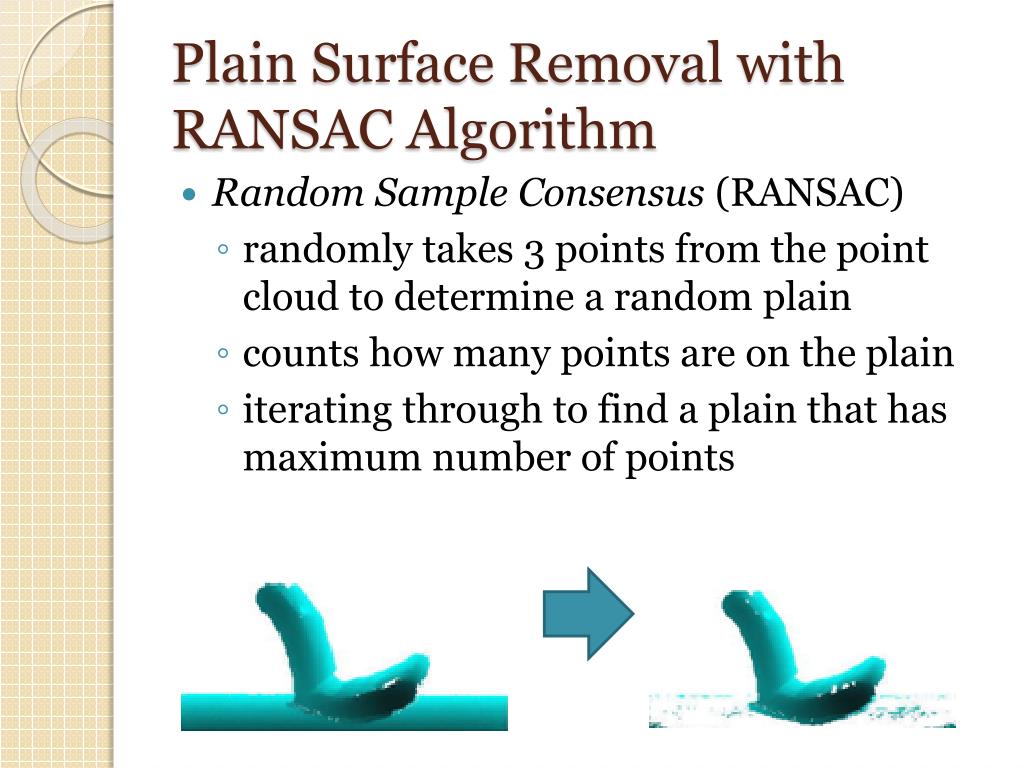

  19. Plain Surface Removal with RANSAC Algorithm • Random Sample Consensus (RANSAC) • randomly takes 3 points from the point cloud to determine a random plain • counts how many points are on the plain • iterating through to find a plain that has maximum number of points

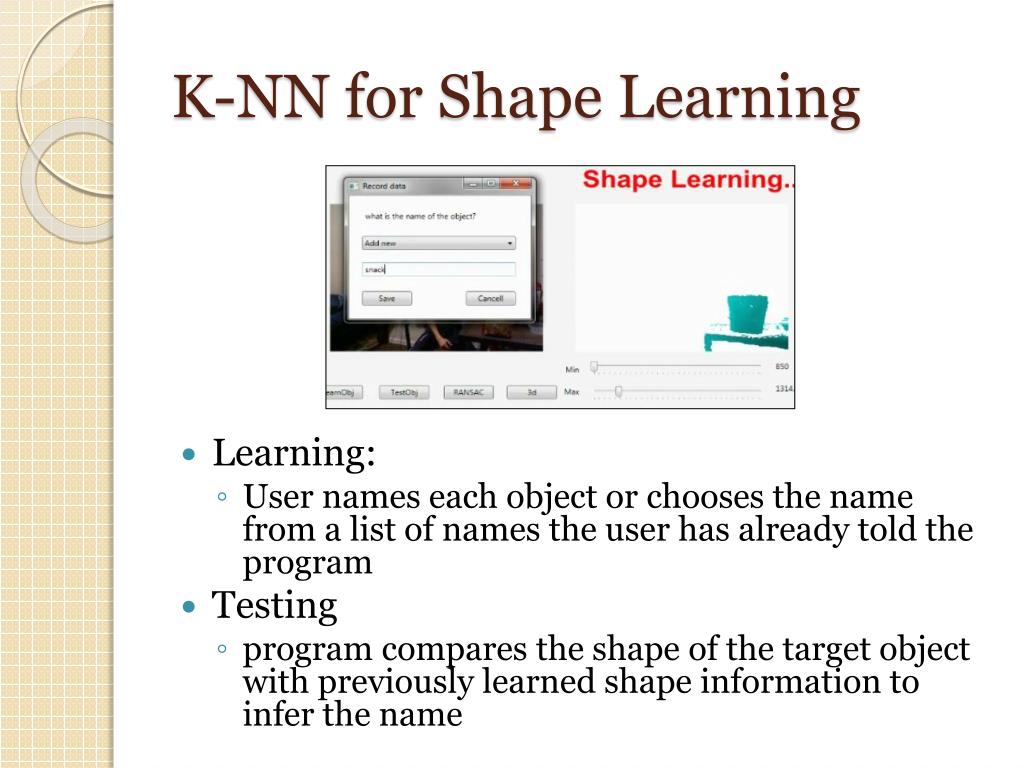

  20. K-NN for Shape Learning • Learning: • User names each object or chooses the name from a list of names the user has already told the program • Testing • program compares the shape of the target object with previously learned shape information to infer the name

  21. Activity Recognition using the Kinect • Learning: • Kinect tracks twenty different joints of skeletal information • records coordinates for each joint every 0.1 seconds for 10 seconds • name the activity • Testing: • Use of K-NN to infer the target activity

  22. Demo: Activity Recognition using the Kinect • http://www.youtube.com/watch?v=AxCn0eKWkiQ

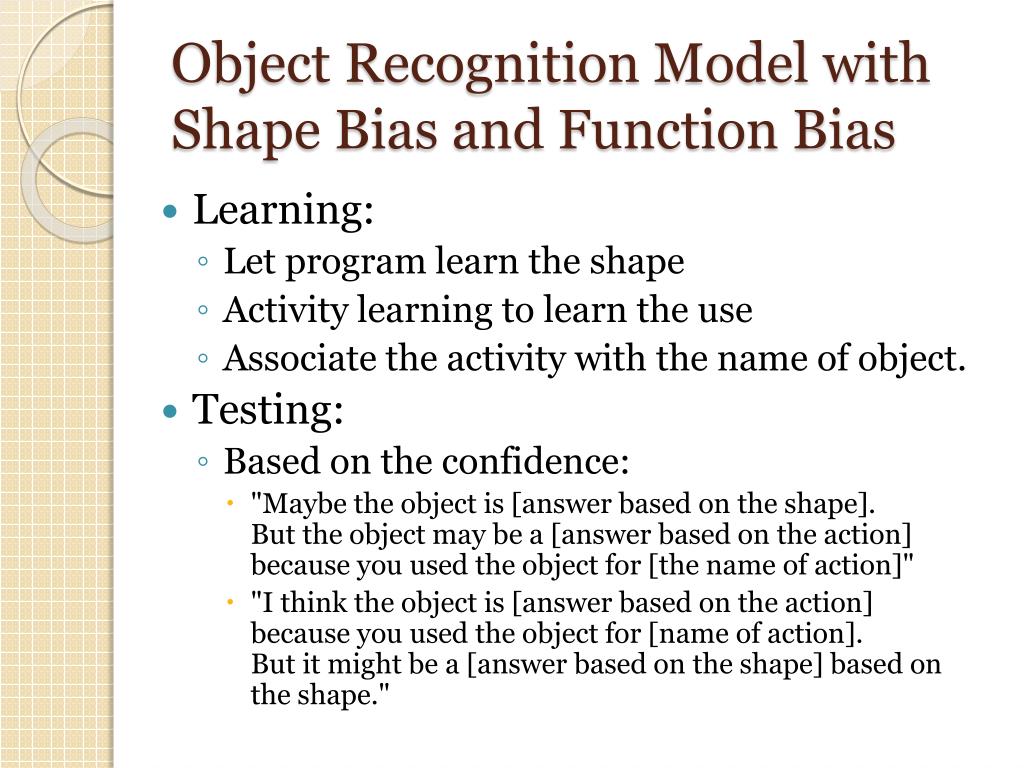

  23. Object Recognition Model with Shape Bias and Function Bias • Learning: • Let program learn the shape • Activity learning to learn the use • Associate the activity with the name of object. • Testing: • Based on the confidence: • "Maybe the object is [answer based on the shape]. But the object may be a [answer based on the action] because you used the object for [the name of action]" • "I think the object is [answer based on the action] because you used the object for [name of action]. But it might be a [answer based on the shape] based on the shape."

  24. Demo: Object Recognition Model with Shape Bias and Function Bias • http://www.youtube.com/watch?v=4ia76fzxm68

  25. 1. Personal Background • 2. Introduction 3. Background 4. Approach and Architecture 6. Conclusion 5. Methodology, Results, and Analysis

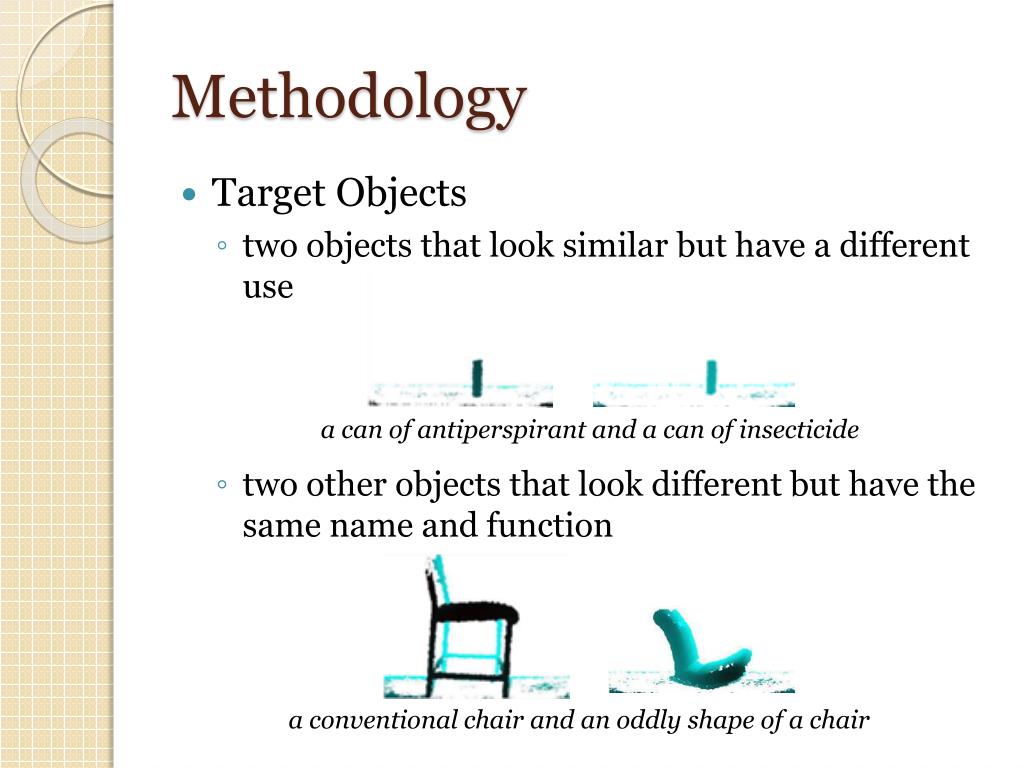

  26. Methodology • Target Objects • two objects that look similar but have a different use • two other objects that look different but have the same name and function a can of antiperspirant and a can of insecticide a conventional chair and an oddly shape of a chair

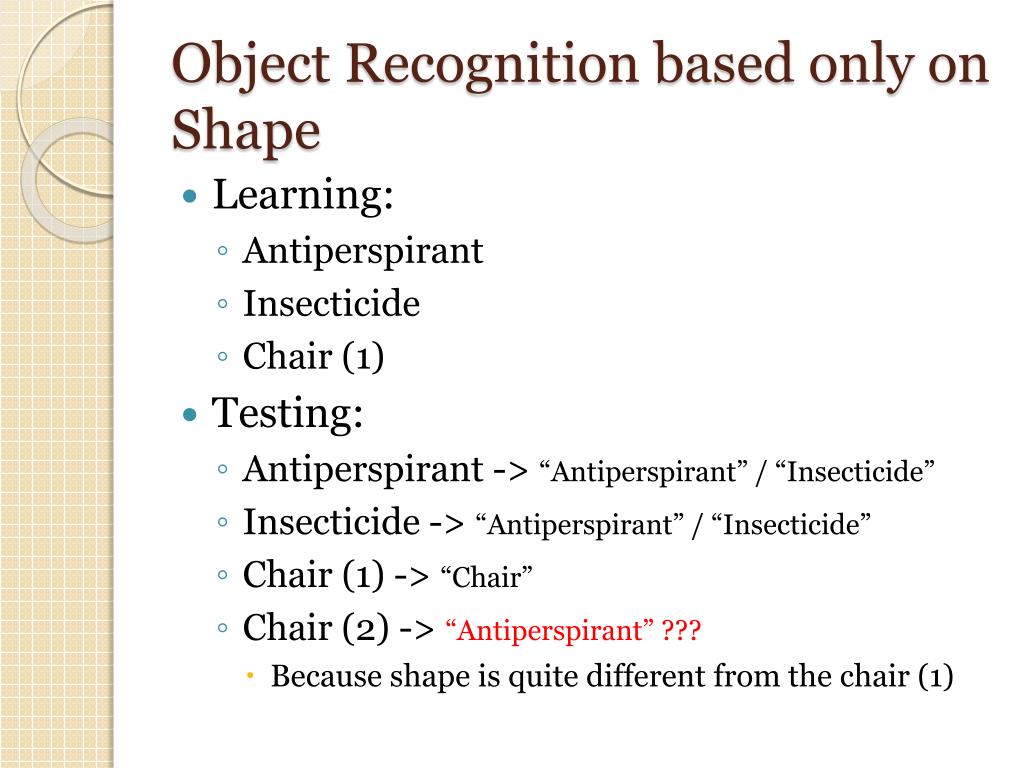

  27. Object Recognition based only on Shape • Learning: • Antiperspirant • Insecticide • Chair (1) • Testing: • Antiperspirant -> “Antiperspirant” / “Insecticide” • Insecticide -> “Antiperspirant” / “Insecticide” • Chair (1) -> “Chair” • Chair (2) -> “Antiperspirant” ??? • Because shape is quite different from the chair (1)

  28. Function Recognition • Learning: • “killing bugs” with insecticide • “deodorizing” with antiperspirant • “sitting” on a chair (1) • Testing • Killing bugs with insecticide  “killing bugs” • Deodorizing with antiperspirant  “deodorizing” • Sitting on a chair (1)  “sitting” • Sitting on a chair (2)  “sitting”

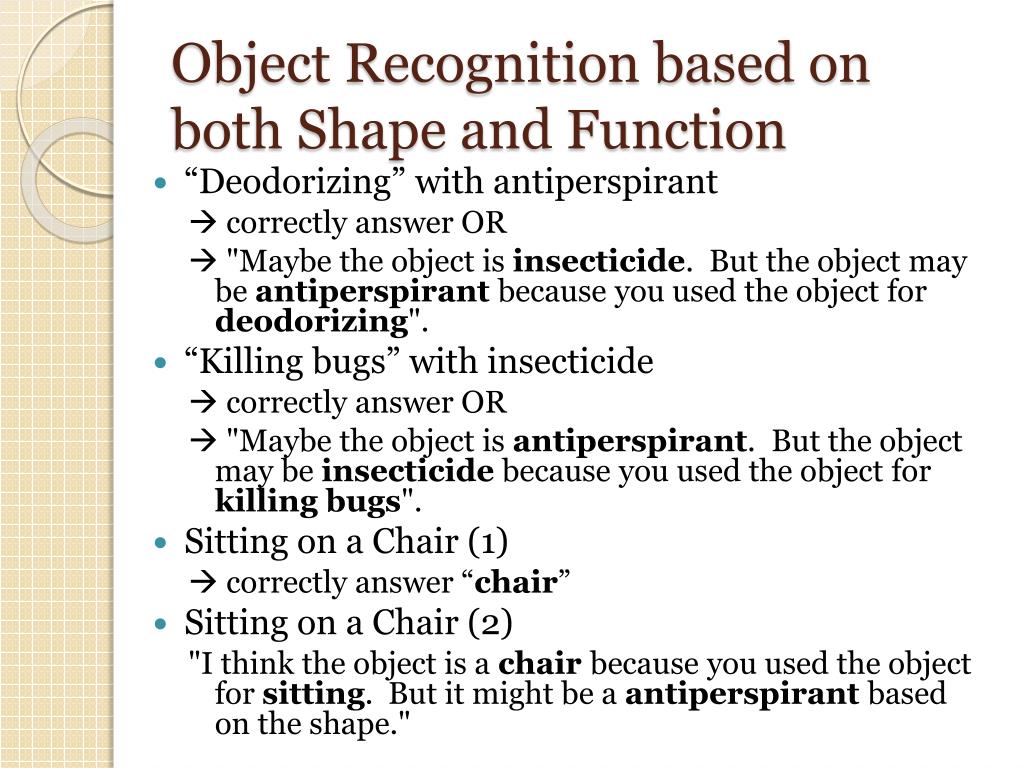

  29. Object Recognition based on both Shape and Function • “Deodorizing” with antiperspirant  correctly answer OR  "Maybe the object is insecticide. But the object may be antiperspirant because you used the object for deodorizing". • “Killing bugs” with insecticide  correctly answer OR  "Maybe the object is antiperspirant. But the object may be insecticide because you used the object for killing bugs". • Sitting on a Chair (1)  correctly answer “chair” • Sitting on a Chair (2) "I think the object is a chair because you used the object for sitting. But it might be a antiperspirant based on the shape."

  30. Analysis • when action does not involve a lot of movement, like sitting, the program works well • when action involves movement like walking, the shifting of timing can be a problem.

  31. 1. Personal Background • 2. Introduction 3. Background 4. Approach and Architecture 5. Methodology, Results, and Analysis 6. Conclusion

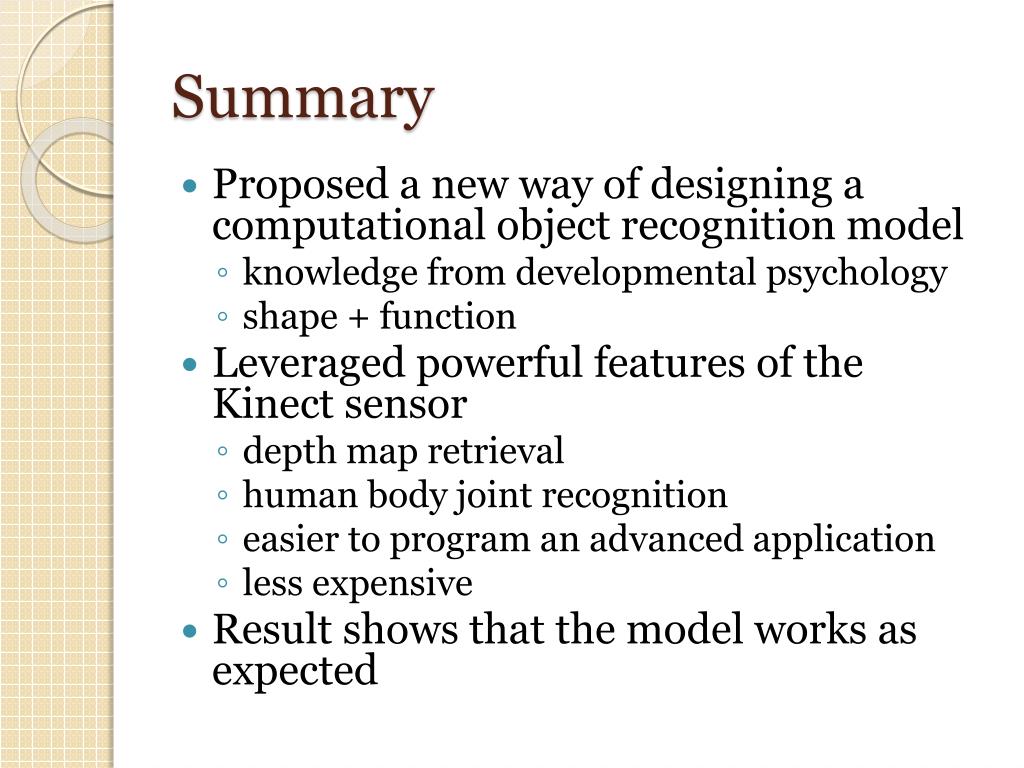

  32. Summary • Proposed a new way of designing a computational object recognition model • knowledge from developmental psychology • shape + function • Leveraged powerful features of the Kinect sensor • depth map retrieval • human body joint recognition • easier to program an advanced application • less expensive • Result shows that the model works as expected

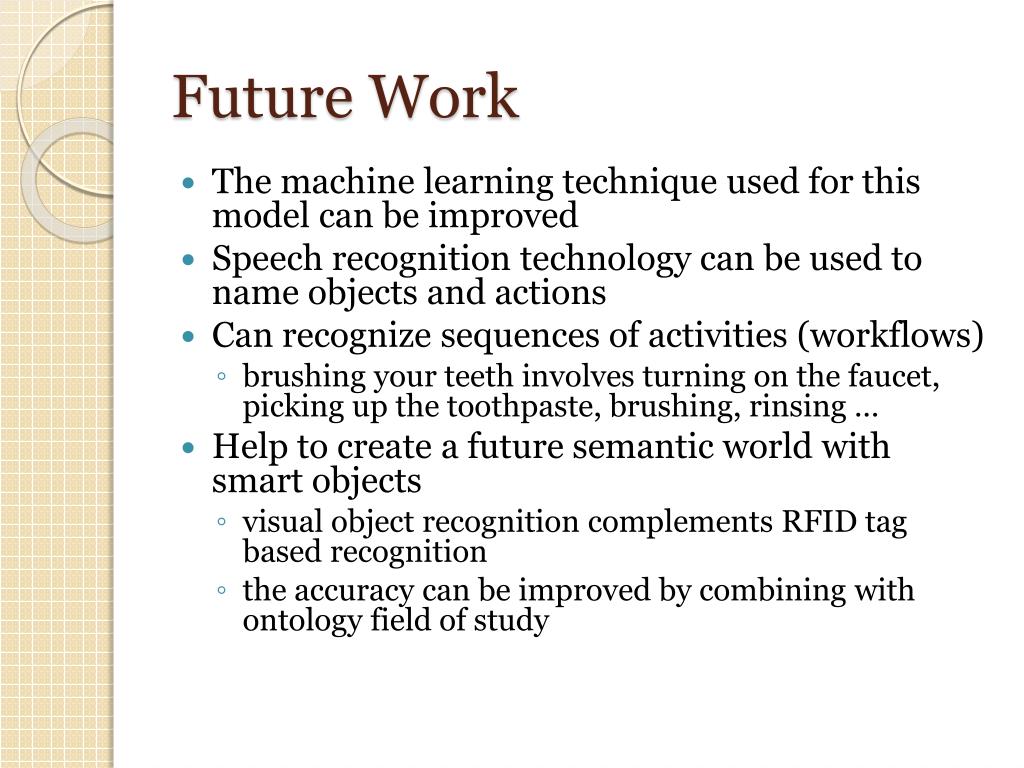

  33. Future Work • The machine learning technique used for this model can be improved • Speech recognition technology can be used to name objects and actions • Can recognize sequences of activities (workflows) • brushing your teeth involves turning on the faucet, picking up the toothpaste, brushing, rinsing … • Help to create a future semantic world with smart objects • visual object recognition complements RFID tag based recognition • the accuracy can be improved by combining with ontology field of study

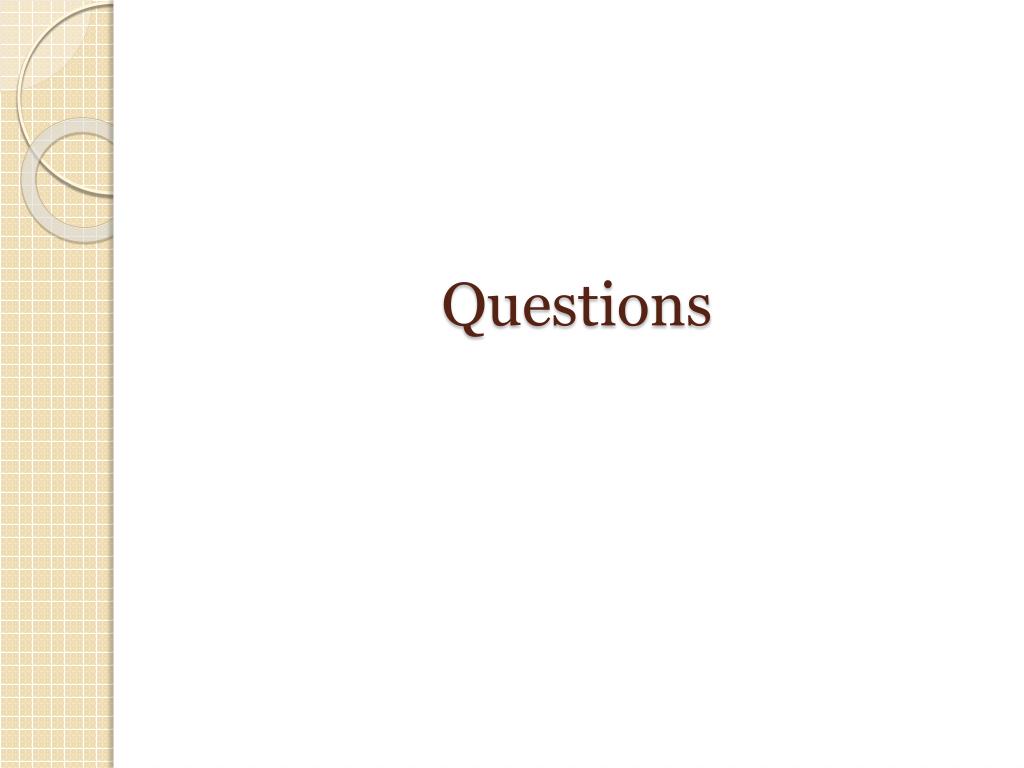

  34. Questions
