Karnaugh map

Karnaugh map . Introduction Strategy for Minimization Minimization of Product-of-Sums Forms Minimization of More Complex Expressions Don't care Terms . Introduction. Why karnaugh map Example (With Boolean algebra). W = A + . B = A . ( B + ) + . B

berit
Télécharger la présentation

Karnaugh map

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

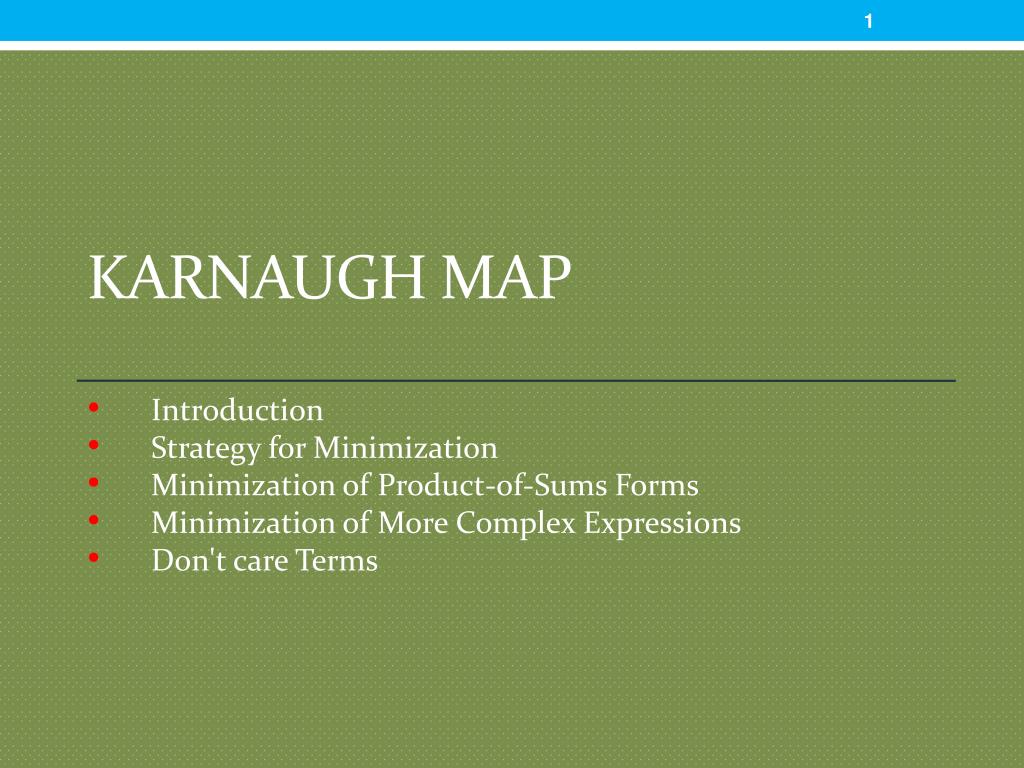

  1. Karnaugh map Introduction Strategy for Minimization Minimization of Product-of-Sums Forms Minimization of More Complex Expressions Don't care Terms

  2. Introduction • Why karnaugh map • Example (With Boolean algebra) W = A + . B = A . ( B + ) + . B = A . B + A . + . B = A . ( B + ) + B ( A+ ) = A + B

  3. Introduction ( cont. ) • Using Boolean algebra for minimization causes it’s own problem because of it mainly being a trial and error process, and we can almost never be sure that we have reached a minimal representation. • If we can form a graphical notation for our Boolean algebra the insight need for the minimization will be less vital in solving the problems. We can come close to our aim by using a graphical notation named Karnaugh Map that will be defined in next slides

  4. As it can be seen, each box of the Karnaugh map corresponds to a row of the truth table and has been numbered accordingly Introduction ( cont. ) • Comparing Karnaugh Map and Boolean Algebra Truth Table Karnaugh Map A 0 1 B 0 1 W This form of representing w in the following example is called a Sum of Product (SOP) Which will be define in next slides W = . B + A . + A . B = W = . B + A . B + A . + A .B= W= B ( + A ) + A ( + B ) = A + B

  5. Strategy for Minimization • Terminology • Minimization Procedure

  6. Terminology • Implicant : Product term that implies function • Prime Implicant: An Implicant that is not completely covered by any other Implicant but itself • Essential prime Implicant: A prime Implicant that has a minter not covered by any other prime Implicant • Product term: An and expression

  7. Terminology • Minterm: We define a Minterm to be a product that contains all variables of that particular switching function in either complemented or non-complemented form • Maxterm: We define a Maxterm to be a sum that contains all variables of that particular switching function in either complemented or non-complemented form • Standard SOP(Sum Of Products): In standard SOP, the products are obtained directly from the Karnaugh map or truth table, so the SOP contains all of the variables of the function • Standard POS(Product Of Sums): In standard POS, the products are obtained directly from the Karnaugh map or truth table, so the POScontains all of the variables of the function

  8. Terminology ( cont. ) • A simpler shorthand form of representing a SOP is to use the number of the Minterms that appear in that representation. In the following example for instance we could have written Karnaugh Map AB 0 01 11 10 C 0 2 0 1 3 1 7 5 6 4 W =

  9. Terminology ( cont. ) • Sometimes writing an expression in a POS form is easier as seen in the following example: Karnaugh Map AB 00 01 11 10 C 0 2 1 0 3 1 5 7 6 4 W = w = (a + b + c) . (+ b + c)

  10. Strategy for Minimization • Terminology • Minimization Procedure
