RISC Reduced Instruction Set Computer

1. RISCReduced Instruction Set Computer Presentation by: Joe Ziems Sesin Johnson Kyungmi Ku Zoya Izralevich

2. What is RISC? • RISC stands for Reduced Instruction Set Computer. • The instruction set is the hardware language that tells the processor what to do. • The main alternative to RISC is CISC, which stands for Complex Instruction Set Computer. • Both RISC and CISC are design approaches to microprocessors. • CISC is the older approach, and came about to maximize the performance of earlier computers, where instructions were executed sequentially. This sequential execution only allowed one instruction to execute at a time. CISC enhanced on this combining the sequential instructions into a single instruction reducing the amount of time retrieving instruction from memory.

3. Background and History • RISC approach developed as a result of developments occurring in the 1970s, like increase in memory size with a decrease in cost, advanced compilers, and high speed caches. • All started with 3 research projects • IBM 801, Berkeley RISC, Stanford MIPS • In late 1970s, IBM was the first to start • In 1980, David A. Patterson of Berkeley, began the project that gave this new approach its name, RISC • A year later, Stanford MIPS was developed • The future of RISC is bright!!! • Performance increase of 55% per year!!!

4. Characteristics of RISC • Characteristics of RISC: • Simplified instructions, most taking only one clock cycle. • Few addressing modes, since most all instructions use register-to-register operations, register addressing. • A large number of general purpose registers. • Pipelining - fetching a next instruction while a previous instruction executes. • Pre-fetching & Speculative execution – processor guesses whether a condition will be met from a branch condition. • Fixed address length instructions • Floating Point Units, FPUs

5. MIPS R4000 • Developed in 1991 by MIPS Technology, Inc. • Stands for Microprocessor without Interlocked Pipeline Stages • 94 Instructions, 4 byte instruction size • Uses 64 bits for all internal and external data paths, registers, and ALU • 32 general-purpose 64 bit registers • One addressing mode (two for optimized embedded systems)

6. MIPS R4000 (Cont.) • 64 bit chip divided into two parts, CPU and memory management unit • CPU operates on simple instructions and addresses • Memory management unit is more complex to permit complex virtual memory schemes • Thirty-two 64 bit registers, 128 KB on-chip cache (half for data, half for instructions) • No condition codes, instead any such codes are stored in registers for explicit use by later instructions

7. SPARC • Stands for Scalable Processor Architecture • SPARC Architecture, formulated at Sun Microsystems in 1985 • Developed in 1987 • 69 Instructions, 4 byte instruction size • 1 Addressing mode • Uses register windows • 40-520 general-purpose registers

8. SPARC (Cont.) • SPARC is “scalable” • Register stack can be expanded to reduce loads and saves between functions • Can also be scaled down to reduce interrupt or context switch time • Function calls are more frequent, so larger register set is usually a better solution

9. SPARC 69 Instructions 32 bit bus Uses register windows 1 addressing mode 40-520 general purpose registers 32KB cache MIPS R4000 94 Instructions 64 bit bus Does not use register windows 1 addressing mode (2 for optimized embedded systems) 32 general purpose registers 128KB cache Final Comparison

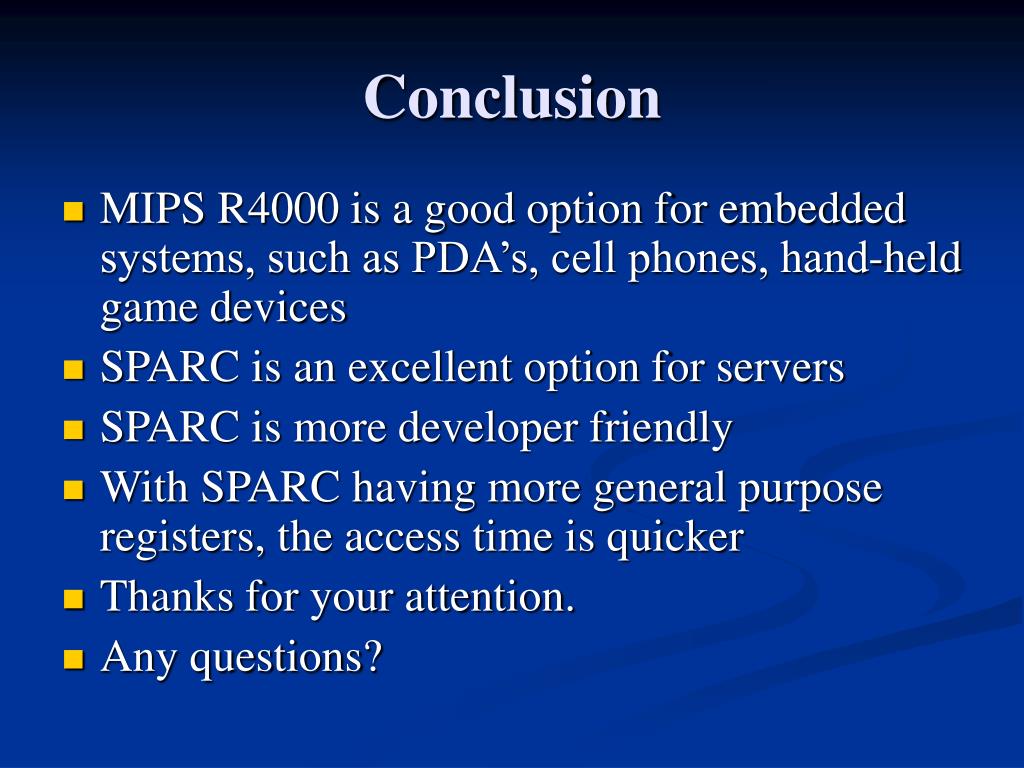

10. Conclusion • MIPS R4000 is a good option for embedded systems, such as PDA’s, cell phones, hand-held game devices • SPARC is an excellent option for servers • SPARC is more developer friendly • With SPARC having more general purpose registers, the access time is quicker • Thanks for your attention. • Any questions?
