  1. SK-ACP Installation Overview

  2. Agenda • Overview • SK-ACP (Access Control Panel) • Resources Available • SK-NET (Software) • Demo

  3. SecuraKey Take Away • Access Control System: • Easy to Learn (Installers, End User) • Where to Locate Resources • Full Featured Robust Software • Scalable • Affordable

  4. Secura Key ACP Access Control Panel Network Modules

  5. SK-ACP Advanced Control Panel • Card Capacity: 65,535 User Capacity • Transactions: 4,864 Stored • Time Zones: 15 card access/1 door unlock 32 Programmable Holidays Auto-Select Daylight Savings time • Facility Codes: Up to 16 Facility Codes • Latch/Shunt Timer: ¼ to 30 seconds • AntiPassback: Real or Timed/ 1-30 seconds • Inputs (2 per door): Define as Door Monitor, Tamper Monitor, Remote Open(REX) Remote Inactive, Bell, Arming Circuit or User Defined • Limited Use Cards: Block of 4000 within 65,535 1-500 uses, days, weeks, or # days after first use • Supports Two Wiegand Output Devices (readers, keypads, etc.) • 100 panels can be linked to a PC with SK-NET™ using a simple RS-485 bus • LAN/Modem Capability for Unlimited Remote Locations

  6. SK-ACP Notes: Wiring Lock Power 2 Cond unshielded SK-ACP SK-ACP Cat5 or twisted pair Reader 6 Cond Shielded No twisted pair

  7. Connect 1… 1

  8. Connect 98, 99, 100 and more… Connect over 100 panels using a simple 2-wire RS-485 bus 1 100

  9. Flexibility in Project Planning • Connect panels in almost any configuration • Connect to PC using RS-232, RS-485, Modem or LAN network • Hard-copy printout of all system activity using a serial printer

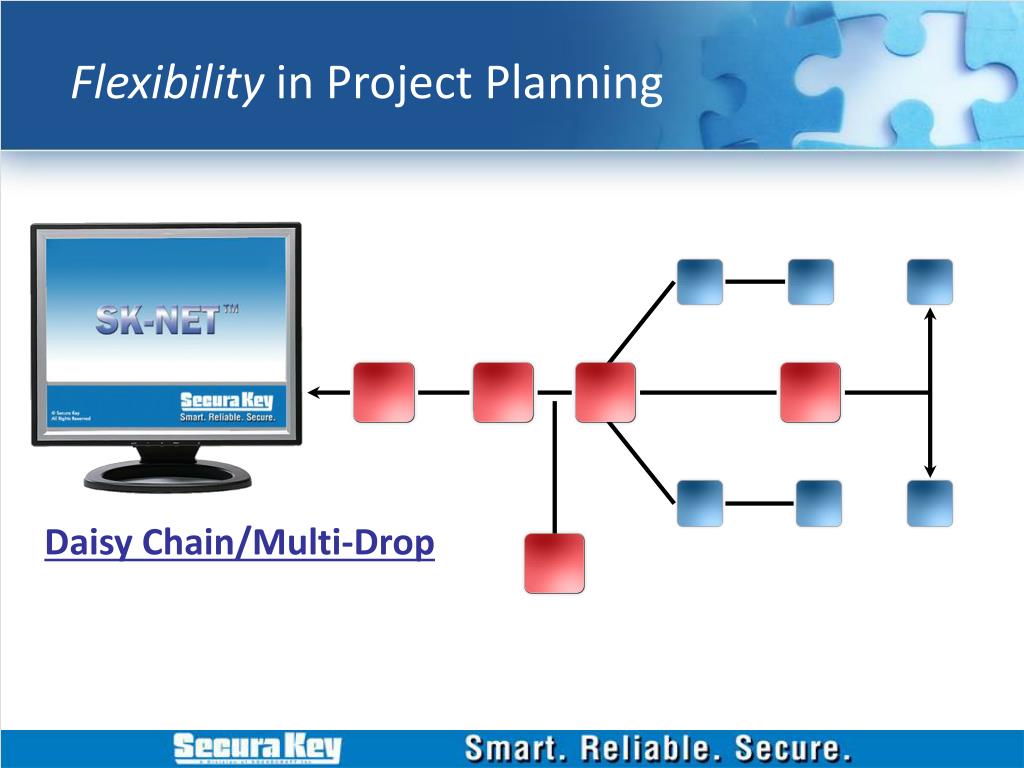

  10. Flexibility in Project Planning Daisy Chain/Multi-Drop

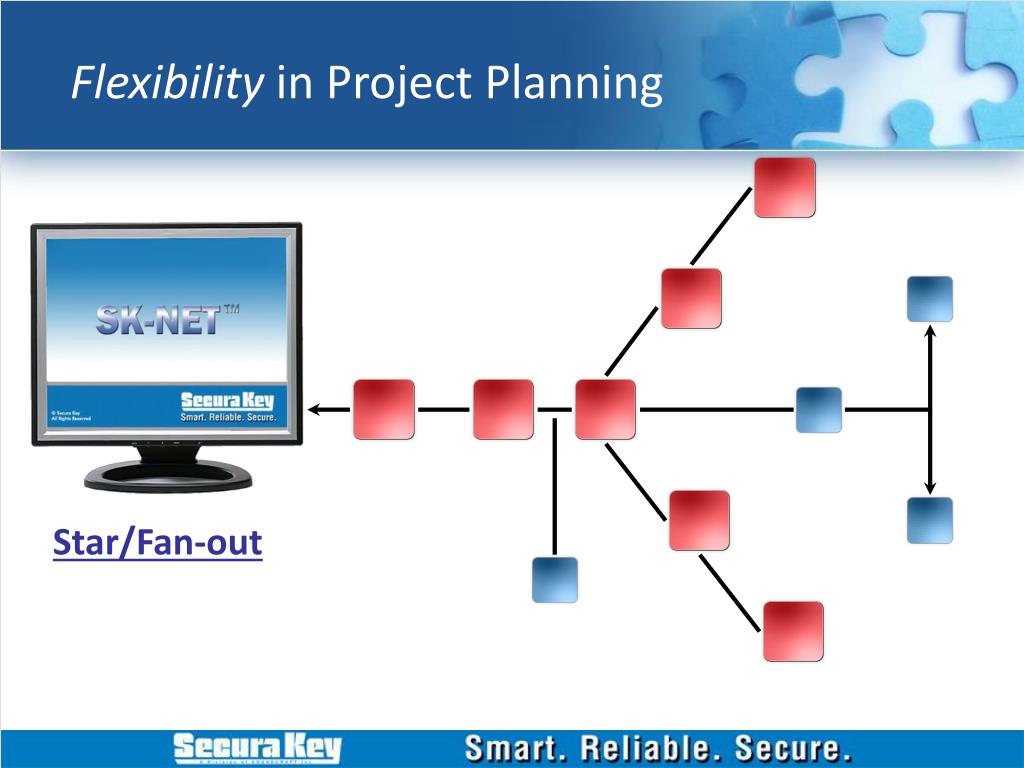

  11. Flexibility in Project Planning Star/Fan-out

  12. Flexibility in Project Planning T-Configuration

  13. Flexibility in Project Planning LAN Connection

  14. Plug in Terminal Blocks are Provided

  15. Reader

  16. Follow Status of a door

  17. Tells me there is a problem w/ that door

  18. SK-ACP Notes: General • Use Separate Power Supplies for the SK-ACP and the Locks • Use 24VDC/500mA or higher for the SK-ACP • Always close SK-NET before Windows to avoid communications issues • Cards and Facility Codes: up to 16 within the panel • Card ID numbers must be unique, even if multiple Facility Codes are used. The system checks the FC, but uses the ID number to identify cardholders • Facility code 12, ID #1-10 = FC 15, ID # 1-10 • Should be: FC 12, ID # 1-10 and FC 15, ID # 11-20 (Facility codes should be kept to a minimum. More FC = less secure)

  19. Latch Relays Location J1, J2 1 set of contacts can: Unlock door Activate Gate Operator The other set can: Shunt Alarm Contact Start a video recorder Auxiliary relays Location J3, J4 May operate under variety of user defined conditions: (i.e.) Error Alarm Tamper Alarm Door Bell Door Held Open Emergency Exit alarm Etc. Programmed through SK-NET SK-ACP Notes:Relays Each Door has 1 “Latch” Relay and 1 “Aux” Relay, each with two sets of contacts

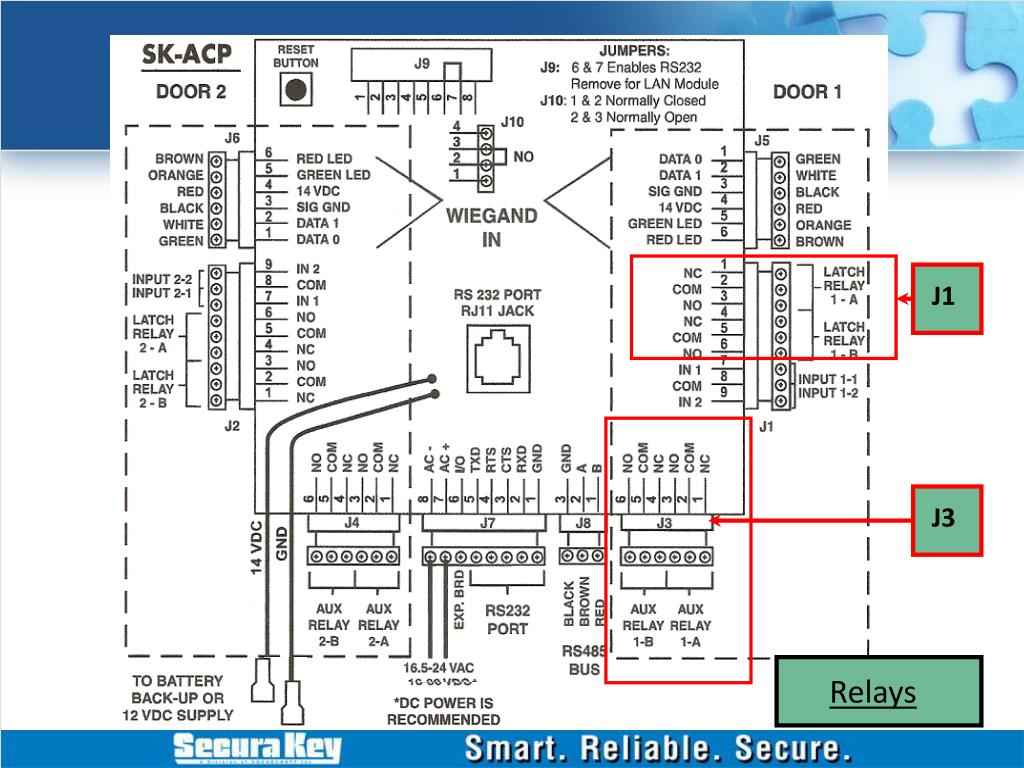

  20. J1 J3 Relays

  21. SK-ACP Notes: Inputs NOTE: All inputs are configured as NO circuits If NC is required ( “Door Monitor” only ) • Disconnect power from panel • Remove jumper from pins 2, 3 on J10 • Place jumper on pins 1, 2 on J10 • Restore power • Test Door Monitor input Each Reader may be associated with up to 2 inputs. These can monitor contact closures at Remote Switches, Door contacts, Vehicle presence detectors, etc. • Inputs defined through SK-NET (Tamper, Remote Open, Door Monitor, etc.) • Located at J1, J2 terminals 7, 9 and share common terminal 8

  22. J10 J1 Inputs

  23. SK-ACP Notes: RS-232 Connection RS-232 used to connect the COM port of a PC to a single SK-ACP, or as a gateway to a series of SK-ACP’s • J7 or RJ11 Jack in center of the Board • Distance < 100’ NEVER connect a telephone line directly into the RJ11 Jack on the SK-ACP!

  24. RJ11 J7 RS-232

  25. SK-ACP Notes: RS-485 Connection • Run CAT 5 Between J8 plugs (terminals 1, 2) • Distance between the PC ‘gateway’ and SK-ACP > 100’ • 232/485 converter required (SK part# NET-CONV-P) • Twisted pair • Total Cable distance not to exceed 4000’ • Terminal 3 is a signal GND. If connected to conductor of twisted pair this must be an insulated conductor and NOT connected to earth GND • Starts to become a consideration at approx 2000’ RS-485 Bus is used to link multiple SK-ACP units into a network

  26. J8 RS485

  27. Networking Modules Plug-in Modules for SK-ACP • LAN Applications • SK-LAN-MOD • Use existing network infrastructure to monitor and control the AccessControl system • Wireless Applications • SK-WLS-MOD • Uses widely accepted 802.11g protocol (existing router and wireless system in place)

  28. SK-ACP Notes: LAN Connection SK-LAN-MOD or SK-WLS-MOD • Embedded Devices (receive power from the SK-ACP) • Connect to J9 Connector • Disconnect Power from SK-ACP • Remove 2 pin jumper from J9 pins 6, 7 • Plug in Module • SK-LAN-MOD connect Ethernet cable • Restore Power • Have available: • Hardware Address • Unique IP Address

  29. J8 LAN

  30. SK-ACP Notes: Power and Batteries • RK-WM/ RK-WS readers 24VDC, 500mA • SK-LAN-MOD, SK-WLS-MOD 24VDC, 1Amp • RK-WL 24VDC, 1.5Amp (Basic config powered with SK-ACP-PS: 24VDC 500mA and a 1.9AH backup battery) Do not energize SK-ACP until all connections are made SK-ACP must be connected to source of low voltage power

  31. SK-ACP Notes: General 99% of technical ‘issues’ are addressed by: • Referring to: • The Manual • Troubleshooting Guide • Following the Installation Instructions • Referring to the Web Site www.securakey.com

  32. SK-Net Software • Basic • RS232 Direct Connect • RS485 Direct Connect w/ RS-232 to RS-485 converter • Single LAN TCP/IP connection • Multi-Location (Remote Access) • Multiple LAN TCP/IP Connections • Modem Dial-up • Multi-User • Client Server license for 2, 5, 10 or 15 workstations

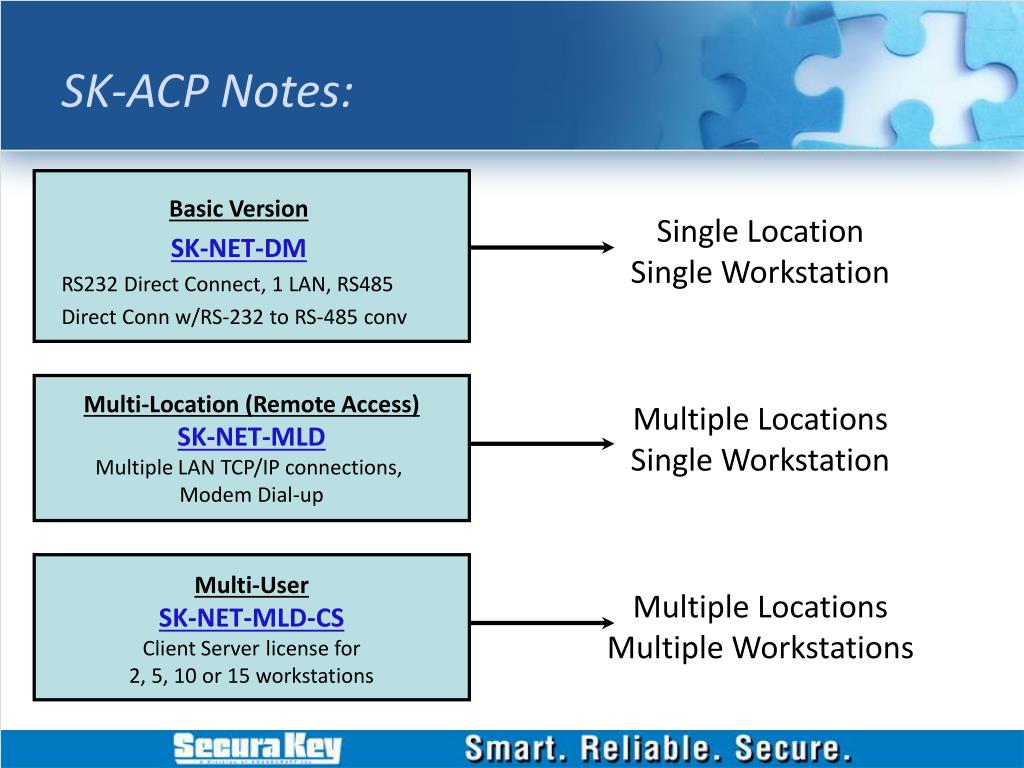

  33. SK-ACP Notes: Basic Version SK-NET-DM RS232 Direct Connect, 1 LAN, RS485 Direct Conn w/RS-232 to RS-485 conv Single Location Single Workstation Multi-Location (Remote Access) SK-NET-MLD Multiple LAN TCP/IP connections, Modem Dial-up Multiple Locations Single Workstation Multi-User SK-NET-MLD-CS Client Server license for 2, 5, 10 or 15 workstations Multiple Locations Multiple Workstations

  34. Multiple Locations (adding) Customize the System Location Time Zones (editing, limiting, etc) Antipassback (Timed, Real, Soft and Hard) Single Reader Time Zone Editing Creating Access Groups Changing Reader icons Setting Door Schedules Changing Latch timer for a single reader Holidays Daylight savings time IN and OUT Readers (programming) Reader Groups (creating, editing) Door Controls (setting and using) Inputs/Outputs Programming custom Wiegand formats Adding Facility Codes Features of SK-NET

  35. Managing Users Adding/Deleting Customizing User Data Fields Sorting Filtering Users User Reports Limited Use Cards Managing Transactions Filtering Transactions Viewing Cardholder Photos Archiving Excluding Transaction types for all/ for one reader Reports Transaction Reports User Information Report List of Readers in a Location List of Readers in an Access Group List of Users in Access Group Security Passwords Assigning Operator Levels System Activity Log Password Protection Features of SK-NET

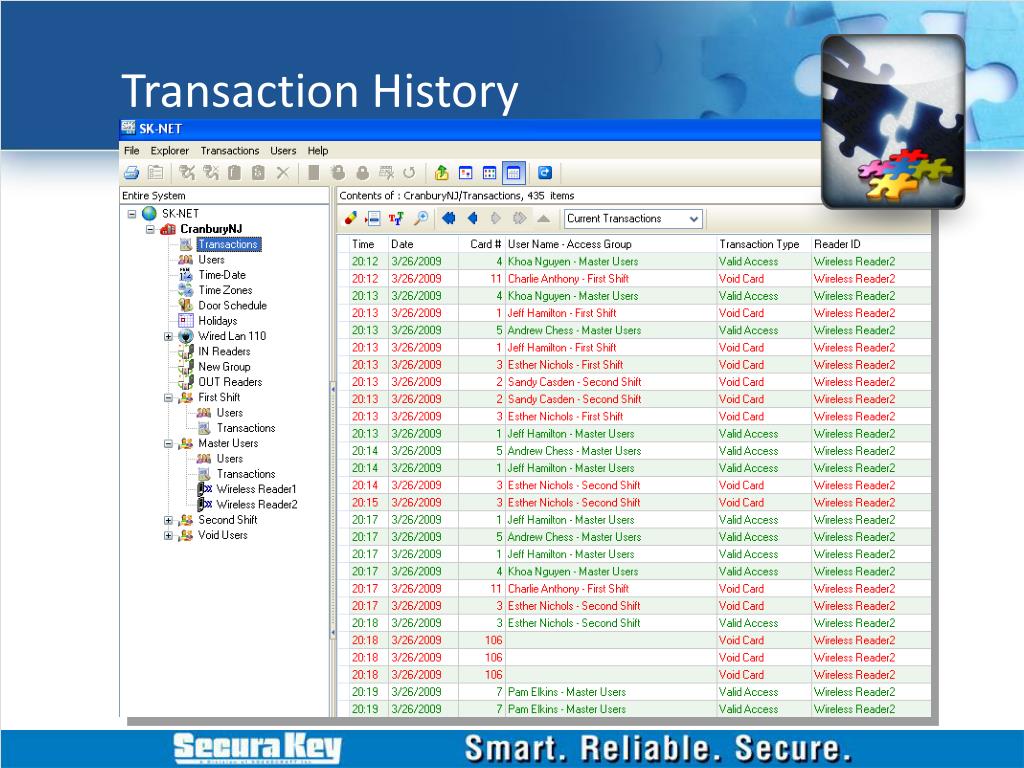

  36. Transaction History

  37. Transaction Filters

  38. Define User Properties

  39. Modify Single or Range of Users

  40. Location Connections

  41. Set Up Time Zones

  42. Set Up Door Schedules

  43. 5 Main Steps in System Setup • Establish communications to the readers. • Setup any or all restrictions for times of access. • Assign user with cards numbers for any restrictions necessary. • Setup any inputs or outputs for special requirements. • Keep track of who uses the reader, time, date, and area of entrance.
