  1. Automated tactics for separation logic • VeriML • Reconstruct Z3 Proof • Safe incremental type checker • Certifying code transformation • Proof carrying hardware IP

  2. Automated tactics for separation logic • Version 1 • Certified verifier for a fragment of separation logic in Coq • Without predicates ( list, tree … ) • Prover written in SML handle these predicates and output proof trace • Tactic to reconstruct proof from these proof trace in Coq • Version 2 • Hard coded list and tree into the certified verifier • Use a forked version Coq which supports native arrays to speed up the verifier • Version 3 ( Ongoing ) • More generic way to support user defined predicates

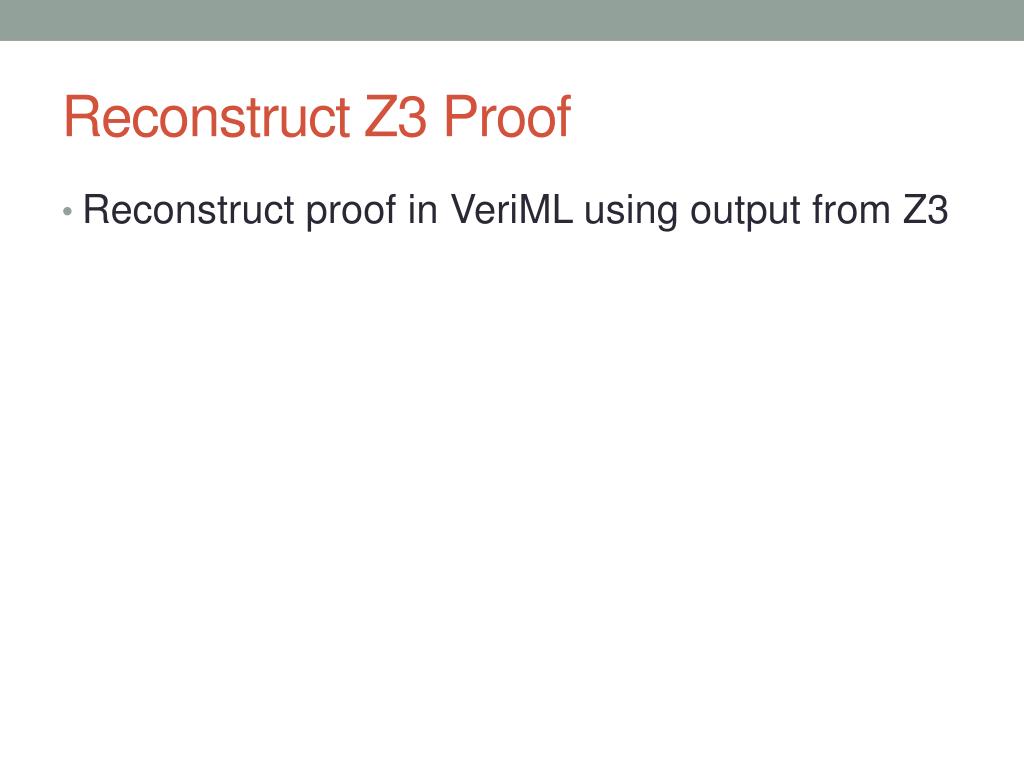

  3. Reconstruct Z3 Proof • Reconstruct proof in VeriML using output from Z3

  4. Start from SAT Solvers • Decide propositional satisfiablity of sets of clauses: • Proof Witness from SAT solver: • If satisfiable: assignment of all the variables • If unsatisfiable: proof by resolution of the empty clause • Resolution rule:

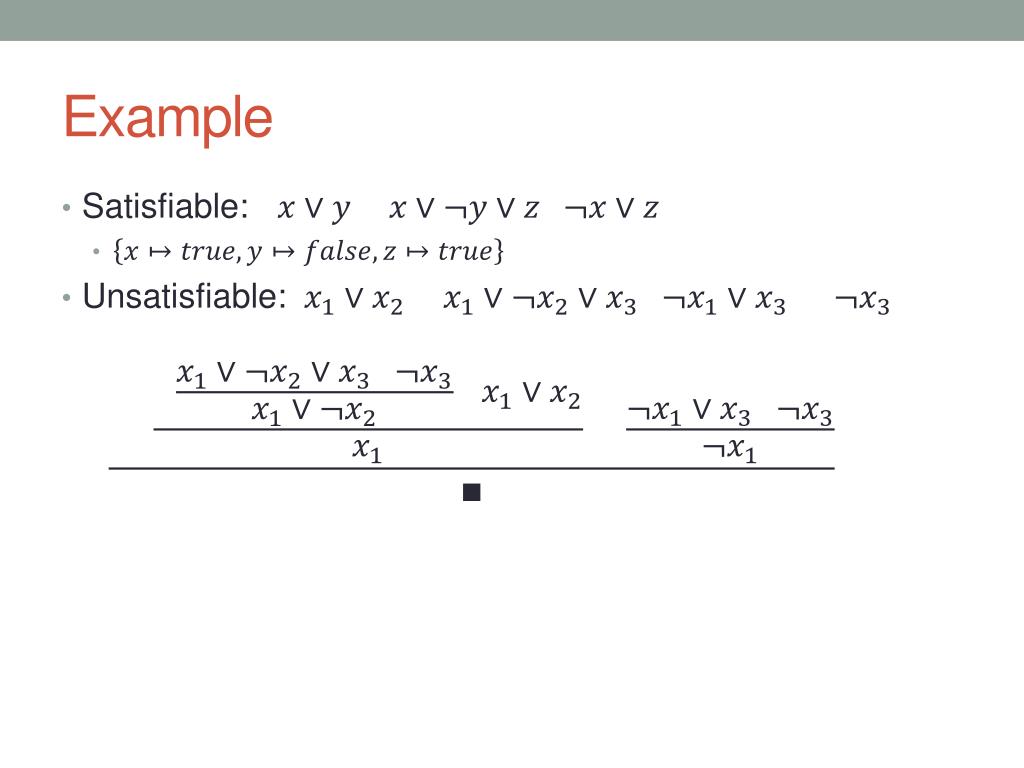

  5. Example • Satisfiable: • Unsatisfiable:

  6. SAT Modulo Theories(SMT solver) • Atoms can be formulas from other theories • Congruence Closure(EUF) • Linear Arithmetic(LIA) • …. • Proof witness • If satisfiable: assignment of all the variables • If unsatisfiable: proof by resolution of the empty clause while some leaves are now lemmas from theories

  7. Example • Satisfiable : • Unsatisfiable:

  8. Interaction between SAT and SMT • With boolean abstraction: • First try: A:true, B:true, C:true, D:true, E:false • Unsat by a multi-theory solver, thus we add a theory: • Repeat until sat or no more model can be found

  9. Reconstruct proof • If sat: apply the assignment and check the result is true • If unsat: check the resolution tree • Checking resolution step (SAT solver) • Checking theory lemmas (SMT solver) • Combination of theories

  10. What we need • resolution checker • checker for each theory • checker for the resolution tree which calls these two kinds of checkers at each step

  11. Example

  12. Example

  13. Example

  14. Example

  15. Example

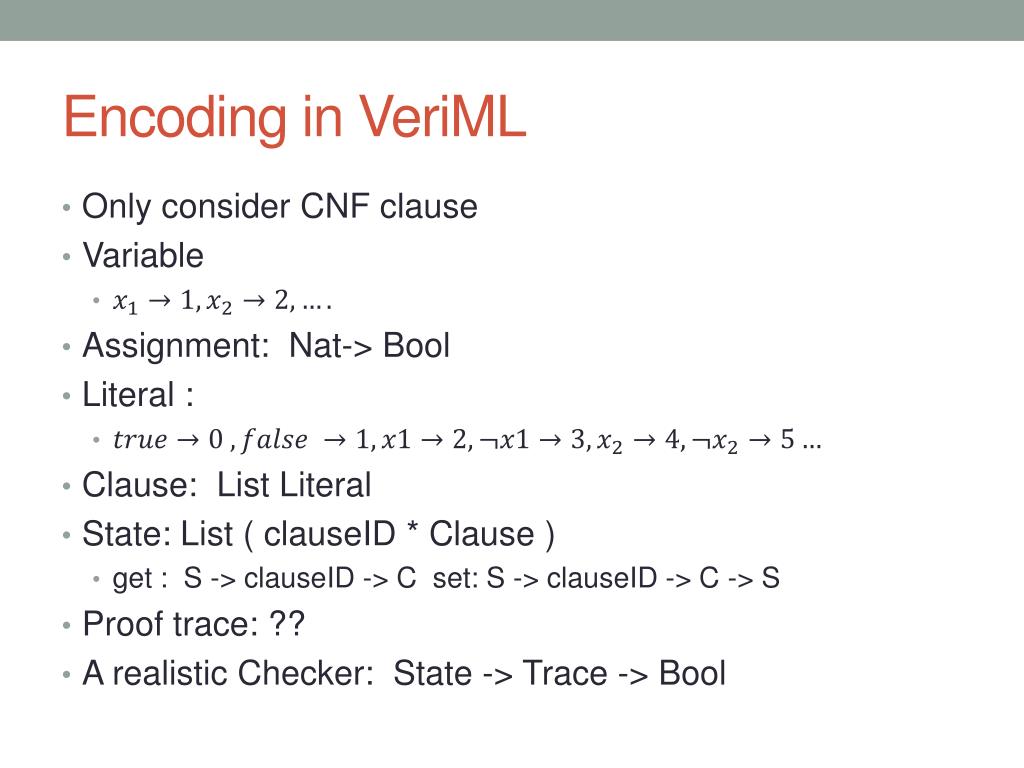

  16. Encoding in VeriML • Only consider CNF clause • Variable • Assignment: Nat-> Bool • Literal : • Clause: List Literal • State: List ( clauseID * Clause ) • get : S -> clauseID -> C set: S -> clauseID -> C -> S • Proof trace: ?? • A realistic Checker: State -> Trace -> Bool

  17. Interpretation • Given assignment • Var: v • Literal: • Clause: • Valid state • Soundness of checker:

  18. Start from SAT solver • Resolution Chain: List Nat • Resolve : Clause->Clause->Clause • resolution between clause C1 and C2. • Resolution checker: Resolution Chain-> Clause • for resolution chain [n1,n2,…n] and state S, • R(..(R( S[n1], S[n2]),…),S[n]) • Proof trace: List (clauseID*Resolution Chain) • Reconstruct the proof: • List.fold (fun (id,rc) => set s (resolution_checkerrc) id) trace • After this, we have the empty clause in state which indicates the state is not valid

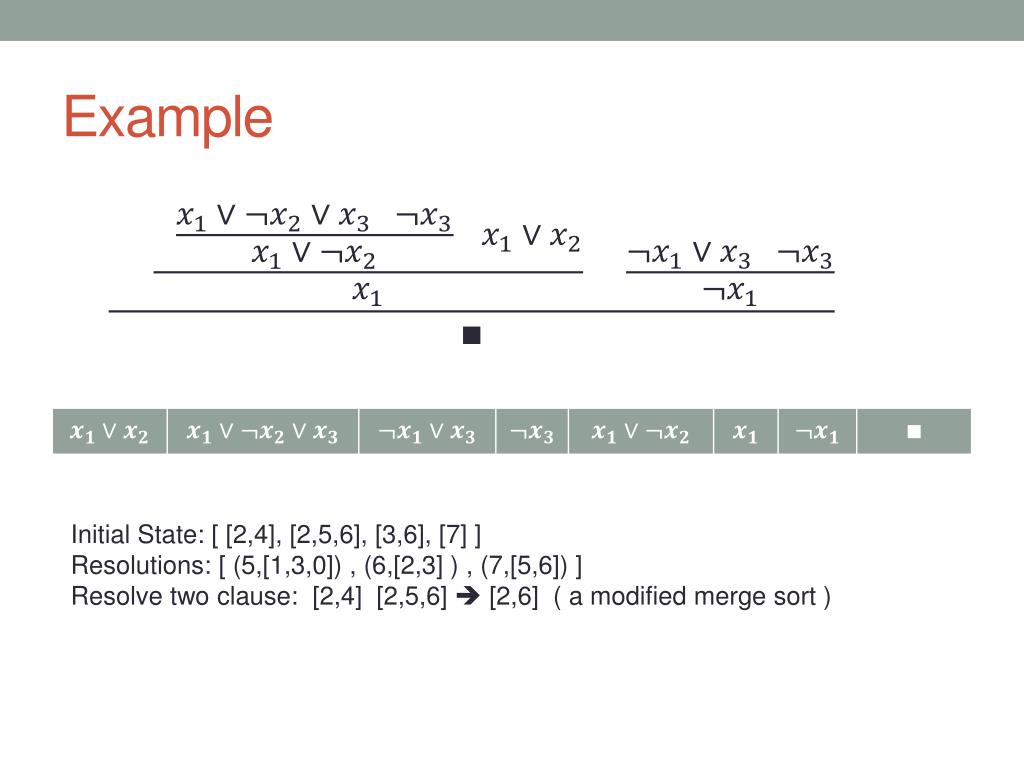

  19. Example Initial State: [ [2,4], [2,5,6], [3,6], [7] ] Resolutions: [ (5,[1,3,0]) , (6,[2,3] ) , (7,[5,6]) ] Resolve two clause: [2,4] [2,5,6]  [2,6] ( a modified merge sort )

  20. Naïve framework for SMT solver • Certificate from different theories • Inductive cert: • | sat_solversat_cert • | euf_solvereuf_cert • | lia_solverlia_cert • …. • Trace might be like: List (clauseID*cert) • Checkers for each theory • And finally the checker for SMT solver • checker s trace = • List.fold (fun (id,cert) => set s (cert_checker cert) id

  21. Problem Witness SMT Resolution CNF EUF LIA VeriML Checker

  22. Z3 Proof • Example • 34 Axiom • 19 core rules : mostly are propositional reasoning • 5 equality rules : refl, symm, trans, … • 7 quantifier rules : quant-inst, quant-intro, … • 3 theory rules : rewrite, inconsistent, …

  23. Reconstruction • Overall approach: • one proof method for every Z3 inference rule • depth-first traversal of Z3 proof

  24. Conclusion • A prototype to reconstruct zChaff(SAT solver) proof • Very slow in performance • Ongoing with Z3 reconstruction

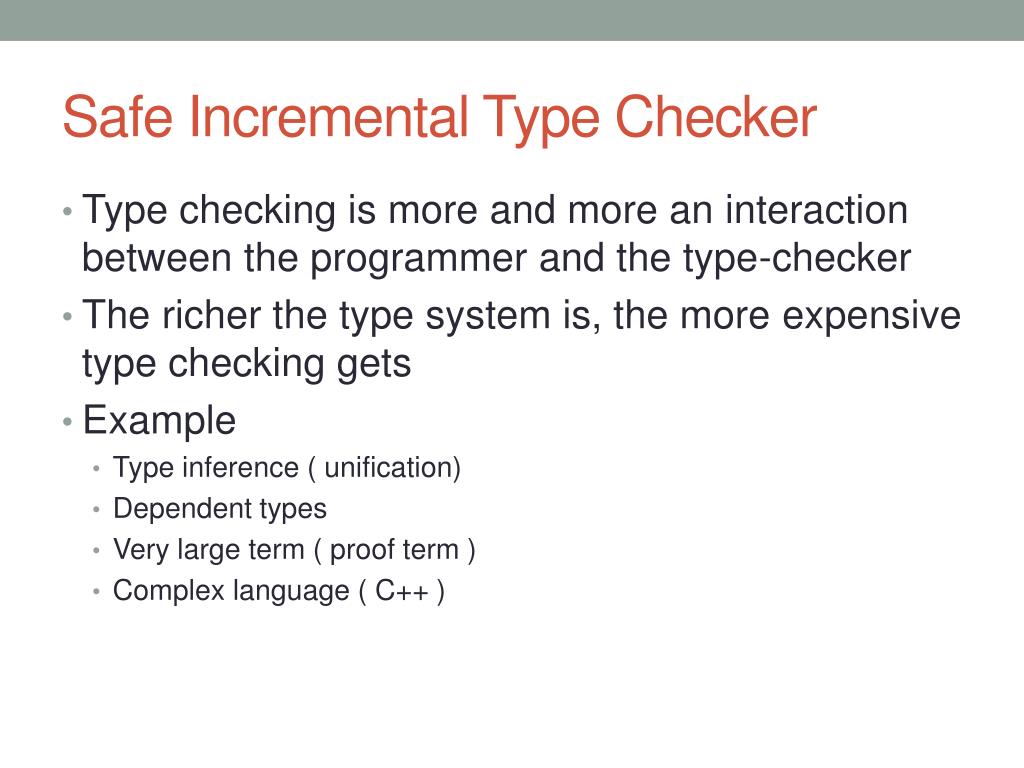

  25. Safe Incremental Type Checker • Type checking is more and more an interaction between the programmer and the type-checker • The richer the type system is, the more expensive type checking gets • Example • Type inference ( unification) • Dependent types • Very large term ( proof term ) • Complex language ( C++ )

  26. Goal • Reuse already-computed results • Recheck only the modified part and where it affects • Example

  27. Benefit • fast type checking modified code • this could also be used to tactic language, and refinement? • typed version control as we always have well-typed program and its type derivations • “undo” for free

  28. If we simply use memorization • We can only do syntactic comparison • We can’t do • weakening: let x = 1 and let y = 2 in x  let x = 1 and let y = 2 in x • -equivalence • other possible user extensible conversions • it’s outside typing rule

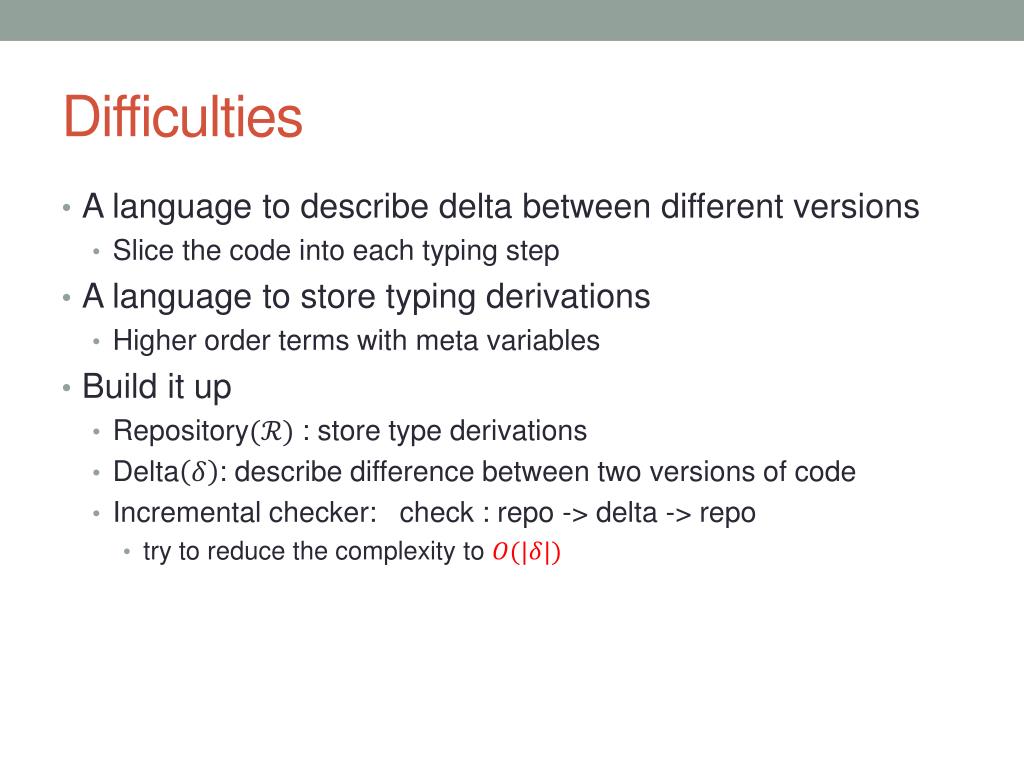

  29. Difficulties • A language to describe delta between different versions • Slice the code into each typing step • A language to store typing derivations • Higher order terms with meta variables • Build it up • Repository : store type derivations • Delta: describe difference between two versions of code • Incremental checker: check : repo -> delta -> repo • try to reduce the complexity to

  30. A language to store typing derivations • VeriML support contextual terms in computation language, thus possible to present typing derivations • How to make it generic? • A language to describe delta between different versions • Got stuck here

  31. Scratch

  32. Given signature: • t1 = g a • t2 = g (g a)

  33. Certifying Code Transformation • How to certify code transformation? • Verified Compiler • Translation Validation • VeriML approach

  34. Verified Compiler

  35. Translation Validation

  36. Approach with VeriML

  37. Naïve Example

  38. Scratch • ImplementationLogical language • Heap implementation • Language definition and semantics • Computation language • Symbolic execution(VCGen) • Tacitc to proof Hoare Triple • Practical Code transformation examples

  39. Conclusion • The thing we need to proof isn't less than translation validation • we can do it in a single lanuguage which easier to write proof with and we get more proof • The whole picture is still vague

  40. Proof Carrying Hardware • Current work • A formalization of Intel 8051 microcontroller in Coq • RC5 hash algorithm • Proof certain ports won’t “leak” secret
