  1. Chapter Sixteen MOSFET Digital Circuits

  2. Figure 16.6Voltage transfer characteristics, NMOS inverter with resistor load, for three resistor values

  3. Figure 16.8(a) NMOS inverter with saturated load and (b) driver transistor characteristics and load curve

  4. Figure 16.9Voltage transfer characteristics, NMOS inverter with saturated load, for three aspect ratios

  5. Figure 16.10(a) NMOS inverter with depletion load, (b) current-voltage characteristic of depletion load, and (c) driver transistor characteristics and load curve

  6. Figure 16.11Voltage transfer characteristics, NMOS inverter with depletion load, for three aspect ratios

  7. Figure 16.18Voltage transfer characteristics of NMOS inverters with and without the body effect (a) enhancement load and (b) depletion load

  8. Figure 16.26Composite width-to-length ratios of driver transistors in two-input NMOS logic configurations (a) NOR and (b) NAND

  9. Figure 16.27NMOS logic circuit example

  10. Figure 16.34CMOS inverter

  11. Figure 16.39Complete voltage transfer characteristics, CMOS inverter

  12. Figure 16.41Square root of inverter current versus input voltage, CMOS inverter biased at either VDD = 5V or VDD = 10V

  13. Figure 16.44(a) Two-input CMOS NOR logic circuit and (b) truth table

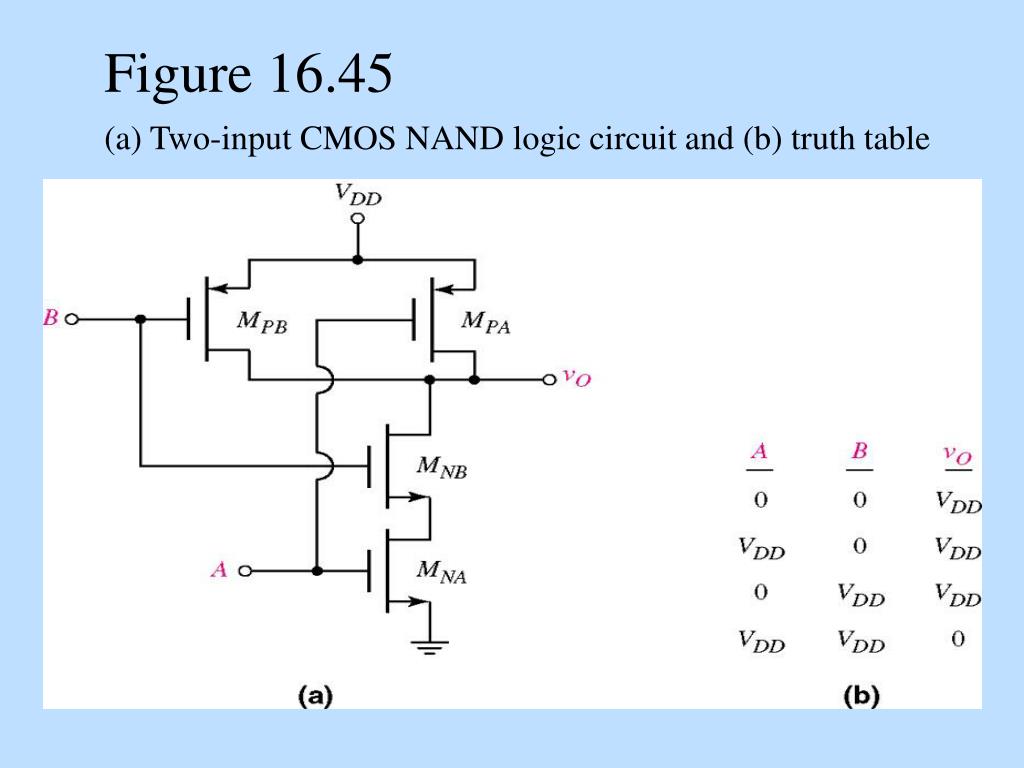

  14. Figure 16.45(a) Two-input CMOS NAND logic circuit and (b) truth table

  15. Figure 16.49Complete CMOS design for Example 16.12

  16. Figure 16.52Clocked CMOS logic circuit (a) AND function and (b) OR function

  17. Figure 16.71NMOS R-S flip-flop

  18. Figure 16.72CMOS R-S flip-flop

  19. Figure 16.79Basic random access memory architecture

  20. Figure 16.84CMOS RAM cell including PMOS pull-up transistors

  21. Figure 16.87Complete circuit diagram of a CMOS RAM cell with write and read circuitry
