  1. Client Registration Examples Alan Frindell 2/18/2011

  2. Certificate Entity: Implicit self-registration • Server creates Entity record as a side effect of another KMIP request • No special TTLV required – KMIP server extracts needed values from TLS certificate • Assumed the client already has a cert signed by a CA trusted by KMIP server • Result: Entity UUID: ABCD-1234 Credential Subject Type: X.509 Certificate Identifer Subject Value: <serial_number>, <issuer_dn> Subject Auth Info Type: X.509 Certificate Subject Auth Info: <certificate>

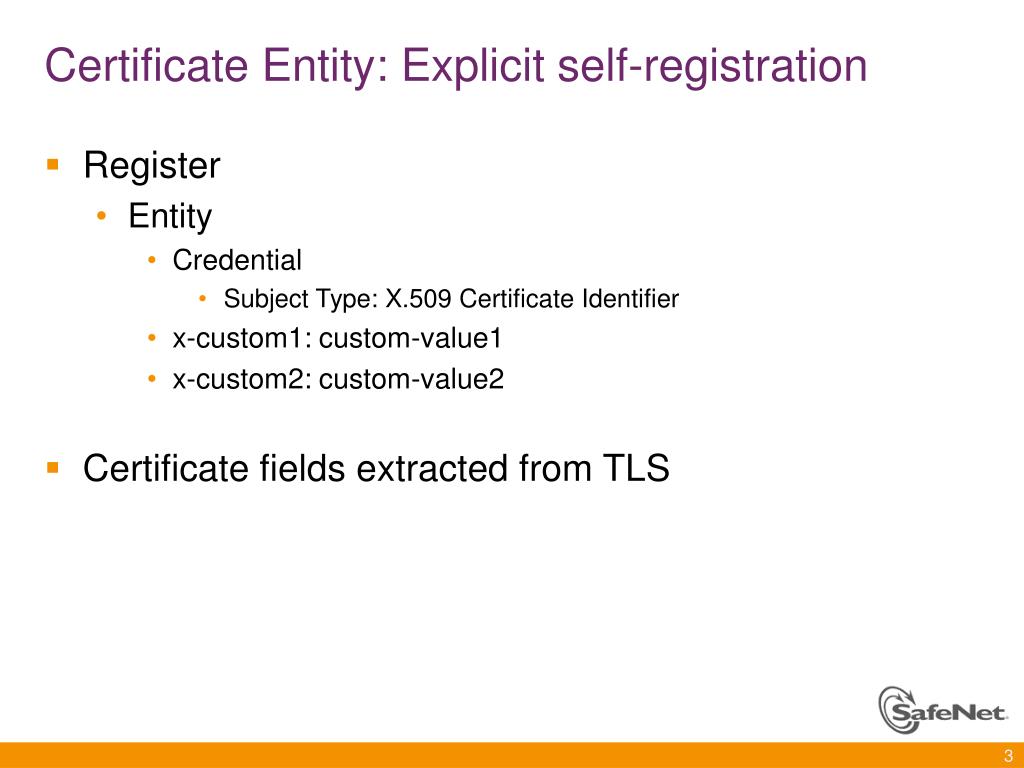

  3. Certificate Entity: Explicit self-registration • Register • Entity • Credential • Subject Type: X.509 Certificate Identifier • x-custom1: custom-value1 • x-custom2: custom-value2 • Certificate fields extracted from TLS

  4. Certificate Entity: Registration • Register • Entity • Credential • Subject Type: X.509 Certificate Identifier • Subject Auth Info Type: X.509 Certificate • Subject Auth Info: <certificate> • x-custom1: custom-value1 • x-custom2: custom-value2 • Assumed registering Entity has privilege to register Entities

  5. Certificate Entity: Authentication and Access Control • Authentication • Credential • Subject Type: X.509 Certificate Identifier • Server looks up Entity based on TLS certificate information • Server checks Entity UUID against request object Owner attribute

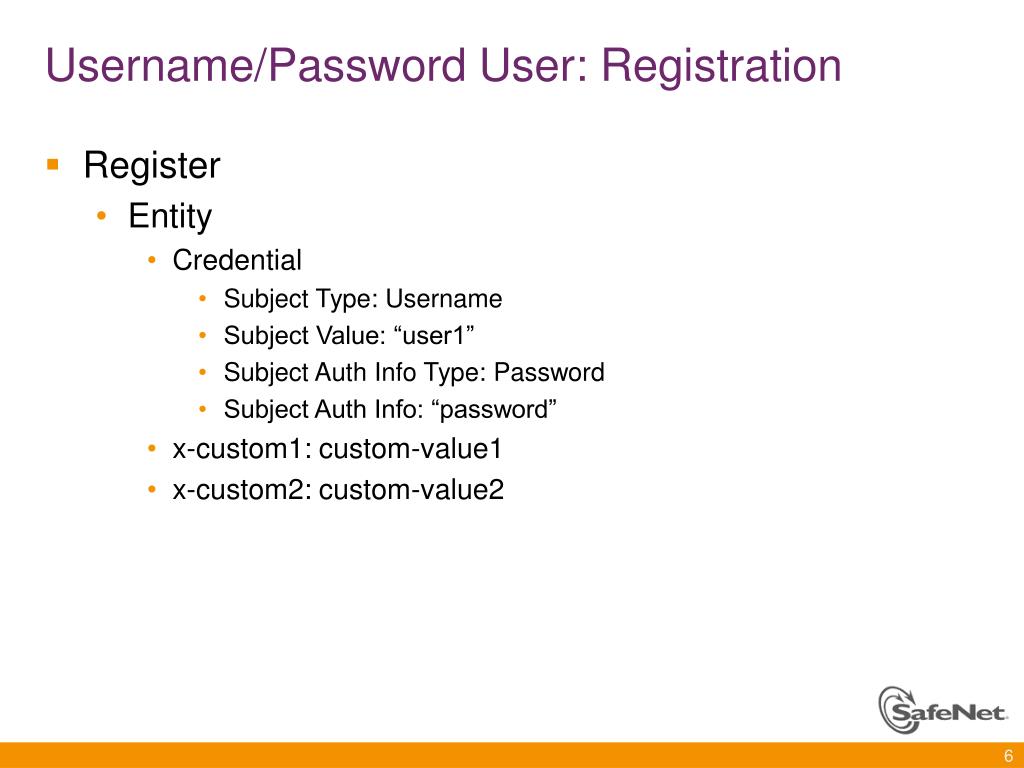

  6. Username/Password User: Registration • Register • Entity • Credential • Subject Type: Username • Subject Value: “user1” • Subject Auth Info Type: Password • Subject Auth Info: “password” • x-custom1: custom-value1 • x-custom2: custom-value2

  7. Username/Password User: Authentication and Access Control • Authentication • Credential • Subject Type: Username • Subject Value: “user1” • Subject Auth Info Type: Password • Subject Auth Info: “password” • Server looks up Entity based on Subject Value • Server checks Entity UUID against request object Owner attribute

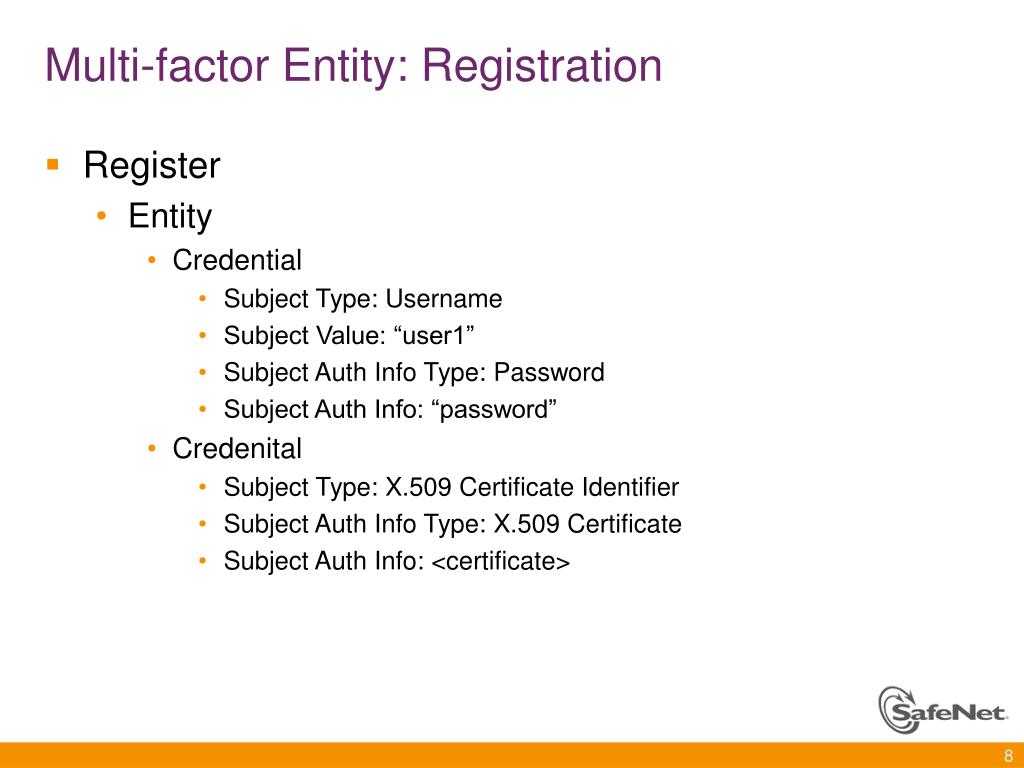

  8. Multi-factor Entity: Registration • Register • Entity • Credential • Subject Type: Username • Subject Value: “user1” • Subject Auth Info Type: Password • Subject Auth Info: “password” • Credenital • Subject Type: X.509 Certificate Identifier • Subject Auth Info Type: X.509 Certificate • Subject Auth Info: <certificate>

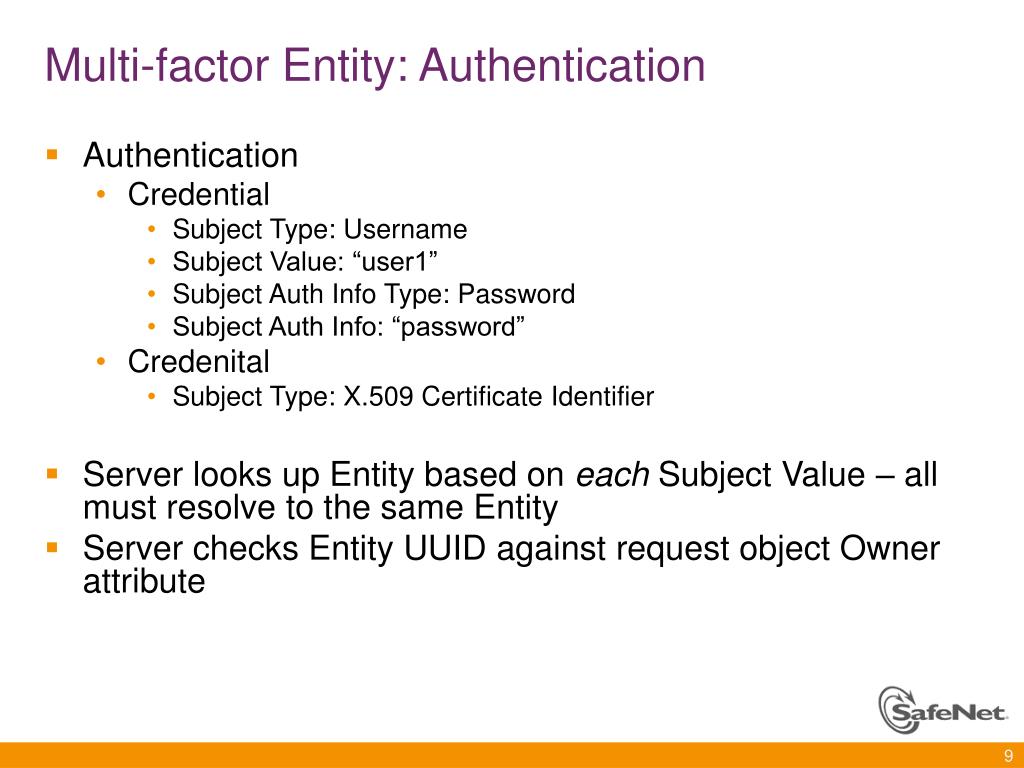

  9. Multi-factor Entity: Authentication • Authentication • Credential • Subject Type: Username • Subject Value: “user1” • Subject Auth Info Type: Password • Subject Auth Info: “password” • Credenital • Subject Type: X.509 Certificate Identifier • Server looks up Entity based on each Subject Value – all must resolve to the same Entity • Server checks Entity UUID against request object Owner attribute
