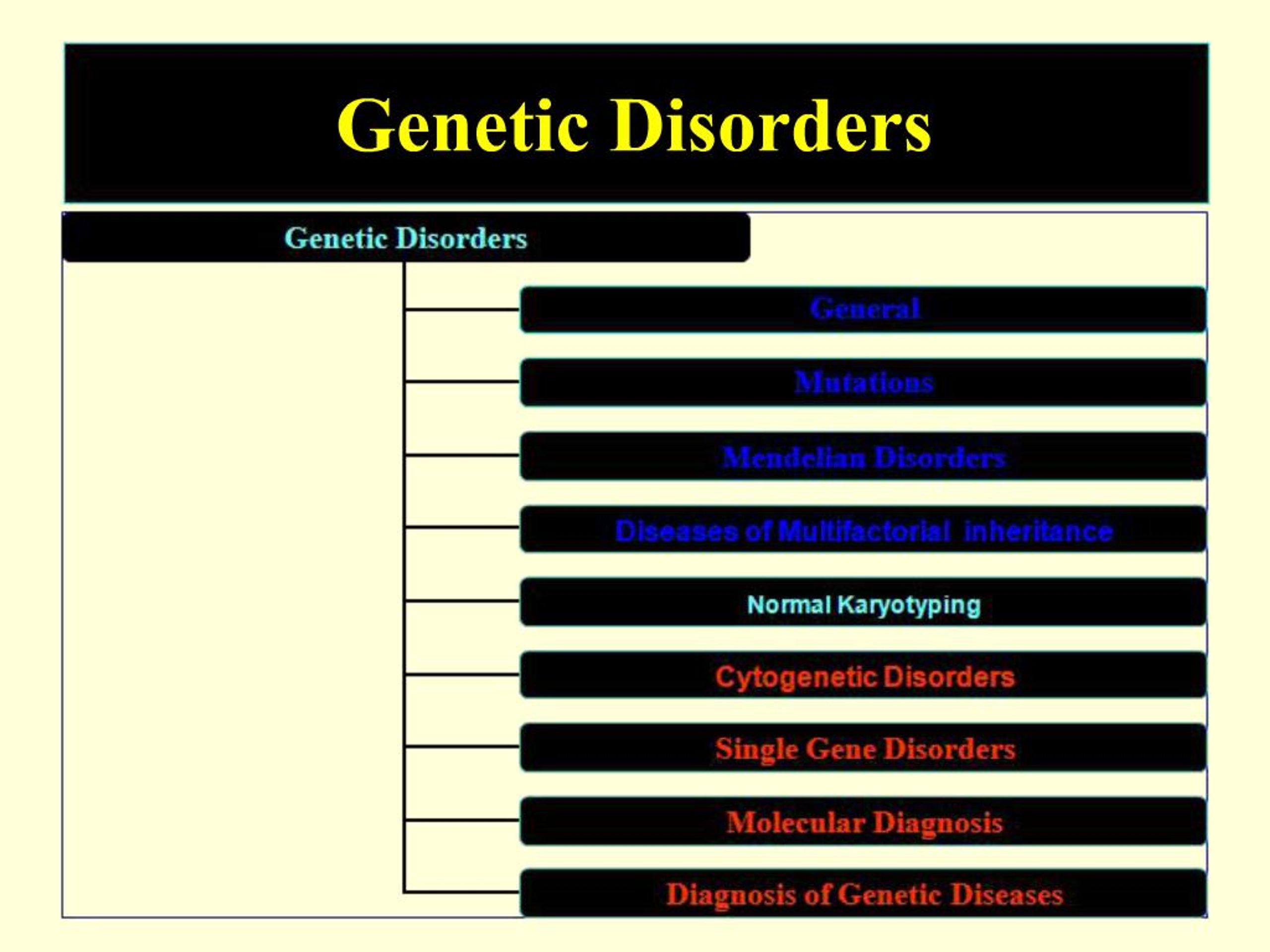

    1. Genetic Disorders

    2. Normal Karyotype = Study of chromosomes Human somatic cells contain 46 chromosomes 22 homologous pairs of autosomes and two sex chromosomes, XX in the female and XY in the male Procedure chromosome spread in metaphase arrest mitosis in dividing cells in metaphase by the use of mitotic spindle inhibitors (e.g., colcemid) In metaphase spread, the individual chromosomes take the form of two chromatids photographed or imaged stained MC stain for chromosomes - Giemsa stain (G banding ) Nomenclature Male with trisomy 21 is designated 47,XY,+21 Short arm of a chromosome - p (for petit), & long arm - q (the next letter of alphabet) Chromosomal segment located on the short arm of the X chromosome, in region 2, band 1, and sub-band 2-Xp21.2

    3. Normal Karyotype

    4. FISH =Fluorescence in Situ Hybridization Major limitations of karyotyping applicable only to cells that are dividing micro deletions, complex translocations, and telomere alterations not readily detectable by routine karyotyping Procedure (FISH) Probes are labeled with fluorescent dyes and applied to interphase nuclei Spectral karyo typing (SKY) combination of five fluorochromes and appropriate computer-generated signals Recent FISH application Tumor-specific alterations in gene copy number can be ascertained Compares the DNA content of normal and tumor cell populations
