  1. Simple Harmonic Motion Physics 202 Professor Lee Carkner Lecture 3

  2. PAL #2 Archimedes • a) Iron ball removed from boat • Boat is lighter and so displaces less water • b) Iron ball thrown overboard • While sinking iron ball displaced water equal to its volume • c) Cork ball thrown overboard • Both ball and boat still floating and so displaced amount of water is the same

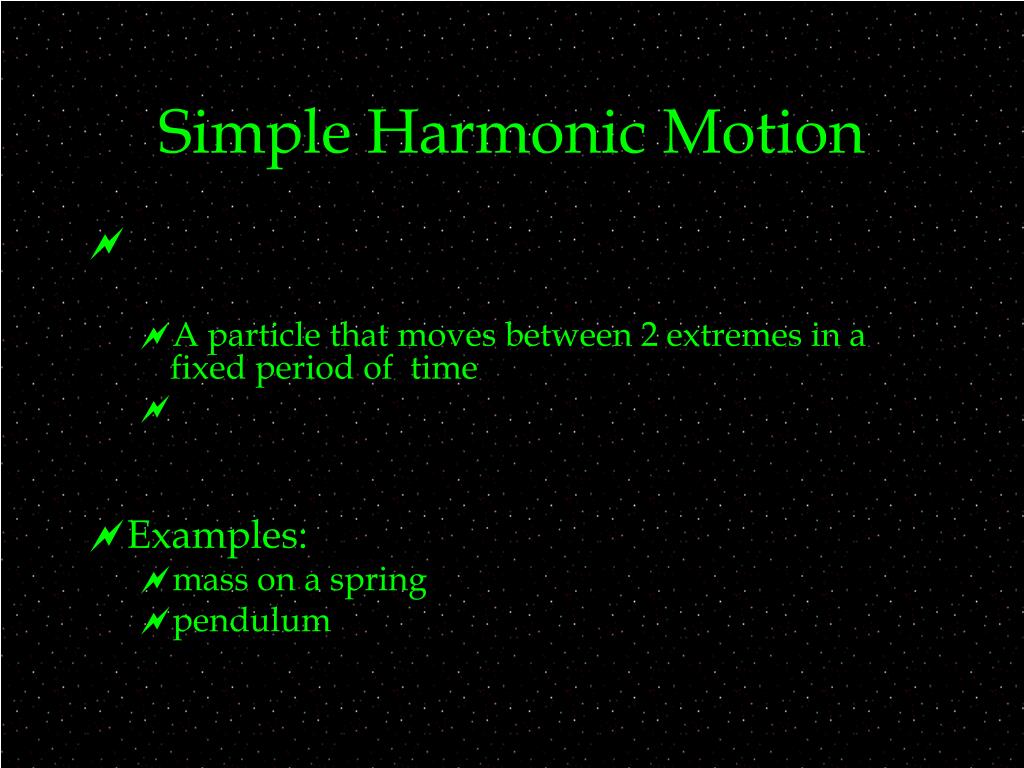

  3. Simple Harmonic Motion • A particle that moves between 2 extremes in a fixed period of time • Examples: • mass on a spring • pendulum

  4. SHM Snapshots

  5. Key Quantities • Frequency (f) -- • Unit=hertz (Hz) = 1 oscillation per second = s-1 • Period (T) -- • T=1/f • Angular frequency (w) -- w = 2pf = 2p/T • Unit = • We use angular frequency because the motion cycles

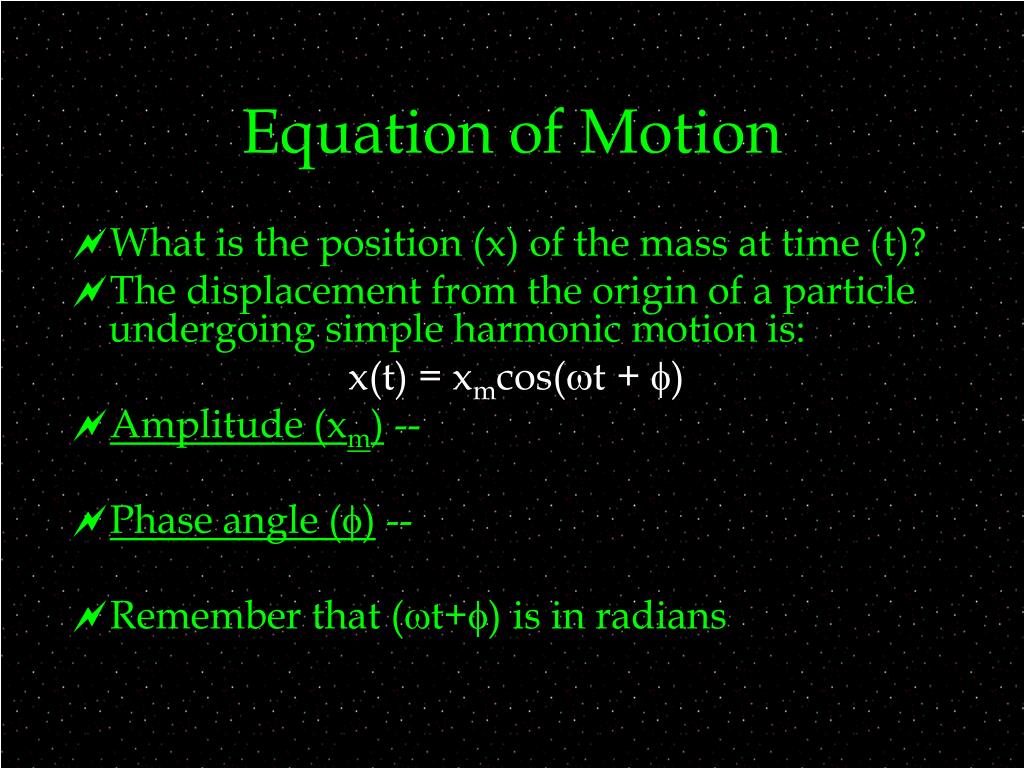

  6. Equation of Motion • What is the position (x) of the mass at time (t)? • The displacement from the origin of a particle undergoing simple harmonic motion is: x(t) = xmcos(wt + f) • Amplitude (xm) -- • Phase angle (f) -- • Remember that (wt+f) is in radians

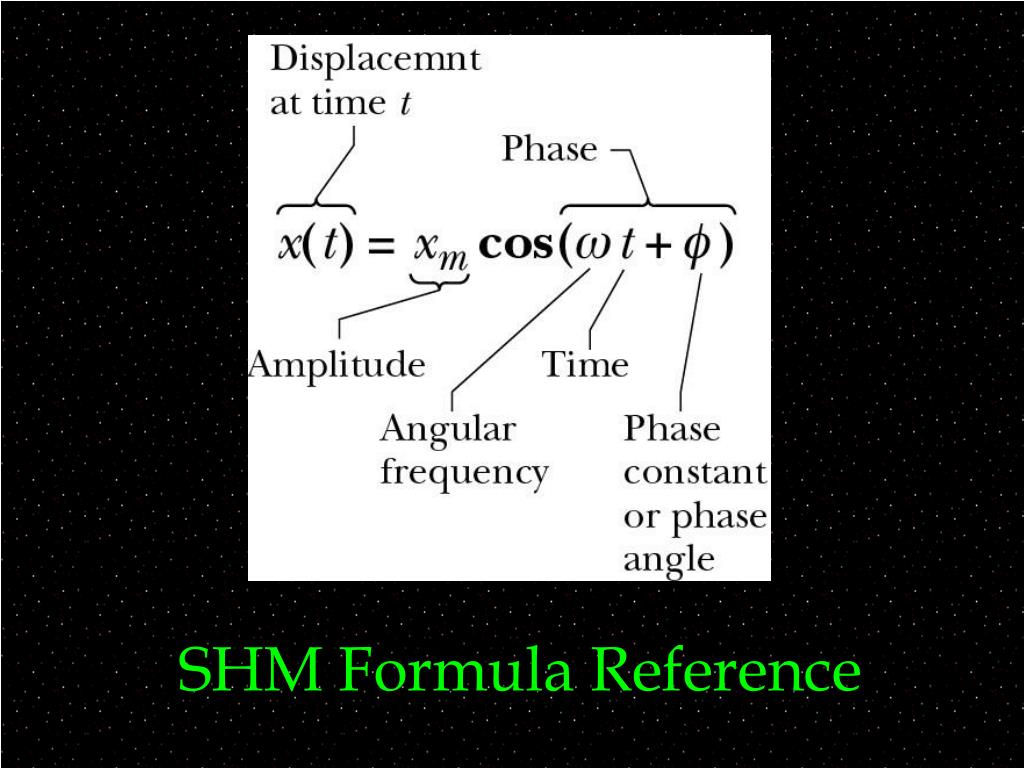

  7. SHM Formula Reference

  8. SHM in Action • Consider SHM with f=0: x = xmcos(wt) • t=0, wt=0, cos (0) = 1 • t=1/2T, wt=p, cos (p) = -1 • t=T, wt=2p, cos (2p) = 1

  9. SHM Monster Min Rest Max 10m

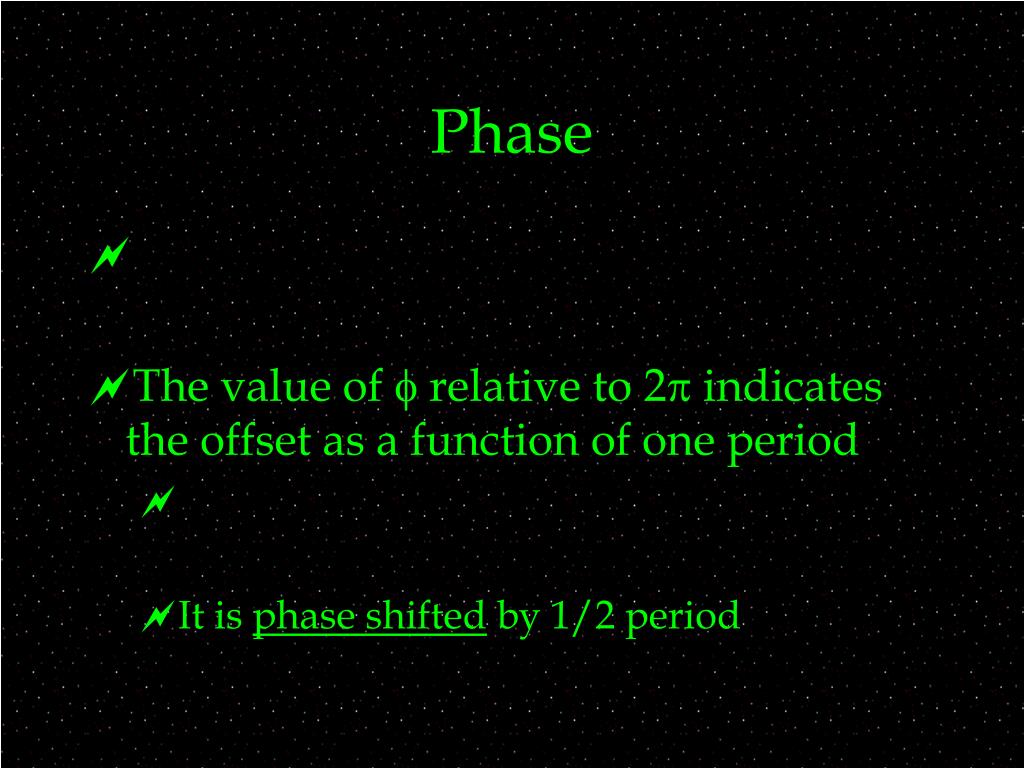

  10. Phase • The value of f relative to 2p indicates the offset as a function of one period • It is phase shifted by 1/2 period

  11. Amplitude, Period and Phase

  12. Velocity • If we differentiate the equation for displacement w.r.t. time, we get velocity: v(t)=-wxmsin(wt + f) • Since the particle moves from +xm to -xm the velocity must be negative (and then positive in the other direction) • High frequency (many cycles per second) means larger velocity

  13. Acceleration • If we differentiate the equation for velocity w.r.t. time, we get acceleration a(t)=-w2xmcos(wt + f) • Making a substitution yields: a(t)=-w2x(t)

  14. SHM Monster Min Rest Max 10m

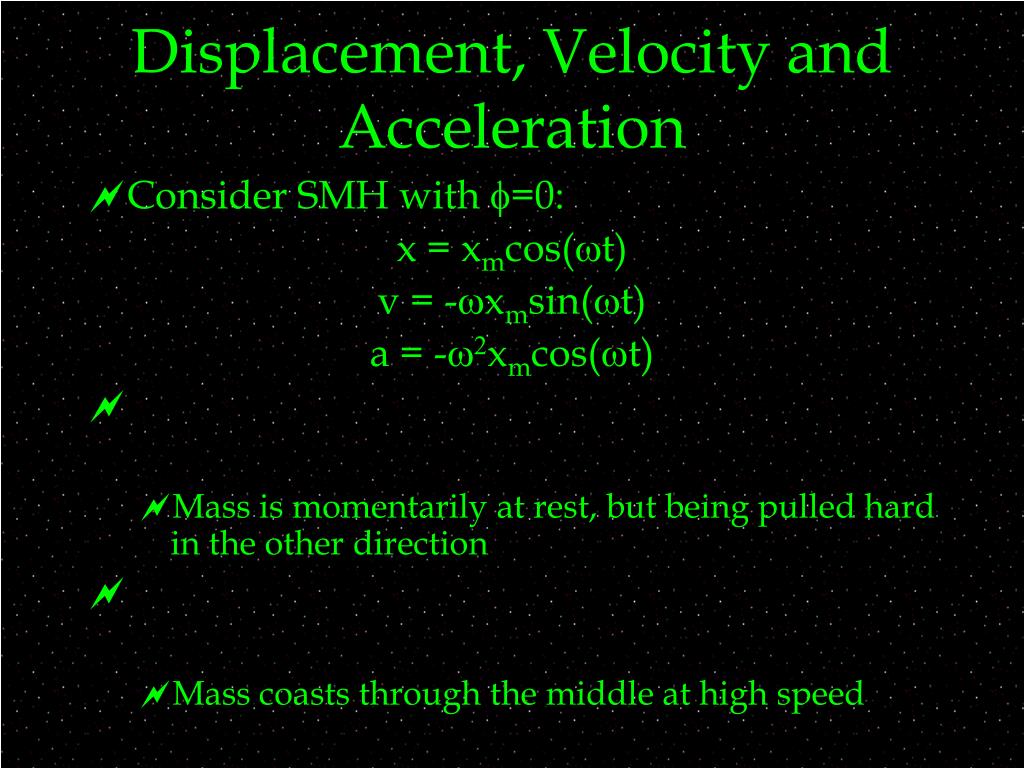

  15. Displacement, Velocity and Acceleration • Consider SMH with f=0: x = xmcos(wt) v = -wxmsin(wt) a = -w2xmcos(wt) • Mass is momentarily at rest, but being pulled hard in the other direction • Mass coasts through the middle at high speed

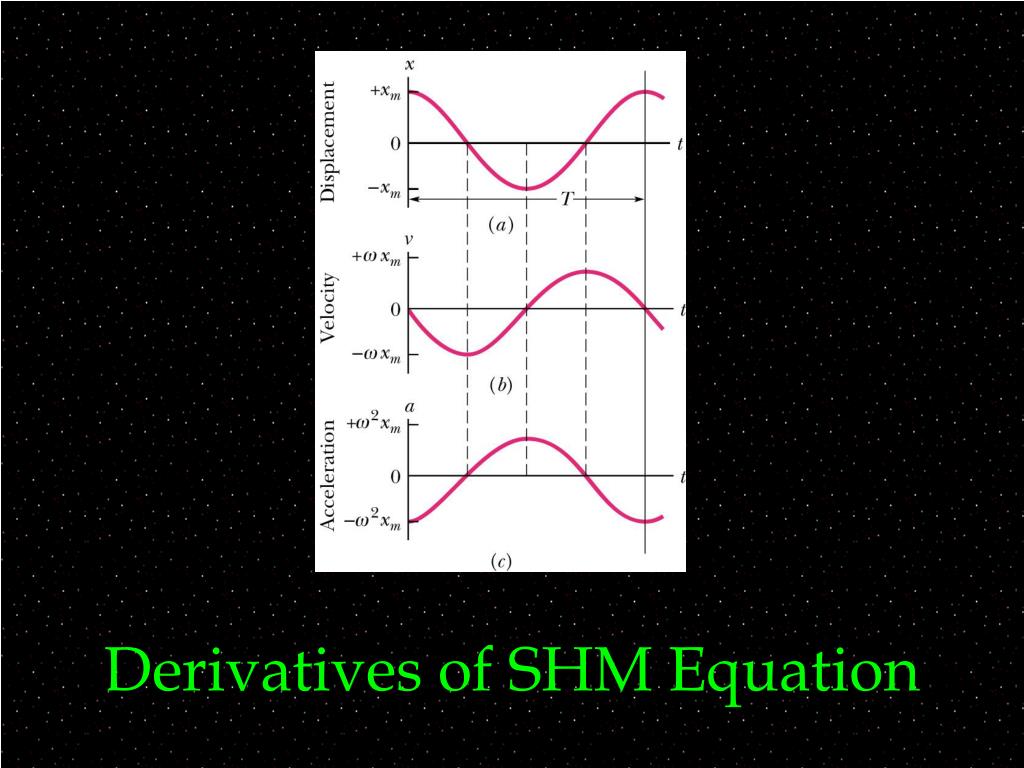

  16. Derivatives of SHM Equation

  17. Force • Remember that: a=-w2x • But, F=ma so, • Since m and w are constant we can write the expression for force as: F=-kx • This is Hooke’s Law • Simple harmonic motion is motion where force is proportional to displacement but opposite in sign • Why is the sign negative?

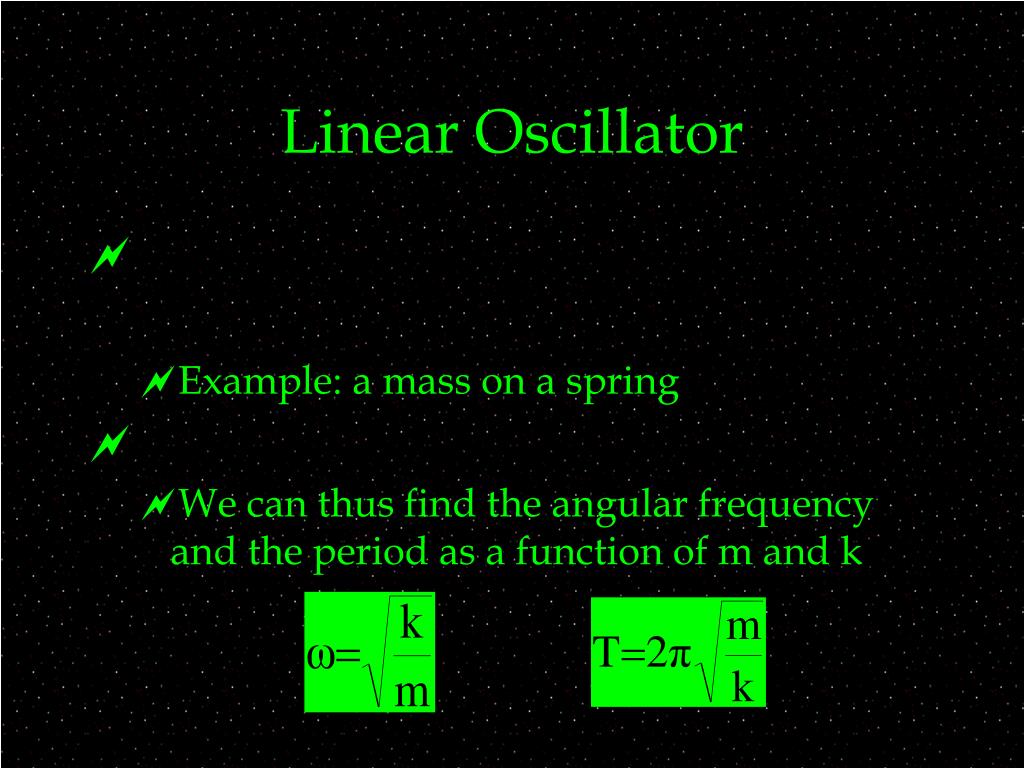

  18. Linear Oscillator • Example: a mass on a spring • We can thus find the angular frequency and the period as a function of m and k

  19. Linear Oscillator

  20. Application of the Linear Oscillator: Mass in Free Fall • However, for a linear oscillator the mass depends only on the period and the spring constant: m/k=(T/2p)2
