Solids & Liquids

Solids & Liquids. I. IMF – intermolecular forces -Attractive forces between molecules. A . Much weaker than chemical bonds within molecules. London forces & Dipole-Dipole forces: View animation online . Hydrogen bonds.

betsy
Télécharger la présentation

Solids & Liquids

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Solids & Liquids • I. IMF – intermolecular forces -Attractive forces betweenmolecules. • A. Much weaker than chemical bonds within molecules.

  2. London forces & Dipole-Dipole forces: View animation online. • Hydrogen bonds

  3. II. Liquids – fluid (ability to flow) definite volume, takes the shape of its container • A. Properties & kinetic molecular theory – molecules in constant random motion, much less KE than gases & molecules are closer together

  4. 1. density – d = mass/vol compared to gases density is much greater • 2. incompressibility – much less commpressiblethan gases • 3. ability to diffuse – can diffuse but not as fast as gases because liquid molecules are closer together & the IMF are much greater

  5. 4. surface tension – force that pulls adjacent particles at the surface of a liquid together – causes liquids to “bead” • a. water has a much higher surface tension than most other liquids

  6. And 1 more! • water strider • A tiny water walking machine/robot Image Credit: Environmental Graffiti

  7. b. capillary action – attraction of a surface of a liquid to the surface of a solid – causes meniscus • water mercury (surface tension stronger than capillary action)

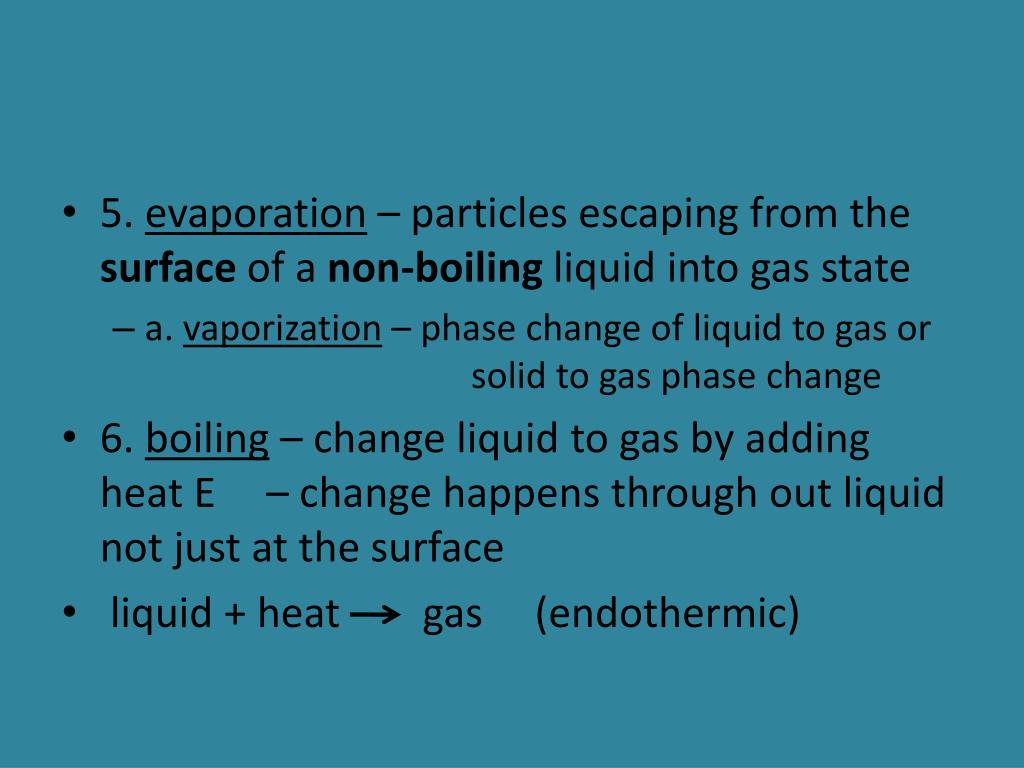

  8. 5. evaporation – particles escaping from the surface of a non-boiling liquid into gas state • a. vaporization – phase change of liquid to gas or solid to gas phase change • 6. boiling – change liquid to gas by adding heat E – change happens through out liquid not just at the surface • liquid + heat gas (endothermic)

  9. 7. freezing – phase change of liquid to solid by removing heat E • Liquid solid + heat (exothermic)

  10. III. Solids- definite shape & volume • A. Properties & kinetic molecular theory-(IMF stronger) molecules are in a fixed, vibrating position • 1. definite shape & vol • a. crystalline solids – made of crystals • 1) crystal – particles arranged in an orderly, repeating, geometric pattern

  11. b. amorphous solid – particles are arranged randomly

  12. 2. Definite melting point – temp at which a solid becomes liquid • a. melting – physical change from solid to liquid solid + heat→ liquid (endothermic) • b.supercooled liquids – substances that retain certain liquid properties even when at a temp where they appear solid --- glass, plastics

  13. 3. Density & incompressibility – more dense than gases & liquids, least comp. • D = mass ÷ volume • 4. Diffusion – can occur but at an incredibly slooooowrate (for practical purposes we can say that it doesn’t diffuse

  14. B. Crystalline Solids • 1. crystal structure- 3-D arrangement of particles in a crystal • 2. unit cell – smallest part of a crystal that shows the 3-D arrangement of the crystal

  15. 3. binding forces in crystals • a. covalent network – made of single atoms, each are covalently bonded to its nearest neighbor, hard, brittle, nonconductor or semiconductor (diamond, quartz, graphite)

  16. b. metallic crystal – metal atoms surrounded by a sea of electrons,good conductor, malleable…. • . ionic crystals – made of + & - ions arranged in a regular pattern, hard, brittle, ↑mp, good insulator

  17. d. covalent molecule – covalently bonded molecules held together by IMF, ↓ mp, soft, good insulator, easily vaporized, polar cov. more strongly held together than nonpolarcov. • covalent network • Metallic decreasing • m.p. melting point • ionic • polar covalent • covalent molecular
