  1. 2D Drawing Representation Chapter 5

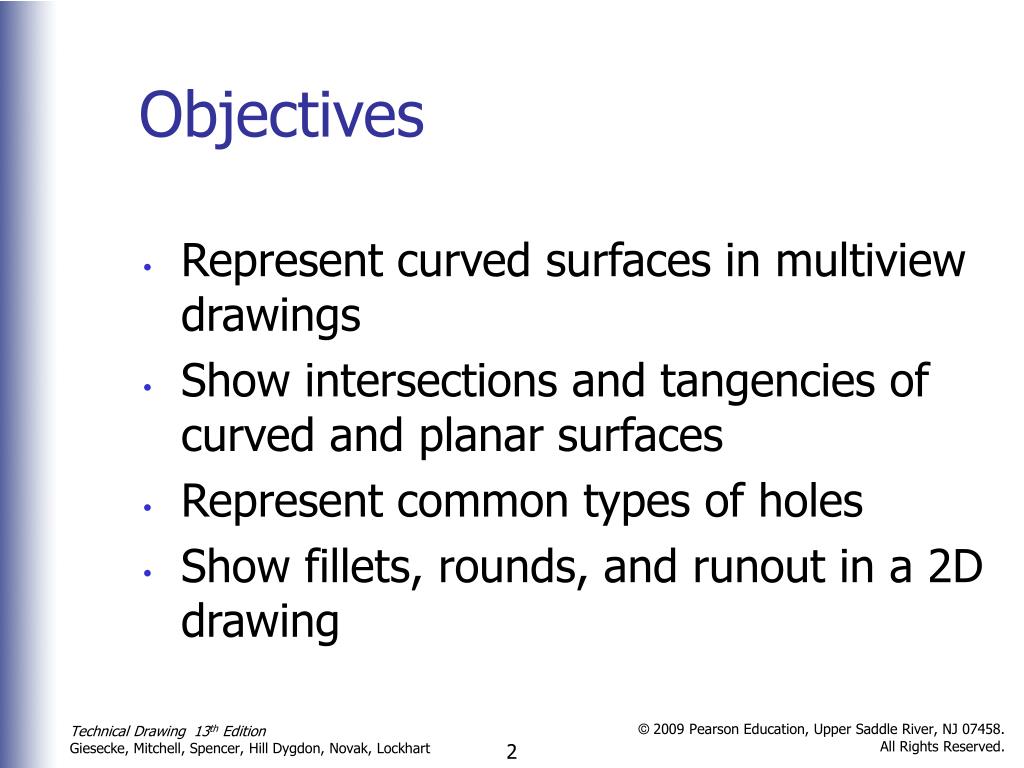

  2. Objectives • Represent curved surfaces in multiview drawings • Show intersections and tangencies of curved and planar surfaces • Represent common types of holes • Show fillets, rounds, and runout in a 2D drawing

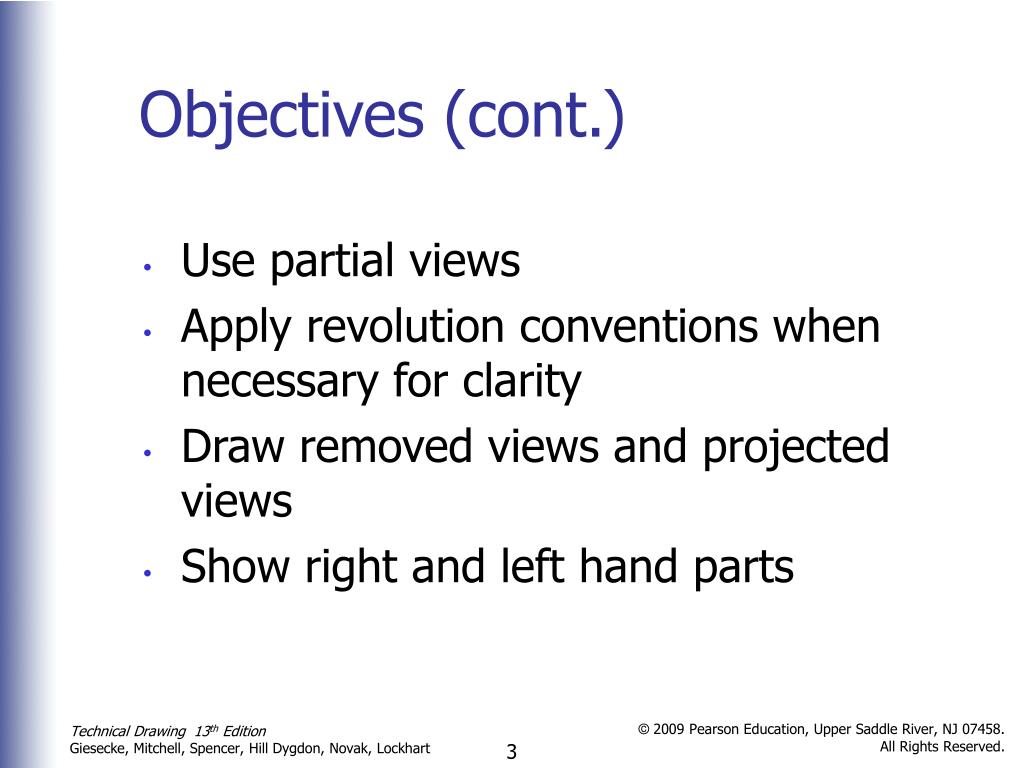

  3. Objectives (cont.) • Use partial views • Apply revolution conventions when necessary for clarity • Draw removed views and projected views • Show right and left hand parts

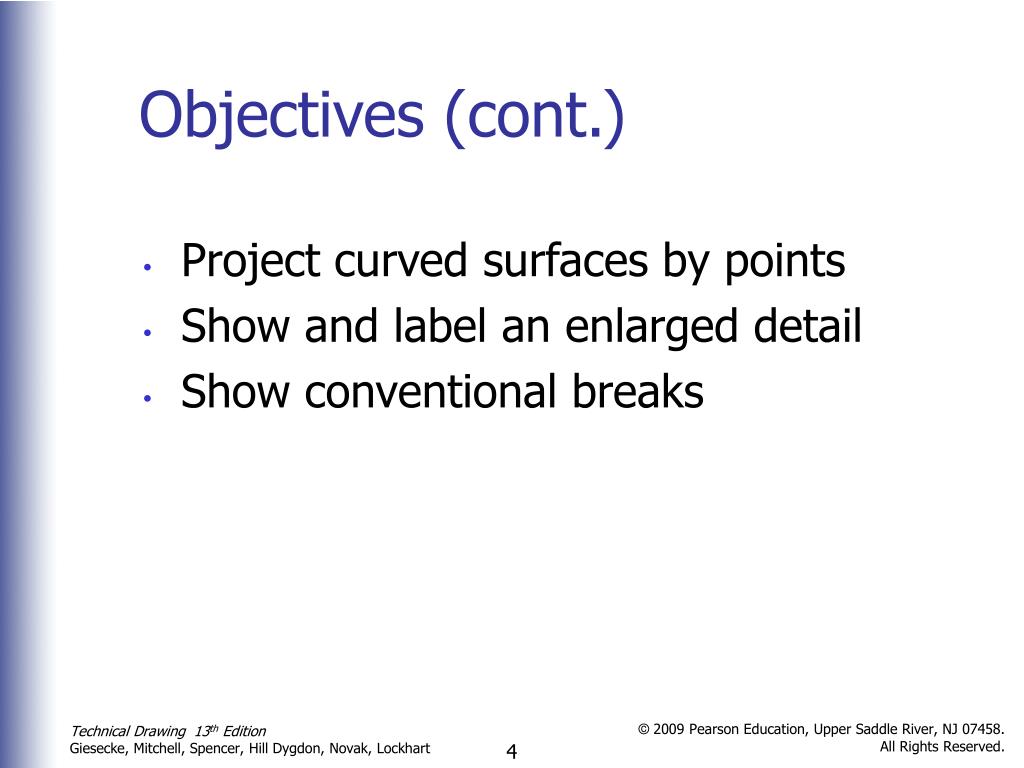

  4. Objectives (cont.) • Project curved surfaces by points • Show and label an enlarged detail • Show conventional breaks

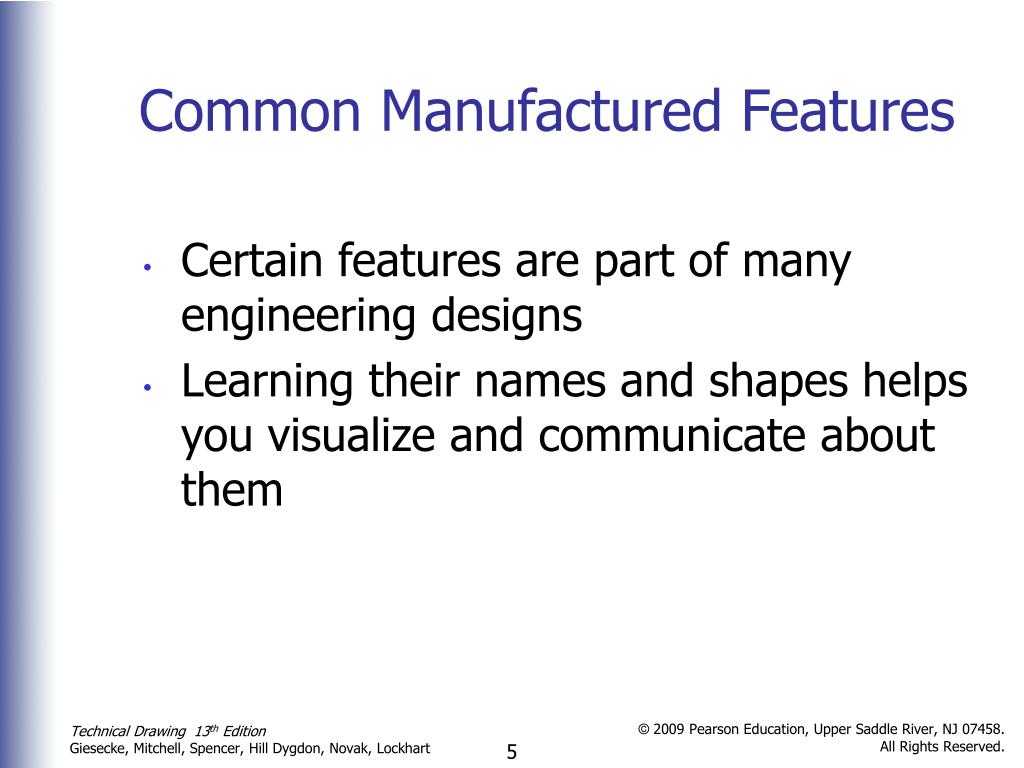

  5. Common Manufactured Features • Certain features are part of many engineering designs • Learning their names and shapes helps you visualize and communicate about them

  6. Common Manufactured Features • Fillet – a rounded interior blend between surfaces • Round – a rounded exterior blend between surfaces • Counterbore – a cylindrical recess around a hole, usually to receive a bolt head or nut

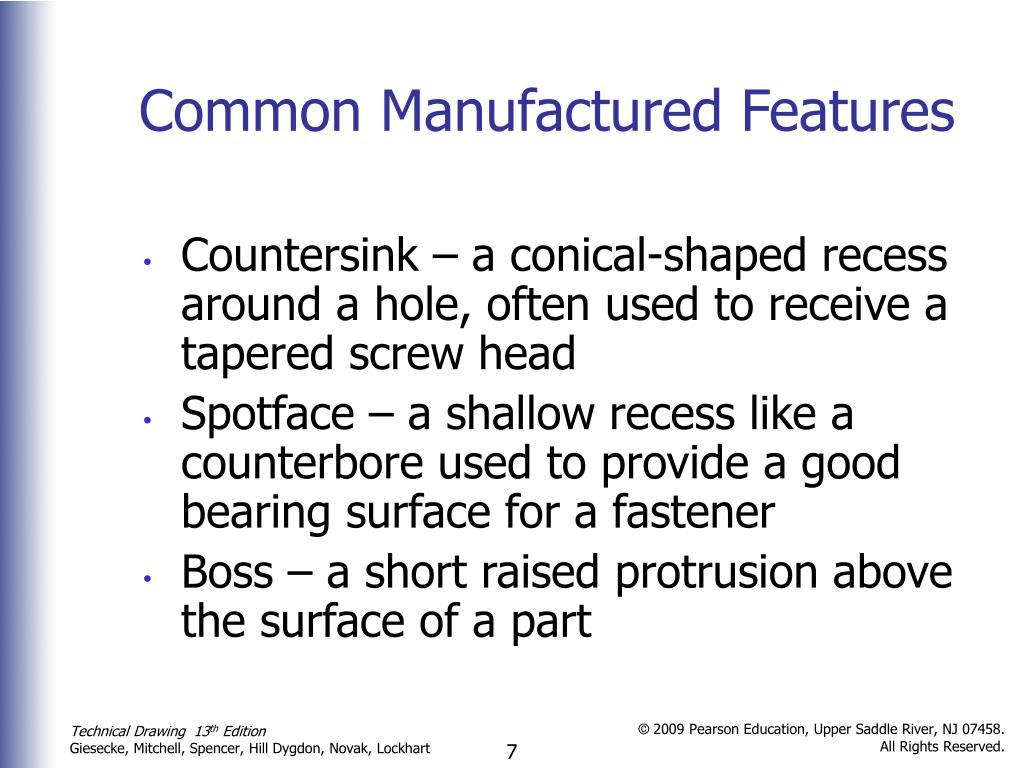

  7. Common Manufactured Features • Countersink – a conical-shaped recess around a hole, often used to receive a tapered screw head • Spotface – a shallow recess like a counterbore used to provide a good bearing surface for a fastener • Boss – a short raised protrusion above the surface of a part

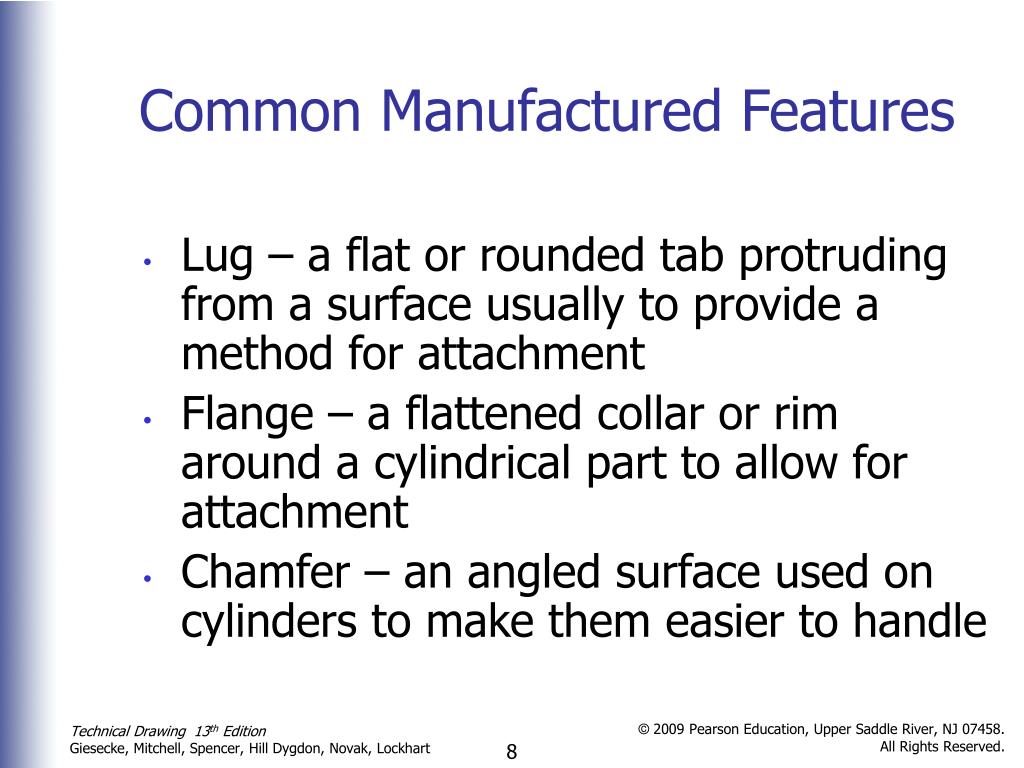

  8. Common Manufactured Features • Lug – a flat or rounded tab protruding from a surface usually to provide a method for attachment • Flange – a flattened collar or rim around a cylindrical part to allow for attachment • Chamfer – an angled surface used on cylinders to make them easier to handle

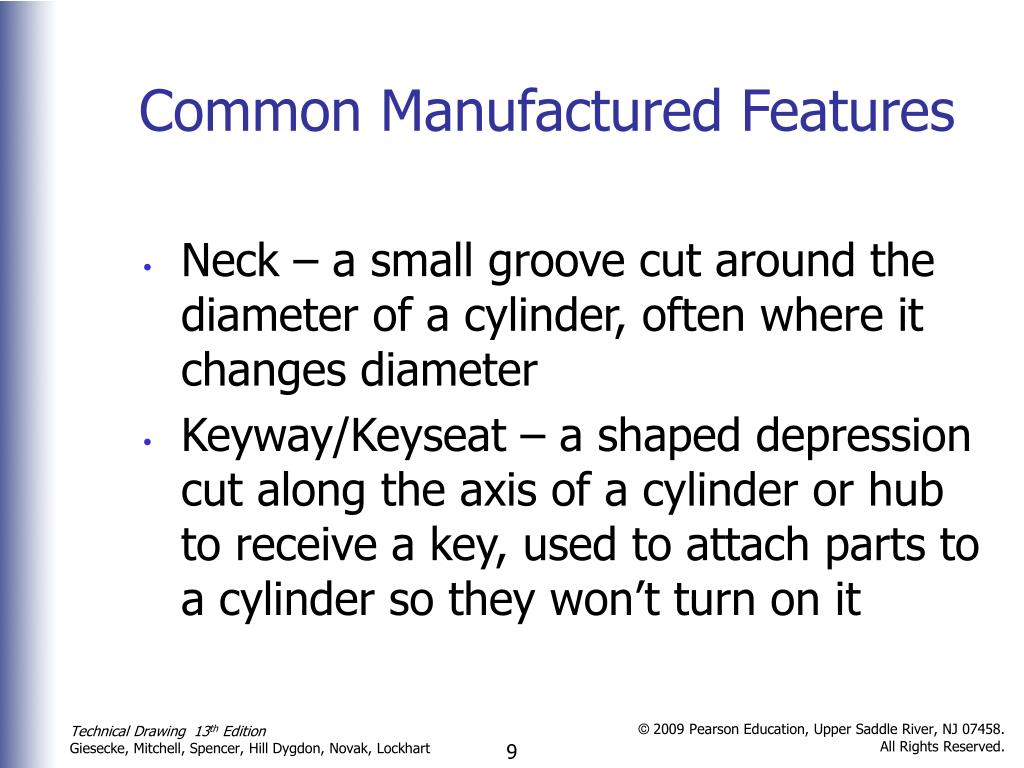

  9. Common Manufactured Features • Neck – a small groove cut around the diameter of a cylinder, often where it changes diameter • Keyway/Keyseat – a shaped depression cut along the axis of a cylinder or hub to receive a key, used to attach parts to a cylinder so they won’t turn on it

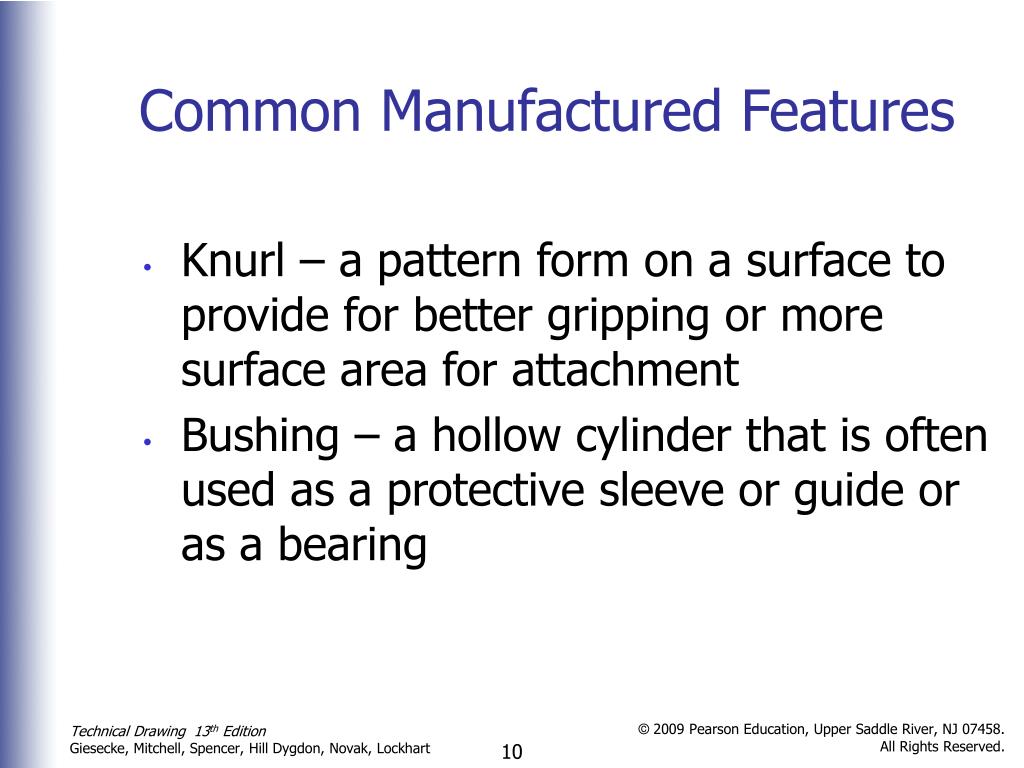

  10. Common Manufactured Features • Knurl – a pattern form on a surface to provide for better gripping or more surface area for attachment • Bushing – a hollow cylinder that is often used as a protective sleeve or guide or as a bearing

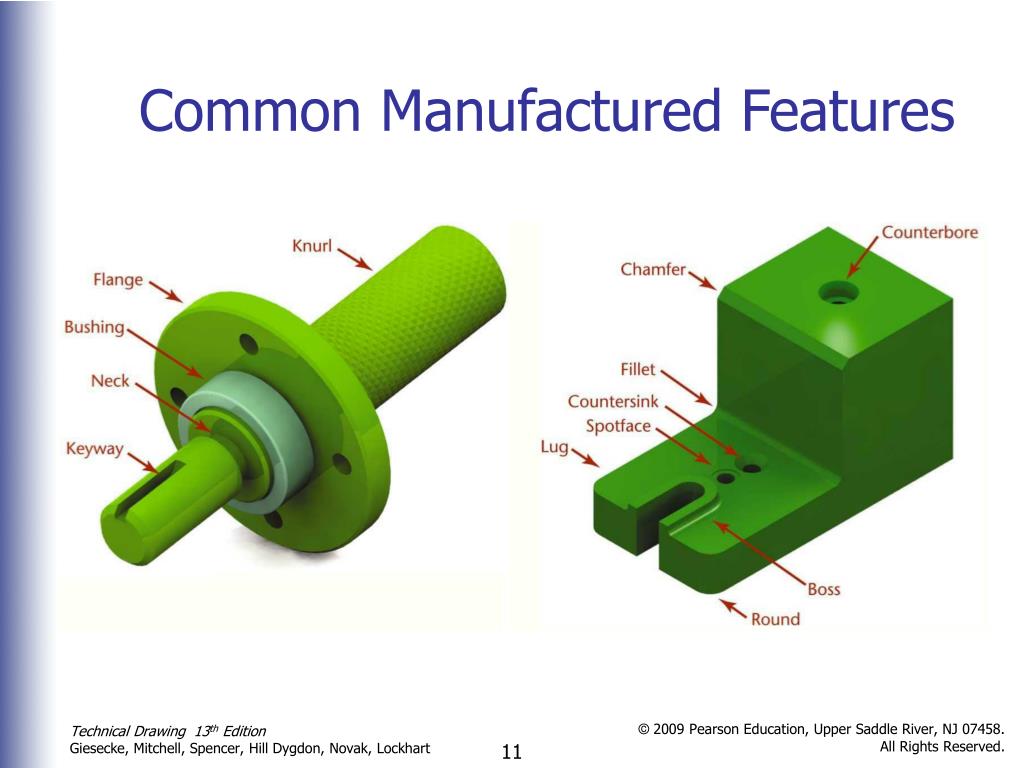

  11. Common Manufactured Features

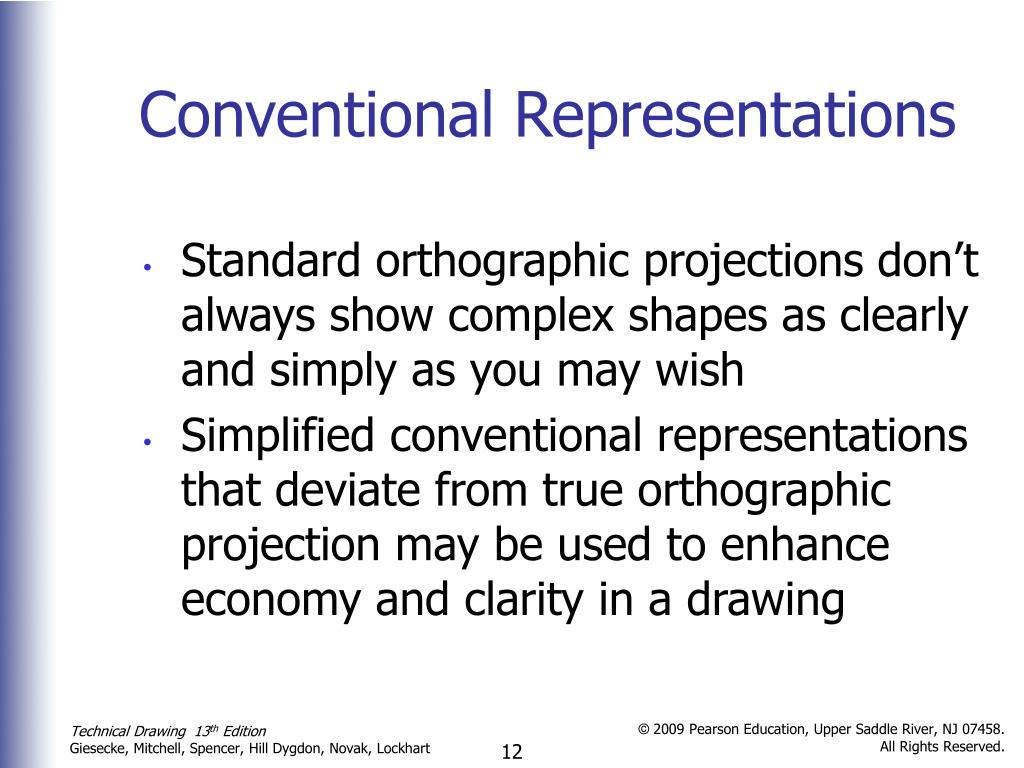

  12. Conventional Representations • Standard orthographic projections don’t always show complex shapes as clearly and simply as you may wish • Simplified conventional representations that deviate from true orthographic projection may be used to enhance economy and clarity in a drawing

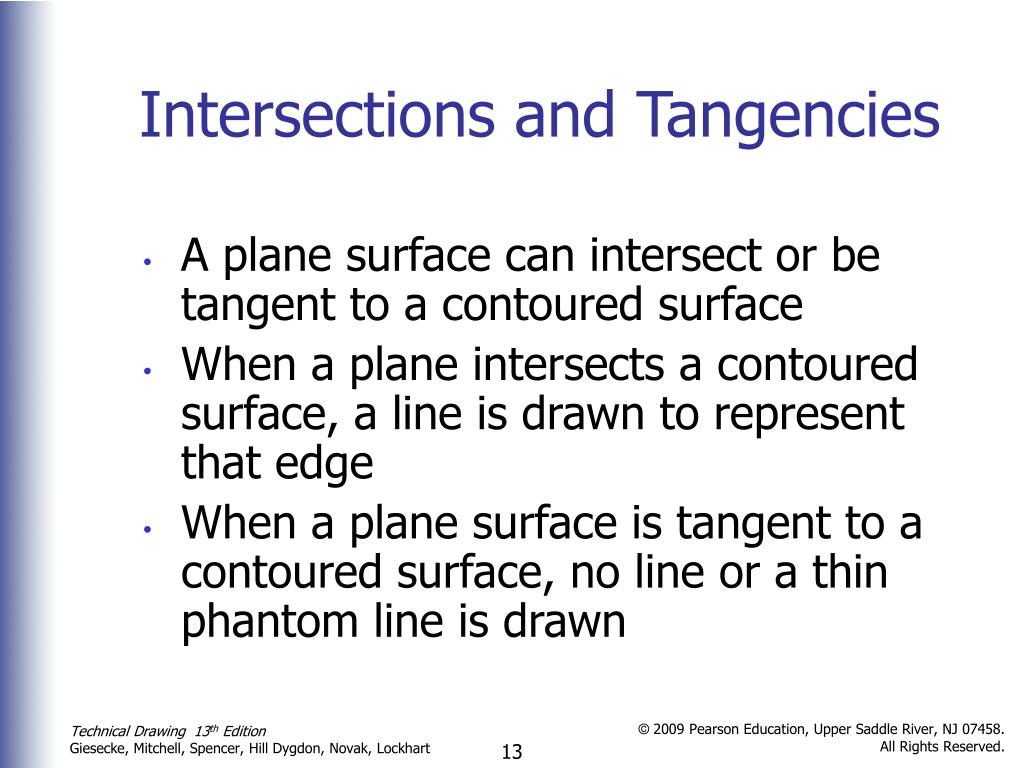

  13. Intersections and Tangencies • A plane surface can intersect or be tangent to a contoured surface • When a plane intersects a contoured surface, a line is drawn to represent that edge • When a plane surface is tangent to a contoured surface, no line or a thin phantom line is drawn

  14. Intersections and Tangencies

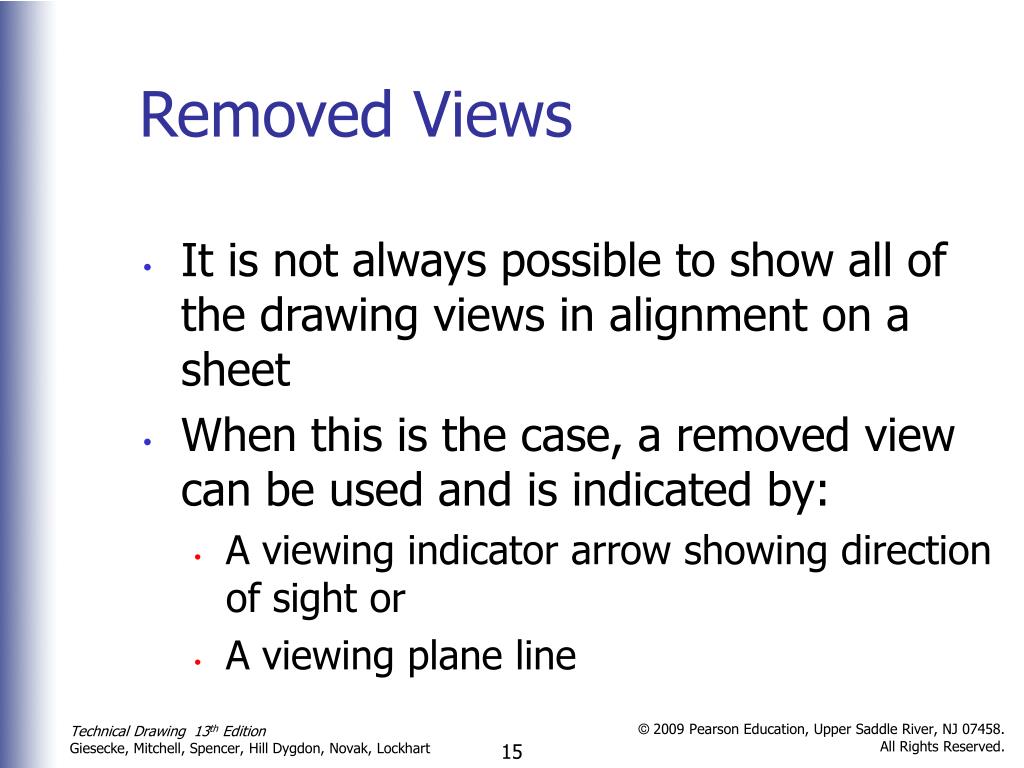

  15. Removed Views • It is not always possible to show all of the drawing views in alignment on a sheet • When this is the case, a removed view can be used and is indicated by: • A viewing indicator arrow showing direction of sight or • A viewing plane line

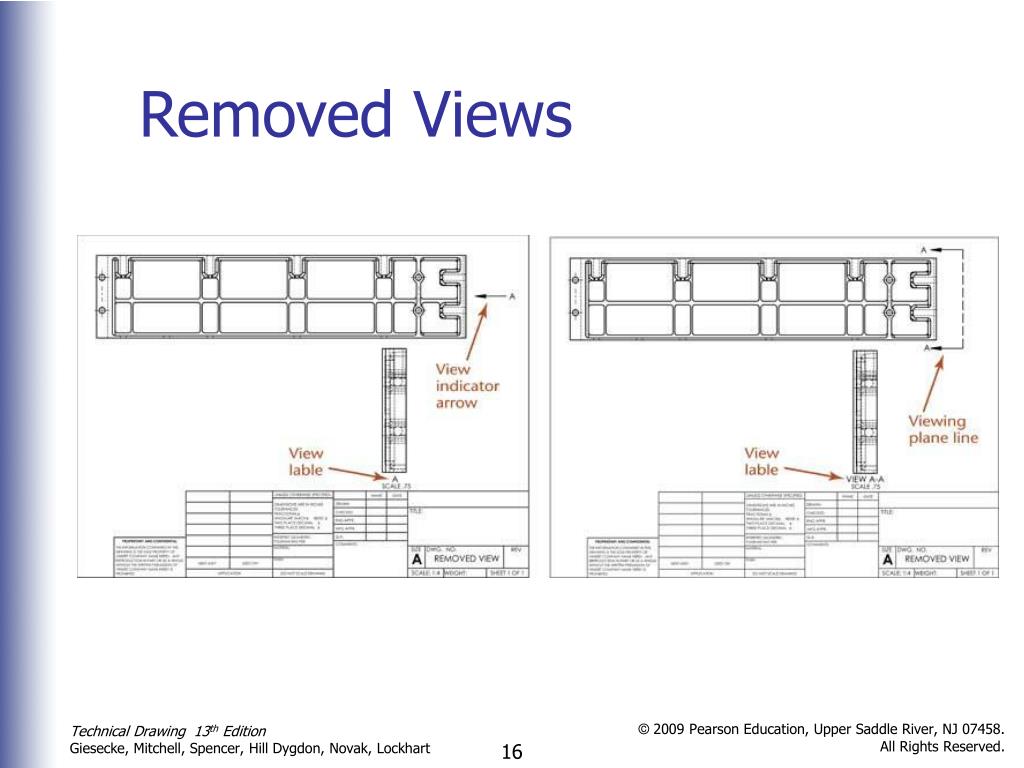

  16. Removed Views

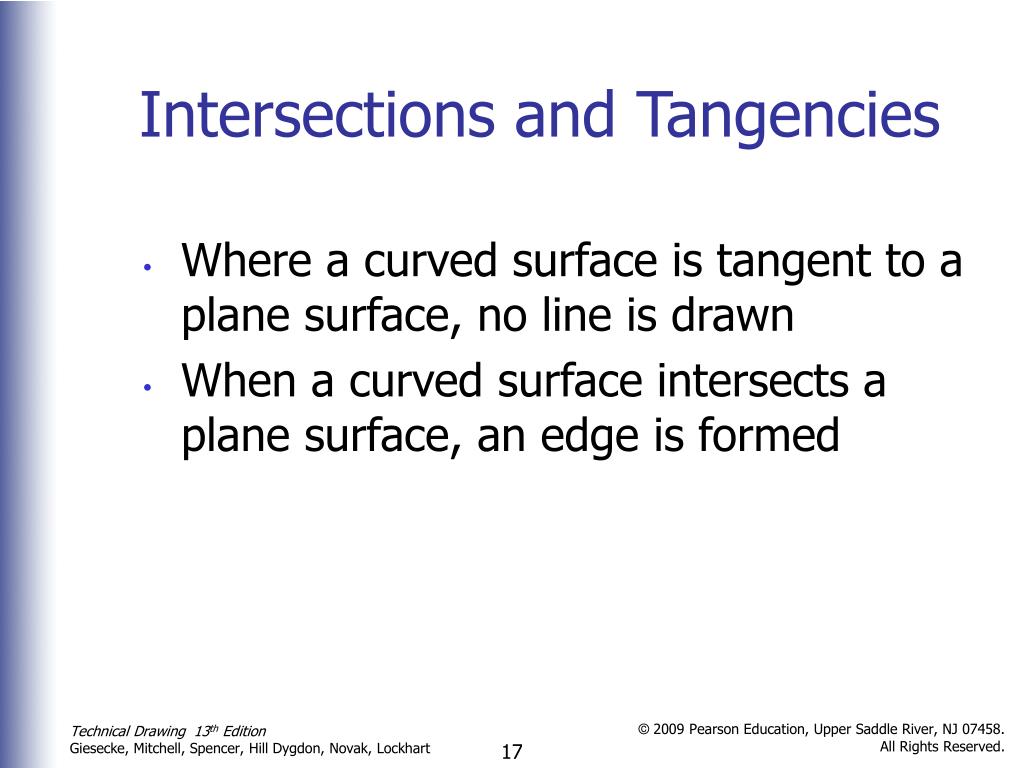

  17. Intersections and Tangencies • Where a curved surface is tangent to a plane surface, no line is drawn • When a curved surface intersects a plane surface, an edge is formed

  18. Intersections and Tangencies

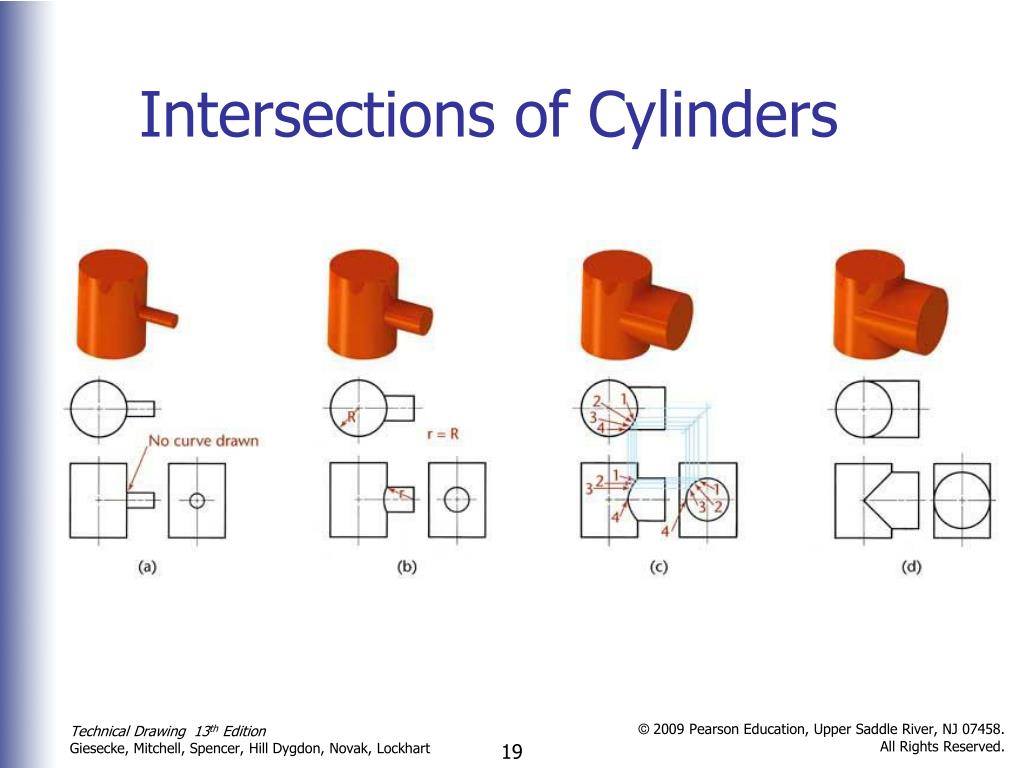

  19. Intersections of Cylinders

  20. Runouts • Small curves called runouts are used to represent fillets that connect with plane surfaces tangent to cylinders

  21. Conventional Edges • Because the true projection may be misleading, there is a conventional way of showing rounded and filleted edges for the sake of clarity

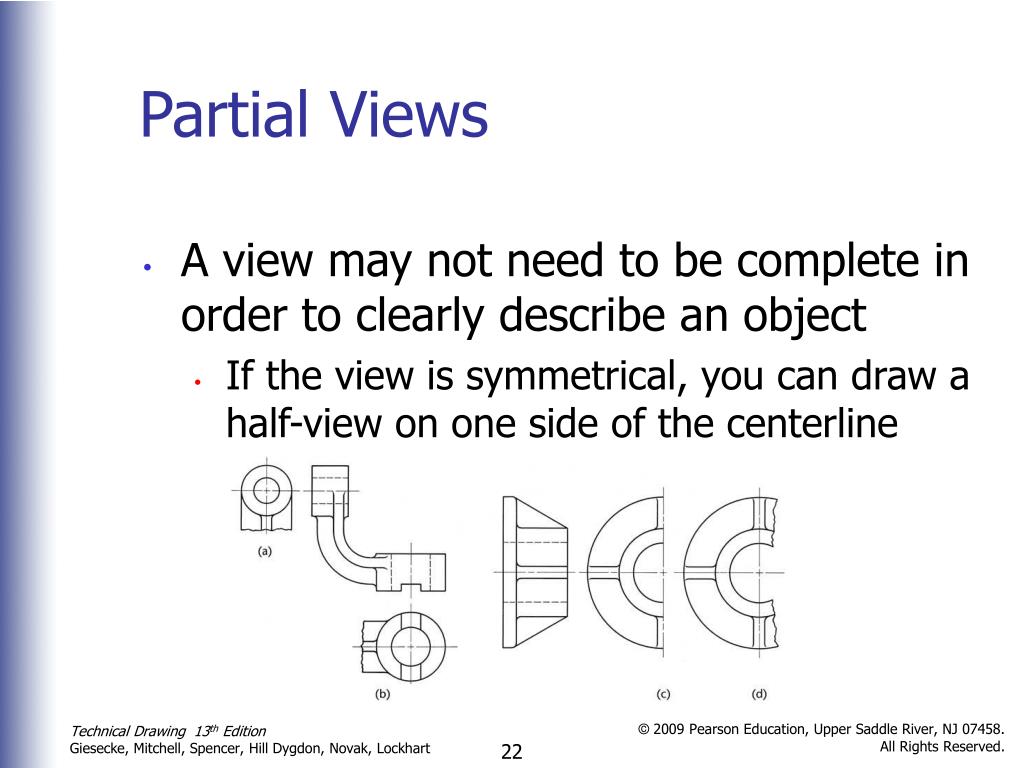

  22. Partial Views • A view may not need to be complete in order to clearly describe an object • If the view is symmetrical, you can draw a half-view on one side of the centerline

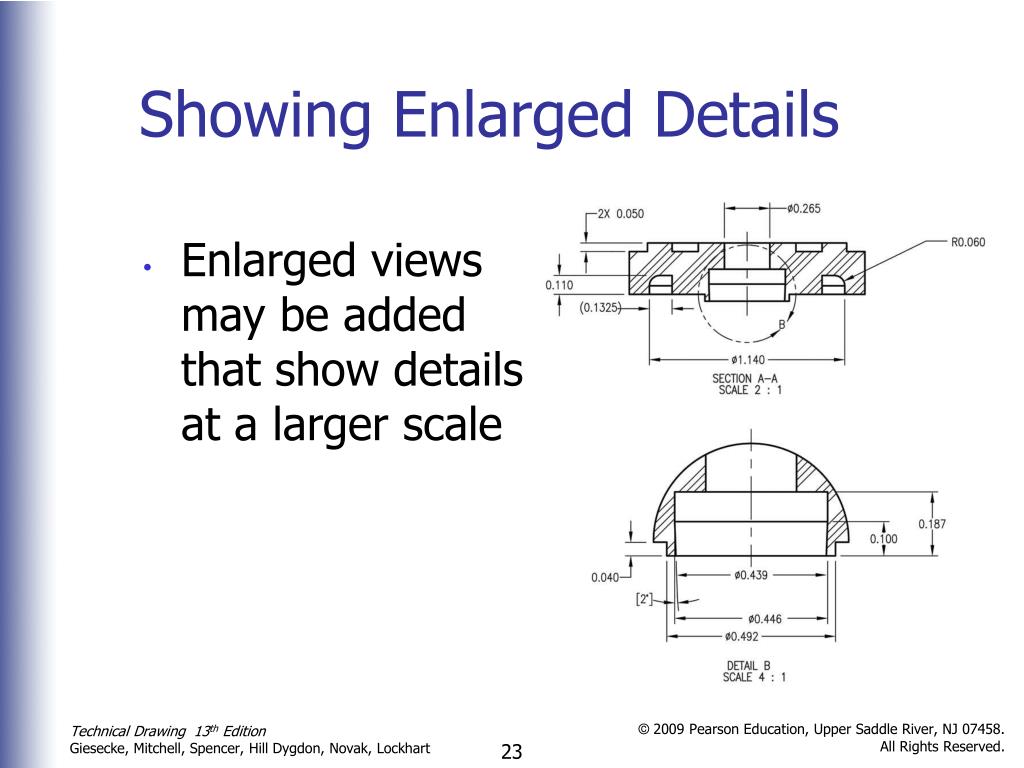

  23. Showing Enlarged Details • Enlarged views may be added that show details at a larger scale

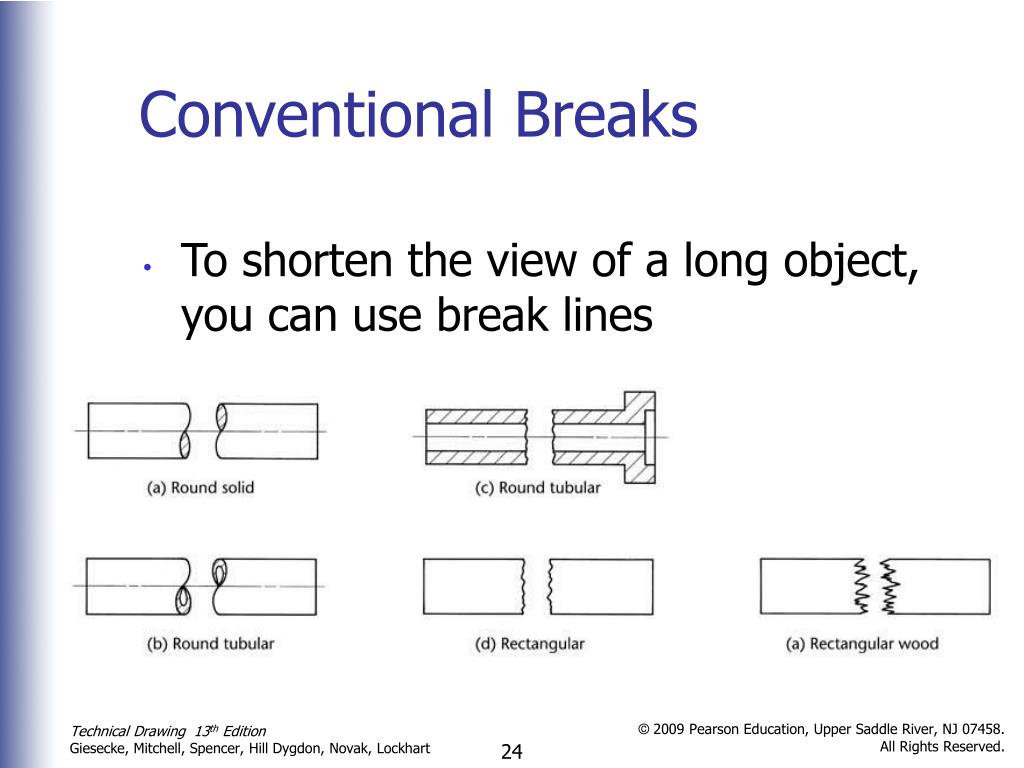

  24. Conventional Breaks • To shorten the view of a long object, you can use break lines

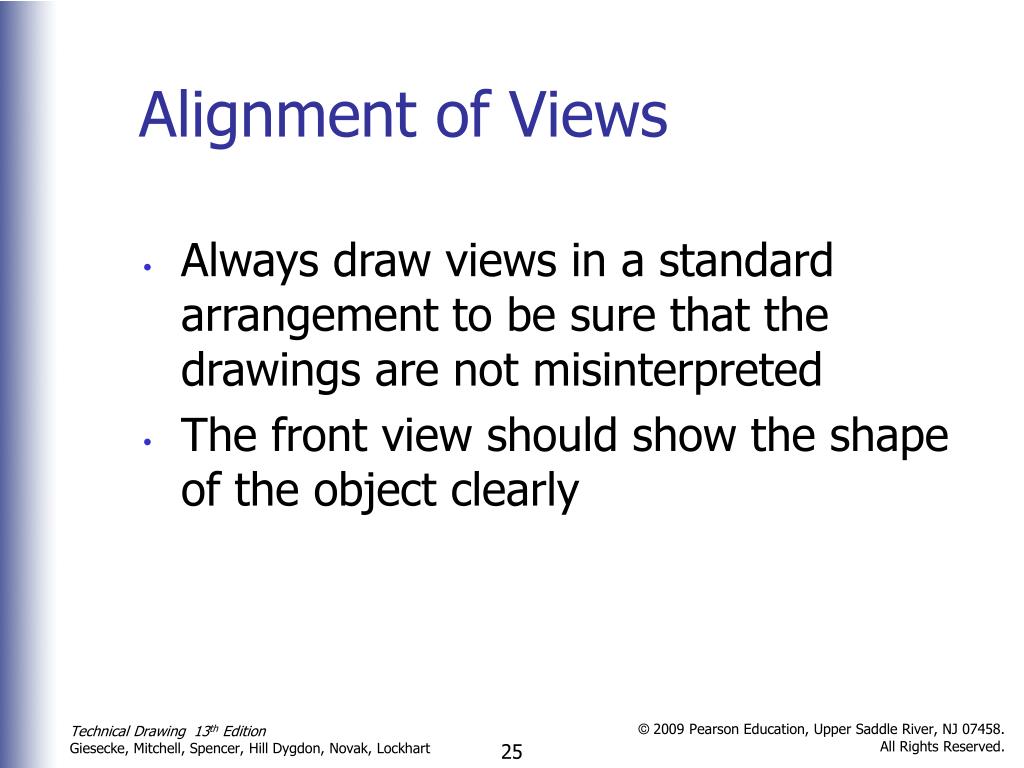

  25. Alignment of Views • Always draw views in a standard arrangement to be sure that the drawings are not misinterpreted • The front view should show the shape of the object clearly

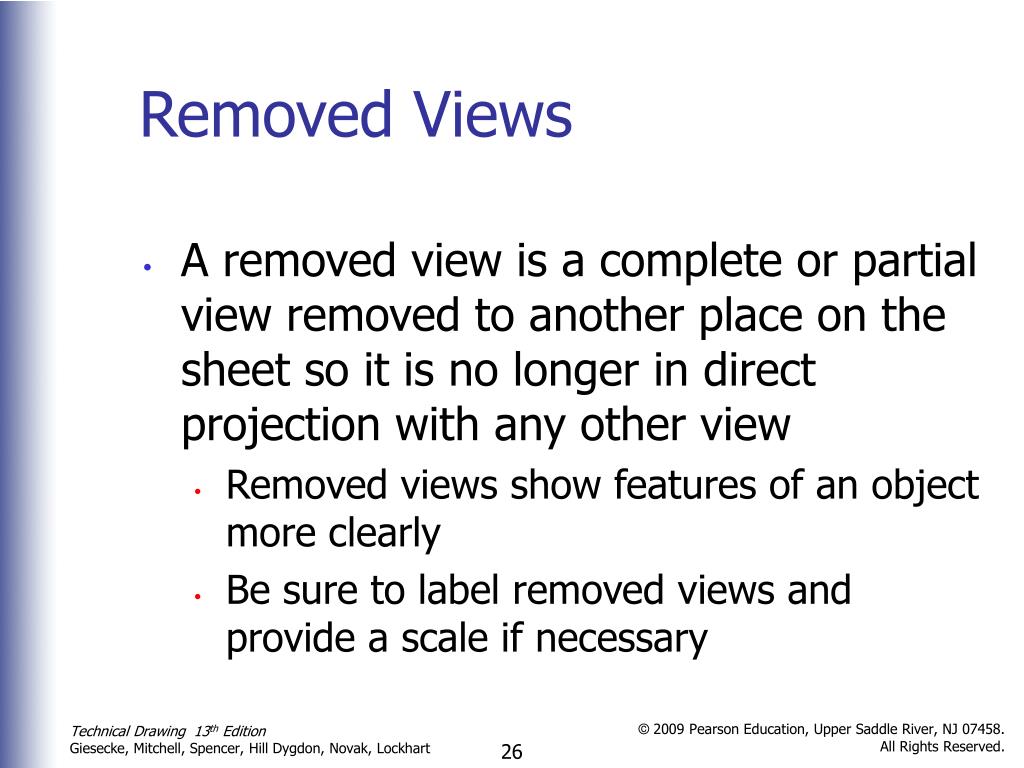

  26. Removed Views • A removed view is a complete or partial view removed to another place on the sheet so it is no longer in direct projection with any other view • Removed views show features of an object more clearly • Be sure to label removed views and provide a scale if necessary

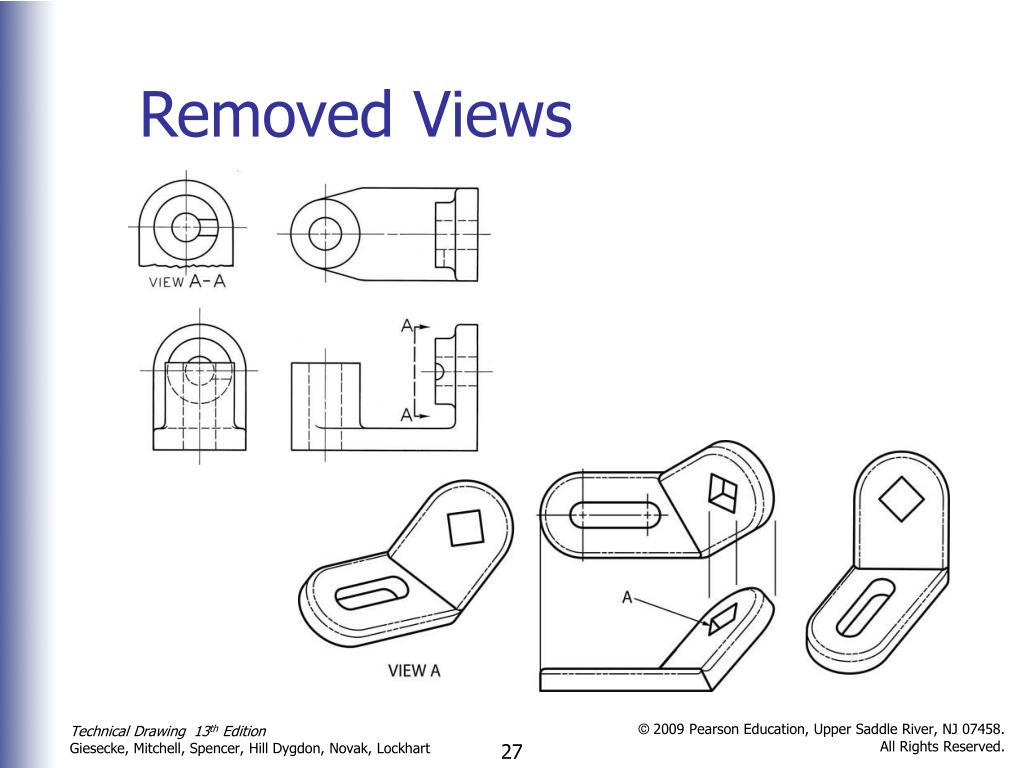

  27. Removed Views

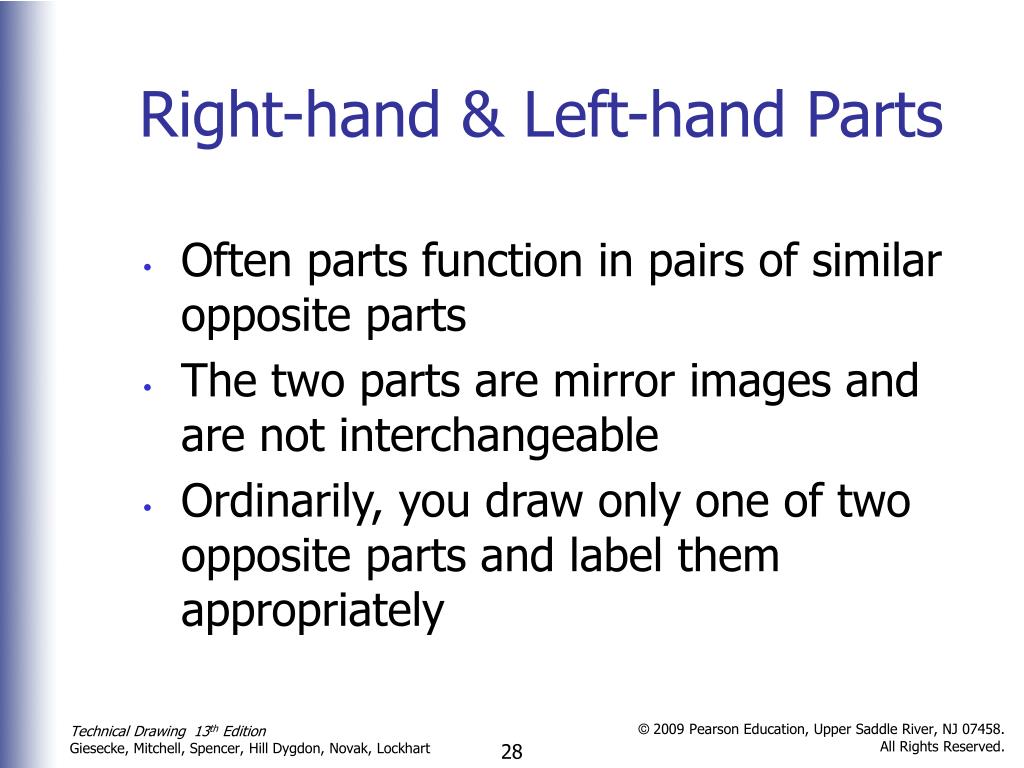

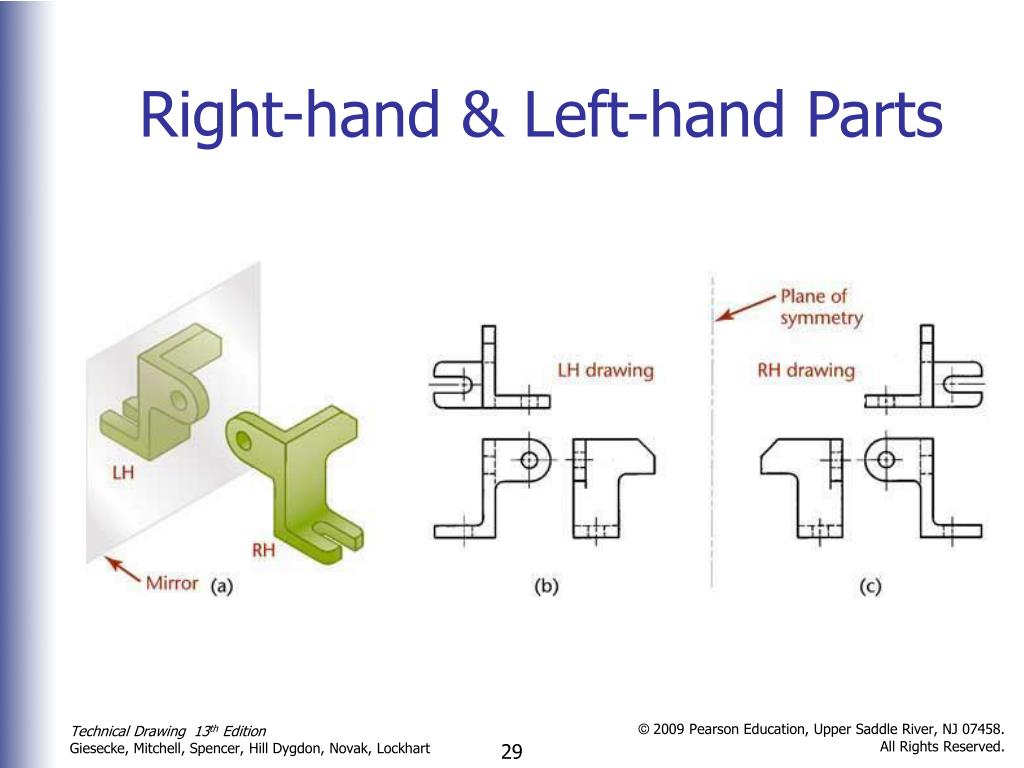

  28. Right-hand & Left-hand Parts • Often parts function in pairs of similar opposite parts • The two parts are mirror images and are not interchangeable • Ordinarily, you draw only one of two opposite parts and label them appropriately

  29. Right-hand & Left-hand Parts

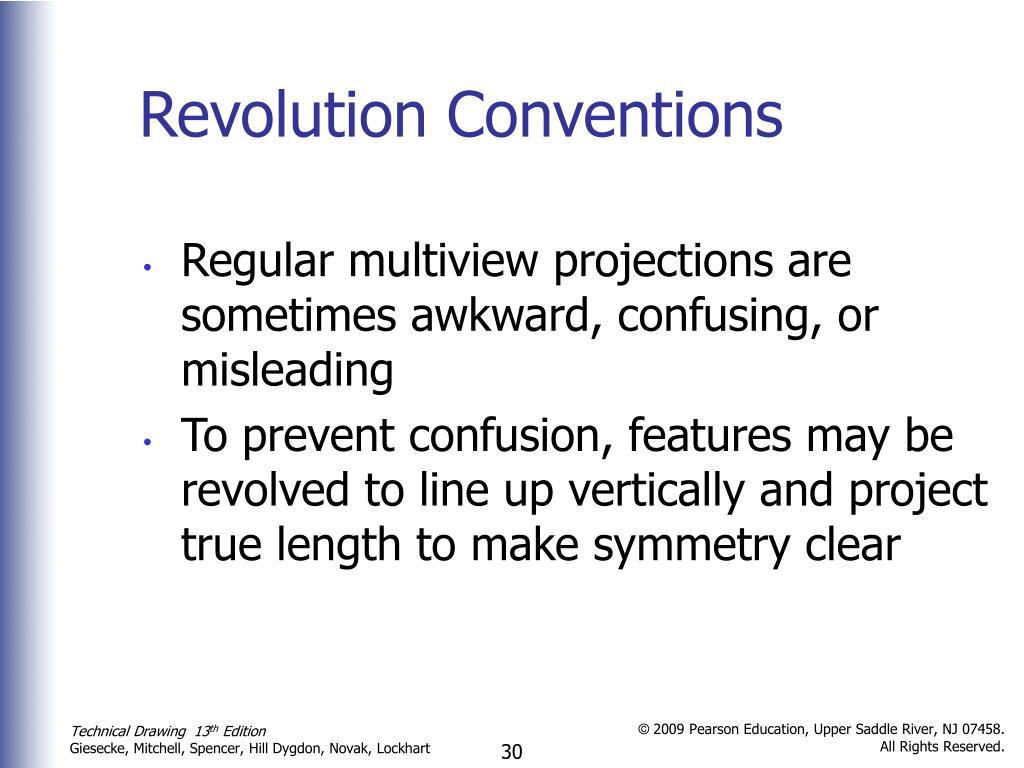

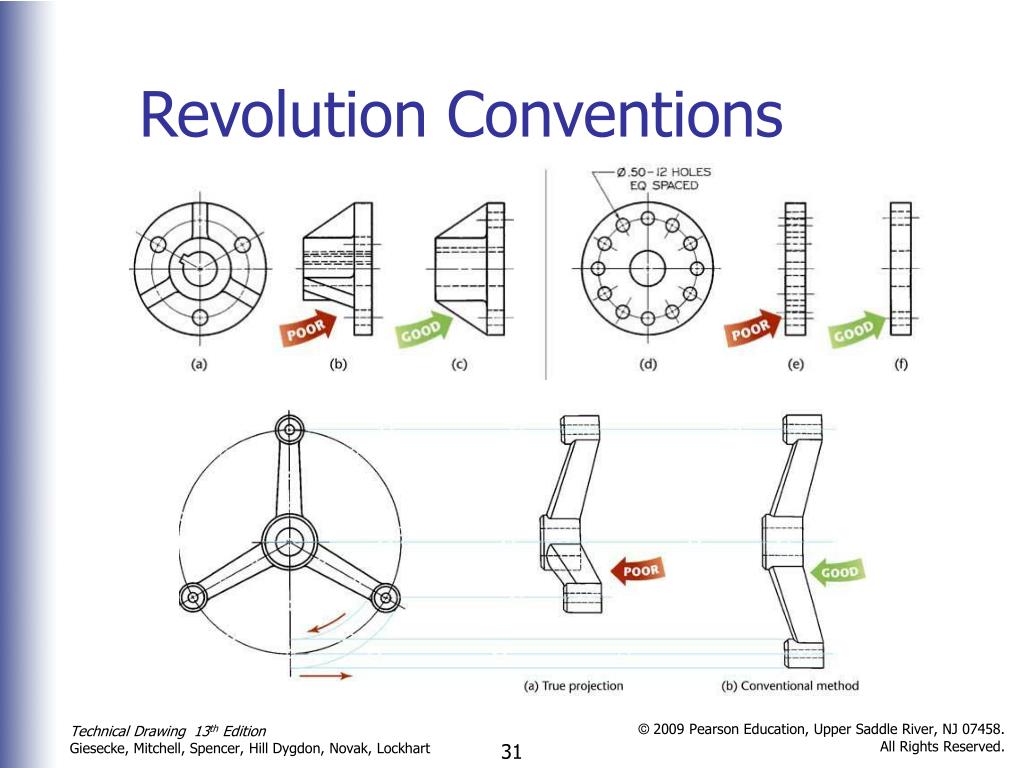

  30. Revolution Conventions • Regular multiview projections are sometimes awkward, confusing, or misleading • To prevent confusion, features may be revolved to line up vertically and project true length to make symmetry clear

  31. Revolution Conventions

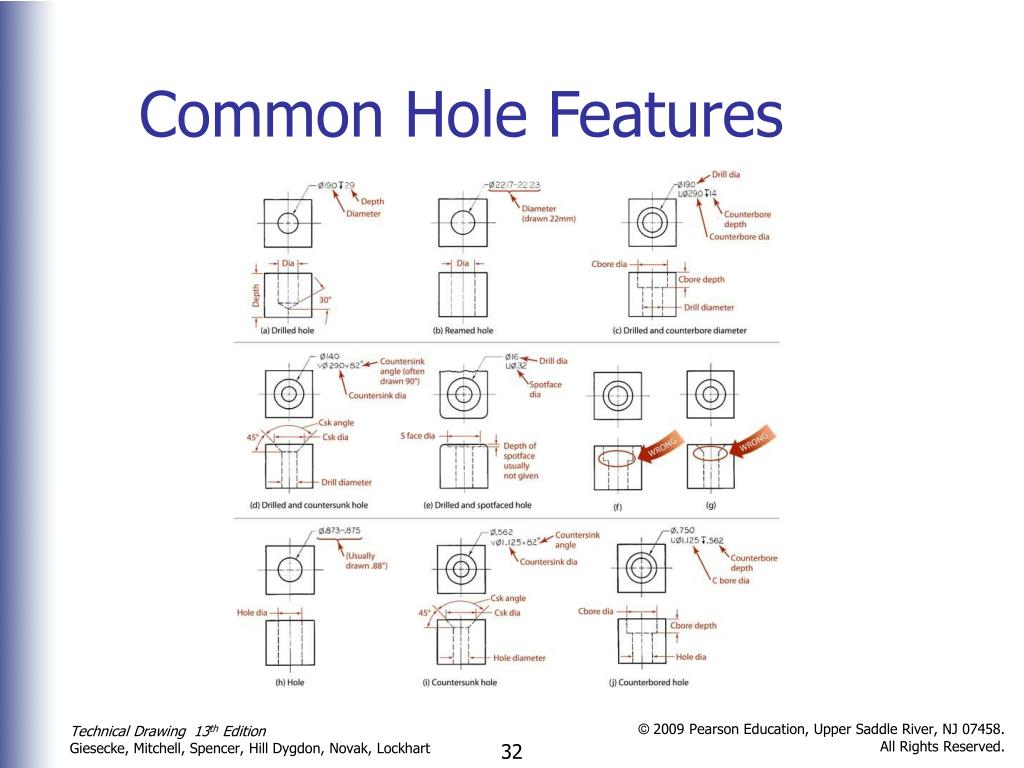

  32. Common Hole Features

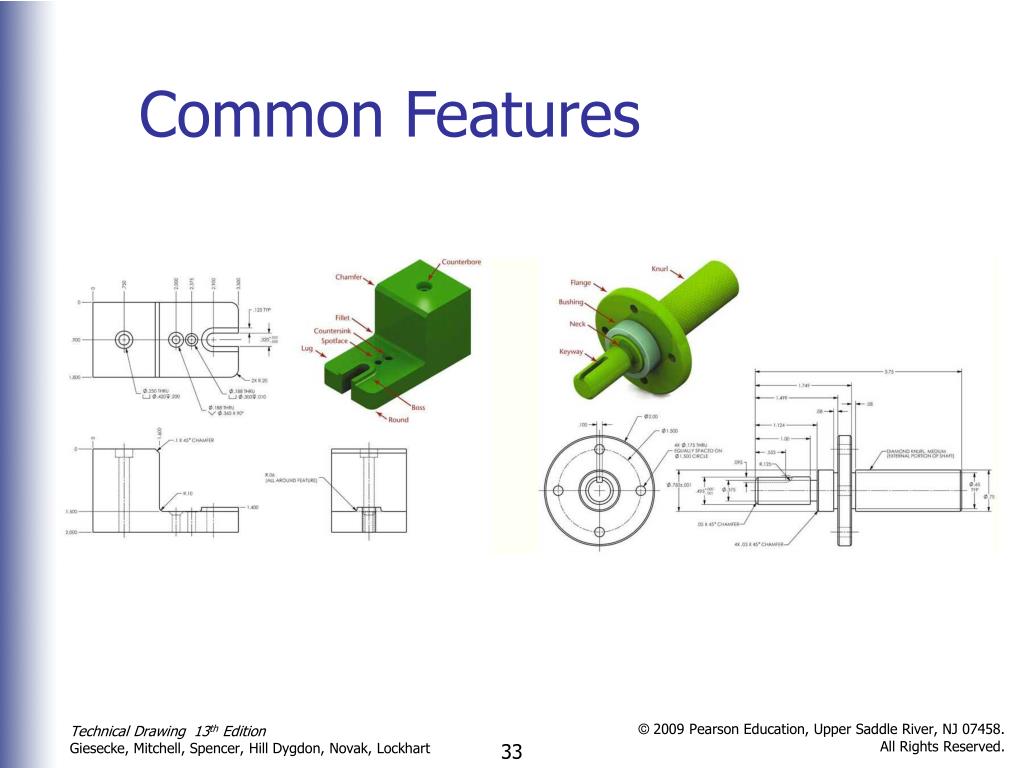

  33. Common Features
