  1. RXcellent Remote Video Surveillance Solution

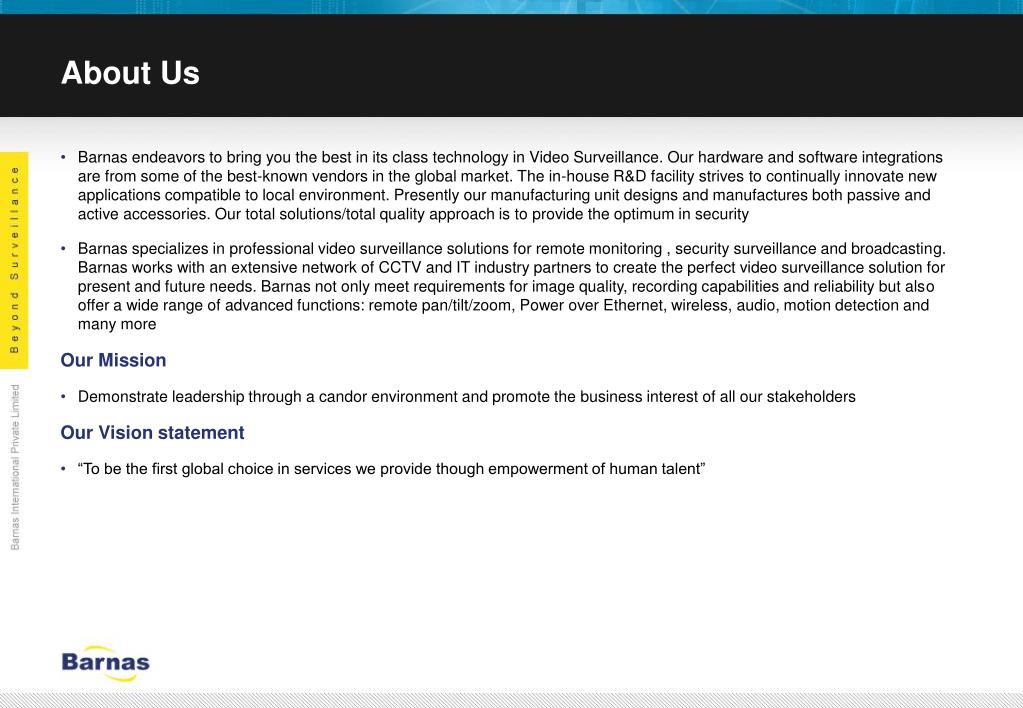

  2. About Us • Barnas endeavors to bring you the best in its class technology in Video Surveillance. Our hardware and software integrations are from some of the best-known vendors in the global market. The in-house R&D facility strives to continually innovate new applications compatible to local environment. Presently our manufacturing unit designs and manufactures both passive and active accessories. Our total solutions/total quality approach is to provide the optimum in security • Barnas specializes in professional video surveillance solutions for remote monitoring , security surveillance and broadcasting. Barnas works with an extensive network of CCTV and IT industry partners to create the perfect video surveillance solution for present and future needs. Barnas not only meet requirements for image quality, recording capabilities and reliability but also offer a wide range of advanced functions: remote pan/tilt/zoom, Power over Ethernet, wireless, audio, motion detection and many more Our Mission • Demonstrate leadership through a candor environment and promote the business interest of all our stakeholders Our Vision statement • “To be the first global choice in services we provide though empowerment of human talent”

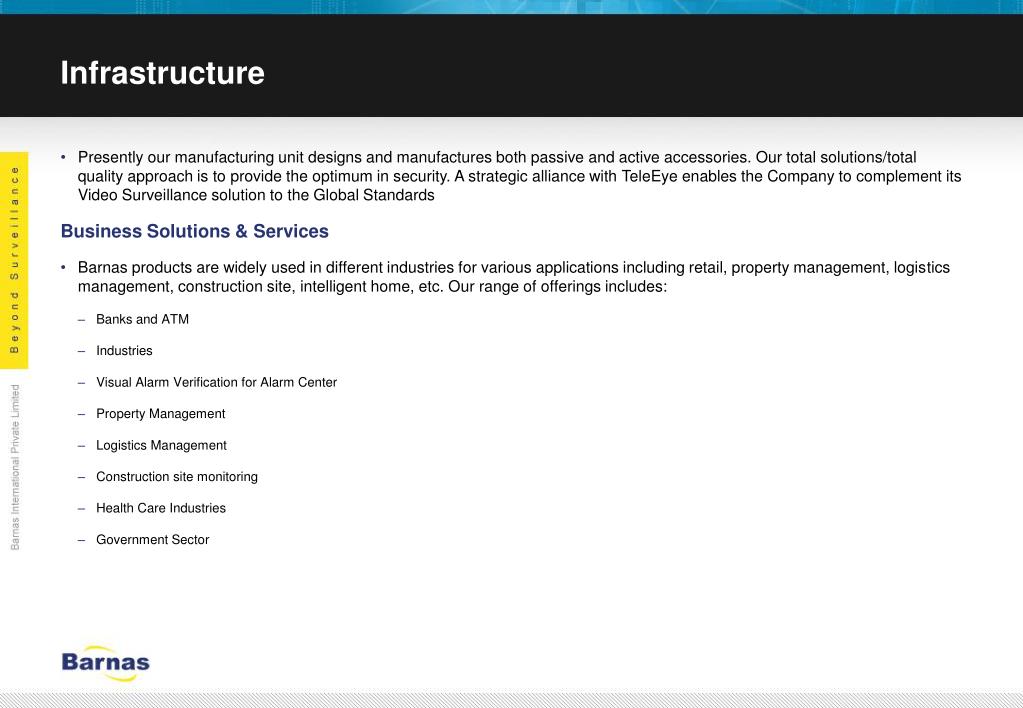

  3. Infrastructure • Presently our manufacturing unit designs and manufactures both passive and active accessories. Our total solutions/total quality approach is to provide the optimum in security. A strategic alliance with TeleEye enables the Company to complement its Video Surveillance solution to the Global Standards Business Solutions & Services • Barnas products are widely used in different industries for various applications including retail, property management, logistics management, construction site, intelligent home, etc. Our range of offerings includes: • Banks and ATM • Industries • Visual Alarm Verification for Alarm Center • Property Management • Logistics Management • Construction site monitoring • Health Care Industries • Government Sector

  4. Video Surveillance • Video Surveillance has been used as an effective monitoring tool for safety purpose of the clients. The method of surveillance used in Barnas has played more of a proactive rather than a reactive role in security. Our recent technological advancements have begun to revolutionize the way surveillance used • Our hardware and software integrations are from some of the best-known vendors in the global market. The flexible open architecture allows easy integration of cameras, video signal processing, storage server, and video management/security software without compromising scalability and expandability • With our professional customization and integration service, our solutions can be used in any critical applications such as in the factory, vehicle, police station, vehicle dispatch center, or building control room. Our total solutions/total quality approach is to provide the optimum in security

  5. Renowned Customers Ajman Police HSBC Swire Coca-cola HK Ltd Standard Chartered Bank Siemens Components Pte Ltd. Exxon Mobil Citibank Colgate-Palmolive Company BMW Automobiles British Airways Plc Dr-Cafe Mont Blanc (Hong Kong) Jones Lang LaSalle Swire Properties FPDSavills Property Management Ltd.

  6. Applications on Remote Surveillance Logistics Banking Unmanned Premises Property Management Factory Retail

  7. What Factor Determines the Performance of Remote Video Surveillance Solutions? Compression Technology !

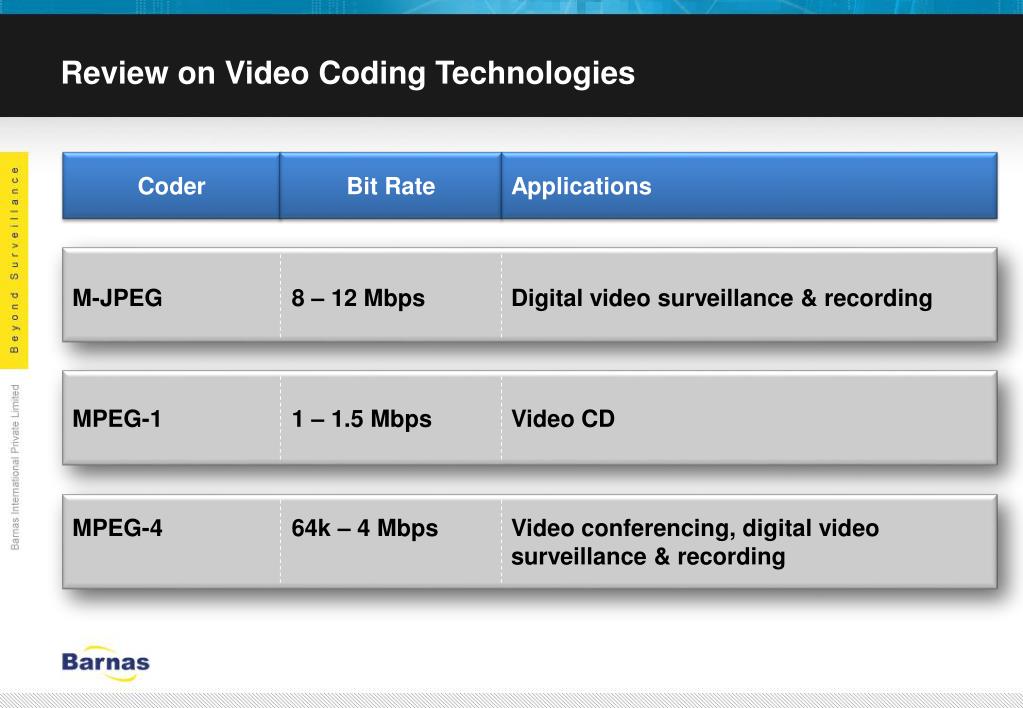

  8. Review on Video Coding Technologies Coder Bit Rate Applications • M-JPEG • 8 – 12 Mbps • Digital video surveillance & recording • MPEG-1 • 1 – 1.5 Mbps • Video CD • MPEG-4 • 64k – 4 Mbps Video conferencing, digital video surveillance & recording

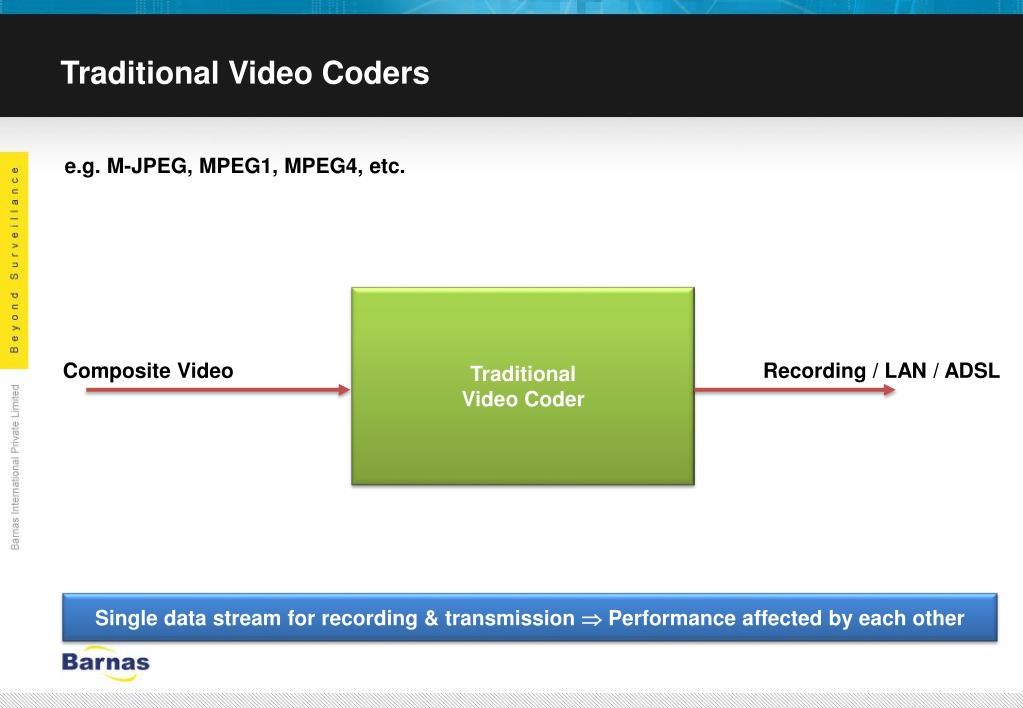

  9. Traditional Video Coders e.g. M-JPEG, MPEG1, MPEG4, etc. Traditional Video Coder Composite Video Recording / LAN / ADSL Single data stream for recording & transmission  Performance affected by each other

  10. MPEG-4 Group of Pictures … ... … ... Quality  Non-uniform quality in successive frames

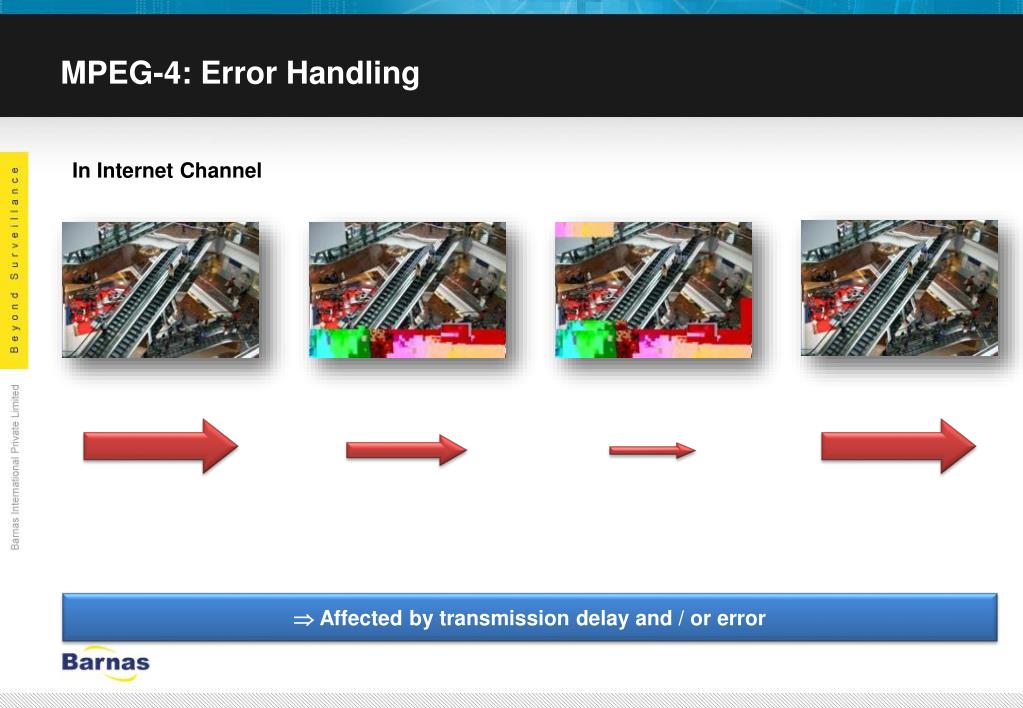

  11. MPEG-4: Error Handling In Internet Channel  Affected by transmission delay and / or error

  12. RX family RXcellent! A Major Breakthrough HKEIA Award for Outstanding Innovation andTechnology Products 2006 Gold Award(Category of Security Products) Grand Award

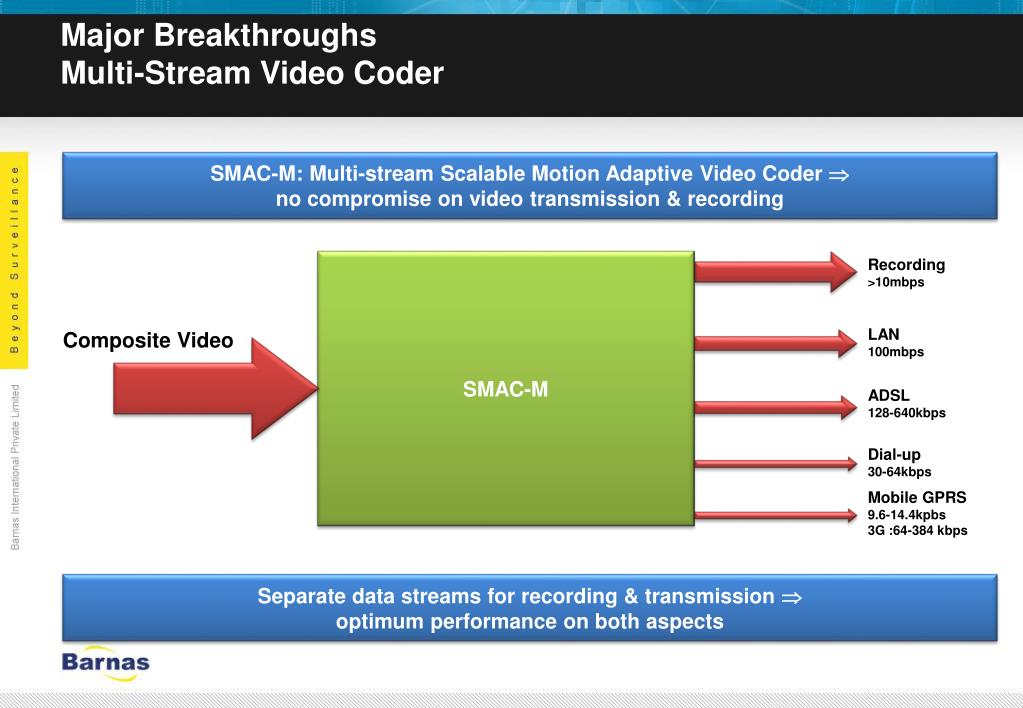

  13. Major BreakthroughsMulti-Stream Video Coder SMAC-M: Multi-stream Scalable Motion Adaptive Video Coder no compromise on video transmission & recording SMAC-M Recording >10mbps LAN100mbps Composite Video ADSL 128-640kbps Dial-up 30-64kbps Mobile GPRS9.6-14.4kpbs 3G :64-384 kbps Separate data streams for recording & transmission optimum performance on both aspects

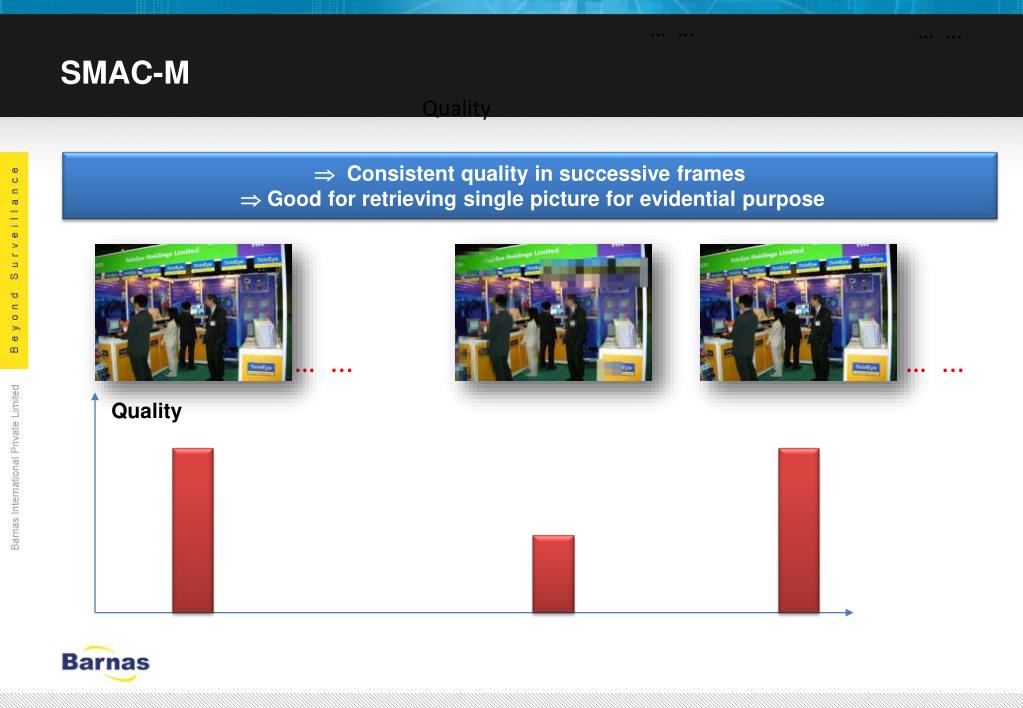

  14. … ... … ... SMAC-M Quality  Consistent quality in successive frames  Good for retrieving single picture for evidential purpose … ... … ... Quality

  15. SMAC-M: Error Handling In Internet Channel  Adaptive to bursty Internet channel  Uniform video quality

  16. Transmission Comparison Transmission on LAN Transmission on ADSL Compression Resolution: 720x576Rate: 25fps Resolution: 360x288Rate: 50fps Resolution: 720x576Data rate: 640kbps Resolution: 360x288Data rate: 640kbps • JPEG • 16 Mbps • 8 Mbps • 1 fps • 2 fps • M-JPEG • 10 Mbps • 6 Mbps • 2 fps • 3 fps • MPEG-4 • 2 Mbps 1.2 Mbps 8 fps 16 fps • SMAC-M • 1.3 Mbps 0.8 Mbps 12 fps 21 fps SMAC-M: 50% faster than MPEG-4 on ADSL

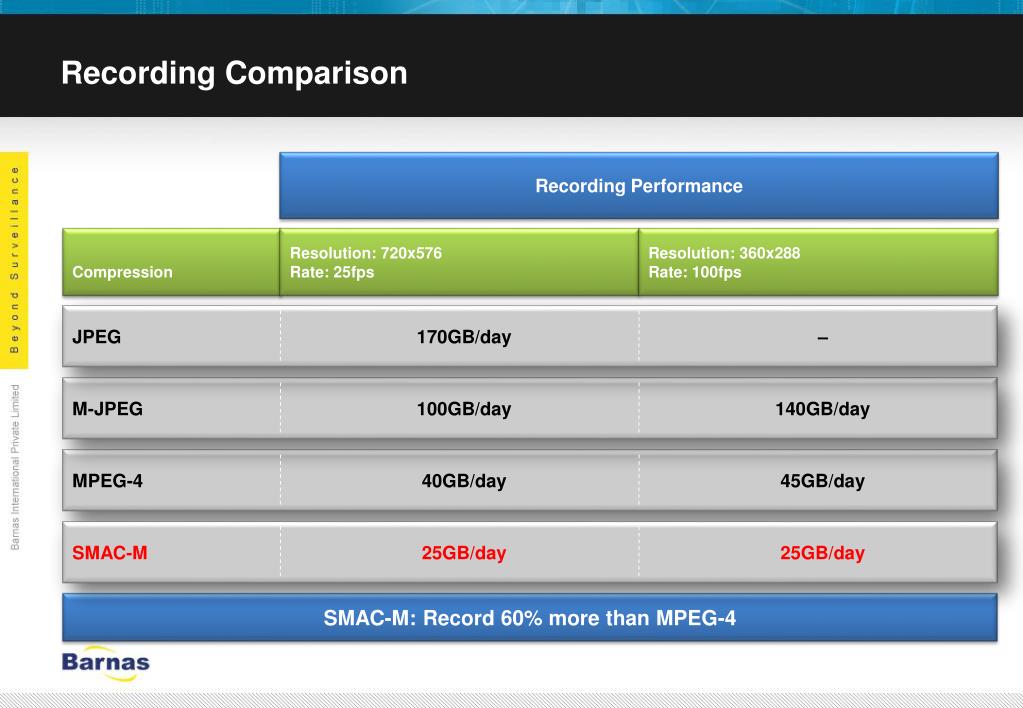

  17. Recording Comparison Recording Performance Compression Resolution: 720x576Rate: 25fps Resolution: 360x288Rate: 100fps • JPEG • 170GB/day • – • M-JPEG • 100GB/day • 140GB/day • MPEG-4 • 40GB/day 45GB/day • SMAC-M • 25GB/day 25GB/day SMAC-M: Record 60% more than MPEG-4

  18. Key Features • 4-, 8- & 16-channel models • Seamless transmission • LAN/ADSL: up to 50fps • PSTN: up to 10fps • Up to 6 concurrent connections • sureLINK: dynamic IP Internet connection • Crystal clear recording • Duration: real-time recording up to 3 weeks on 500GB HDD

  19. BS 8418:2003 Compliant Configuration

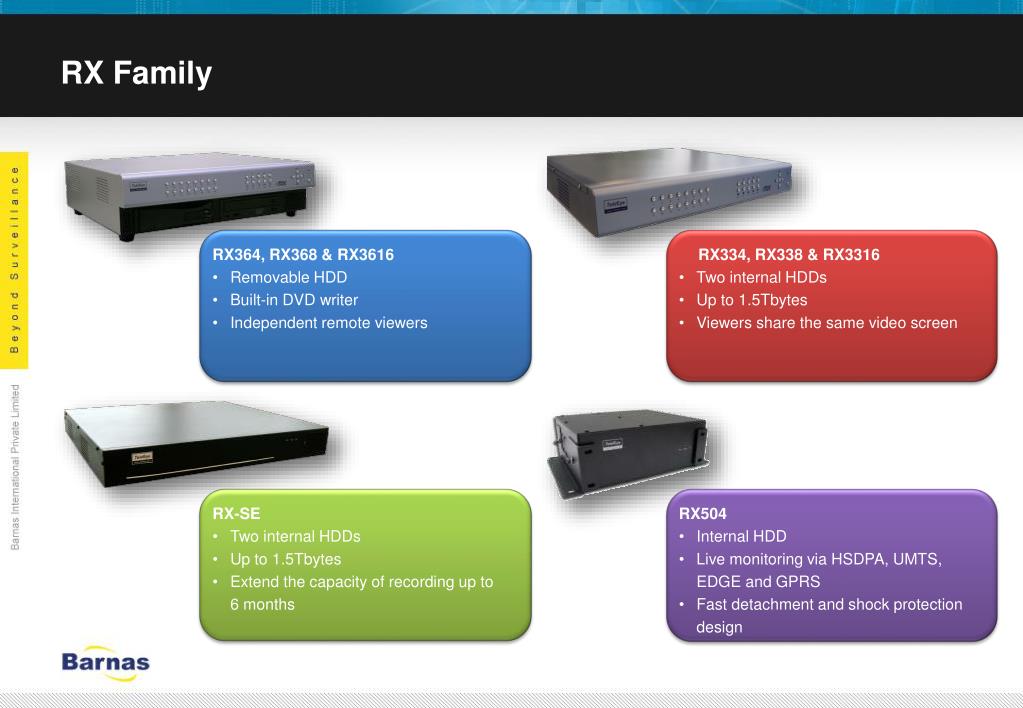

  20. RX Family • RX364, RX368 & RX3616 • Removable HDD • Built-in DVD writer • Independent remote viewers • RX334, RX338 & RX3316 • Two internal HDDs • Up to 1.5Tbytes • Viewers share the same video screen • RX504 • Internal HDD • Live monitoring via HSDPA, UMTS, EDGE and GPRS • Fast detachment and shock protection design • RX-SE • Two internal HDDs • Up to 1.5Tbytes • Extend the capacity of recording up to 6 months

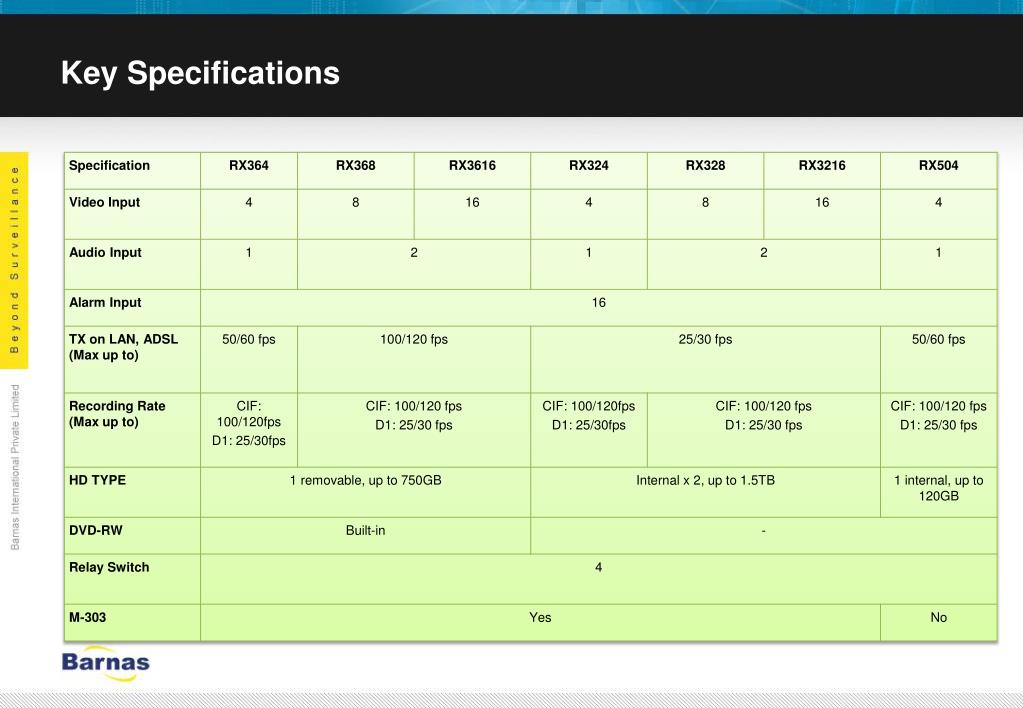

  21. Key Specifications

  22. External Alarm

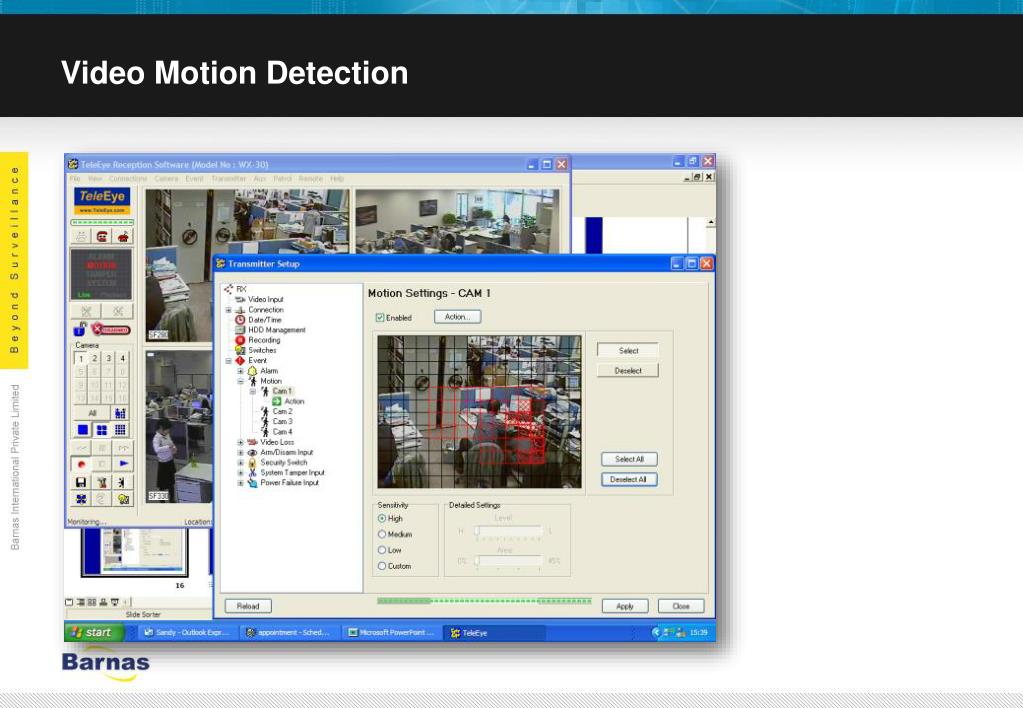

  23. Video Motion Detection

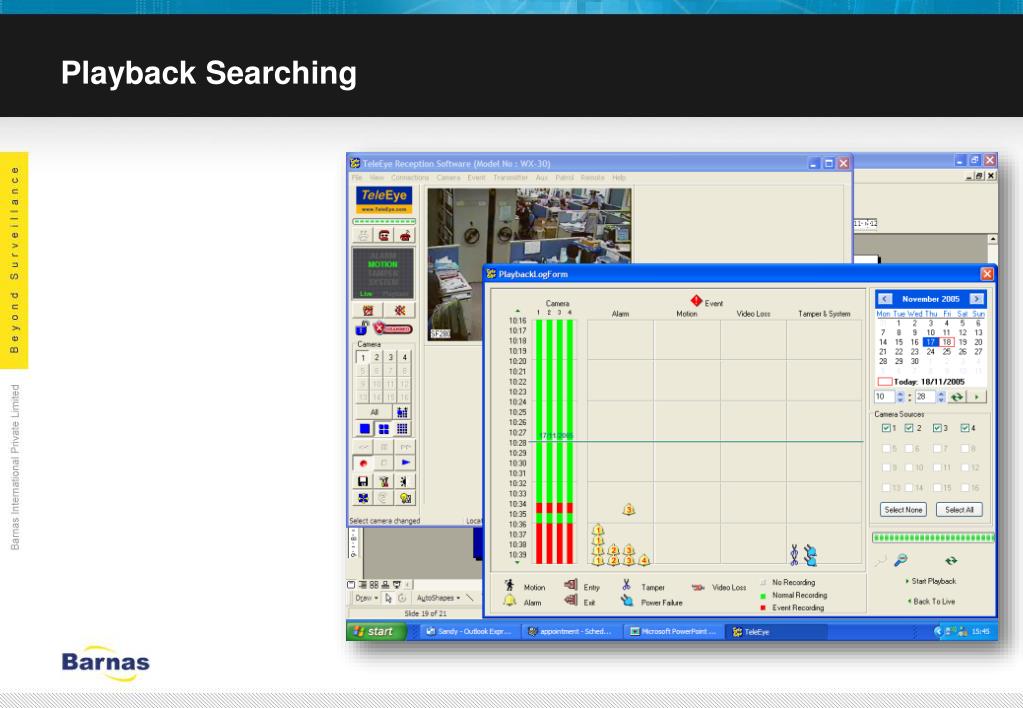

  24. Playback Searching

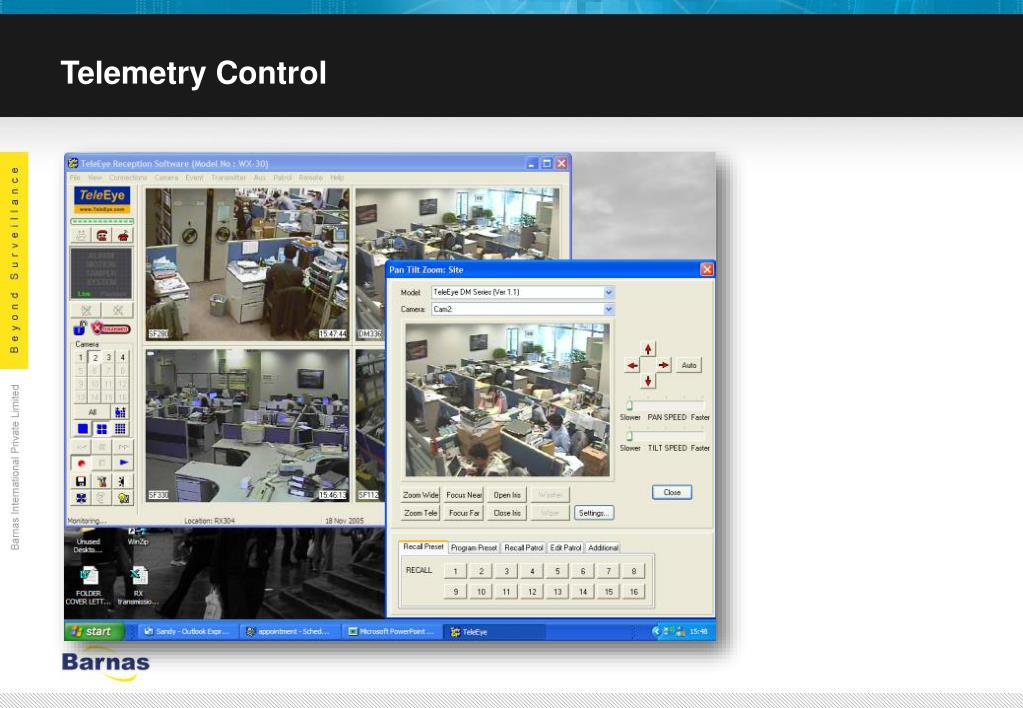

  25. Telemetry Control

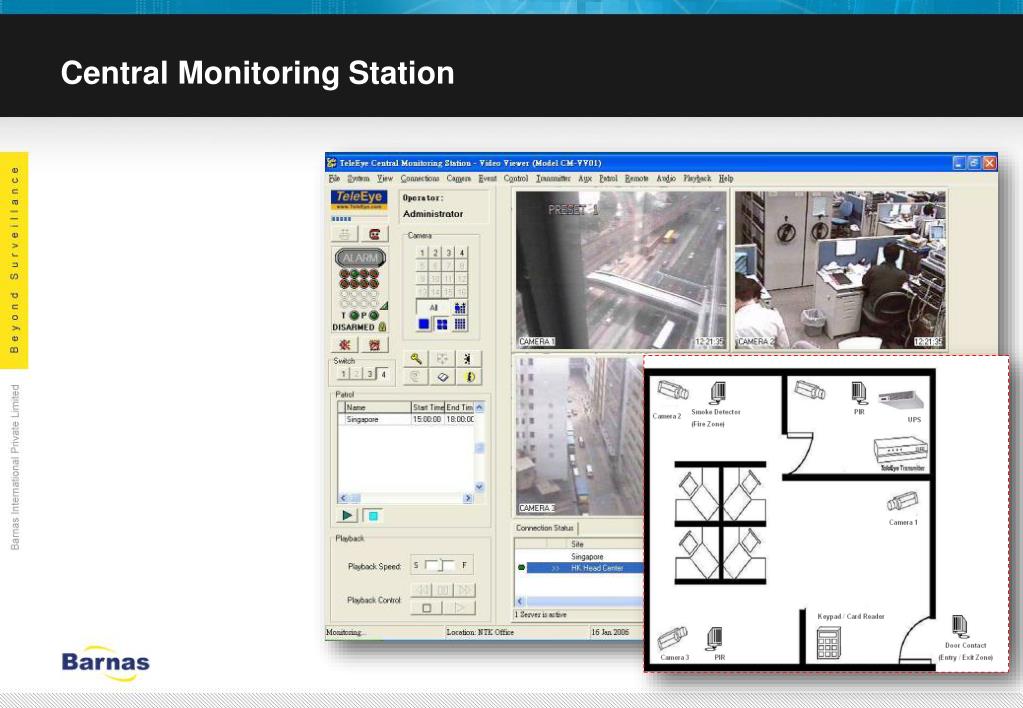

  26. Central Monitoring Station

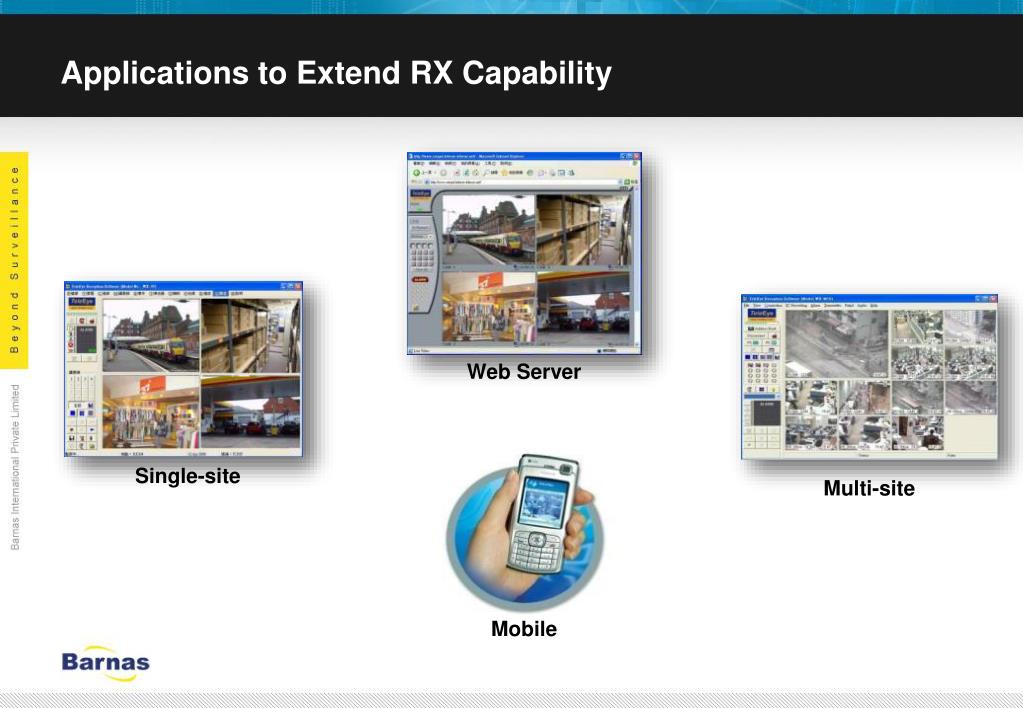

  27. Applications to Extend RX Capability Web Server Single-site Multi-site Mobile

  28. How to Apply RXcellent One-stop Solution?

  29. Manufacturing Plant • Triplex operation • 6 concurrent users • BS8418 compliance • Various viewing options Reception Production Plant Loading Bay Office Guard House HQ Internet LAN GPRS /3G QC & Production Department Management Office

  30. Internet Chain Shops Dubai Dubai Amman • Videos from up to 16 servers • Centralized management Riyadh HQ Kuwait

  31. Traffic Control WiFi ADSL Modem Internet • Flexible connection from server to modem • Smooth and stable video stream Traffic Control Center

  32. Fleet Management Live monitoring (on the road) HSDPA Modem • Flexible connection • Fixed line service is not required • Suitable for fleet management • Support HSDPA up to 384 kbps Mobile Network Control Center Internet Wireless Gateway Wireless Gateway Wireless backup (in the depot)

  33. 6:00 a.m. 6:05 a.m. 6:10 a.m. Remote Guarding

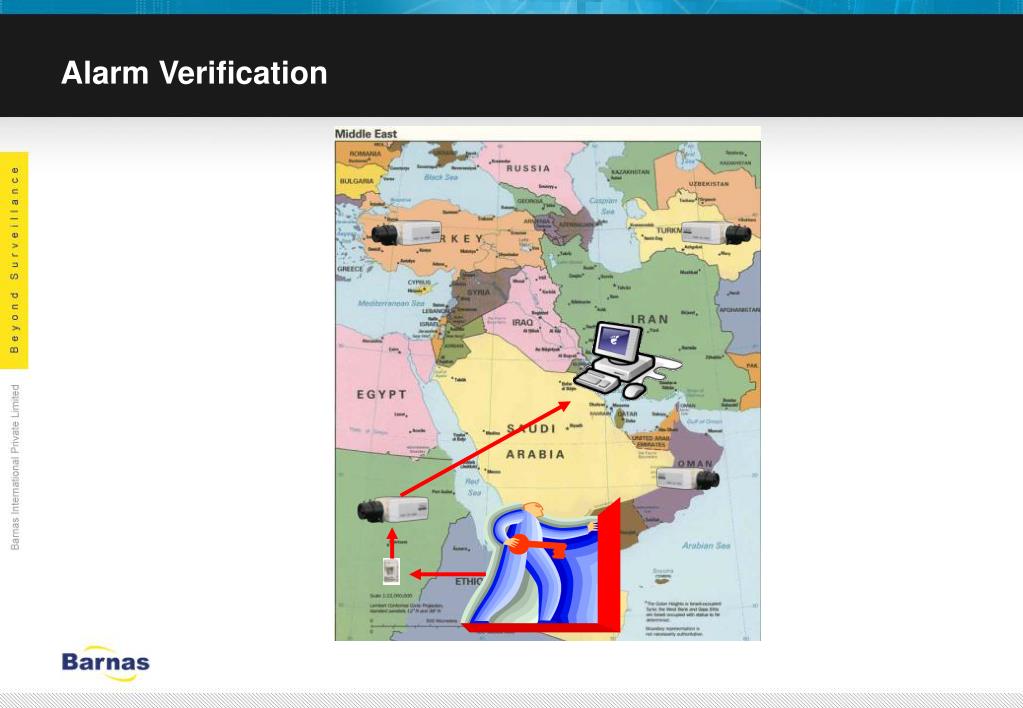

  34. Alarm Verification

  35. Alarm Verification

  36. Unmanned Premises Pumping Station • Security Management • Video Alarm Verification • Remote Access Control Telephone Exchange Power Substation

  37. Public Safety Country Park Town Centre • Security Management • Crowd Control • Traffic Surveillance

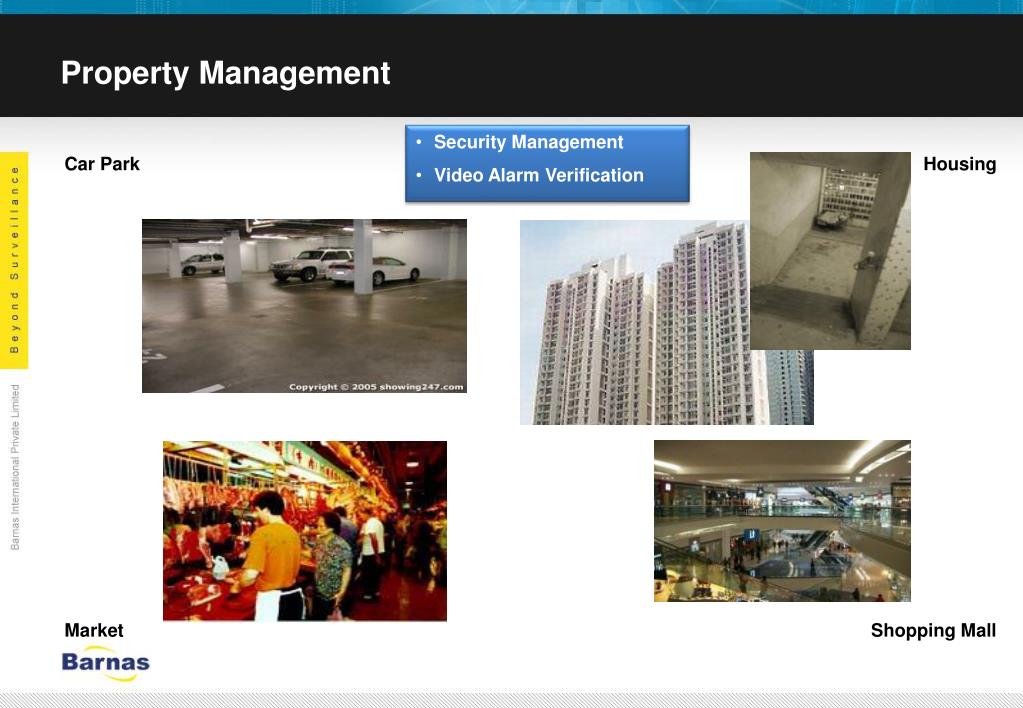

  38. Property Management • Security Management • Video Alarm Verification Car Park Housing Market Shopping Mall

  39. Sophisticated Event Management Alarm Video Motion Video Loss Power Failure System Tamper System Failure Disk Full Dial Back Recording Relay (Siren) Switching Camera Telemetry Preset Buzzer Event Manager

  40. All-In-One Security Solution = Standalone Digital Video Recorder + Network Video Transmitter + Alarm Management

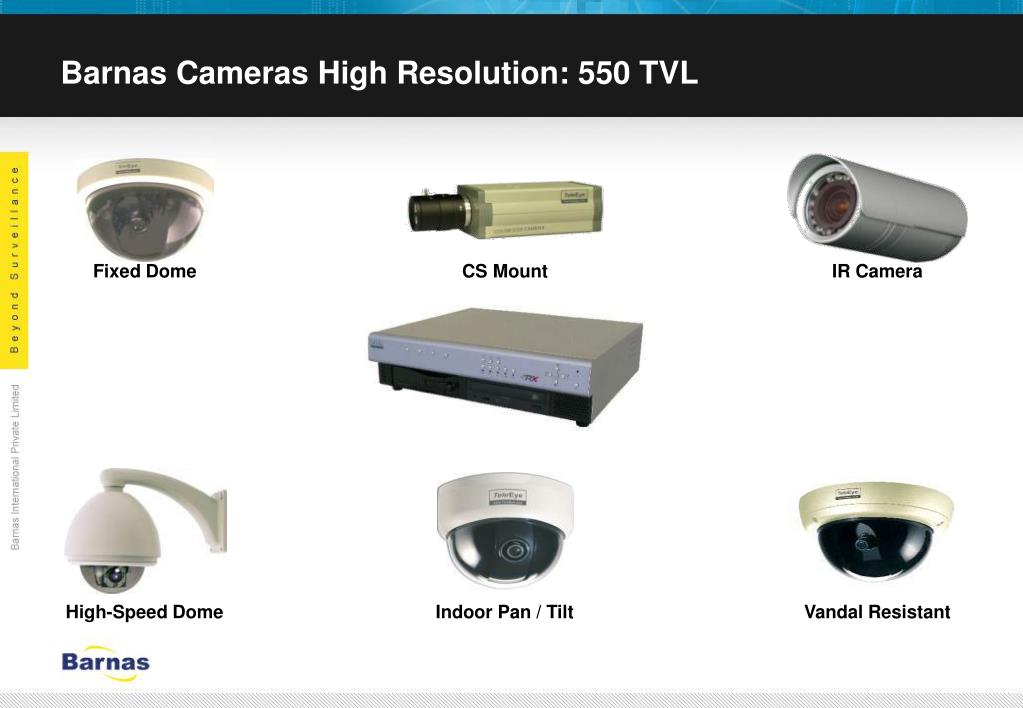

  41. Barnas Cameras High Resolution: 550 TVL Fixed Dome CS Mount IR Camera High-Speed Dome Indoor Pan / Tilt Vandal Resistant

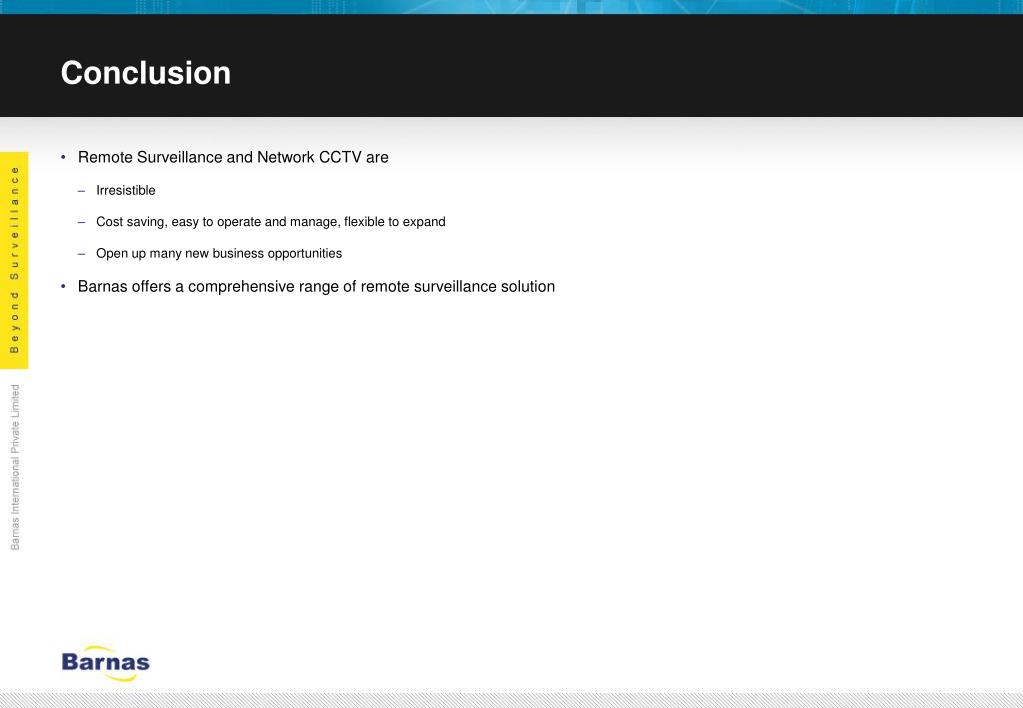

  42. Conclusion • Remote Surveillance and Network CCTV are • Irresistible • Cost saving, easy to operate and manage, flexible to expand • Open up many new business opportunities • Barnas offers a comprehensive range of remote surveillance solution

  43. Thank You!
