  1. An Introduction to Fusebox 4 If written directions alone would suffice, libraries wouldn't need to have the rest of the universities attached. —Judith Martin (aka "Miss Manners")

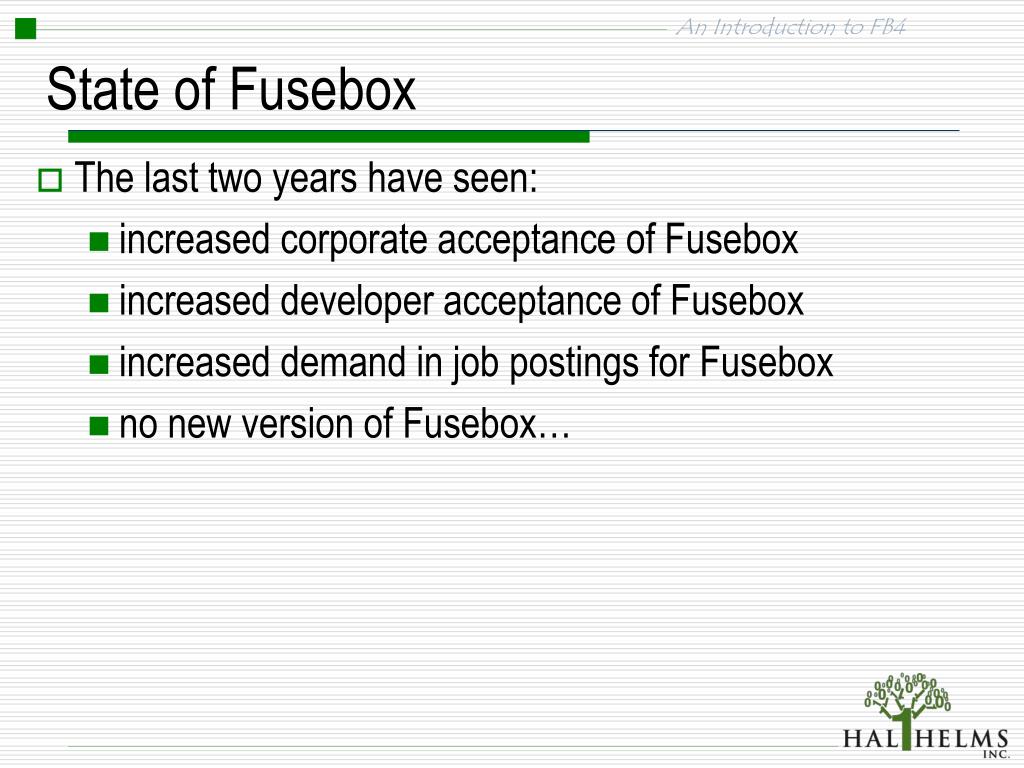

  2. State of Fusebox • The last two years have seen: • increased corporate acceptance of Fusebox • increased developer acceptance of Fusebox • increased demand in job postings for Fusebox • no new version of Fusebox…

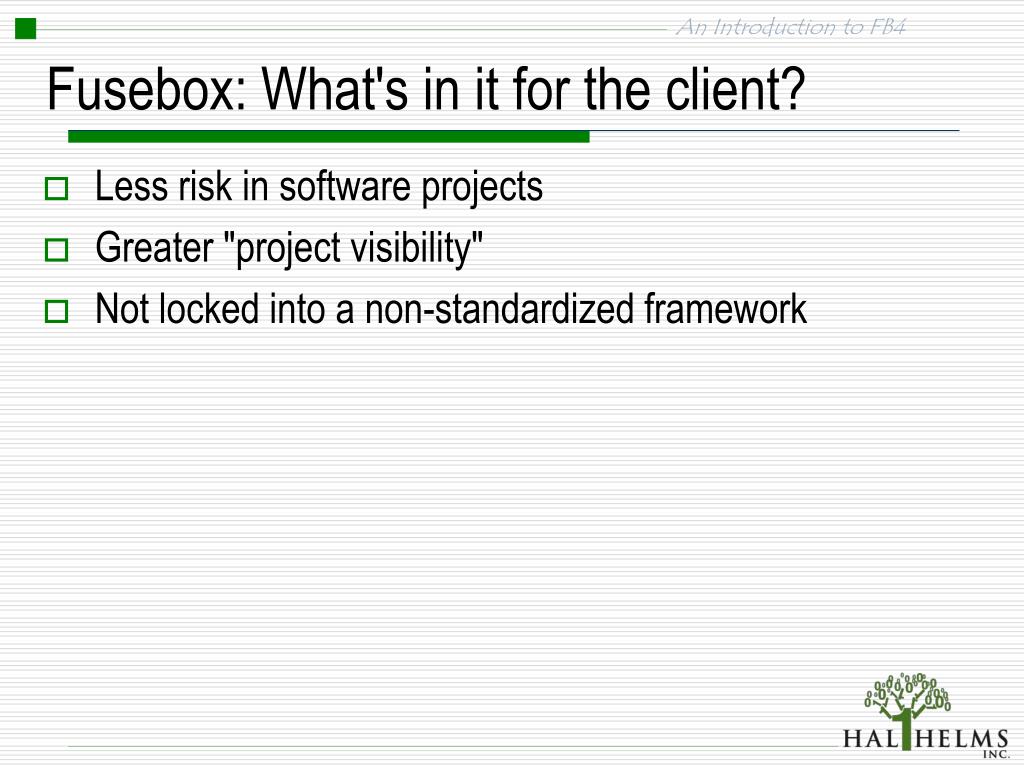

  3. Fusebox: What's in it for the client? • Less risk in software projects • Greater "project visibility" • Not locked into a non-standardized framework

  4. Fusebox: What's in it for managers? • Reduces costs of deployment • Reduces cost of tools and training • Allows better allocation of resources

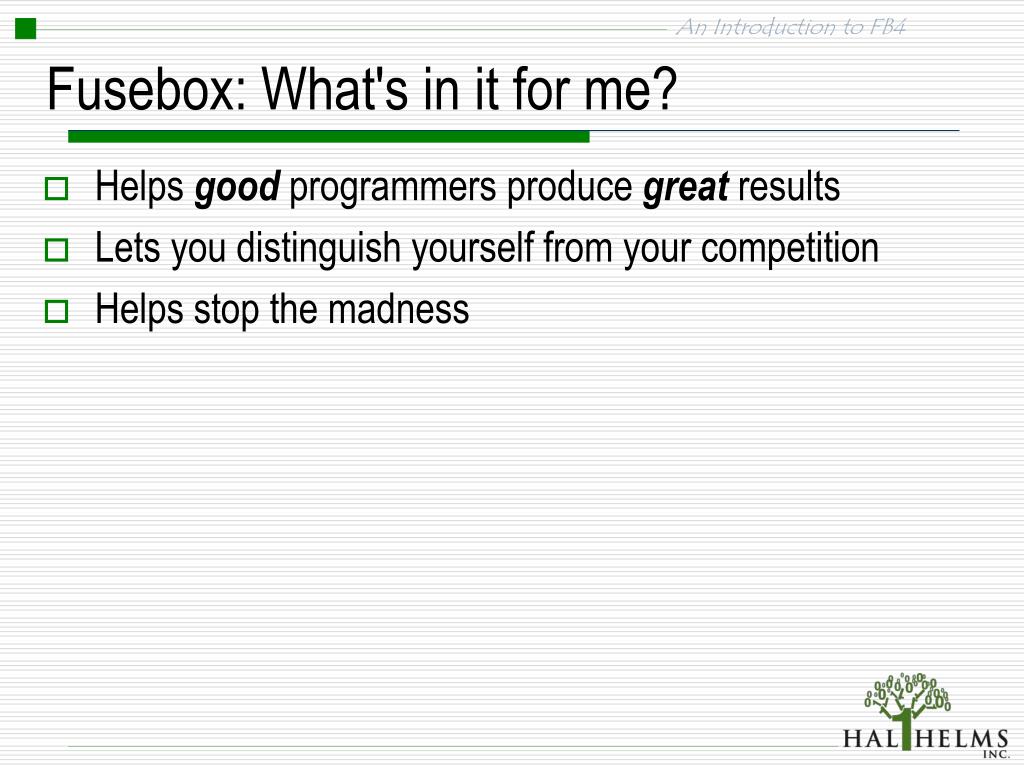

  5. Fusebox: What's in it for me? • Helps good programmers produce great results • Lets you distinguish yourself from your competition • Helps stop the madness

  6. FB4: It's all new! • XML file defines overall application parameters: Fusebox.xml • XML file defines individual circuits: Circuit.xml • a permissions attribute for fuseactions • Plugins allow developer extensions of core Fusebox • Content components • Change in way layouts are handled • Parsing cycle

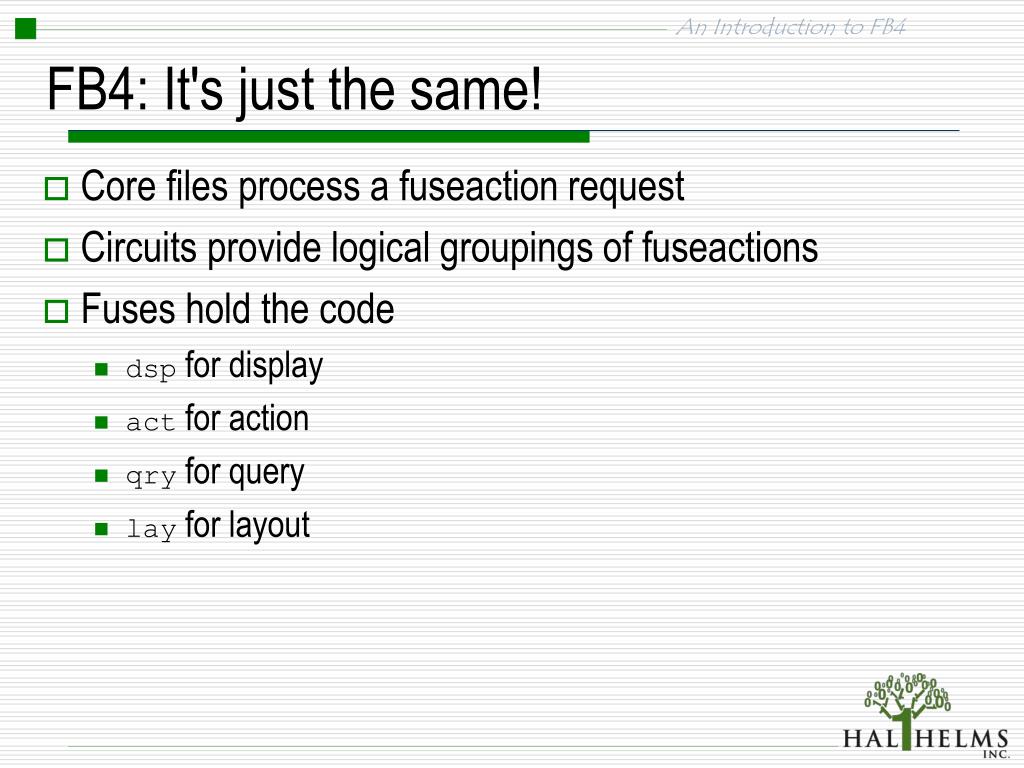

  7. FB4: It's just the same! • Core files process a fuseaction request • Circuits provide logical groupings of fuseactions • Fuses hold the code • dsp for display • act for action • qry for query • lay for layout

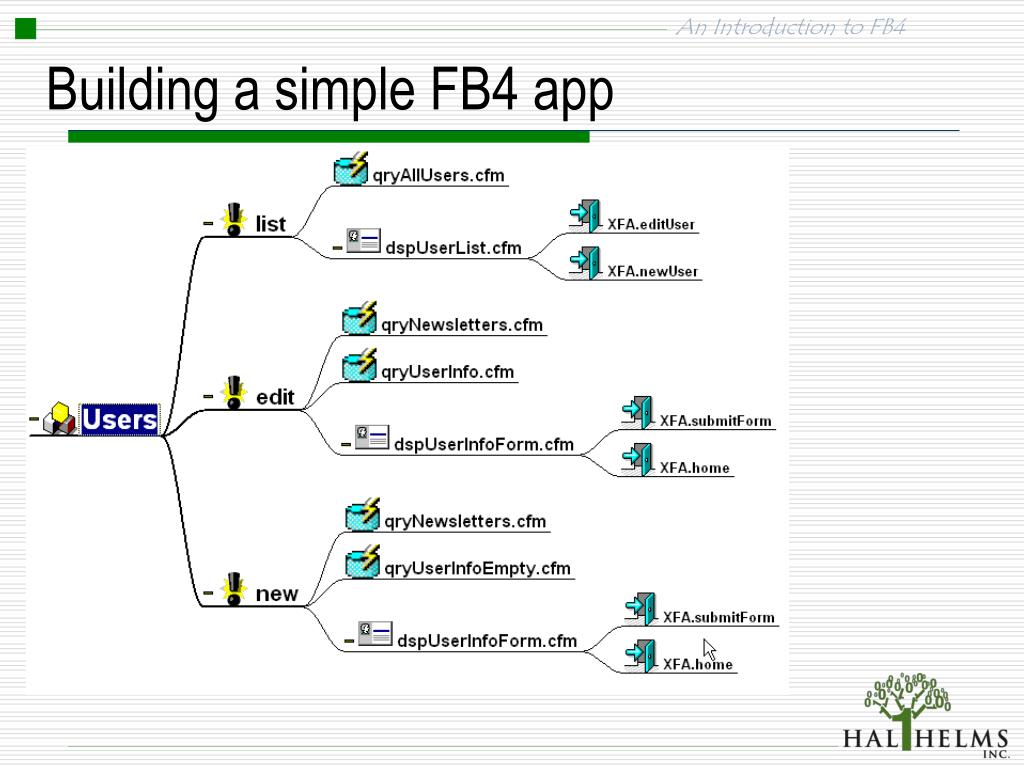

  8. Building a simple FB4 app

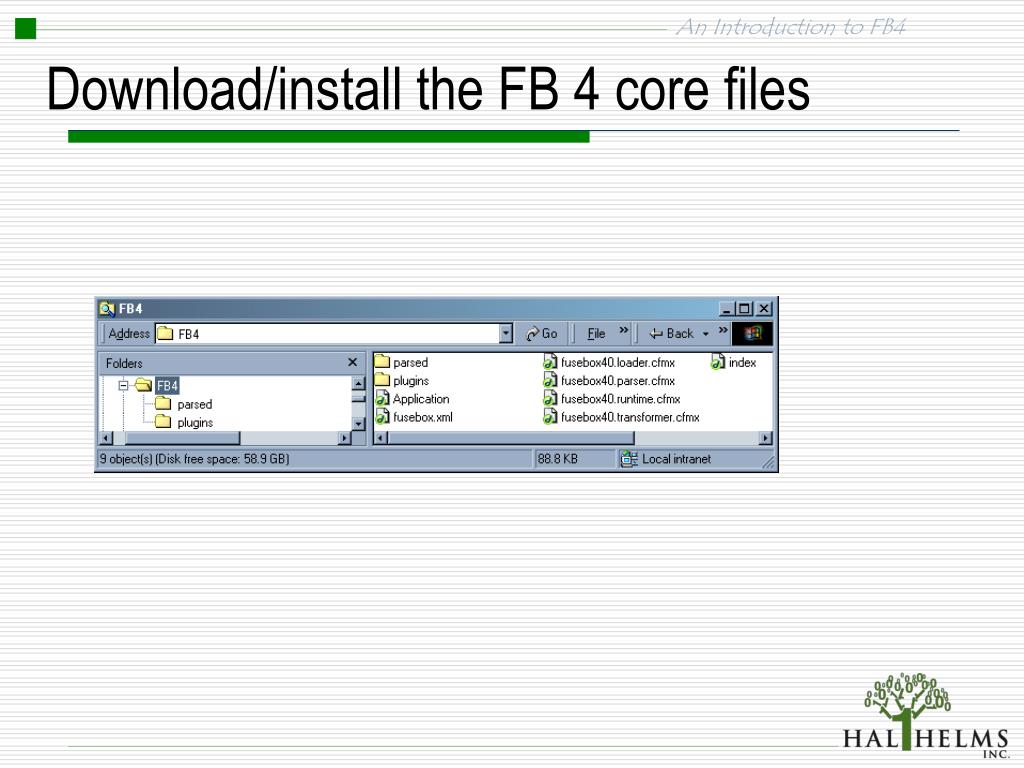

  9. Download/install the FB 4 core files

  10. Add a circuits/Users directory

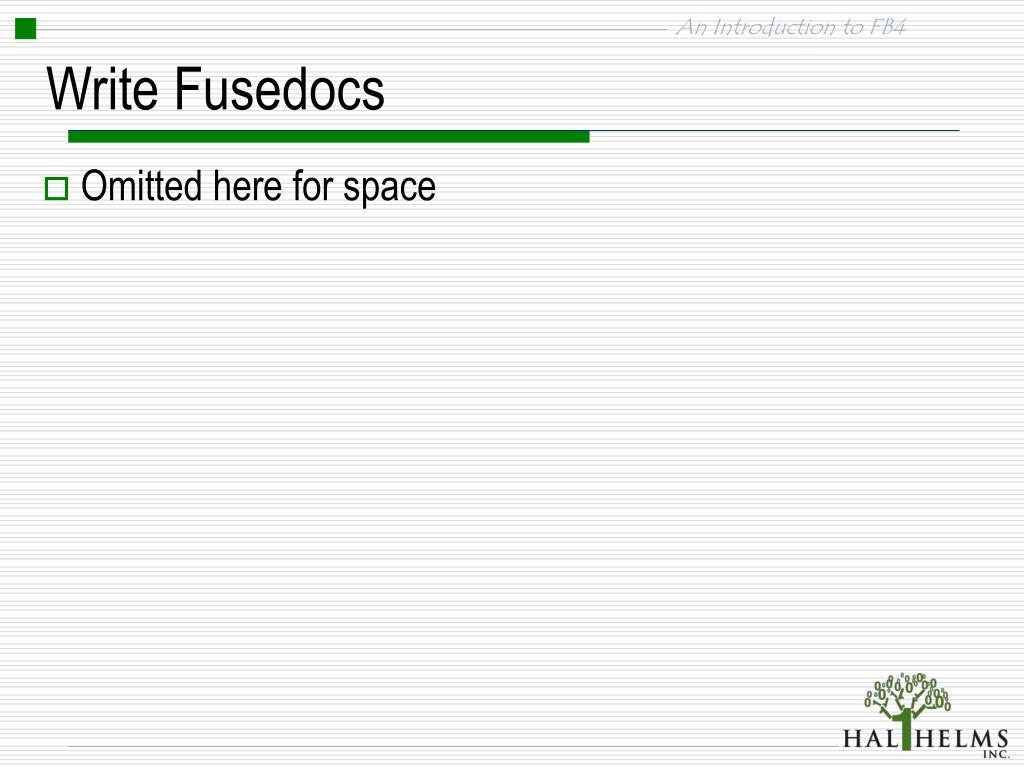

  11. Write Fusedocs • Omitted here for space

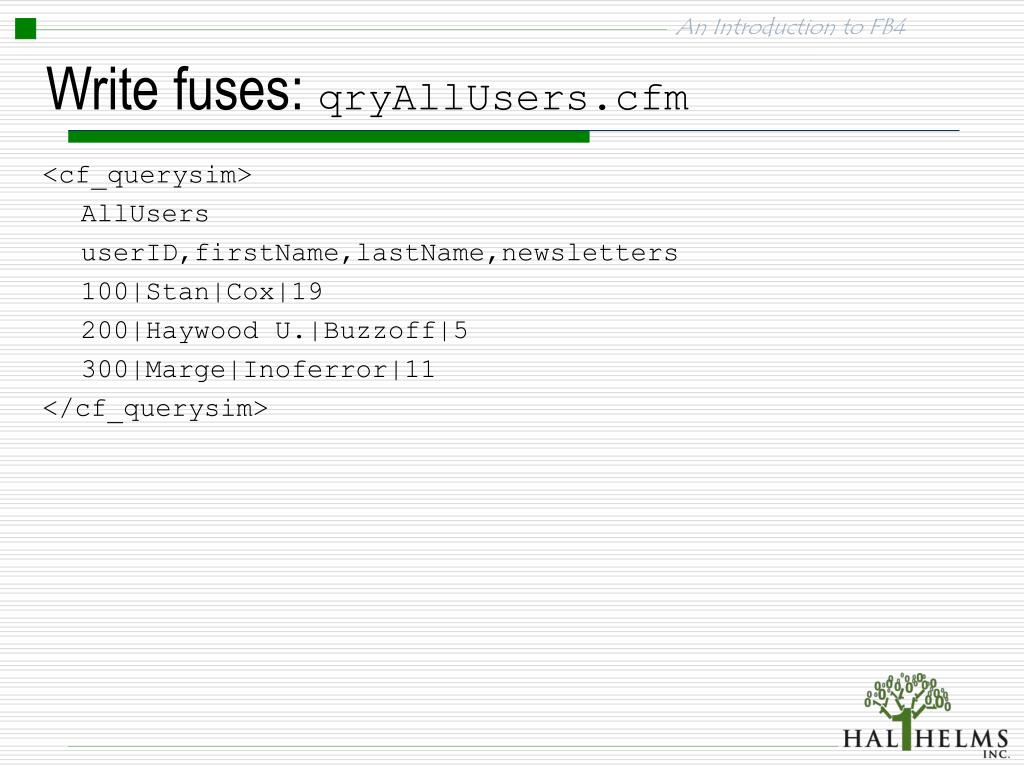

  12. Write fuses: qryAllUsers.cfm <cf_querysim> AllUsers userID,firstName,lastName,newsletters 100|Stan|Cox|19 200|Haywood U.|Buzzoff|5 300|Marge|Inoferror|11 </cf_querysim>

  13. Write fuses: dspUserList.cfm <h2>User List</h2> <table border="0"> <cfoutput query="AllUsers"> <tr> <td><strong><a href="#self#?fuseaction=#xfa.editUser#&userID=#userID#">#lastName#</a></strong>,#firstName#</td> </tr> </cfoutput> </table> <br> <cfoutput> | <a href="#self#?fuseaction=#xfa.newUser#">New user</a> | </cfoutput>

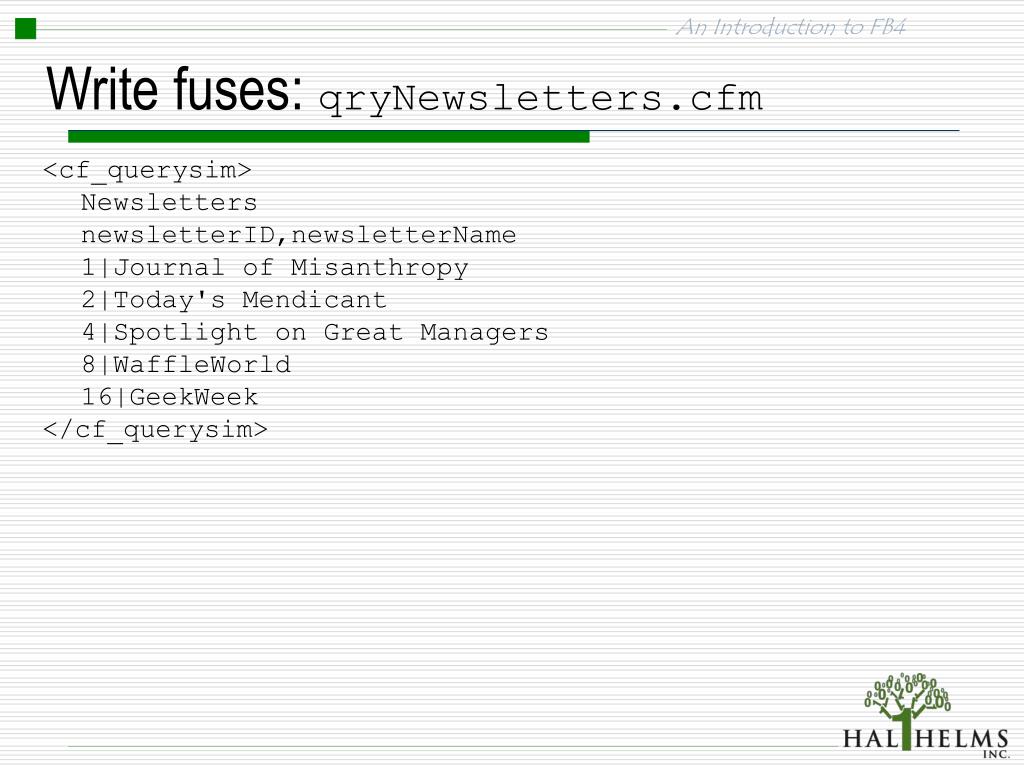

  14. Write fuses: qryNewsletters.cfm <cf_querysim> Newsletters newsletterID,newsletterName 1|Journal of Misanthropy 2|Today's Mendicant 4|Spotlight on Great Managers 8|WaffleWorld 16|GeekWeek </cf_querysim>

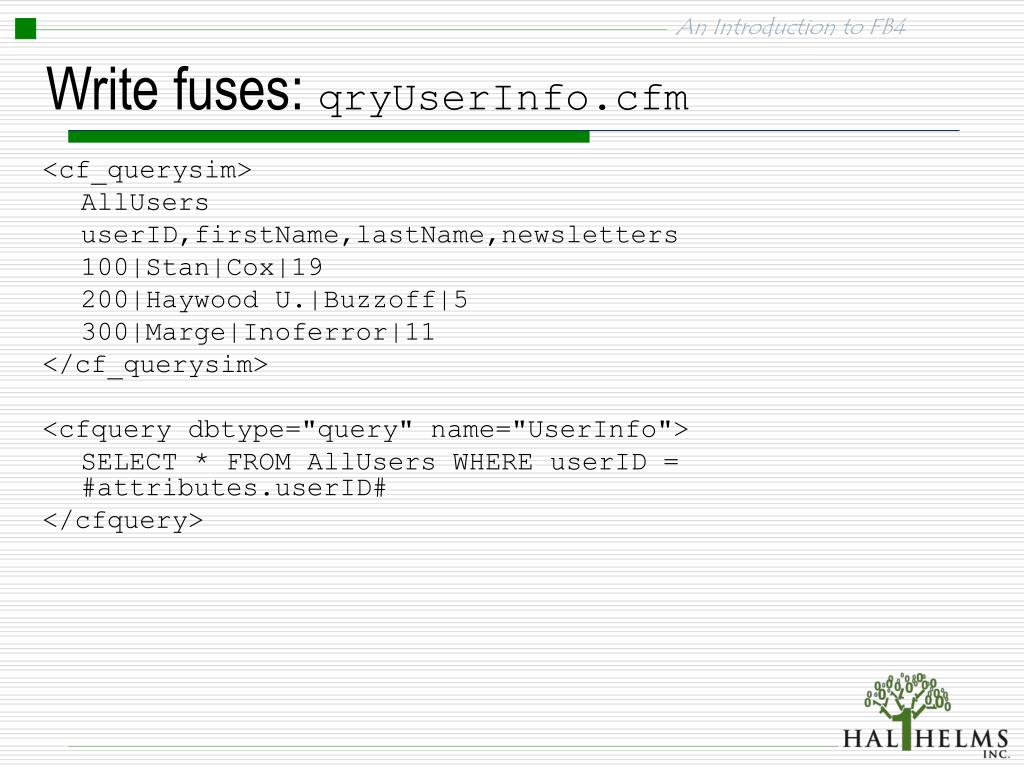

  15. Write fuses: qryUserInfo.cfm <cf_querysim> AllUsers userID,firstName,lastName,newsletters 100|Stan|Cox|19 200|Haywood U.|Buzzoff|5 300|Marge|Inoferror|11 </cf_querysim> <cfquery dbtype="query" name="UserInfo"> SELECT * FROM AllUsers WHERE userID = #attributes.userID# </cfquery>

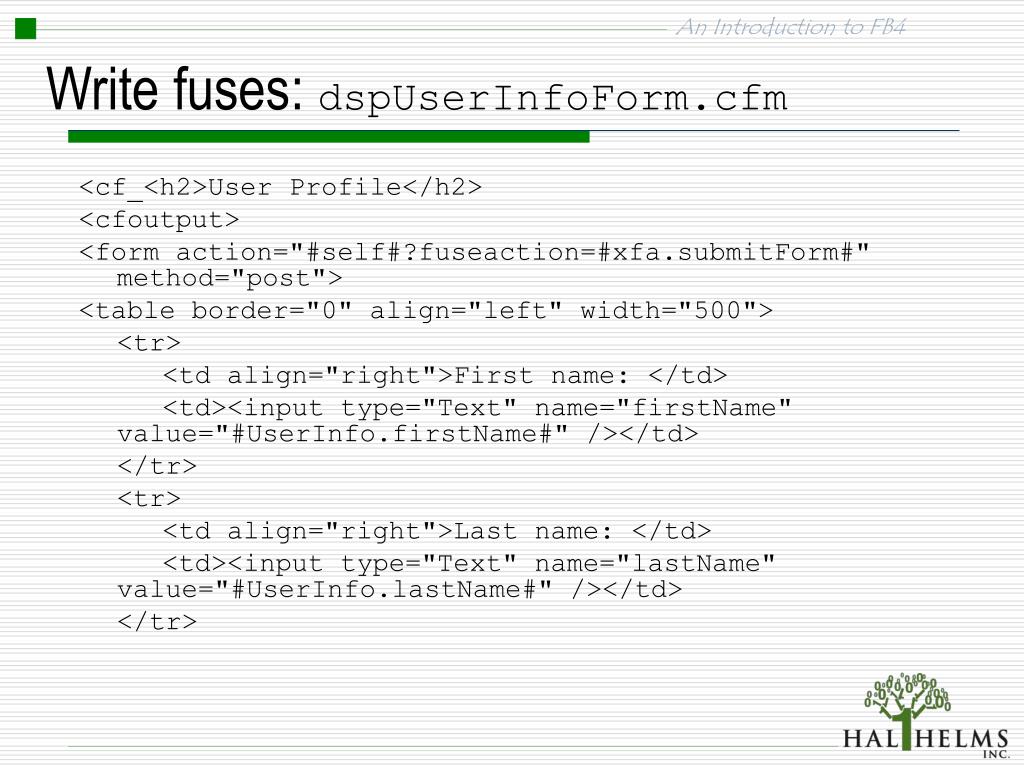

  16. Write fuses: dspUserInfoForm.cfm <cf_<h2>User Profile</h2> <cfoutput> <form action="#self#?fuseaction=#xfa.submitForm#" method="post"> <table border="0" align="left" width="500"> <tr> <td align="right">First name: </td> <td><input type="Text" name="firstName" value="#UserInfo.firstName#" /></td> </tr> <tr> <td align="right">Last name: </td> <td><input type="Text" name="lastName" value="#UserInfo.lastName#" /></td> </tr>

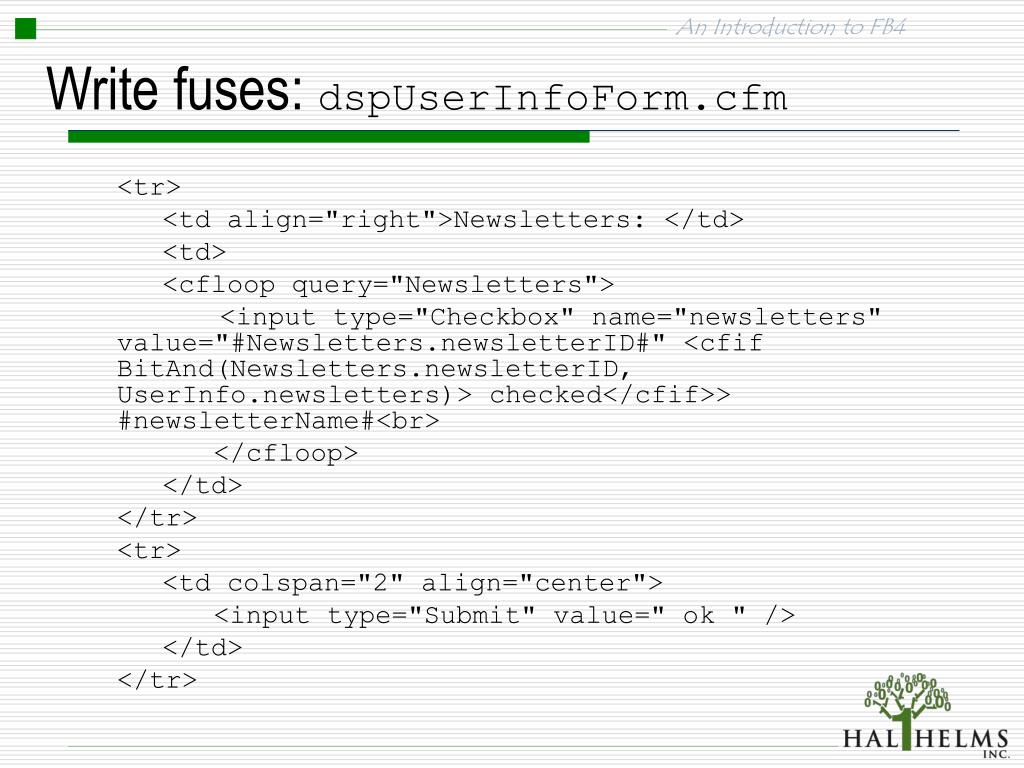

  17. Write fuses: dspUserInfoForm.cfm <tr> <td align="right">Newsletters: </td> <td> <cfloop query="Newsletters"> <input type="Checkbox" name="newsletters" value="#Newsletters.newsletterID#" <cfif BitAnd(Newsletters.newsletterID, UserInfo.newsletters)> checked</cfif>> #newsletterName#<br> </cfloop> </td> </tr> <tr> <td colspan="2" align="center"> <input type="Submit" value=" ok " /> </td> </tr>

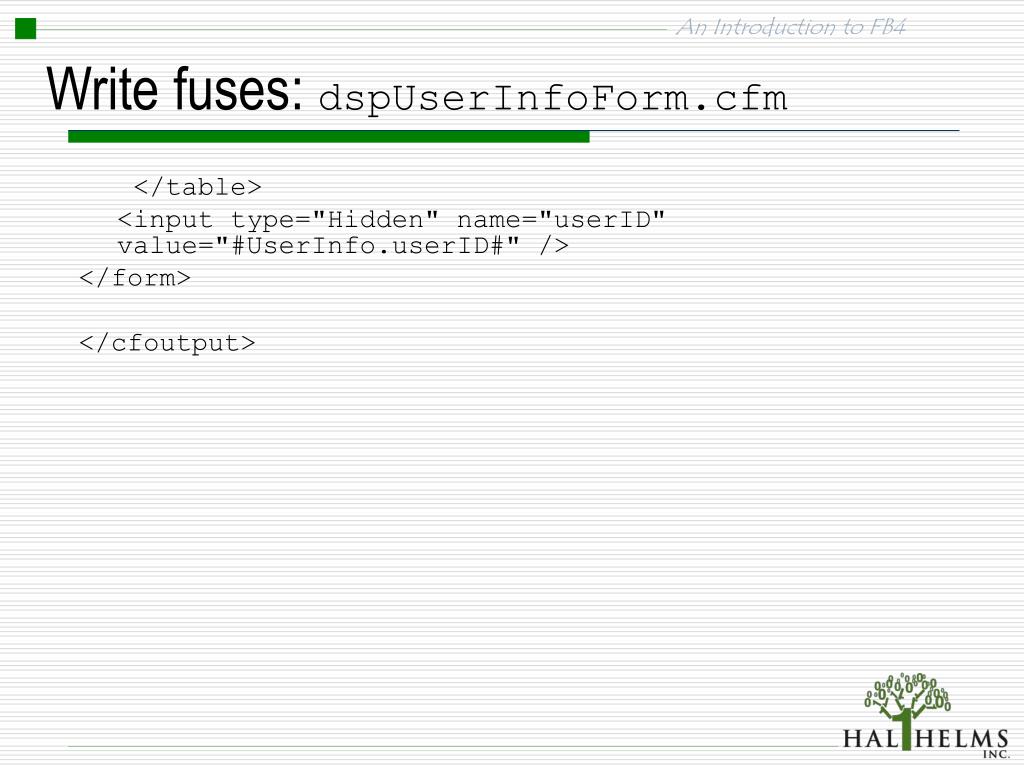

  18. Write fuses: dspUserInfoForm.cfm </table> <input type="Hidden" name="userID" value="#UserInfo.userID#" /> </form> </cfoutput>

  19. Write fuses: qryUserInfoEmpty.cfm <cf_querysim> UserInfo userID,firstName,lastName,newsletters ""|""|""|0 </cf_querysim>

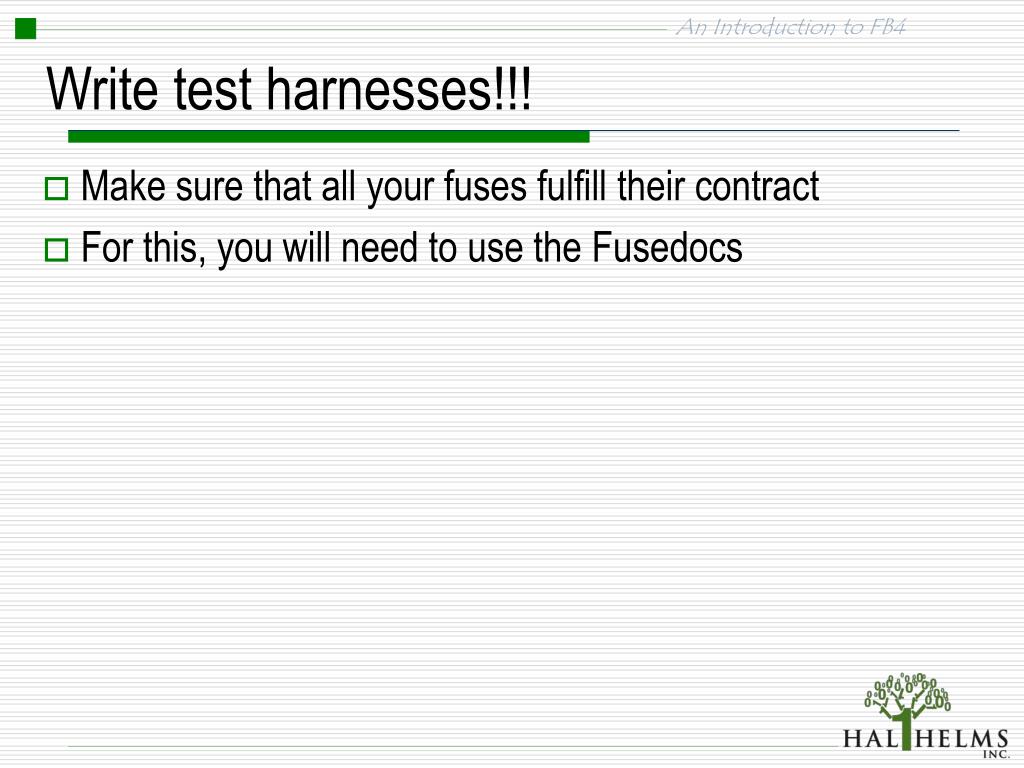

  20. Write test harnesses!!! • Make sure that all your fuses fulfill their contract • For this, you will need to use the Fusedocs

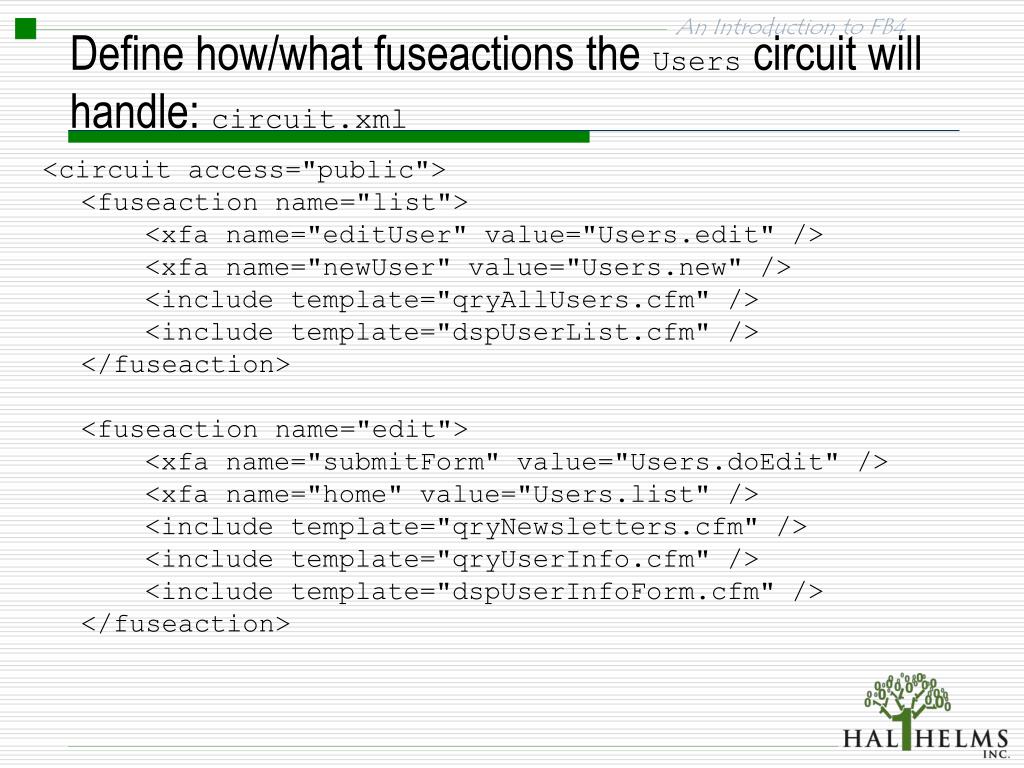

  21. Define how/what fuseactions the Users circuit will handle: circuit.xml <circuit access="public"> <fuseaction name="list"> <xfa name="editUser" value="Users.edit" /> <xfa name="newUser" value="Users.new" /> <include template="qryAllUsers.cfm" /> <include template="dspUserList.cfm" /> </fuseaction> <fuseaction name="edit"> <xfa name="submitForm" value="Users.doEdit" /> <xfa name="home" value="Users.list" /> <include template="qryNewsletters.cfm" /> <include template="qryUserInfo.cfm" /> <include template="dspUserInfoForm.cfm" /> </fuseaction>

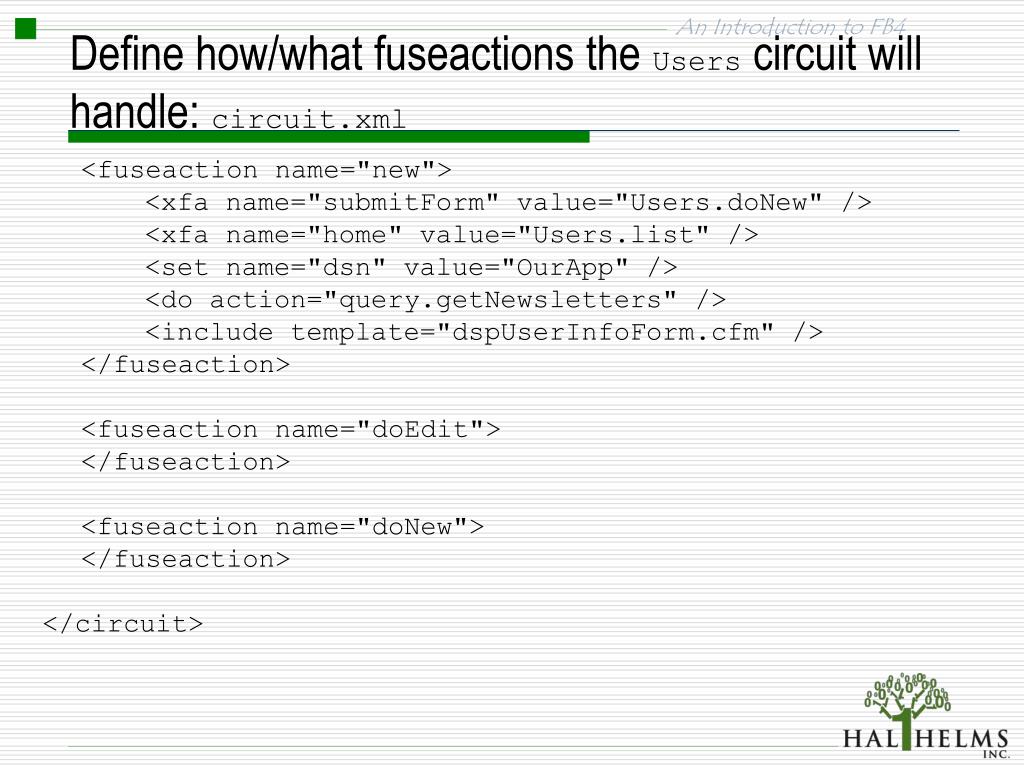

  22. Define how/what fuseactions the Users circuit will handle: circuit.xml <fuseaction name="new"> <xfa name="submitForm" value="Users.doNew" /> <xfa name="home" value="Users.list" /> <set name="dsn" value="OurApp" /> <do action="query.getNewsletters" /> <include template="dspUserInfoForm.cfm" /> </fuseaction> <fuseaction name="doEdit"> </fuseaction> <fuseaction name="doNew"> </fuseaction> </circuit>

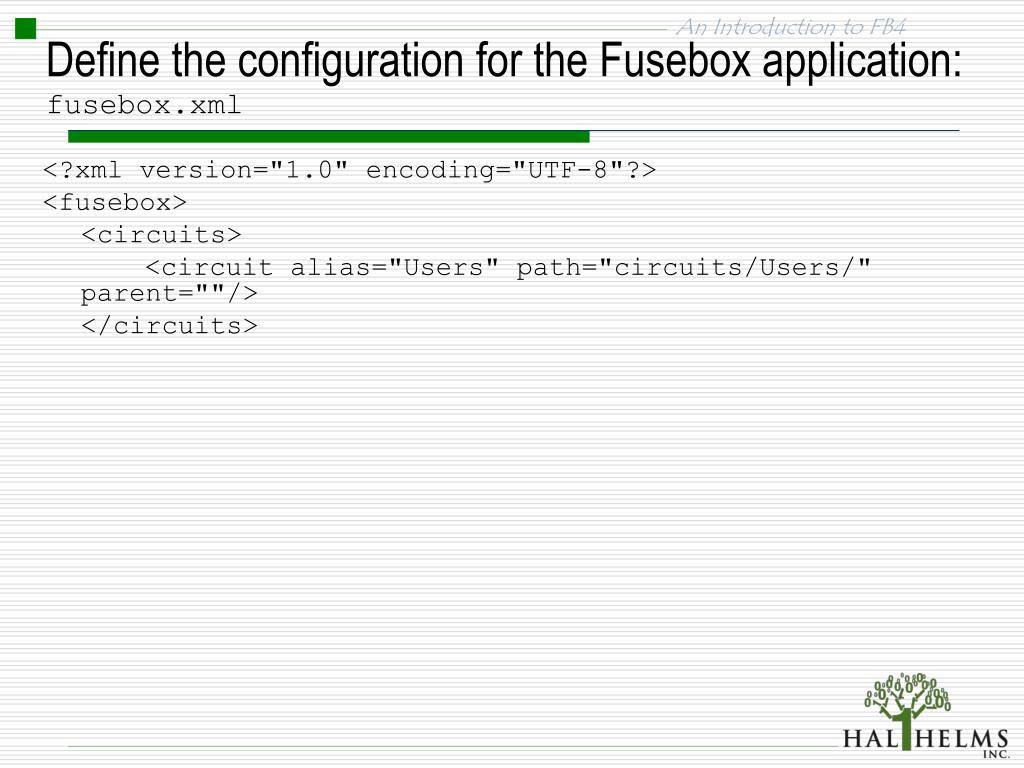

  23. Define the configuration for the Fusebox application: fusebox.xml <?xml version="1.0" encoding="UTF-8"?> <fusebox> <circuits> <circuit alias="Users" path="circuits/Users/" parent=""/> </circuits>

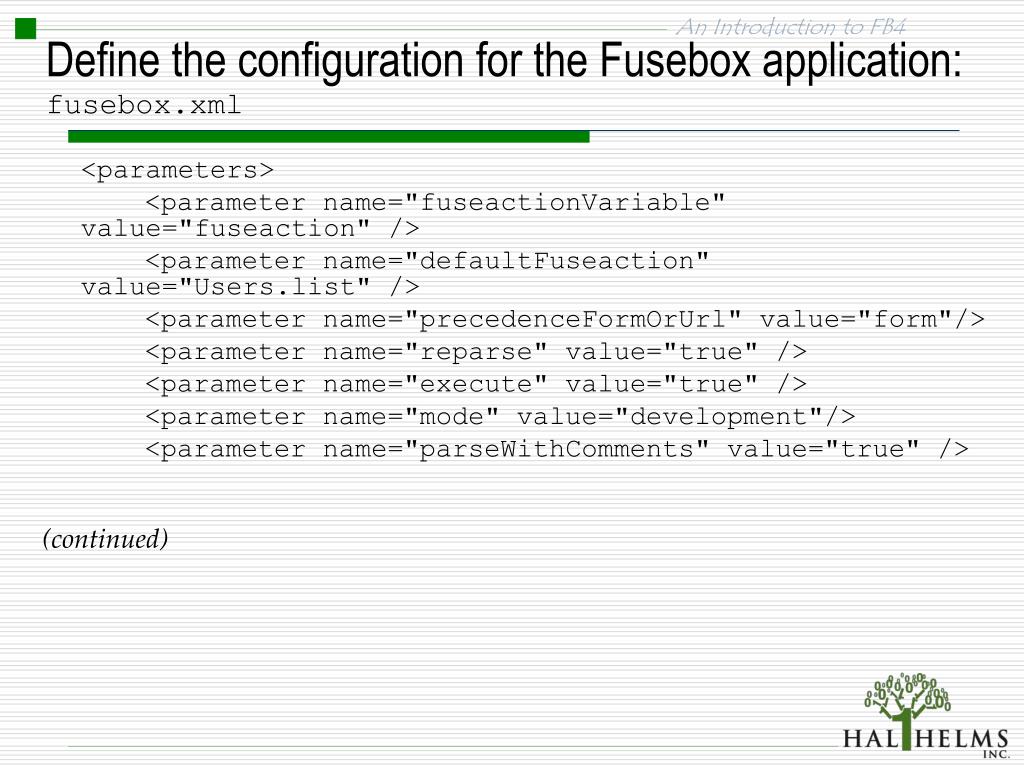

  24. Define the configuration for the Fusebox application: fusebox.xml <parameters> <parameter name="fuseactionVariable" value="fuseaction" /> <parameter name="defaultFuseaction" value="Users.list" /> <parameter name="precedenceFormOrUrl" value="form"/> <parameter name="reparse" value="true" /> <parameter name="execute" value="true" /> <parameter name="mode" value="development"/> <parameter name="parseWithComments" value="true" /> (continued)

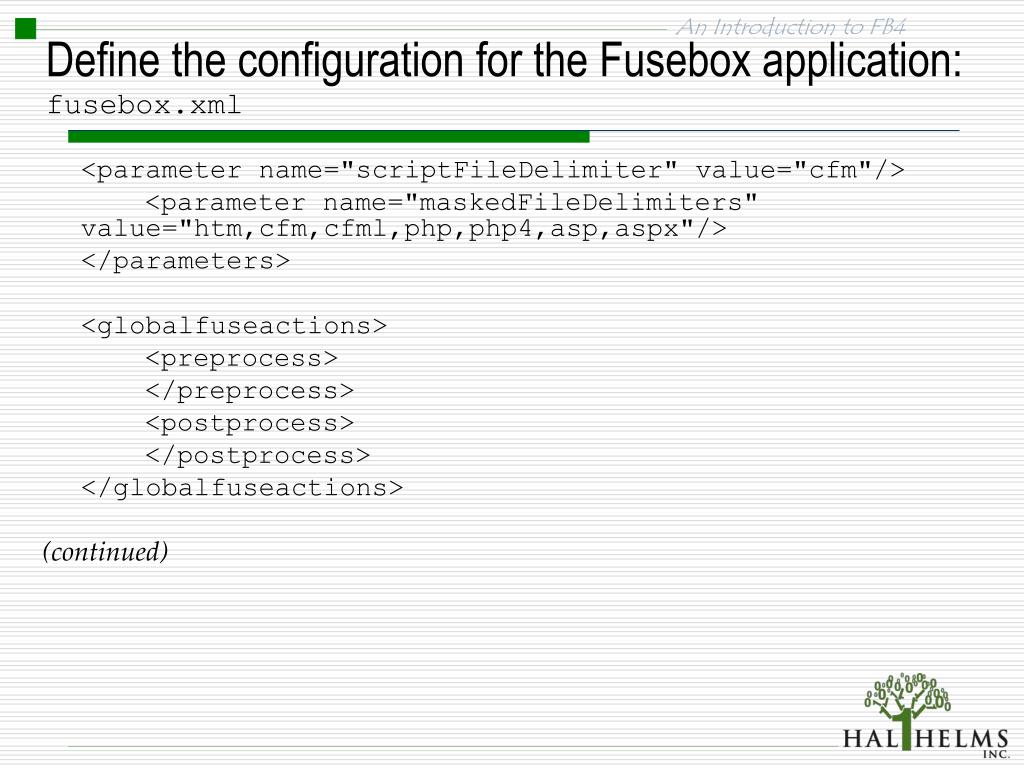

  25. Define the configuration for the Fusebox application: fusebox.xml <parameter name="scriptFileDelimiter" value="cfm"/> <parameter name="maskedFileDelimiters" value="htm,cfm,cfml,php,php4,asp,aspx"/> </parameters> <globalfuseactions> <preprocess> </preprocess> <postprocess> </postprocess> </globalfuseactions> (continued)

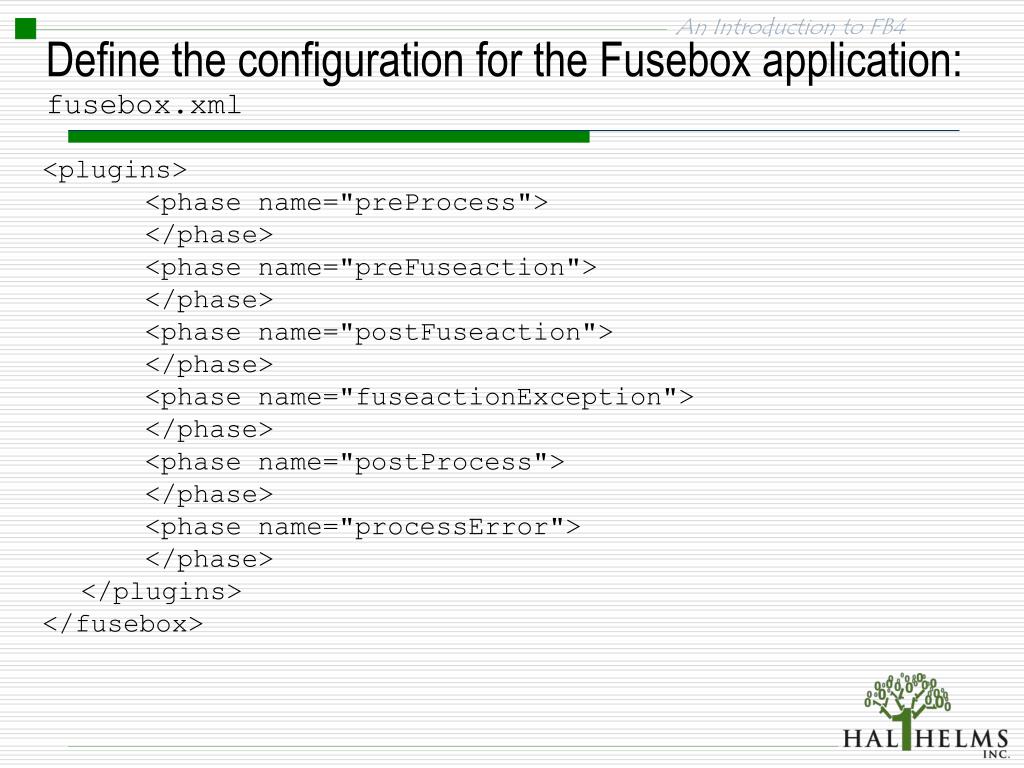

  26. Define the configuration for the Fusebox application: fusebox.xml <plugins> <phase name="preProcess"> </phase> <phase name="preFuseaction"> </phase> <phase name="postFuseaction"> </phase> <phase name="fuseactionException"> </phase> <phase name="postProcess"> </phase> <phase name="processError"> </phase> </plugins> </fusebox>

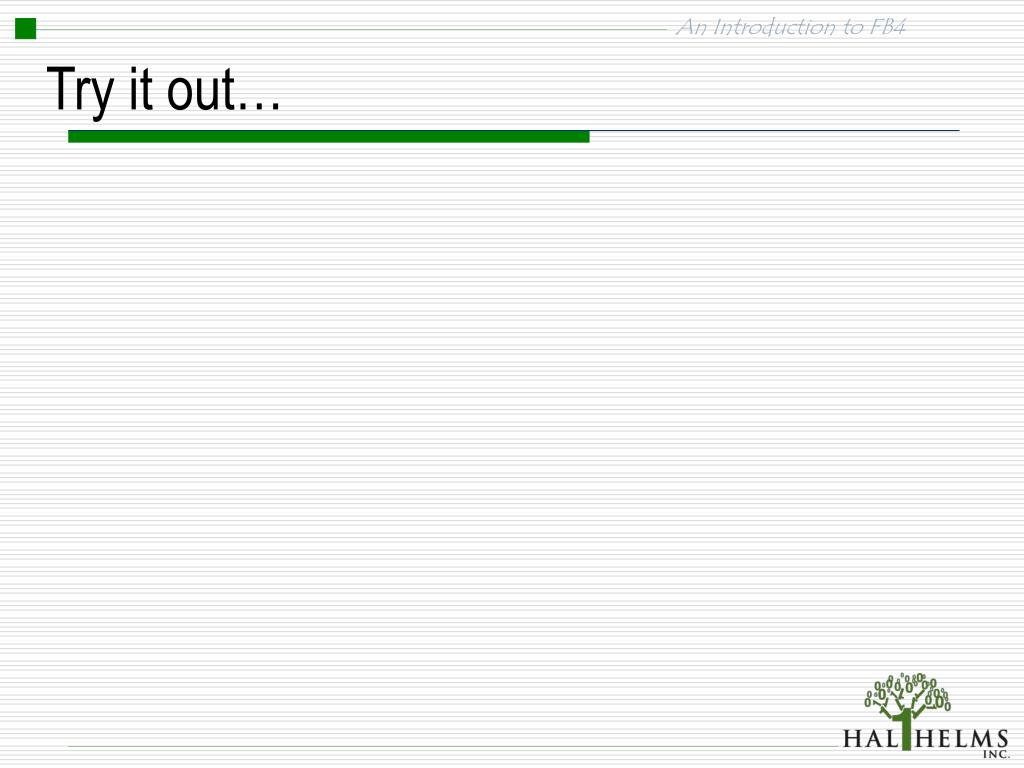

  27. Try it out…

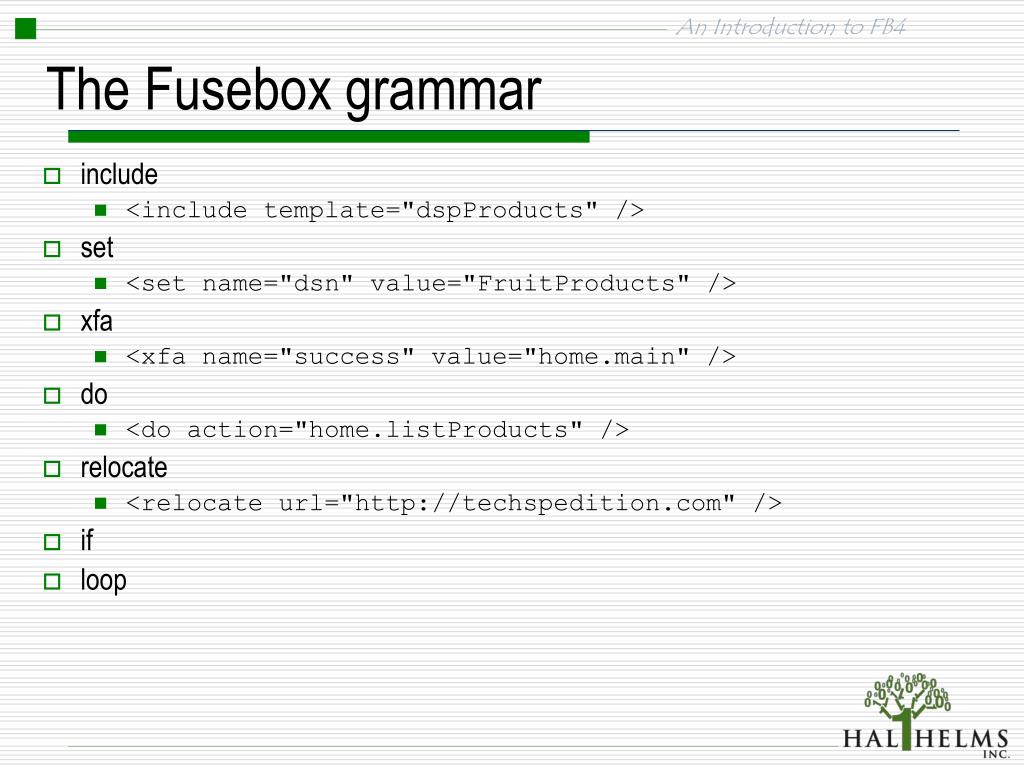

  28. The Fusebox grammar • include • <include template="dspProducts" /> • set • <set name="dsn" value="FruitProducts" /> • xfa • <xfa name="success" value="home.main" /> • do • <do action="home.listProducts" /> • relocate • <relocate url="http://techspedition.com" /> • if • loop

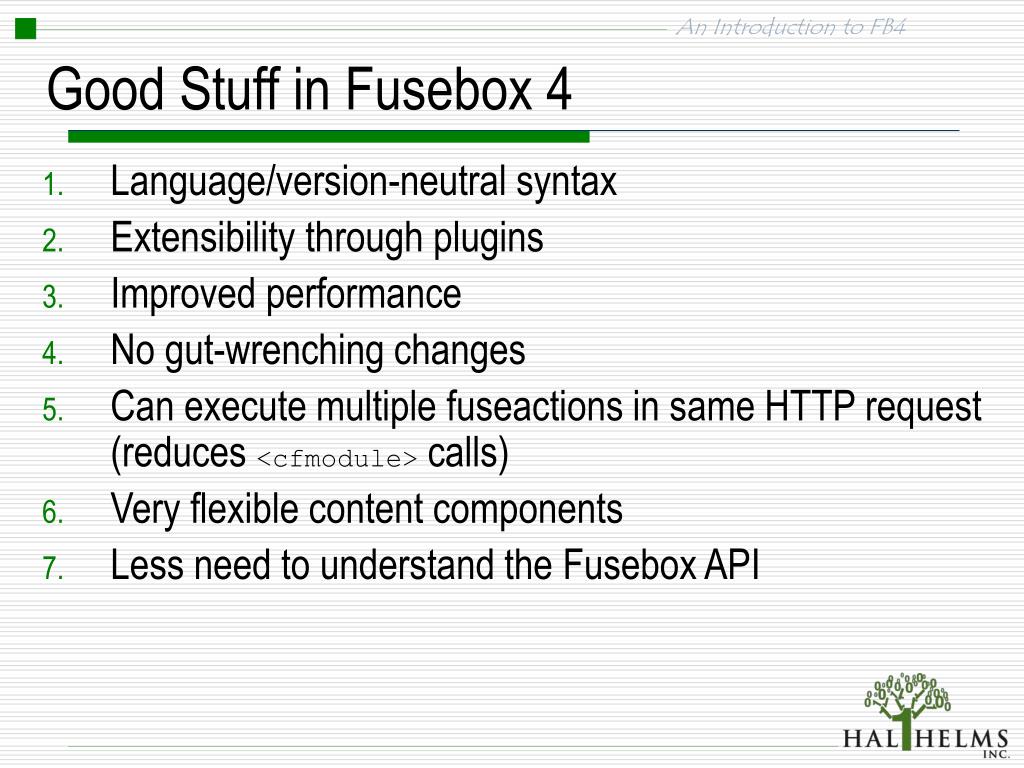

  29. Good Stuff in Fusebox 4 • Language/version-neutral syntax • Extensibility through plugins • Improved performance • No gut-wrenching changes • Can execute multiple fuseactions in same HTTP request (reduces <cfmodule> calls) • Very flexible content components • Less need to understand the Fusebox API

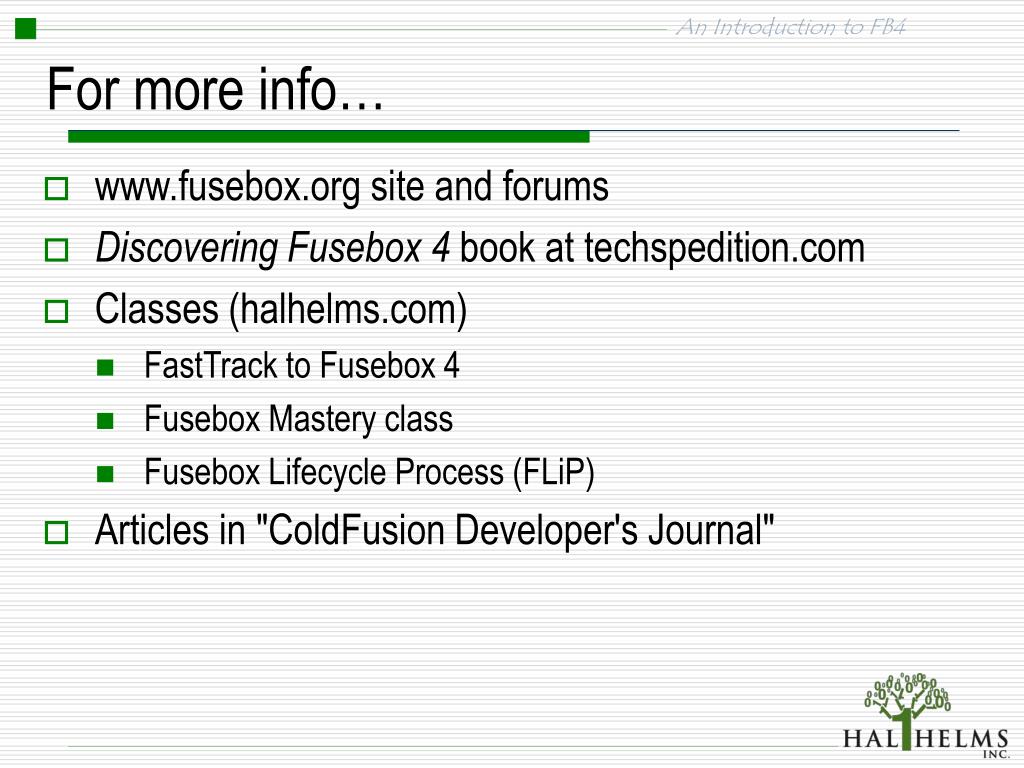

  30. For more info… • www.fusebox.org site and forums • Discovering Fusebox 4 book at techspedition.com • Classes (halhelms.com) • FastTrack to Fusebox 4 • Fusebox Mastery class • Fusebox Lifecycle Process (FLiP) • Articles in "ColdFusion Developer's Journal"
