  1. TIS Bus Connection Topology & Addresses Course 20 Minutes Test 10 Minutes TIS Training Program 2012 , Rev 1.1 www.tissmarthome.com

  2. What is TIS Bus? • What is Bus?

  3. What is TIS Bus?

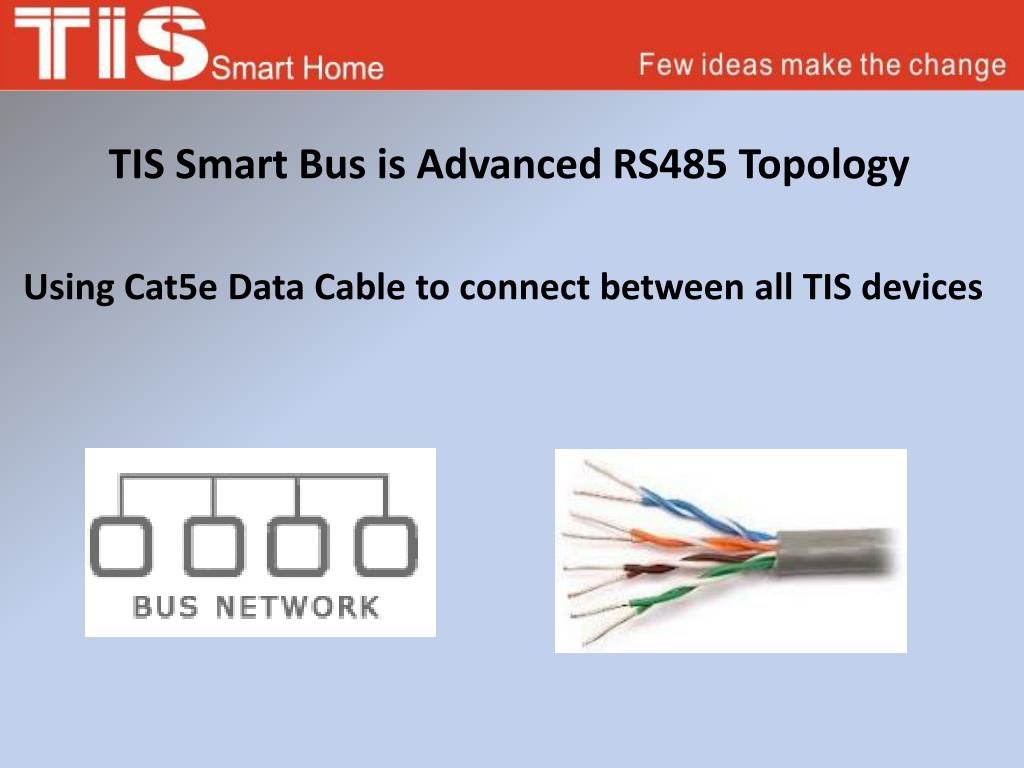

  4. TIS Smart Bus is Advanced RS485 Topology • Using Cat5e Data Cable to connect between all TIS devices

  5. TIS Smart Bus Network BLD 3 BLD 2 The Data is moving in Bus (Cat5e cable) between Buildings (Devices) BLD 1 Street No 1

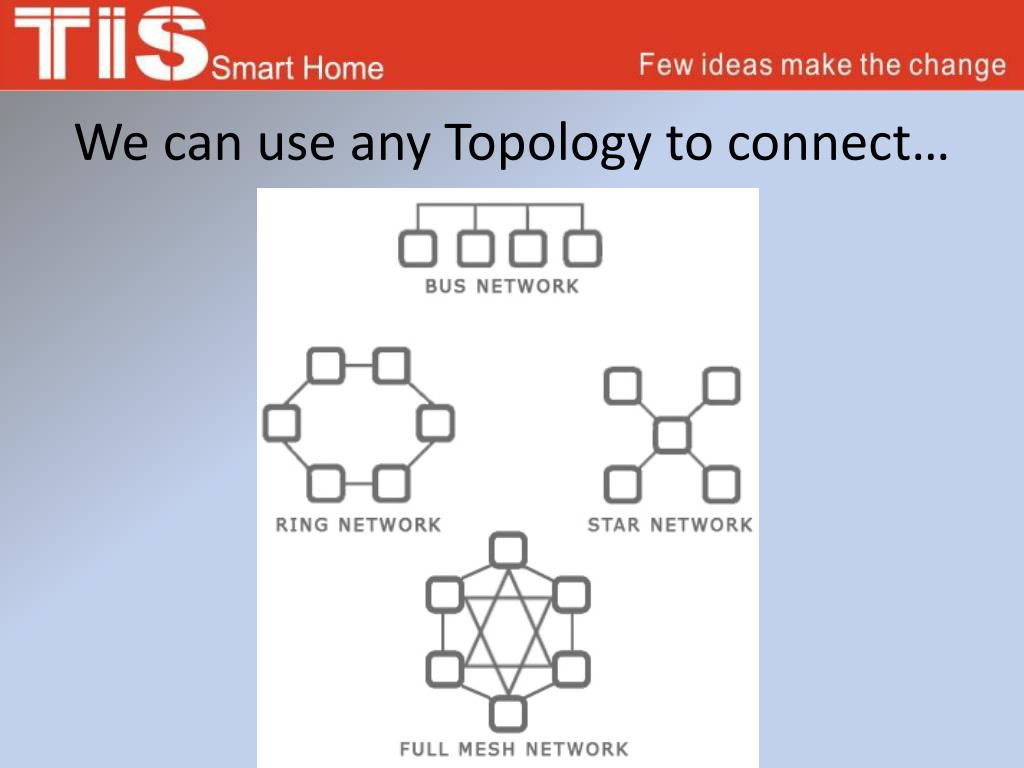

  6. We can use any Topology to connect…

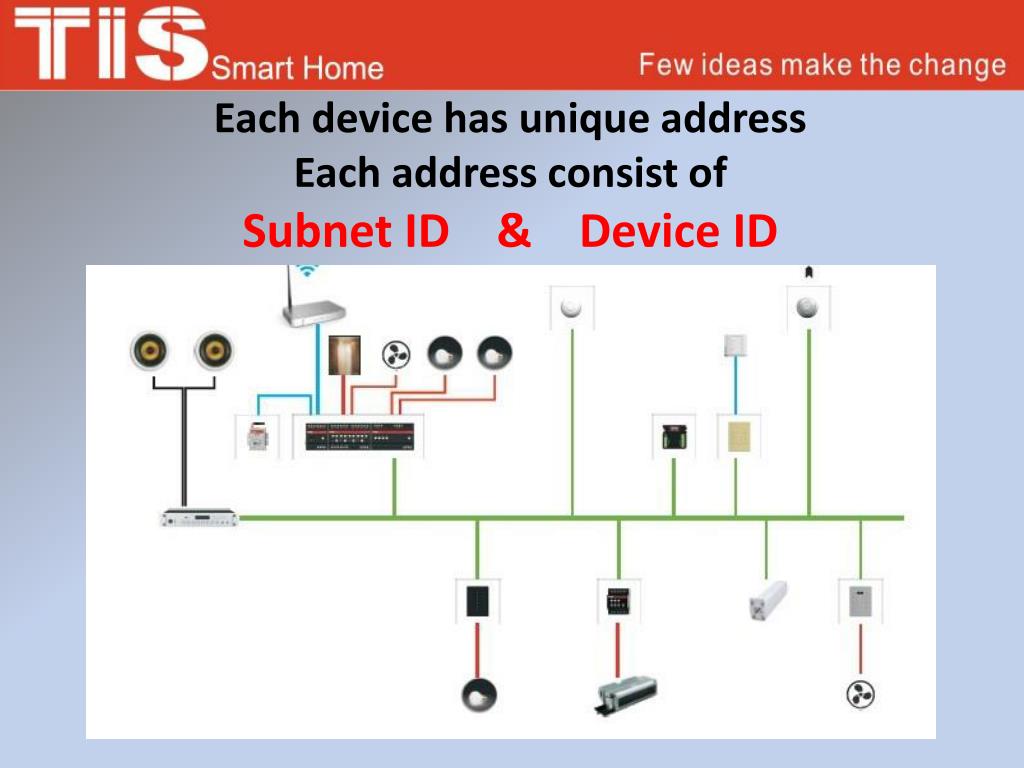

  7. Each device has unique addressEach address consist of Subnet ID & Device ID

  8. Subnet ID 1 Device ID 124 11001000101 Device ID 1

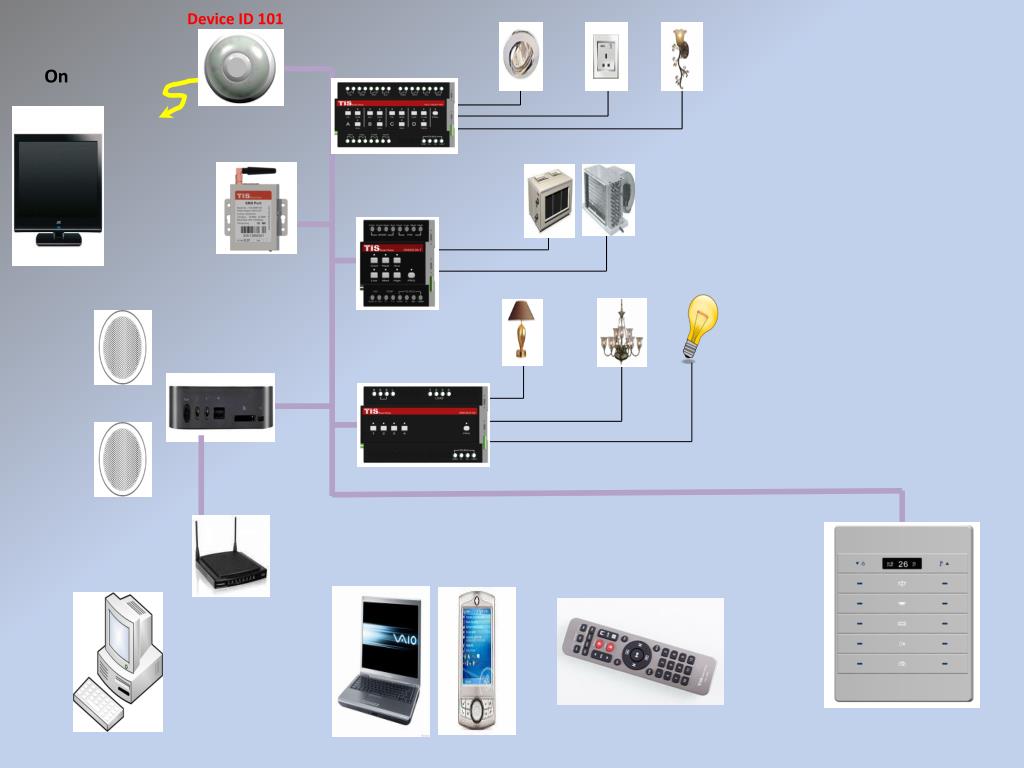

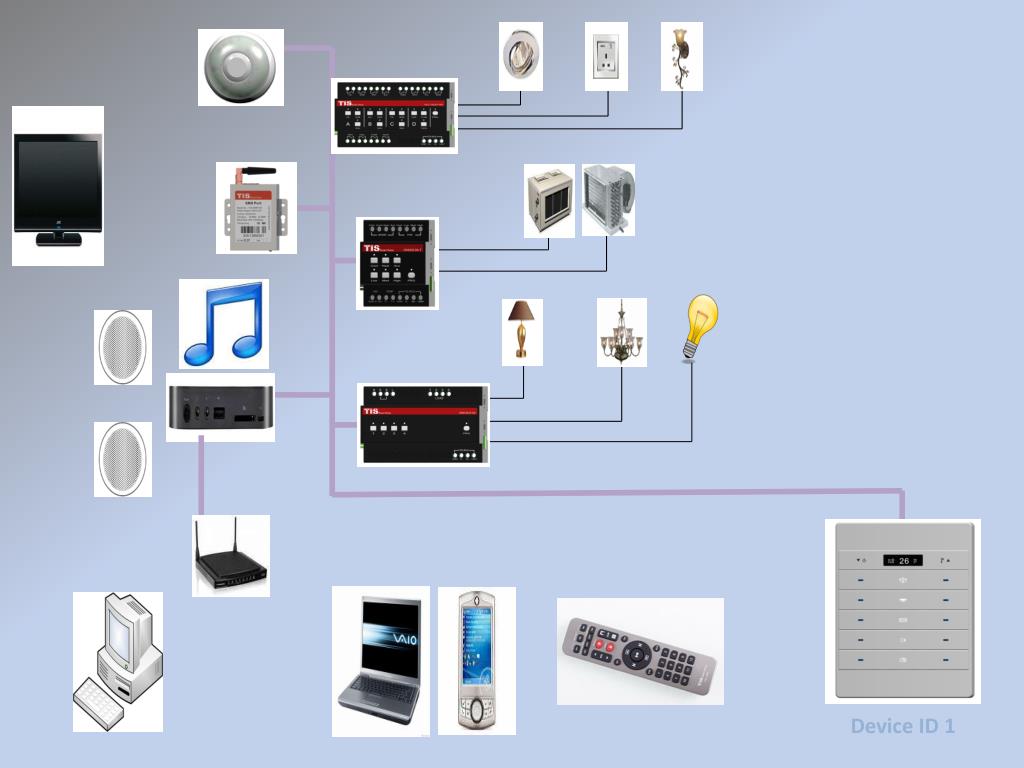

  9. Device ID 101 On Subnet ID 1 Device ID 101 11001000101

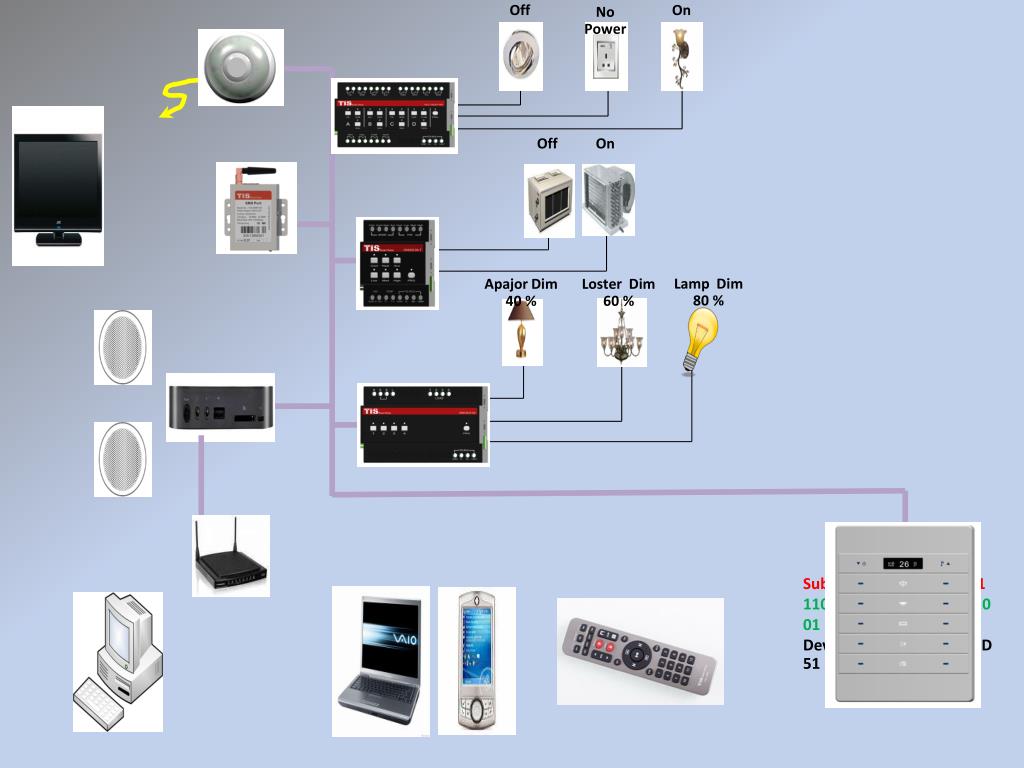

  10. Off No Power On Off On Lamp Dim 80 % Apajor Dim 40 % Loster Dim 60 % Subnet ID 1 11001000101 Device ID 51 Subnet ID 1 11001000101 Device ID 52 Subnet ID 1 11001000101 Device ID 91 Subnet ID 1 11001000101 Device ID 124

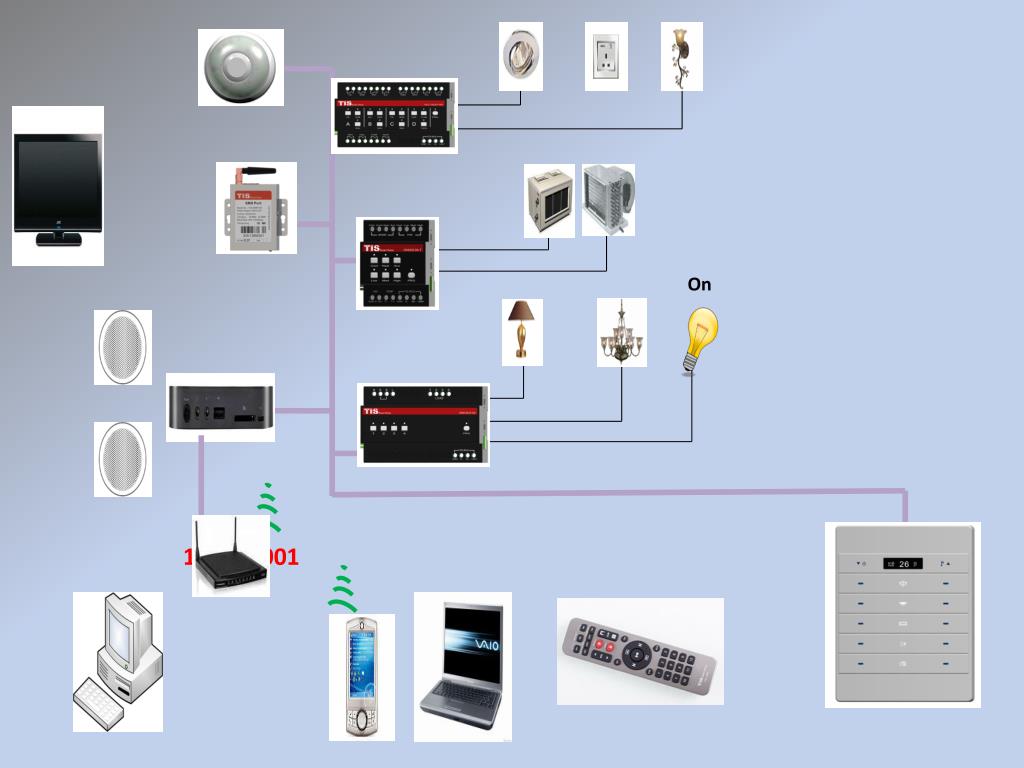

  11. On 110010001

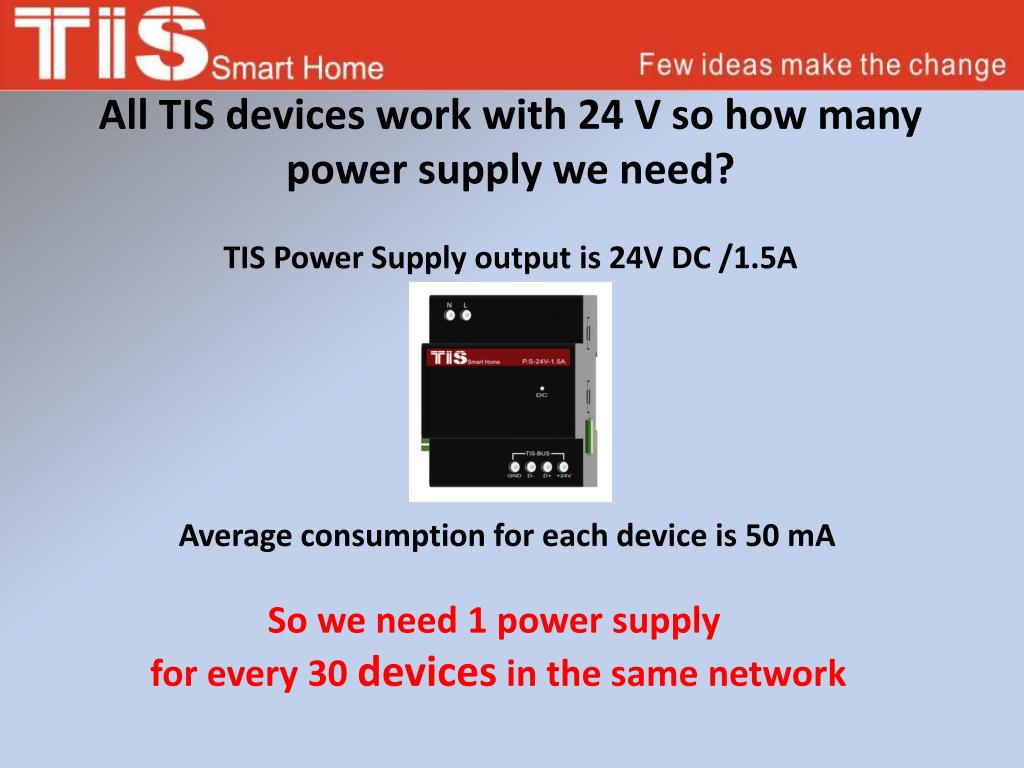

  12. All TIS devices work with 24 V so how many power supply we need? TIS Power Supply output is 24V DC /1.5A Average consumption for each device is 50 mA So we need 1 power supply for every 30 devices in the same network

  13. How many devices can be connected to the same TIS-BUS Line? We can connect maximum 60 Devices

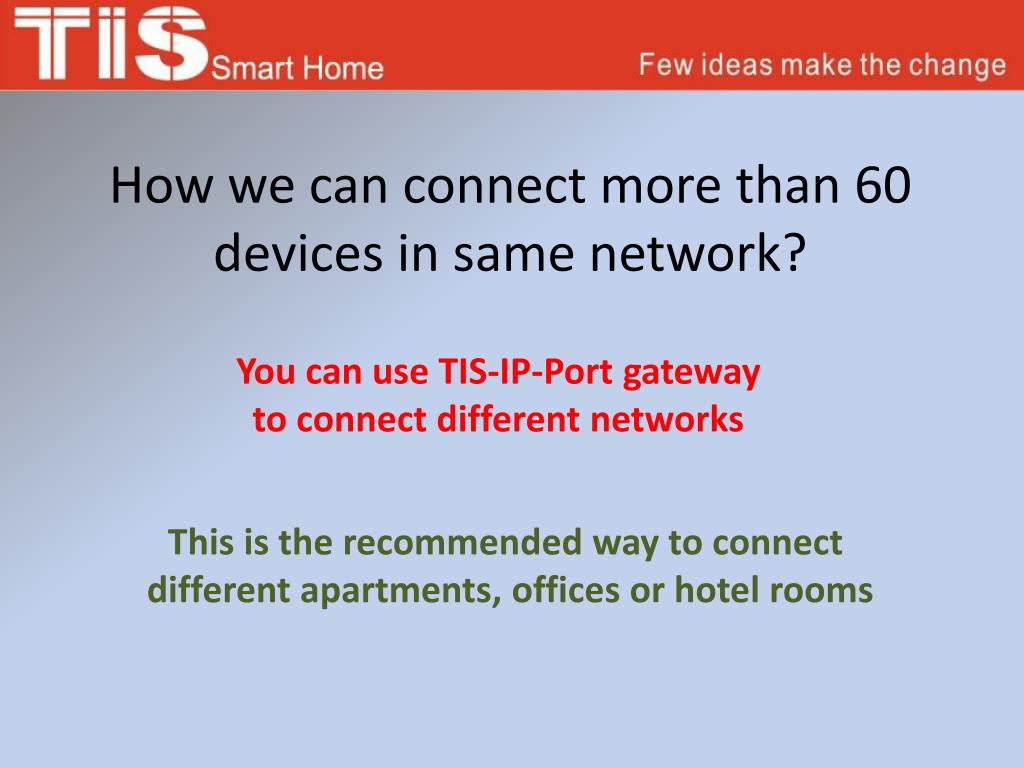

  14. How we can connect more than 60 devices in same network? You can use TIS-IP-Port gateway to connect different networks This is the recommended way to connect different apartments, offices or hotel rooms
