Projectile Motion Lab

Projectile Motion Lab. Starter: A marble is fired from the table to the floor. If an overhead light is on, what can you say about the velocity of the shadow? Does it speed up or slow down during the flight?. Part A: Horizontal Shot to find v i.

blade
Télécharger la présentation

Projectile Motion Lab

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

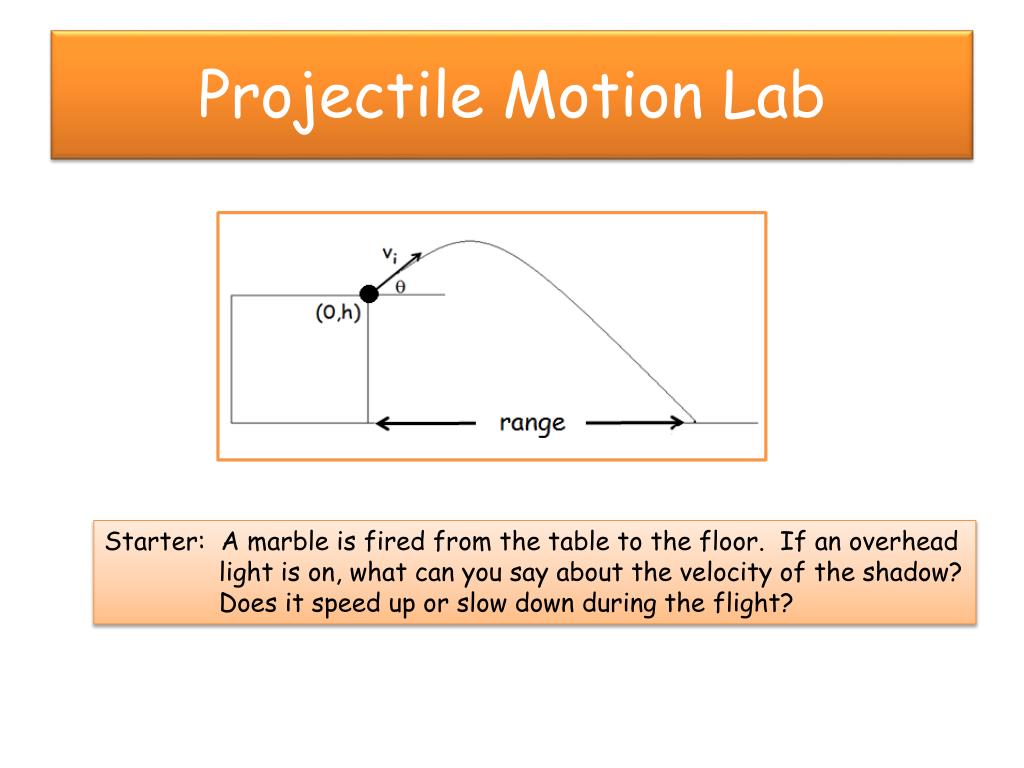

  1. Projectile Motion Lab Starter: A marble is fired from the table to the floor. If an overhead light is on, what can you say about the velocity of the shadow? Does it speed up or slow down during the flight?

  2. Part A: Horizontal Shot to find vi Part A. Horizontal Shot ( q = 0 ) Given R, h, and q=0 , findvi and t. Using (1) yf = yi +viyt + gt2 and (2) xf = xi +vixt and also vix = vicosq = vi and viy = visinq =0, then (1) becomes: (3) 0 = h - gt2 and (2) becomes: (4) R = vit which yields: (5) t = and (6) vi = R

  3. Part B: Angle Shot Part B. The trajectory equation for the shot marble is : The predicted range is found by solving this equation for R. This is a quadratic equation. The computer will solve this equation for you when you tell it your height h, initial velocity vi, and projection angle q.

  4. Procedure Part A. Determine the Initial Velocity of the Launcher. 1. Open the excel file “ Projectile Motion Lab Workbook.” You will enter your measurements in this workbook. The work book will calculate the initial velocity of the launcher and the predicted ranges based on that velocity and your height. 2. Set the launcher to fire horizontally. Measure the height from the floor to the marble before its launched and enter this in the workbook. 3. Make a horizontal shot three times and measure the range. Enter the three measurements in workbook . The initial velocity will be calculated using: vi = R

  5. Procedure Part B. Angle Shots Fire the launcher and measure the range for the angles of 15 degrees to 60 degrees in 5 degree increments. Enter the range measurements in the excel workbook “ Projectile Motion Lab Workbook.” The theoretical range will also be calculated by the workbook.

  6. Questions / Analysis All questions must be written in your report and answered in complete sentences. Take time and care to explain your answers carefully. How well did your measured ranges compare to the predicted ranges? Comment on the fit. Look at the graph for information. At what angle was the range greatest? Least? What would happen to the range of the horizontal shot if you fired from a higher location?

  7. Lab Report Checklist. Coversheet Excel print out. Questions. Summary.
