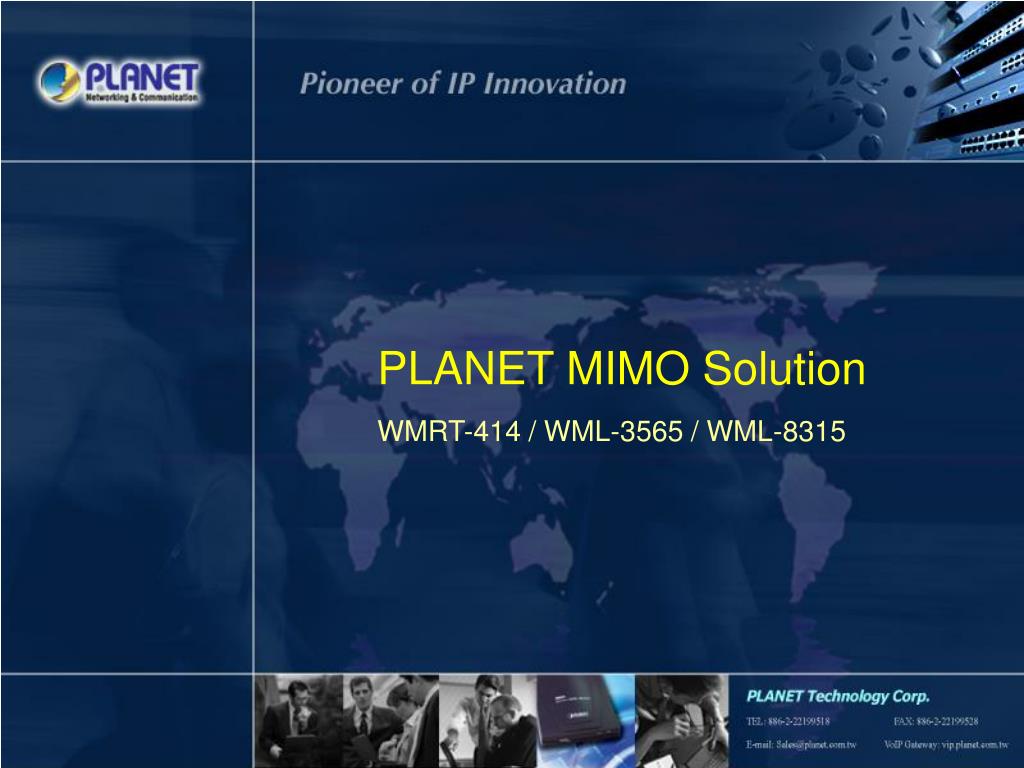

  1. PLANET MIMO Solution WMRT-414 / WML-3565 / WML-8315 1 / 12

  2. Presentation Outline • MIMO Overview • MIMO Family • Product Features • Application • Comparison 2 / 12

  3. MIMO Overview • MIMO – Multiple Input, Multiple Output • The innovative antenna technology • To overcome the natural limitations of WLAN – interference, and multi-path effect • Advantage: extend operating range and eliminate dead spots (150% throughput and 300% coverage than standard 11g devices) • Disadvantage: non-interoperable with other MIMO products 3 / 12

  4. MIMO Solution • WMRT-414 802.11g Wireless MIMO Broadband Router • WML-3565 802.11g Wireless MIMO PC Card • WML-8315 802.11g Wireless MIMO PC Card 4 / 12

  5. Features • Turbo mode enhanced To deliver the better throughput in the same period 5 / 12

  6. Features Total 24Mbps usage in the beginning New application coming (green line) Example of effect of WMM on a video stream • WMM (WiFi Multi-Media) support In order to meet the multi-media data bandwidth requirement Video steam dropped without WMM (red line) 6 / 12

  7. Features • WPA2 Level Security 7 / 12

  8. Features • WMRT-414 supports multiple operation modes: AP, Bridge, WDS 8 / 12

  9. Features • QoS support User can create self-defined QoS rules to reserve bandwidth for special applications 9 / 12

  10. Features • Firewall Protection WMRT-414 provides advanced firewall settings to secure your local network from Internet hackers 10 / 12

  11. Application Ordinary 11g router WMRT-414 • More reliable WLAN with less dead spots 300% coverage 150% throughput 11 / 12

  12. Pioneer of IP Innovation www.planet.com.tw 12 / 12
