Module 4 R Charts

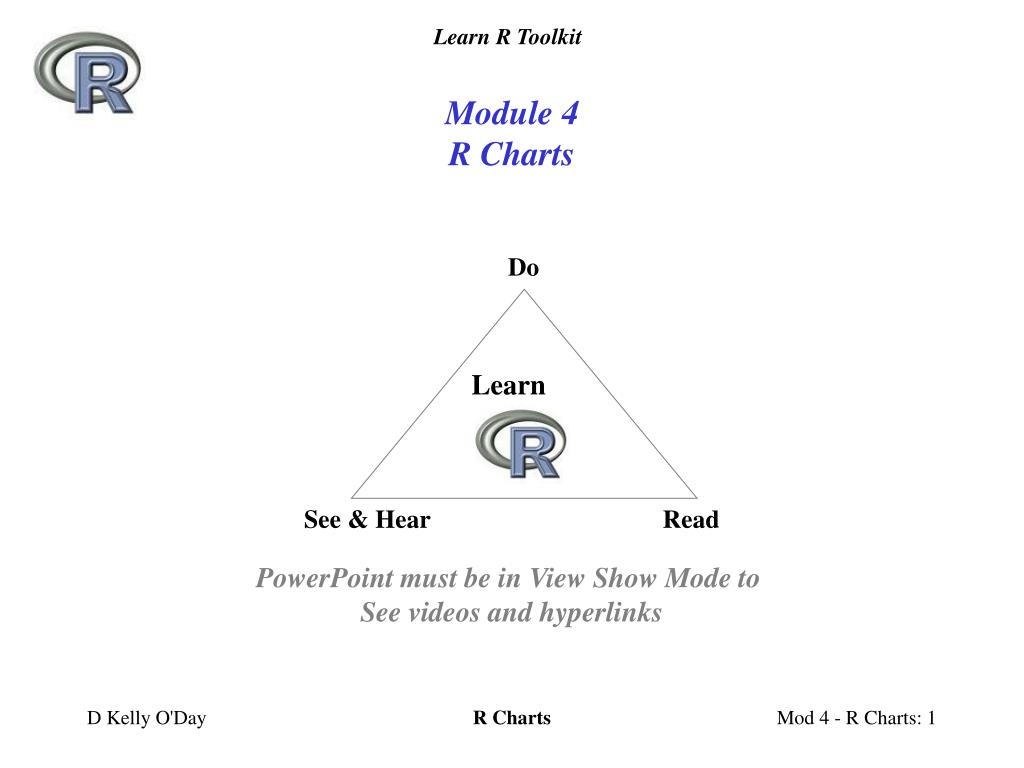

Module 4 R Charts. Do. Learn. See & Hear. Read. PowerPoint must be in View Show Mode to See videos and hyperlinks. Module 4 R Graphics Menu. Making a Graphic Script Working with plot() Function Adding Text to a Chart Adding Lines to Chart Extra R Scripts. Menu.

bona
Télécharger la présentation

Module 4 R Charts

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Module 4R Charts Do Learn See & Hear Read PowerPoint must be in View Show Mode to See videos and hyperlinks R Charts

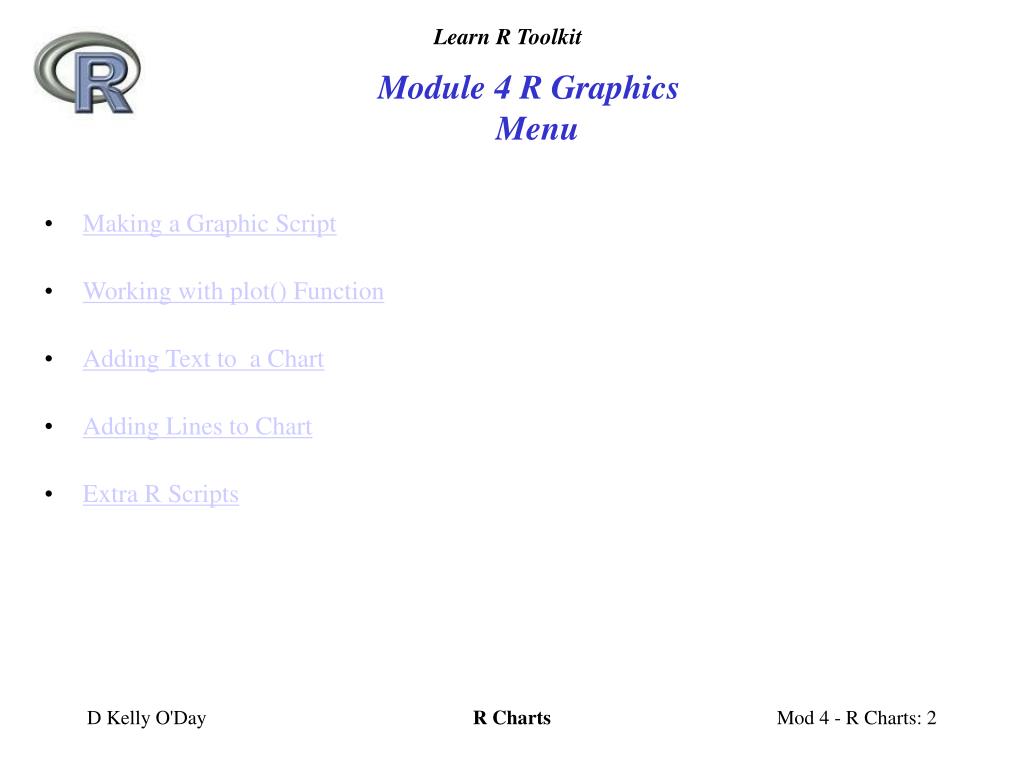

  2. Module 4 R Graphics Menu • Making a Graphic Script • Working with plot() Function • Adding Text to a Chart • Adding Lines to Chart • Extra R Scripts R Charts

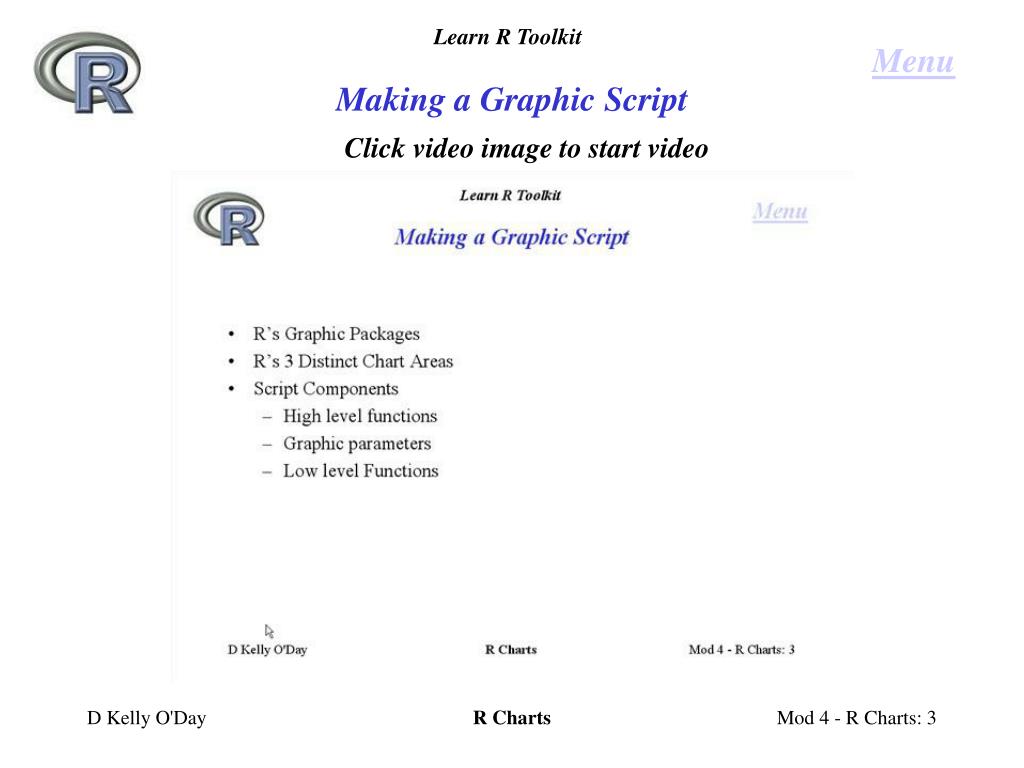

  3. Menu Making a Graphic Script Click video image to start video R Charts

  4. Menu Making a Graphic Script • R’s Graphic Packages • R’s 3 Distinct Chart Areas • Script Components • High level functions • Graphic parameters • Low level Functions R Charts

  5. Menu R’s Graphics Packages • R has several graphics subsystems: • Graphics – traditional graphics • Grid package (low level functions) • Lattice package • ggplot2 package • This module shows the traditional - base graphics system R Charts

  6. R’s 3 Chart Areas: Plot Area – within axes Figure Margin Area – for axis labels and tick mark labels Outer Margin Area R gives User precise control over content, format of all 3 Areas High Level Graphic Functions Graphic Parameters Low Level Graphic Functions Menu R’s 3 Distinct Chart Areas R Charts

  7. # R Script to produce scatter chart x_data <- ...y_data <-…par( ) # Graphic parametersplot( ) # High level plot functiontext( ) # Low level function Menu Making a Graphic Scriptwith R’s Graphic Package High Level Graphic Function Call Use GP defaults or adj GP w/ argument Low Level Graphic Function Call Use GP defaults or adj GP w/ argument Graphic Parameters 70 GPs defaults set adjust w/ par() par(oma=c(2,2,2,2)); par(mar=c(3,3,1,1))plot(x_data, y_data, main = “My Chart Title“, type = "b",xlim = c(0,11), ylim = c(0,11), xlab ="X", ylab = "Y“, pch=16, col = "red", bty = "n", xaxs="i", yaxs = "i", las=1) text(2,7, “my note”,col = “blue” ) R Charts

  8. Menu High Level Graphic Functions Produce complete chart This module focuses on plot() function low level functions, graphic parameters. Module 5 covers box, dot, histogram and strip charts R Charts

  9. Menu Low Level Plot FunctionsAdd graphic content to current plot R Charts

  10. R has 70 Graphic Parameters (GP) Each GP has: name: col = value: “red” Default Values Set At start of R session To Get par() values par() lists all 70 with current value par(“GP_name”) gives current value for specific GP User can change GP value: Global: par(“col” = “red”) Local: plot(x,y,col=“red”) Menu Graphic ParametersGP > par(“col”) [1] “black” R Charts

  11. Menu Essential Graphical Parameters* These parameters must be set with call to par(). R Charts

  12. Menu pch = Plot Characters Graphic Parameter • R has 25 plotting characters • pch = specifies plot character • Characters 19 – 20 can be filled with selected color • 19 – Solid circle • 20 – Bullet circle • Characters 21: 25 can have selected fill and border colors • bg = Controls Border color • col= Controls fill R Charts

  13. Menu lty= Line Type Graphic Parameter • R has 6 line types • lty = specifies the line type • lty= can be specified as integer or character string: • 0 – “blank” • 1 – “solid” • 2 – “dashed” • 3 – “dotted” • 4 – “dotdash” • 5 – “longdash” • 6 – “twodash” R Charts

  14. Menu Assignment 4-1Getting Familiar with par() • Print out par documentation ?par • Get Current Values for all par() • Get current par(“bty”) value R Charts

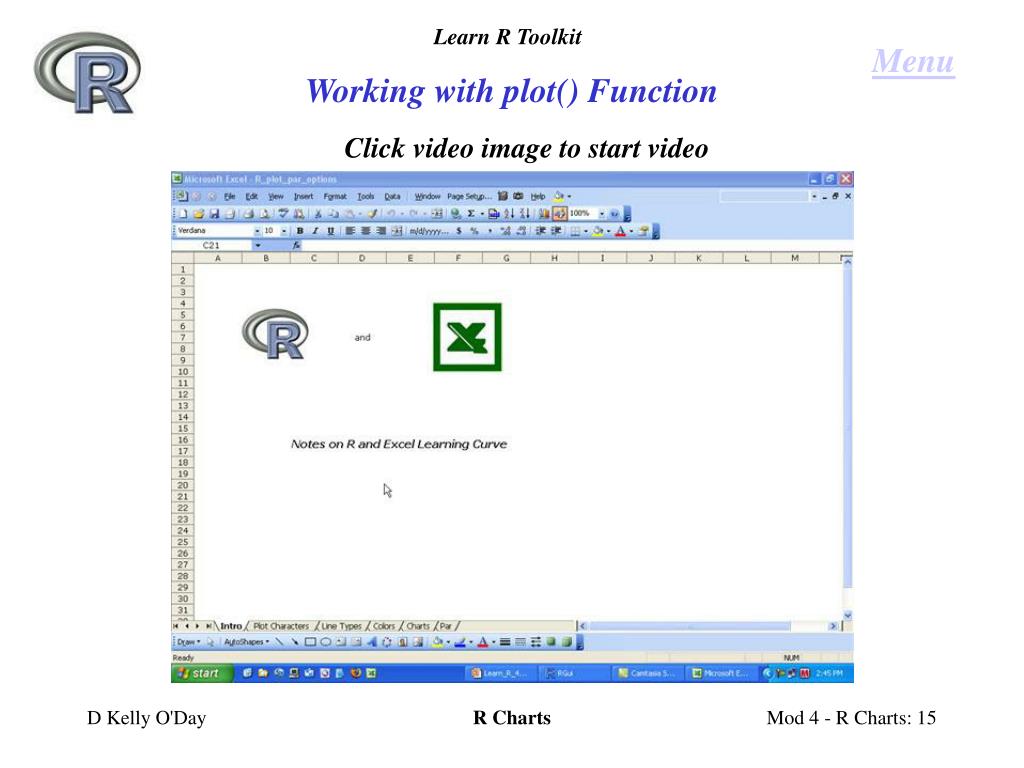

  15. Menu Working with plot() Function Click video image to start video R Charts

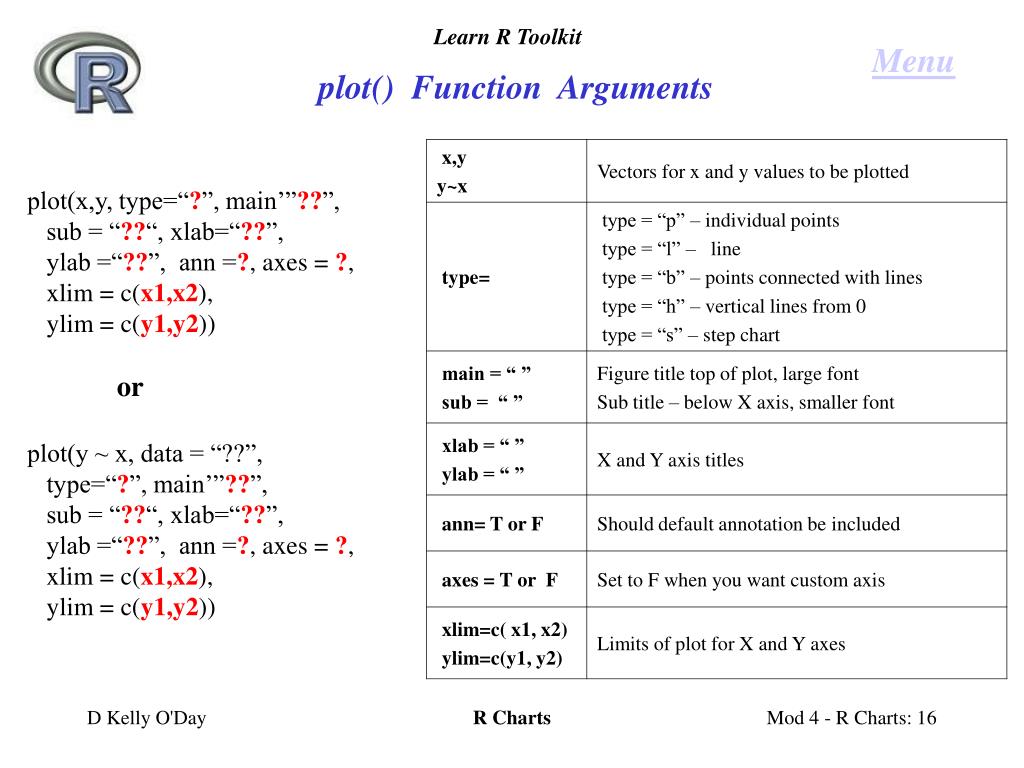

  16. Menu plot() Function Arguments plot(x,y, type=“?”, main’”??”, sub = “??“, xlab=“??”, ylab =“??”, ann =?, axes = ?, xlim = c(x1,x2), ylim = c(y1,y2)) or plot(y ~ x, data = “??”, type=“?”, main’”??”, sub = “??“, xlab=“??”, ylab =“??”, ann =?, axes = ?, xlim = c(x1,x2), ylim = c(y1,y2)) R Charts

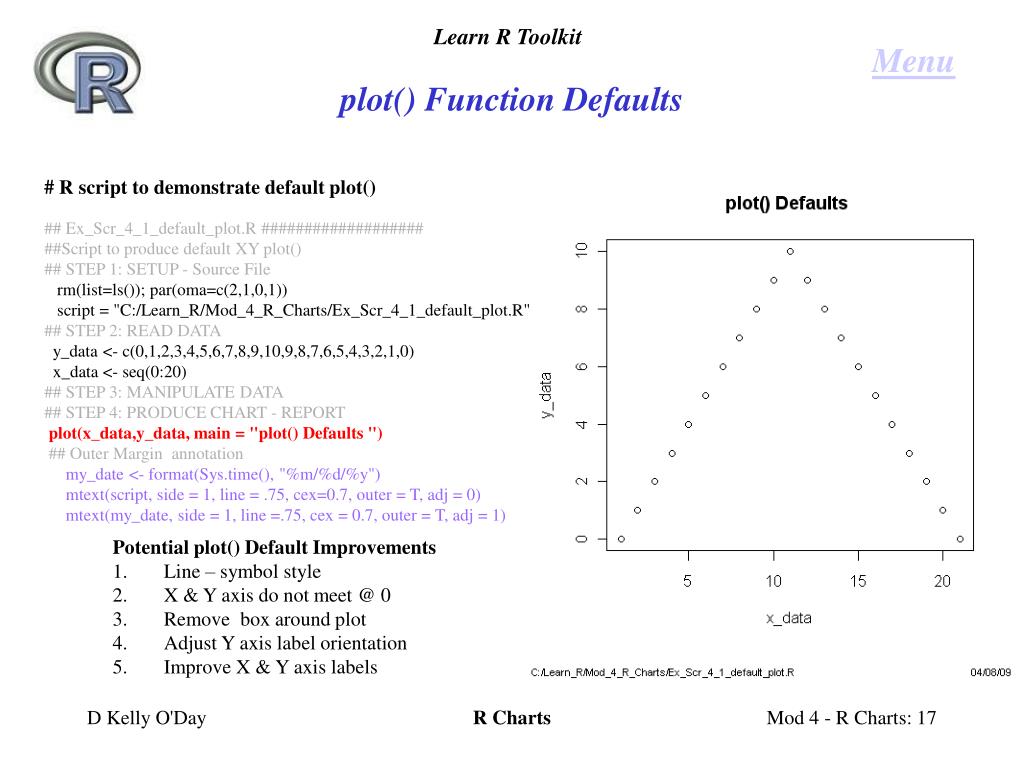

  17. # R script to demonstrate default plot() ## Ex_Scr_4_1_default_plot.R ################### ##Script to produce default XY plot() ## STEP 1: SETUP - Source File rm(list=ls()); par(oma=c(2,1,0,1)) script = "C:/Learn_R/Mod_4_R_Charts/Ex_Scr_4_1_default_plot.R" ## STEP 2: READ DATA y_data <- c(0,1,2,3,4,5,6,7,8,9,10,9,8,7,6,5,4,3,2,1,0) x_data <- seq(0:20) ## STEP 3: MANIPULATE DATA ## STEP 4: PRODUCE CHART - REPORT plot(x_data,y_data, main = "plot() Defaults ") ## Outer Margin annotation my_date <- format(Sys.time(), "%m/%d/%y") mtext(script, side = 1, line = .75, cex=0.7, outer = T, adj = 0) mtext(my_date, side = 1, line =.75, cex = 0.7, outer = T, adj = 1) Menu plot() Function Defaults • Potential plot() Default Improvements • Line – symbol style • X & Y axis do not meet @ 0 • Remove box around plot • Adjust Y axis label orientation • Improve X & Y axis labels R Charts

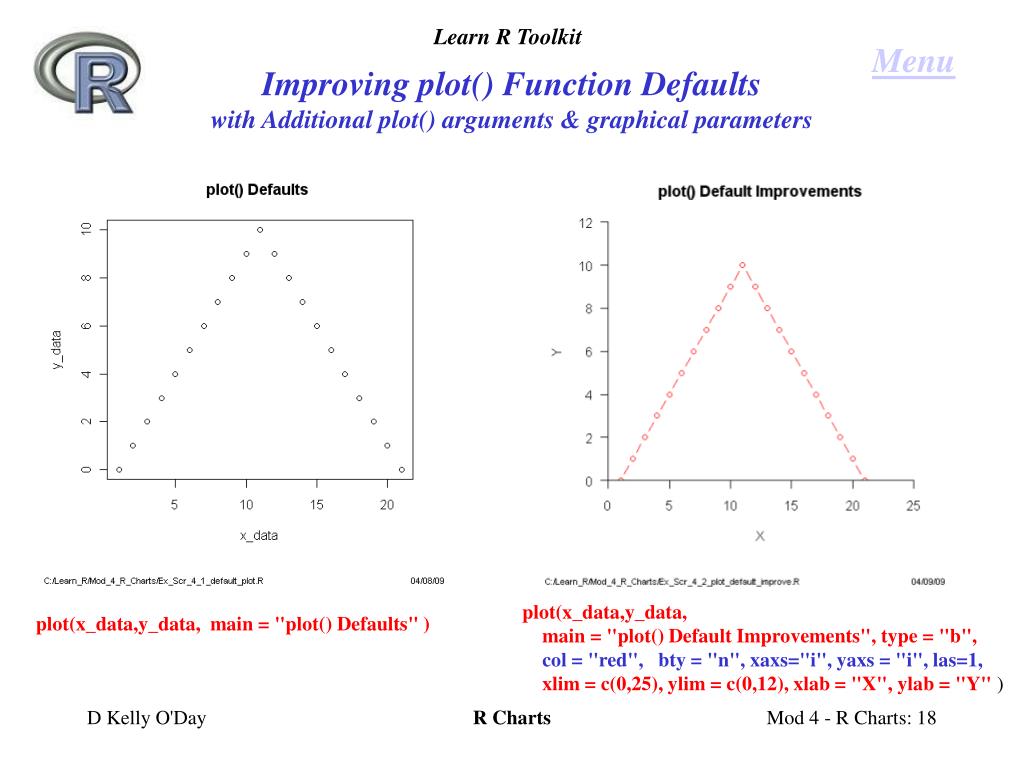

  18. plot(x_data,y_data, main = "plot() Default Improvements", type = "b",col = "red", bty = "n", xaxs="i", yaxs = "i", las=1, xlim = c(0,25), ylim = c(0,12), xlab = "X", ylab = "Y" ) plot(x_data,y_data, main = "plot() Defaults" ) Menu Improving plot() Function Defaultswith Additional plot() arguments & graphical parameters R Charts

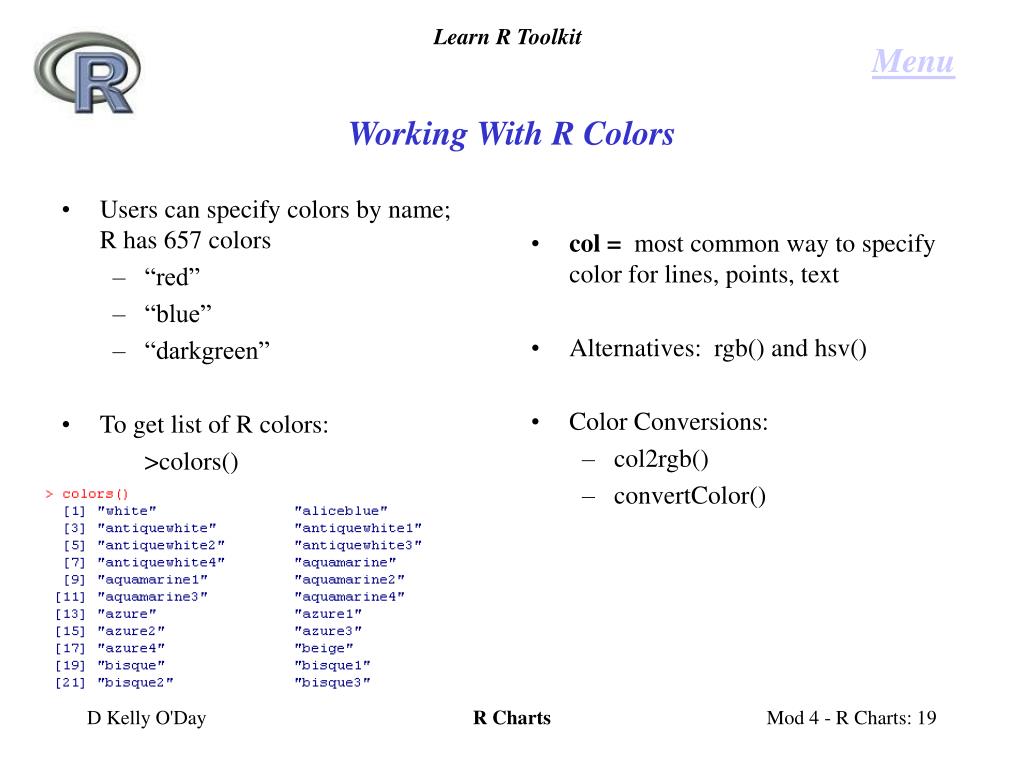

  19. Users can specify colors by name; R has 657 colors “red” “blue” “darkgreen” To get list of R colors: >colors() col = most common way to specify color for lines, points, text Alternatives: rgb() and hsv() Color Conversions: col2rgb() convertColor() Menu Working With R Colors R Charts

  20. Menu plot() type argument type=?, • "p" for points • "b" for both • "o" for both ‘overplotted’ • "l" for lines • "c" for the lines part alone of "b" • "h" for high-density vertical lines • "s" for h/v stair steps • "S" for v/h stair steps • "n" for no plotting R Charts

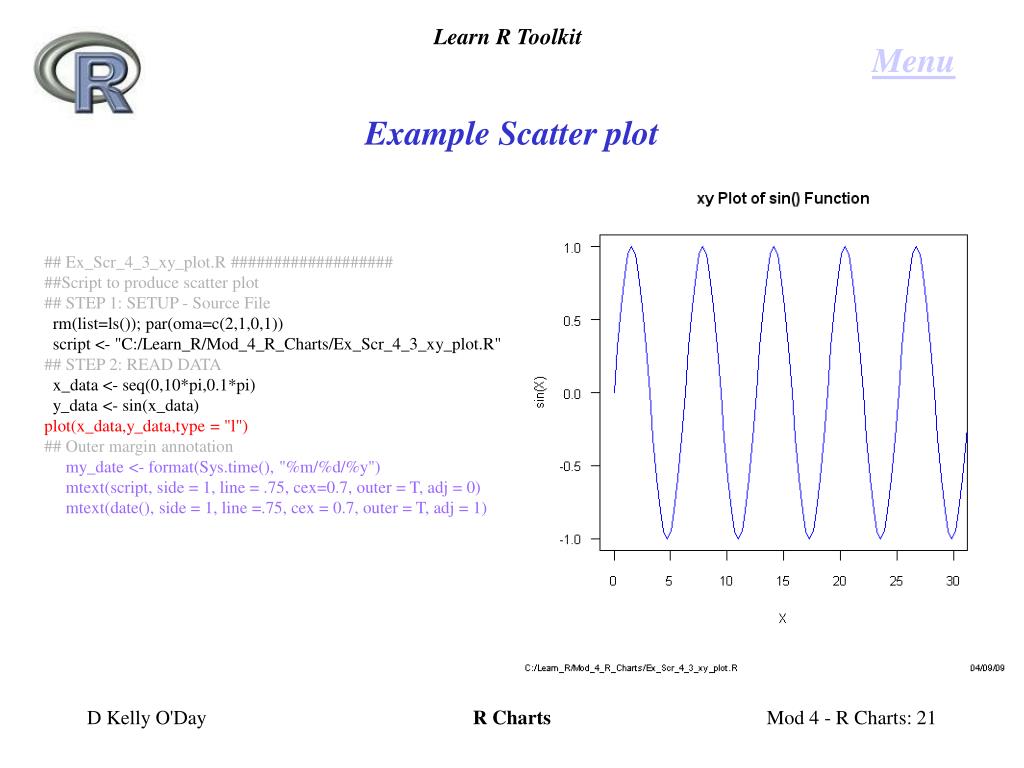

  21. Menu Example Scatter plot ## Ex_Scr_4_3_xy_plot.R ################### ##Script to produce scatter plot ## STEP 1: SETUP - Source File rm(list=ls()); par(oma=c(2,1,0,1)) script <- "C:/Learn_R/Mod_4_R_Charts/Ex_Scr_4_3_xy_plot.R" ## STEP 2: READ DATA x_data <- seq(0,10*pi,0.1*pi) y_data <- sin(x_data) plot(x_data,y_data,type = "l") ## Outer margin annotation my_date <- format(Sys.time(), "%m/%d/%y") mtext(script, side = 1, line = .75, cex=0.7, outer = T, adj = 0) mtext(date(), side = 1, line =.75, cex = 0.7, outer = T, adj = 1) R Charts

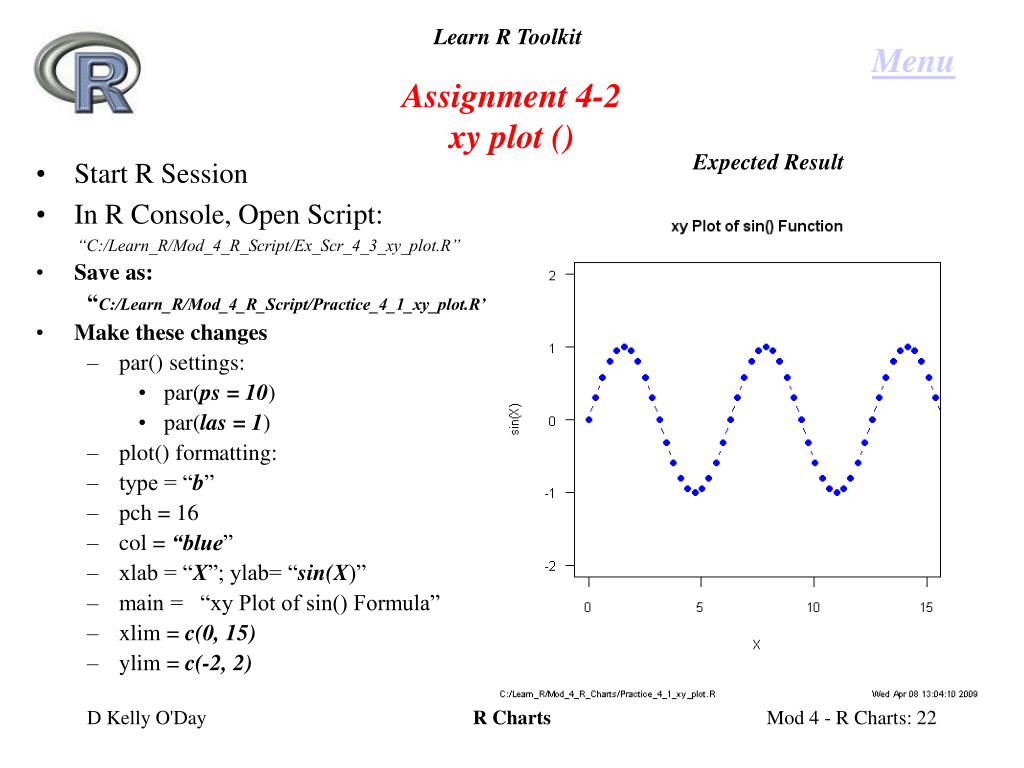

  22. Start R Session In R Console, Open Script: “C:/Learn_R/Mod_4_R_Script/Ex_Scr_4_3_xy_plot.R” Save as: “C:/Learn_R/Mod_4_R_Script/Practice_4_1_xy_plot.R” Make these changes par() settings: par(ps = 10) par(las = 1) plot() formatting: type = “b” pch = 16 col = “blue” xlab = “X”; ylab= “sin(X)” main = “xy Plot of sin() Formula” xlim = c(0, 15) ylim = c(-2, 2) Menu Assignment 4-2xy plot () Expected Result R Charts

  23. Menu Assignment 4-2xy plot () ## Practice_4_1_xy_plot.R ################### ##Script to produce scatter plot ## STEP 1: SETUP - Source File rm(list=ls()); par(oma=c(1.75,1,0,1)); par(las=1); par(ps=10) script <- "C:/Learn_R/Mod_4_R_Charts/Practice_4_1_xy_plot.R" ## STEP 2: READ DATA x_data <- seq(0,10*pi,0.1*pi) y_data <- sin(x_data) plot(x_data,y_data,type = "b",pch = 16, col = "blue", xlab ="X", ylab = "sin(X)", main = "xy Plot of sin() Function", xlim = c(0,15), ylim = c(-2,2)) ## Outer margin annotation my_date <- format(Sys.time(), "%m/%d/%y") mtext(script, side = 1, line = .5, cex=0.7, outer = T, adj = 0) mtext(date(), side = 1, line =.5, cex = 0.7, outer = T, adj = 1) Assignment 4-2 Script R Charts

  24. Menu Assignment 4-3Make Step Chart and Scatter Plot Interactively Edit Your Practice_4_1_xy_plot.R Script to make these charts type = ‘s” type = ‘p” R Charts

  25. Menu Working With Text Click video image to start video Text is Critical for chart interpretation R Charts

  26. Text Additions: main= argument to add chart title in figure margin at top sub= argument to add subtitle below X axis text() – low level function to add text in plot area mtext() – low level function to add text in margin and outer areas Size: par(ps=10) Magnification: cex = 0.85 Color: col=“red” (657 color choices) font= 1-4 (regular, bold, italic, bold italic) family= (“sans”, “serif”, “mono”) Alignment: adj = 0,.5,1(left,center, right) Rotation: srt= Menu Working With Text Text is Critical for chart interpretation R Charts

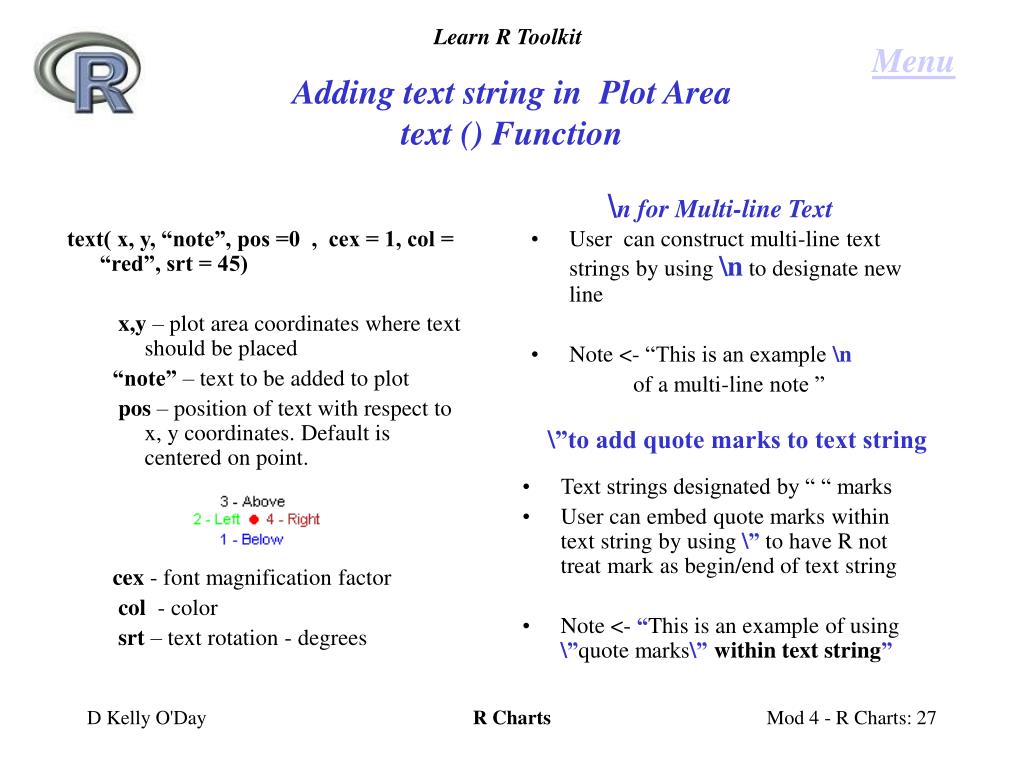

  27. text( x, y, “note”, pos =0 , cex = 1, col = “red”, srt = 45) x,y – plot area coordinates where text should be placed “note” – text to be added to plot pos – position of text with respect to x, y coordinates. Default is centered on point. cex - font magnification factor col - color srt – text rotation - degrees User can construct multi-line text strings by using \n to designate new line Note <- “This is an example \n of a multi-line note ” Menu Adding text string in Plot Areatext () Function \n for Multi-line Text \”to add quote marks to text string • Text strings designated by “ “ marks • User can embed quote marks within text string by using \” to have R not treat mark as begin/end of text string • Note <- “This is an example of using \”quote marks\” within text string” R Charts

  28. Menu Simple Plot – No Annotation #################### Example R Script: ############### ## Ex_Scr_4_4_simple_plot.R ######################## ##Script to read data file, simple plot ## STEP 1: SETUP - Source File rm(list=ls()); oldpar<- par(no.readonly=T); ;par(las=1) link <- "C:\\Learn_R\\Mod_4_R_Charts\\Data_4_1_GISS_1980_By_year.txt.txt" ## STEP 2: READ DATA my_data <- read.table(link, skip =0, sep = ",", dec=".", row.names = NULL , header = F, colClasses = c("numeric","numeric"), comment.char = "#", na.strings = c( "","*", "-",-99.9, -999.9 ), col.names = c( "yr", "anom") ) attach(my_data) ## STEP 3: MANIPULATE DATA ## STEP 4: PRODUCE PLOT - REPORT plot(yr, anom, type = "l", col = "red") ## Outer margin annotation my_date <- format(Sys.time(), "%m/%d/%y") mtext(script, side = 1, line = .5, cex=0.7, outer = T, adj = 0) mtext(my_date, side = 1, line =.5, cex = 0.7, outer = T, adj = 1) ## STEP 5: CLOSE par(oldpar) detach(my_data) R Charts

  29. Menu Simple Plot –with Annotation #################### Example R Script: ############### ## Ex_Scr_4_5_simple_plot_w_annotation.R ######################## ##Script to read data file, simple plot ## STEP 1: SETUP - Source File rm(list=ls()) script<- "C:\\Learn_R\\Mod_4_R_Charts\\Ex_Scr_4_5_simple_plot_w_annotation.R" oldpar<- par(no.readonly=T) par(oma=c(2,2,1,2)); par(las=1); par(mar=c(5,4,2,1)) link <- "C:\\Learn_R\\Mod_4_R_Charts\\Data_4_1_GISS_1980_By_year.txt.txt" ## STEP 2: READ DATA my_data <- read.table(link, skip =0, sep = ",", dec=".", row.names = NULL , header = F, colClasses = c("numeric","numeric"), comment.char = "#", na.strings = c( "","*", "-",-99.9, -999.9 ), col.names = c( "yr", "anom") ) attach(my_data) ## STEP 3: MANIPULATE DATA m_title <- "GISS Temperature Anomaly - C (1980-2008)" sub_title <- "Source: http://data.giss.nasa.gov/gistemp/" note <- "Baseline 1951-1980" ## STEP 4: PRODUCE PLOT - REPORT plot(yr, anom, type = "l", col = "red", main = m_title, sub = sub_title, ylab = " Temperature Anomaly - C", xlab = "", cex.axis = 0.75, cex.lab=0.8, cex.main = .8, cex.sub = 0.6) text(1985,0.65, note, cex=0.6 ) my_date <- format(Sys.time(),"%m/%d/%y") mtext(script, side=1, line = .5, outer = T, adj = 0, cex = 0.65) mtext(my_date, side = 1, line = 0.5, outer = T, adj = 1, cex = 0.7) ## STEP 5: CLOSE par(oldpar); detach(my_data) R Charts

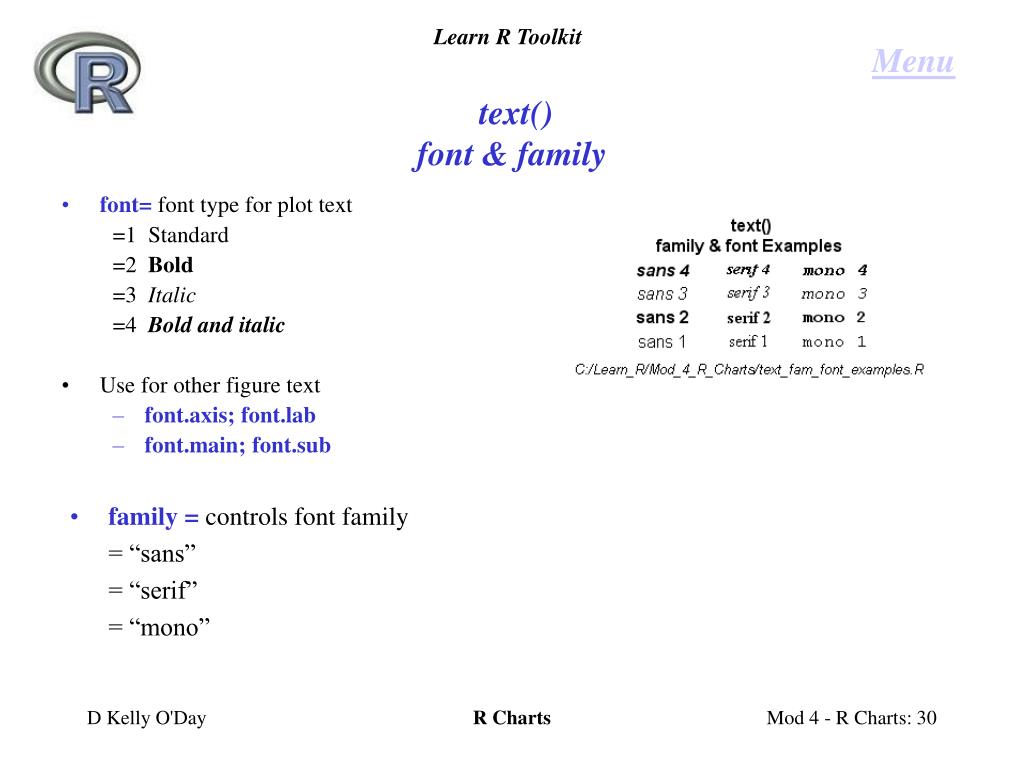

  30. font= font type for plot text =1 Standard =2 Bold =3 Italic =4 Bold and italic Use for other figure text font.axis; font.lab font.main; font.sub family = controls font family = “sans” = “serif” = “mono” Menu text()font & family R Charts

  31. paste(arg1, arg2, arg3, sep= “ ”) arg1 – text string or variable to be concatenated with other arguments sep = “ ” - separator to add between arguments. Space good for text. Variable data and text strings can be concatenated into a single string that can then be added to plot with text() Example: # build text string with paste() my_date <- paste(“today is “, date()) # add text string to plot text(x, y, my_date, col = “red”) Menu paste() Functionconcatenates arguments into a single string R Charts

  32. mtext( “note”, side = , line = , outer = F, adj = 0, cex = 1, col = “red”) “note” – text to be added to margin area side – side of plot to place text(1= bottom, 2= left, 3= top, 4=right) line – line of margin to place text, starting at 0, counting outwards outer – use outer area (T or F) adj – text alignment, 0 = left, 0.5= center, 1 = right cex - font adjustment factor col - color Axis Numbering Convention 3 Axis Sides 2 4 1 Menu Adding Text within Margin Area R Charts

  33. Menu How I’ve Been Adding Margin Text to Each Mod 4 Plot • 3 Steps to Create Margin Annotation: • Set Outer Margin Areas • par(oma=c(2,2,0,1)) • Establish script name vector • script<- "C:\\Learn_R\\Mod_4_R_Charts\\Ex__plot_.R" • Develop Margin Text w/date & script name • ## Outer margin annotation • my_date <- format(Sys.time(), "%m/%d/%y") • mtext(script, side = 1, line = .5, cex=0.7, outer = T, adj = 0) • mtext(my_date, side = 1, line =.5, cex = 0.7, outer = T, adj = 1) R Charts

  34. Start R Session In R Console, Open Script: “C:/Learn_R/Mod_4_R_Script/Ex_Scr_4_3_simple_plot.R” Save as: “C:/Learn_R/Mod_4_R_Script/Practice_4_2_my_simple.R” You’ve seen me do it Make the Full Annotation on your own Menu Assignment 4-4Annotate Simple Chart Yourself R Charts

  35. Menu Adding Lines in Plot Area Click video image to start video R Charts

  36. Menu Adding Lines in Plot Area #################### Example R Script: ############### ## Ex_Scr_4_6_add_lines_to_plot.R ######################## ##Script to read data file, simple plot no annotation ## STEP 1: SETUP - Source File rm(list=ls()) script<- "C:/Learn_R/Mod_4_R_Charts/Ex_Scr_4_6_add_lines_to_plot.R" oldpar<- par(no.readonly=T) ; par(las=1) par(ps=10); par(oma=c(2,2,1,2)) ## STEP 2: READ DATA x <- 0:100; y <- x^2 x_pts <- c(15, 35, 35, 15, 15); y_pts <- c(8300, 8300, 6500, 6500,8300) # STEP 3: MANIPULATE DATA # STEP 4: PRODUCE CHART - REPORT plot(x,y, type = "n“ , main="Add Lines, Points, Arrows Examples") points(x, y,col = "black", lty=1, type = "l") grid(col="lightgrey", lty=1) abline(h=2500, col="red") abline(v=50, col = "blue") arrows(65,8400, 85,8400, code=3, col="orange", length = 0.1) lines(x_pts, y_pts, lty=1, col = "green") points(x_pts,y_pts, type = "p",col ="red",pch=19) my_date <- format(Sys.time(),"%m/%d/%y") mtext(script, side=1, line = .5, outer = T, adj = 0, cex = 0.65) mtext(my_date, side = 1, line = 0.5, outer = T, adj = 1, cex = 0.7) ## STEP 5: CLOSE par(oldpar) detach(my_data) R Charts

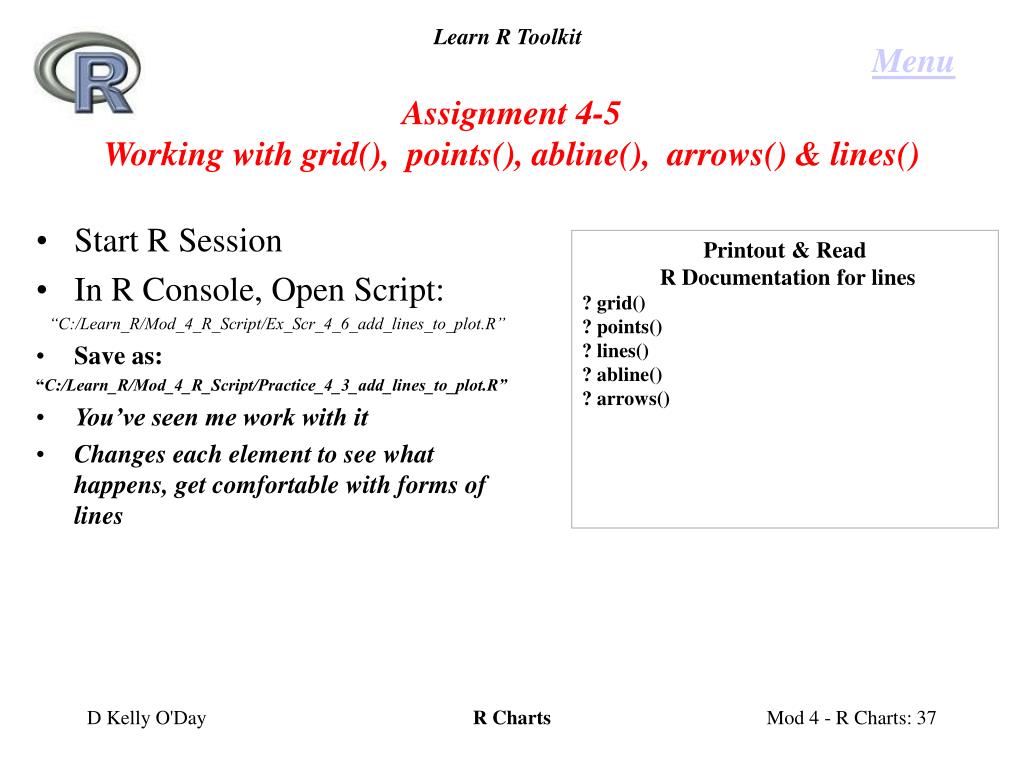

  37. Start R Session In R Console, Open Script: “C:/Learn_R/Mod_4_R_Script/Ex_Scr_4_6_add_lines_to_plot.R” Save as: “C:/Learn_R/Mod_4_R_Script/Practice_4_3_add_lines_to_plot.R” You’ve seen me work with it Changes each element to see what happens, get comfortable with forms of lines Menu Assignment 4-5Working with grid(), points(), abline(), arrows() & lines() Printout & Read R Documentation for lines ? grid() ? points() ? lines() ? abline() ? arrows() R Charts

  38. Menu Extra Scripts Click video image to start video R Charts

  39. Plot Box & Axis Options Box type bty=“n” bty=“o” Axes axes = T or F Axis Offset: xaxs= “i” or “r” yaxs = “i” or “r” Axis 3 & 4 tick marks Axis(n, ..tick=T) Menu Plot Box and Axis Styles R Charts
