  1. Checker 200 Series Training Presentation

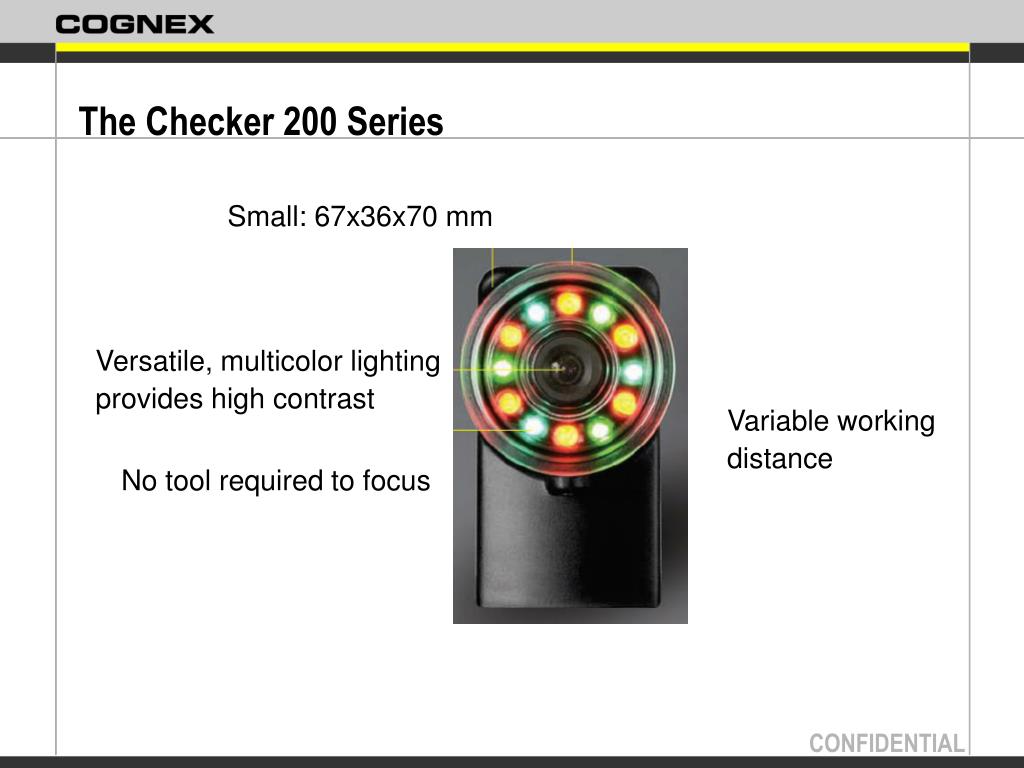

  2. The Checker 200 Series Small: 67x36x70 mm Versatile, multicolor lighting provides high contrast Variable working distance No tool required to focus

  3. The Checker 200 Series • 24 VDC • USB 2.0 (1.1 Compatible) • Industrial I/O • Opto-Isolated, protected from short circuit, - and reverse polarity • Can be wired either NPN or PNP • Encoder based part tracking • Encoder input (Differential and Open Collector Quadrature Encoder) • Supports up to 8 outputs (with optional IO Box) • IP67, Quick Disconnect M12 Connectors

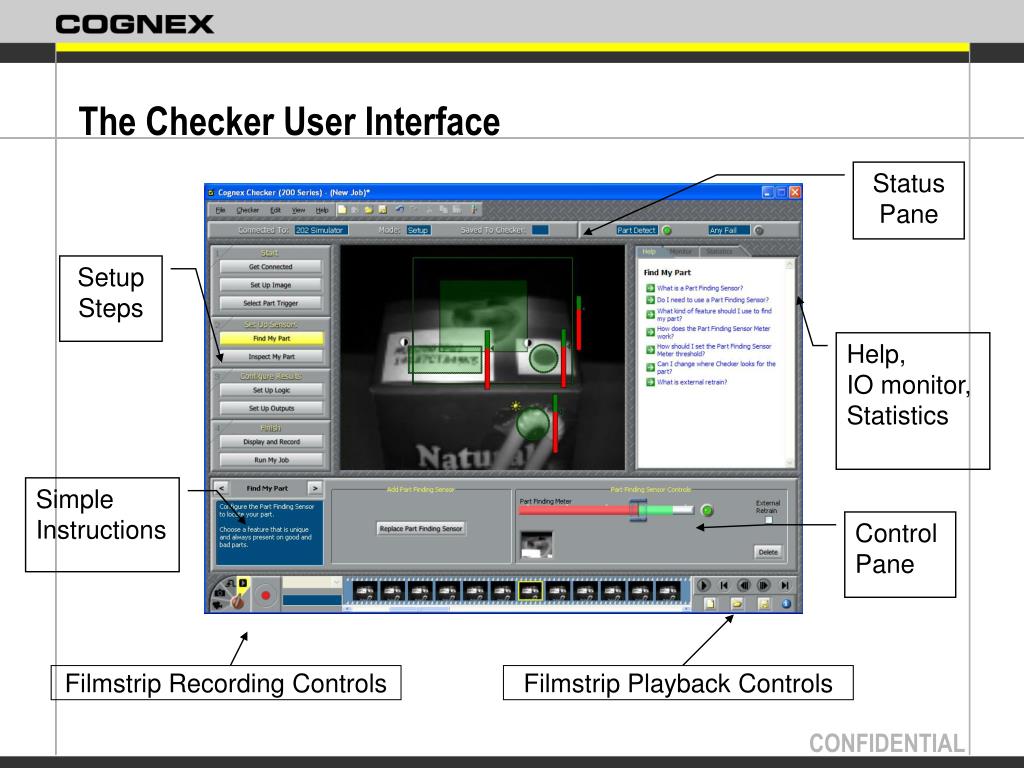

  4. Filmstrip Recording Controls Filmstrip Playback Controls The Checker User Interface Status Pane Setup Steps Help, IO monitor, Statistics Simple Instructions Control Pane

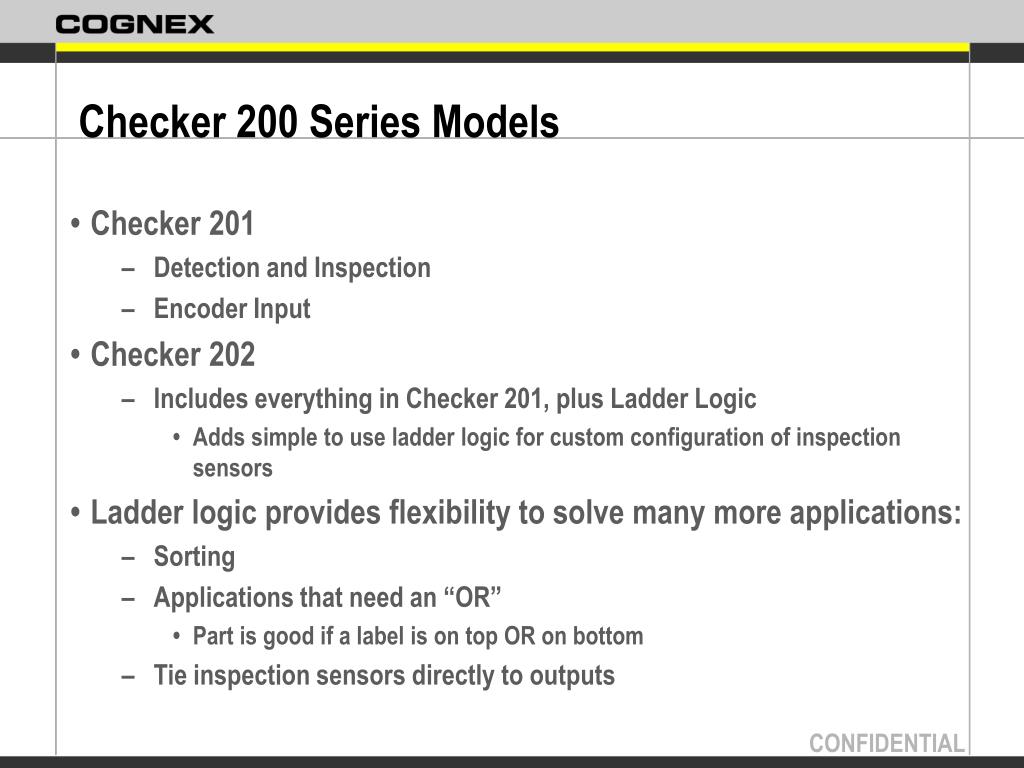

  5. Checker 200 Series Models • Checker 201 • Detection and Inspection • Encoder Input • Checker 202 • Includes everything in Checker 201, plus Ladder Logic • Adds simple to use ladder logic for custom configuration of inspection sensors • Ladder logic provides flexibility to solve many more applications: • Sorting • Applications that need an “OR” • Part is good if a label is on top OR on bottom • Tie inspection sensors directly to outputs

  6. New Features in the Checker 200 Series Hardware: • Smaller • Red-Green-Cyan lighting • No screwdriver needed to focus • Quick Disconnect cables • USB 2.0 (1.1 compatible) • Up to 8 outputs (with optional I/O Box) • Additional user defined input (with optional I/O Box) • Both Checker 201 and 202 support Encoder inputs

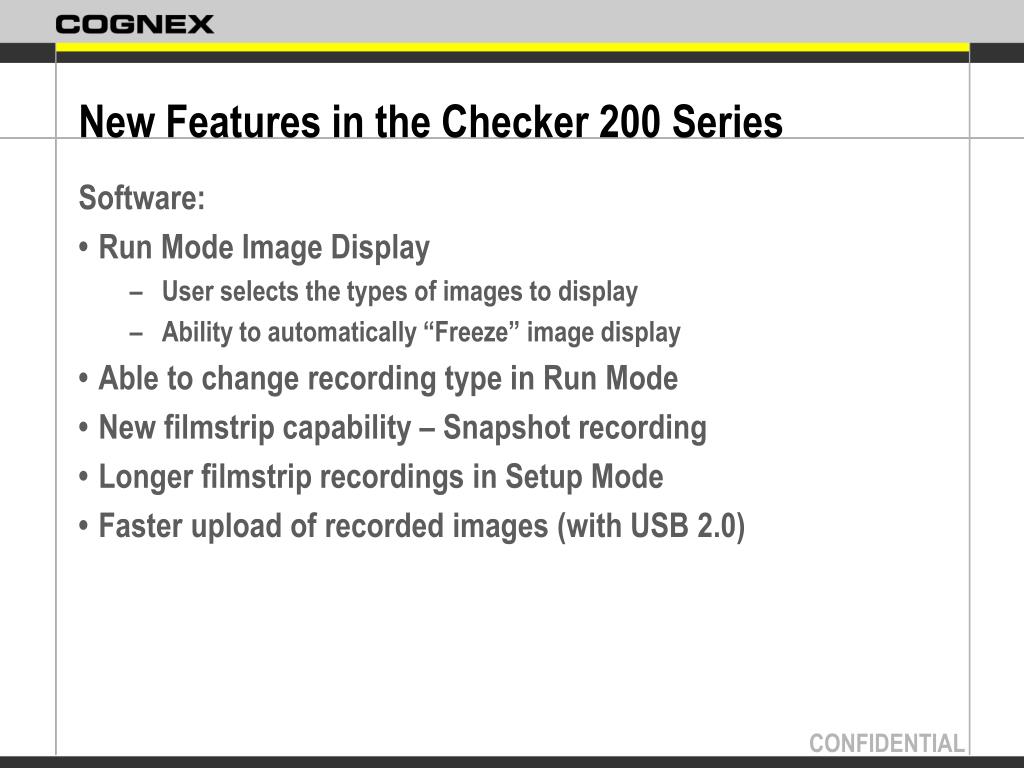

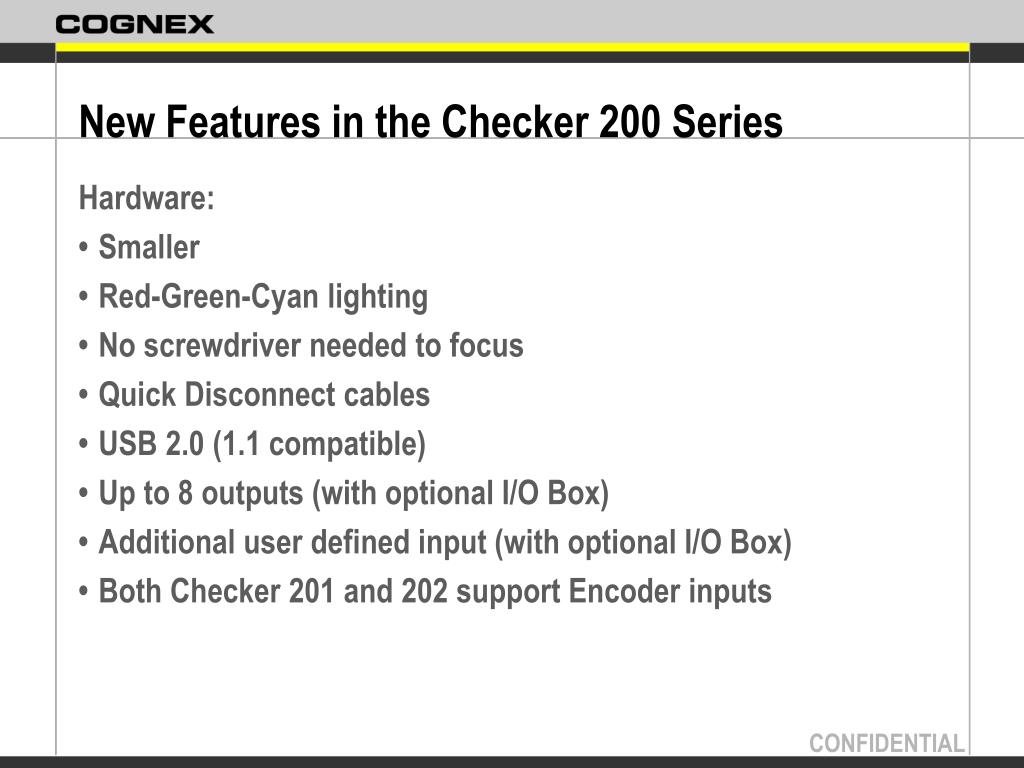

  7. New Features in the Checker 200 Series Software: • Run Mode Image Display • User selects the types of images to display • Ability to automatically “Freeze” image display • Able to change recording type in Run Mode • New filmstrip capability – Snapshot recording • Longer filmstrip recordings in Setup Mode • Faster upload of recorded images (with USB 2.0)

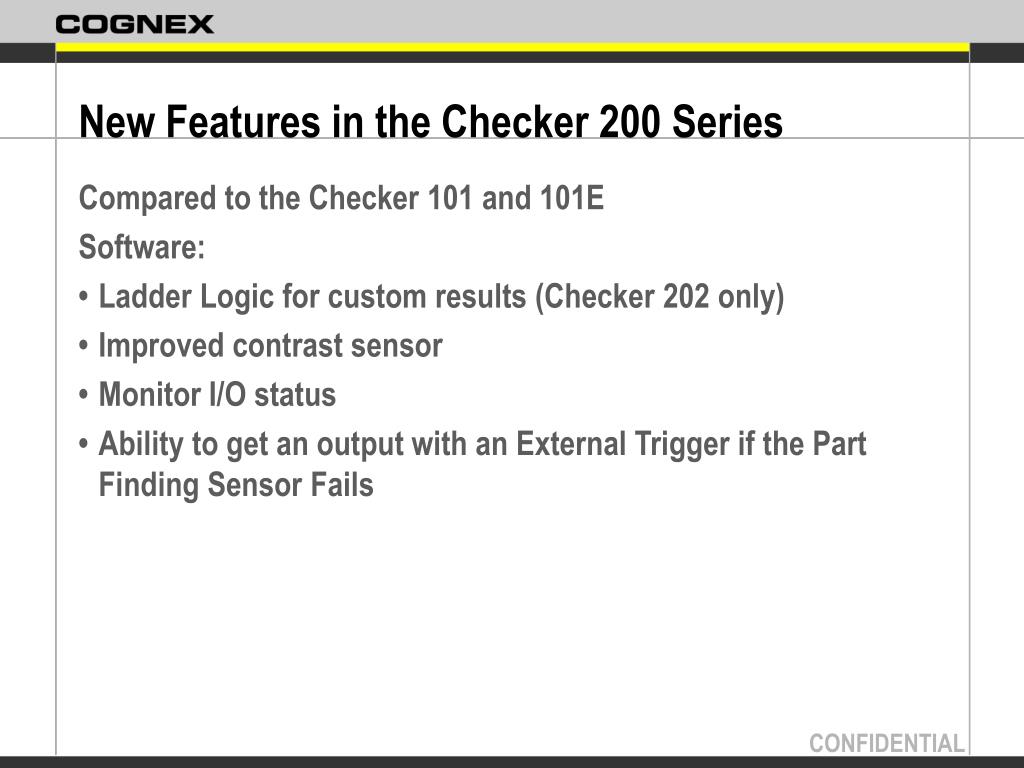

  8. New Features in the Checker 200 Series Compared to the Checker 101 and 101E Software: • Ladder Logic for custom results (Checker 202 only) • Improved contrast sensor • Monitor I/O status • Ability to get an output with an External Trigger if the Part Finding Sensor Fails

  9. Run Time Monitoring • You can see what Checker sees while it is inspecting Choose which images to display Choose which images will make Checker’s display freeze

  10. Run Time Monitoring • Statistics tab shows runtime pass/fail counts • Monitor tab shows status of each I/O point

  11. Run Time Monitoring • Monitor the status of each user-defined output

  12. New Reference for Output Timing • Checker 101 used the center of the image as the reference • Checker 200 Series uses the center of the Region of Interest Checker 200 Series Reference Checker 101 Reference

  13. Custom Ladder Logic Results Good Part Example: Bad Part Example: “Code Fail” Coil is true

  14. Checker 200 Series Checker 201 • CKR-201-001 with Flying Lead Cable • CKR-201-002 with IO Box Cable Checker 202 • CKR-202-001 with Flying Lead Cable • CKR-202-002 with IO Box Cable Included in Product Kit: 5.8mm lens Checker User Interface CD Quick Start Guide Standard USB Cable Mounting Screws USB Connector Cover Focus Lock Allen Wrench Extra Lens O-Ring

  15. Checker Accessories • Adjustable industrial bracket CKR- 200-BKT • Adjustable over a wide range, with lock down • ¼ -20, M6 and Through-hole mounting

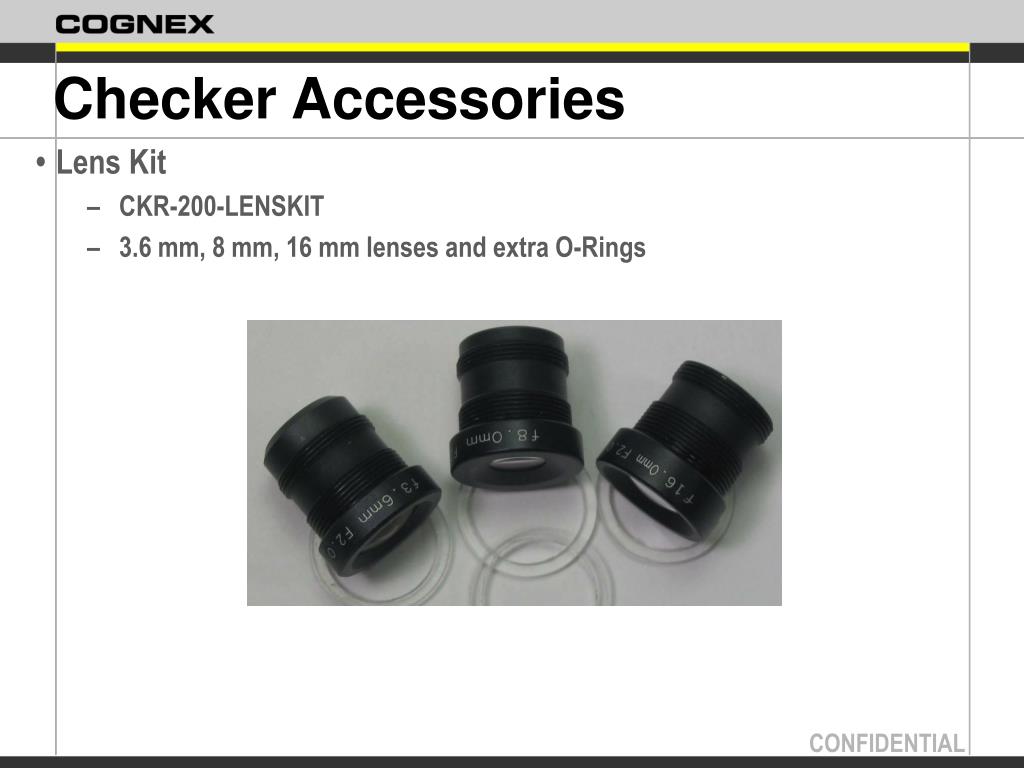

  16. Checker Accessories • Lens Kit • CKR-200-LENSKIT • 3.6 mm, 8 mm, 16 mm lenses and extra O-Rings

  17. Checker Accessories • I/O Module • CKR-200-IOBOX • Adds 7 inputs • 5 Inputs for Job Change Capability (up to 16 jobs) • 1 External Pattern Retrain Input • 1 user defined input • Adds 6 additional outputs

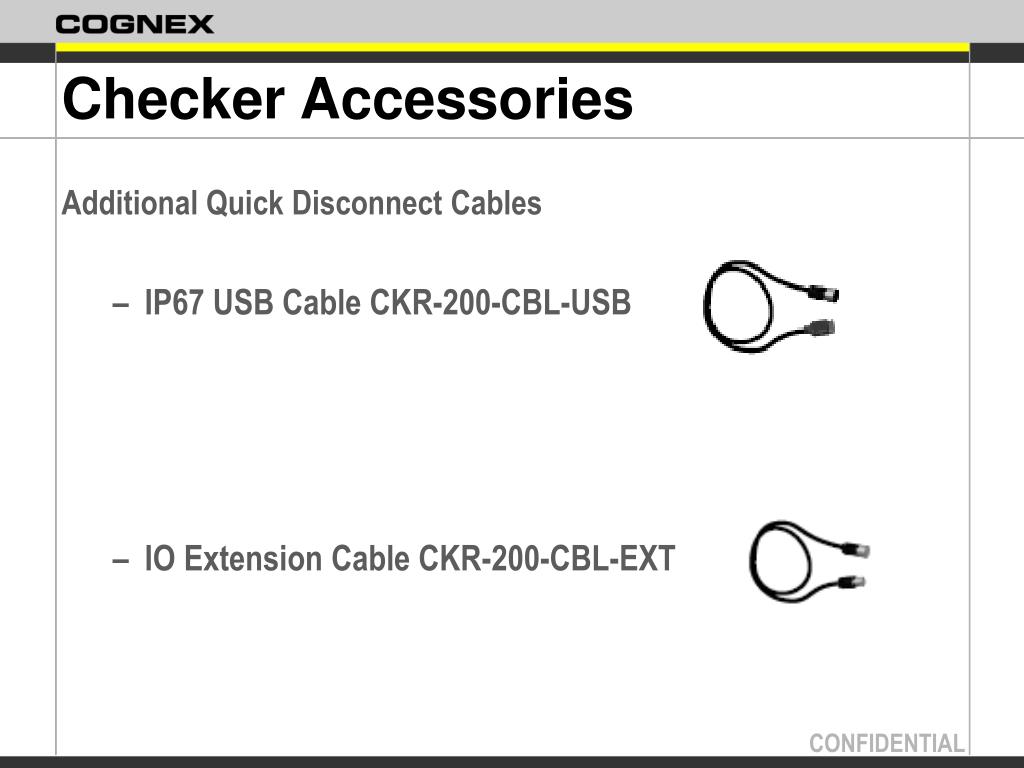

  18. Checker Accessories Additional Quick Disconnect Cables • IP67 USB Cable CKR-200-CBL-USB • IO Extension Cable CKR-200-CBL-EXT
