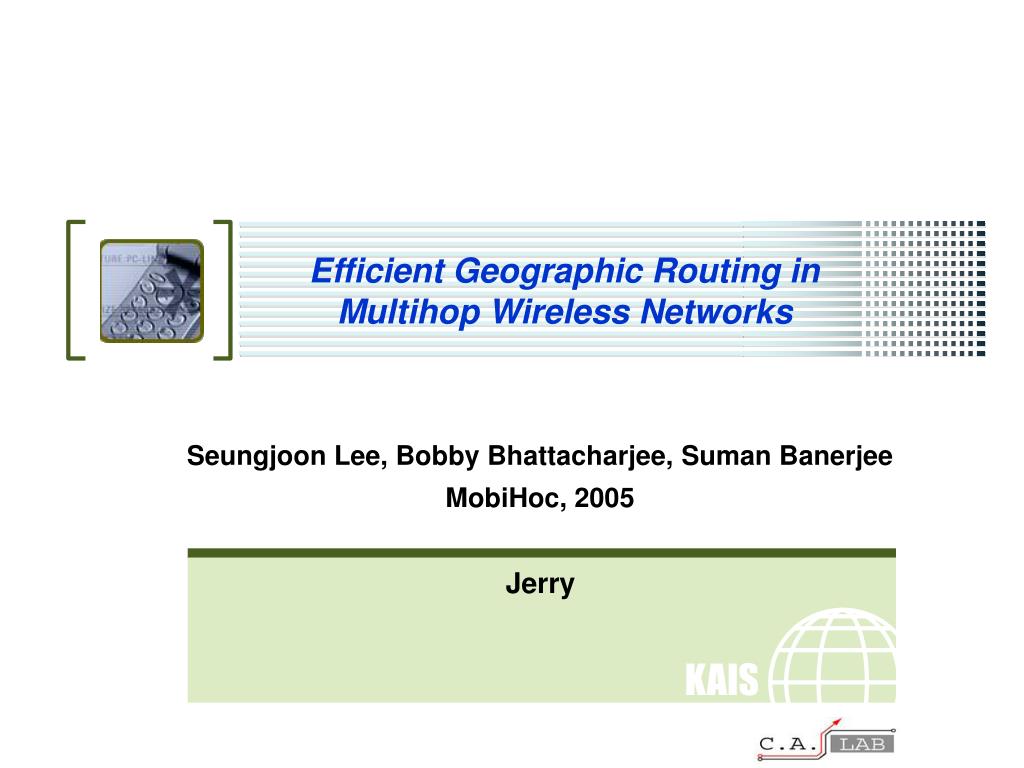

  1. Efficient Geographic Routing in Multihop Wireless Networks Seungjoon Lee, Bobby Bhattacharjee, Suman Banerjee MobiHoc, 2005 Jerry

  2. Contents • Introduction • Overview of NADV • NADV • New link metric for geographic routing • Link cost types and estimation • Simulation and results • Conclusion Efficient geographic routing in multihop wireless networks

  3. Introduction • Geographic routing • Location information for packet delivery • Next hop node selection based on neighborhood and destination information • No route establishment • Popular strategy for geographic routing • To the neighbor geographically closest to the destination • Route around ‘voids’ problem • No neighbor closer to the destination than the current node d v w x y z Efficient geographic routing in multihop wireless networks

  4. Overview of NADV • NADV (normalized advance) • New link metric for geographic routing • Optimal trade-off between ‘proximity’ and ‘link cost’ • Adaptive routing • General scheme for efficient routing • Support a variety of different cost types • Different routing strategies depending on system objectives, message priority or applications Efficient geographic routing in multihop wireless networks

  5. New link metric for geographic routing(1/3) • ADV (advance) : background • Current node S greedily select the neighbor closest to destination T • Minimization the hop count between source and destination • Advance (ADV) of n • Amount of decrease in distance by a neighbor n • Demerit • No consideration of link cost • Use of poor quality links, unnecessarily high communication cost D(x) : distance from node x to T Large advance Good link quality vs Efficient geographic routing in multihop wireless networks

  6. New link metric for geographic routing(2/3) • NADV (normalized advance) • Normalized advance of neighbor n -> Expected advance per transmission Psucc(n) probability of success in transmitting data to n Efficient geographic routing in multihop wireless networks

  7. New link metric for geographic routing(3/3) • Optimality of NADV in an idealized environment • Link costs along the found path by NADV is minimum • Assumptions • We can find a node at an arbitrary point • Link cost is an unknown increasing convex function of distance • Process • DIST : distance from source S and destination T (relatively large) • Optimal path : straight line between S and T • Sum of link costs : minimized when all links have the same distance • Optimal interval T S Efficient geographic routing in multihop wireless networks

  8. Link cost types and estimation (1/7) • Wireless integration sublayer extension (WISE) • Three types of link cost • Packet error rate • Link delay • Energy consumption • For efficient link cost estimation • Additional control messages available -> WISE extract relevant link cost info. • Otherwise -> WISE exploits MAC-specific info. Efficient geographic routing in multihop wireless networks

  9. Link cost types and estimation (2/7) • Packet error rate (PER) • Four PER estimation methods for • Using probe messages • Using signal-to-noise ratio • Neighborhood monitoring • Self monitoring Efficient geographic routing in multihop wireless networks

  10. Link cost types and estimation (3/7) • PER estimation 1: Using probe messages • Link error probability • Probe message • Reception ratio from periodic message exchange • Adjusting PER depending on the data packet length • l-bit probe messages • Infer bit error rate from observed PER(l) • L-bit data frame [ Observed and estimated PERs for five experiments with varying distance ] Efficient geographic routing in multihop wireless networks

  11. Link cost types and estimation (4/7) • PER estimation 2: Using signal-to noise ratio (SNR) • Bit error rate – Assuming white gaussian noise and BPSK modulation • PER estimation 3: Neighborhood monitoring • Passive monitoring to infer link PERs • Node A monitor frames sent by neighbors • Using the MAC sequence number, A count frames missed from neighbor B • A infer PER of link from B to A • A needs to inform B of the PER estimation Efficient geographic routing in multihop wireless networks

  12. Link cost types and estimation (5/7) • PER estimation 4: Self monitoring • Condition • Additional control messages : not possible • Modification of beacon message format : not possible • Technique • Node transmits a data frame to neighbor n • Mac-layer informs the WISE whether transmission was successful or not F=1 (fail), F=0 (success) • PER of wireless link to neighbor n Efficient geographic routing in multihop wireless networks

  13. Link cost types and estimation (6/7) • Delay • Two types of link delay • Medium time • Time spent in sending a packet over the link • WISE can easily retrieve the current value of transmission rate from the MAC layer and calculate the necessary medium time to the neighbor • Total delay • Time from the packet insertion into the interface queue until the notification of successful transmission • Queuing delay, backoff time out, contention period, retransmissions due to errors or collisions Efficient geographic routing in multihop wireless networks

  14. Link cost types and estimation (7/7) • Power consumption • Assumptions • Control mechanism for transmission power adjustment to save battery • Appropriate transmission power level Ptx • WISE retrieve Ptx and calculate actual system power consumption Cpower Efficient geographic routing in multihop wireless networks

  15. Simulation model (1/2) • Environment • Ns-2 simulation • Node placement • Uniformly at random on a 1000m by 1000m square • Static source at (50, 500), destination at (50+D, 500) • Geographic routing : simulation code for GPSR • 802.11 auto rate fallback ARF (1M, 2M, 5.5M, 11Mbps) • IEEE 802.11b standard for the underlying MAC layer protocol • Error model • Random packet error model • Performance of NADV in the presence of randomness in packet errors • Error models obey SNR equations • Rivals: Blacklisting • Fixed threshold • Node excludes neighbors with low-quality link based on the threshold Efficient geographic routing in multihop wireless networks

  16. d : distance, n: path loss exponent (2 - 6) Smin: minimum required signal strength at receiver In simulation n=4, Simulation model (2/2) • Power consumption model • Transmission power for successful reception at a receiver • Transmission power • Energy each packet forwarding consumes • C is hardware specific variable Efficient geographic routing in multihop wireless networks

  17. Simulation results (1/5) • Experiments with perfect estimation of link errors • NADV vs ADV • Data transmission overhead of ADV increases abruptly • NADV vs blacklisting • Blacklisting : different threshold values lead to best results • NADV : adapt to the changing network • Number of retransmission • Network bandwidth, resources • Packet delay • GPSR retransmit option on • 802.11 ARF off Efficient geographic routing in multihop wireless networks

  18. Simulation results (2/5) • Experiments using proposed PER estimation techniques • Changing noise power • Use SNR induced error distribution • Start with high noise • After 300 sec, low noise • After 700 sec, medium noise • ( ) : Packet delivery ratio • GPSR retransmission off • 802.11 ARF off Efficient geographic routing in multihop wireless networks

  19. Simulation results (3/5) • Simulation under mobile environments • 100 nodes, source and sink are fixed nodes, others are mobile • Moving rate 1m/s – 10m/s, pause time ranges from 1000s – 0s Efficient geographic routing in multihop wireless networks

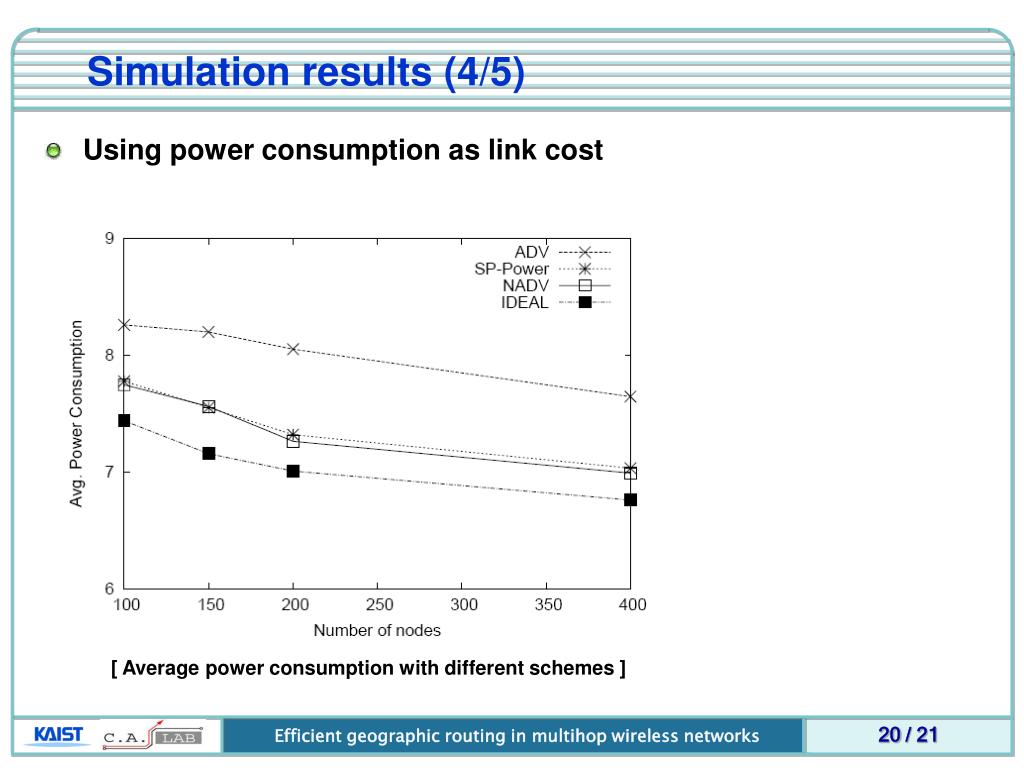

  20. Simulation results (4/5) • Using power consumption as link cost [ Average power consumption with different schemes ] Efficient geographic routing in multihop wireless networks

  21. Simulation results (5/5) • Experiments with generic cost • Link cost • Experiment scenario • Source and destination are 900meters apart • Source starts to send data packets after 10 seconds • At 30 seconds, environment of some part of the network changes • We randomly select 50% of links and increase their link costs by 50% r : uniformly distributed random number d : distance between two nodes R : maximum transmission range [ Average path quality of each scheme before and after the link cost change ] Efficient geographic routing in multihop wireless networks

  22. Conclusion • NADV • New link metric for geographic routing in multihop wireless networks • Adaptive, general and useful for various link cost types • Combination of NADV and cost estimation techniques outperforms the current geographic routing schemes • NADV finds paths whose cost is close to the optimum Efficient geographic routing in multihop wireless networks
