  1. Overview of operational procedures for the GTS Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 1

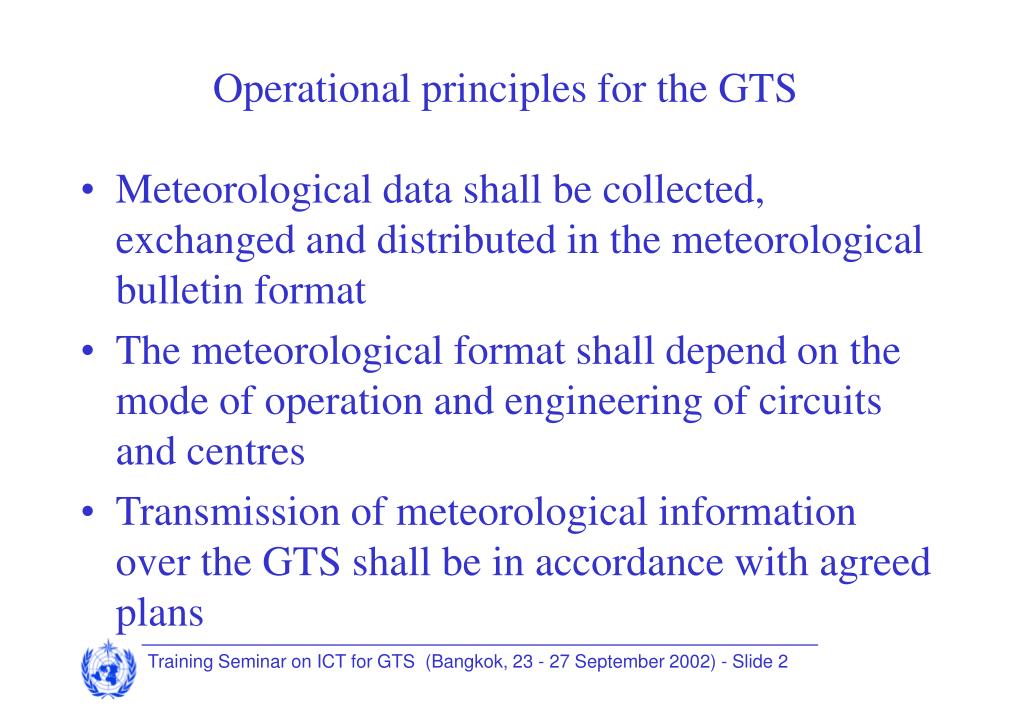

  2. Operational principles for the GTS • Meteorological data shall be collected, exchanged and distributed in the meteorological bulletin format • The meteorological format shall depend on the mode of operation and engineering of circuits and centres • Transmission of meteorological information over the GTS shall be in accordance with agreed plans Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 2

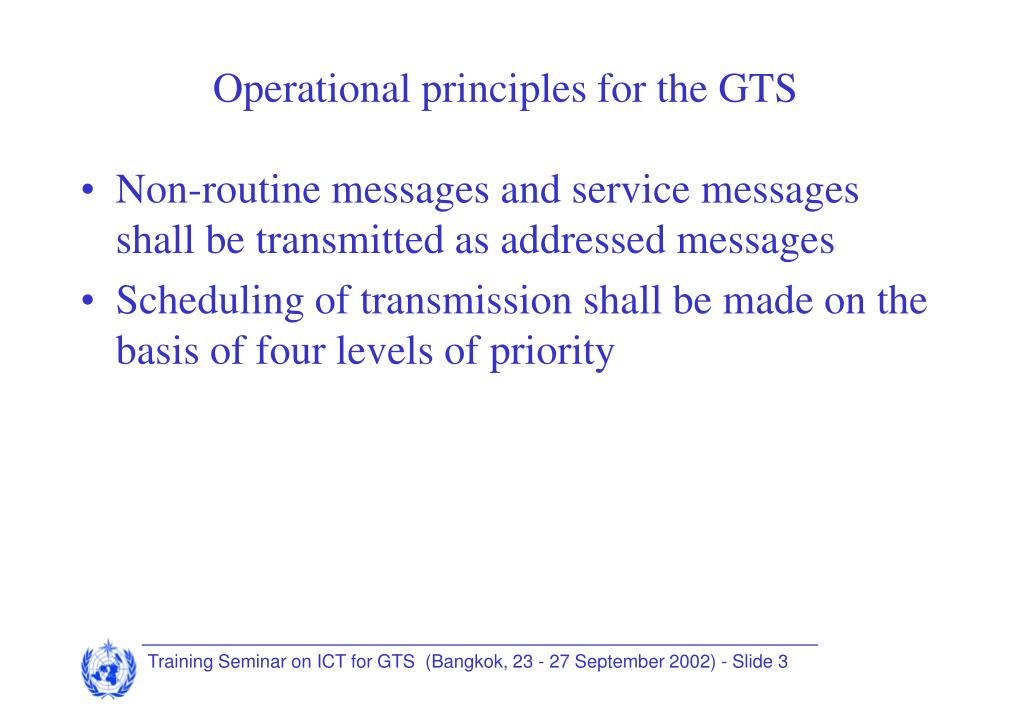

  3. Operational principles for the GTS • Non-routine messages and service messages shall be transmitted as addressed messages • Scheduling of transmission shall be made on the basis of four levels of priority Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 3

  4. Operational principles for the GTS • Non-routine messages and service messages shall be transmitted as addressed messages • Scheduling of transmission shall be made on the basis of four levels of priority Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 4

  5. Format of meteorological messages A starting line An abbreviated heading A text Meteorological Bulletin Meteorological Message End-of-message signals Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 5

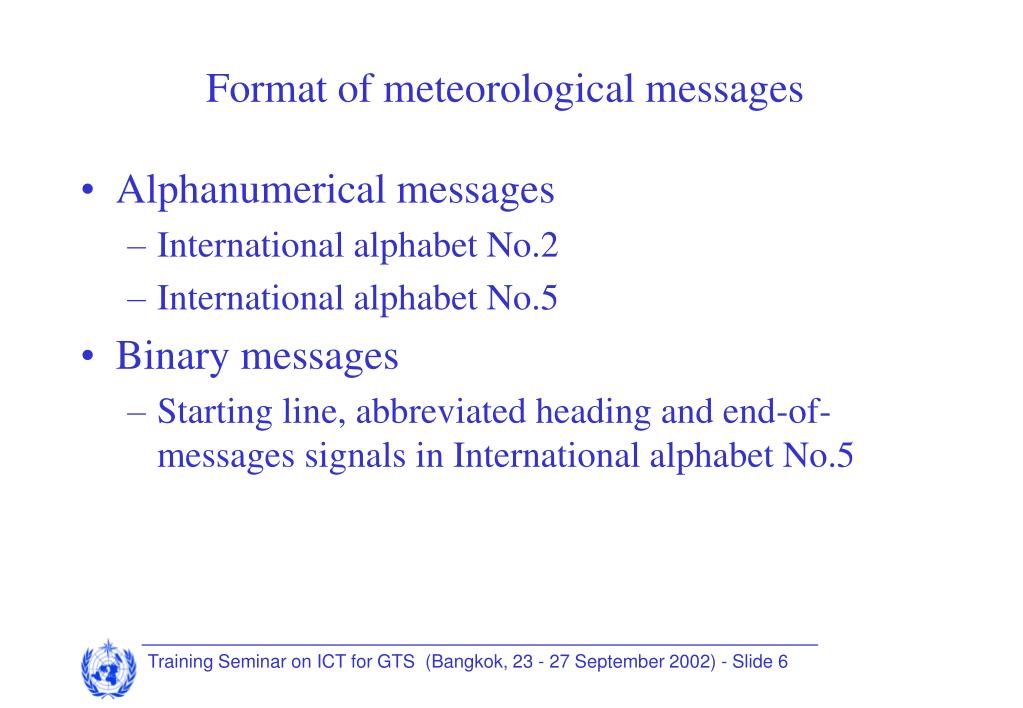

  6. Format of meteorological messages • Alphanumerical messages • International alphabet No.2 • International alphabet No.5 • Binary messages • Starting line, abbreviated heading and end-of-messages signals in International alphabet No.5 Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 6

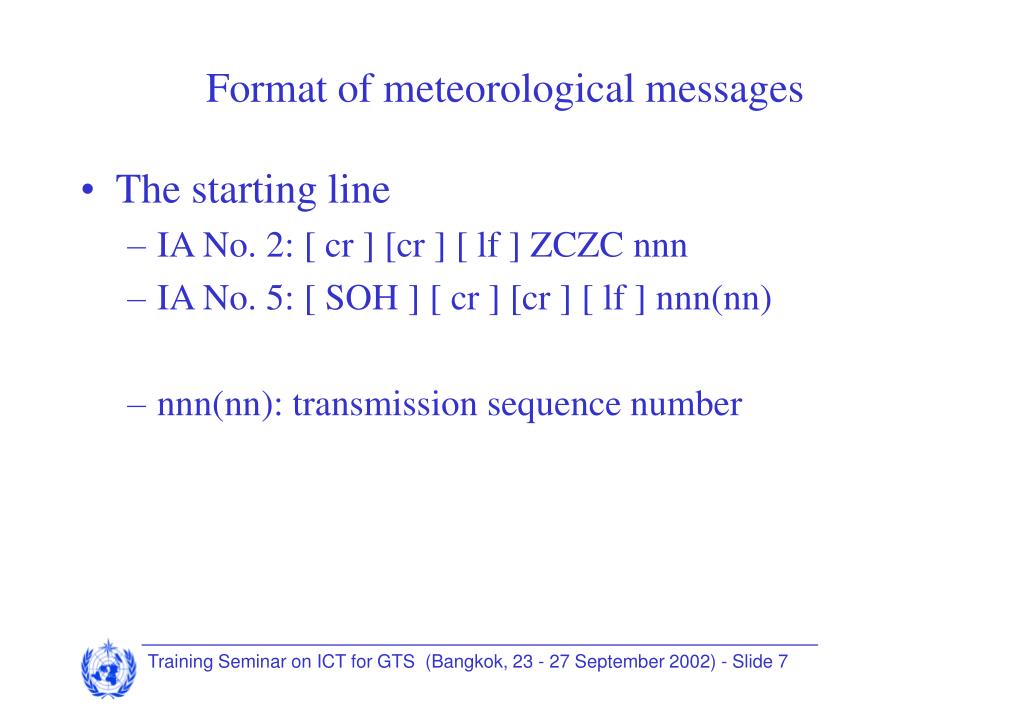

  7. Format of meteorological messages • The starting line • IA No. 2: [ cr ] [cr ] [ lf ] ZCZC nnn • IA No. 5: [ SOH ] [ cr ] [cr ] [ lf ] nnn(nn) • nnn(nn): transmission sequence number Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 7

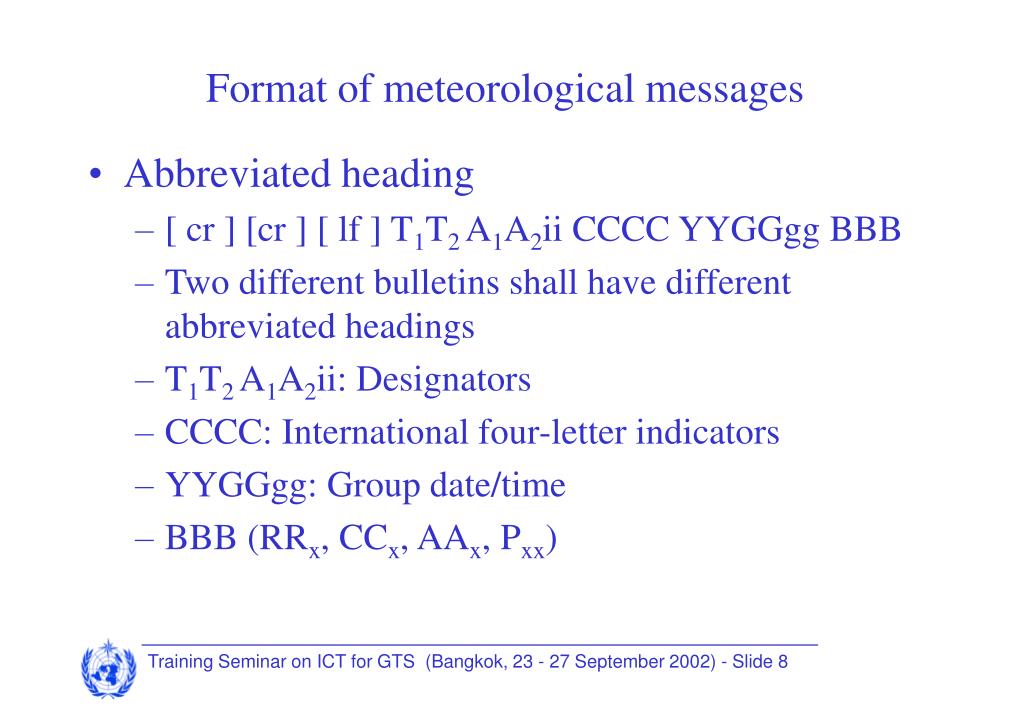

  8. Format of meteorological messages • Abbreviated heading • [ cr ] [cr ] [ lf ] T1T2 A1A2ii CCCC YYGGgg BBB • Two different bulletins shall have different abbreviated headings • T1T2 A1A2ii: Designators • CCCC: International four-letter indicators • YYGGgg: Group date/time • BBB (RRx, CCx, AAx, Pxx) Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 8

  9. Format of meteorological messages • Text • In one code form only • Starts by [ cr ] [cr ] [ lf ] • Each individual meteorological report shall start with [ cr ] [cr ] [ lf ] • Signal No. 22 represented as an equal sign = shall be used as an "end-of-report indicator" Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 9

  10. Format of meteorological messages • End-of-message signals • IA No. 2: [ cr ] [ cr ] [ lf ] [ lf ] [ lf ] [ lf ] [ lf ] [ lf ] [ lf ] [ lf ] NNNN • IA No. 5: [ cr ] [ cr ] [ lf ] [ETX] Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 10

  11. Example of a meteorological message SOH] [ cr ] [ cr ] [ lf ] 345 [ cr ] [ cr ] [ lf ] SMYG10 [space] LYBM [space] 280000 [ cr ] [ cr ] [ lf ] AAXX [space] 28001 [ cr ] [ cr ] [ lf ] 13131 [space] ..... [space] ..... [space] ..... [space] etc...= [ cr ] [ cr ] [ lf ] 13272 [space] ..... [space] ..... [space] ..... [space] etc...= [ cr ] [ cr ] [ lf ] 13333 [space] ..... [space] ..... [space] ..... [space] etc...= [ cr ] [ cr ] [ lf ] 13462 [space] ..... [space] ..... [space] ..... [space] etc...= [ cr ] [ cr ] [ lf ] 13586 [space] NIL = [ cr ] [ cr ] [ lf ] [ETX] Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 11

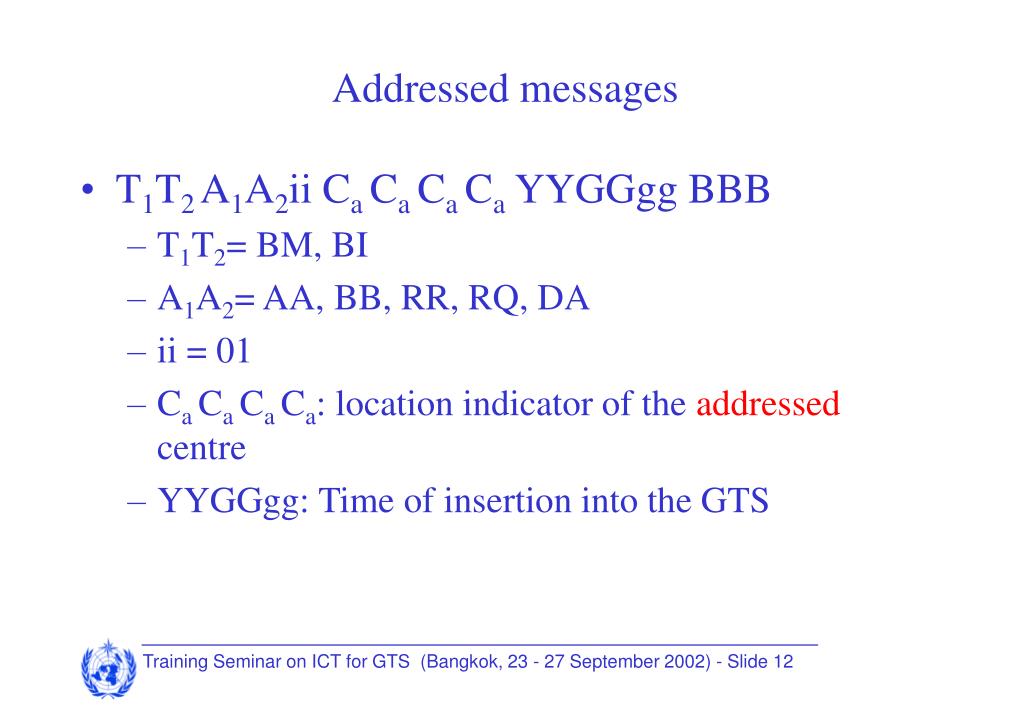

  12. Addressed messages • T1T2 A1A2ii Ca Ca Ca Ca YYGGgg BBB • T1T2= BM, BI • A1A2= AA, BB, RR, RQ, DA • ii = 01 • Ca Ca Ca Ca: location indicator of the addressed centre • YYGGgg: Time of insertion into the GTS Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 12

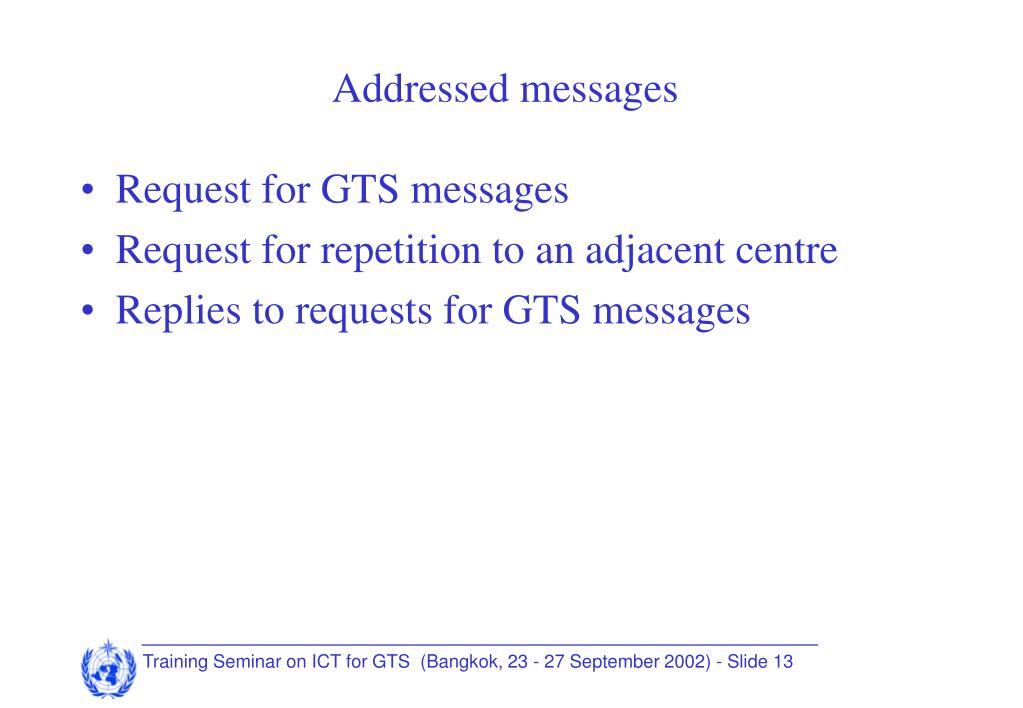

  13. Addressed messages • Request for GTS messages • Request for repetition to an adjacent centre • Replies to requests for GTS messages Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 13

  14. Length of meteorological messages • Maximum length: 15000 octets except for coded digital facsimile products • Sets of information, transmitted using segmentation into a series of bulletins, shall not exceed 250000 octets • Sets of information may be exchanged using the file transfer technique, particularly where sets larger than 250000 octets are concerned Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 14

  15. Telecommunication centres • Maximum delay for relay of a message: 15 seconds, three minutes if a conversion is required • Minimum storage capacity: 24 hours • Duplicated messages received within at least three hours of the original messages should be detected and eliminated • Regular review of the content of the switching directories Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 15

  16. Routeing catalogues • The routeing catalogues of the GTS centres provide information on the routeing of bulletins on the GTS, i.e. on the relay of the bulletins on the GTS point-to-point circuits and their distribution on the point-to-multipoint circuits such as the satellite distribution systems.The routeing catalogues or the information needed for their access is available in: • http://www.wmo.ch/web/www/ois/routeing-catalogue/routeing-home.htm Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 16

  17. Catalogue of meteorological bulletins • Contains a list of compiling or editing centres of the Global Telecommunication System and a list of meteorological bulletins being transmitted for global, inter-regional and regional exchanges. Each bulletin is uniquely identified by the abbreviated heading (TTAAii CCCC). • Is maintained by the MTN centres (and the Secretariat), who should receive the updates from their associated NMCs Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 17

  18. WMO Secretariat Valid catalogue files Advanced notification files ... ... FTP PUT with e-mail notification Responsible RTHs Valid catalogue ... Advanced notification files files ... ... FTP GET FTP GET or by diskett Messages of amendments on bulletins by e-mail, fax or GTS addressed message NMC ... WMO Members RTH NMC Responsible zones Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 18

  19. Operational information • Volume C1, METNO • Routeing catalogues • Monitoring results • Operational Newsletter on the World Weather Watch and Marine Meteorological Services • Available from: • http://www.wmo.ch/web/www/ois/ois-home.htm Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 19

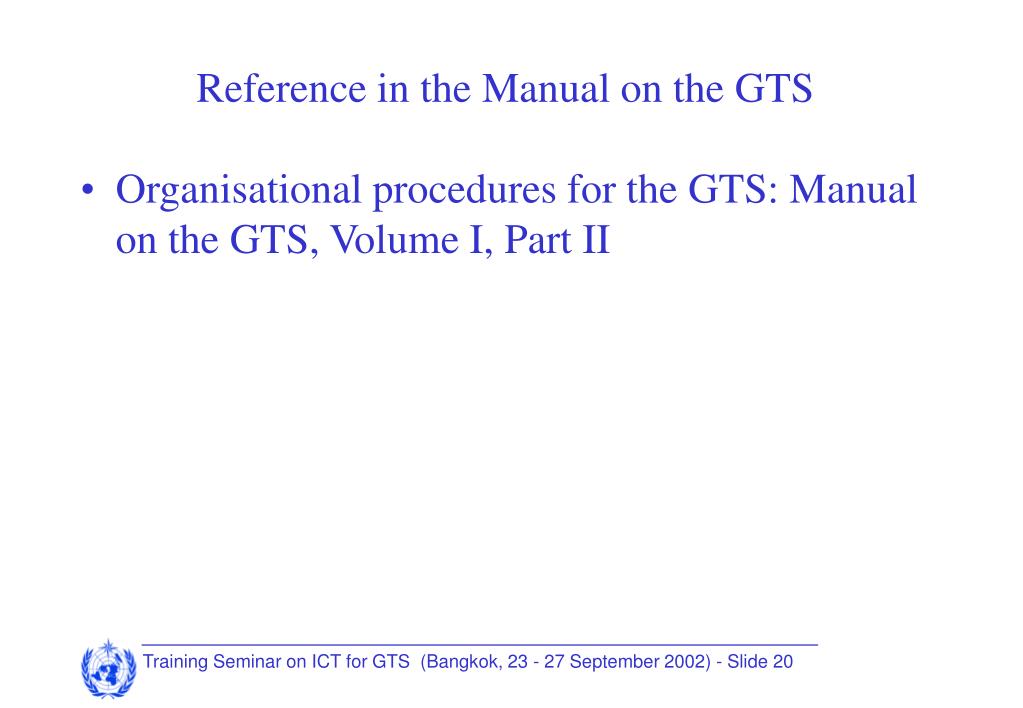

  20. Reference in the Manual on the GTS • Organisational procedures for the GTS: Manual on the GTS, Volume I, Part II Training Seminar on ICT for GTS (Bangkok, 23 - 27 September 2002) - Slide 20
