  1. Pattern Matching in DAME using AURA technology Jim Austin, Robert Davis, Bojian Liang, Andy Pasley University of York

  2. Overview • Context • AURA technology • DAME pattern matching problem • AURA solution • Search performance • Next steps

  3. Context • Vibration data from all engines in flight • Detection of unusual vibration patterns • Novelties, anomalies • Automatic or manual • Search for similar vibration behaviour • Need to search large volumes of historical vibration data • Investigate search results and associated data • Service data records • CBR tools: Sheffield

  4. AURA technology • AURA • Proven technology for searching large data sets • Ability to scale and maintain performance • Easily parallelised • Examples • Address matcher • Molecular matcher • Operation • Vectors compared to stored examples • Uses bit level comparison methods • Correlation Matrix Memory operations

  5. AURA architecture CandidateSelector binary AURA SearchEngine Search Data Adaptor Input pattern Store & Search Store Output pattern Store Result Results Indexer Store & Search Candidate Engine (Back check) Indexes or Data

  6. AURA storage & recall binary AURA SearchEngine Input pattern Output pattern 2 1 0 2 0 0 0 Correlation Matrix Memories * *

  7. AURA software • AURA re-designed • To improve performance of the AURA library in terms of both memory usage and search times • 3 fold reduction in memory • 3 fold reduction in search time • To make the library easy to use • Simple API • Typically only 4 or 5 API calls used • Enable implementation as an OGSI GT3 service • To engineer the library to commercial software standards • Comprehensive user guide and reference manual

  8. Pattern matching problem • Vibration data from sensors forms Z-mod data. • Tracked orders extracted from Z-mod data Tracked order Frequency Amplitude Time Time

  9. Pattern matching problem • Novelty or anomaly identified in tracked order data by feature detectors Forms Query sub-sequence

  10. Pattern matching problem • Search for sub-sequences similar to the query in a large volume of tracked order data. • Need to investigate all possible alignments • Benchmark method is sequential scan • Noisy data: imprecise matching required • Various possible similarity measures • Euclidian distance • Correlation

  11. AURA solution EncodedQuery AURA SearchEngine Encoded Time Series Candidate Matches QueryTime Series Stored Time series AURABackcheck Results

  12. AURA solution • Encoding: reduction in dimensionality • e.g. from 100pts to 10 values. • Approximate search • From ~ 1,000,000s of alignments down to ~1000s of candidate matches • Backcheck • From ~1000s candidate matches to 100 or fewer results

  13. Encoding technique • Piecewise Aggregate Approximation • Values encoded using integer bins

  14. Search efficiency • Approximate search using AURA • Fast method of discarding poor matches • AURA search typically an order of magnitude or more faster than sequential scan. • Candidate matches typically <1% of total. • Back check stage very efficient due to reduction in volume of data • typically 1% or less of processing time for full sequential scan.

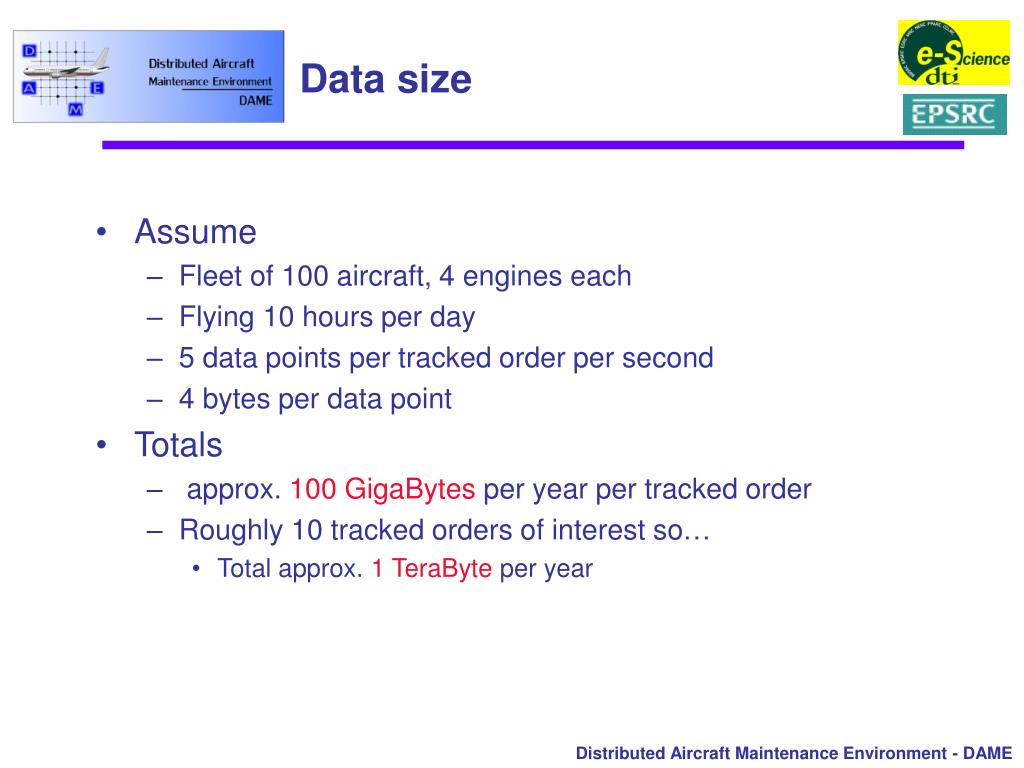

  15. Data size • Assume • Fleet of 100 aircraft, 4 engines each • Flying 10 hours per day • 5 data points per tracked order per second • 4 bytes per data point • Totals • approx. 100 GigaBytes per year per tracked order • Roughly 10 tracked orders of interest so… • Total approx. 1 TeraByte per year

  16. Search performance • Deployed system assumptions • 100 CPUs 2GHz each with 1GByte RAM. • One per aircraft • Each search needs to check 25,000,000,000 alignments of the query per year of tracked order data. • Sequential scan • Measured at approx. 2 seconds for 5,000,000 alignments of a 100 data point query (one CPU). • Extrapolates to approx. 500 seconds to search 5 years of data assuming 1 CPU per aircraft • This is too slow!  Need to support multiple searches and searches on more than one tracked order.

  17. Search performance • Using AURA and PAA based approach • Search time reduced by approx an order of magnitude. • Can search 5 years of data for 100 aircraft in approx:50 seconds • Believe this to be a workable solution  • But response times potentially slower than this • Need to handle a number of searches in parallel • Communications and other overheads

  18. Next steps • Technology • Refine similarity measures and encoding methods. • Architecture • Develop additional services to distribute and organise the search • Support multiple searches in parallel • Measurement • Perform scaling trials on engine data • Obtain better estimates of overall performance • Multiple searches • Overheads
