Artificial Immune Systems

1. Artificial Immune Systems Andrew Watkins

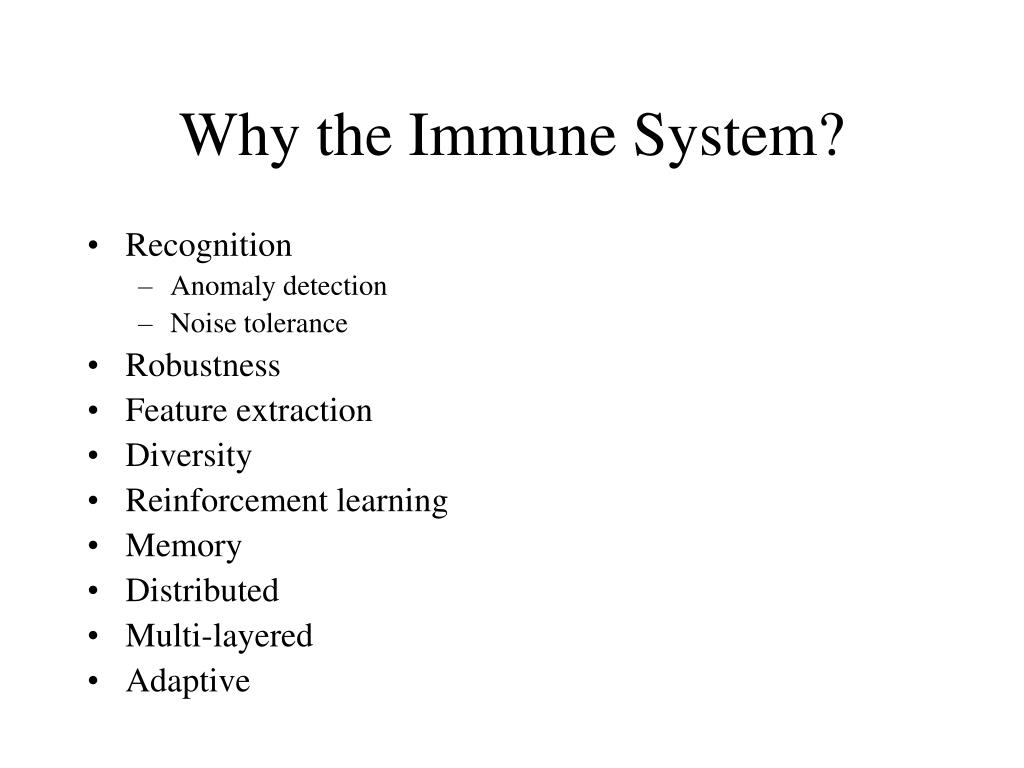

2. Why the Immune System? • Recognition • Anomaly detection • Noise tolerance • Robustness • Feature extraction • Diversity • Reinforcement learning • Memory • Distributed • Multi-layered • Adaptive

3. Definition AIS are adaptive systems inspired by theoretical immunology and observed immune functions, principles and models, which are applied to complex problem domains (de Castro and Timmis)

4. Some History • Developed from the field of theoretical immunology in the mid 1980’s. • Suggested we ‘might look’ at the IS • 1990 – Bersini first use of immune algos to solve problems • Forrest et al – Computer Security mid 1990’s • Hunt et al, mid 1990’s – Machine learning

5. How does it work?

6. Immune Pattern Recognition • The immune recognition is based on the complementarity between the binding region of the receptor and a portion of the antigen called epitope. • Antibodies present a single type of receptor, antigens might present several epitopes. • This means that different antibodies can recognize a single antigen

7. Immune Responses

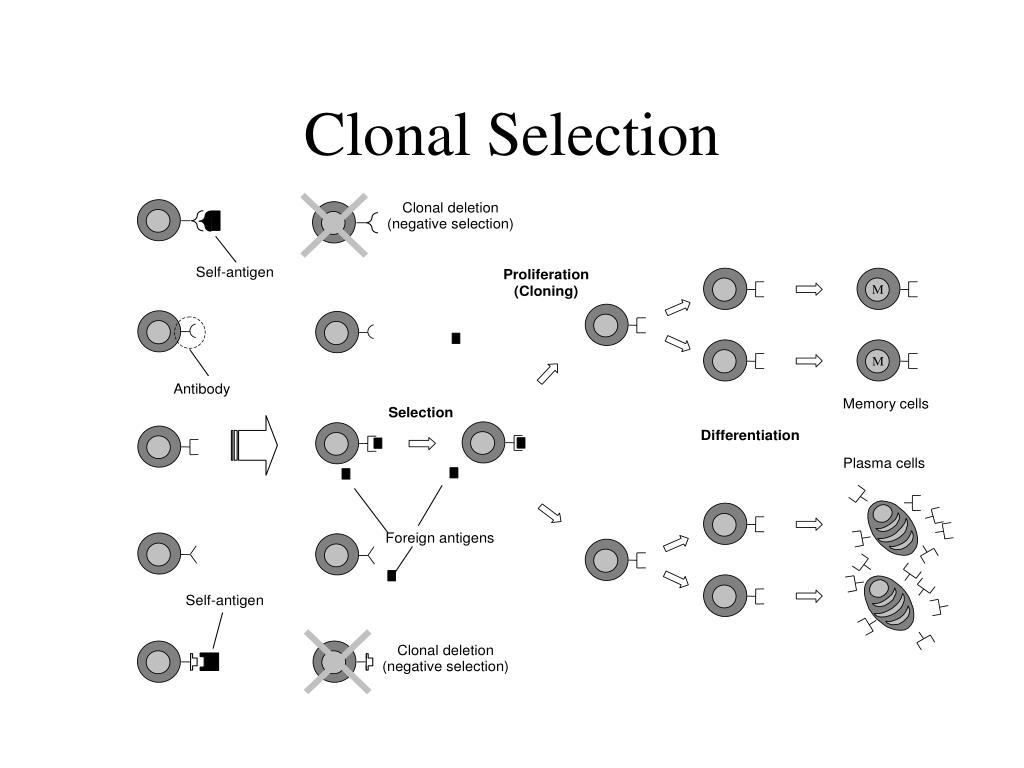

8. Clonal Selection

9. Immune Network Theory • Idiotypic network (Jerne, 1974) • B cells co-stimulate each other • Treat each other a bit like antigens • Creates an immunological memory

10. Shape Space Formalism • Repertoire of the immune system is complete (Perelson, 1989) • Extensive regions of complementarity • Some threshold of recognition V ´ V e e V e e ´ ´ ´ ´ V e e ´ ´

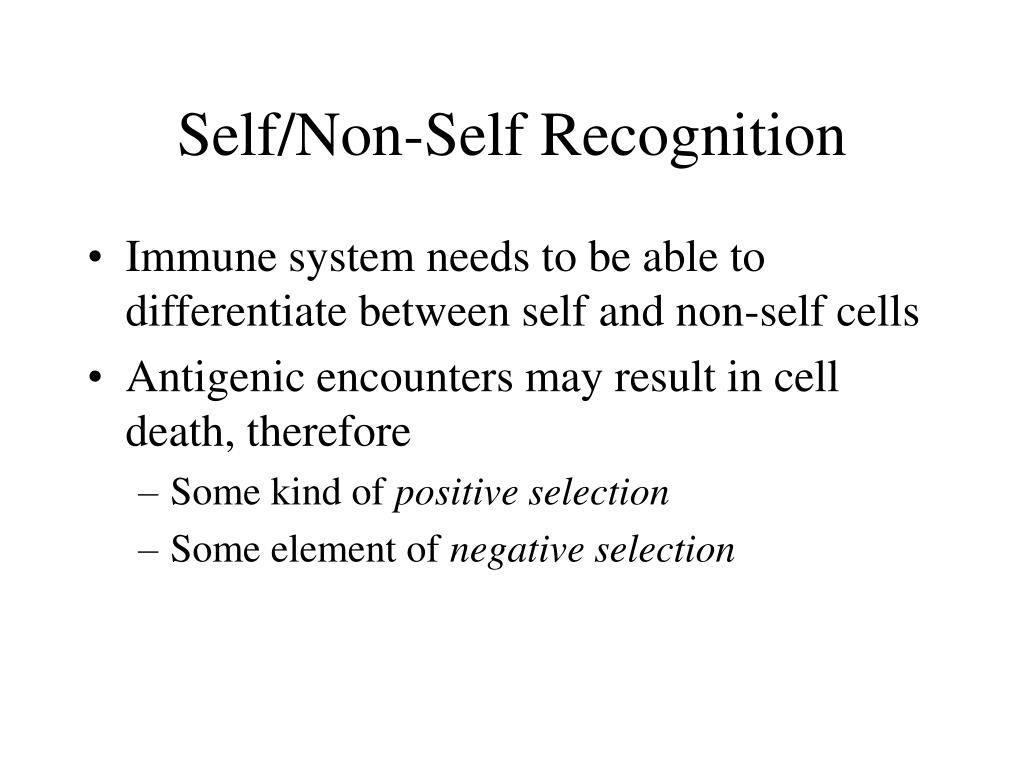

11. Self/Non-Self Recognition • Immune system needs to be able to differentiate between self and non-self cells • Antigenic encounters may result in cell death, therefore • Some kind of positive selection • Some element of negative selection

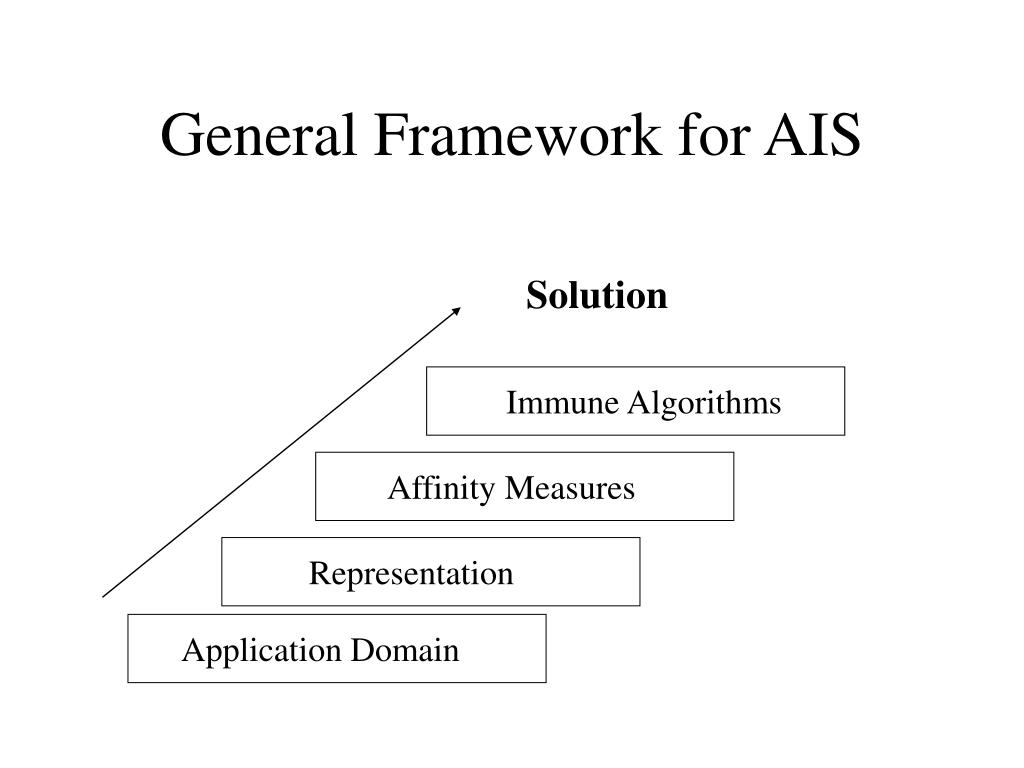

12. General Framework for AIS Solution Immune Algorithms Affinity Measures Representation Application Domain

13. Representation – Shape Space • Describe the general shape of a molecule • Describe interactions between molecules • Degree of binding between molecules • Complement threshold

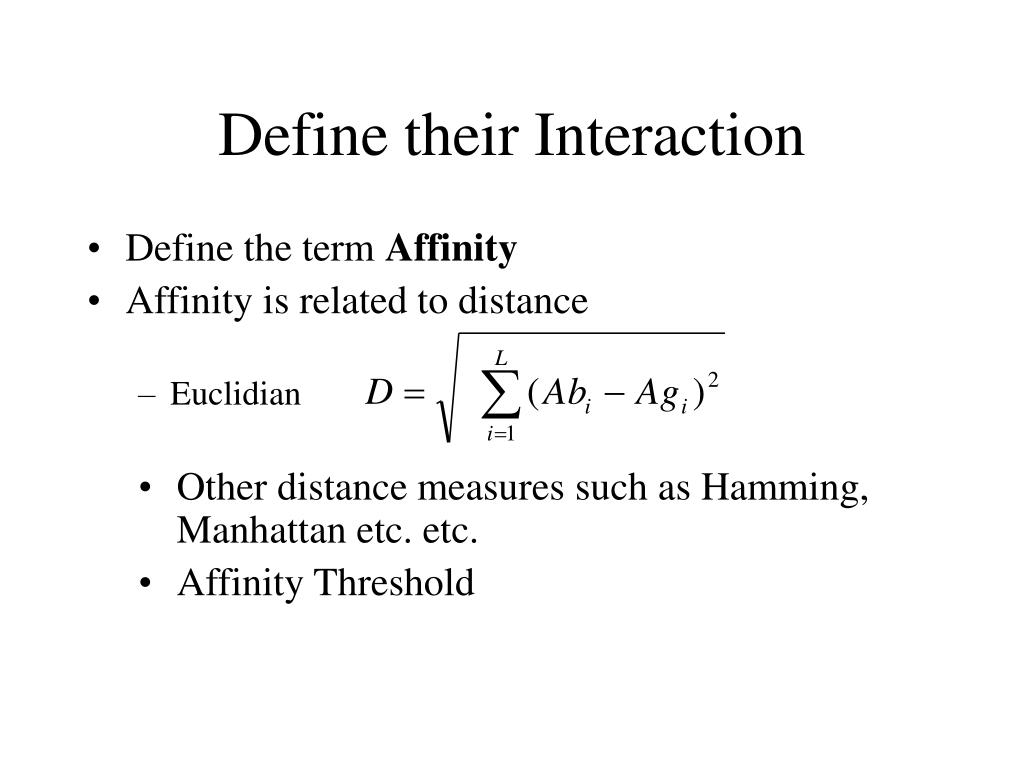

14. Define their Interaction • Define the term Affinity • Affinity is related to distance • Euclidian • Other distance measures such as Hamming, Manhattan etc. etc. • Affinity Threshold

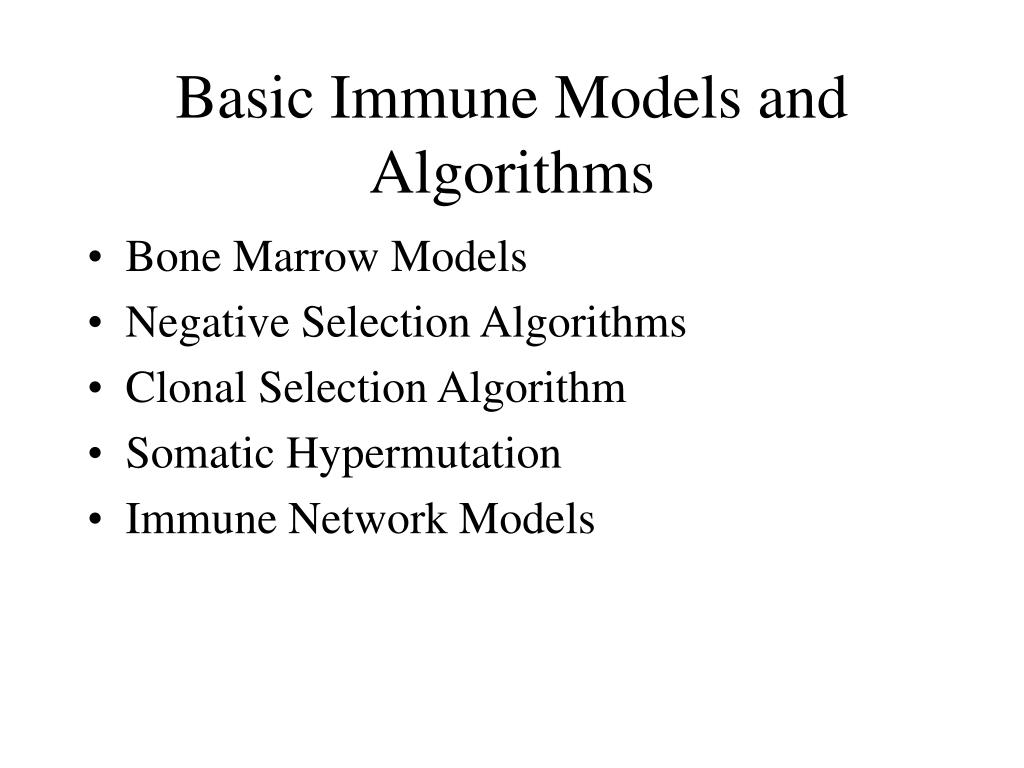

15. Basic Immune Models and Algorithms • Bone Marrow Models • Negative Selection Algorithms • Clonal Selection Algorithm • Somatic Hypermutation • Immune Network Models

16. Bone Marrow Models • Gene libraries are used to create antibodies from the bone marrow • Use this idea to generate attribute strings that represent receptors • Antibody production through a random concatenation from gene libraries

17. Negative Selection Algorithms • Forrest 1994: Idea taken from the negative selection of T-cells in the thymus • Applied initially to computer security • Split into two parts: • Censoring • Monitoring

18. Clonal Selection Algorithm (de Castro & von Zuben, 2001) Randomly initialise a population (P) For each pattern in Ag Determine affinity to each Ab in P Select n highest affinity from P Clone and mutate prop. to affinity with Ag Add new mutants to P endFor Select highest affinity Ab in P to form part of M Replace n number of random new ones Until stopping criteria

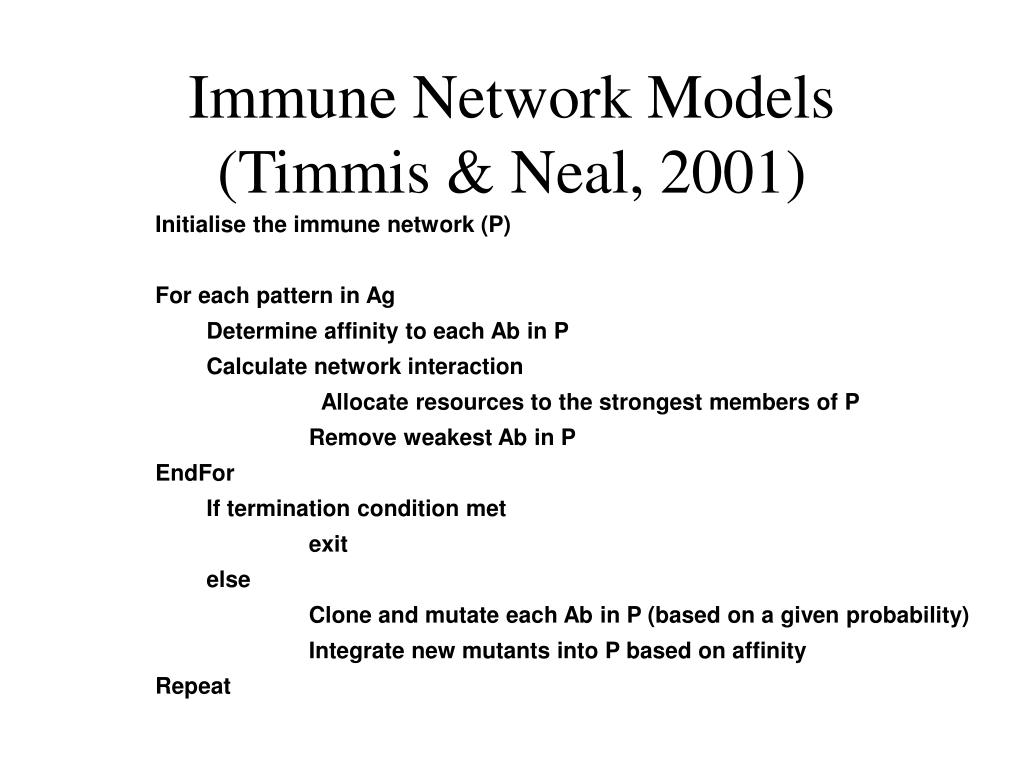

19. Immune Network Models (Timmis & Neal, 2001) • Initialise the immune network (P) • For each pattern in Ag • Determine affinity to each Ab in P • Calculate network interaction • Allocate resources to the strongest members of P • Remove weakest Ab in P • EndFor • If termination condition met • exit • else • Clone and mutate each Ab in P (based on a given probability) • Integrate new mutants into P based on affinity • Repeat

20. Somatic Hypermutation • Mutation rate in proportion to affinity • Very controlled mutation in the natural immune system • The greater the antibody affinity the smaller its mutation rate • Classic trade-off between exploration and exploitation

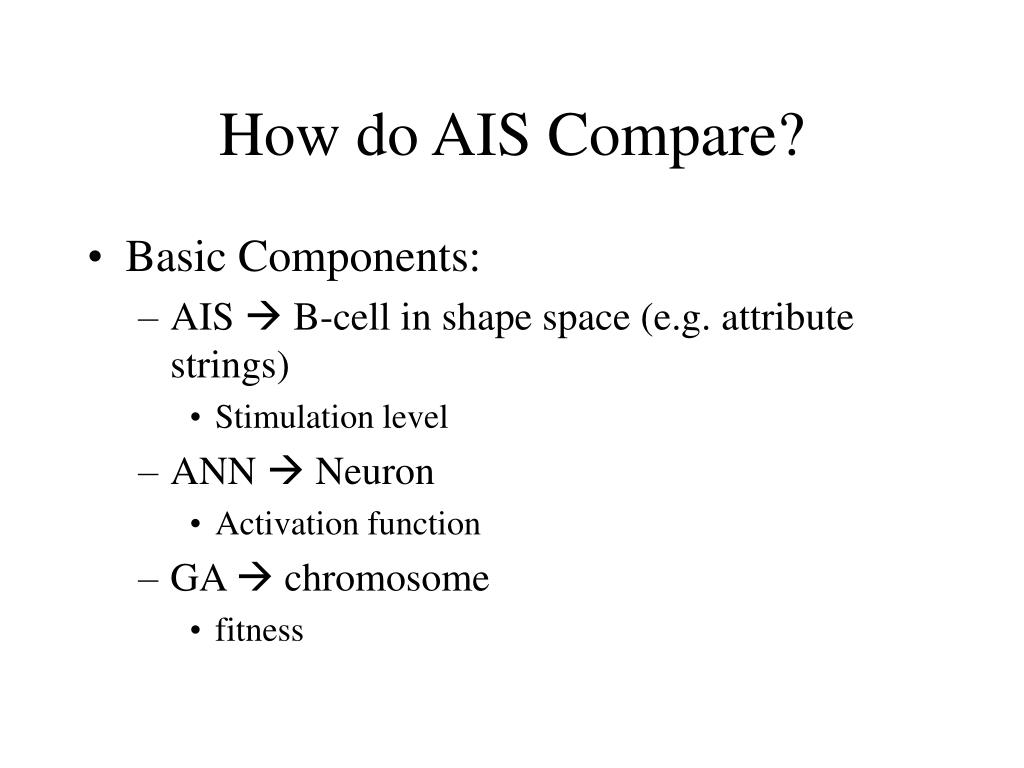

21. How do AIS Compare? • Basic Components: • AIS  B-cell in shape space (e.g. attribute strings) • Stimulation level • ANN  Neuron • Activation function • GA  chromosome • fitness

22. Comparing • Structure (Architecture) • AIS and GA fixed or variable sized populations, not connected in population based AIS • ANN and AIS • Do have network based AIS • ANN typically fixed structure (not always) • Learning takes place in weights in ANN

23. Comparing • Memory • AIS  in B-cells • Network models in connections • ANN  In weights of connections • GA  individual chromosome

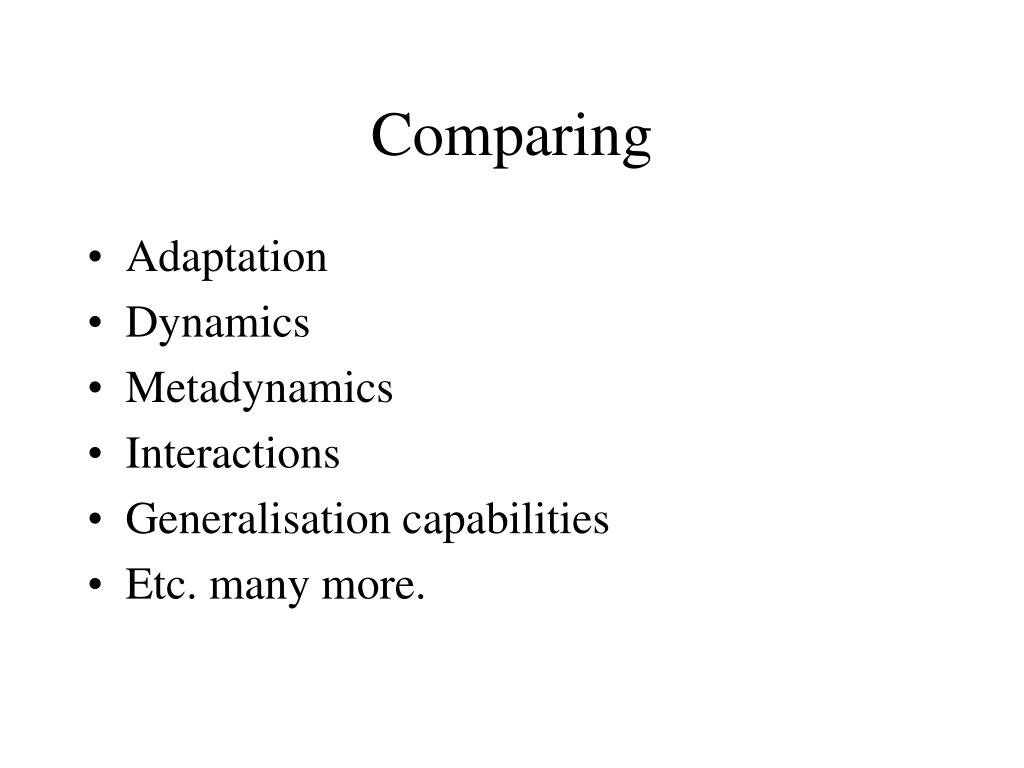

24. Comparing • Adaptation • Dynamics • Metadynamics • Interactions • Generalisation capabilities • Etc. many more.

25. Where are they used? • Dependable systems • Scheduling • Robotics • Security • Anomaly detection • Learning systems

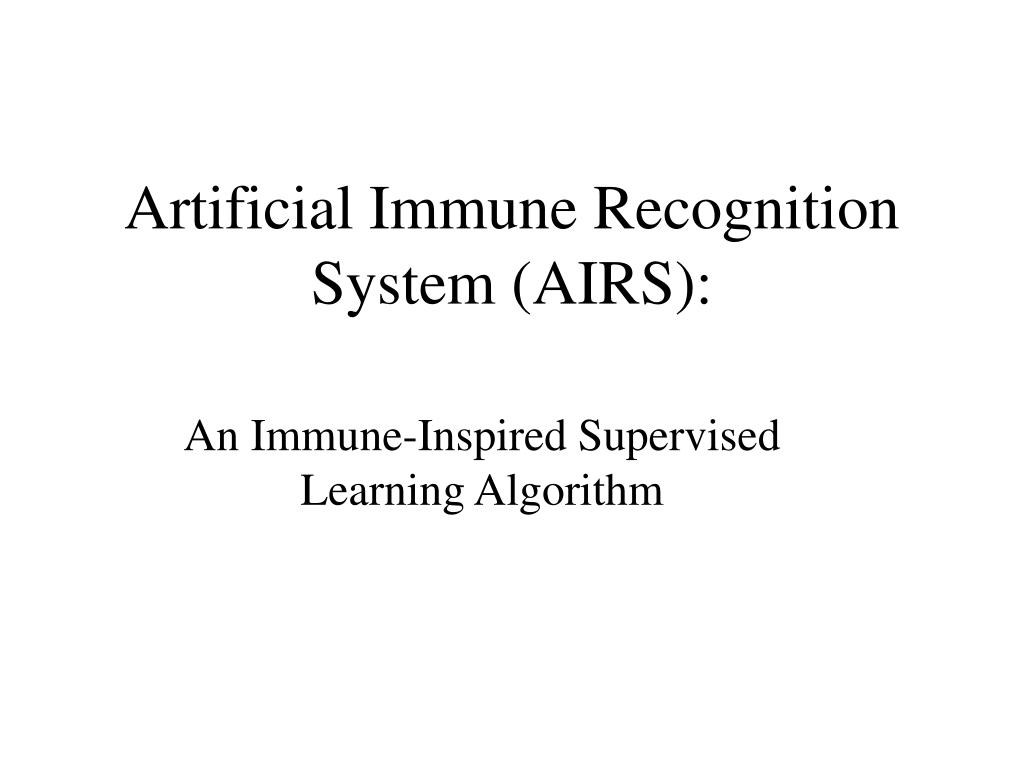

26. Artificial Immune Recognition System (AIRS): An Immune-Inspired Supervised Learning Algorithm

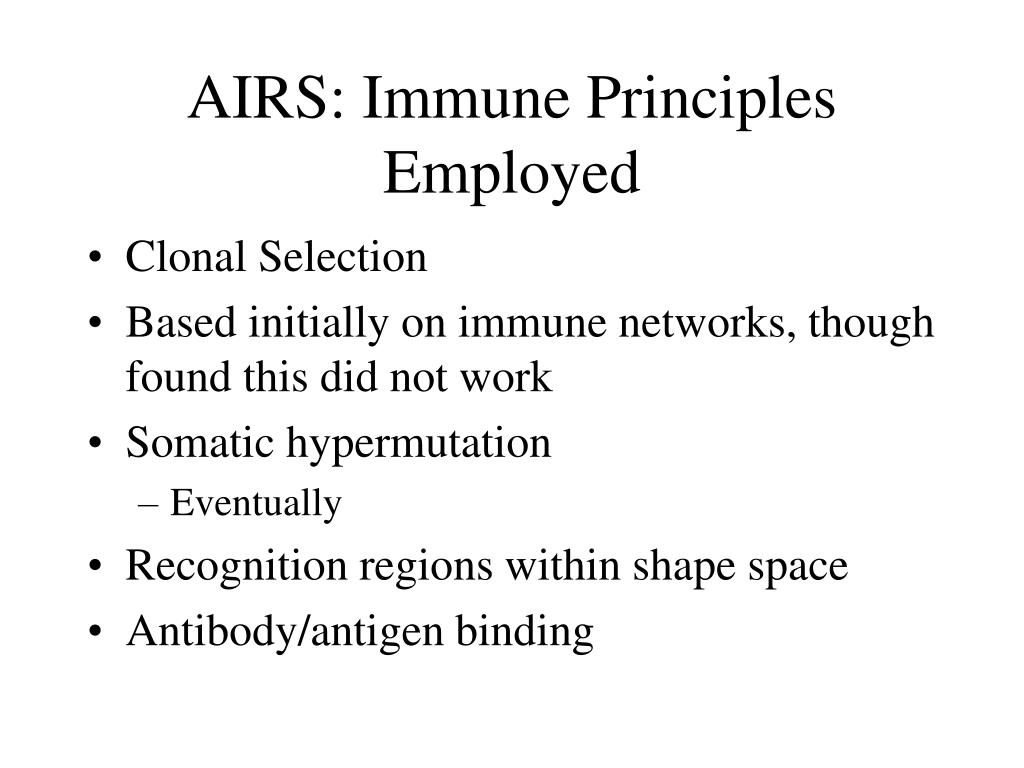

27. AIRS: Immune Principles Employed • Clonal Selection • Based initially on immune networks, though found this did not work • Somatic hypermutation • Eventually • Recognition regions within shape space • Antibody/antigen binding

28. Antibody Feature Vector Recognition Combination of feature Ball (RB) vector and vector class Antigens Training Data Immune Memory Memory cells—set of mutated Artificial RBs AIRS: Mapping from IS to AIS

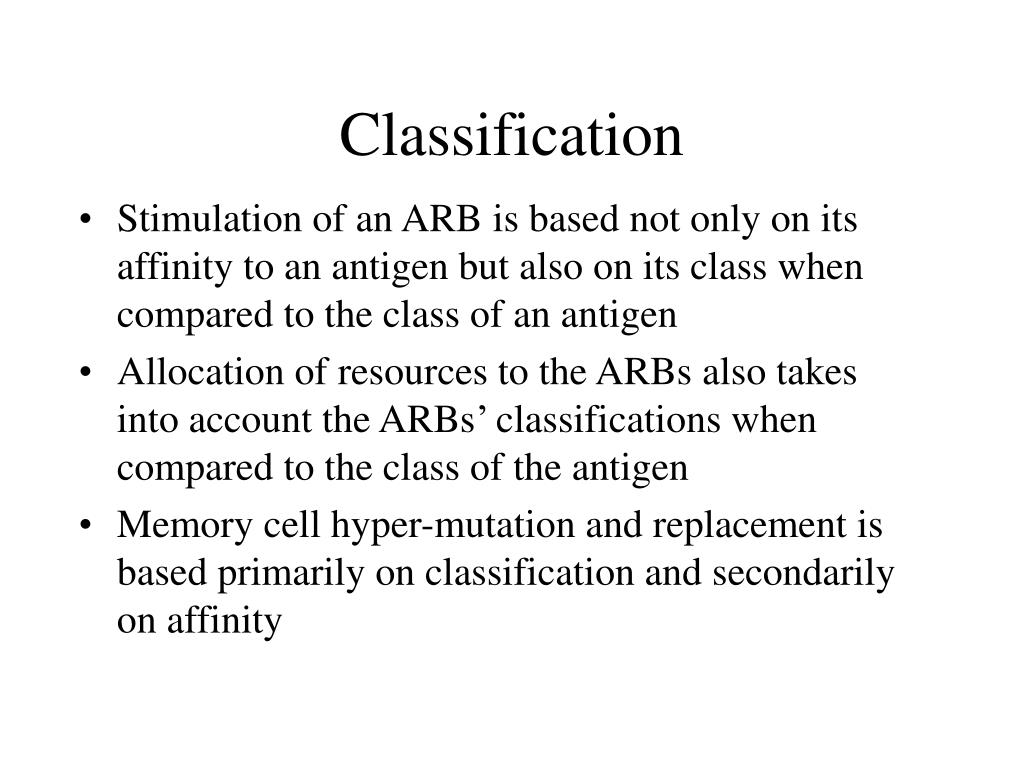

29. Classification • Stimulation of an ARB is based not only on its affinity to an antigen but also on its class when compared to the class of an antigen • Allocation of resources to the ARBs also takes into account the ARBs’ classifications when compared to the class of the antigen • Memory cell hyper-mutation and replacement is based primarily on classification and secondarily on affinity

30. AIRS Algorithm • Data normalization and initialization • Memory cell identification and ARB generation • Competition for resources in the development of a candidate memory cell • Potential introduction of the candidate memory cell into the set of established memory cells

31. Memory Cell Identification A Memory Cell Pool ARB Pool

32. MCmatch Found A 1 Memory Cell Pool MCmatch ARB Pool

33. ARB Generation A 1 Memory Cell Pool MCmatch Mutated Offspring 2 ARB Pool

34. Exposure of ARBs to Antigen A 1 Memory Cell Pool MCmatch Mutated Offspring 3 2 ARB Pool

35. Development of a Candidate Memory Cell A 1 Memory Cell Pool MCmatch Mutated Offspring 3 2 ARB Pool

36. Comparison of MCcandidate and MCmatch A 1 Memory Cell Pool MCmatch A 4 Mutated Offspring 3 2 MC candidate ARB Pool

37. Memory Cell Introduction A 1 Memory Cell Pool MCmatch A 4 5 Mutated Offspring 3 2 MCcandidate ARB Pool

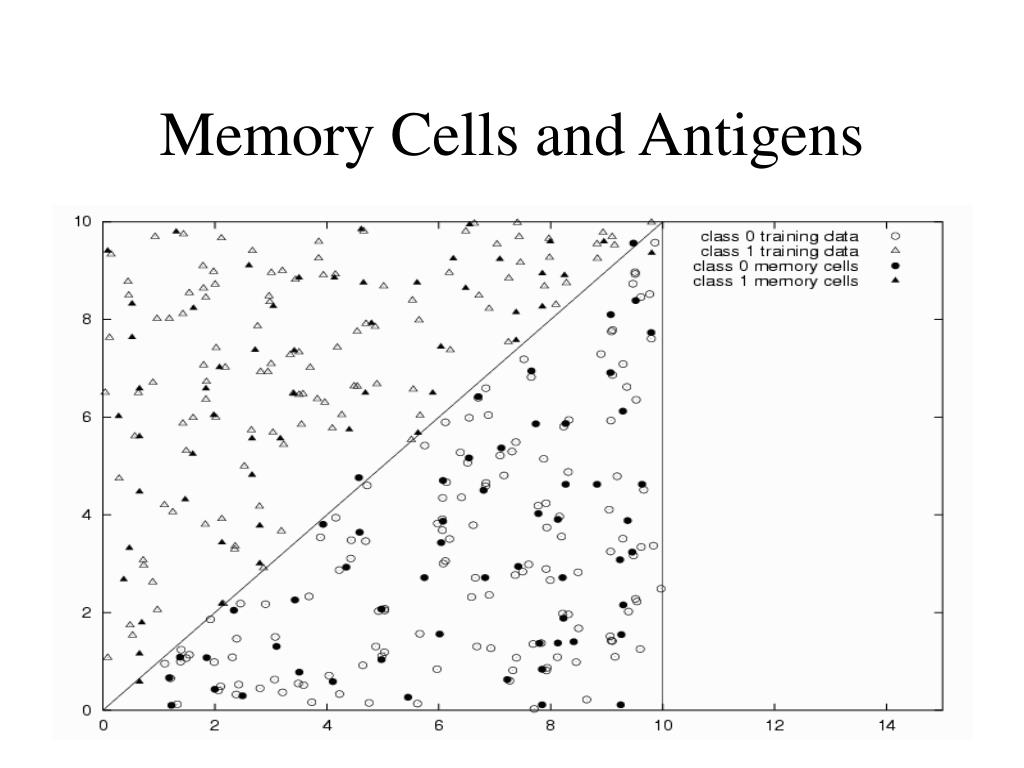

38. Memory Cells and Antigens

39. Memory Cells and Antigens

40. AIRS: Performance Evaluation Fisher’s Iris Data Set Pima Indians Diabetes Data Set Ionosphere Data Set Sonar Data Set

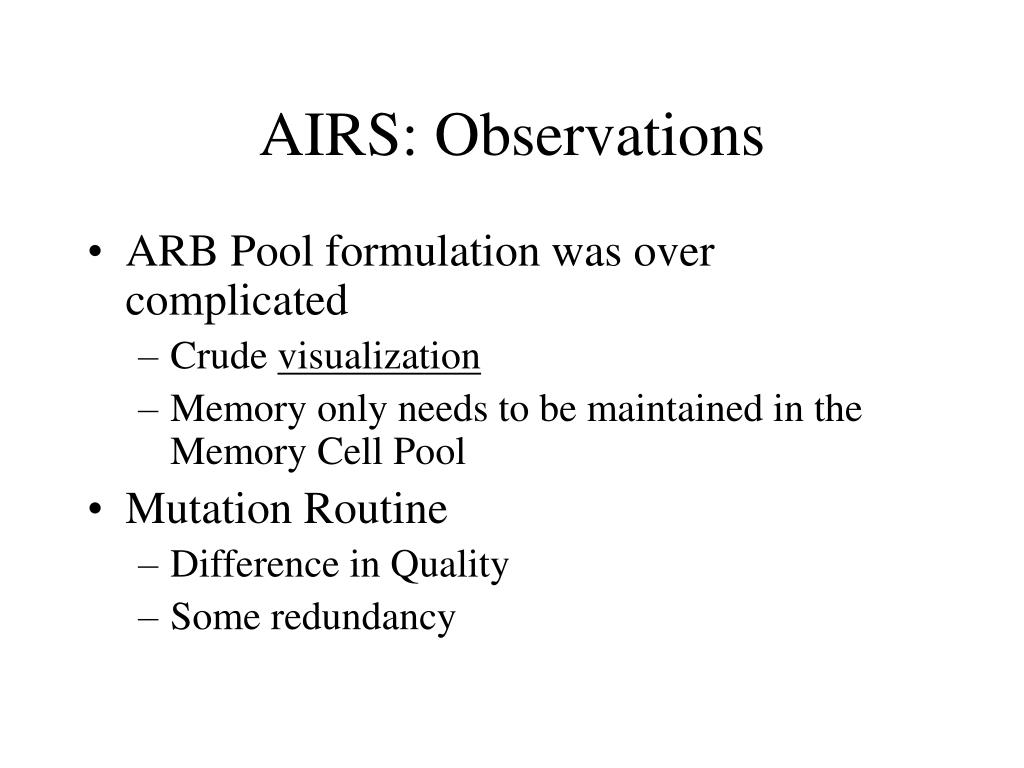

42. AIRS: Observations • ARB Pool formulation was over complicated • Crude visualization • Memory only needs to be maintained in the Memory Cell Pool • Mutation Routine • Difference in Quality • Some redundancy

43. AIRS: Revisions • Memory Cell Evolution • Only Memory Cell Pool has different classes • ARB Pool only concerned with evolving memory cells • Somatic Hypermutation • Cell’s stimulation value indicates range of mutation possibilities • No longer need to mutate class

44. AIRS1: Accuracy AIRS2: Accuracy Iris 96.7 96.0 Ionosphere 94.9 95.6 Diabetes 74.1 74.2 Sonar 84.0 84.9 Comparisons: Classification Accuracy • Important to maintain accuracy • Why bother?

45. Training Set Size AIRS1: Memory Cells AIRS2: Memory Cells Iris 120 42.1 / 65% 30.9 / 74% Ionosphere 200 140.7 / 30% 96.3 / 52% Diabetes 691 470.4 / 32% 273.4 / 60% Sonar 192 144.6 / 25% 177.7 / 7% Comparisons: Data Reduction • Increase data reduction—increased efficiency

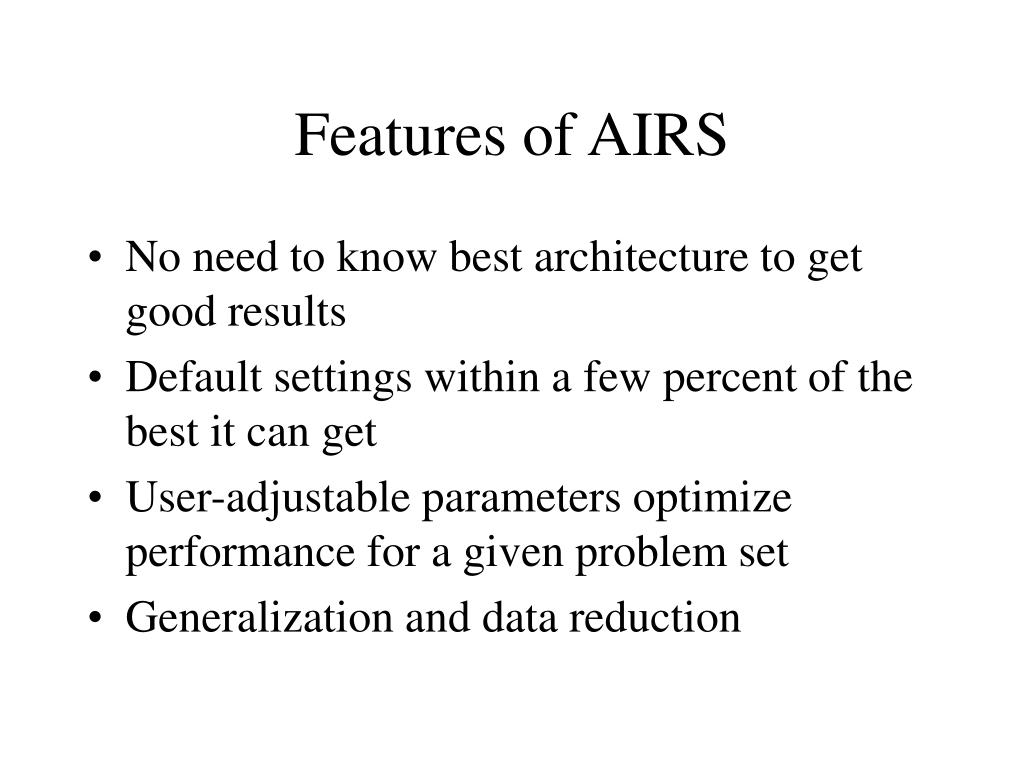

46. Features of AIRS • No need to know best architecture to get good results • Default settings within a few percent of the best it can get • User-adjustable parameters optimize performance for a given problem set • Generalization and data reduction

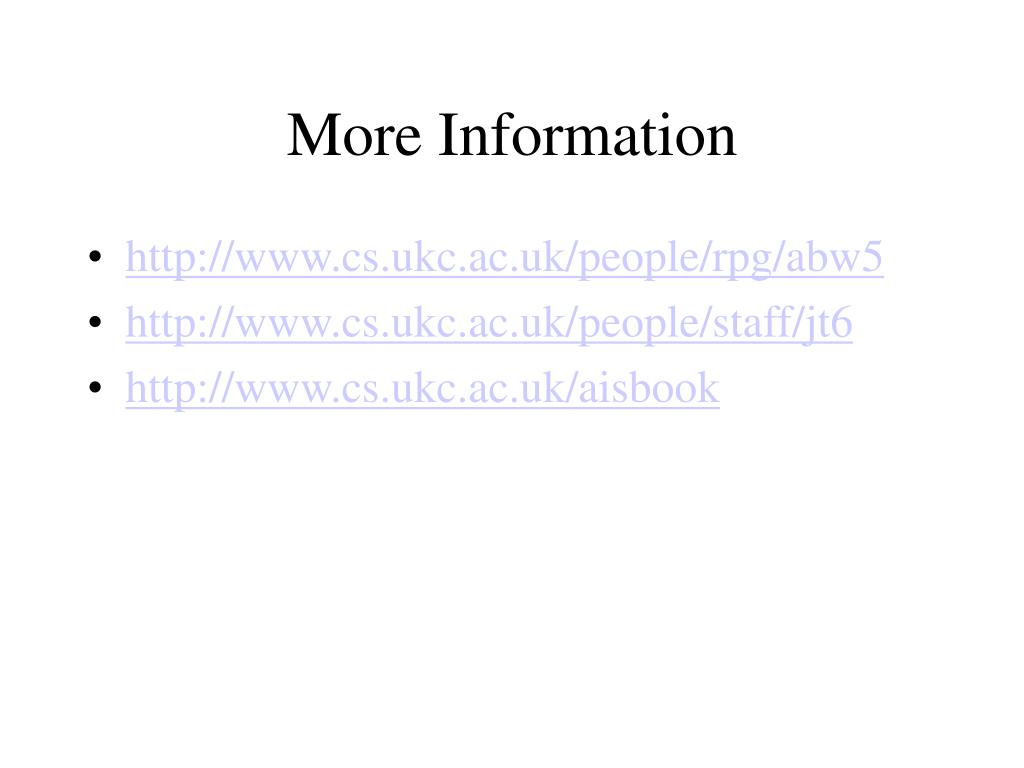

47. More Information • http://www.cs.ukc.ac.uk/people/rpg/abw5 • http://www.cs.ukc.ac.uk/people/staff/jt6 • http://www.cs.ukc.ac.uk/aisbook
