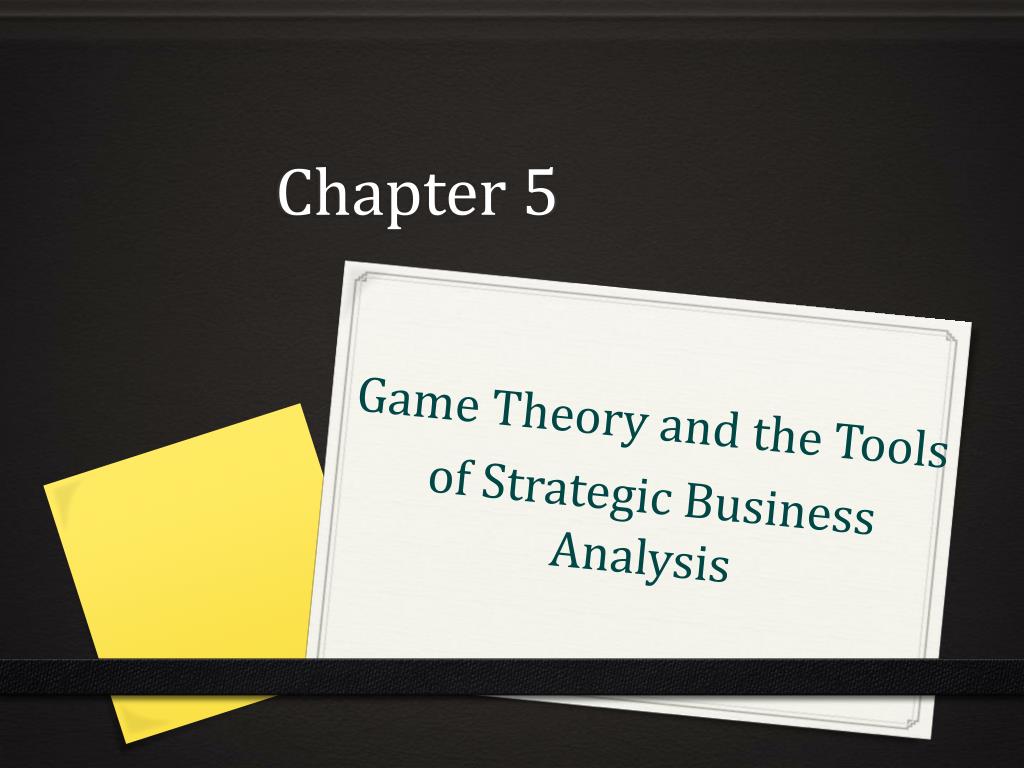

  1. Chapter 5 Game Theory and the Tools of Strategic Business Analysis

  2. Game Theory • Game theory applied to economics by John Von Neuman and Oskar Morgenstern • Game theory allows us to analyze different social and economic situations

  3. Games of Strategy Defined • Interaction between agents can be represented by a game, when the rewards to each depends on his actions as well as those of the other player • A game is comprised of • Number of players • Order of play • strategies • Chance • Information • Payoffs

  4. Example 1:Prisoners’ Dilemma • Two people committed a crime and are being interrogated separately. • The are offered the following terms: • If both confessed, each spends 8 years in jail. • If both remained silent, each spends 1 year in jail. • If only one confessed, he will be set free while the other spends 20 years in jail.

  5. Example 1: Prisoners’ Dilemma • Numbers represent years in jail • Each has a dominant strategy to confess • Silent is a dominated strategy • Nash equilibrium: Confess Confess

  6. Example 2: Matching Pennies

  7. Example 3: Oligopoly Game • Similarly for GM • The Nash equilibrium is Price low, Price low

  8. Game Types • Game of perfect information • Player – knows prior choices • All other players • Game of imperfect information • Player – doesn’t know prior choices

  9. Representing Games • The previous examples are of • Simultaneous games • Games of imperfect information Games can be represented visually in • Bi- matrix form • Table • Dimensions depend on the number of strategies • Game tree • Extensive form game

  10. Matching Pennies Game of imperfect information Represented in bi-matrix form

  11. Extensive form of the game of matching pennies Child 1 Heads Tails Child 2 Child 2 Heads Tails Heads Tails +1 - 1 +1 - 1 - 1 +1 • 1 +1 Child 2 does not know whether child 1 chose heads or tails. Therefore, child 2’s information set contains two nodes.

  12. Strategy • A player’s strategy is a plan of action for each of the other player’s possible actions

  13. Game of perfect information In extensive form IBM DOS UNIX Toshiba Toshiba 1 2 DOS UNIX DOS UNIX 3 200 600 600 200 100 100 100 100 Player 2 (Toshiba) knows whether player 1 (IBM) moved to the left or to the right. Therefore, player 2 knows at which of two nodes it is located

  14. Strategies • IBM: • DOS or UNIX • Toshiba • DOS if DOS and UNIX if UNIX • UNIX if DOS and DOS if UNIX • DOS if DOS and DOS if UNIX • UNIX if DOS and UNIX if UNIX

  15. Game of perfect information In normal form

  16. Game of imperfect information • Assume instead Toshiba doesn’t know what IBM chooses • The two firms move at the same time • Imperfect information • Need to modify the game accordingly

  17. Game of imperfect information In extensive form IBM Information set DOS UNIX • Toshiba’s strategies: • DOS • UNIX Toshiba Toshiba 1 2 DOS UNIX DOS UNIX 3 600 200 100 100 100 100 200 600 Toshiba does not know whether IBM moved to the left or to the right, i.e., whether it is located at node 2 or node 3.

  18. Game of imperfect information In normal form

  19. Equilibrium for GamesNash Equilibrium • Equilibrium • state/ outcome • Set of strategies • Players – don’t want to change behavior • Given - behavior of other players • Noncooperative games • No possibility of communication or binding commitments

  20. Nash Equilibria

  21. Nash Equilibrium: Toshiba-IBM imperfect Info game The strategy pair DOS DOS is a Nash equilibrium. Are there any other equilibria?

  22. Dominant Strategy Equilibria • Strategy A dominates strategy B if • A gives a higher payoff than B • No matter what opposing players do • Dominant strategy • Best for a player • No matter what opposing players do • Dominant-strategy equilibrium • All players - dominant strategies

  23. Oligopoly Game • Ford has a dominant strategy to price low • If GM prices high, Ford is better of pricing low • If GM prices low, Ford is better of pricing low

  24. Oligopoly Game • Similarly for GM • The Nash equilibrium is Price low, Price low

  25. Prisoners’ Dilemma • Numbers represent years in jail • Each has a dominant strategy to confess • Silent is a dominated strategy • Nash equilibrium: Confess Confess

  26. Prisoners’ Dilemma • Each player has a dominant strategy • Equilibrium is Pareto dominated

  27. Elimination of Dominated Strategies • Dominated strategy • Strategy dominated by another strategy • We can solve games by eliminating dominated strategies • If elimination of dominated strategies results in a unique outcome, the game is said to be dominance solvable

  28. Games with Many Equilibria • Coordination game • Players - common interest: equilibrium • For multiple equilibria • Preferences - differ • At equilibrium: players - no change

  29. Games with Many Equilibria The strategy pair DOS DOS is a Nash equilibrium as well as UNIX, UNIX

  30. Normal Form of Matching Numbers: coordination game with ten Nash equilibria

  31. Table 11.12 A game with no equilibria in pure strategies

  32. The “I Want to Be Like Mike” Game

  33. Credible Threats • An equilibrium refinement: • Analyzing games in normal form may result in equilibria that are less satisfactory • These equilibria are supported by a non credible threat • They can be eliminated by solving the game in extensive form using backward induction • This approach gives us an equilibrium that involve a credible threat • We refer to this equilibrium as a sub-game perfect Nash equilibrium.

  34. Non credible threats: IBM-Toshiba In normal form • Three Nash equilibria • Some involve non credible threats. • Example IBM playing UNIX and Toshiba playing UNIX regardless: • Toshiba’s threat is non credible

  35. Backward induction IBM DOS UNIX Toshiba Toshiba 1 2 DOS UNIX DOS UNIX 3 100 100 600 200 100 100 200 600

  36. Subgame perfect Nash Equilibrium • Subgame perfect Nash equilibrium is • IBM: DOS • Toshiba: if DOS play DOS and if UNIX play UNIX • Toshiba’s threat is credible • In the interest of Toshiba to execute its threat

  37. Rotten kid game • The kid either goes to Aunt Sophie’s house or refuses to go • If the kid refuses, the parent has to decide whether to punish him or relent

  38. Rotten kid game in extensive form Kid Go to Aunt Sophie’s House Refuse Parent 1 2 Punish if refuse Relent if refuse -1 -1 2 0 1 1 • The sub game perfect Nash equilibrium is: Refuse and Relent if refuse • The other Nash equilibrium, Go and Punish if refuse, relies on a non credible threat by the parent

  39. Application 1: Collusive Duopoly • Example: The European voluntary agreement for washing machinesin 1998 • The agreement requires firms to eliminate from the market inefficient models • Ahmed and Segerson (2011) show that the agreement can raise firm profit, however, it is not stable

  40. Application 2: Wal-Mart and CFL bulbs market • In 2006 Wal-Mart committed itself to selling 1 million CFL bulbs every year • This was part of Wal-Mart’s plan to become more socially responsible • Ahmed(2012) shows that this commitment can be an attempt to raise profit.

  41. Application 2: Wal-Mart and CFL bulbs market Wal-Mart When the target is small Commit to output target Do not commit Small firm Small firm 1 2 Commit Do not Commit Do not 3 90 45 500 40 80 60 100 50 The outcome is similar to a prisoners dilemma

  42. Application 2: Wal-Mart and CFL bulbs market Wal-Mart When the target is large Commit to output target Do not commit Small firm Small firm 1 2 Commit Do not Commit Do not 3 80 30 500 35 100 50 90 100 When the target is large enough, we have a game of chicken
