  1. Design Details and Implementation

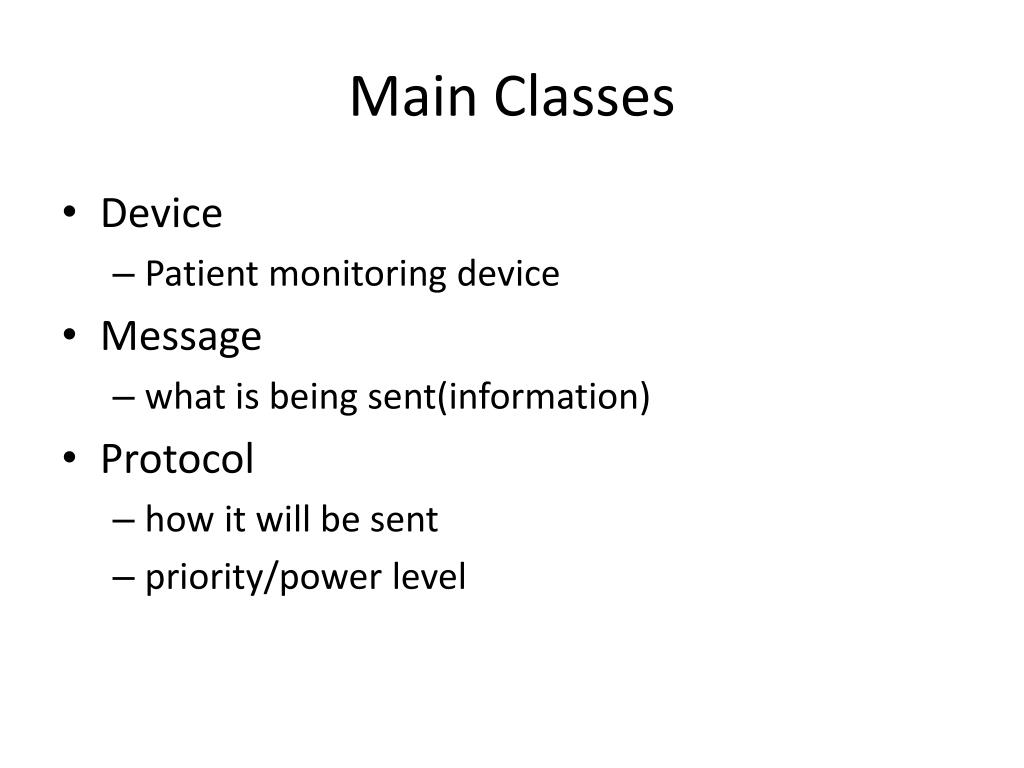

  2. Main Classes • Device • Patient monitoring device • Message • what is being sent(information) • Protocol • how it will be sent • priority/power level

  3. Device • Abstract • Main component • SubClass • Node

  4. Protocol • Determines the power used to transmit the message • Emergency uses maximum power • Determines range of device/node

  5. Message • Contains data being sent from over network • patient information • destination • origin

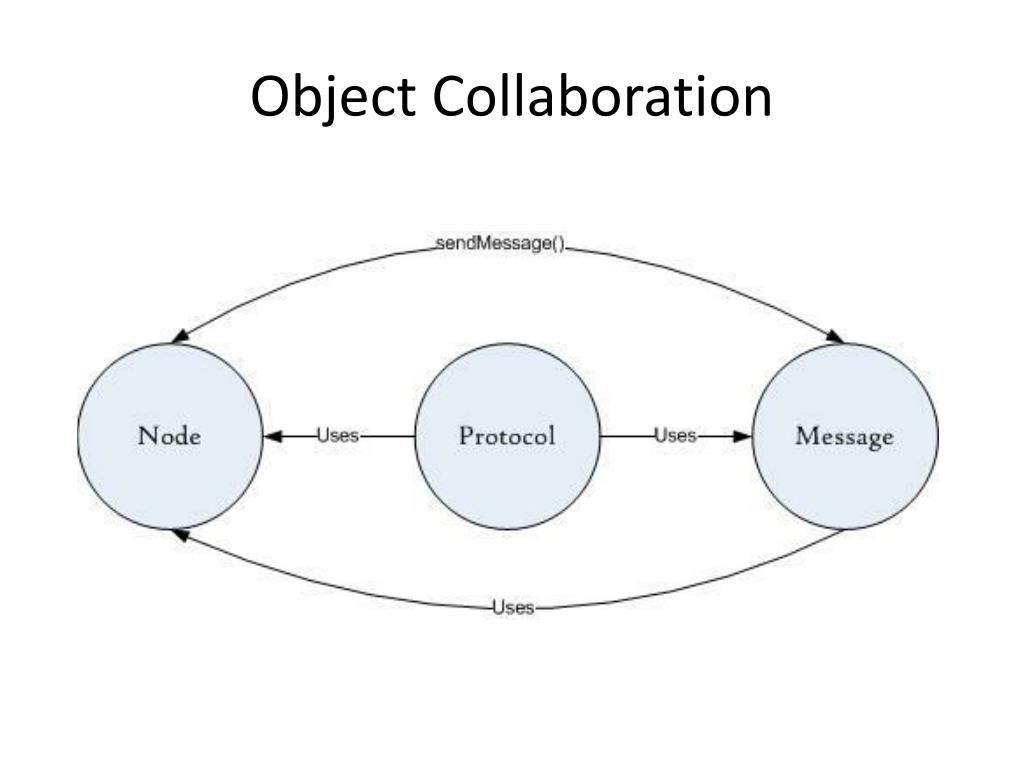

  6. Object Collaboration
