  1. Java Management Extensions(JMX) Jmx Introduction

  2. JMX • What is JMX? • Architecture • Instrumentation, Agent and Manager • JMX Components • MBeanServer • MBeans (Standard, Dynamic, Model) • Notification • Adaptors • Connectors • Development Kits for JMX

  3. JMX – What is it? • Sun - The Java Management extensions (JMX) provide a standard for instrumenting manageable resources and developing dynamic agents. • Tom – JMX is a standard API and architecture for accessing and controlling Java classes.

  4. JMX - Architecture • Instrumentation level - gives instant manageability to any Java technology-based object. • Agent level - agents are containers that provide core management services which can be dynamically extended by adding JMX resources. • Manager level - provides management components that can operate as a manager or agent for distribution and consolidation of management services.

  5. JMX - Architecture

  6. JMX Components • MBeanServer - Contains the methods necessary for the creation, registration, and deletion of MBeans as well as the access methods for registered MBeans. • MBean – a class whose implementation exposes an interface for allowing management of its attributes and methods. • Standard • Dynamic • Model

  7. Standard MBean • A Standard MBean is a class that implements a custom MBean interface. • It must be a concrete class so that it can be instantiated. • It must expose at least one public constructor so that any other class can create an instance

  8. Dynamic MBean • A Dynamic MBean implements its management interface programmatically, instead of through static method names. • Requires implementing the JMX interface java.management.DynamicMBean

  9. DynamicMBean Interface public interface DynamicMBean { public Object getAttribute(String attribute) throws AttributeNotFoundException, MBeanException, ReflectionException; public void setAttribute(Attribute attribute) throws AttributeNotFoundException, InvalidAttributeValueException, MBeanException, ReflectionException ; public AttributeList getAttributes(String[] attributes); public AttributeList setAttributes(AttributeList attributes); public Object invoke(String actionName, Object params[], String signature[]) throws MBeanException, ReflectionException ; public MBeanInfo getMBeanInfo(); }

  10. Model MBean • Dynamic MBean that has been implemented so that its management interface and its actual resource can be set programmatically. • Accomplished by creating and registering the RequiredModelMBean with the MBeanServer and declaring the manageable resource (called the target object).

  11. Model MBean (cont.) • A Descriptor contains the information describing the Model MBean’s target objects and the policies for accessing the target objects. • The Descriptor is an interface which is implemented in the DescriptorSupport class.

  12. Notification • MBeans, called broadcasters, send notification events to other registered MBeans or objects, called listeners. • Typical types of notification comes from the MBeanServer (register/unregister events) and MBeans (attribute changes). • All notification events must implement the javax.management.Notification interface.

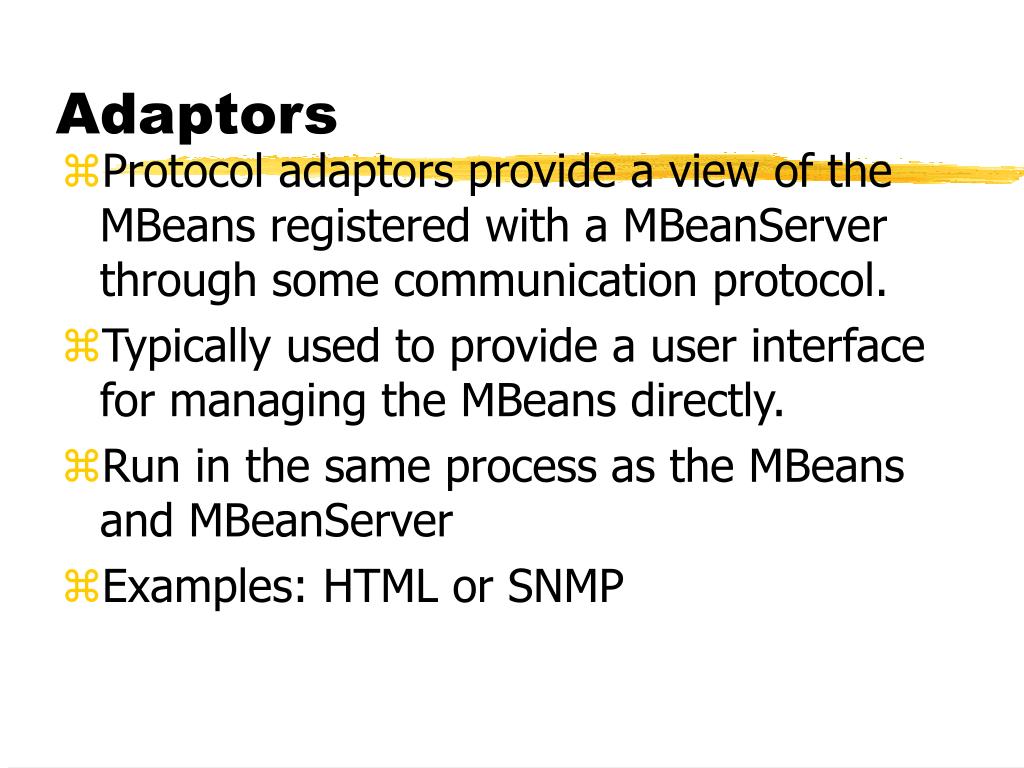

  13. Adaptors • Protocol adaptors provide a view of the MBeans registered with a MBeanServer through some communication protocol. • Typically used to provide a user interface for managing the MBeans directly. • Run in the same process as the MBeans and MBeanServer • Examples: HTML or SNMP

  14. Connectors • Protocol connectors and proxy MBeans allow for management of MBeans programmatically over a network. • Connector clients expose a remote version of the MBean server interface. The connector server transmits management requests to the MBean server and forwards any replies. • Example: RMI, HTTP or IIOP

  15. JMX – Tool kits • JMX Reference Implementation – free core implementation of the basic JMX interfaces. • Java Dynamic Management Kit (JDMK) – Sun’s full implementation of the JMX specification. Includes HTML, RMI, and SNMP adapters. • A few others being developed. Will likely be standard in most application servers.

  16. Resources • JMX Site - http://java.sun.com/products/JavaManagement/ • JMX White Paper - http://java.sun.com/products/JavaManagement/wp/ • JavaWorld JMX article - http://www.javaworld.com/javaworld/jw-06-2001/jw-0608-jmx.html • JDMK Site - http://java.sun.com/products/jdmk
