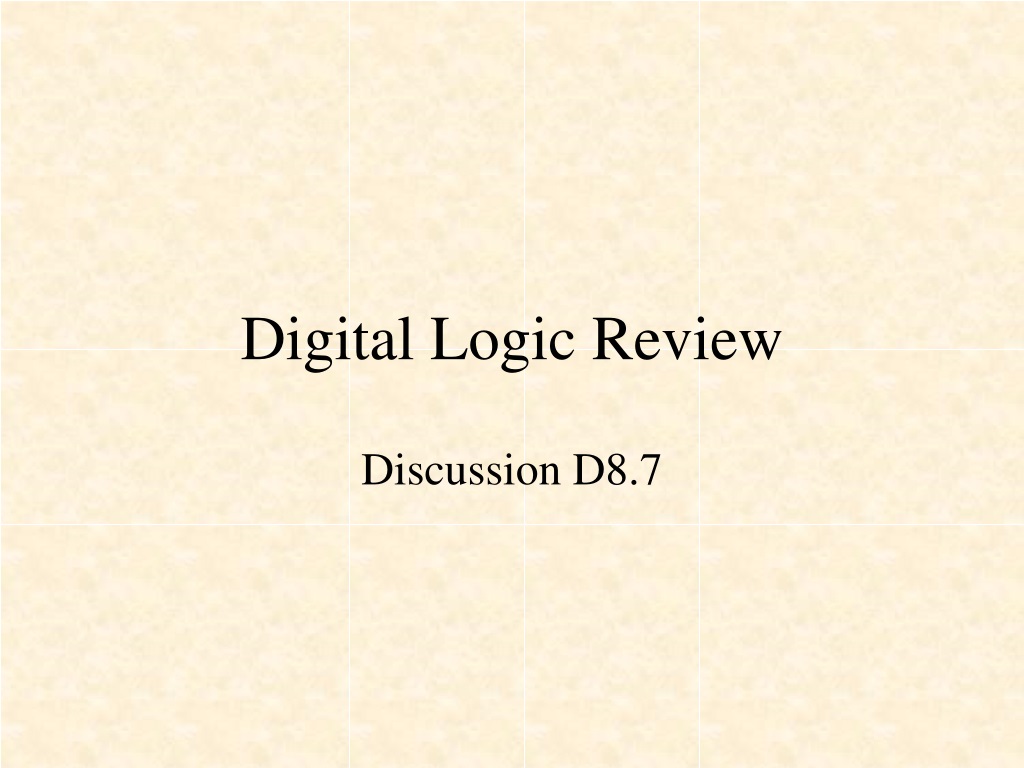

  1. Digital Logic Review Discussion D8.7

  2. Positional Notation N = P4P3P2P1P0 = P4b4 + P3b3 + P2b2 + P1b1 + P0b0 Binary 101102 = 1 x 24 + 0 x 23 + 1 x 22 + 1 x 21 + 0 x 20 = 16 + 0 + 4 + 2 + 0 = 2210

  3. Positional Notation N = P4P3P2P1P0 = P4b4 + P3b3 + P2b2 + P1b1 + P0b0 Hex 3AF16 = 3 x 162 + A x 161 + F x 160 = 3 x 256 + 10 x 16 + 15 x 1 = 768 + 160 + 15 = 94310

  4. Binary Hex 0110 1010 1000 6 A 8 1111 0101 1100 F 5 C

  5. Complement remaining bits Copy all bits to first 1 2’s complement Finding 2’s Complement 0 1 0 1 1 0 0 0 1 0 1 0 1 0 0 0

  6. Negative NumberTake 2’s Complement 7510 = 4B16 = 01001011 -7510 = B516 = 10110101 FF -4B B4 +1 B5

  7. Basic Gates • NOT Gate • AND Gate • OR Gate • XOR Gate • NAND Gate • NOR Gate • XNOR Gate

  8. Y X 0 1 1 0 Basic Gates Y = ~X not(Y,X) X Y NOT X Y Z 0 0 0 0 1 0 1 0 0 1 1 1 Z = X & Y and(Z,X,Y) X AND Z Y X Y Z 0 0 0 0 1 1 1 0 1 1 1 1 Z = X | Y or(Z,X,Y) X OR Z Y Any logic circuit can be created using only these three gates

  9. NOT Gate X ~X ~~X = X X ~X ~~X 0 1 0 1 0 1 Behavior: The output of a NOT gate is the inverse (one’s complement) of the input

  10. AND Gate Behavior: The output of an AND gate is HIGH only if all inputs are HIGH assign Z = X[1] & X[2] & ... & X[n]; assign Z = &X; and(Z,X[1],X[2],...,X[n]);

  11. OR Gate Behavior: The output of an OR gate is LOW only if all inputs are LOW assign Z = X[1] | X[2] | ... | X[n]; assign Z = |X; or(Z,X[1],X[2],...,X[n]);

  12. Exclusive-OR (XOR) Gate Behavior: The output of an XOR gate is HIGH only if the number of HIGH inputs is ODD assign Z = X[1] ^ X[2] ^ ... ^ X[n]; assign Z = ^X; xor(Z,X[1],X[2],...,X[n]);

  13. X Z Y 2-Input XOR Gate XOR X Y Z 0 0 0 0 1 1 1 0 1 1 1 0 Z = X ^ Y xor(Z,X,Y) Note: if Y = 0, Z = X if Y = 1, Z = ~X Therefore, an XOR gate can be used as a controlled inverter

  14. Exclusive-NOR Gate XNOR (NOT – XOR) Behavior: The output of an XNOR gate is HIGH only if the number of HIGH inputs is EVEN assign Z = ~(X[1] ^ X[2] ^ ... ^ X[n]); assign Z = ~^X; xnor(Z,X[1],X[2],...,X[n]);

  15. 2-Input XNOR Gate XNOR X Y Z 0 0 1 0 1 0 1 0 0 1 1 1 X Z Y Z = ~(X ^ Y) Z = X ~^ Y xnor(Z,X,Y) Note: Z = 1 if X = Y Therefore, an XNOR gate can be used as an equality detector

  16. NAND Gate (NOT-AND) Behavior: The output of an NAND gate is LOW only if all inputs are HIGH assign Z = ~(X[1] & X[2] & ... & X[n]); assign Z = ~&X; nand(Z,X[1],X[2],...,X[n]);

  17. NOR Gate (NOT – OR) Behavior: The output of an NOR gate is HIGH only if all inputs are LOW assign Z = ~(X[1] | X[2] | ... | X[n]); assign Z = ~|X; nor(Z,X[1],X[2],...,X[n]);

  18. Gates4.v module gates ( X ,Z, Y ); input [4:1] X ; wire [4:1] X ; output [6:1] Z ; wire [6:1] Z ; output [6:1] Y ; wire [6:1] Y ; and(Z[6],X[1],X[2],X[3],X[4]); nand(Z[5],X[1],X[2],X[3],X[4]); or(Z[4],X[1],X[2],X[3],X[4]); nor(Z[3],X[1],X[2],X[3],X[4]); xor(Z[2],X[1],X[2],X[3],X[4]); xnor(Z[1],X[1],X[2],X[3],X[4]); assign Y[6] = &X; assign Y[5] = ~&X; assign Y[4] = |X; assign Y[3] = ~|X; assign Y[2] = ^X; assign Y[1] = ~^X; endmodule Verilog gate level primitives Verilog reduction operators

  19. and(Z[6],X[1],... nand(Z[5],X[1], ... or(Z[4],X[1], ... nor(Z[3],X[1], ... xor(Z[2],X[1], ... xnor(Z[1],X[1], ... assign Y[6] = &X; assign Y[5] = ~&X; assign Y[4] = |X; assign Y[3] = ~|X; assign Y[2] = ^X; assign Y[1] = ~^X;

  20. NAND Gate X Z X Z = Y Y Z = ~(X & Y) Z = ~X | ~Y X Y W Z 0 0 0 1 0 1 0 1 1 0 0 1 1 1 1 0 X Y ~X ~Y Z 0 0 1 1 1 0 1 1 0 1 1 0 0 1 1 1 1 0 0 0

  21. De Morgan’s Theorem-1 ~(X & Y) = ~X | ~Y • NOT all variables • Change & to | and | to & • NOT the result

  22. NOR Gate X X Z Z Y Y Z = ~(X | Y) Z = ~X & ~Y X Y Z 0 0 1 0 1 0 1 0 0 1 1 0 X Y ~X ~Y Z 0 0 1 1 1 0 1 1 0 0 1 0 0 1 0 1 1 0 0 0

  23. De Morgan’s Theorem-2 ~(X | Y) = ~X & ~Y • NOT all variables • Change & to | and | to & • NOT the result

  24. Sum of Products Design X Y minterms 0 0 m0 = ~X & ~Y 0 1 m1 = ~X & Y 1 0 m2 = X & ~Y 1 1 m3 = X & Y

  25. Sum of Products Design Design an XOR gate X Y Z 0 0 0 0 1 1 1 0 1 1 1 0 m1 = ~X & Y m2 = X & ~Y Z = m1 | m2 = (~X & Y) | (X & ~Y)

  26. Product of Sums Design X Y minterms maxterms 0 0 m0 = ~X & ~Y M0 = ~m0 = X | Y 0 1 m1 = ~X & Y M1 = ~m1 = X | ~Y 1 0 m2 = X & ~Y M2 = ~m2 = ~X | Y 1 1 m3 = X & Y M3 = ~m3 = ~X | ~Y

  27. Product of Sums Design Design an XOR gate X Y Z 0 0 0 0 1 1 1 0 1 1 1 0 M0 = X | Y M3 = ~X | ~Y Z = M0 & M3 = (X | Y) & (~X | ~Y)

  28. ~X & Y Venn Diagrams X Y

  29. ~X & Y X & Y Unity X Y (X & Y) | (~X & Y) = Y Dual: (X | Y) & (~X | Y) = Y

  30. X & Y Absorption-1 X Y Y | (X & Y) = Y Dual: Y & (X | Y) = Y

  31. ~X & Y Absorption-2 X Y X | (~X & Y) = X | Y Dual: X & (~X | Y) = X & Y

  32. Distributive Law - a X | (Y & Z) = (X | Y) & (X | Z)

  33. Distributive Law - b X & (Y | Z) = (X & Y) | (X & Z)

  34. Venn Diagrams and Minterms

  35. Venn Diagrams and Minterms XYZ + XYZ + XYZ = XZ + XY

  36. YZ 00 01 11 10 X 0 1 3 2 0 4 5 7 6 1 Three-variable K-Maps 1 1 1 1 F = m0 | m2 | m5 | m7 = S(0,2,5,7)

  37. YZ 00 01 11 10 X 0 1 Three-variable K-Maps 1 1 1 1 F = X & Z | ~X & ~Z

  38. YZ 00 01 11 10 X 0 1 Three-variable K-Maps 1 1 1 1 1 1 F = Y | ~Z

  39. YZ 00 01 11 10 WX 0 1 3 2 00 4 5 7 6 01 12 13 15 14 11 8 9 11 10 10 Four-variable K-Maps F(W,X,Y,Z) = S(2,4,5,6,7,9,13,14,15)

  40. Four-variable K-Maps YZ 00 01 11 10 WX 00 1 F = ~W & X | X & Y | ~W & Y & ~Z | W & ~Y & Z 01 1 1 1 1 11 1 1 1 10 1

  41. Four-variable K-Maps YZ 00 01 11 10 WX F = ~W & Z 00 1 1 1 1 | W & X & Y 01 1 1 | ~X & ~Z 11 1 1 10 1 1

  42. A 1-Bit Comparator The variable Gout is 1 if Gin = 1 or if Ein = 1 andx > y. The variable Eout is 1 if Ein = 1 andx = y. Gout = Gin | Ein & x & ~y Eout = Ein & ~x & ~y | Ein & x & y = Ein & (~x & ~y | x & y) = Ein & (x ~^ y)

  43. module comp4 ( x, y, gt, eq, lt ); input [3:0] x ; wire [3:0] x ; input [3:0] y ; wire [3:0] y ; output lt ; wire lt ; output gt ; wire gt ; output eq ; wire eq ; A 4-Bit Comparator x 1 1 0 1 y 1 0 1 1 0 1 1 1 lt 0 0 1 0

  44. Turning on an LED

  45. Turning on an LED This is what we use in Lab

  46. 7-Segment Display

  47. 7-Segment Display seg7dec D(3:0) AtoG(6:0) Truth table D a b c d e f g 8 1 1 1 1 1 1 1 9 1 1 1 1 0 1 1 A 1 1 1 0 1 1 1 b 0 0 1 1 1 1 1 C 1 0 0 1 1 1 0 d 0 1 1 1 1 0 1 E 1 0 0 1 1 1 1 F 1 0 0 0 1 1 1 D a b c d e f g 0 1 1 1 1 1 1 0 1 0 1 1 0 0 0 0 2 1 1 0 1 1 0 1 3 1 1 1 1 0 0 1 4 0 1 1 0 0 1 1 5 1 0 1 1 0 1 1 6 1 0 1 1 1 1 1 7 1 1 1 0 0 0 0

  48. a f b g e c d module hex7seg(D,AtoG); input [3:0] D; output [6:0] AtoG; reg [6:0] AtoG; always @(D) case(D) 0: AtoG = 7'b1111110; 1: AtoG = 7'b0110000; 2: AtoG = 7'b1101101; 3: AtoG = 7'b1111001; 4: AtoG = 7'b0110011; 5: AtoG = 7'b1011011; 6: AtoG = 7'b1011111; 7: AtoG = 7'b1110000; 8: AtoG = 7'b1111111; 9: AtoG = 7'b1111011; 'hA: AtoG = 7'b1110111; 'hb: AtoG = 7'b0011111; 'hC: AtoG = 7'b1001110; 'hd: AtoG = 7'b0111101; 'hE: AtoG = 7'b1001111; 'hF: AtoG = 7'b1000111; default: AtoG = 7'b1111110; // 0 endcase endmodule hex7seg.v Verilog

  49. SW7seg.v Verilog // Title : Toggle switches to 7-Segment Display // Author : R. E. Haskell module SW7seg(SW,LEDR,AtoG,AAtoGG); input [7:0] SW; output [7:0]LEDR; output [6:0] AtoG; output [6:0] AAtoGG; wire [6:0] AtoG; wire [6:0] AAtoGG; wire [7:0] LEDR; assign LEDR = SW; hex7seg d7L(.D(SW[7:4]),.AtoG(AAtoGG)); hex7seg d7R(.D(SW[3:0]),.AtoG(AtoG)); endmodule AAtoGG AtoG
