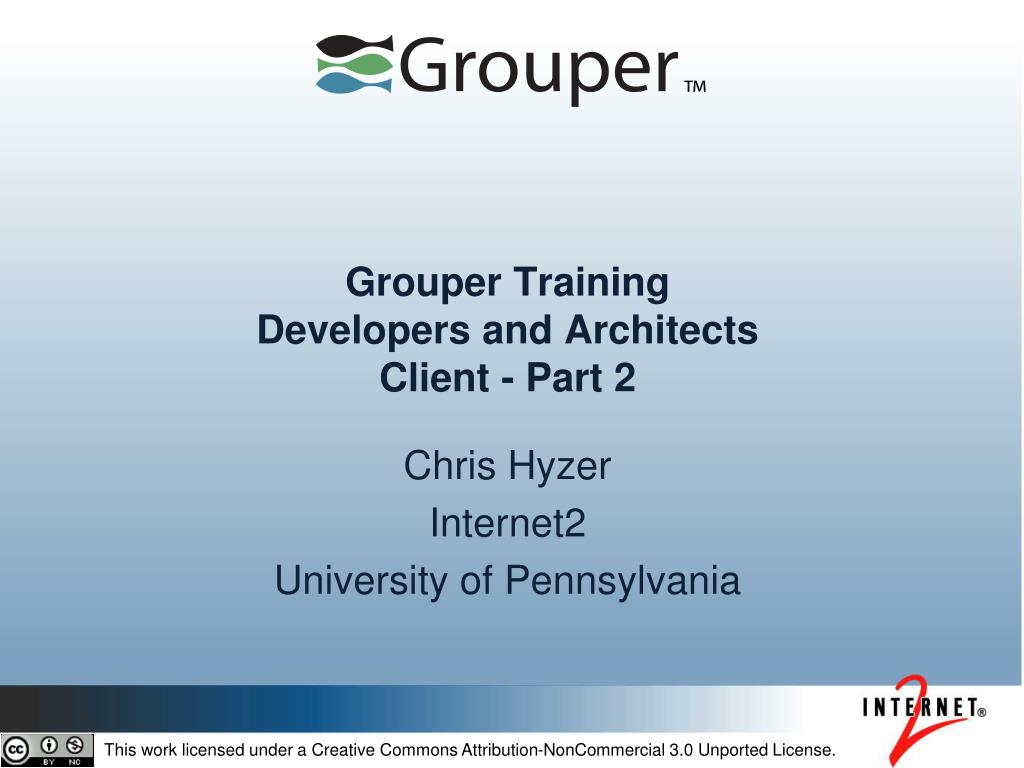

  1. Grouper TrainingDevelopers and Architects Client - Part 2 Chris Hyzer Internet2 University of Pennsylvania This work licensed under a Creative Commons Attribution-NonCommercial 3.0 Unported License.

  2. Contents Introduction Configuration (part 1) Command line (part 1) Documentation Debugging Using from a Java program Use as a reference implementation LDAP client (part 3) XMPP message consumer (part 3)

  3. Introduction to Grouper Client 3

  4. Documentation • Usage: java -jar grouperClient.jar • Grouper client wiki • Grouper WS documentation and training • Shows operations 4

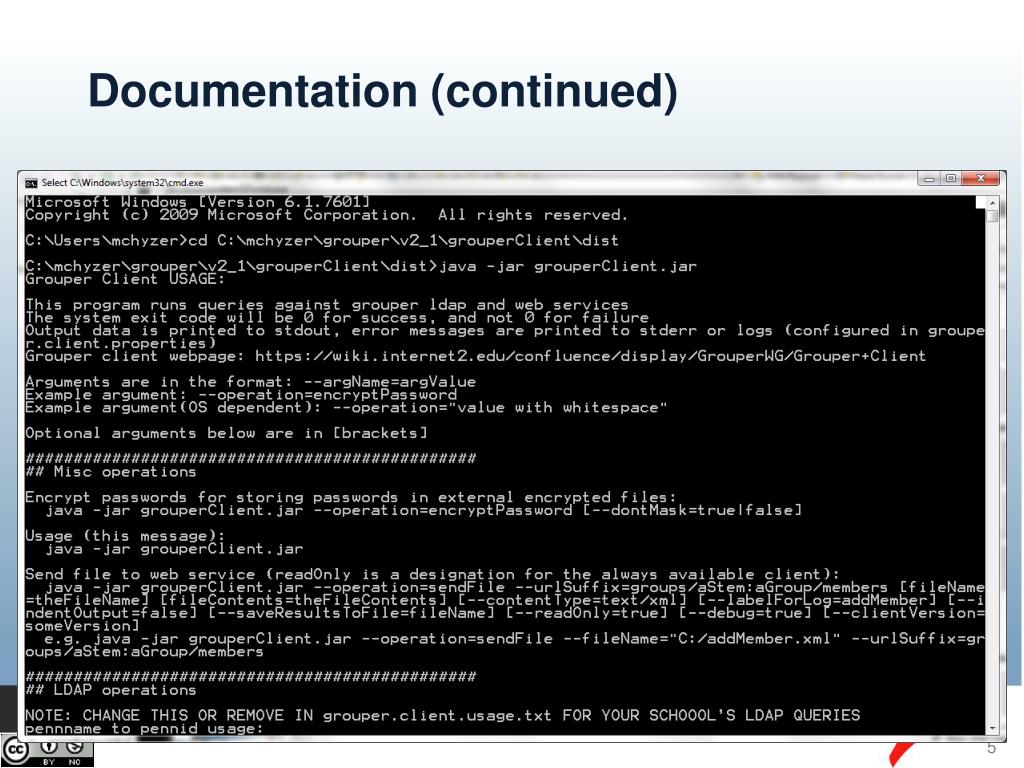

  5. Documentation (continued) 5

  6. Debugging • --debug=true will • Log more information • Show request/response formatted • Credentials are cleansed • Shows full error code / message / etc 6

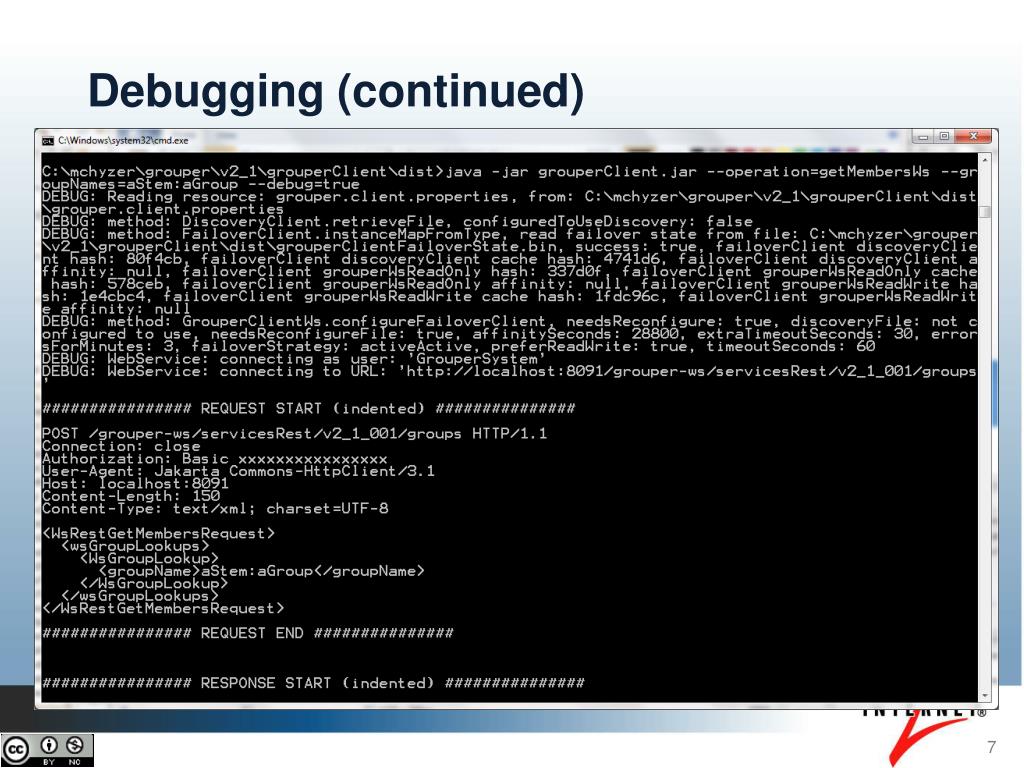

  7. Debugging (continued) 7

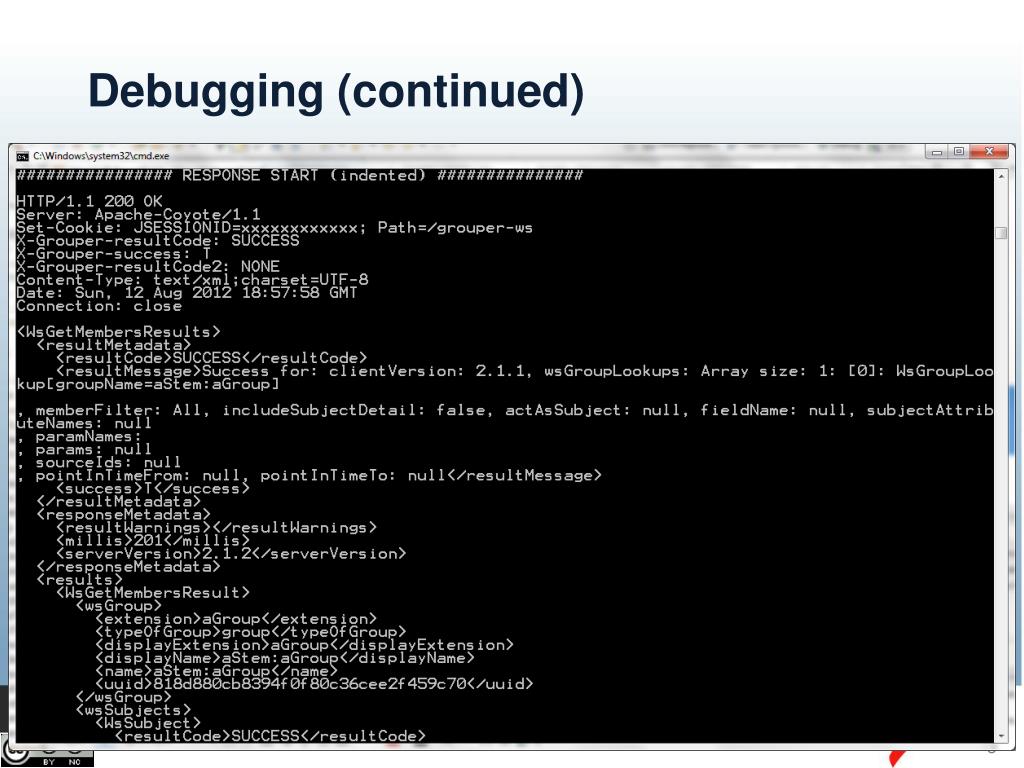

  8. Debugging (continued) 8

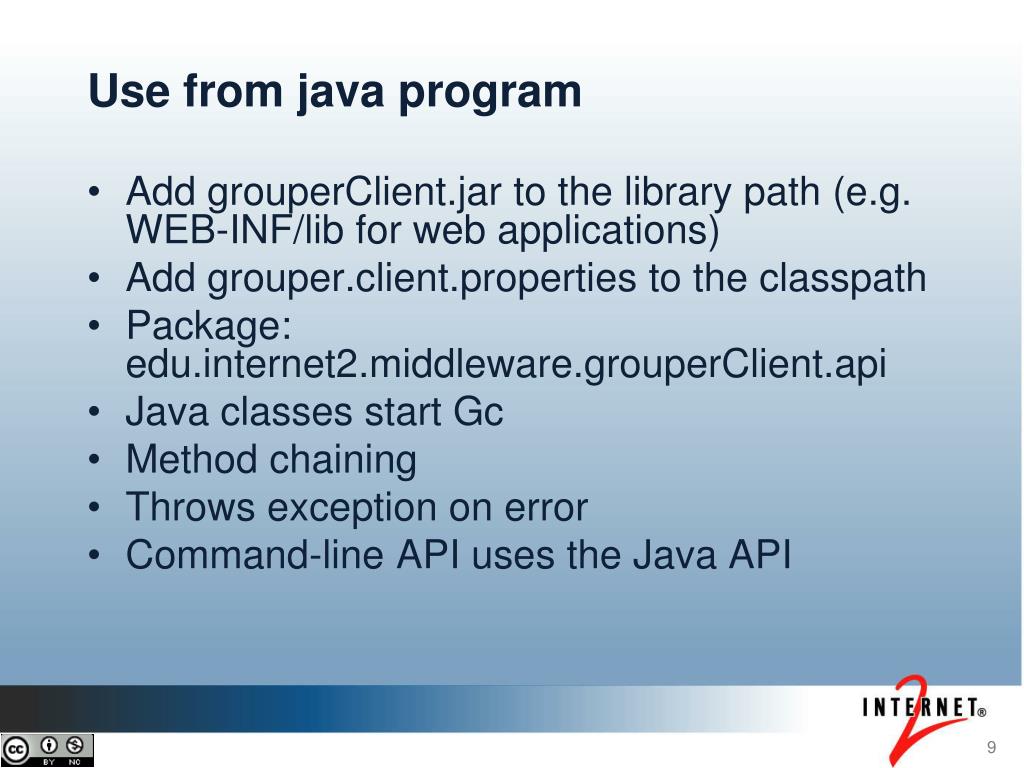

  9. Use from java program • Add grouperClient.jar to the library path (e.g. WEB-INF/lib for web applications) • Add grouper.client.properties to the classpath • Package: edu.internet2.middleware.grouperClient.api • Java classes start Gc • Method chaining • Throws exception on error • Command-line API uses the Java API 9

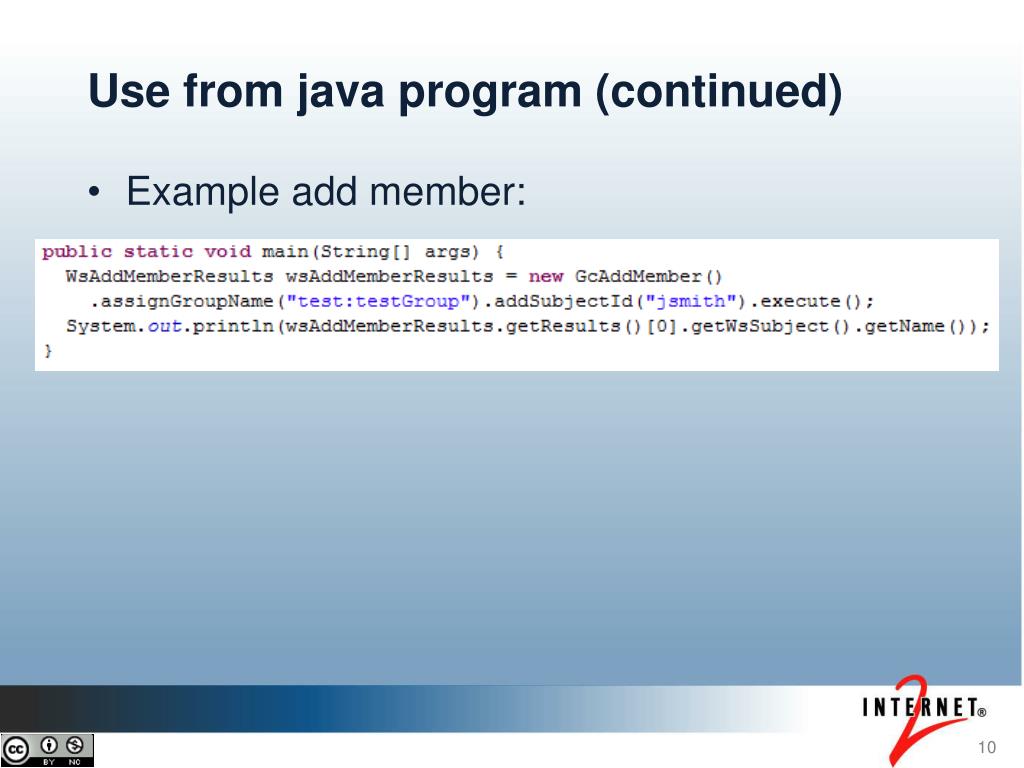

  10. Use from java program (continued) • Example add member: 10

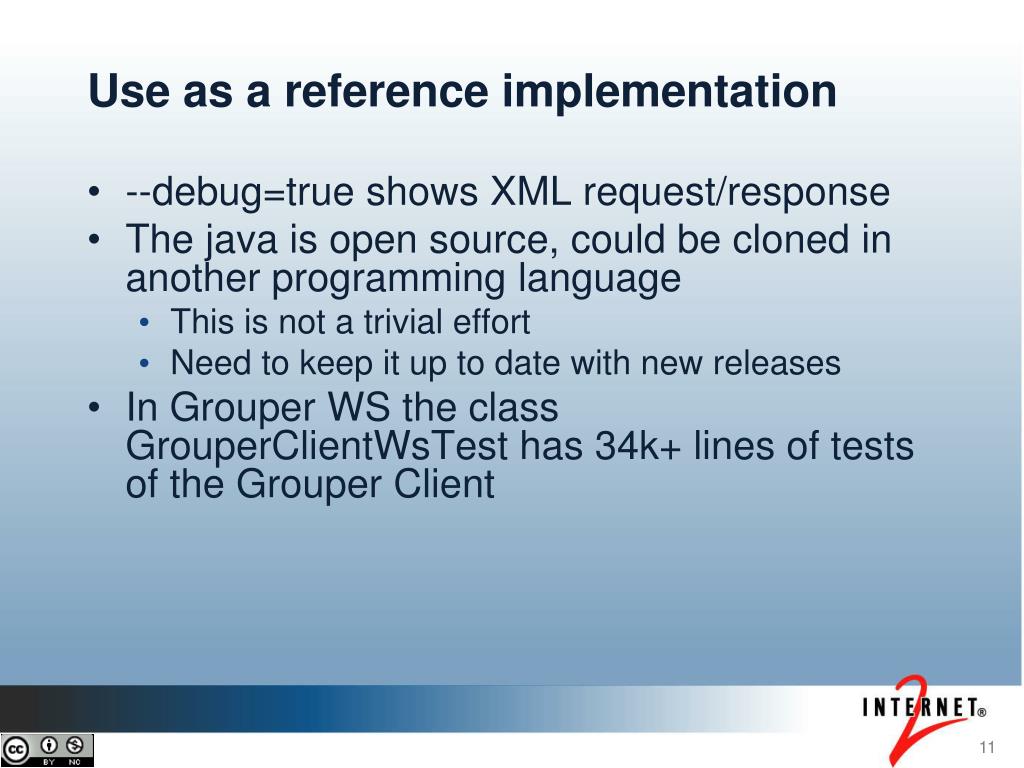

  11. Use as a reference implementation • --debug=true shows XML request/response • The java is open source, could be cloned in another programming language • This is not a trivial effort • Need to keep it up to date with new releases • In Grouper WS the class GrouperClientWsTest has 34k+ lines of tests of the Grouper Client 11

  12. Quiz Click on the quiz link in the video description to reinforce your knowledge of this topic 12

  13. Thanks! • Further information: • Infosheets, mailing lists, wiki, downloads, etc.:www.internet2.edu/grouper • Grouper demo server:grouperdemo.internet2.edu/ • Grouper Online Training Home:spaces.internet2.edu/x/IIGfAQ This work licensed under a Creative Commons Attribution-NonCommercial 3.0 Unported License.
