LAPF Frame Format

LAPF Frame Format. Flag 1 octet. Address 2 - 4 octets. Information variable length. FCS 2 octets. Flag 1 octet. Frame Format. 8 7 6 5 4 3 2 1. Upper DLCI. C/R. EA 0. Lower DLCI. FECN. BECN. DE. EA 1.

breck
Télécharger la présentation

LAPF Frame Format

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

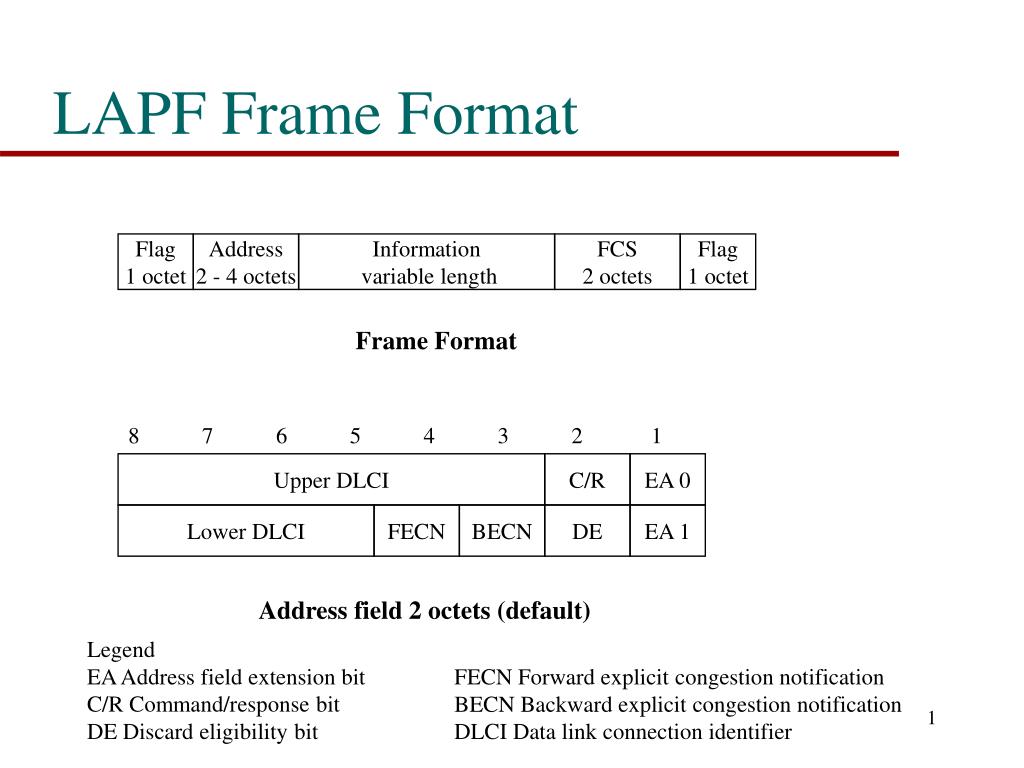

  1. LAPF Frame Format Flag 1 octet Address 2 - 4 octets Information variable length FCS 2 octets Flag 1 octet Frame Format 8 7 6 5 4 3 2 1 Upper DLCI C/R EA 0 Lower DLCI FECN BECN DE EA 1 Address field 2 octets (default) Legend EA Address field extension bit C/R Command/response bit DE Discard eligibility bit FECN Forward explicit congestion notification BECN Backward explicit congestion notification DLCI Data link connection identifier

  2. LAPF Frame Format • No control field exists in the frame • The connection can only carry user data • Therefore no in-band signalling exists • No error control or flow control exists since there are no sequence numbers

  3. LAPF Frame Format • Address field carries DLCI • Address field length may be extended to 2, 3, or 4 octets • Length determined by EA bits - default is 2 octets • DLCI allows multiple logical connections to be multiplexed on single channel • DLCI can be 10, 17 or 24 bits depending on address field length
