Giulio Maggiore – Domenico Fabbri TIM Network Core & Trunking Network Testing UMTS GPRS VAS IN

1. IMS Network Integration Testing Infrastructure Giulio Maggiore – Domenico Fabbri TIM Network Core & Trunking Network Testing UMTS GPRS VAS IN ETSI MTS#40 – Berlin 16th March 2005

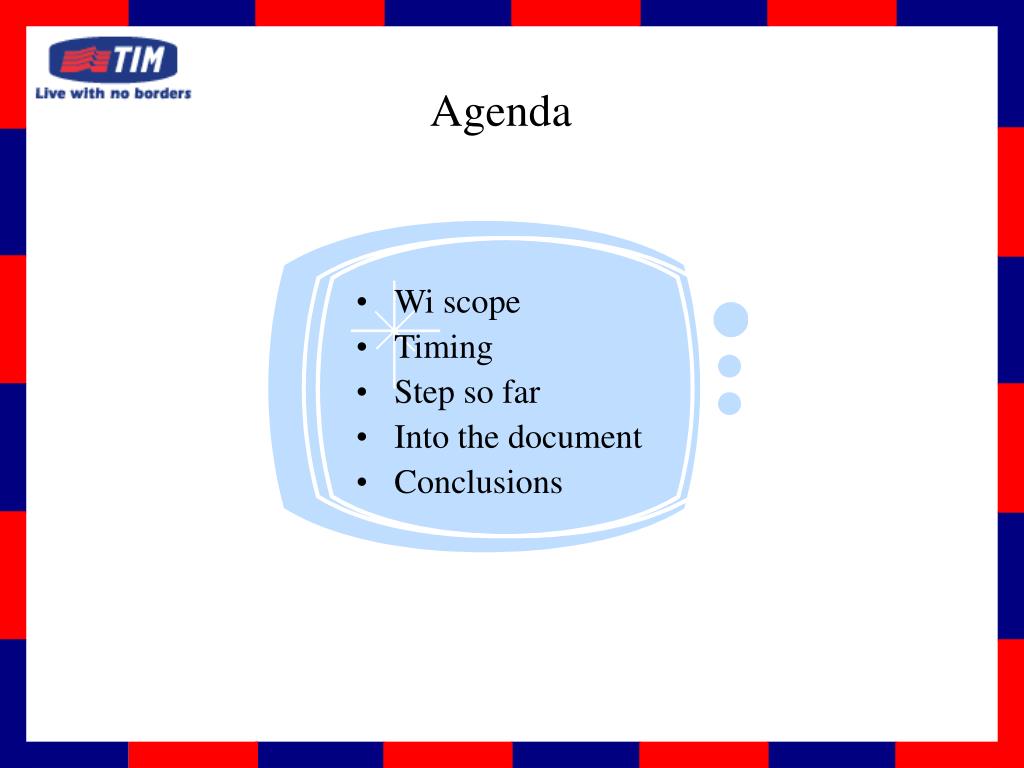

2. Wi scope Timing Step so far Into the document Conclusions Agenda

3. Produce an ETSI Technical Report Create a common understanding on IMS Testing Infrastructure. Define IMS Testing Methodology Define IMS Network Configurations Scope of the WI

4. New wi Proposal Wi approved & Preliminary draft Kick off meeting ETR Stable draft uploaded on Server Discussion for approval 16th Mar 2005 MTS #40 15th Feb 2005 Nov 04-Jan05 20th – 21st Oct 2004 MTS #39 21st Jan 2005 Rome Timing6 months

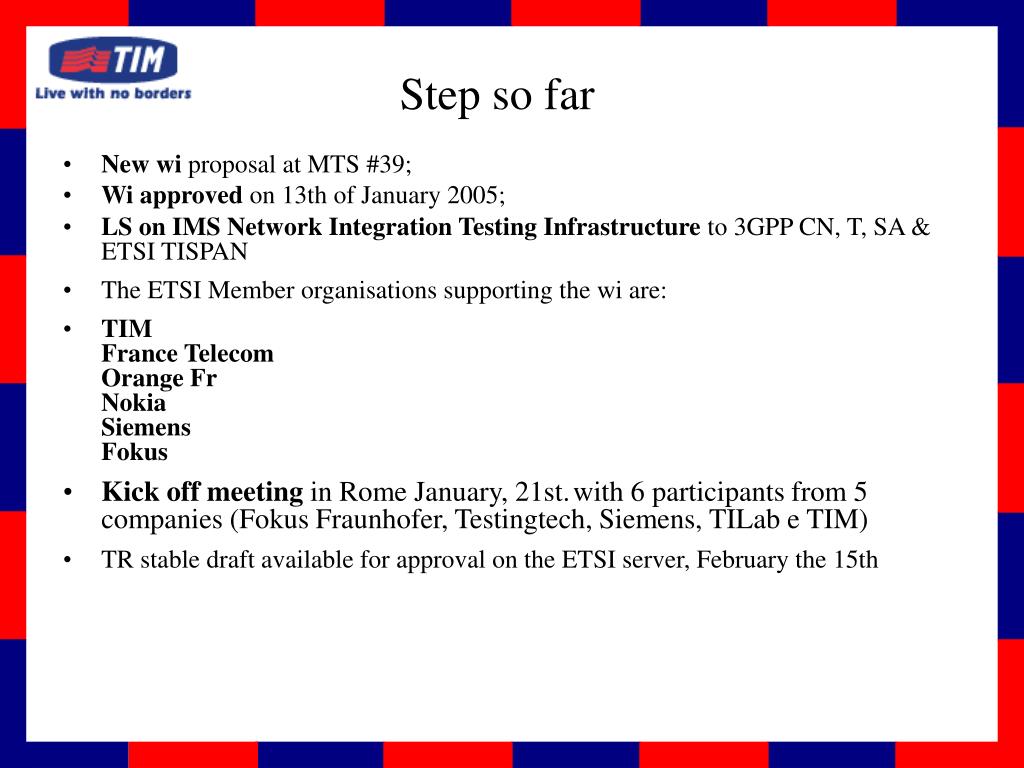

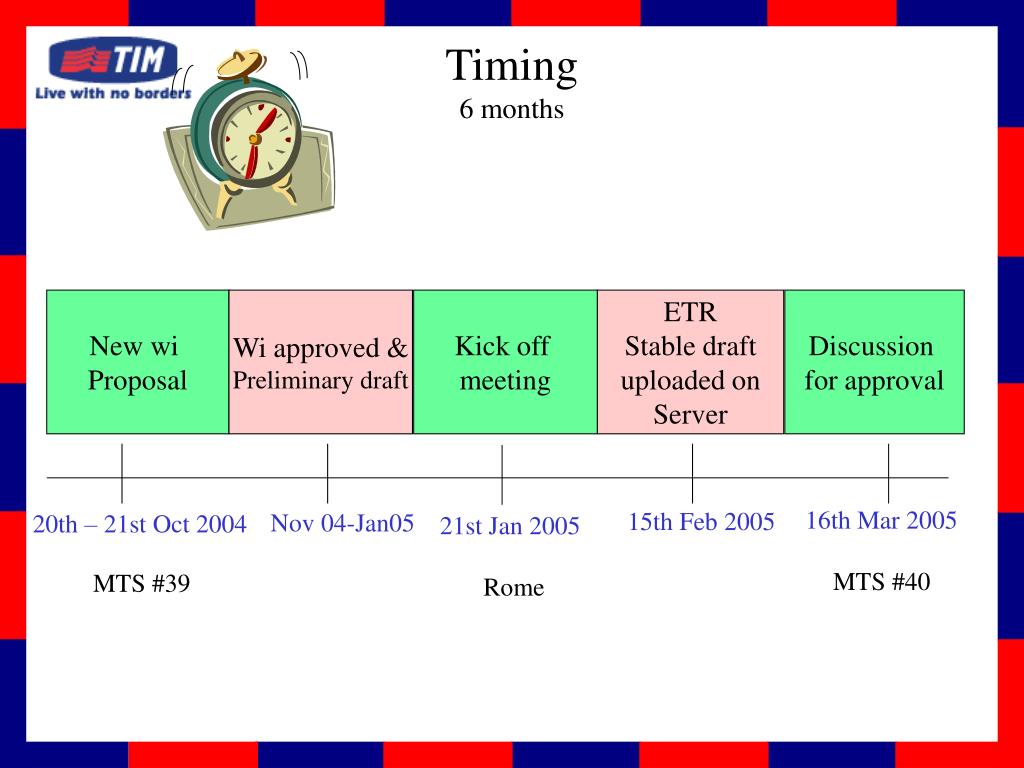

5. New wi proposal at MTS #39; Wi approved on 13th of January 2005; LS on IMS Network Integration Testing Infrastructure to 3GPP CN, T, SA & ETSI TISPAN The ETSI Member organisations supporting the wi are: TIMFrance TelecomOrange FrNokiaSiemensFokus Kick off meeting in Rome January, 21st.with 6 participants from 5 companies (Fokus Fraunhofer, Testingtech, Siemens, TILab e TIM) TR stable draft available for approval on the ETSI server, February the 15th Step so far

6. Global Network Architecture IMS Architecture Testing Tipologies Scope of Testing Proposed Configurations Conclusion Outline

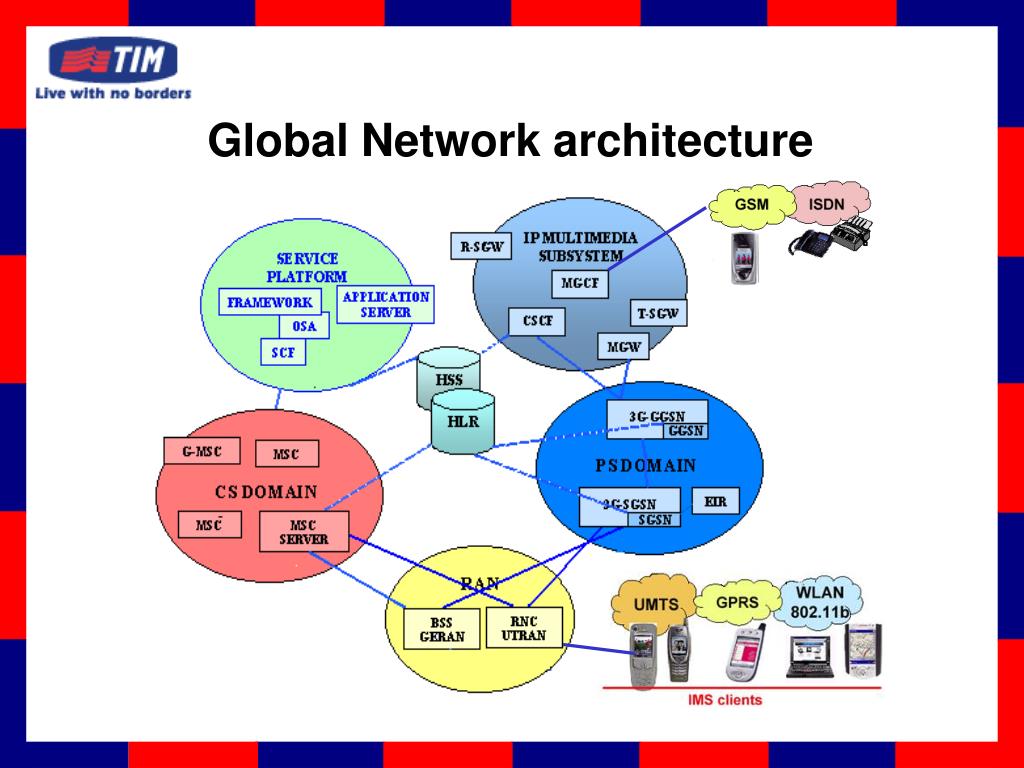

7. Global Network architecture

8. IMS Architecture

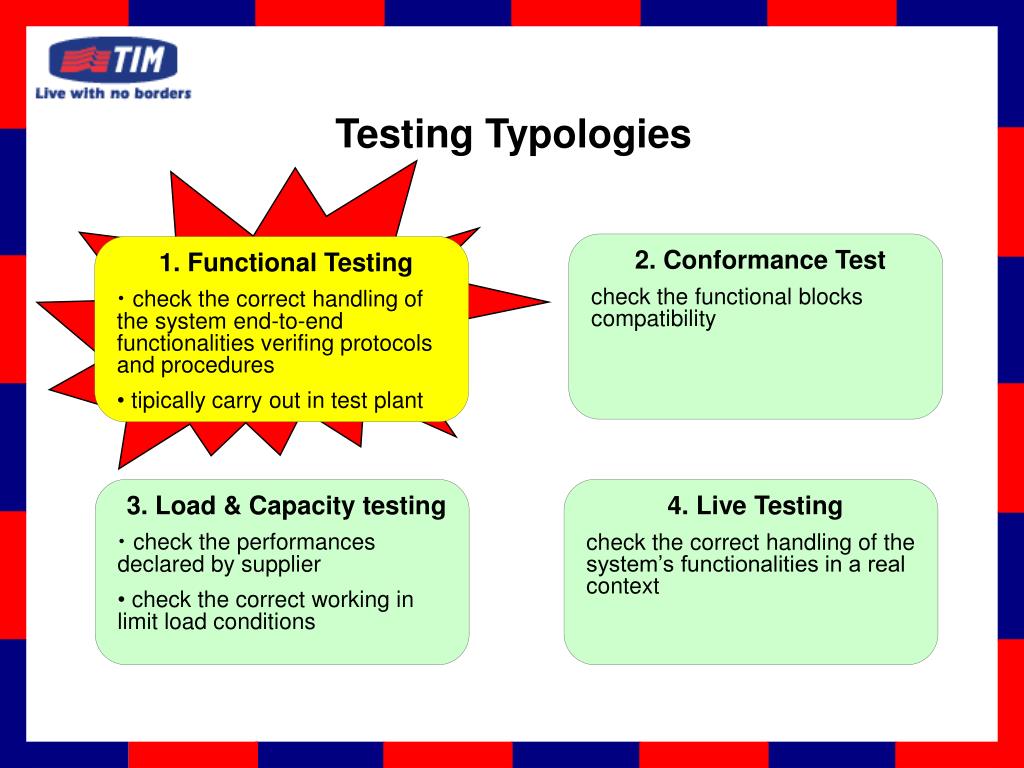

9. 4. Live Testing 2. Conformance Test 3. Load & Capacity testing 1. Functional Testing check the correct handling of the system’s functionalities in a real context check the functional blocks compatibility • check the performances declared by supplier • check the correct working in limit load conditions • check the correct handling of the system end-to-end functionalities verifing protocols and procedures • tipically carry out in test plant Testing Typologies

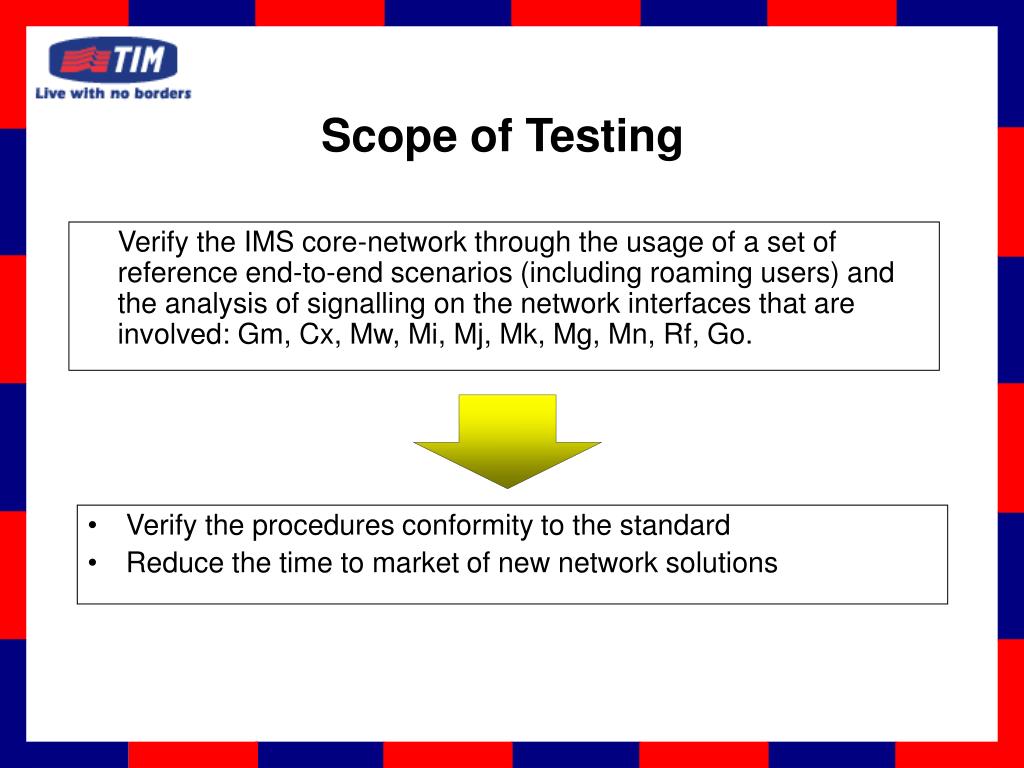

10. Scope of Testing Verify the IMS core-network through the usage of a set of reference end-to-end scenarios (including roaming users) and the analysis of signalling on the network interfaces that are involved: Gm, Cx, Mw, Mi, Mj, Mk, Mg, Mn, Rf, Go. • Verify the procedures conformity to the standard • Reduce the time to market of new network solutions

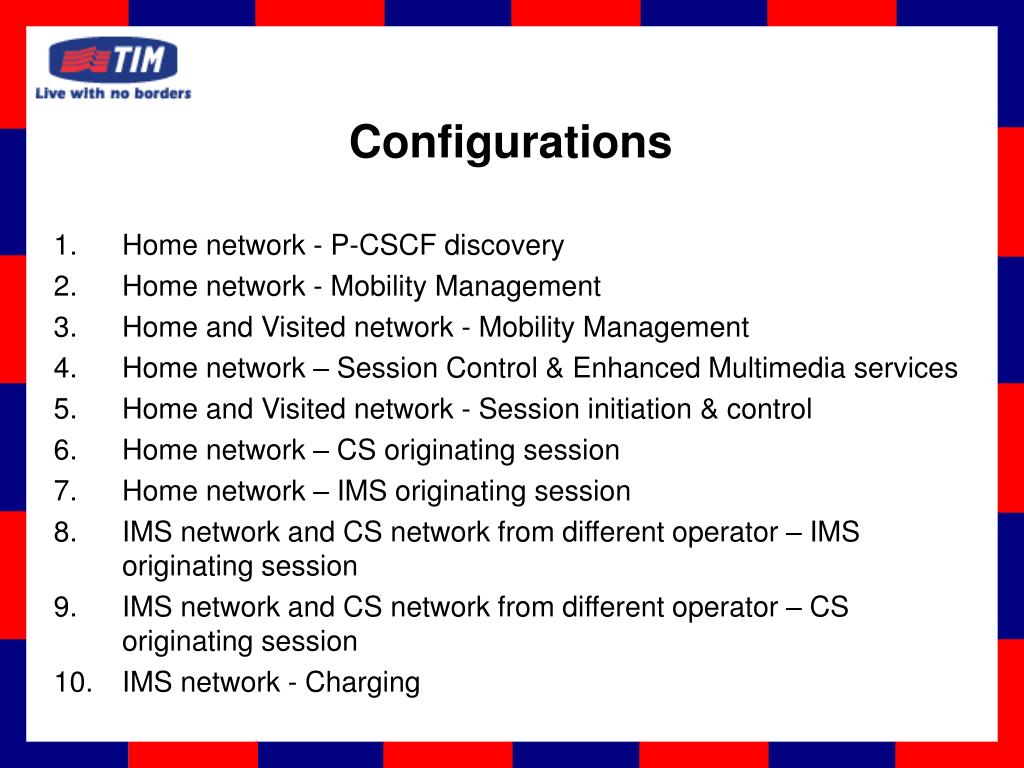

11. Home network - P-CSCF discovery Home network - Mobility Management Home and Visited network - Mobility Management Home network – Session Control & Enhanced Multimedia services Home and Visited network - Session initiation & control Home network – CS originating session Home network – IMS originating session IMS network and CS network from different operator – IMS originating session IMS network and CS network from different operator – CS originating session IMS network - Charging Configurations

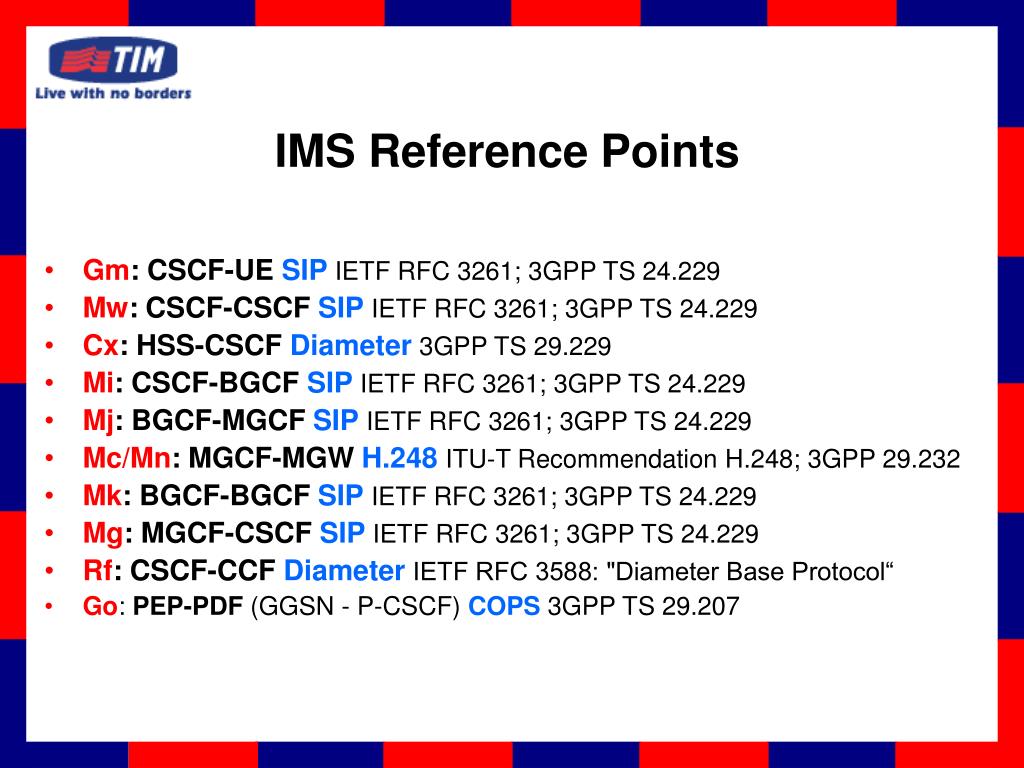

12. Gm: CSCF-UE SIPIETF RFC 3261; 3GPP TS 24.229 Mw: CSCF-CSCF SIPIETF RFC 3261; 3GPP TS 24.229 Cx: HSS-CSCF Diameter3GPP TS 29.229 Mi: CSCF-BGCF SIPIETF RFC 3261; 3GPP TS 24.229 Mj: BGCF-MGCF SIPIETF RFC 3261; 3GPP TS 24.229 Mc/Mn: MGCF-MGW H.248ITU-T Recommendation H.248; 3GPP 29.232 Mk: BGCF-BGCF SIPIETF RFC 3261; 3GPP TS 24.229 Mg: MGCF-CSCF SIPIETF RFC 3261; 3GPP TS 24.229 Rf: CSCF-CCF DiameterIETF RFC 3588: "Diameter Base Protocol“ Go: PEP-PDF (GGSN - P-CSCF) COPS 3GPP TS 29.207 IMS Reference Points

13. End-to-End Methodology HSS DNS Cx Cx GGSN P-CSCF S-CSCF I-CSCF BSS GERAN Gm Mw Mw Gn RNC ULTRAN SGSN DHCP Um Iu-PS UE P-CSCF discovery IMS network configuration only for testing P-CSCF discovery procedure.

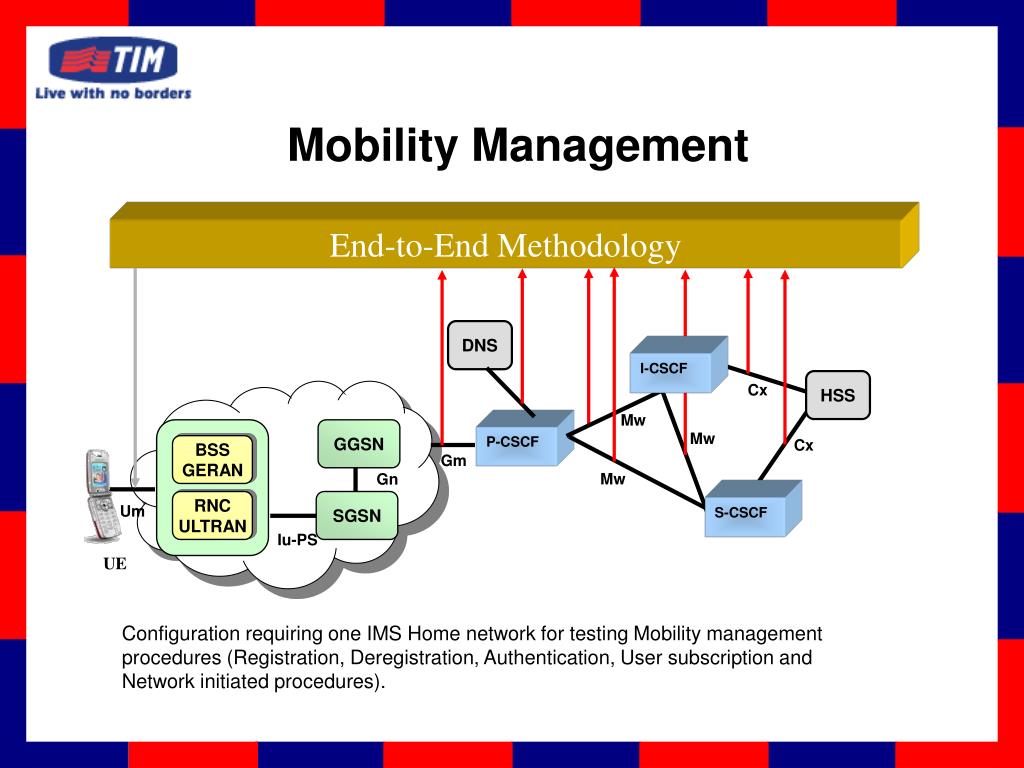

14. Mobility Management End-to-End Methodology DNS I-CSCF HSS Cx Mw GGSN Mw P-CSCF Cx BSS GERAN Gm Mw Gn RNC ULTRAN SGSN Um S-CSCF Iu-PS UE Configuration requiring one IMS Home network for testing Mobility management procedures (Registration, Deregistration, Authentication, User subscription and Network initiated procedures).

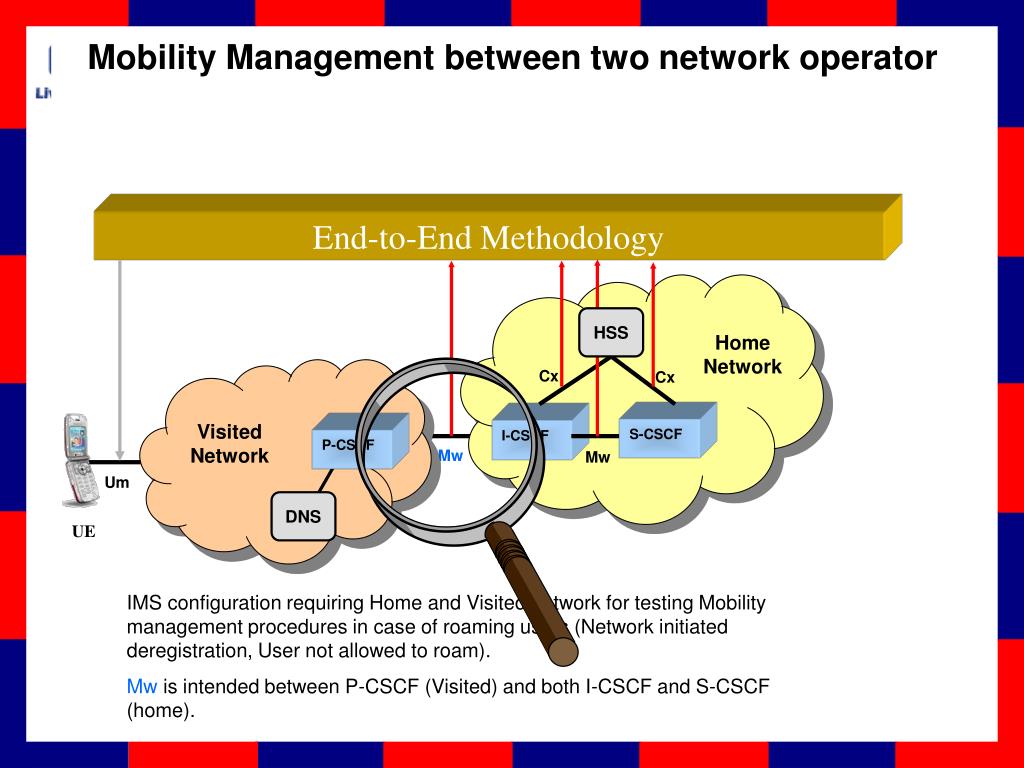

15. End-to-End Methodology HSS Home Network Cx Cx Visited Network S-CSCF I-CSCF P-CSCF Mw Mw Um DNS UE Mobility Management between two network operator IMS configuration requiring Home and Visited network for testing Mobility management procedures in case of roaming users (Network initiated deregistration, User not allowed to roam). Mw is intended between P-CSCF (Visited) and both I-CSCF and S-CSCF (home).

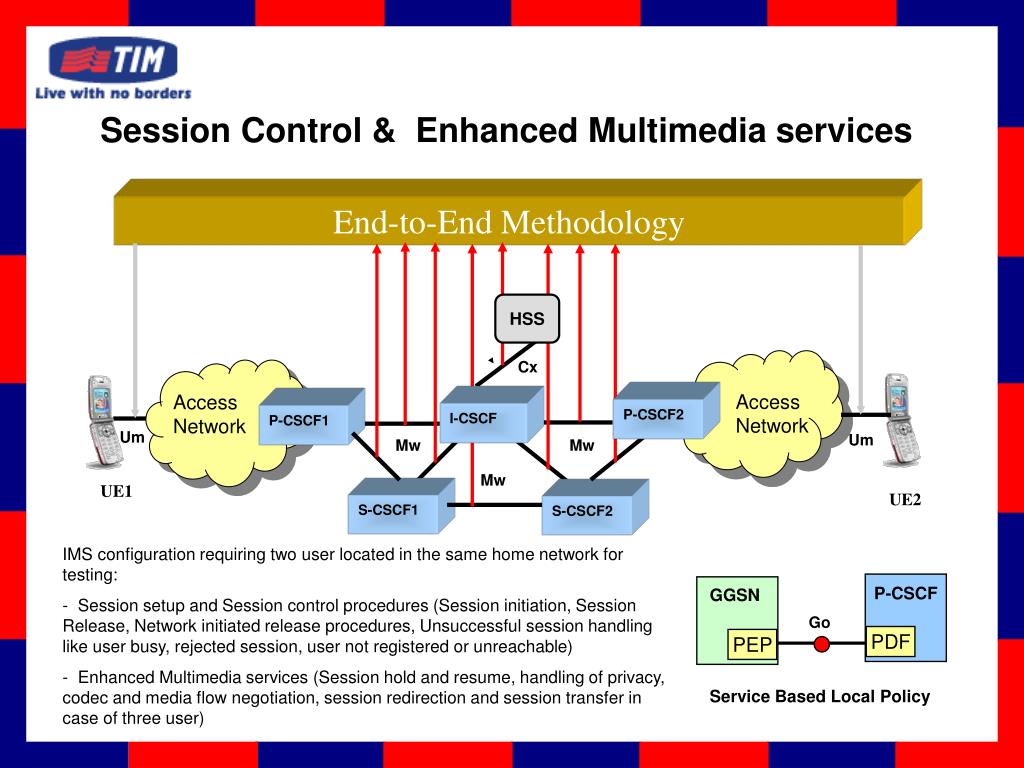

16. End-to-End Methodology HSS Cx Access Network Access Network P-CSCF2 I-CSCF P-CSCF1 Um Um Mw Mw Mw UE1 UE2 S-CSCF1 S-CSCF2 P-CSCF GGSN Go PDF PEP Session Control & Enhanced Multimedia services IMS configuration requiring two user located in the same home network for testing: - Session setup and Session control procedures (Session initiation, Session Release, Network initiated release procedures, Unsuccessful session handling like user busy, rejected session, user not registered or unreachable) - Enhanced Multimedia services (Session hold and resume, handling of privacy, codec and media flow negotiation, session redirection and session transfer in case of three user) Service Based Local Policy

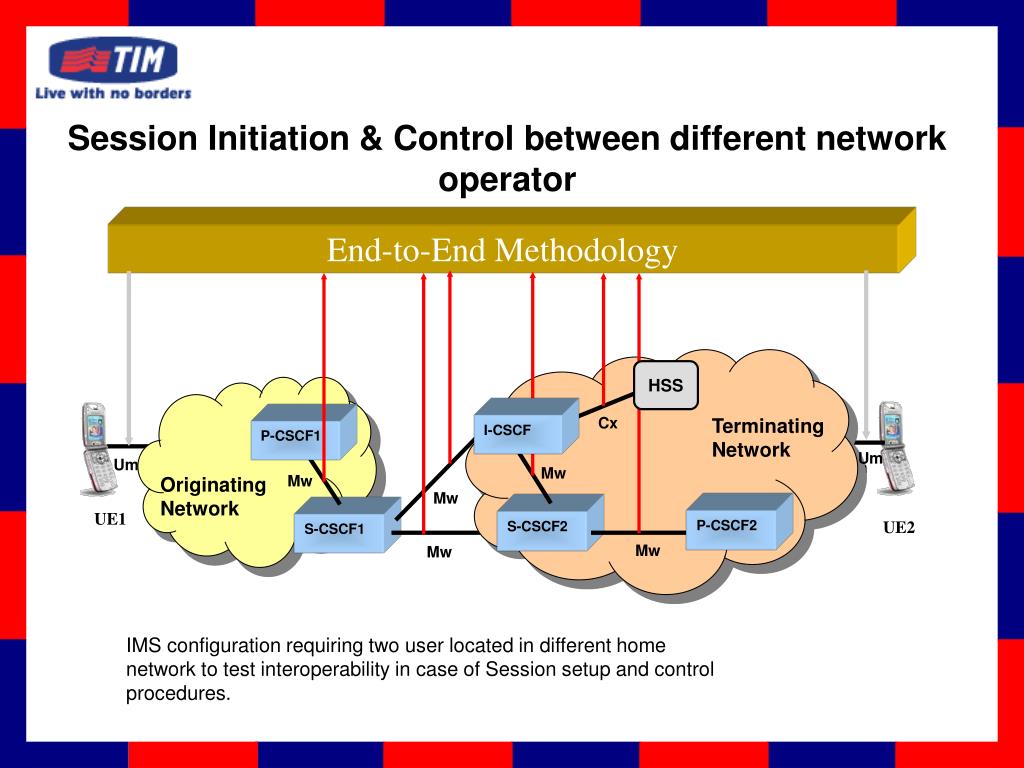

17. End-to-End Methodology HSS Cx Terminating Network I-CSCF P-CSCF1 Um Um Um Mw Mw Originating Network Mw UE1 P-CSCF2 UE2 S-CSCF2 S-CSCF1 Mw Mw Session Initiation & Control between different network operator IMS configuration requiring two user located in different home network to test interoperability in case of Session setup and control procedures.

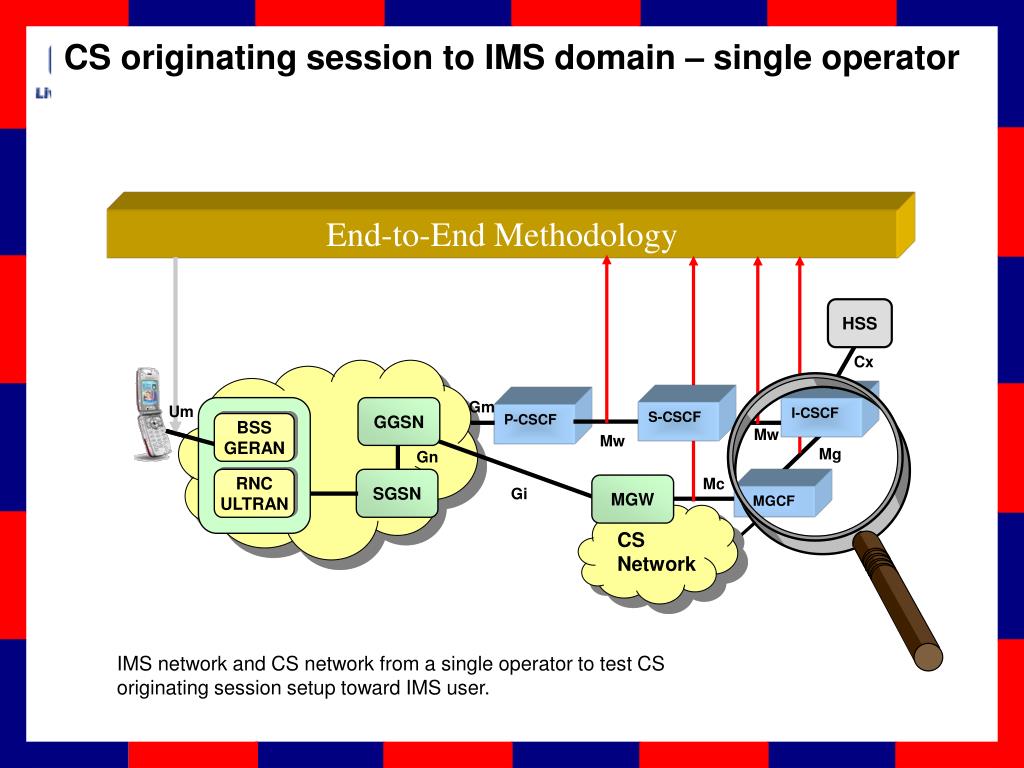

18. End-to-End Methodology HSS Cx Gm Um GGSN I-CSCF S-CSCF P-CSCF BSS GERAN Mw Mw Mg Gn Mc RNC ULTRAN SGSN MGW Gi MGCF CS Network CS originating session to IMS domain – single operator IMS network and CS network from a single operator to test CS originating session setup toward IMS user.

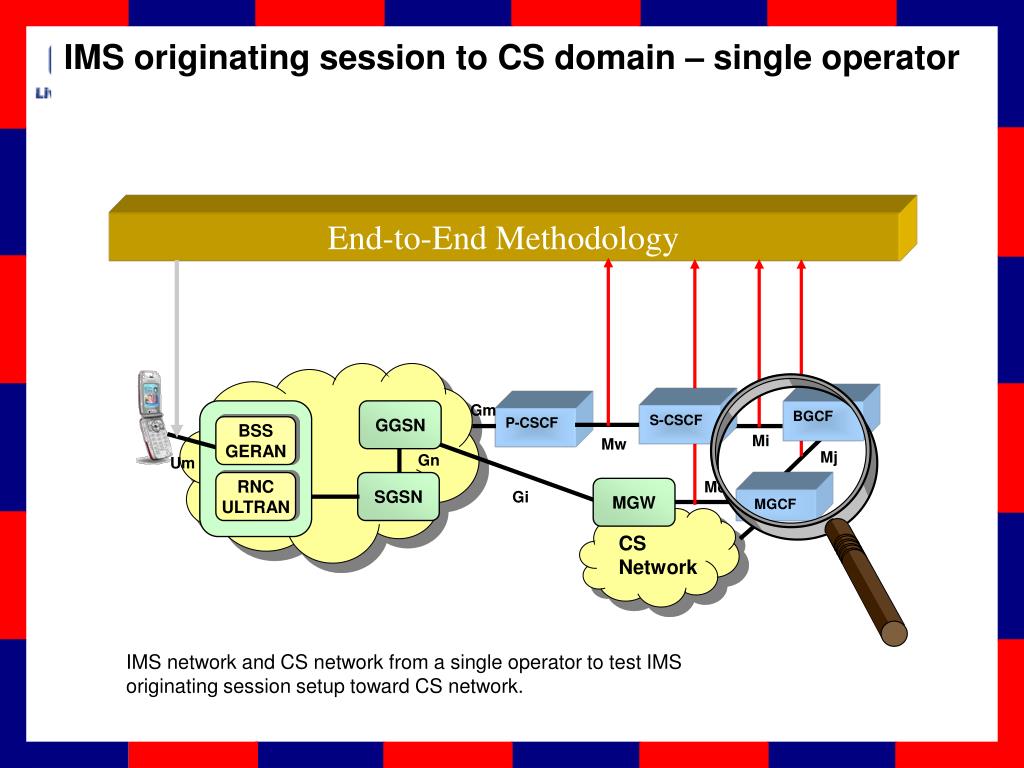

19. End-to-End Methodology Gm GGSN BGCF S-CSCF P-CSCF BSS GERAN Mi Mw Mj Gn Um Mc RNC ULTRAN SGSN MGW Gi MGCF CS Network IMS originating session to CS domain – single operator IMS network and CS network from a single operator to test IMS originating session setup toward CS network.

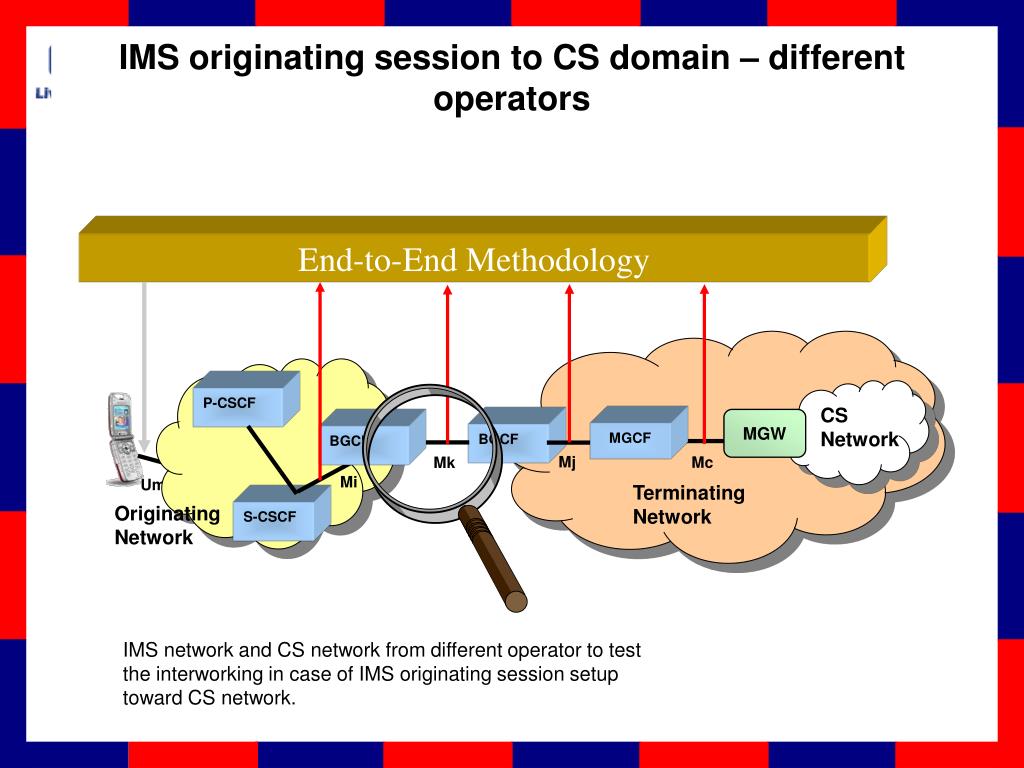

20. End-to-End Methodology P-CSCF CS Network MGW MGCF BGCF BGCF Mj Mc Mk Mi Um Terminating Network Originating Network S-CSCF IMS originating session to CS domain – different operators IMS network and CS network from different operator to test the interworking in case of IMS originating session setup toward CS network.

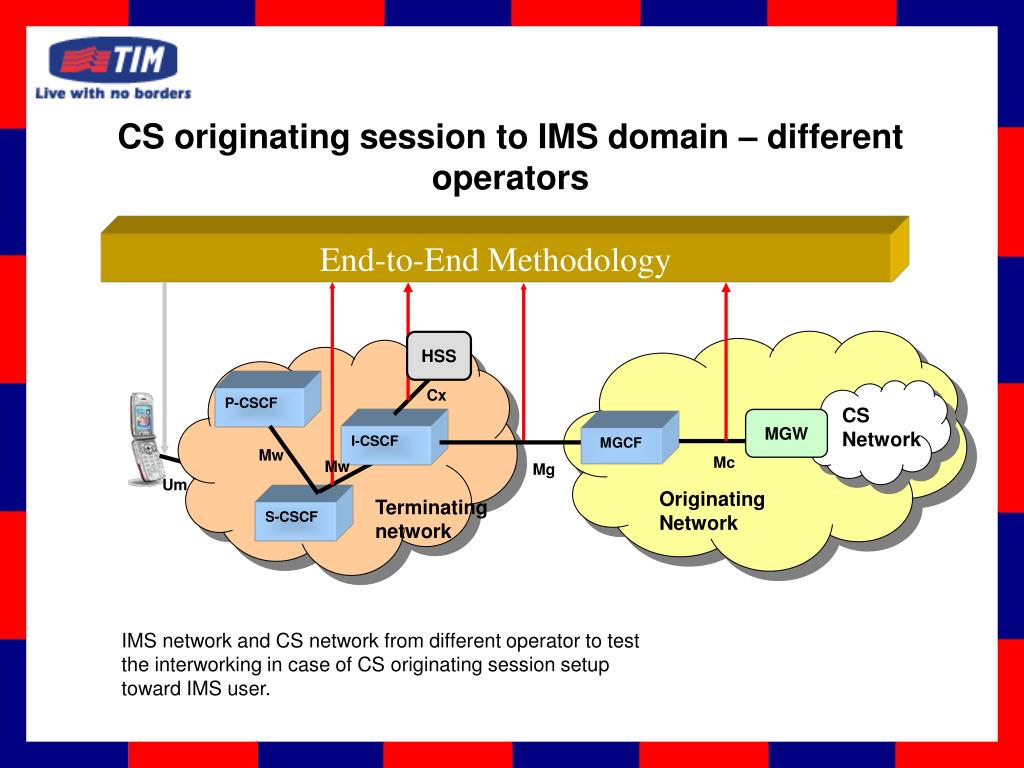

21. End-to-End Methodology HSS Cx P-CSCF CS Network MGW I-CSCF MGCF Mw Mc Mj Mw Mg Um Originating Network Terminating network S-CSCF CS originating session to IMS domain – different operators IMS network and CS network from different operator to test the interworking in case of CS originating session setup toward IMS user.

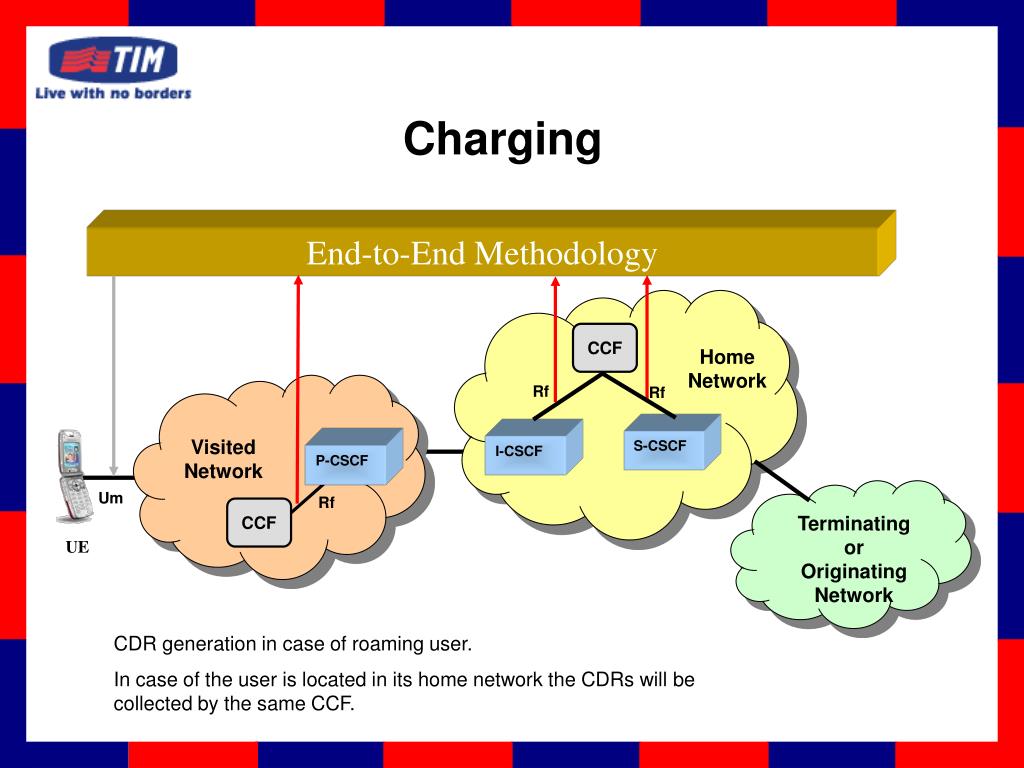

22. End-to-End Methodology CCF Home Network Rf Rf Visited Network S-CSCF I-CSCF P-CSCF Um Rf CCF Terminatingor Originating Network UE Charging CDR generation in case of roaming user. In case of the user is located in its home network the CDRs will be collected by the same CCF.

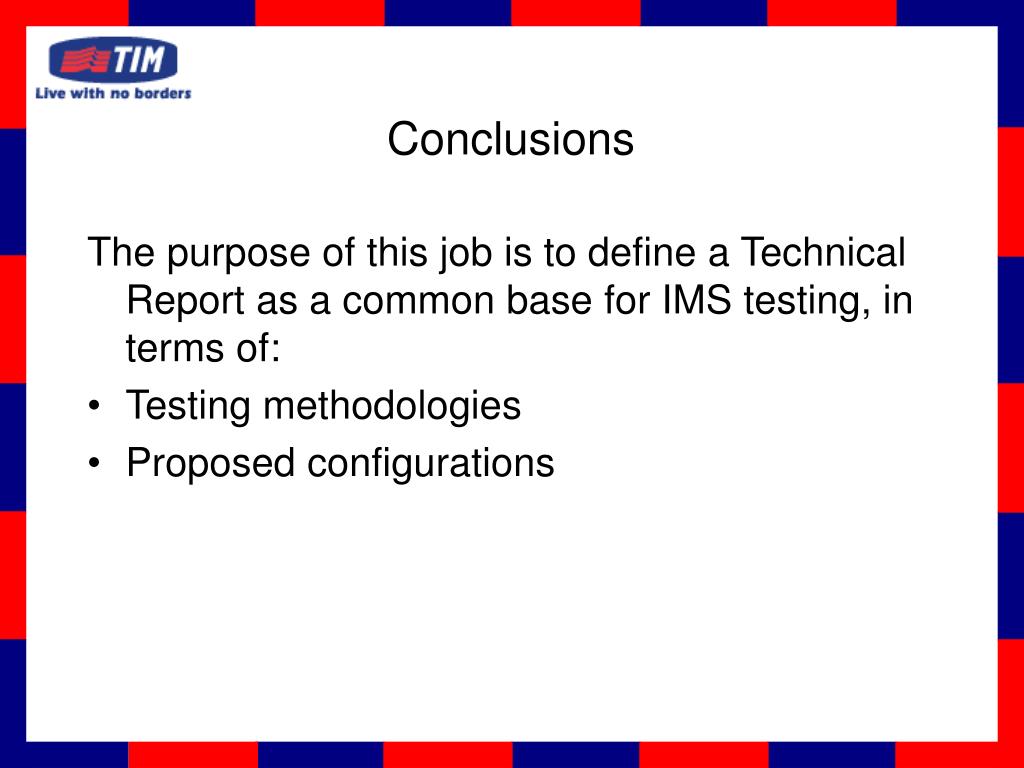

23. The purpose of this job is to define a Technical Report as a common base for IMS testing, in terms of: Testing methodologies Proposed configurations Conclusions
