  1. Privacy Preserving K-means Clustering on Vertically Partitioned Data Presented by: Jaideep Vaidya Joint work: Prof. Chris Clifton

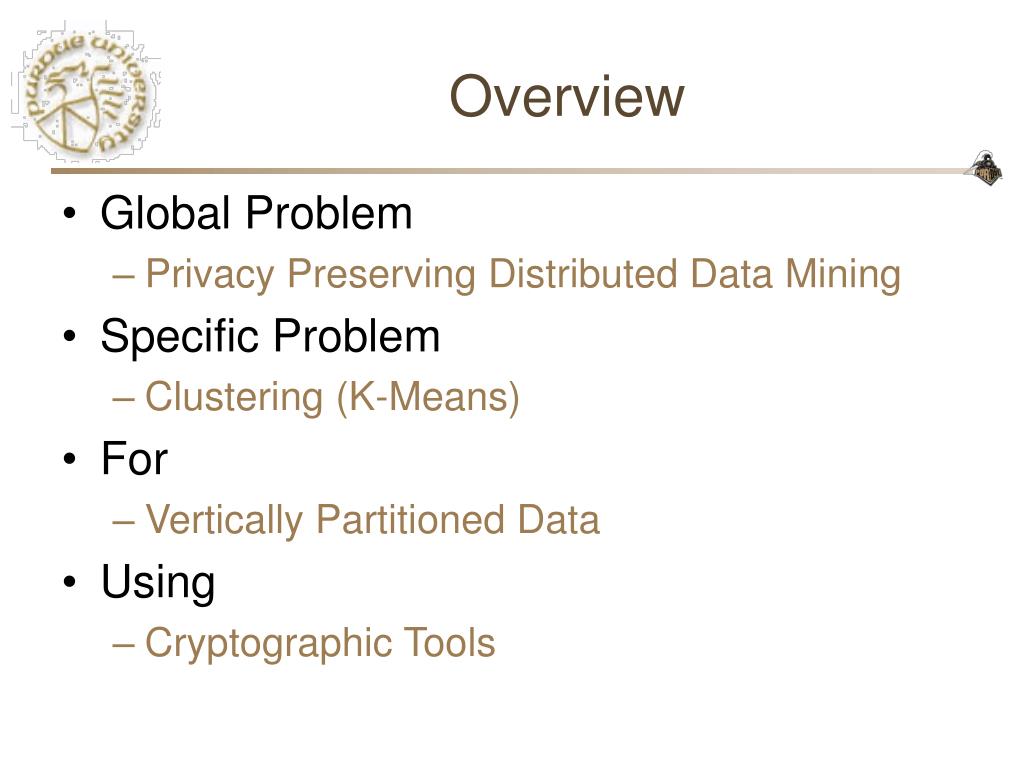

  2. Overview • Global Problem • Privacy Preserving Distributed Data Mining • Specific Problem • Clustering (K-Means) • For • Vertically Partitioned Data • Using • Cryptographic Tools

  3. Vertical Partitioning of Data Global Database View Cell Phone Data Medical Records

  4. Is the problem trivial?

  5. Privacy Preserving Data Mining • Perturbation • Agrawal & Srikant, Agrawal & Aggarwal, • Rizvi & Haritsa, Evfimievski et al. • Cryptographic • Lindell & Pinkas, Du & Zhan • Vaidya & Clifton, Kantarcioglu & Clifton

  6. Secure Multiparty Computation (SMC) • Given a function f and n inputs, distributed at n sites, compute the result while revealing nothing to any site except its own input(s) and the result.

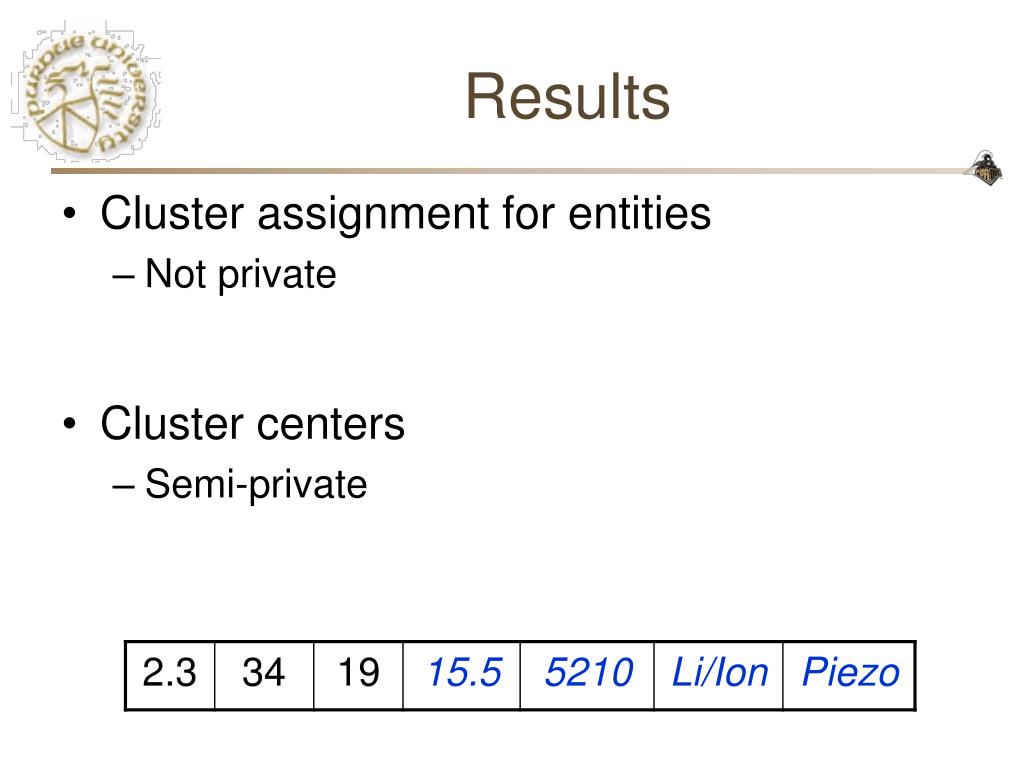

  7. Results • Cluster assignment for entities • Not private • Cluster centers • Semi-private

  8. Secure K-means clustering K-means clustering Arbitrarily select k starting points Repeat • Assign to respectively • (re)assign each object to closest cluster based on distance from mean • Re-compute the cluster means Until no change

  9. Assigning objects to closest cluster

  10. Key Idea • Disguise site components with random values • Compare distances while revealing only comparison result • Permute order of clusters to conceal meaning of comparison results

  11. Closest Cluster Computation • 3 special sites, P1, P2 and Pr • P1 generates • r random vectors such that • Permutation π (over 1 .. K)

  12. Permutation ProtocolDu and Atallah ’01 B A Homomorphic encryption: Ek(x)*Ek(y) = Ek(x+y)

  13. Closest Cluster Computation P2 P1 P3 P1 Pr Pr-1 Pr Stage 2 Stage 1

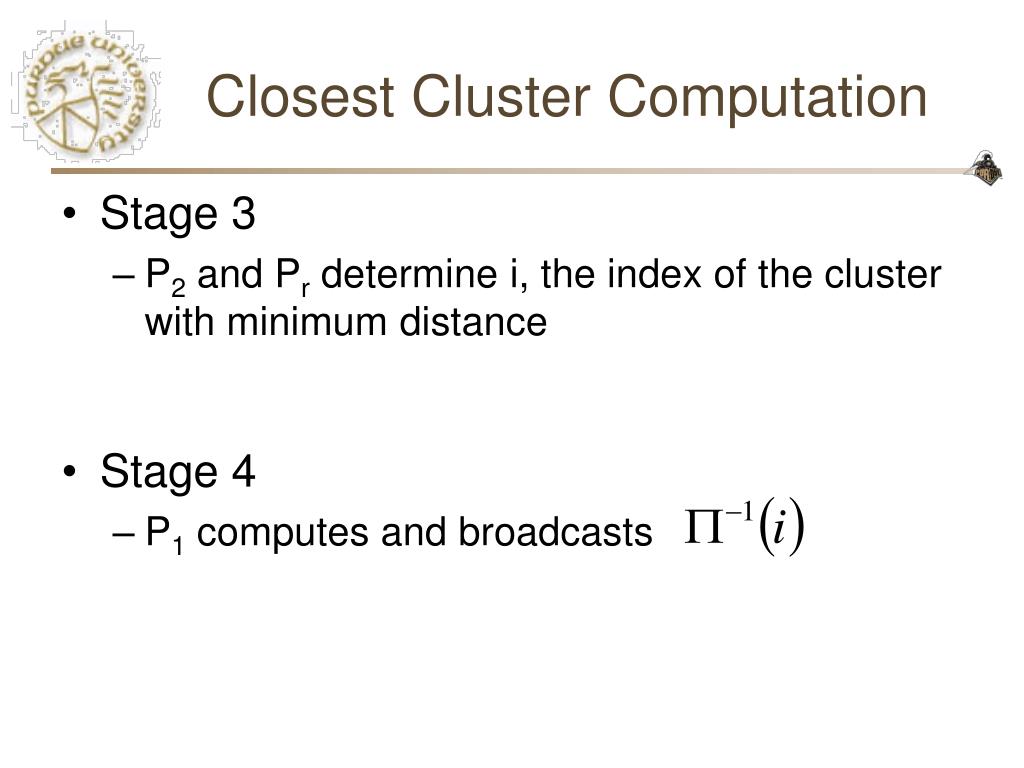

  14. Closest Cluster Computation • Stage 3 • P2 and Pr determine i, the index of the cluster with minimum distance • Stage 4 • P1 computes and broadcasts

  15. When to stop? • Locally compute difference in means • Globally known threshold • Use simple random-adding technique to disguise actual values • First party adds random value to its distance and sends to next party • Each party adds its value to total and sends on • Last party compares with first party’s random +threshold

  16. Communication Cost • r parties, n data elements, m bit distances

  17. Conclusion • Presented a solution for Privacy Preserving K-Means Clustering problem • How to use clusters? • Will parties share required information for the possible benefits? • Improve Efficiency • Working on EM-Clustering, implementations
