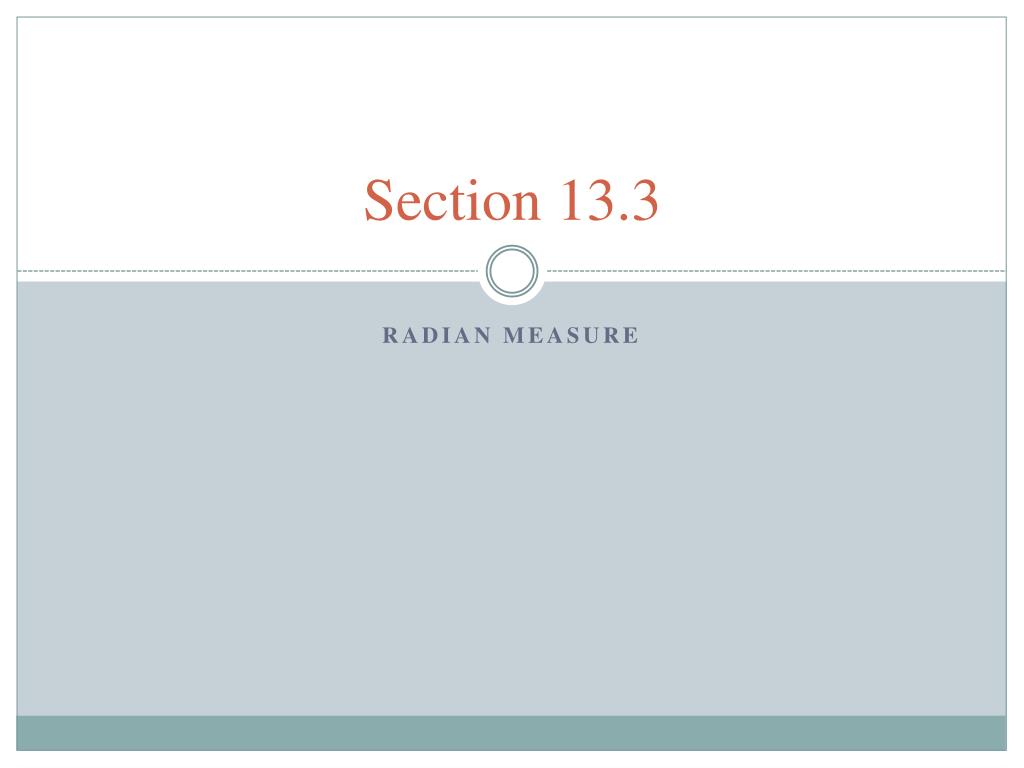

  1. Section 13.3 Radian Measure

  2. Central Angles Central Angle Example 8 60° 4 A central angle has its vertex at the center of the circle This is similar to the angles formed on the Unit Circle The cos(60°) on the Unit Circle is ½ Find cos(60°) if the radius is 8. Simplifying gives us ½

  3. Radian Measurements intercepted arc central angle r 1 radian r Any central angle will have its rays contact the circle. The portion of the circle on the interior of the angle is an intercepted arc If the intercepted arc has a length equal to the radius of the circle, the angle has a measurement of 1 radian

  4. Converting Measurements The circumference of a circle is 2πr making 2π radians in any circle We can change from degrees to radians using the following proportion: To convert degrees to radians, multiply by To convert radians to degrees, multiply by

  5. Practice: Degrees to Radians Write each measure in radians. Write each answer in terms of π and as a decimal rounded to the nearest hundredth. 1) –300° 2) 150° 3) –90° 4) –60° 5) 160° 6) 20° (5π)/6 2.62 –5π/3 – 5.24 –π/2 –1.57 –π/3 –1.05 8π/9 2.79 π/9 0.35

  6. Practice: Radians to Degrees Write each measure in degrees. Round the answer to the nearest degree, if necessary. 7) 3π 8) 11π/10 9) –2π/3 10) –3 11) 1.5712) 4.71 198° 540° –120° –172° 90° 270°

  7. Homework π 2 π 3 2π 3 3π 4 π 4 5π 6 π 6 0 π 2π 7π 6 11π 6 5π 4 7π 4 4π 3 5π 3 3π 2 For homework, use the conversion formulas to fill in the radian measurements on your Unit Circle diagram.

  8. Arc Length • We can use proportions to find the length of an arc contained inside of a central angle. • The length of an arc compared to the entire circle is proportional to the central angle to the circle • Simplifying this gives s = rθ Find the width of the parachute that is kept 22 ft from the person and fan out at 83°. 1) Convert 83° to radians. θ ≈ 1.45 radians 2) s = rθ = 22(1.45) = 31.9 ft

  9. Practice: Arc Length 13) 14) 15) c m t π 3 2π 3 9 ft 11π 6 3 cm 5 m m ≈ 51.84 t = π c ≈ 10.47 a 16) 17) 18) 11 cm 4π 3 6 in 2 m z 5π 4 3π 4 w a ≈ 25.13 w ≈ 4.71 z ≈ 43.20

  10. Uses Any application that involves orbit or circular travel can use radians and arc length Some examples are length of a curve in a road for civil engineering, satellite or planetary orbits, safe fan speeds, and etc. Colorado Springs is about 3082 miles form earth’s rotation axis. What is our rotational speed in miles per hour? • Find the θ we travel each hour. θ = (1/24) 2π = π/12 • Calculate s = rθ for the given situation s = 3082(π/12) ≈806.87 mph

  11. Two More Problems A freeway on-ramp has a radius of 150 ft and the driver completes a –305° arc while using the ramp. What is the distance that the driver covers? about 798.5 ft A ceiling fan’s outer tip is 2.5 feet from the center of rotation. The fan completes an average of 5 rotations each second. What is the speed of the blade tip in miles per hour? about 53.55 mph

  12. Completed Work We did exercises 1 – 12, 20 – 25, 27, and 47 starting on page 715. For extra practice do 26, and 28 – 42.
