  1. GUS Type 1 Maintainer Refresher Training SGS Type 1 Configuration Procedures

  2. Configuration Procedures • GUS Processor Type 1 - Chg Release 1 • Access Router - Chg Release 2 • Power Conditioner - Chg Release 1

  3. GUS Processor Type 1 Configuration

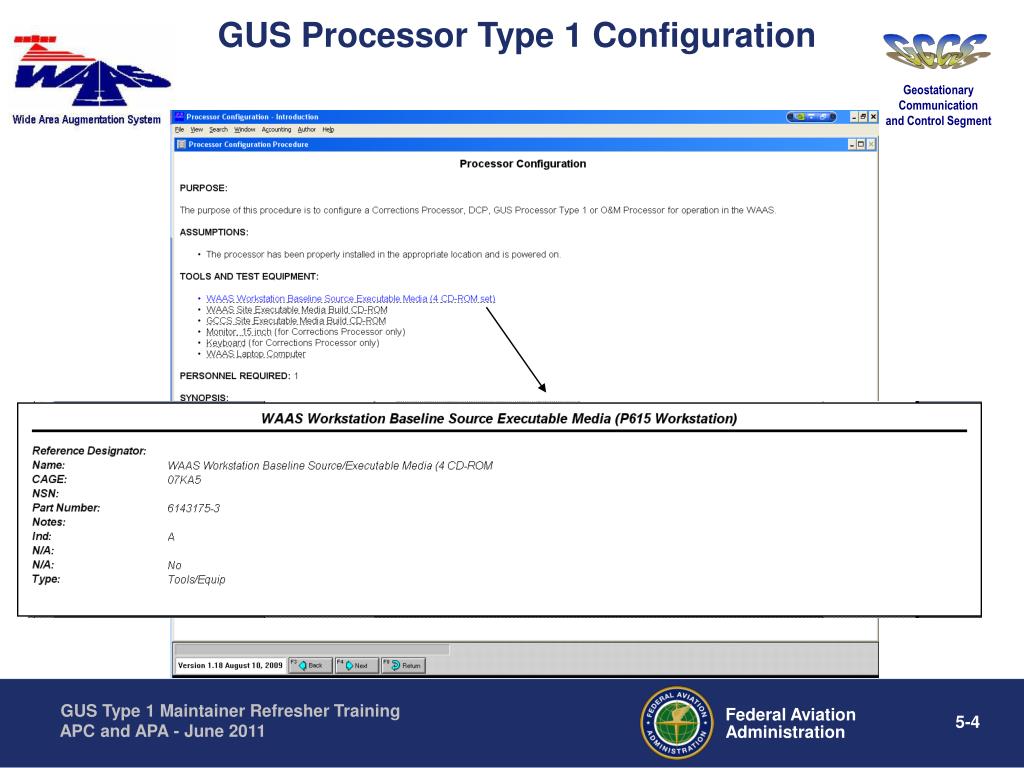

  4. GUS Processor Type 1 Configuration

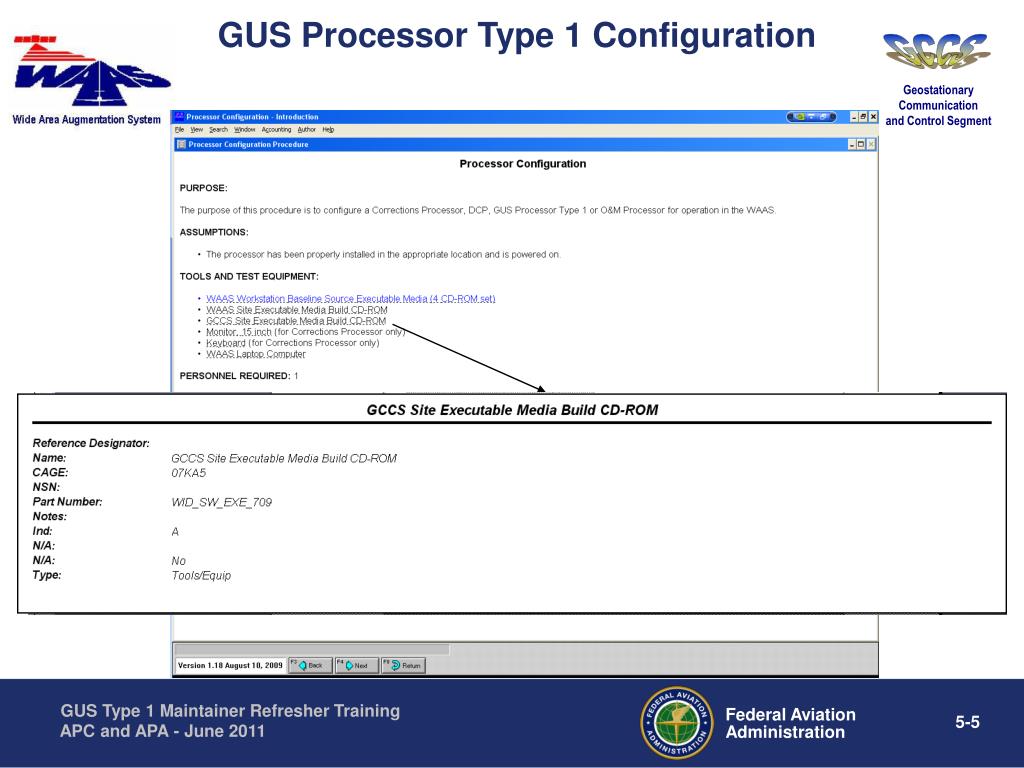

  5. GUS Processor Type 1 Configuration

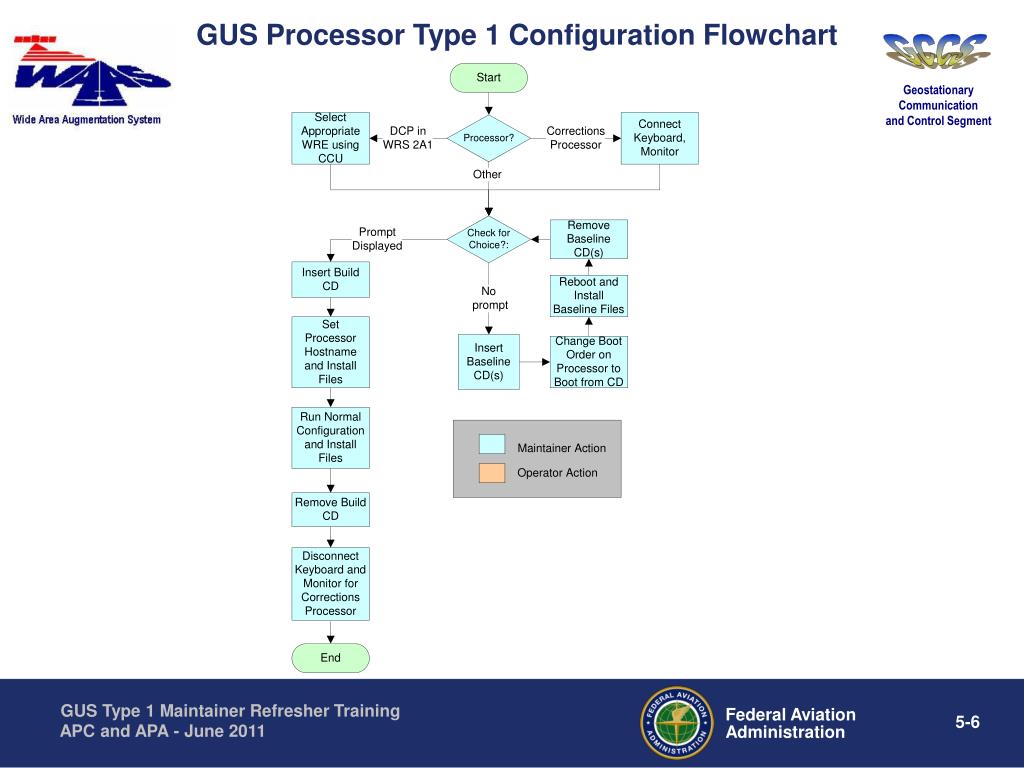

  6. GUS Processor Type 1 Configuration Flowchart

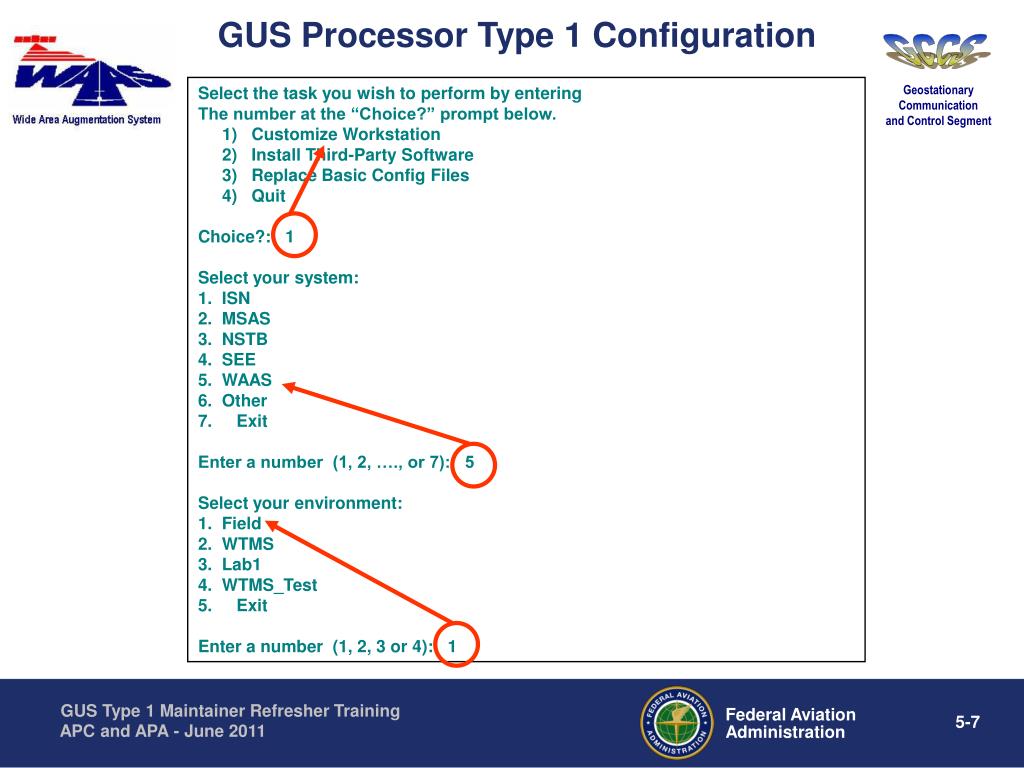

  7. GUS Processor Type 1 Configuration • Select the task you wish to perform by entering • The number at the “Choice?” prompt below. • 1) Customize Workstation • 2) Install Third-Party Software • 3) Replace Basic Config Files • 4) Quit • Choice?: 1 • Select your system: • 1. ISN • 2. MSAS • 3. NSTB • 4. SEE • 5. WAAS • 6. Other • Exit • Enter a number (1, 2, …., or 7): 5 • Select your environment: • 1. Field • 2. WTMS • 3. Lab1 • 4. WTMS_Test • Exit • Enter a number (1, 2, 3 or 4): 1

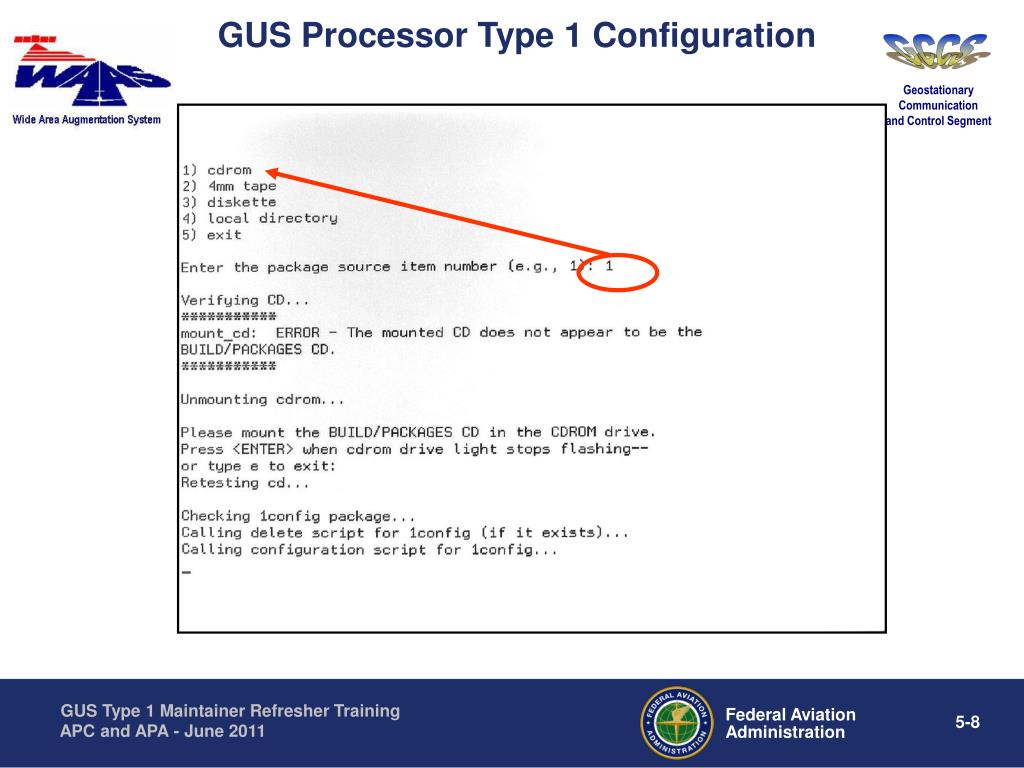

  8. GUS Processor Type 1 Configuration

  9. GUS Processor Type 1 Configuration wapcgusp1c1 10.205.1.101 wapcgusp1c1 wapcgusp1c1 10.205.1.101 Procedure in TIB has link To WAAS TIB Correlator.

  10. GUS Processor Type 1 Configuration 3 After all files are installed the processor will reboot. This takes approximately three minutes. After processor reboots, remove the CD-ROM from the DVD-ROM drive. Procedure is complete. 1

  11. GUS Processor Type 1 Baseline Configuration If you do not get Choice? displayed at beginning of configuration procedure, will have to reload the baseline by performing the following: • Insert WAAS Baseline Source/Executable Media Disc 1 of 4 into DVD-ROM drive • Power off the GUS Processor using the power button on front panel • Power on the GUS Processor • When IBM splash screen is displayed, press 1 after the keyboard icon is displayed, but before the speaker icon is displayed.

  12. GUS Processor Type 1 Splash Screen Press 1 after keyboard icon is displayed, but before speaker icon is displayed. This screen appears approximately 5 minutes after power on.

  13. SMS Main Menu Type 7 - Select Boot Options Type 2 - Configure Boot Device Settings Type 7 - Restore Default Settings Type X to eXit System Management Services Type 1 to select Yes

  14. GUS Processor Type 1 Baseline Configuration • The Processor will reboot and begin installing the baseline files. • After approximately 12 minutes, Please remove volume 1, insert volume2, and press the ENTER key will be displayed. • When prompted, remove volume 1 from DVD-ROM drive and insert volume 2. • Repeat the above step for volumes 3 and 4.

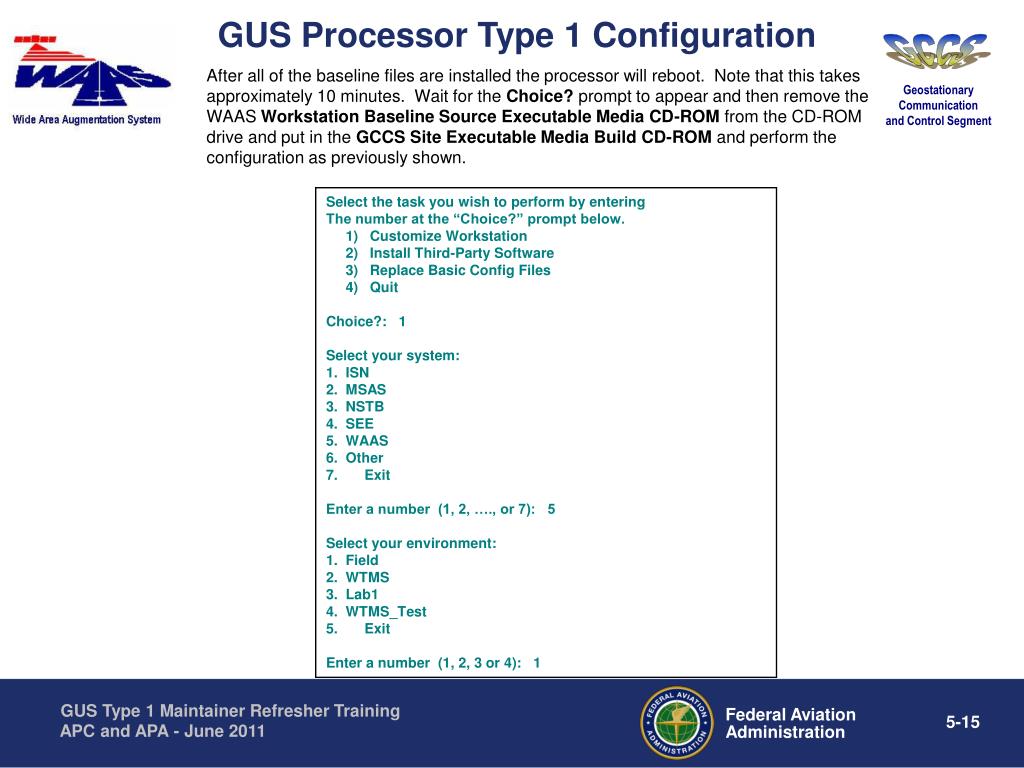

  15. GUS Processor Type 1 Configuration After all of the baseline files are installed the processor will reboot. Note that this takes approximately 10 minutes. Wait for the Choice? prompt to appear and then remove the WAAS Workstation Baseline Source Executable Media CD-ROM from the CD-ROM drive and put in the GCCS Site Executable Media Build CD-ROM and perform the configuration as previously shown. • Select the task you wish to perform by entering • The number at the “Choice?” prompt below. • 1) Customize Workstation • 2) Install Third-Party Software • 3) Replace Basic Config Files • 4) Quit • Choice?: 1 • Select your system: • 1. ISN • 2. MSAS • 3. NSTB • 4. SEE • 5. WAAS • 6. Other • Exit • Enter a number (1, 2, …., or 7): 5 • Select your environment: • 1. Field • 2. WTMS • 3. Lab1 • 4. WTMS_Test • Exit • Enter a number (1, 2, 3 or 4): 1

  16. Access Router Configuration GCCS Site Executable Media Build CD_ROM contains the Router IOS (c2600-entbase-mz.124-3.bin) and the site configuration file (i.e. wapcgus1.a76).

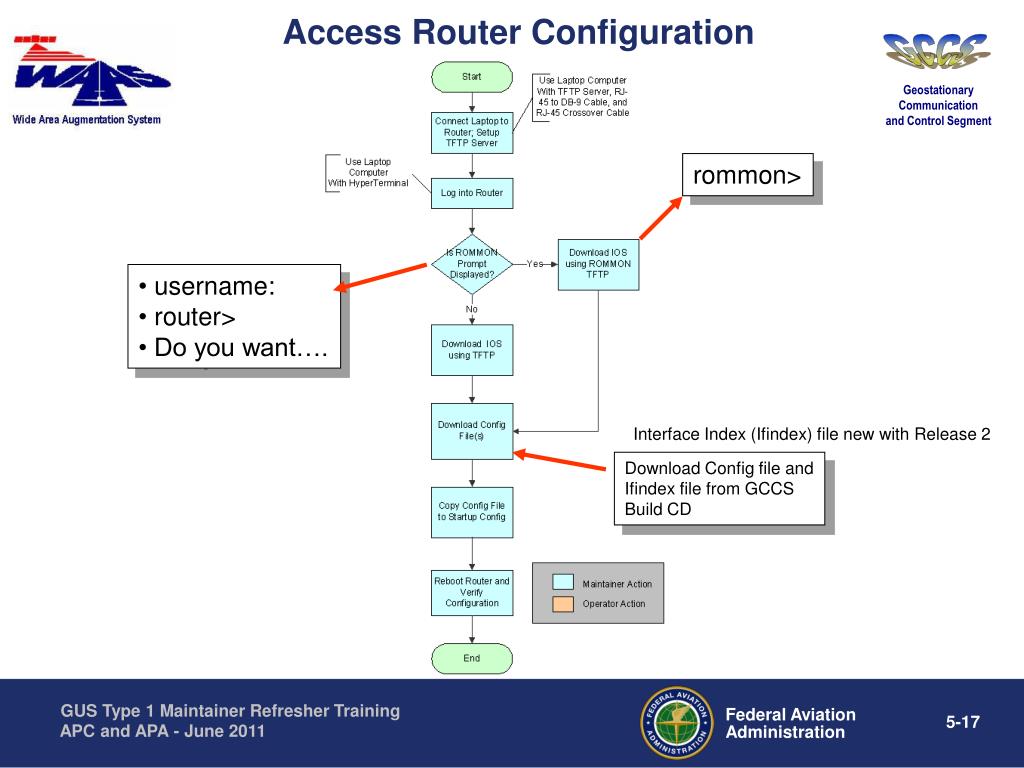

  17. Access Router Configuration rommon> • username: • router> • Do you want…. Interface Index (Ifindex) file new with Release 2 Download Config file and Ifindex file from GCCS Build CD

  18. Access Router Configuration RJ-45 to DB-9 Cable RJ-45 Crossover Cable c2600-entbase-mz.124-3.bin wxxxgusy.azz xxx = bre, or wbn y = 1 or 2 for network 1 or 2. zz= version of config file GCCS Site…… Build CD

  19. Power Conditioner Configuration Procedure

  20. Power Conditioner Configuration Procedure DB-9 – 3 wire adapter with gender changer DB-9 F to F Straight Thru Cable RJ-45 Crossover Cable Maintenance Laptop

  21. Power Conditioner Configuration Procedure

  22. Power Conditioner Configuration Procedure

  23. Power Conditioner Configuration Procedure

  24. Power Conditioner Configuration Procedure

  25. Power Conditioner Configuration Procedure

  26. Power Conditioner Configuration Procedure

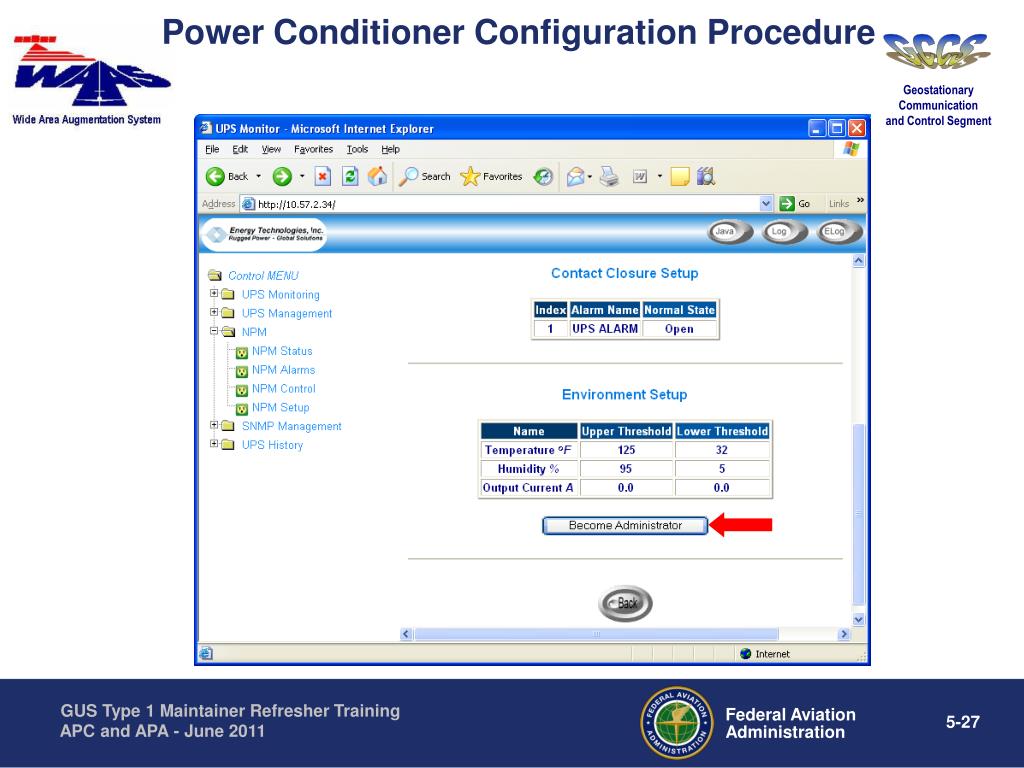

  27. Power Conditioner Configuration Procedure

  28. Power Conditioner Configuration Procedure TIB provides correct values for these settings Turned on in Release 2 For processor second power supply on PCU B A2A18

  29. Power Conditioner Configuration Procedure Note: After pressing the Set Value button, any Community String names entered will be hidden with an *

  30. Power Conditioner Configuration Procedure Note: After pressing the Set Value button, any Community String names entered will be hidden with an *

  31. Configuration Procedures Summary This lesson covered the following SGS Type 1 LRU configuration procedures: • GUS Processor Type 1 • Access Router • Power Conditioner

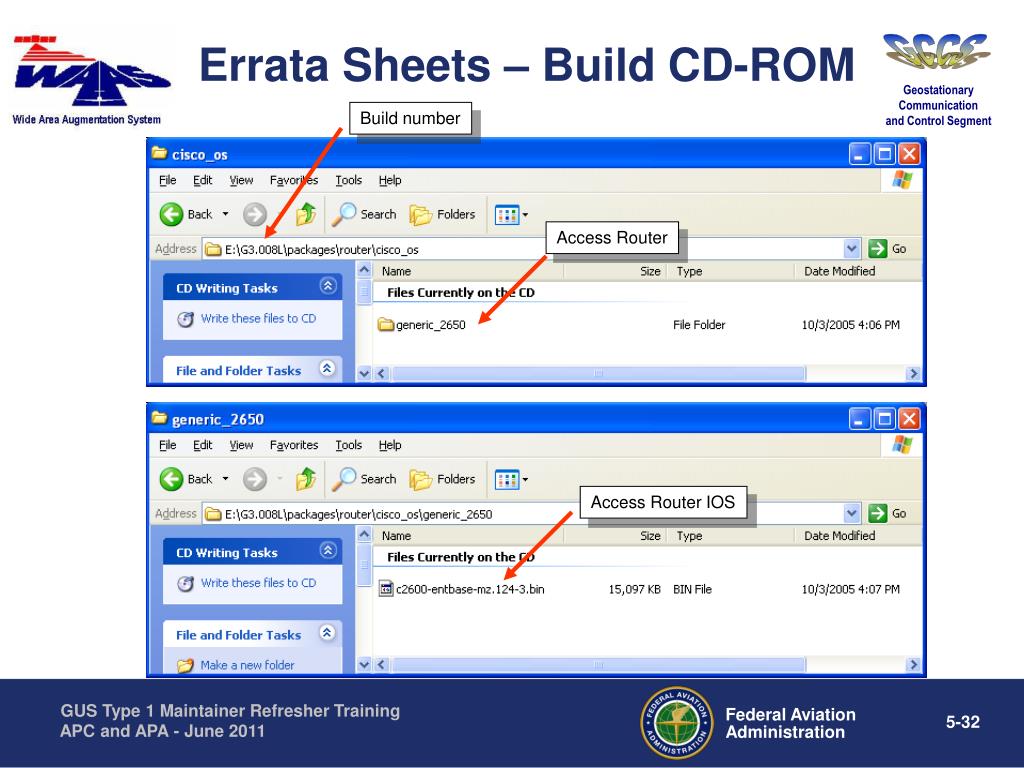

  32. Errata Sheets – Build CD-ROM Build number Access Router Access Router IOS

  33. Errata Sheets – Build CD-ROM Configuration Files for Cisco devices Access Router Configuration

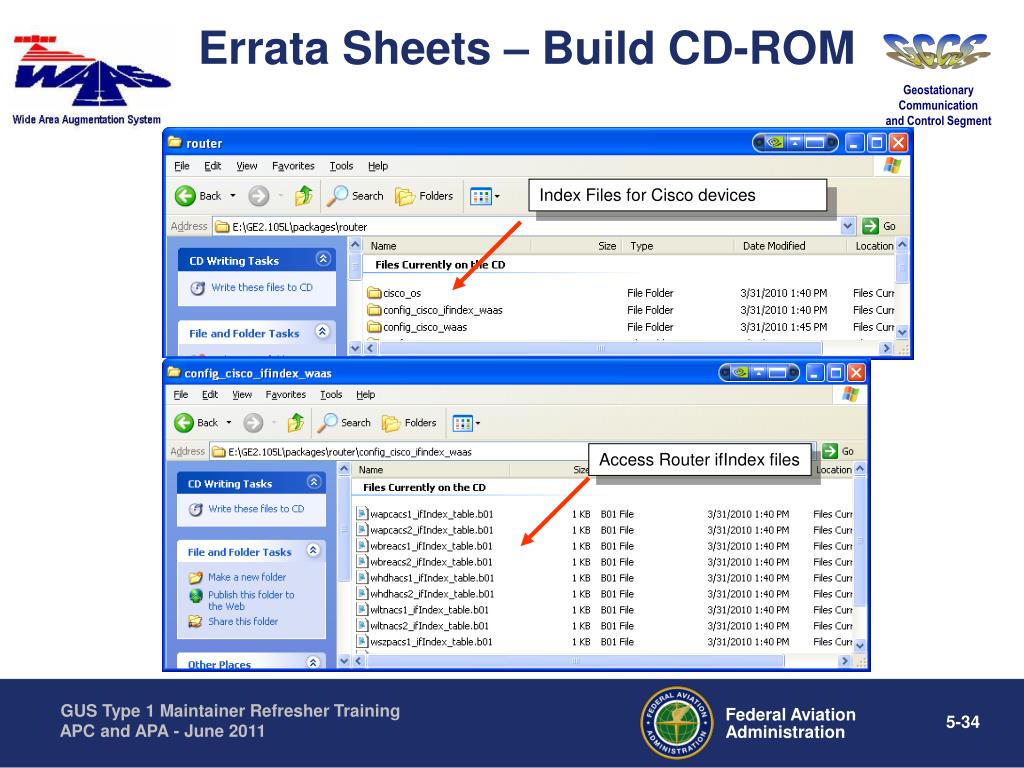

  34. Errata Sheets – Build CD-ROM Index Files for Cisco devices Access Router ifIndex files
