  1. Design of a Low-cost Acoustic Modem for Moored Oceanographic Applications Bridget Benson, Grace Chang, Derek Manov, Brian Graham, Ryan Kastner University of California Santa Barbara WUWNet Presentation September 25th 2006

  2. Outline • Motivation • Requirements • Design • Experimental Results • Meeting the Requirements for the SB CHARM • Future Work

  3. Motivation • To understand the ocean we must be able to observe large regions for long periods of time • Such data could help predict earthquakes, tsunamis, or spread of a toxic algal bloom • Platforms to measure large sets of data for long periods have been and are being established

  4. Cabled Observatories Martha’s Vineyard Coastal Observatory LEO NEPTUNE

  5. Moorings • MBARI Ocean Observing System (MOOS) • EOM cable in this mooring system parted in a storm on December 15, 2002.

  6. Mooring Modem Requirements • Sensor to Modem Interfacing • Packaging • Power • Low Cost • Data Transmission Range • Data Transmission Rate • Oceanic Motion Resistance • Acoustic Interference

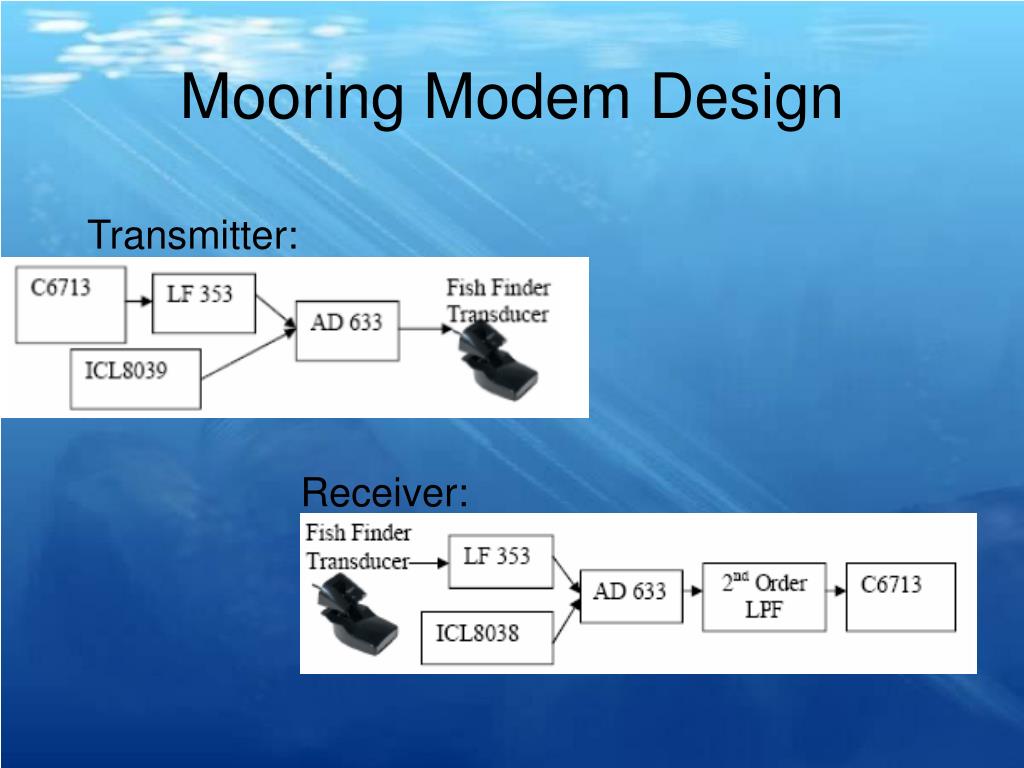

  7. Mooring Modem Design Transmitter: Receiver:

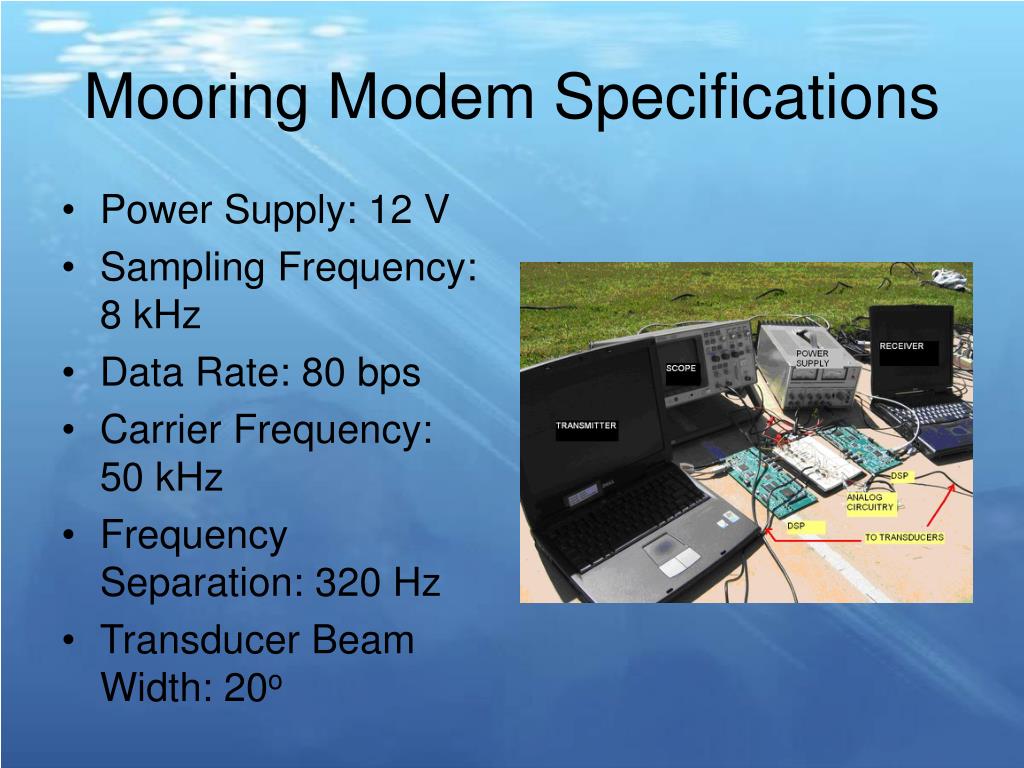

  8. Mooring Modem Specifications • Power Supply: 12 V • Sampling Frequency: 8 kHz • Data Rate: 80 bps • Carrier Frequency: 50 kHz • Frequency Separation: 320 Hz • Transducer Beam Width: 20o

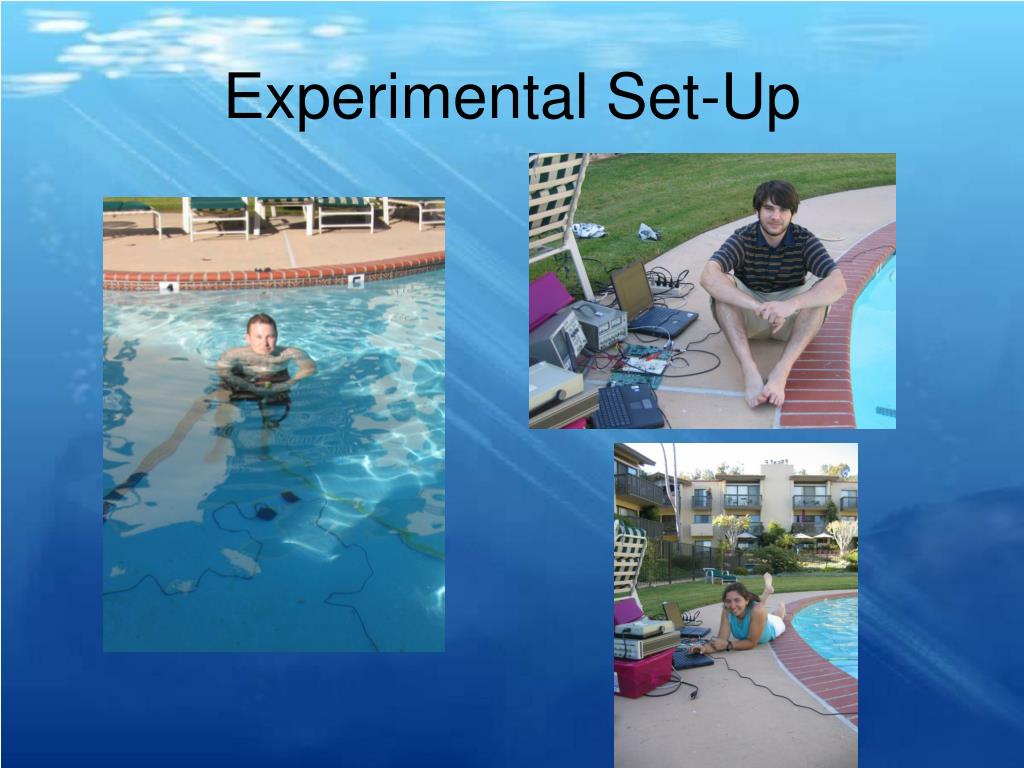

  9. Experimental Set-Up

  10. Experimental Results

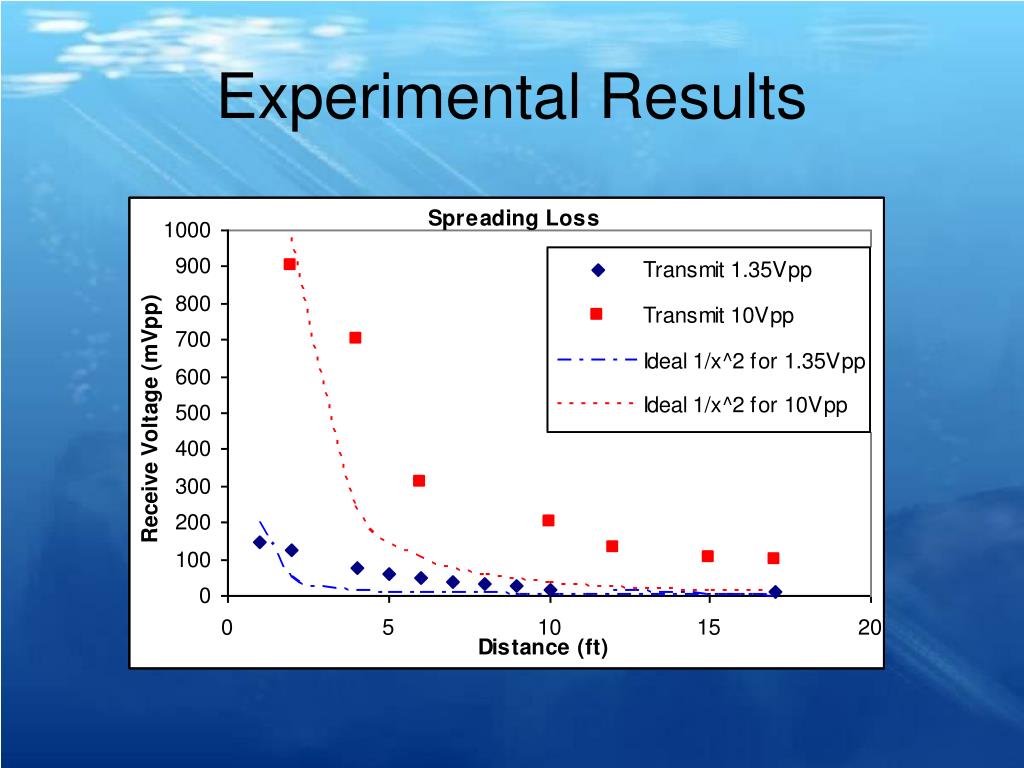

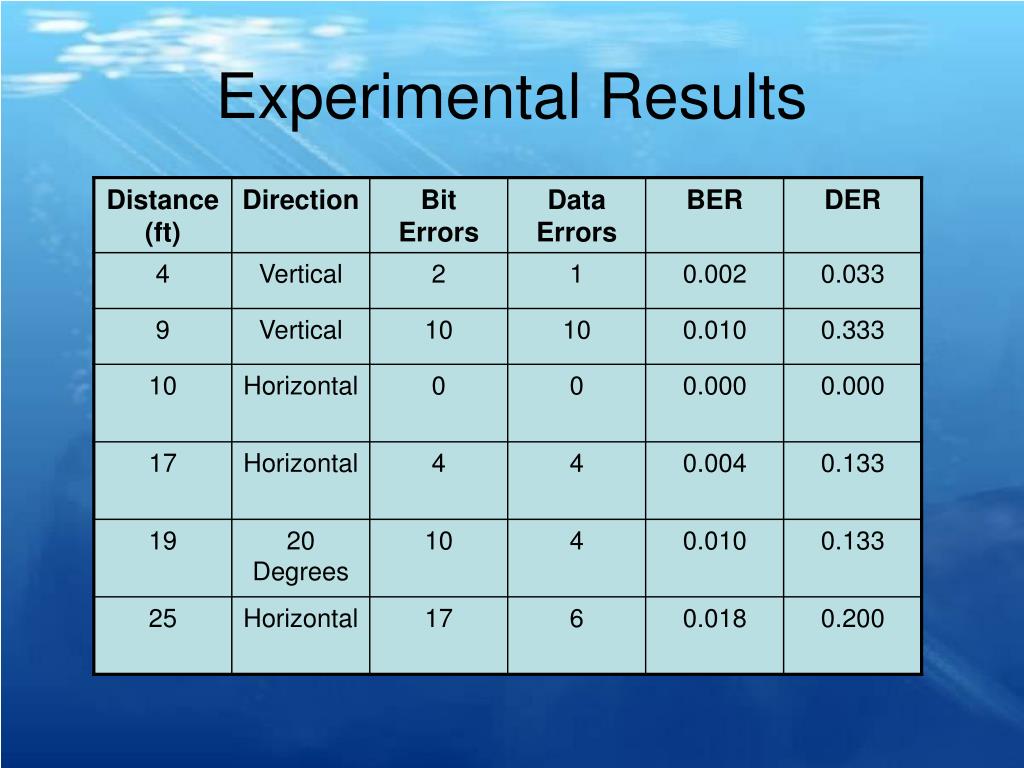

  11. Experimental Results

  12. SB CHARM

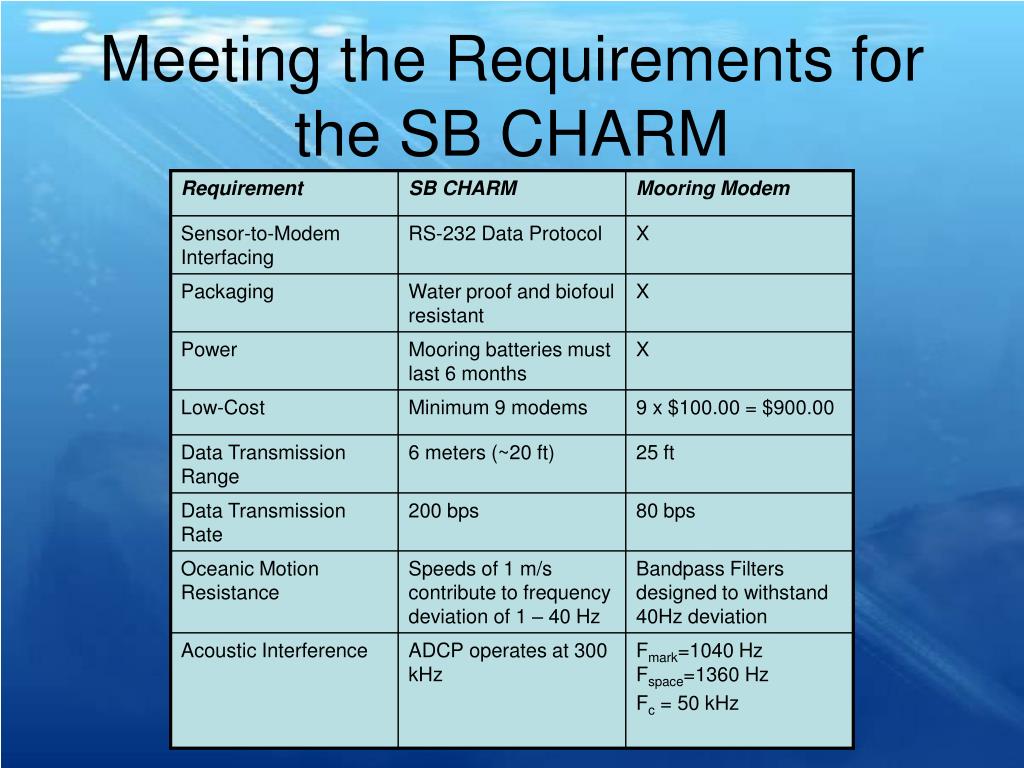

  13. Meeting the Requirements for the SB CHARM

  14. Future Work • Determine actual power consumption and battery life of mooring modems • Reduce size of the Mooring Modem design and waterproof the electronics • Implement error correcting codes to reduce the BER • Determine how to network the Mooring Modems • Interface the Mooring Modem with oceanographic sensors using RS-232 protocol • Test the Mooring Modem on the SB CHARM at depths 0, 4, 10, and 22m
