Case 1: Constant v

Case 1: Constant v. d 2 y/dt 2 – v 2 d 2 y/dx 2 = 0 Is f(x – v t) a solution for any f? What does a simple solution look like?. y = exp[i (k x – w t)] {can also use cos( ) or sin( )}. What is the relation between k & w ?. w 2 = v 2 k 2 a w = v k or w = – v k.

bruce-nguyen
Télécharger la présentation

Case 1: Constant v

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Case 1: Constant v d2y/dt2 – v2 d2y/dx2 = 0 Is f(x – v t) a solution for any f? What does a simple solution look like? y = exp[i (k x – w t)] {can also use cos( ) or sin( )} What is the relation between k & w? w2 = v2 k2 aw = v k or w = – v k What is the relationship between k and l and w and T? k = 2 p / l and w = 2 p / T

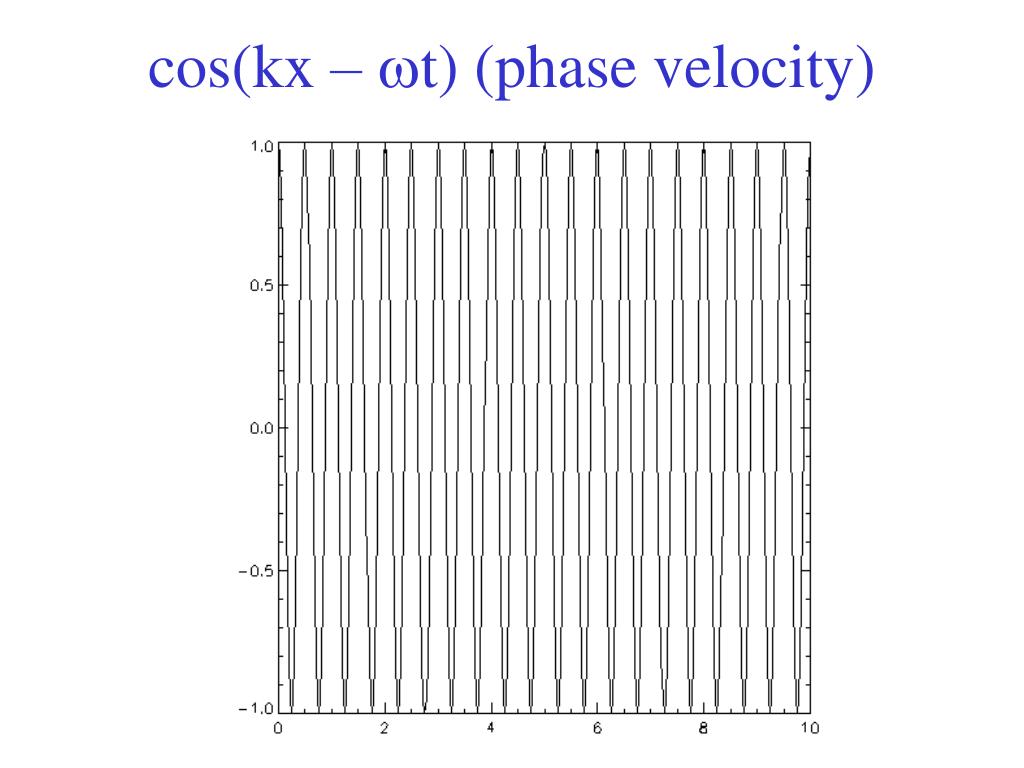

  2. cos(kx – wt) (phase velocity)

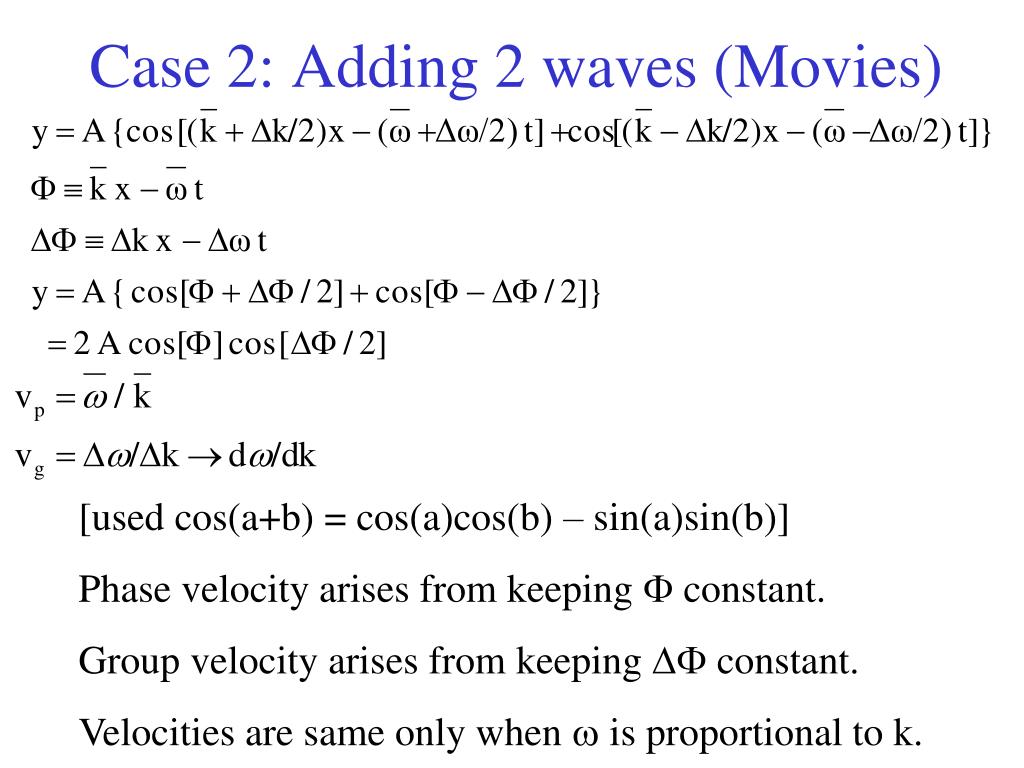

  3. Case 2: Adding 2 waves (Movies) [used cos(a+b) = cos(a)cos(b) – sin(a)sin(b)] Phase velocity arises from keeping F constant. Group velocity arises from keeping DF constant. Velocities are same only when w is proportional to k.

  4. Group velocity = Phase velocity

  5. Group velocity > Phase velocity

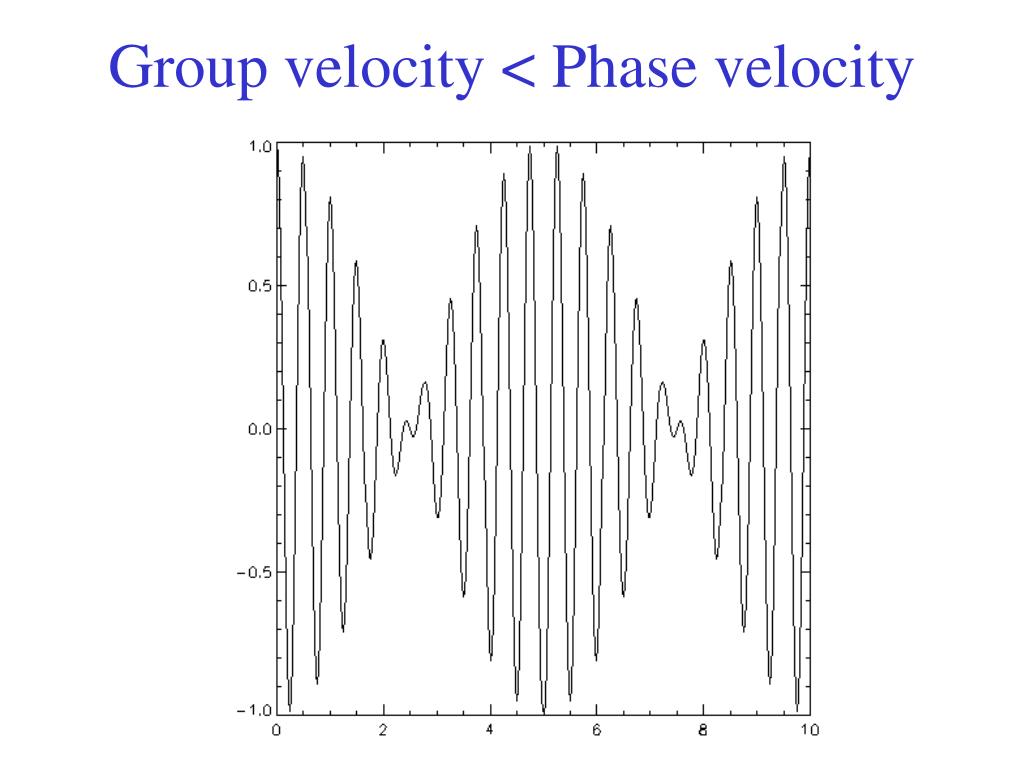

  6. Group velocity < Phase velocity

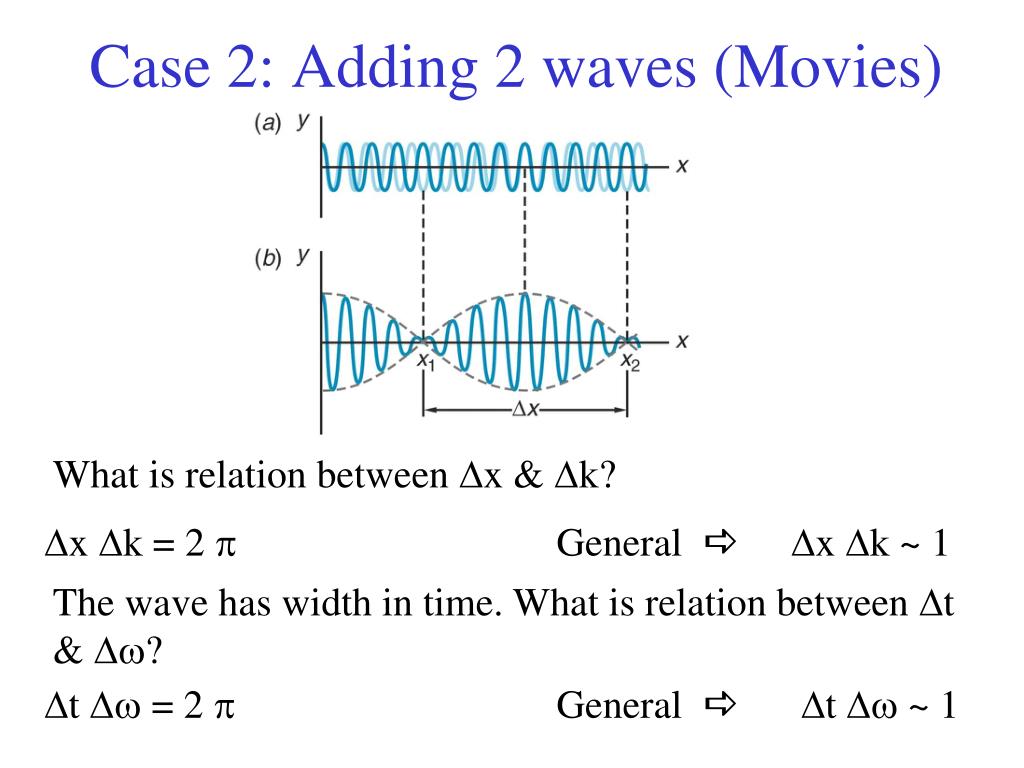

  7. Case 2: Adding 2 waves (Movies) What is relation between Dx & Dk? Dx Dk = 2 p General a Dx Dk ~ 1 The wave has width in time. What is relation between Dt & Dw? Dt Dw = 2 p General a Dt Dw ~ 1

  8. Adding Many Waves Make a wave at (t=0) by adding {cos[k x] + cos[(k+Dk)x] + cos[(k-Dk)x] + cos[(k+2Dk)x] + cos[(k-2Dk)x] + …}/N What will this look like as number of terms increase? Specific calculation with k = 10 p and Dk = p/4 Not important but can get simple expression for sumSum = cos[kx] sin[(2N+1) Dk x/2]/{(2N+1) sin[Dk x/2]}
