LISST-SL plots. R0681302. Pump takes ~2 mins to lock in Data no good. R1091106. No apparent issue with pump voltage. Apart from the 2 high conc values and open-ended PSD data looks good. R1101437. Pump not locked on for the first minute; possibly lock-on after 1 min?

bryga
Télécharger la présentation

LISST-SL plots

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. LISST-SL plots

  2. R0681302 Pump takes ~2 mins to lock in Data no good

  3. R1091106 No apparent issue with pump voltage. Apart from the 2 high conc values and open-ended PSD data looks good

  4. R1101437 Pump not locked on for the first minute; possibly lock-on after 1 min? Upcast probably OK. Note constant tau, but variation in MC. PSD looks fine.

  5. R1101500 Pump not locked on. Data not OK.

  6. R1120717 Velocity very low, so pump shuts off then starts up again.

  7. R1120727 Pitot tube contamination, not reliable data.

  8. R1121523 Pump resetting. Data not OK.

  9. R1121618 Pump resetting after ~1 minute. First minute may be OK..

  10. R1160408 Pump seems to track towards the end, last ~10 data points should be OK.

  11. R1301058 Pump never locked in. Data no good (velocity, depth OK). Why max velocity in the middle?

  12. R1301440 Pump never locked in. Data no good (velocity, depth OK).

  13. R1301447 Excellent pump lock-in and tracking of velocity. Good PSD, good concentration.

  14. R1311450 Excellent pump lock-in and tracking of velocity.

  15. R1311507 Good pump lock-in for the last half.

  16. Kickapoo Creek nr Bloomington

  17. Kickapoo Creek nr Mattoon

  18. Senachwine Creek at Chillicothe

  19. VC vs MC, linear

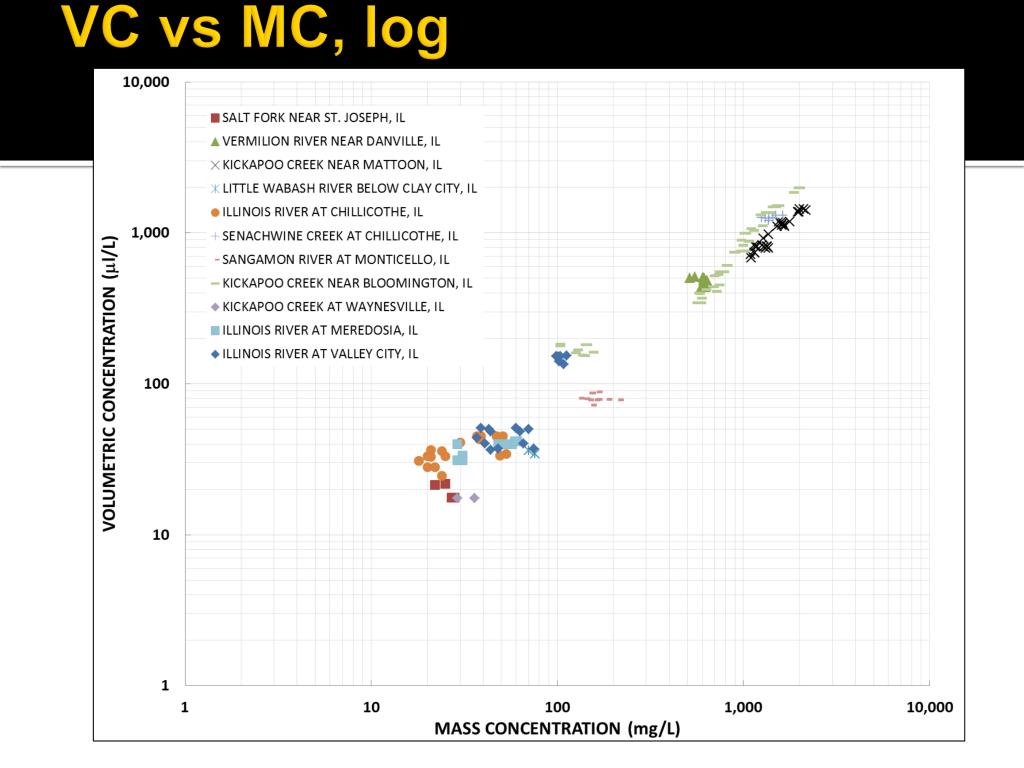

  20. VC vs MC, log

  21. MC/VC vs tau

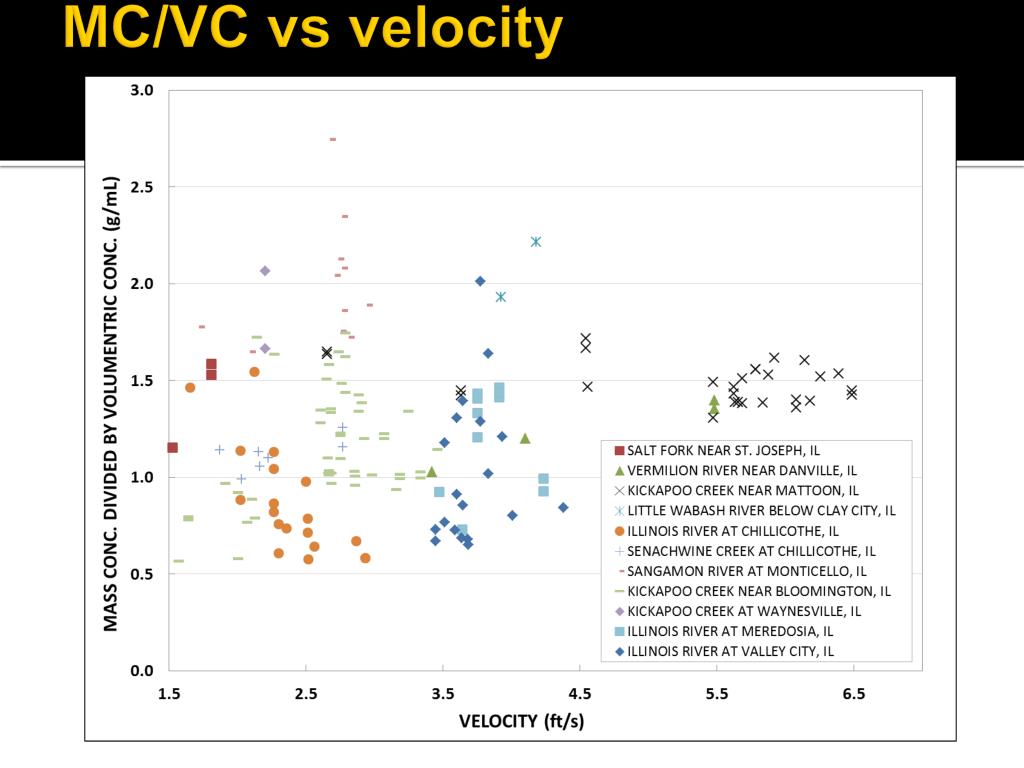

  22. MC/VC vs velocity

  23. MC/VC vs Mass%<0.0625mm

  24. MC/VC vs Volume%<0.0625mm
