  1. Computational Model Builderfor Simulating DredgingOperations Matthew Bailey ERDC ITL 10/24/2012 See instructions for customizing these images on slide 3.

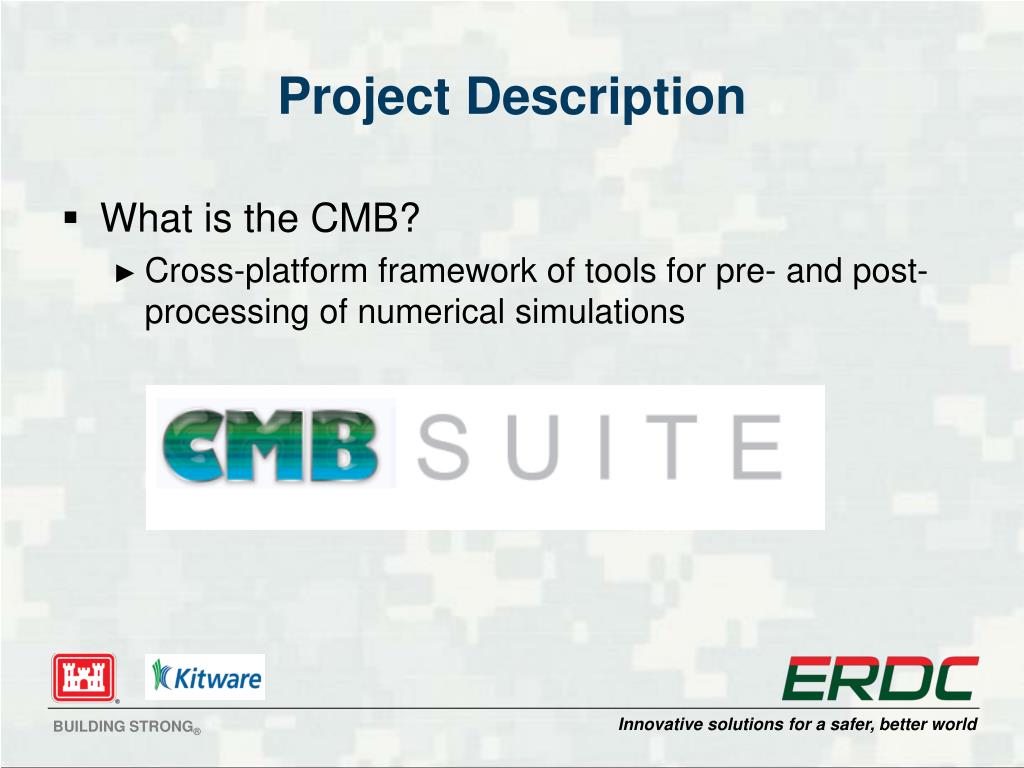

  2. Project Description • What is the CMB? • Cross-platform framework of tools for pre- and post-processing of numerical simulations

  3. Large, Complex Domains • Minimize 2D/3D mesh manipulation on desktop • Set up problems on geometry • Tag surfaces of shells (3D) or edges (2D) for boundary conditions • Separate geometric model from computational model • Postpone building the computational mesh until the very end

  4. Client/Server http://www.bestbuy.com/site/ http://www.erdc.hpc.mil/systemNews/Cray_XT4/home HPC • Run as client-only or client-server • Save model files on HPC or on client • Build meshes on HPC or on client • Visualize HPC results without moving data

  5. Cross-Platform • Researches running on multiple platforms • Mac OSX, Windows, Linux • Built on top of OpenGL, QT, VTK, and ParaView • Plugin framework

  6. Scene Builder Points Builder Model Builder Sim Builder Mesh Viewer Meshing and Simulation Model Builder 6

  7. Sim Builder GUI is dynamically built from XML template

  8. User Configurable

  9. Large Scatter Datasets

  10. Cross-Sections

  11. Generating Arcs

  12. Splitting Arcs and Creating BC Sets Left: Spliting an arc Right: Creating an edge boundary condition set

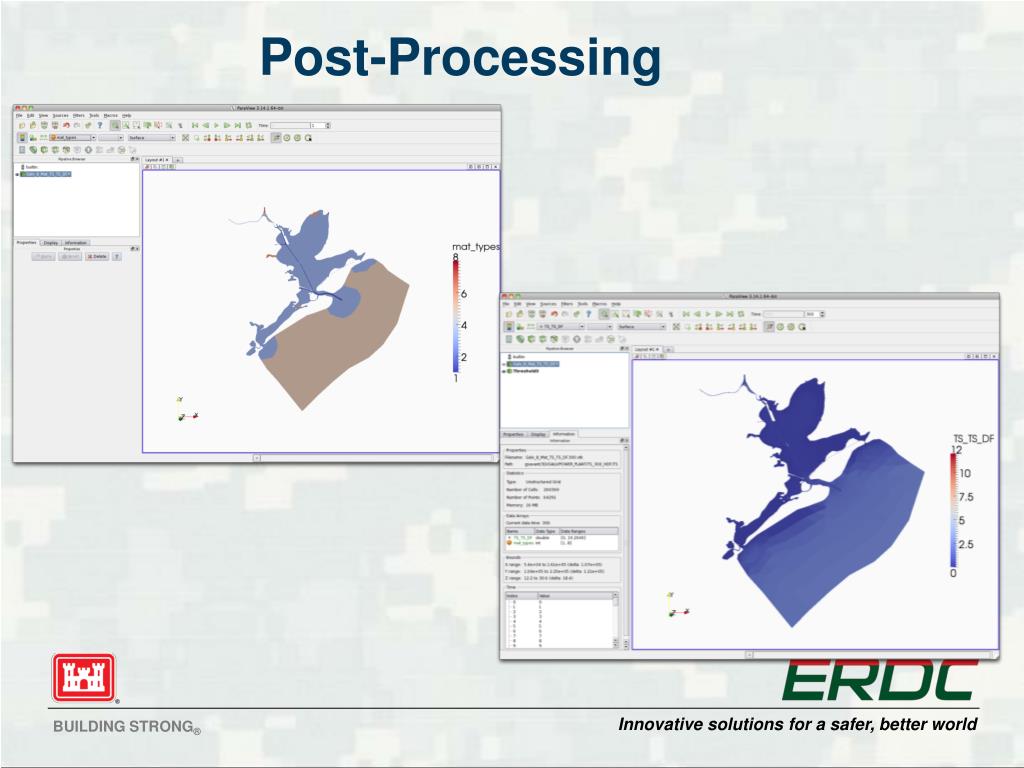

  13. Post-Processing

  14. Post-Processing

  15. Future Work • Need 2D/3D mesh generators • Mesh refinement • CAD support • Geology modeling

  16. Team Members ERDC Stacy Howington Kevin Winters Owen Eslinger Jennifer Tate Jeffrey Hensley Barbara Donnell Jeff Allen David Smith Kitware Inc. Robert O’Bara Rusty Blue Andy Bauer Robert Maynard Yumin Yuan AashishChaudhary

  17. Contact Info Amanda Hines ERDC ITL Amanda.M.Hines@usace.army.mil
